Navig8r m35 User manual

www.navig8r.com.au/m35
1
TABLE OF CONTENTS
Contents:
HARDWARE
1 Important Notices and Warnings ......................................................4
1.1 Global Positioning System.................................................................................4
1.2 Precautions..........................................................................................................4
2 Getting Started....................................................................................5
3 Getting to Know Your M35 Navig8r...................................................5
4 Warnings..............................................................................................6
5 Before Using Your GPS Unit.................................................................6
6 Mounting the GPS Unit in Your Vehicle.............................................6
7 Connecting the Car Charger ............................................................7
8 Main System Menu .............................................................................8
8.1 Main Title Bar .......................................................................................................9
8.2 Battery Status ......................................................................................................9
8.3 Navigation Icon..................................................................................................9
8.4 Multimedia...........................................................................................................9
8.5 Photo..................................................................................................................10
8.6 E-Book Viewer ...................................................................................................12
9 System Menu.....................................................................................13

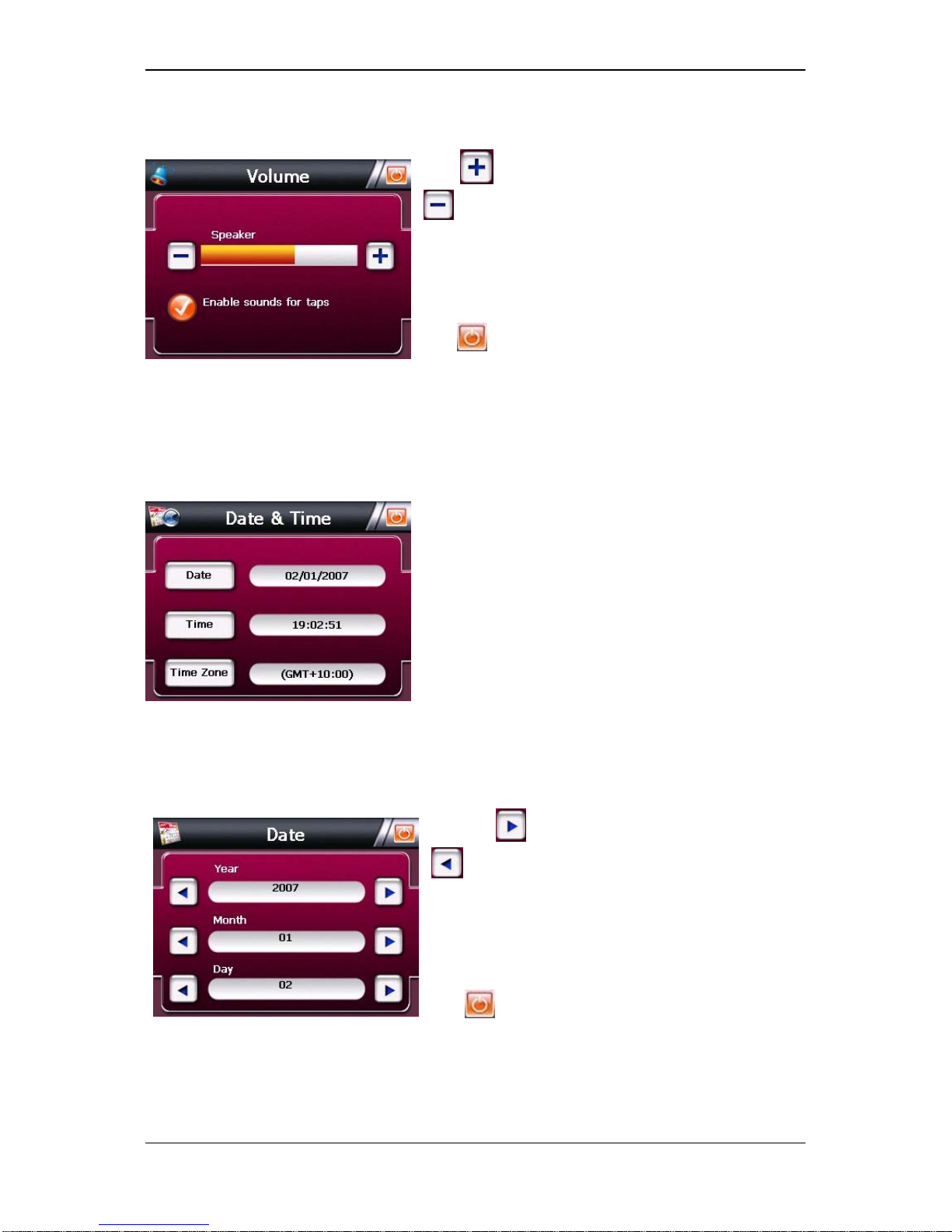

9.1 Volume Setting..................................................................................................14
9.2 Date and Time Settings ...................................................................................14
9.3 Language..........................................................................................................15
9.4 Power..................................................................................................................16
9.5 Backlight ............................................................................................................16
9.6 Sys Info................................................................................................................17
10 Connecting the GPS to the Computer..........................................18
11 Transferring Files Using an SD Card Reader..................................18
12 Windows XP and Windows 2000....................................................18
13 For Vista Users..................................................................................19
14 Trouble Shooting .............................................................................20
NAVIGATION
15 Before Using the M35 Navig8r Please Read the Following.........22
16 Key Features....................................................................................22
17 Getting Started with Your M35 Navig8r GPS System ...................22
18 Main Map Screen ...........................................................................24

www.navig8r.com.au/m35
2
TABLE OF CONTENTS
18.1 Next Turn by Name / Turn By Turn Menu .....................................................26
18.2 Low GPS Satellite Signal Warning Message ...............................................26
18.3 Quick Options Menu......................................................................................26
18.4 GPS Signal Indicator.......................................................................................27
18.5 Battery Level Indicator...................................................................................28
18.6 Next Turn Indicator / Repeat Last Spoken Direction Button....................29
18.7 (& 15) Zoom In and Out of Maps................................................................29
18.8 Speed and Red Light Camera Alert............................................................30
18.9 Exit to Main Menu Button ..............................................................................30
18.10 Current Speed Indicator / Speedo / Trip Statistics Button .....................30
18.11 Current Position Indicator............................................................................32
18.12 Route Overlay...............................................................................................32
18.13 Current Road / ETA Indicator .....................................................................32
18.14 Speed /Red Light Camera Location.........................................................32
18.16 Scrolling Maps...............................................................................................32
18.17 Immanent Direction Icon............................................................................33
19 The Main Menu................................................................................34
19.1 The “Navigate To” Menu...............................................................................34
19.1.1 Entering Your Destination by an Address.............................................35
19.1.1.1 Entering Your Destination by the 3 Step Wizard .........................35
19.1.1.2 Entering Your Destination Using Quick Step Method.................37
19.1.1.3 Tips and Tricks for Selecting Your Destination..............................37
19.1.1.4 Fine Tuning the Destination............................................................38
19.1.1.5 Trip Preferences ...............................................................................40
19.1.2 Search for Places (Points of Inerest or POI)..........................................41
19.1.3 Recent Places ..........................................................................................43
19.1.4 Favourites..................................................................................................44
19.2 Options Menu .................................................................................................45
19.2.1 Look & Feel................................................................................................45
19.2.2 Trip Options ...............................................................................................47
19.2.3 Sound.........................................................................................................48
19.2.4 Start Demo................................................................................................48
19.2.5 Help............................................................................................................48
19.2.6 About.........................................................................................................49
20 Updating the Software for the M35 Navig8r.................................49
21 Adding Your Own Points Of Interest (POI) Data to the M35 .......50
22 Frequently Asked Questions..........................................................51

www.navig8r.com.au/m35
3
HARDWARE
Hardware

www.navig8r.com.au/m35
4
IMPORTANT NOTICES AND WARNINGS
Important Notices and Warnings
Global Positioning System
The Global Position System (GPS) is a satellite-based system that provides location
and timing information around the globe.
GPS is operated and controlled under the sole responsibility of the Government of
the United States of America, who are responsible for its availability and accuracy.
Any changes in GPS availability and accuracy or in environmental conditions, may
impact the operation of your M35 Navig8r. We cannot accept any liability for the
availability or accuracy of GPS.
Precautions
For your safety and the safety of other road users, do not operate the controls of this
M35 Navig8r while driving. Use care when operating this M35 Navig8r. This product is
intended to be used only as an aid to navigation. It is not intended for precises
measurement of direction, distance, location of topography.
The calculated route is for reference only. It is the user’s responsibility to follow all
local traffic regulations and traffic signs when driving. Local conditions and
regulations may change at short notice and not be include in the
software/mapping data in this product.
When leaving your vehicle, do not leave the M35 Navig8r on the dashboard of the
car. It should be removed and placed in a secure place along with the windscreen
mount and power supply cable. Do not leave the M35 Navig8r in direct sunlight
when not driving the vehicle. Overheating of the battery may cause damage or
cause the M35 Navig8r to malfunction. Extreme overheating may cause the battery
to leak or worse.
GPS is operated by the Government of the United States of America, which is solely
responsible for the performance of GPS. Any changes to the GPS system can affect
the accuracy of all GPS equipment.
GPS satellite signals cannot pass through solid materials with the exception of glass.
When travelling through tunnels or inside buildings, such as parking stations, GPS
positioning is not available. Time taken for the M35 Navig8r to require satellite signals
when emerging from tunnels or buildings may vary and depend on atmospheric
conditions and the environment.
A minimum of 4 GPS satellite signals is required to determine the M35 Navig8rs
current location. Signal reception can be affected by atmospheric conditions such
as; bad weather, thick clouds, solar activity and dense overhead objects such as
trees, tall buildings and large road signs. Wireless devices can also interfere with
satellite reception.
The use of devices with antenna is prohibited on most aircraft, most hospitals and
other locations that contain sensitive equipment. The M35 Navig8r should not be
used in these environments.

www.navig8r.com.au/m35
5
GETTING STARTED
Getting Started
Unpack the box and identify the contents. You should have the following,
Item Description Item Description
1 The M35 Navig8r GPS unit 2 Holder
3 Windscreen Mount 4 Car Charger
5 USB Data Cable 6 4GB SD Card pre-fitted to GPS
7 User Manual (This Document)
Getting to Know Your M35 Navig8r
Item Description Item Description
1 Touch Screen Panel 2 Charge Indicator Light
3 Lanyard Slot (Lanyard Not Supplied) 4 External GPS Antenna Socket
5 Speaker 6 Earphone/Audio Out Jack
7 USB Connection 8 Reset Button
9 HCSD Card Slot 10 GPS Antenna (Internal)
11 Power Saving Button 12 Stylus Recess

www.navig8r.com.au/m35
6
WARNING
Warnings
This M35 Navig8r should not be used in conditions of high temperature, high humidity
or dusty conditions. We recommend that the M35 Navig8r is not left in direct sunlight
for extended periods or left fitted to the windscreen or dashboard of the vehicle
while unattended.
Prolonged exposure to high temperature may cause the M35 Navig8r to malfunction
and even permanent damage to the M35 Navig8r.
There are no user serviceable parts in this device. Opening the device may cause
harm and damage the device. Any attempt to disassemble this device will void the
warranty.
Before Using Your GPS Unit
Please check the contents of the packaging and ensure that all equipment is
located and identified and the supplied SD card is inserted into the SD slot of the
device. The protective screen cover may be left on the device but may impede the
viewing of the device in normal operation.
Connect the GPS to the USB port of your computer for a period of 24 hours in the first
instance to charge and condition the battery. It may take several charge/discharge
cycles for the device to reach peak endurance.
Subsequent charging should take less time to complete.
Once the initial charge has been completed, turn the unit on by pressing and
holding the power button located on the top of the unit for 3 seconds. The M35
Navig8r should start at the System Main Menu.
Prior to using the GPS system for the first time it is recommended that the touch
screen be calibrated. Please see the system setting instructions further on in this
manual.
Mounting the GPS Unit in Your Vehicle
Fit the windscreen mount to the holder which you have attached to the rear of the
GPS unit and test mount the GPS on the windscreen of the car. Choose a position
that will not obstruct your vision whilst driving but that will also provide the GPS unit
the best coverage of the sky through the windscreen. The mount stem can be bent
to offer the best viewing.
This M35 Navig8r should only be fitted on fixed windows.
Once the best location has been determined, remove the protective film from the
suction cap of the windscreen mount and on clean glass fit firmly against the

www.navig8r.com.au/m35
7
CONNECTING THE CAR CHARGER
windscreen. Push the tab located on the top of the suction cup towards the
windscreen. The fitting is made with 5 different settings for controlling the level of
suction required. For best results it is recommended that the suction cup be
moistened before fitting. Changes in temperatures and condensation may cause
the suction cup to become loose and should be checked on a regular basis. To
avoid damage and theft, the GPS should not be left on the windscreen mount
overnight.
To remove the mount from the windscreen, take hold of the mount in one hand and
use the other to move the buttons on the side of the tab away from the mount.
Locate the plastic tab on the side of the suction cup and gently pull away from the
windscreen to break the seal.
N.B: Tinted windows may impede the M35 Navig8rs ability to detect the GPS satellites
correctly.
Connecting the Car Charger
Caution: To protect the GPS against the possibility of damage, caused by power
surges when the vehicle is started, the charger should not be connected to the GPS
device when the vehicle is started.
The car charger supplies power to the device when it is being used in the vehicle.
Connect the USB plug to the USB socket of the GPS and then fit the other end in to
the cigarette/power out let of your vehicle once the vehicle has been started.
The charge light indicator on the GPS should glow when connected to power.
The GPS can now be started by pressing the power button on the top of the device
for about 3 seconds. The GPS will start at the Main System Menu.
When starting the GPS in the vehicle it may take a short period of time for the system
to acquire a valid GPS signal. Please make sure that the GPS unit has a clear view of
the sky and is not impeded by trees, awnings, and car ports and similar obstructions.
To turn the GPS off, press and hold the power button for 3 seconds. The M35 Navig8r
will be powered down and the position in the menu structure saved; when the M35
Navig8r is started again it will start up in the same screen or position in the program it
was in when it was turned off.

www.navig8r.com.au/m35
8
MAIN SYSTEM MENU
Main System Menu
Item Title Description
A Main Title Bar Displays the current location within the menu
structure.
B Battery Status Icon Shows the current level of battery charge/ Power
connection.
C Navigation Icon Launches the Navigation software.
D Multimedia Icon Launches the Multimedia playback function.
E Photo Icon Launches the Photo display function.
F System Icon Enters the Main System Setup menu.
G E-Book Icon Launches the E-book viewer function.
H Time Display Displays current system time.
Main Menu Explained
Note: Prior to launching Navigation program or any features, please ensure that the
card is inserted correctly in the SD card slot on the side of the unit. If the GPS system
has been sitting for a long period without use, please remove the card from the slot
and reinsert the card in the slot. Repeat 2 or 3 times to ensure that good contact is
made.

www.navig8r.com.au/m35
9
MAIN SYSTEM MENU
1 Main Title Bar
The Main Title bar displays the title of the screen currently on display.
2 Battery Status
This icon displays the current level of charge contained in the battery if the GPS is
connected to an active external power source. The GPS unit will also display
warning screens if the battery level gets too low and requires charging when not
connected to an external power supply.
3 Navigation Icon
Tapping this icon launches the main Navigation software. Please refer to part 2 of
the manual for detailed instructions.
4 Multimedia
1) Tap the MultiMedia icon on the Main Menu. The folder interface will be
displayed.
2) Tap the folder icon that contains the files to be played. These folders are
created on the card when the files are transferred.
Select the MP3 or MP4 file to be played. The player will launch automatically and
begin playing the selected file.

www.navig8r.com.au/m35
10
MAIN SYSTEM MENU
If Mp4 files are selected for playback, they will be automatically be played in full
screen mode. To access the playback controller touch the screen. Playback will be
paused and the controls as shown above will be displayed. To resume playback,
simply touch the screen again.
To stop playback and return to the main menu press the return button (I).
5 Photo
1) Tap photo on the main Menu Screen and enter the folder view.
.
2) Tap the folder that contains the images that are to be displayed.
A Time/position for current file
B Stop playback of current file
C Play previous file
D Volume level control
E Pause/Play current file
F Current file name
G Play next file
H Return to previous menu
I Stop and return to Main
Menu

www.navig8r.com.au/m35
11
MAIN SYSTEM MENU
3) To start a full screen slide show of all images in the current folder tap the “Full
Screen” icon. The slide show will display all files in the current folder and
repeat until the screen is taped.
4) Tap on the image to display the following screen.
A Show previous image file
B Show next image file
C Return to previous menu
D Current image name
E Zoom in on image
F Zoom out on image
G Rotates image 90° clockwise
H Displays image in full screen.
Note: If the image is too big to be displayed or the format is not supported the
display may go black until an image in a compatible format or size is selected.
TIP) When the Zoom feature is in use the image can be “dragged” to display parts of
the image outside the current viewing area. Place the stylus or the tip of your finger
on the image and drag lightly across the screen to move the image.
Tap the icon to exit and return to the Main Menu.

www.navig8r.com.au/m35
12
MAIN SYSTEM MENU
6 E-Book Viewer
1) To display eBooks, tap the eBook icon in the Main Menu.
2) Tap on the folder that contains the text file to be displayed.
3) Tap on the file that you wish to read and the test veiwer wil start
automatically.
A Current file name
B Stop viewer and return to Main Menu
C Display previous page
D Display next page
E Return to previous menu
F Page and chapter select
G Current page number being
displayed

www.navig8r.com.au/m35
13
SYSTEM MENU
System Menu
Tap the System icon in the main menu to display the System menu.
Item Title Description
A Main Title Bar Displays the current location within the menu
structure.
B Date and Time Sets the systems time date and time zone.
C Language Sets the language displayed in the main system
D Power Displays current battery charge status
E Return Returns to previous menu.
F Back Light Sets the backlight level and power settings
G System Info Display hardware/software version & Touch screen
calibration

www.navig8r.com.au/m35
14
SYSTEM MENU
Volume Setting:
Tap on the Volume Icon to adjust the Volume setting of the system.
Tap to increase the system volume or tap
to decrease.
Enables sound for taps give an audible response
to any touch made to the screen. Uncheck to
disable
Tap to return the previous menu.
Date and Time Settings:
Tap to the DateTime icon to set the system date, time and time zone.
This screen displays the current date, time and
time zone.
1) DATE: Tap the DATE button to change the date
Tap the button to increase the value or the
button to decrease the value for the Year
setting.
Repeat with Month and Day until the correct
date is displayed on the screen.
Tap to return the previous menu.

www.navig8r.com.au/m35
15
SYSTEM MENU
2) Time: Tap the time icon to change the time.
Tap the button to increase the value or the
button to decrease the value for the Hour
setting.
Repeat for the Minute setting until correct time is
displayed.
Tap to return the previous menu.
3) Time Zone: Tap Time Zone icon to change the Time Zone of your current
location
Tap the button or the button until the
correct Time Zone is displayed for you current
location.
Check or uncheck if you wish to have the system
automatically adjust the clock for daylight
saving.
Tap to return the previous menu.
Language:
Tap the Language Icon to set the language of the Main System display.
Note: This setting will not change language of the Navigation software
Tap the button or the button until the
correct Language is displayed on the Screen.
Choose from 13 different languages including:
English, French, Spanish, German, Italian, Dutch
and others.
Tap to return the previous menu.

www.navig8r.com.au/m35
16
SYSTEM MENU
Power:
Tap the Power Icon to display the show the current charge level of the battery.
The status bar displays the current charge level in
the battery. When connected to an external
power source the Battery Icon to the left of the
bar will be shown with a power plug (as shown
here) and the status bar will move from left to
right.
When removed from the power, the status bar
will remain static and no plug is shown.
Tap to return the previous menu.
Backlight:
Tap the Backlight Icon to change the Backlight level and operation. This feature is
useful to extent the battery endurance of the GPS system if it is to be used away
from and external power source.
Backlight: Tap to increase the backlight
level or tap to decrease.
Battery: Allows the user to set the time backlight
remains on after the last touch of the screen
when the GPS unit is running off the internal
battery.
AC Power: Allows the user to set the time backlight remains on after the last touch of
the screen when the GPS unit is to an external power supply including the USB port of
your computer.
Options Actions
Always on Backlight remains on at all times until turned off. (default)
Off after 10 seconds Backlight turns off 10 second from last touch of screen
Off after 30 seconds Backlight turns off 30 second from last touch of screen
Off after 1 minute Backlight turns off 1 minute from last touch of screen
Off after 2 minutes Backlight turns off 2 minutes from last touch of screen
Off after 3 minutes Backlight turns off 3 minutes from last touch of screen
Touching any part of the screen will turn the backlight on again.
Tap the button or the button until the desired time is displayed.

www.navig8r.com.au/m35
17
SYSTEM MENU
Note: It is recommend that the settings are left to “Always On” if system is to be used
in a vehicle only. Reducing the time that the backlight remains on when not
connected to an external power source will extend the battery duration.
Sys Info:
Tap the SYS INF icon to display information about the hardware, software versions
and access the screen calibration screen.
Information displayed about the Processor, Ram
Size and Software version. (Information displayed
on actual unit may vary from information in this
image).
To calibrate the touch screen of the M35 Navig8r
please tap the Calibration button.
Calibration of the Touch Screen should be
completed using the supplied stylus to ensure
that the calibration is as accurate as possible.
Follow the instructions on the screen and touch the
end of the stylus to the centre of the cross displayed
on the screen. Repeat each time a new cross is shown
until all 5 crosses have been touched.
When the calibration has been completed this screen
will be displayed. Touch the screen again to return to
the System Info screen.
If the calibration fails the process will start again.
Repeat calibration until completed.
Tap to return the previous menu.

www.navig8r.com.au/m35
18
CONNECTING THE GPS TO THE COMPUTER
Connecting the GPS to the Computer
Files can be copied to the SD card of the GPS unit by using a card reader on your
computer if one is fitted or by connecting the GPS to the PC using the supplied USB
cable.
Connections via the USB cable will require the instillation of Microsoft Active Sync for
computer running Windows 2000 and XP or Microsoft Mobile Device Manager for
computers using Windows Vista operating system.
For Windows Vista users please download from this page
http://www.microsoft.com/windowsmobile/en-us/downloads/microsoft/device-
center.mspx
Transferring Files Using an SD Card Reader
If your computer is fitted with an SD card reader, please make sure that the reader is
HCSD compatible. If the reader is not HCSD compatible it will not detect the card.
Insert the SD card from the GPS unit into the slot on the card reader. The operating
system should automatically detect the card.
Open the ‘My Computer Window’; you should now be able to access the SD card in
the card reader in the same way you can access other drives fitted to your
computer.
Create folders to contain any media files that are to be copied to the card.
Care should be taken to ensure that the existing folders on the card are not altered
or deleted as this will affect the operation of the navigation software.
Windows XP and Windows 2000
For Windows 2000 and XP (all versions), more information and download link can be
found here
http://www.microsoft.com/windowsmobile/en-us/help/synchronize/activesync45.mspx
Download and install the Microsoft Active Sync program.
Connect the GPS unit to the computer using the supplied USB cable and turn the
GPS unit on.
When detect, the “New Partnership” window will be displayed. Select the “NO”
option and click on the “Next” button.
The ActiveSync window will be displayed. Click on the “Explore” Icon. The contents
of the GPS unit will be displayed in a new window called “Mobile Device”.
Open the folder “SDMMC” to display the contents of the SD card in the GPS system.

www.navig8r.com.au/m35
19
FOR VISTA USERS
For Vista Users
For Windows Vista (all versions), more information and the download link can be
found here http://www.microsoft.com/windowsmobile/devicecenter.mspx
Download and install the Microsoft Windows Mobile Device Centre software to your
computer.
Connect the GPS unit to the computer using the supplied USB cable and turn the
GPS unit on.
When the GPS unit is detected, the “Windows Mobile Device Centre” window will be
displayed. Select “Connect without setting up your device” option button.
Click on the “file management” option and then “browse the contents of your
device”. The contents of the GPS unit will be displayed in a new Window called
“Windows CE”.
Open the folder “SDMMC” to display the contents of the SD card in the GPS system.

www.navig8r.com.au/m35
20
TROUBLE SHOOTING
Trouble Shooting
GPS unit will not turn on Make sure that the unit has been charged
correctly or connected to an external
power supply.
Nothing happens when staring
Navigation program from main menu. Check that the SD card is inserted in to the slot correctly. Remove and replace a
few times to make sure that card makes
good contact in the reader.
Screen does not respond to taps. Turn the unit off and on again. If id still
does not respond reset the system using
the reset button on the rear of the casing.
Some Buttons respond but others do not Try Recalibrating the screen
Pictures (JPG) take a long time to load. IF pictures are from a Digital camera, try
resizing the image. Images only need to
be 320 X 240 pixels. This will save space on
the card as well.
AVI files are not loading. As above. If the resolution of the video file
is to large it may cause problems with
playback. Try reducing the resolution of
the video file you wish to play.
GPS will not turn on after being on
charge for a long time. Check that the unit was charged correctly. If charged from a USB port.
Make sure that the computer was on for
the charging process.
Use the stylus and press the reset button.
The System should start.
The GPS unit will loose charge if not
used for 2 or 3 days. This is normal. The GPS system is only placed in stand by when the power
button is pressed. The System is never fully
turned off.
