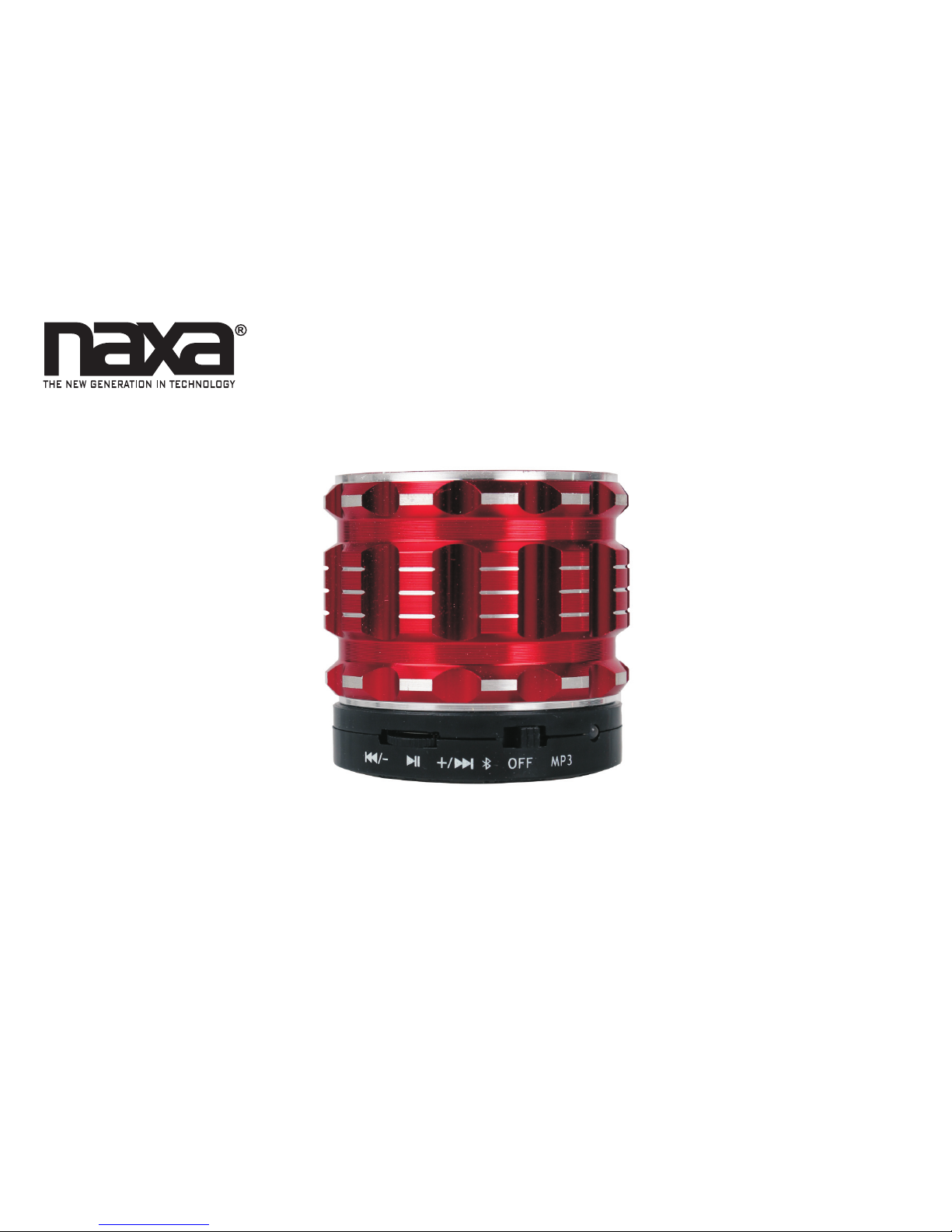

Naxa NAS-3060 User manual

Portable Wireless Sound System with Bluetooth®
NAS-3060
Instruction Manual
Please read carefully before use and keep for future reference.

Page 2 Naxa Electronics
Thank You
We know you have many choices when it comes to
technology; thank you for choosing us here at Naxa
Electronics. Established in 2001 in Los Angeles, Califor-
nia, we are dedicated to delivering products that en-
tertain and delight.
We trust that you will be happy with your purchase.
Please read this manual carefully and save it for refer-
ence. You may also nd the latest FAQ, documentation,
and other product material at our website. Come visit
us on the web at www.naxa.com and see all that we
have to offer!
In the Box
Please take a moment to make sure that you have ev-
erything in the list below. Although we make every ef-
fort to ensure that each Naxa device is securely packed
and sealed, we know a lot can happen in between us
and you. If anything is missing, check back with your
local retailer to get immediate assistance. If they can-
not help you, please contact our Naxa Support team at
www.naxa.com/naxa_support.
•NAS-3060
•Combination USB charge cable==+====&++ +===== 3.5mm AUX audio +
adaptor
+

www.naxa.com Page 3
Connecting Power
Your speaker has an integrated rechargeable battery.
Upon initial use, the battery should be charged fully to
ensure optimal performance and battery life.
Charging Your Speaker
Use the included USB cable to connect the speaker to a
USB power source to charge the battery.
•Connect the small end of the cable to the DC 5V
USB charge port of the unit.(The 3.5mm plug is not)
•Connect the large end of the cable to a high-power
USB port of a computer. The computer should be
powered on.
The status LED will light a steady red when the battery
is charging. When charging is complete, the status LED
will darken.
⚠⚠The battery used in this device may present
a re or chemical burn if mistreated. Do not
disassemble, incinerate, or heat the battery.
Do not leave the battery in a place subject
to direct sunlight, or in a car with its win-
dows closed.
Do not connect the unit to a power source
other than that which is indicated here or on
the label as this may result in the risk of re
or electric shock.
To turn the speaker on, push the Mode dial (B/Off/
MP3) towards B and hold for 2 seconds. The blue LED
will ash quickly.
To turn the speaker off, press and hold the B/Off/MP3
dial for 2 seconds.
used for power)

Page 4 Naxa Electronics
About the Status Indi-
cator
The status indicators light up to let you know which
mode the speaker is in.
Status indicator Speaker Mode
Steady red when the speaker is
connected to USB power
The speaker is charging
Off when the speaker is con-
nected to USB power
The speaker is fully charged
Flashing quickly blue The speaker is on and in
pairing mode (ready to con-
nect to a Bluetooth®device)
Steady blue The speaker is connected to a
Bluetooth®device
Flashing blue every few
seconds
The speaker is connected to
and playing music from a
Bluetooth®device
Pairing a Device with
Bluetooth®
A device must be paired with the speaker before using
them together for the rst time.
When you turn on the speaker, it will automatically
search for a paired device. If it does not detect a paired
device, it will switch to Pairing mode (the blue LED will
ash quickly). Then:
1. Make sure Bluetooth®is enabled on your device.
Enable it if it hasn’t.
2. Use your device to search for available Bluetooth
devices. (This function is usually in the Bluetooth
settings menu; refer to your device’s instruction
manual to learn more.)
3. The speaker will announce itself as “NAXA NAS-
3060.” Select it from the list of devices.
4. If your device asks for a passcode, use “0000” to
complete the pairing process.

www.naxa.com Page 5
When the speaker is paired and connected to a device,
the blue LED will light up steadily.
⚠L If the speaker fails to pair with your device:
1) Turn the speaker off; 2) Make sure the
device is set to be discoverable; 3) Turn the
speaker on again. The speaker will attempt
to nd and pair with your device.
Your speaker can be paired with one device at a
time, only.
Using the Speaker
When the speaker is connected to a Bluetooth® device:
To do this... ...do this
Start, pause, or resume
audio playback
Press the Control dial ( ).
Skip to the previous track Push the Control dial towards
.
Skip to the next track Push the Control dial towards
.
To do this... ...do this
Decrease the volume level Push and hold the Control dial
towards .
Increase the volume level Push and hold the Control dial
towards
Answer or end a call
when connected to a
smartphone
Press the Control dial ( ).
Change the active source
mode to MP3
Push and hold the Mode dial
towards MP3.
Turn the speaker off Press down and hold the Mode
dial (OFF).
⚠L Make sure the volume of your connected
device is set to maximum, then use the
speaker’s controls to adjust the volume to
a comfortable listening level.

Page 6 Naxa Electronics
Using the MP3 Player
(microSD)
Load a microSD card that contains MP3 audio les into
the microSD card slot of the speaker. Turn the speaker
on, then push and hold the MODE dial towards MP3 to
set the speaker mode to MP3.
To do this... ...do this
Start, pause, or resume audio
playback
Press the Control dial ( ).
Skip to the previous track Push the Control dial to-
wards .
Skip to the next track Push the Control dial to-
wards .
Decrease the volume level Push and hold the Control
dial towards .
Increase the volume level Push and hold the Control
dial towards
Change the active source mode
to Bluetooth
Push and hold the Mode dial
towards B.
To do this... ...do this
Turn the speaker off Press down and hold the
Mode dial (OFF).
⚠⚠Pause playback before removing a microSD
card from the speaker. Do not remove the
microSD card while playback is active.
Using the FM Radio
Turn the speaker on, then set the speaker mode to FM
Radio mode.
⚠L The microSD card slot must be empty and
the AUX jack disconnected in order to ac-
cess FM Radio mode.
⚠⚠Do not remove the microSD card while the
speaker is on.
To do this... ...do this
Auto scan for a station within
reception range
Press the Control dial ( ).

www.naxa.com Page 7
To do this... ...do this
Manually tune to a lower
frequency
Push the Control dial to-
wards .
Manually tune to a higher
frequency
Push the Control dial to-
wards .
Decrease the volume level Push and hold the Control
dial towards .
Increase the volume level Push and hold the Control
dial towards
Using the AUX Input
Connector
Connect devices without Bluetooth®by using the AUX
connection. The included 3.5mm adapter combination
cable is reqTuired to make this connection..
1. Use the 3.5mm plug of the included combination
$8;cable to connect the device’s headphone or
OLQHRXWjack to the AUX connector of the speaker.
2. Turn on the device and the speaker. Lower the vol-
ume on both.
3. Set the device volume to 80% of its maximum and
then start playback.
4. Push and hold the Control dial towards . to
gradually increase the volume of the speaker to a
comfortable level.
⚠L Use the connected AUX device to control
all functions in AUX mode. The speaker can
only be used to adjust the volume.

Page 8 Naxa Electronics
Warnings and Precautions
The lightning ash with arrowhead symbol within an equilateral
triangle is intended to alert the user to the presence of unin-
sulated “dangerous voltage” within the product’s enclosure that
may be of signicant magnitude to constitute risk of electric
shock
The exclamation point within an equilateral triangle is intended
to alert the userto the presence of important operation and ser-
vicing instructions in the literature accompanying the appliance.
CAUTION
• Do not block the ventilation openings or holes.
• Do not place any naked ames (such as lighted candles) on the ap-
paratus.
• When discarding batteries, follow all local rules and laws governing the
disposal of batteries. Consider the environmental impact of your actions!
• To prevent re or shock hazard, do not expose this appliance to rain
or moisture.
Important Safety Information
1. Read Instructions: All the safety and operating instructions should be
read before the product is operated.
2. Retain Instructions: The safety and operating instruction should be
retained for future reference.
3. Heed Warnings: All warnings on the product and in the operating in-
structions should be adhered to.
4. Follow Instructions: All operating and usage instructions should be
followed.
5. Cleaning: Unplug this product from the wall outlet before cleaning.
Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for
cleaning.
6. Attachments: Use only attachments recommended by the manufac-
turer. Use of other attachments may be hazardous.
7. Water and Moisture: Do not use this product near water (e.g., near a
bathtub, washbowl, kitchen sink, laundry tub, in wet basements, or
near a swimming pool and the like).
8. Accessories: Do not place this product on an unstable cart, stand, tri-
pod, bracket, or table. Use only with carts, stands, tripods, brackets,
or tables recommended by the manufacturer or sold with the product.
Any mounting of the product should follow the manufacturer’s in-
structions and should use a mounting accessory recommended by the
manufacturer. A product and cart combination should be moved with
care. Quick stops, excessive force, and uneven surfaces may cause the
product and cart combination to overturn.
9. Ventilation: Slots and openings in the cabinet are provided for ven-
tilation to ensure reliable operation of the product and to protect it

www.naxa.com Page 9
from overheating. These openings should never be blocked by placing
the product on a bed, sofa, rug, or other similar surface. This product
should not be placed in a built-in installation such as a bookcase or
rack unless proper ventilation is provided or the manufacturer in-
structions have been adhered to.
10. Power Sources: This product should be operated only from the type of
power source indicated on the rating label. If you are not sure of the
type of power supply to your home, consult your product dealer or
local power company. For products intended to operate from battery
power or other sources, refer to the operating instructions.
11. Grounding or Polarization: This product may be equipped with a po-
larized alternating-current line plug that has one blade wider than
the other. This plug will only t into the power outlet in one direction.
This is a safety feature. If you are unable to insert the plug fully into
the outlet, try reversing the direction of the plug. If the plug should
still fail to t, contact an electrician to replace the obsolete outlet. Do
not defeat the safety purpose of the polarized plug.
12. Power-Cord Protection: Power supply cords should be routed so that
they are not likely to be walked on or pinched by items placed upon
or against them, paying particular attention to cords at plugs, con-
venience receptacles, and at the point which they exit
from the product.
13. Protective Attachment Plug: The product may be
equipped with an attachment plug with overload
protection. This is a safety feature. See the operat-
ing instructions for replacement or directions to re-
set the protective device. If replacement of the plug is
required, be sure the service technician has used a replace-
ment plug that has the same overload protection as the original plug as
specied by the manufacturer.
14. Outdoor Antenna Grounding: If an outside antenna is connected to
the product, be sure the antenna system is grounded so as to provide
some protection against voltage surges and built-up static charges.
Article 810 of the National Electrical Code, ANS/NFPA 70 provides in-
formation with regard to proper grounding of the mast and support-
ing structure,grounding of the lead-in wire to an antenna-discharge
unit, size of grounding conductors, location of antenna-discharge
unit, connection to grounding electrodes, and requirements for the
grounding electrode (see gure).
15. Lightning: For added protection for this product, unplug it from the
wall outlet and disconnect the antenna or cable system during a
lightning storm or when it is left unattended and unused for long pe-
riods of time. This will prevent damage to the product due to lightning
or power-line surges.
16. Power Lines: An outside antenna system should not be located in the
vicinity of overhead power lines or other electric light or power cir-
cuits, or where it can fall into such power lines or circuits. When in-

Page 10 Naxa Electronics
stalling an outside antenna system, extreme care should be taken to
keep from touching such power lines or circuits, as contact with them
might be fatal.
17. Overloading: Do not overload wall outlets, extension cords, or inte-
gral convenience receptacles as this can result in a risk of re or elec-
tric shock.
18. Object and Liquid Entry: Never push objects of any kind into this prod-
uct through openings as they may touch dangerous voltage points or
short-out parts that could result in a re or electric shock. Never spill
liquid of any kind on the product.
19. Servicing: Do not attempt to service this product yourself as open-
ing or removing covers may expose you to dangerous voltage or other
hazards. Refer all servicing to qualied service personnel.
20. Damage Requiring Service: Unplug this product from the wall outlet
and refer servicing to qualied service personnel under the follow-
ing conditions: a) when the power-supply or plug is damaged; b) if
liquid has been spilled or if objects have fallen into the product; c) if
the product has been exposed to rain or water; d) if the product does
not operate normally by following the operating instructions. Adjust
only those controls that are covered by the operating instructions as
improper adjustment of other controls may result in damage and will
often require extensive work by a qualied technician to restore the
product to its normal operation; e) if the product has been dropped or
damaged in any way; f) when the product exhibits a distinct change in
performance—this indicates a need for service.
21. Replacement Parts: When replacement parts are required, be sure
that your service technician has used replacement parts specied
by the manufacturer or have the same characteristics as the original
part. Unauthorized substitutions may result in re, electric shock, or
other hazards.
22. Safety Check: Upon completion of any service or repairs to this
product,ask the service technician to perform safety checks to ensure
that the product is in proper operating condition.
23. Wall or Ceiling Mounting: The product should be mounted to a wall or
ceiling only as recommended by the manufacturer.
24. Heat: The product should be situated away from heat sources such as
radiators,heat registers, stoves, or other products (including ampli-
ers) that produce heat.
WARNING:
This product contains lead, a chemical known to the State of California to
cause cancer and birth defects or other reproductive harm. Wash hands
after handling.
FCC NOTICE
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the lim-
its for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful in-
terference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to ra-
dio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be de-
termined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:

www.naxa.com Page 11
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
CAUTION ON MODIFICATIONS
Any changes or modications not expressly approved by the grantee of
this device may void the authority granted by the FCC to operate the
equipment.
Trademark & Regulatory Statements
Bluetooth®is a registered trademark of Bluetooth SIG, Inc. Other trade-
marks and names are those of their respective owners.

Page 12 Naxa Electronics
Troubleshooting Guide
This guide lists common problems and their solutions.
Please refer to this guide before requesting service.
If you need further assistance, please contact Naxa
Technical Support (www.naxa.com/naxa_support/).
Symptom Possible Cause Possible Solution
There is no
power.
The battery is
exhausted.
Connect the unit to a
USB power source to
charge it.
The speaker hasn’t
been turned on.
Push the Mode dial (B/
Off/MP3) towards B and
hold for a few seconds
to turn the speaker on.
The device
is unable to
connect to the
speaker.
The speaker is not
in pairing mode.
Reset the speaker
(turn it off and then
on again.) Wait for the
status indicator to ash
quickly blue.
Bluetooth may be
disabled on your
device.
Make sure Bluetooth is
enabled on your device
and that it is set to be
discoverable.
Symptom Possible Cause Possible Solution
The device is
connected but
there is no
sound.
Your device may be
beyond the effec-
tive range of the
speaker.
Move closer to the
speaker. Range may
be affected adversely
by environmental
conditions.
Your device may
not be in playback
mode.
Ensure that your device
is operating correctly.
Start playback on your
device.

www.naxa.com Page 13
Specications
Speakers 45 mm full-range driver
Frequency Response 280-16,000 Hz
Removable Memory
Support
microSD, microSDHC (max 32 GB)
Playable Media
Formats
MP3
Radio Tuner FM
Input Bluetooth®
3.5mm AUX
Power Rechargeable battery (500 mAh)
USB charge port (DC 5V)
Battery Life* 5 hours
* Estimated time based on Bluetooth use at 100% volume; battery life will
vary depending on use conditions.
Note: Product are improved continuously. We reserve the right to modify
the product and specications without prior notice.
Support
If you have problems with your device, please consult
the instructions in this manual. Please also visit us
on the web at www.naxa.com to get up to the minute
news, alerts, and documentation for your device. For
additional assistance, please contact Naxa Technical
Support.
NAXA Technical Support
2320 East 49th St.
Vernon, CA 90058
http://www.naxa.com/naxa_support/
