Naxa NT-5503K User manual

®
55" CLASS LED UHD TV
MODEL NO.: NT-5503K
Instruction Manual
PLEASE READ CAREFULLY BEFORE USE

2
FCC NOTICE
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two condi-
tions: (1) this device may not cause harmful interference, and (2) this device must accept any interfer-
ence received, including interference that may cause undesired operation.
WARNING: Changes or modifications to this unit not expressly approved by the party responsible for
complaince could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital de-
vice, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protec-
tion against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equip-
ment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connect-
ed.
• Consult the dealer or an experienced radio/TV technician for help.
SUPPORT
If you have problems with your device, please consult the instructions in this manual. Please also visit
us on the web at www.naxa.com to get up to the minute news, alerts, and documentation for your
device. For additional assistance, please contact Naxa Technical Support.
NAXA Technical Support
2320 East 49th St.
Vernon, CA 90058
Tel: [phone]
http://www.naxa.com/naxa_support/
Made in China

3

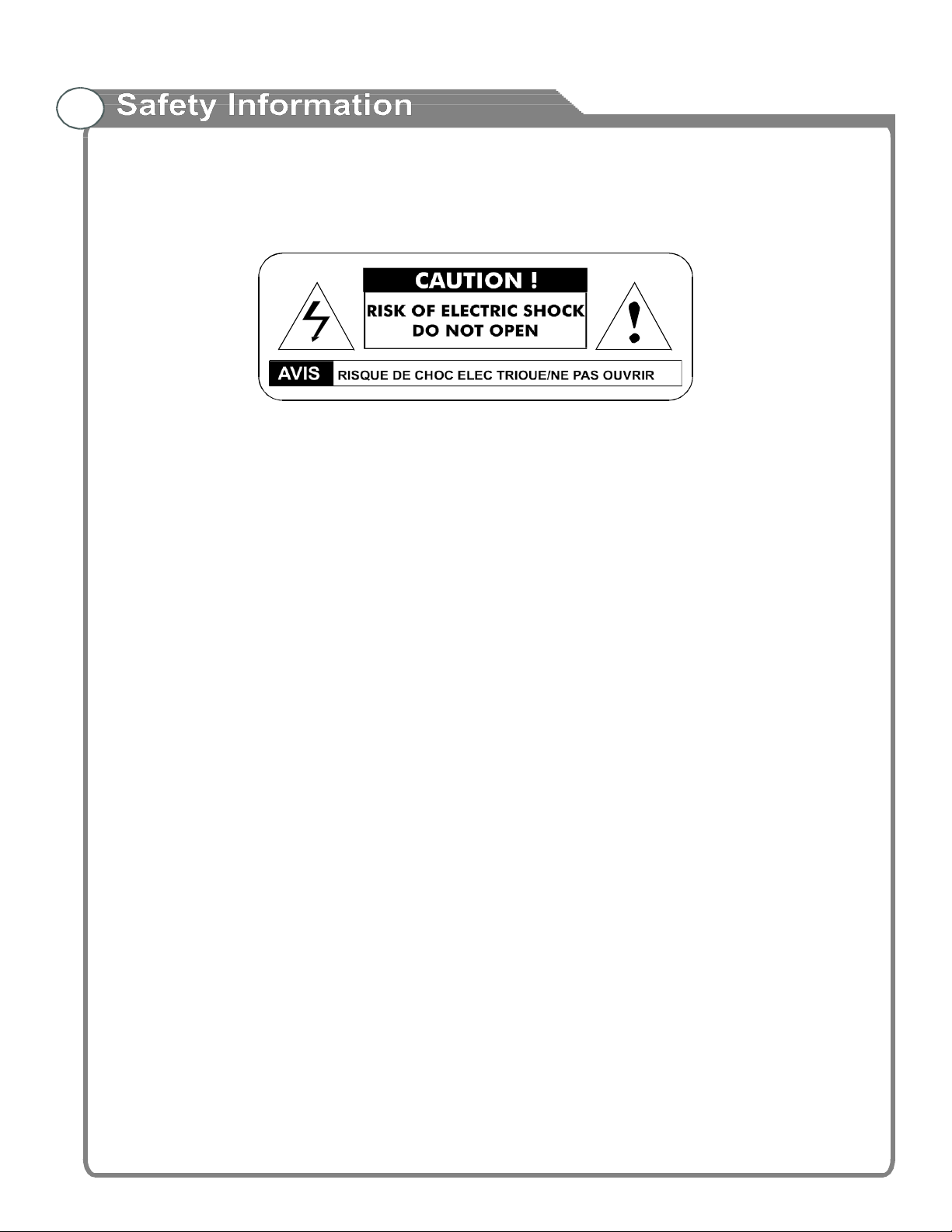

WARNING
To prevent fire and/or electric shock, do not use this plug with an extension cord, receptacle,
or other outlet unless the blades can be fully inserted to prevent blad exposure. Do not expose
this appliance to rain or moisture.
IMPORTANT SAFETY INSTRUCTIONS
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Please, unplug the TV power cord when the following conditions occur:
- When there is a thunderstorm (Please, pull out the power cord and antenna).
- When cleaning the TV set.
- When the TV set is not used for a long time.
• Do not use corrosive depurative when cleaning the TV set.
• Do not put the TV set under direct sunlight or near heat.
• Do not put a heat source, such as a candle or heater, on top of or near the TV set.
• Leave plenty of space (at least 10 cm) around the TV set for ventilation.
• Place the TV set away from where it can be ruined by rain or water (such as near a window).
• Do not put a container with liquid (such as a vase) on top of the TV set.
• Do not move the TV set when the power is on.
• Do not touch, push, or scratch the surface of the TV set with hard materials or items.
• When TV surfaces are dirty, please use a wet cotton cloth or soft cloth with non-corrosive
cleaners to clean it carefully. Do not use acetone, toluene, or alcohol to clean the TV set.
• Be aware and careful of moisture, which can damage inner electronic components.
• When condensed moisture is present, the TV screen may appear blurry or spotty.
• It is recommended that a technician install the TV set on a wall, if such placement is desired.
•An incorrect wall installation will be unsafe and hazardous.
• Do not let children climb on or play around the TV set to avoid falls, collisions, damages, and
injuries.
• Do not hit the TV panel with hard objects to prevent damages.
• Do not cover the TV set with blankets or other objects when it is connected to a power
source to prevent overheating and fire.
• Batteries shall not be exposed to excessive heat, such as sunshine, fire, or the like.
• Mains plug is used as disconnect device from the mains, the disconnect device shall remain
readily operate.
•Apparatus with class 1 construction shall be connected to a mains socket outlet with a protec-
tive earthing connection.

4

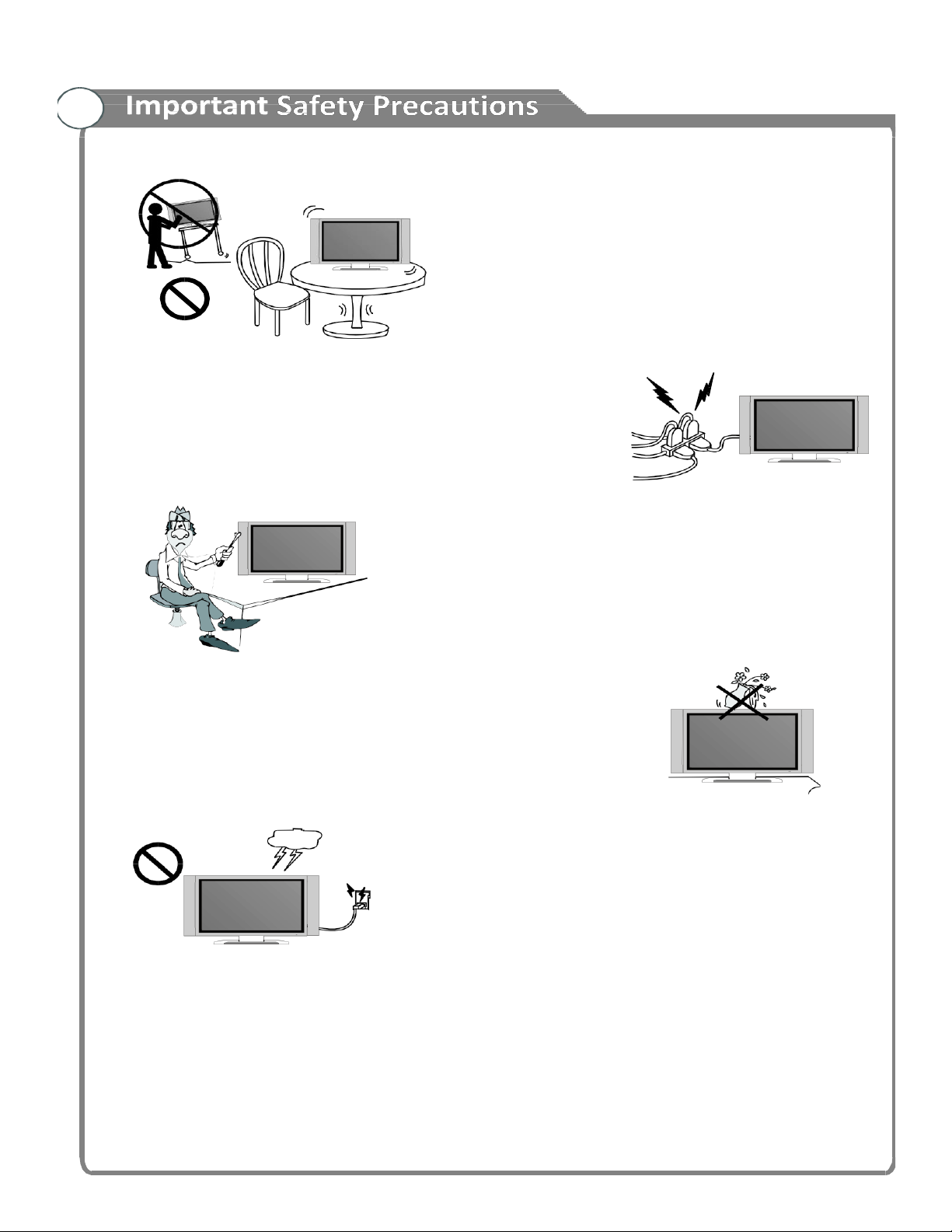

SAFETY
Please, immediately pull out the AC power plug if there
is an abnormal sound or smell or the LED TV has sound
but no picture, and contact after sales support.
The LED TV should be kept free from rain,
moisture and dust to prevent electrical shock
and short circuits. Do not cover the ventilation
openings with table clothes, curtains, newspa-
pers, etc.
The LED TV should be kept free from high
temperature heating sources or direct sunlight.
Good ventilation is required. Allow 10 cm be-
tween the LED TV and other appliances or built-
in cabinet walls.
When you wipe the front cabinet, please make
sure the power plug is pulled out and use a soft,
dry, lint-free cloth and handle it with care. Do not
repeatedly wipe the panel, nor scrape, tap, or
strike the panel with a hard object.
Do not wipe the LED TV with any petrol, chem-
ical or alcohol based solvents as it will lead to
product damage of the panel and cabinet.

5
SAFETY
Do not place the LED TV on an unstable surface.
Do not place the power cord or other cables across
a walkway in case it is trampled on. Do not overload
the power cord or power socket. When the power
plug is used to disconnect and connect the device, it
should be placed easily into the power source.
Do not disassemble the back cover, as it contains
high voltages inside and will cause electric shock.
Only qualified professionals should conduct internal
adjustments, maintenance, and checks.
The TV set should not be subjected to water droplets, vapor,
or splash. This equipment should not have objects filled with
liquids placed on it. Do not place flame sources, such as lit
candles, on or near the LED TV. Please, pull out the power
plug and contact after sales support if there are abnormal
objects or water in the TV.
Pull out the power cord and antenna cable during
electrical storms so the LED TV is not damaged by
electrical surges. Keep all people away from the an-
tenna cable during electrical storms.

6
Introduction 7
Features 7
Specifications 8
Accessories 9
General Description 9-12
Overview of Front & Back Panel 9
Overview of Back Panel 10
Overview of Remote Control 11
Installing Batteries in Remote Control 12
Antenna Connection 12
External Connection 13-19

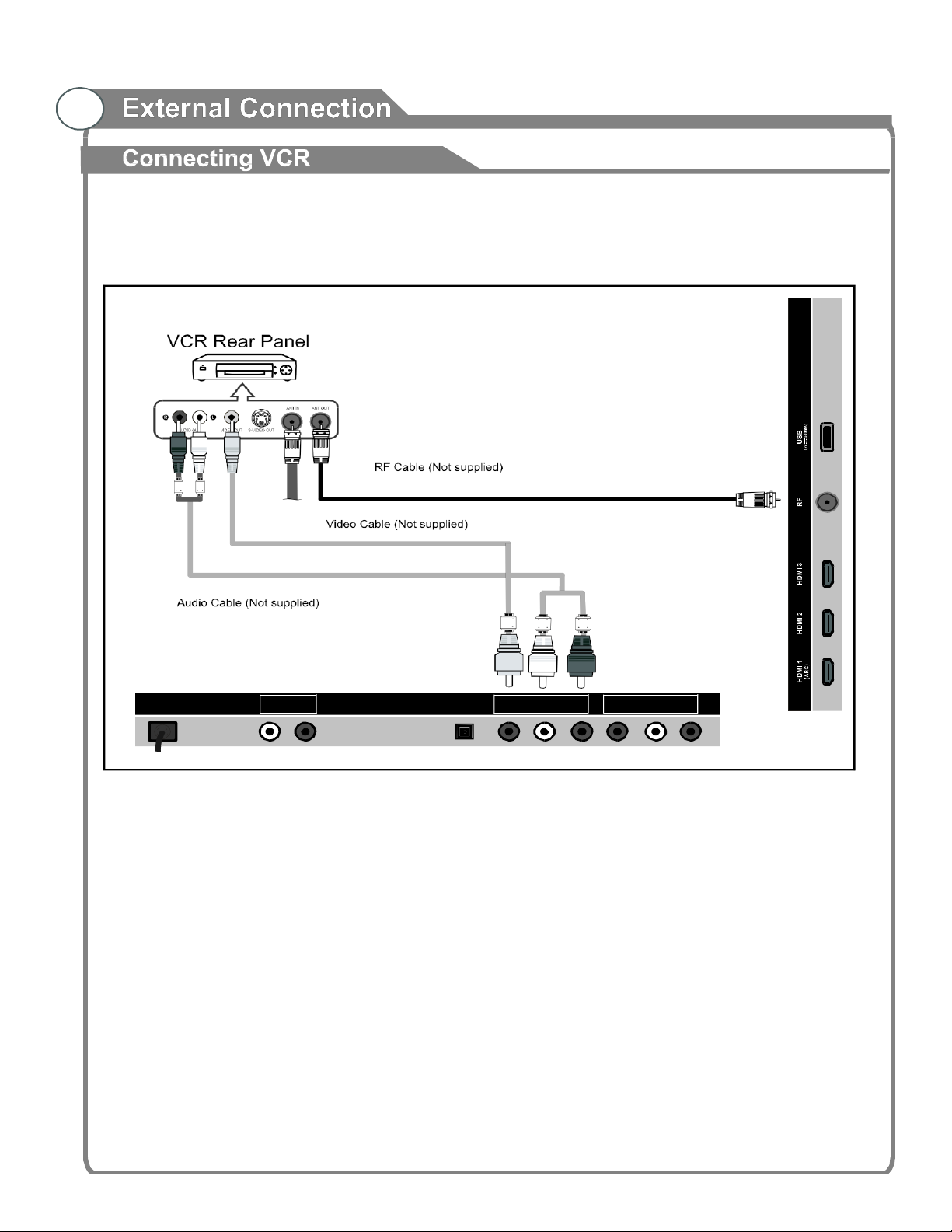

Connecting VCR 13

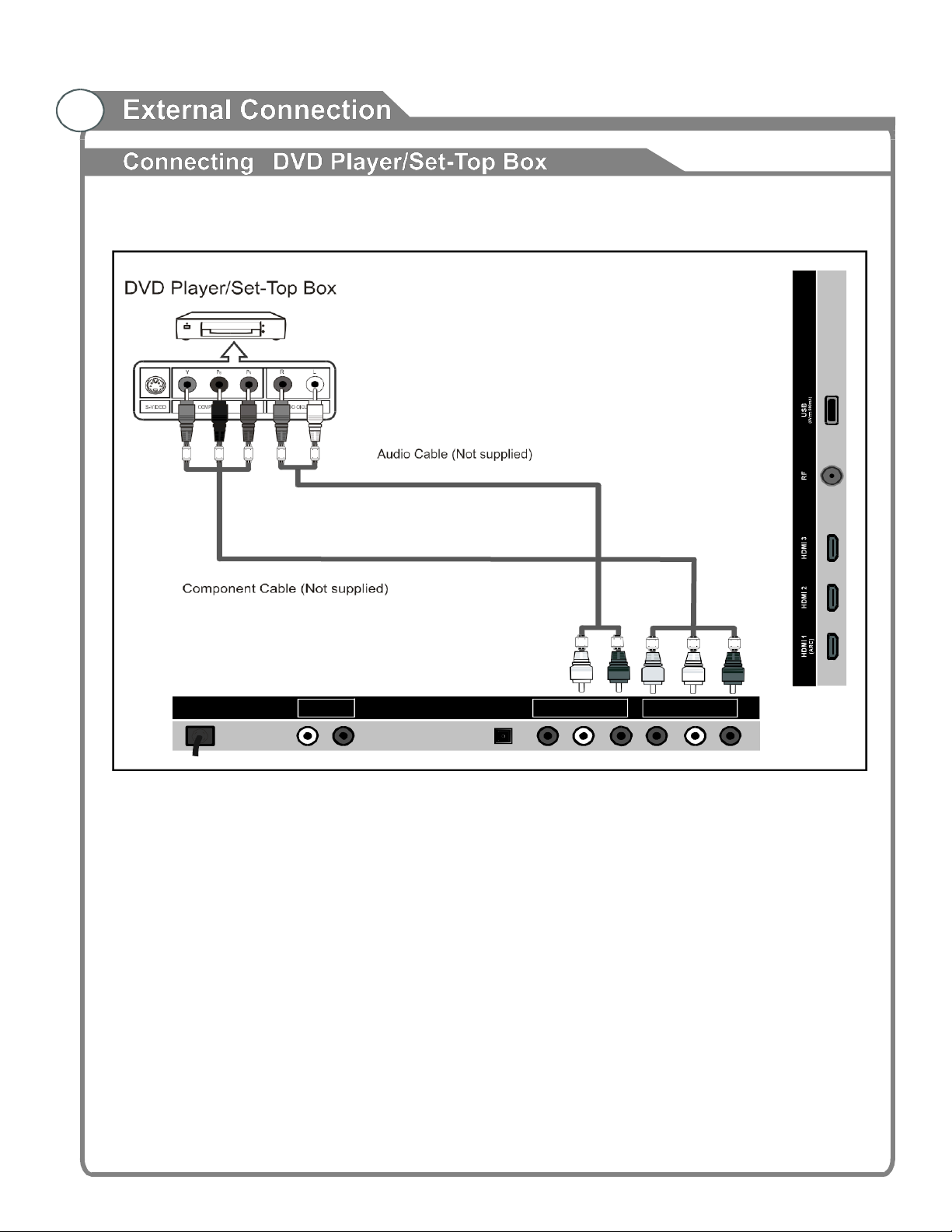

Connecting DVD Player/Set-Top Box 14
Connecting Digital Audio System 15
Connecting USB 16

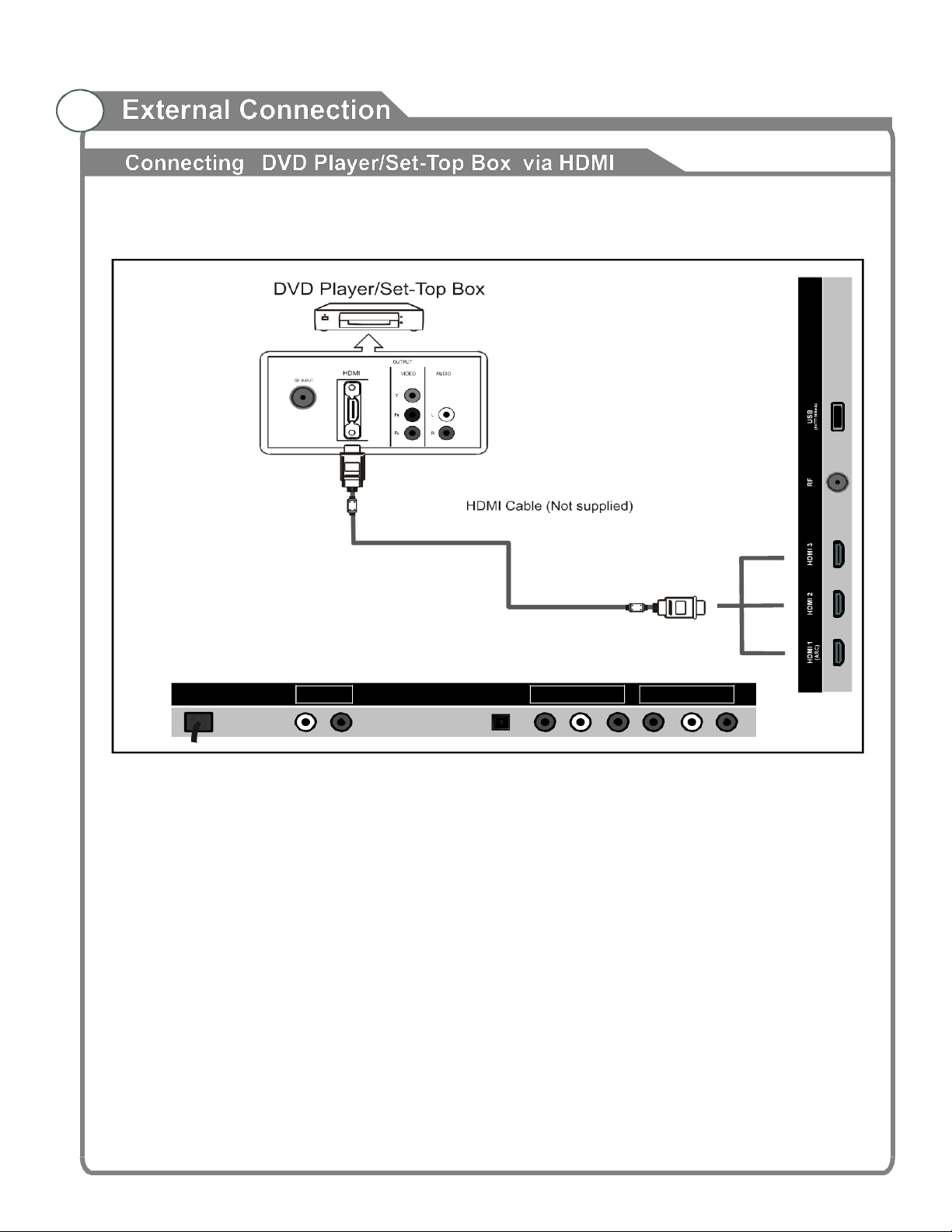

Connecting DVD Player/Set-Top Box via HDMI 17
Basic Operation 18
Turning the TV On and Off 18
OSD Menu Operation 19-27

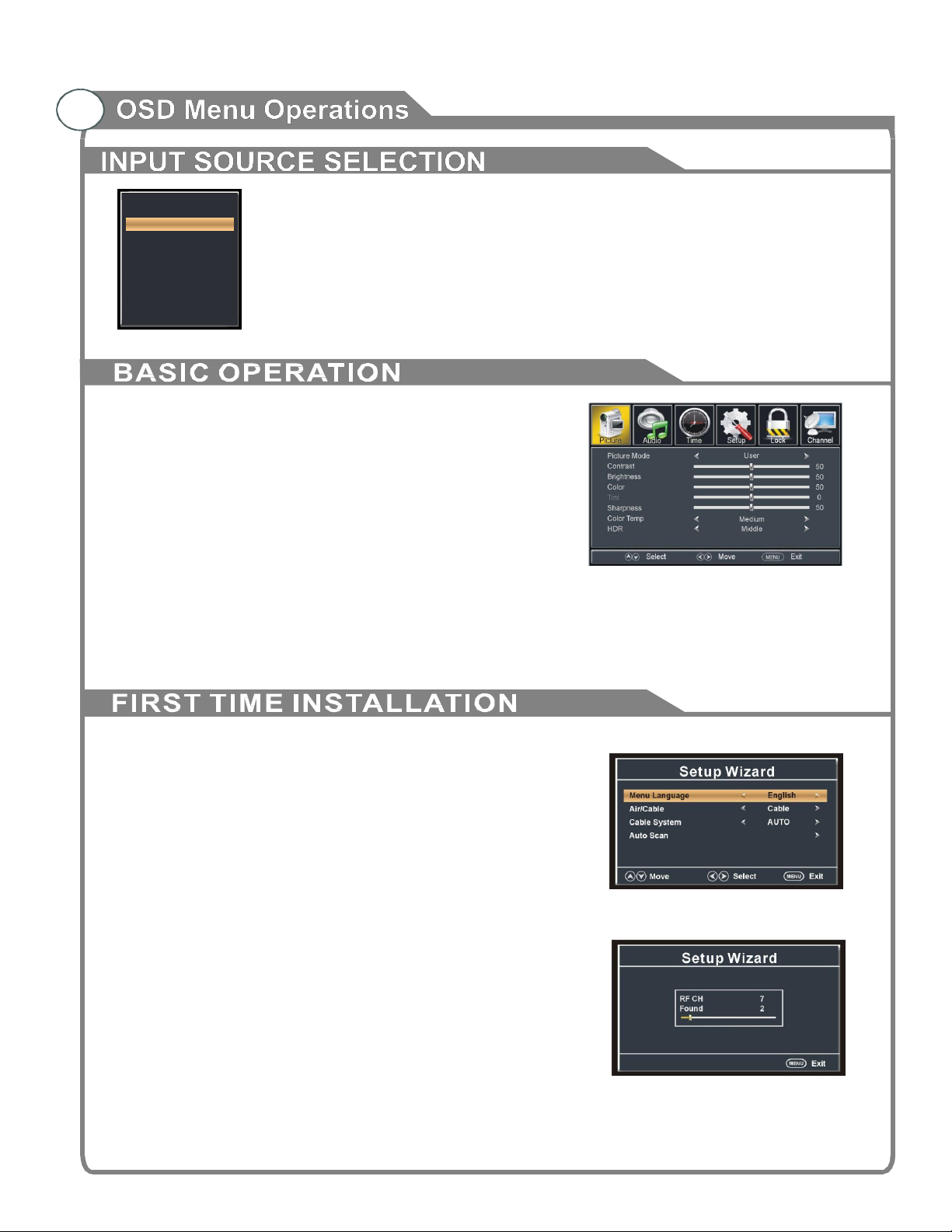

INPUT SOURCE SELECTION 19
BASIC OPERATION 19
FIRST TIME INSTALLATION 19

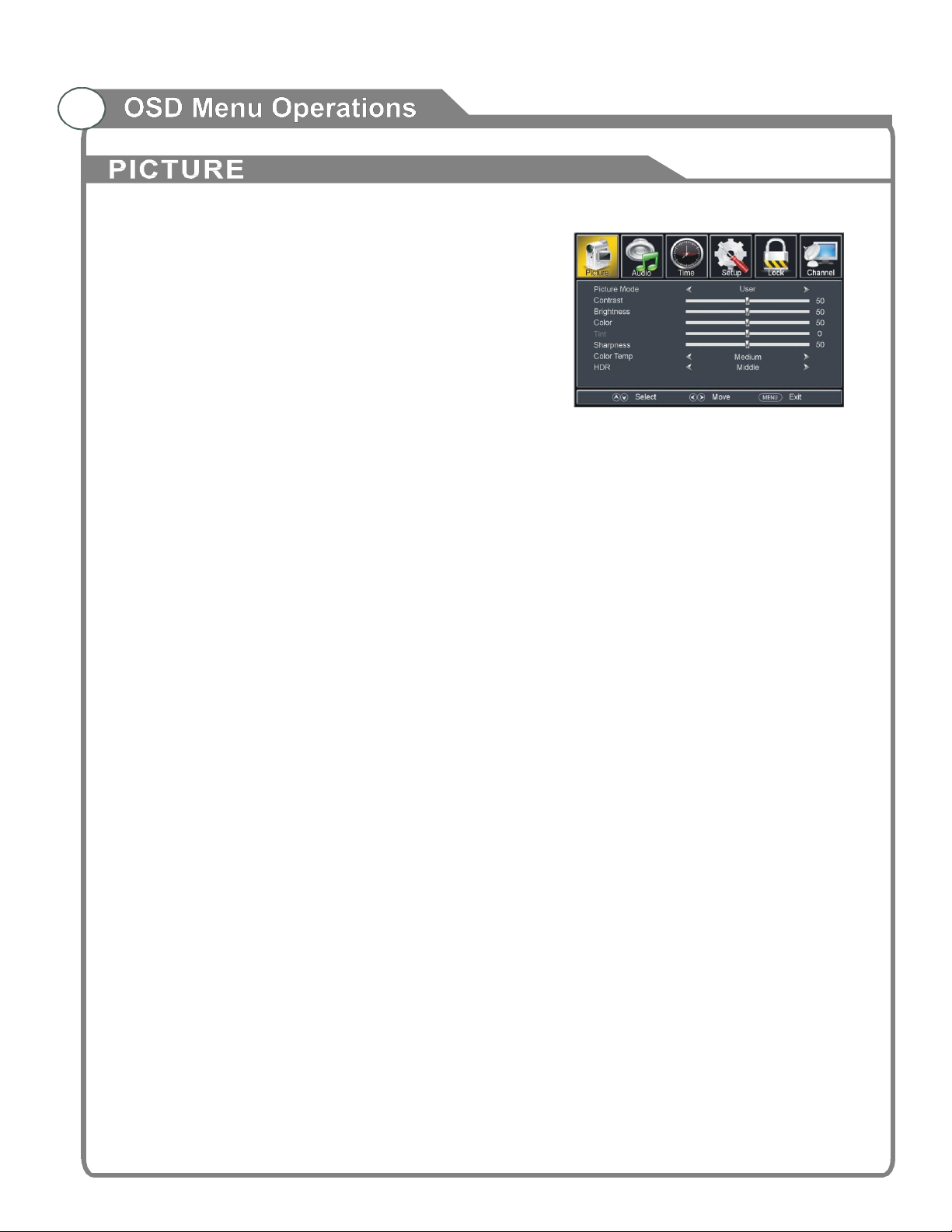

PICTURE 20
SOUND 21
TIME 22
SETUP 22-23
LOCK 24
CHANNEL 25
USB Operation 26-27
Troubleshooting 28
Picture Defects and the Reason 29

7
•TV adopts TFT LED display screen
• HDTV compatible (480i, 480p, 576i, 576p, 720p, 1080i, 1080p)
• Support American TV Standard 8VSB/Free 64/256QAM, NTSC System, ATSC System
• Connect to computer directly to realize TV/monitor combo
• Zero X radiation complies to green environment protection requirement
•Advanced Chroma Processing
• Closed Captioning/Program Control
• SAP/STEREO/MONO; ATSC
• HDMI Input
• USB Input
Input terminals used for external equipment connection:
AV Input x 1
Antenna Input x 1
YPbPr Input x 1
HDMI Input x 3
USB Input x 1
Output terminals used for external equipment connection:
Coaxial Output x 1
Audio L/R Output x 1

8
Display Screen Type
Color Active Matrix LED Display
Model
NT-5503K
Maximum Resolution
3840 x 2160
Image Control
Fine Digital Control
Power Supply
AC 100-240V ~50/60Hz
TV Receiver System
NTSC System, ATSC System
Frequency Range
Antenna: 2~69, Cable: 2~125
Antenna Input Impedance
75Ohms (Unbalance)
Sound Output
2 x 8W
Power Supply (Remote Control)
DC 3V (Two AAA Batteries)
Power Consumption
120W
Dimensions (LxWxH)
49.0 x 9.6 x 30.8 in.
Weight (Net Weight)
11.2 kg
Operation Environment Temperature
0°C-40°C
NOTE: Design and specification modifications may be made at any time without prior notice;
all data and dimensions are approximations.

9
Please make sure that the following items are included with your LED TV. If any of the follow-
ing items are missing, contact your dealer.
Overviewof front and back p an el
1
6
1. Remote control sensor/power indicator.
2. VOL +/-: Press to increase/decrease the volume. In the
on-screen menu, use to move left/right.
3. CH +/-: Press to change channels. In the on-screen
menu, use to move up/down.
4. MENU: Press to view on-screen menu of your TV.
5. SOURCE: Toggle between all the available input sourc-
es.
6. STANDBY: Press to toggle between normal and standby
mode.
2
3
5
4

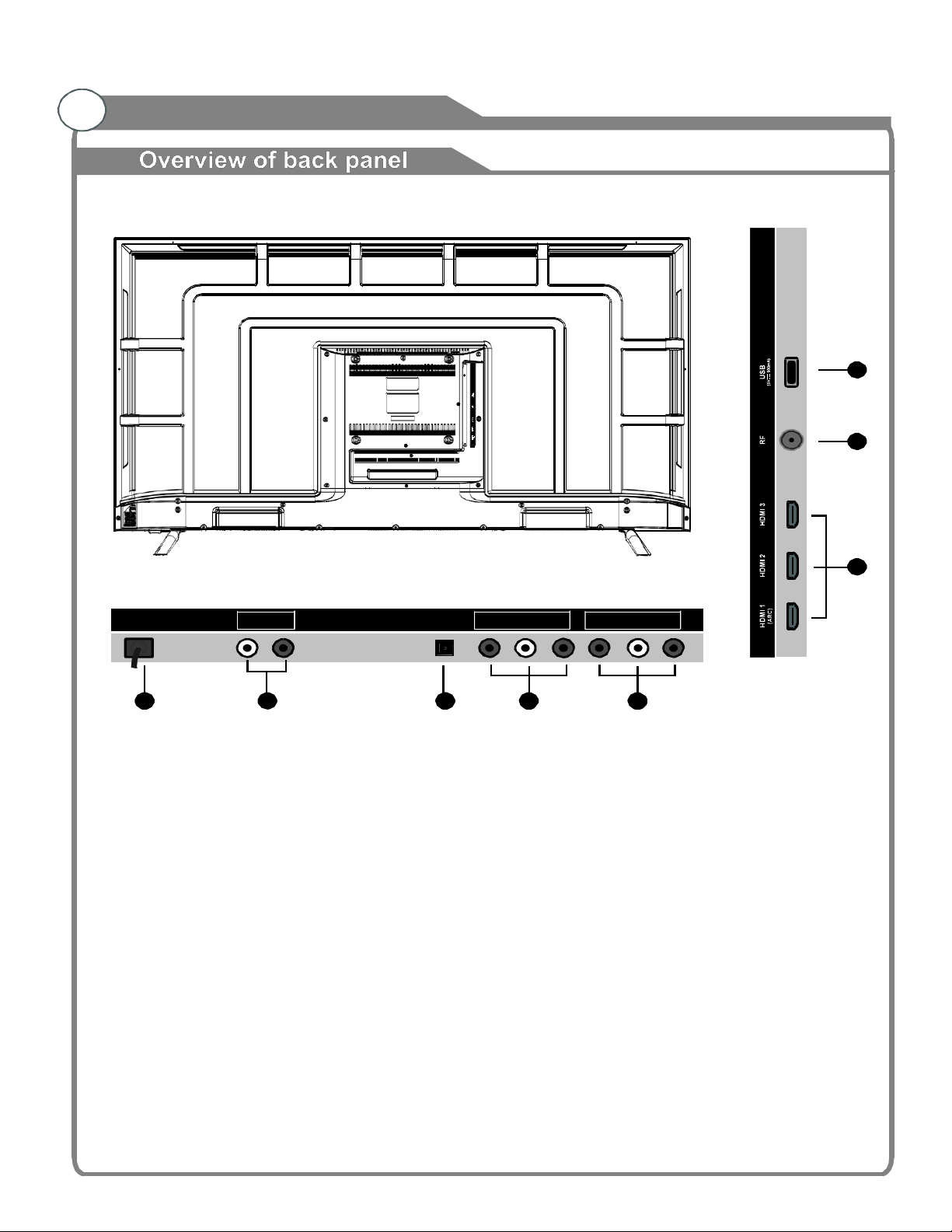

10
7
6
5
AC 10 0-24 0V~
50/6 0Hz
L R
OUT
OP T I CA L
OU T
CVBS L
IN
R Y Pb
Pr
IN
1 8 2 3 4
1. Power Input (AC)
2. OPTICAL: Connect to a digital audio device.
3. CVBS & AUDIO L/R: Audio input for external devices,
such as a camcorder or VCR.
4. Y/Pb/Pr: Connect video.
5. HDMI 1/2/3: Connect to the HDMI jack of a device with
HDMI output.
6. ANTENNA INPUT: Connect to an antenna or cable
NTSC & ATSC.
7. USB (TV): USB input.
8. AUDIO L/R Output: Connect to a digital audio device.
General Description

11

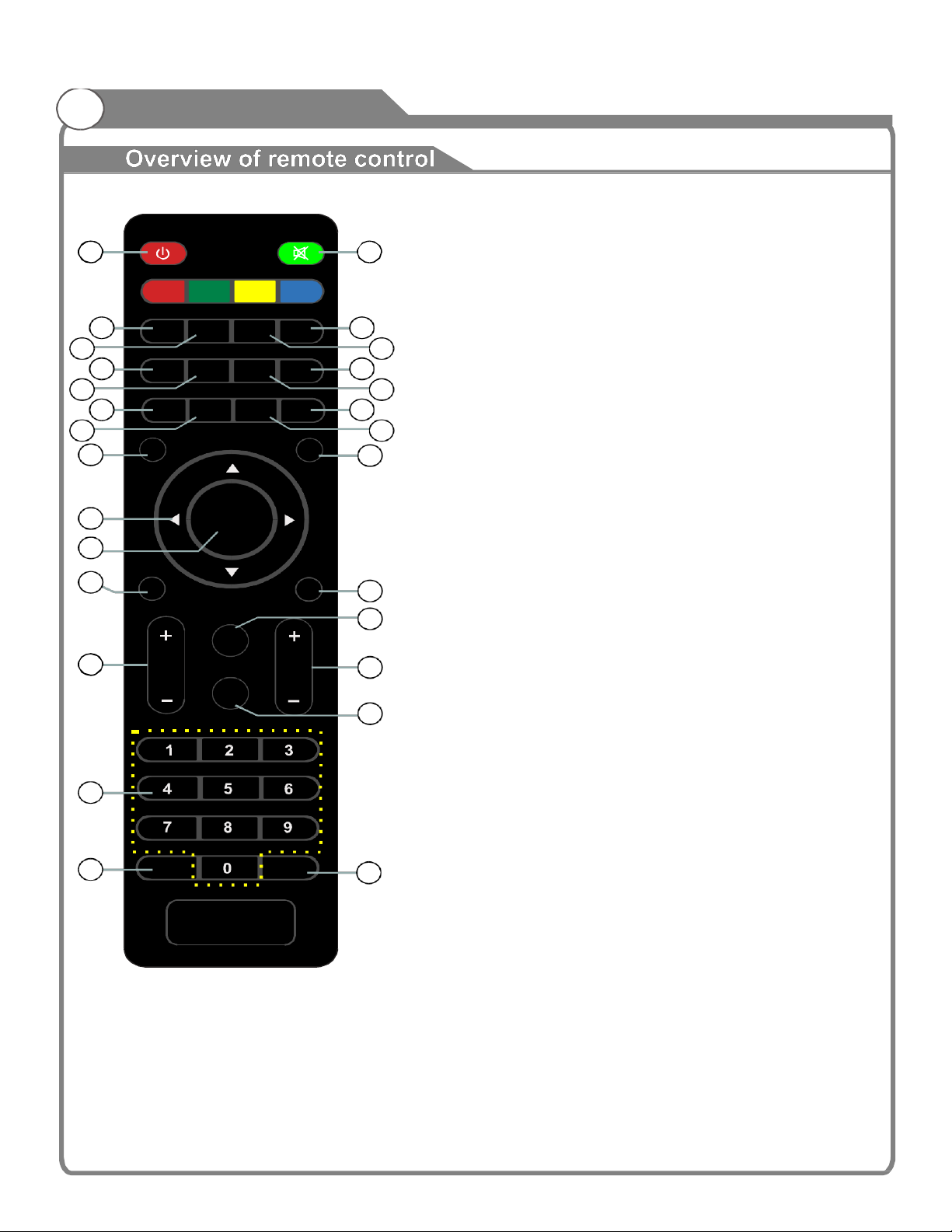

STANDB Y
MUTE
1. STANDBY: Switch LED TV when in standby
1 2 mode or vice versa.
2. MUTE: Press to mute the sound.
3. SLEEP: Set the sleep timer.
SLE E P
3
FAV
ADD/ERA S E FAV
+ /-
5
4. FAV: Select favorite channels.
5. FAV +/-: Press to watch next/previous favorite
4
LOCK
7
TIME FREEZE L IS T
6
9 channel.
6. ADD/ERASE: Add current program to the fa-
8
EPG
11
12
INFO MTS CC
10
13
14
vorite channels list, or erase current program
from the favorite channels list.
15 MENU
SOURCE
16
17 ENTE
R
18
7. LOCK: Press to display the lock menu.
8. TIME: Press to display current time.
9. LIST: Press to display the TV program list.
10. FREEZE: Press to freeze the screen.
11. EPG: Press to display the EPG menu.
12. INFO: Display the channel information.
EX IT
19
S . M OD E
ZOOM
20
21
13. CC: Press to display the closed caption.
14. MTS: Press to select the audio channels.
15. MENU: TV system setup.
16. SOURCE: Press to change input source.
22
VOL CH
23
P.MO D E
24
25
17. ARROW buttons: Use to move cursor up/
down/left/right.
18. ENTER: Validation key.
19. EXIT: Press to exit all menus.
20. ZOOM: Press to change the screen scale.
21. S.MODE: Press to cycle through the differ-
ent sound settings.
22. VOL +/-: Press to increase/decrease the
sound level.
26
-/-- 0
RE TURN
27
23. CH+/-: Press to scan through channels.
24. P.MODE: Press repeatedly to cycle through
the available video picture modes.
25. Number Key (0-9): Press 0-9 to select a TV
channel directly when you are watching TV.
The channel changes after several seconds.
26. -/--: Press this button to enter a program
number for multiple program channel, such
as 2-1, etc.
27. RETURN: Return to the previous channel
viewed.
General Description

12
Antenna input impedance of this unit is 75 Ohms. VHF/UHF 75 Ohm coaxial cable can be
connected to the antenna jack directly, if the antenna cable is 300 Ohm parallel flat feeder
cable, you need to use the 300 Ohm/75 Ohm converter to connect the antenna cable to the
antenna jack. For details, please refer to the following drawing:
Antennas with 300 Ohm Flat Twins Leads Antennas with 75 Ohm Round Leads

13
These instructions assume that you have already connected your TV to an antenna or a cable
TV system. Skip step 1 if you have not yet connected to an antenna or a cable system.
AC 10 0-24 0V~
50/6 0Hz
L R
OUT OPT ICA
L
OU T
CVBS L
IN R Y Pb
Pr
IN
Follow the instructions in Viewing a VCR or Camcorder Tape to view your VCR tape.
Each VCR has a different back panel configuration.
When connecting a VCR, match the color of the connection terminal to the cable.
We recommend the use of cables with a Ferrite Core.
1. Unplug the cable or antenna from the back of the TV.
2. Connect the cable or antenna to the ANT In terminal on the back of the VCR.
3. Connect an RF cable between the ANT OUT terminal on the VCR and the ANT IN terminal
on the TV.
4. Connect a video cable between the VIDEO OUT jack on the VCR and the VIDEO IN jack
on the TV.
5. Connect audio cables between the AUDIO OUT jacks on the VCR and the AUDIO L/R
jacks on the TV.
• If you have a mono (non-stereo) VCR, use a Y-connector (not supplied) to hook up to the
right and left audio input jacks of the TV. If your VCR is stereo, you must connect two ca-
bles.

14
The rear panel jacks on your TV make it easy to connect a DVD player to your TV.
AC 10 0-24 0V~
50 /6 0Hz
L R
OUT
OPTI CA L
OU T
CVBS L
IN R Y Pb
Pr
IN
Component video separates the video into Y (Luminance (brightness)), Pb (Blue), and Pr
(Red) for enhanced video quality.
Be sure to match the component video and audio connections.
For example, if connecting the video cable to COMPONENT IN, connect the audio cable to
COMPONENT IN also.
Each DVD player/STB has a different back panel configuration.
When connecting a DVD player/STB, match the color of the connection terminal to the cable.
We recommend the use of cable with a Ferrite Core.
1. Connect a component cable between the COMPONENT IN (Y, PB, PR) jacks on the TV
and the COMPONENT (Y, PB, PR) jacks on the DVD player.
2. Connect the audio cables between the COMPONENT IN (AUDIO R/L) jacks on the TV and
the AUDIO OUT jacks on the DVD player.

15
The rear panel jacks on your TV make it easy to connect a digital audio system to your TV.
Audio
Cable
(Not included)
Optical Cable
(Not included)
AC 10 0-24 0V~
50 /6 0Hz
L R
OUT OPT ICA
L
OU T
CVBS L
IN R Y Pb
Pr
IN
5.1 CH audio is possible when the TV is connected to an external device supporting 5.1 CH.
We recommend the use of cables with a Ferrite Core.
1. Connect a coaxial cable between the SPDIF jacks on the TV and the digital audio input
jacks on the digital audio system. When a digital audio system is connected to the SPDIF
terminal: Decrease the gain (volume) of the TV, and adjust the volume level with the sys-
tem’s volume control.

16
AC 10 0- 24 0V ~
50 /6 0H z L
R
OU T
OPTI CA L
OU T CV BS
L
IN R Y Pb
Pr
IN
Connect a USB 2.0 memory device into the USB slot of your TV for playback of multimedia
files.
1. This USB slot only supports music (MP3) and photo (JPG) multimedia files playback.
2. This TV is compatible with most USB devices on the market. However, we cannot guaran-
tee the compatibility of all USB devices, due to multiple technology standards used.

17
This connection can only be made if there is an HDMI output connector on the external
device.
AC 10 0-24 0V~
50/60Hz
L R
OUT OPT ICA
L
OUT
CVBS L
IN R Y Pb
Pr
IN
What is HDMI?
HDMI, or high-definition multimedia interface, is a next-generation interface that enables the
transmission of digital audio and video signals using a single cable without compression.
Multimedia interface is a more accurate name for it, especially because it allows multiple
channels of digital audio (5.1 channels).
The difference between HGMI and DVI is that the HDMI device is smaller in size, has the
HDCP (High Bandwidth Digital Cop Protection) coding feature installed, and supports
multi-channel digital audio.
Each DVD player/STB has a different back panel configuration.
We recommend the use of cables with a Ferrite Core.
1. Connect an HDMI cable between the HDMI connector on the TV and the HDMI connector
on the DVD player/Set-Top Box.

18
How to Turn the TV On or Off
1. Insert the power cord plug into a polarized AC outlet.
2. Press the power button on the remote control or on the LED TV.
3. Normal picture will be displayed on the screen after 6 seconds. If there is no signal input,
“No Signal” will be displayed on the screen.
4. If a temporary power off is required, press the power button on the remote control or on the
LED TV.
5. If you want to completely turn off the TV, unplug the power cord for the unit.
6. After turning off the unit, you should turn on the TV again at least 5 seconds later.
Indicator Light Status
Blue: TV is in power on mode
Red: TV is in standby mode
Auto Power Off
If there is no signal input in TV mode, the TV will automatically access the standby mode after
10 minutes.
Memory Before Turning TV Off
The settings of picture and the preset channels will be memorized at turning off the unit.
When being started up again, the unit will work according to the mode set before being turned
off.

19
1. Press the SOURCE button to display the input source list.
2. Use the up and down arrow buttons to select the input source you
want to watch.
3. Press the ENTER button to enter the input source.
• Press the MENU button top of the unit or the remote
control to display the main menu.
• Use the left and right arrow buttons to select Picture/
Audio/Time/Setup/Lock/Channel.
• Use the down arrow button to enter the submenu
page.
• Use the up and down arrow buttons to select the
option that you want to adjust.
• Use the left and right arrow buttons to adjust the
selected option to your desired value.
• Use the right arrow button or ENTER button to enter the next menu page.
• Press the MENU button to return to the previous menu page.
• Press the EXIT button to exit the menu page.
If this is your first time turning on this TV, Setup
Wizard will appear on the screen.
• Use the up and down arrow buttons to select the
preferred item.
• Use the left and right arrow buttons to adjust the
value.
Menu Language
To choose your menu language.
Air/Cable
To choose your signal type: Air, Cable.
Cable System
To choose your cable system: AUTO, STD, IRC, HRC.
NOTE: Cable system is adjustable only when your
signal type is set to cable.
Auto Scan
Highlight Auto Scan, press ENTER to search and store all available channels.
Input Source
TV
AV
YPbPr
HDMI 1
HDMI 2
HDMI 3
USB

20
1. Picture Mode
Available options: User, Standard, Dynamic, Mild.
2. Contrast
The value of contrast can be adjusted from 0-100.
3. Brightness
The value of brightness can be adjusted fro 0-100.
4. Color
The value of color can be adjusted from 0-100.
5. Tint
The value of tint can be adjusted from -50 to 50.
NOTE: Tint is adjustable only in certain TV systems.
6. Sharpness
The value of sharpness can be adjusted fro 0-100.
NOTE: If the value of contrast, brightness, color, tint, or sharpness has been changed, picture
mode will turn to User automatically.
7. Color Temp. (Color Temperature)
Available options: Normal, Warm, Cool.
8. HDR
Adjust the High Dynamic Range.
Available options: Weak, Middle, Strong.
