nbs GPS ASSET TRACK User manual

NBS 4G GPS Tracker
(Version V1.0)
Thank you very much for purchasing NBS GPS ASSET TRACK, the user guide will explain in detail how
to operate this product. Please take time to read this manual carefully before use. Part of the functional
structure of the product is subject to change without notice,
The manufacturer/ dealer takes no legal responsibility for any damage or loss of property using
“NBS ASSET TRACK”

1、Product Function
●Electronic fence,
●Low battery alarm,
●Anti-Lost alarm,
●Location query,
●Track playback
2、Product Parameters
3、Product LED light status
Module
Info.
Communication
chip
●
SIMCOM 7670 SA
Communication
Frequency Ban
d
●
LTE/4G
LTE-FDD B1/B2/B3/B4/B5/B7/B8
/B28/B66
GSM/EDGE/
2G
GSM 850/900/1800/1900MHz
SIM Card
●
Standard SIM card
GPS/BD
Character
GPS Module
●
ZK Chip
Position Way
●
BD+GPS
Cold start
●
Average 30s
Hot Start
●
Average 1s
Tracking
Sensitivity
●
-162 dBm
Capture
Sensitivity
-158 dBm
Position Antenn
a
●
Build in Antenna
GPS Frequency
Band
●
L1: 1575.42±1.023MHz
BD Frequency
Band
●
B1: 1561.098±2.046MHz
Sal
●
136
Position
Accurate
●
Position Accuracy < 5m
Timing Accuracy
●
20ns
Speed Accuracy
●
0.1m/s CEP
maximum
acceleration
●
4g
Max Speed
●
515m/s

3.1 Yellow LED (GSM signal status)
Light Status
Explanation
Slow Flash
GSM Initialization
Fast Flash
Don’t Read Card
Always Bright
GPRS communication is normal/online
Blind Bright
GSM hibernate/unplugged
3.2 Blue Light LED(GPS Signal Status)
Light Status
Explanation
Slow Flash
Searching for GPS signa
Fast Flash
GPS chip does not work
Always Bright
GPS Positioned
Blind Bright
GPS Sleep or Not work
4、Terminal Installation Instructions
3.1 Preparations before installation:
①Open the box to check whether the model of the equipment is correct and whether the
accessories are complete, otherwise please contact your dealer;
②SIM card selection, the terminal needs to insert a SIM card, the SIM card is optional
(LTE network is universal)
③Install the SIM card, insert the SIM card in the left corner slot facing inward and the
chip facing the USB port.
Note: ⑴Before installing or removing the SIM card, please switch off the power supply of
the terminal.
(2) The terminal SIM card needs to activate the network function.
SIM card installation picture
3.2 Installation
The installation method of the terminal is recommended to be hidden installation. The
hidden installation of the terminal equipment is recommended to be installed by a
professional organization designated by the dealer. Pay attention to the following matters:
①Concealed installation, pay attention to waterproof;
②Avoid putting it together with the emission source, such as reversing radar, anti-theft
device and other in-vehicle communication equipment;

③The device has built-in GSM antenna and GPRS antenna. When installing, make sure
that the GPS receiving surface (the surface without the label is the GPS antenna surface)
is upward (towards the sky), and there is no metal obstruction.
5、The correct use steps of the product:
Installation→Boot→Setting→Registration
Installation: When installing, the red dot in the middle of the GPS antenna should
be aligned with the opening or facing the sky, and the installation location must be a place
where there is no electromagnetic wave absorbing material (such as metal,
explosion-proof heat insulation film).
Power on: Install the SIM card in the correct direction and turn the on and off switch
to the on position.
Registering a platform account: your dealer will assign Gps units to your
account in the portal

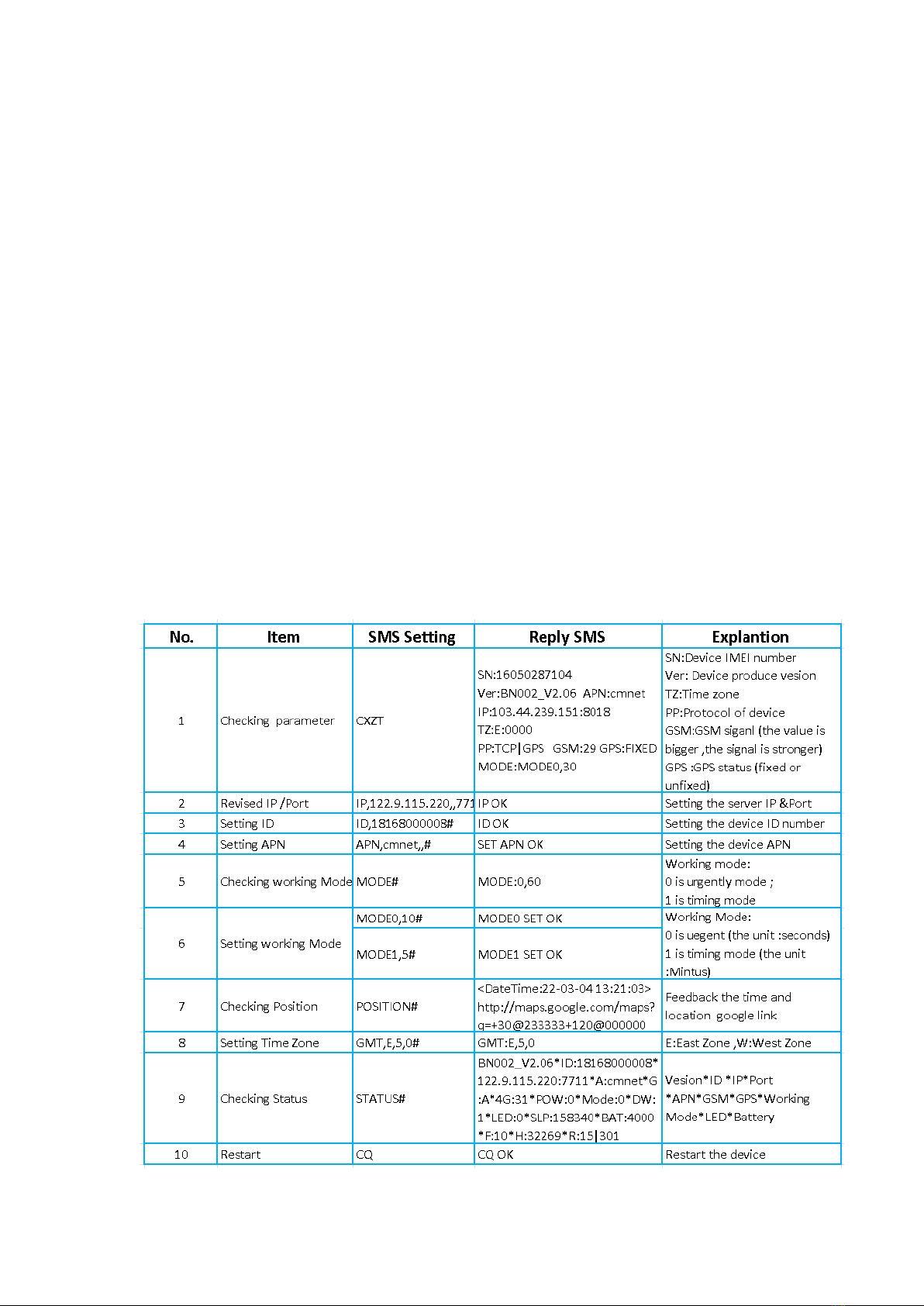

6、Instructions and usage of SMS instructions:
7、Device APP Action

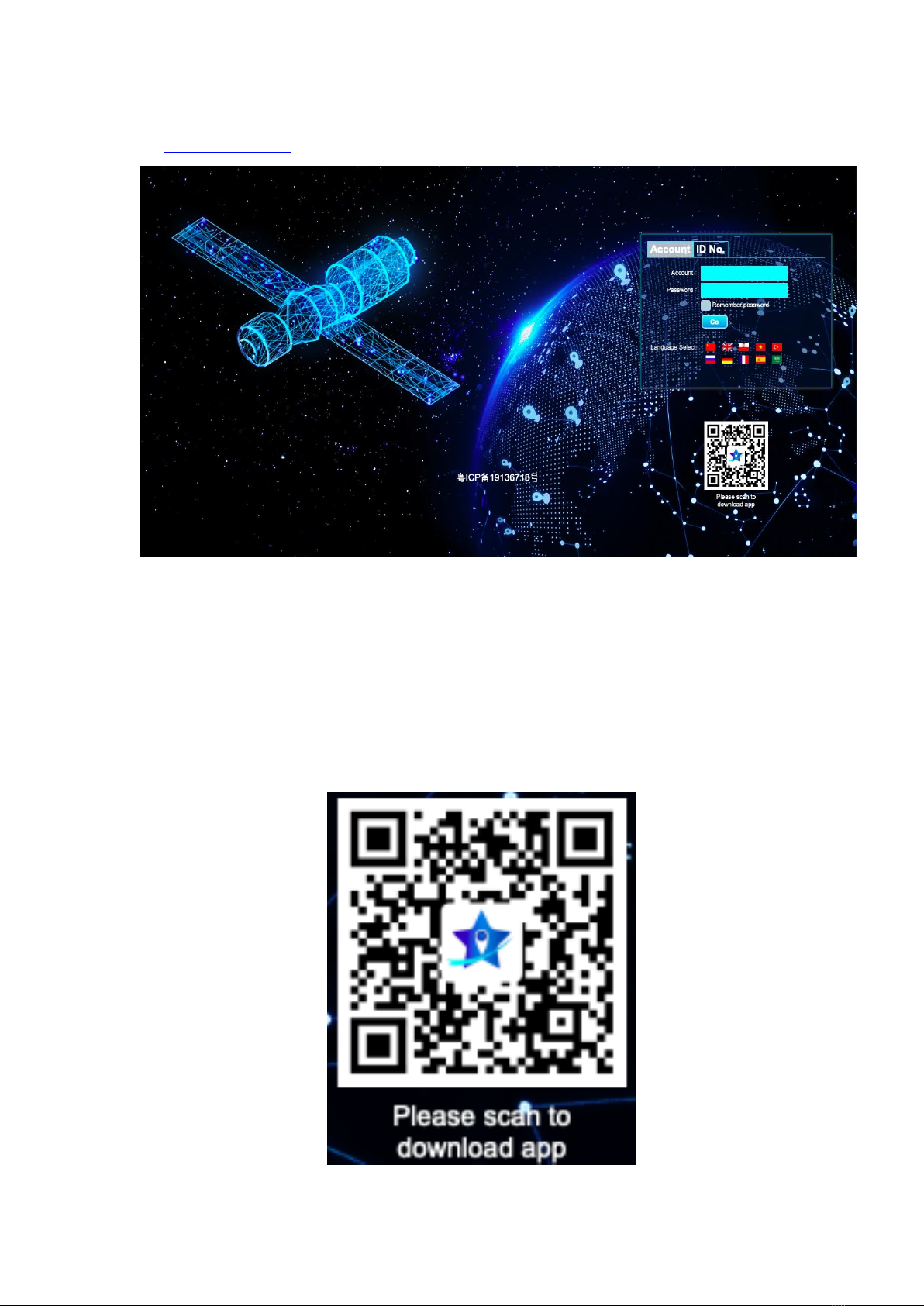

①Log in to the location service platform
②www.xadgps.com
Users can log in to the global positioning service platform provided by the dealer to check
the location and status of the vehicle, and perform corresponding operations. Please
consult your dealer for the website of the service platform
③Download mobile client query
Apple users download and search: XADGPS Android users download: Google Play Store
search for XADGPS or scan the QR code to download
8、Troubleshooting

After the terminal is installed for the first time, it has been unable to connect to the
background server, and the background display is not online. Please check terminal
installation:
When operating the terminal, please refer below to get the solve solution with dealer
Comman Problem
Problem
Solved Solution
Poor Signal
Using the terminal in areas with poor
reception, such as near high-rise buildings
or underground parking lots, radio waves
cannot communicate effectively
Use the terminal in a location
with good signal
First time installation
platform display
Not activated
SIM card not installed
Check Sim Card
LED Indicator Status
Check if the indicator light is
flashing or always on
SIM card is not activated GPRS function
Please contact the service
provider to activate GPRS
Platform map display
Incorrect location
GPS Un-positioned
Please check the equipment
installation, whether the GPS
antenna is aligned with the
opening or the sky
Platform shows offline
status
SIM card arrears or canceled GPRS
Please check SIM card status
Weak signal in drop zone
Please go to a place with strong
signal and try again
9、After Sales Service

1.If products have technical changes,
2.The shape and color, please in kind prevail
3.Warranty card applies to the specified IMEI number in the following table
4.Please retain this warranty card and receipt
5.The following is for the warranty reference
NAME
TELEPHONE
NUMBER
ADDRESS
TYPE
IMEI
1. warranty 1 year from date of purchase for hardware and software
2. Listed below are the situation, which is not covered under the warranty,
(1) Beyond the warranty period
(2) maintenance and repair by disassembling the machine without authorization
(3) Soak, damage or burn circuit board
(4) Installation, use, maintenance, or improper storage
(5) Housings, lenses or internal damage to the antenna
(6) IMEI number not readable
(7) Warranty certificate inconsistent with the product model or has been modified
