NEC NM28S User manual

MODEL: NM28S / N28SS
Microwave Oven Owner's Manual
Please read these instructions carefully before installing and operating the oven.
Record in the space below the SERIAL NO. found on the nameplate on your oven and retain this
information for future reference.
SERIAL NO.

1
P
PR RE EC CA AU UT TI IO ON NS S T TO O A AV VO OI ID D P PO OS SS SI IB BL LE E E EX XP PO OS SU UR RE E T TO O
E
EX XC CE ES SS SI IV VE E M MI IC CR RO OW WA AV VE E E EN NE ER RG
GY Y
1.
2.
3.
a.
b.
c.
4.
Do not attempt to operate this oven with the door open since open door operation
can result in harmful exposure to microwave energy. It is important not to defeat or
tamper with the safety interlocks.
Do not place any object between the oven front face and the door or allow soil or
cleaner residue to accumulate on sealing surfaces.
Do not operate the oven if it is damaged. It is particularly important that the oven
door close properly and that there is no damage to the
Door (bent),
Hinges and latches (broken or loosened),
Door seals and sealing surfaces.
The oven should not be adjusted or repaired by anyone except properly qualified
service personnel.
CONTENTS
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE
ENERGY ----------------------------------------------------------------------------------------------------------- 1
SPECIFICATIONS -----------------------------------------------------------------------------------------------2
BEFORE YOU CALL FOR SERVICE-----------------------------------------------------------------------2
INSTALLATION---------------------------------------------------------------------------------------------------2
GROUNDING INSTRUCTIONS------------------------------------------------------------------------------3
RADIO INTERFERENCE --------------------------------------------------------------------------------------3
IMPORTANT SAFETY INSTRUCTIONS-------------------------------------------------------------------4
MICROWAVE COOKING PRINCIPLES--------------------------------------------------------------------5
UTENSILS GUIDE-----------------------------------------------------------------------------------------------5
PART NAMES ----------------------------------------------------------------------------------------------------5
CONTROL PANEL-----------------------------------------------------------------------------------------------6
HOW TO SET THE OVEN CONTROLS -------------------------------------------------------------------7
Setting digital clock--------------------------------------------------------------------------------------7
Microwave cooking--------------------------------------------------------------------------------------7
Grill---------------------------------------------------------------------------------------------------------- 7
Combination 1 --------------------------------------------------------------------------------------------7
Combination 2 --------------------------------------------------------------------------------------------7
Auto Cook ------------------------------------------------------------------------------------------------- 8
Auto Defrost----------------------------------------------------------------------------------------------- 8
Quick start -------------------------------------------------------------------------------------------------8
Child Lock ------------------------------------------------------------------------------------------------- 9
Special Feature ------------------------------------------------------------------------------------------ 9
CLEANING AND CARE ----------------------------------------------------------------------------------------9

S
SP PE EC CI IF FI IC C
A
A
T
TI IO ON NS S* *
Power Consumption:
2
30V~50Hz, 1400W(Microwave)
2
30V, 900W(Heater)
O
utput:
9
00W
O
peration Frequency:
2
450MHz
O
utside Dimensions:
3
26mm(H)×525mm(W)×460mm(D)
O
ven Cavity Dimensions:
2
19mm(H)×350mm(W)×355mm(D)
O
ven Capacity:
2
8Litres
C
ooking Uniformity:
T
urntable System{Φ314mm}
Net Weight:
A
pprox.19kg
*Technical specification subject to change without notice for improvement..
B
BE EF FO OR RE E
Y
Y
O
OU UC C
A
A
L
LL LF FO OR RS SE ER RV VI IC CE E
If the oven fails to operate:
Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10
seconds, and plug it in again securely.
1.
2.
3.
4.
1.
2.
3.
4.
5.
6.
7.
8.
9.
Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test
the outlet with another appliance.
Check to ensure that the control panel is programmed correctly and the timer is set.
Check to ensure that the door is securely closed engaging the door safety lock system. Otherwise, the
microwave oven won’t function.
IF NONE OF THE ABOVE RECTIFY THE SITUATION, THEN CONTACT A QUALIFIED TECHNICIAN. DO NOT
TRY TO ADJUST OR REPAIR THE OVEN YOURSELF.
I
IN NS ST T
A
A
L
LL L
A
A
T
TI IO ON N
Make sure that all the packing materials are removed from the inside of the door.
WARNING: Check the oven for any damage, such as misaligned or bent door, damaged door seals and
sealing surface, broken or loose door hinges and latches and dents inside the cavity or on the door. If
there is any damage, do not operate the oven and contact qualified service personnel.
This microwave oven must be placed on a flat, stable surface to hold its weight and the heaviest food
likely to be cooked in the oven.
Do not place the oven where heat, moisture, or high humidity are generated, or near combustible
materials.
For correct operation, the oven must have sufficient airflow. Allow 20cm of space above the oven, 10cm at
back and 5cm at both sides. Do not cover or block any openings on the appliance. Do not remove feet.
Do not operate the oven without glass tray, roller support, and shaft in their proper positions.
Make sure that the power supply cord is undamaged and does not run under the oven or over any hot or
sharp surface.
The socket must be readily accessible so that it can be easily unplugged in an emergency.
Do not use the oven outdoors.
2

G
GR RO OU UN ND DI IN NG GI IN NS ST TR RU UC CT TI IO ON NS S
This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding
plug. It must be plugged into a wall receptacle that is properly installed and grounded. In the event of an
electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric
current. It is recommended that a separate circuit serving only the oven be provided. Using a high voltage is
dangerous and may result in a fire or other accident causing oven damage.
WARNING Improper use of the grounding plug can result in a risk of electric shock.
3
1.
2.
1.
2.
3.
4.
5.
Note
If you have any questions about the grounding or electrical instructions, consult a qualified electrician or
service person.
Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal injury
resulting from failure to observe the electrical connection procedures.
The wires in this cable main are colored in accordance with the following code:
Green and Yellow = EARTH
Blue = NEUTRAL
Brown = LIVE
R
R
A
A
D
DI IO OI IN NT TE ER RF FE ER RE EN NC CE E
Operation of the microwave oven can cause interference to your radio, TV, or similar equipment.
When there is interference, it may be reduced or eliminated by taking the following measures:
Clean door and sealing surface of the oven.
Relocate the receiving antenna of radio or television.
Relocate the microwave oven with respect to the receiver.
Move the microwave oven away from the receiver.
Plug the microwave oven into a different outlet so that microwave oven and receiver are on different
branch circuits.

I
IM MP PO OR RT T
A
A
N
NT TS S
A
A
F
FE ET T
Y
Y
I
IN NS ST TR RU UC CT TI IO ON NS S
When using electrical appliance basic safety precautions should be followed, including the following:
WARNING: To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive
microwave energy:
4
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
Read all instructions before using the appliance.
Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals
or vapors in this appliance. This type of oven is specifically designed to heat and cook food and for
domestic use only.
Do not operate the oven when empty.
Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has been
damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its
service agent or a similarly qualified person in order to avoid a hazard
Children or infirm persons without adequate supervision should not operate this MWO.
Young children should be supervised to ensure that they do not play the appliance. .
Place the cookware in the cavity along with a glass half full of water..Heat on 900 W (100%) for one
minute. If the cook ware feels hot,you should not use it.If it is just slightly warm,you can use it for
reheating but not for cooking.If the dish is room temperature,it is suitable for microwave cooking.
Paper napkins ,wax paper,paper towels,plates,cups,cartons,freezer wrap and cardboard are great
convenience utensils.Always be sure containers are filled with food to absorb energy and thus avoid the
possibility of over heating .
Many plastic dishes,cups,freezer containers and plastic wraps may be used in the microwave oven.Follow
manufacturer’s instructions when using plastics in the oven.Avoid using plastic utensils with foods that
have high fat or sugar content since these foods reach high temperatures and could melt some plastics.
Do not leave oven unattended,and look at it from time to time when heating or cooking food in
plastic,paper or other combustible containers.If smoker is observed,keep door closed,switch the oven until
smoke stops.
Metal utensils and utensils with metallic trim should not be used in the microwave oven,unless specifically
recommended for microwave use .
Containers with restricted openings,such as bottles,should not be used for microwave cooking.
Use caution when removing a lid or cover from a dish to avoid steam burns.
WARNING: Liquid or other food must not be heated in sealed containers since they are liable to explode.
Microwave heating of beverage can result in delayed eruptive boiling, therefore care has to be taken when
handle the container.
Do not fry food in the oven. Hot oil can damage oven parts and utensils and even result in skin burns.
Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may
explode even after microwave heating has ended.
Pierce foods with heavy skins such as potatoes, whole squashes, apples and chestnuts before cooking.
The contents of feeding bottles and baby jars should be stirred or shaken and the temperature should be
checked before serving in order to avoid burns.
Cooking utensils may become hot because of heat transferred from the heated food. Potholders may be
needed to handle the utensil.
Utensils should be checked to ensure that they are suitable for use in microwave oven.
WARNING: It is hazardous for anyone other than a trained person to carry out any service or repair
operation which involves the removal of any cover which gives protection against exposure to microwave
energy.

C CO OO O
K
K
I
IN NG GT TI IP PS S
Arrange food carefully. Place thickest areas towards outside of dish.
5
1.
2.
3.
4.
5.
1.
2.
3.
4.
5.
Watch cooking time. Cook for the shortest amount of time indicated and add more as needed. Food
severely overcooked can burn or ignite.
Cover foods while cooking. Covers prevent spattering and help foods to cook evenly.
Turn foods over once during cooking to speed cooking of such foods as chicken and hamburgers. Large
items like roasts must be turned over at least once.
Rearrange foods such as meatballs halfway through cooking both from top to bottom and from the center
of the dish to the outside.
U
UT TE EN NS SI IL LS SG GU UI ID DE E
The ideal material for a microwave utensil is transparent to microwave, it allows energy to pass through
the container and heat the food.
Microwave can not penetrate metal, so metal utensils or dishes with metallic trim should not be used.
Do not use recycled paper products when microwave cooking, as they may contain small metal fragments
which may cause sparks and/or fires.
Round /oval dishes rather than square/oblong ones are recommend, as food in corners tends to
overcook.
Narrow strips of aluminum foil may be used to prevent overcooking of exposed areas. But be careful don’t
use too much and keep a distance of 1 inch (2.54cm) between foil and cavity.
The list below is a general guide to help you select the correct utensils.
C
OOKWARE MICROWAVE
G
RILL
C
OMBINATION
Heat–Resistant Glass
Y
es
Y
es
Y
es
Non Heat–Resistant Glass No No No
Heat–Resistant Ceramics
Y
es
Y
es
Y
es
Microwave–Safe Plastic Dish
Y
es No No
Kitchen Paper
Y
es No No
Metal Tray No
Y
es No
Metal Rack No
Y
es No
A
luminum Foil & Foil Containers No
Y
es No
P

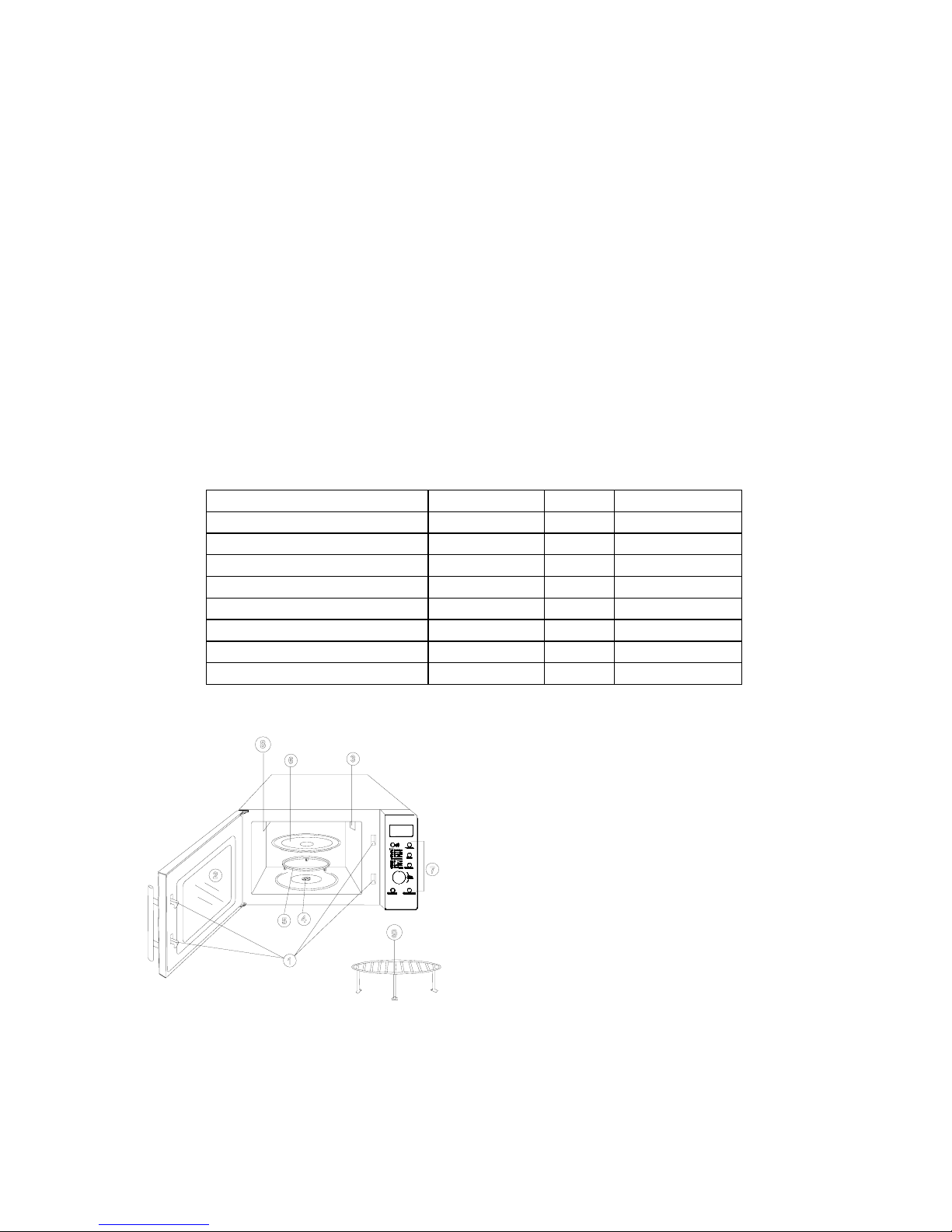

PA AR RT T N NA AM ME ES S
1.
2.
3.
4.
5.
6.
7.
8.
9.
Door Safety Lock System
Oven Window
Oven Air Vent
Shaft
Roller Ring
Glass Tray
Control Panel
Grill Heat
Metal Rack

C
CO ON NT TR RO OL L P PA AN NE EL L



















MENU ACTION SCREEN
Cooking time, power, action indicators, and clock time are
displayed.
POWER THIS BUTTON A NUMBER OF TIMES
TO SET MICROWAVE COOKING POWER LEVEL.
GRILL/COMBI.
Press this button a number of times to access grill cooking
mode or one of two combination cooking settings.
TIME/WEIGHT
Turn the dial to set the oven clock time or input cooking
time.
Turn the TIME/WEIGHT dial to specify weight.
AUTO COOK
Press a number of times for quick settings to cook popular
foods. You need to specify weight.
CLOCK
Press to set the digital clock..
START/QUICK START
Press to start a cooking program.
Simply press it a number of times to set cooking time and
the oven will cook immediately at full power level.
STOP/CANCEL
Press to cancel setting or reset the oven before setting a
cooking program.
Press once to temporarily stop cooking, or twice to cancel
cooking altogether.
It is also used for setting child lock.
6

H
HO O
W
W
T TO O S SE ET TT TH HE EO OV VE EN NC CO ON NT TR RO OL LS S
Each time a button is touched, a beep will sound to acknowledge the touch.
7
Setting digital clock
With the oven ready for input, press the
CLOCK button once or twice to set the digital
clock in 12 or 24 hours cycle.
FOR EXAMPLE: Suppose you want to set the
oven clock time to 8:30.
1.
2.
3.
4.
5.
Press CLOCK button once.
Turn TIME/WEIGHT to indicate the hour
digit 8.
Press CLOCK button.
Turn TIME/WEIGHT dial to indicate the
minute digits until the screen shows 8:
30.
Press CLOCK to confirm the setting.
To check clock time during cooking, press the
CLOCK button once, the time will be displayed
for 5 seconds.
Microwave cooking
To cook with microwave power alone, press
the POWER button a number of times to select
a cooking power level, and then use the
TIME/WEIGHT dial to set a desired cooking
time. The longest cooking time is 60 minutes.
Select power level by pressing the POWER
button:
PRESS POWER BUTTON
C
OOKING
POWER
o
nce 100%
t
wice
8
0%
3
times
6
0%
4
times
4
0%
5
times
2
0%
6
times (setting timer)
0
For example, suppose you want to cook for 1
minute at 60% of microwave power.
Press POWER button 3 times.
1.
2.
3.
Turn TIME/WEIGHT to 1:00.
Press START/QUICK START button.
Grill
The longest cooking time is 60 minutes. The
grill cooking is particularly useful for thin slices
of meat, steaks, chops, kebabs, sausages of
piece of chicken. It is also suitable for hot
sandwiches and au gratin dishes.
For example, suppose you want to grill for 12
minutes.
Press GRILL/COMBI button once.
1.
2.
3.
Turn the TIME/WEIGHT to 12:00.
Press START/QUICK START button.
Combination 1
The longest cooking time is 60 minutes.
30% time for microwave cooking, 70% for grill
cooking. Use for fish, potatoes or au gratin.
FOR EXAMPLE: Suppose you want to set
combination 1 cooking for 25 minutes.
Press GRILL/COMBI. button twice.
1.
2.
3.
Turn TIME/WEIGHT to 25:00.
Press START/QUICK START button.
Combination 2
The longest cooking time is 60 minutes.
55% time for microwave cooking, 45% for grill
cooking. Use for puddings omelettes, baked
potatoes and poultry.
FOR EXAMPLE: Suppose you want to set
combination 2 cooking for 12 minutes.
Press GRILL/COMBI. button three times.
1.
2.
3.
Turn TIME/WEIGHT to 12:00.
Press START/QUICK START button.

8
Auto Cook
For food or the following cooking mode, it is not necessary to program the duration and the cooking
power. It is sufficient to indicate the type of food that you wish to cook as well as the weight of this food.
In order to do this, press the AUTO COOK button a number of times to select a category of
food/cooking mode. then turn the TIME/WEIGHT dial to indicate weight of food to be cooked. The oven
begins cooking once the START/QUICK START button is engaged.
You may need to turn food over at the middle of cooking time to obtain uniform cooking.
For example, to cook 400g of fish.
1.
2.
3.
Press the AUTO COOK button 6 times.
Turn TIME/WEIGHT dial to indicate a weight of 400g.
Press START/QUICK START button.
Auto Cook Menu
Code Food/cooking mode
T
urn TIME/WEIGHT dial to indicate weight of food
1 Coffee/Soup(unit)
2 Rice (g)
3 Spaghetti (g)
4 Potato (g)
5 Auto reheat (g)
6 Fish (g)
7 Chicken (g)
8 Beef/Mutton (g)
9 Skewered Meat (g)
Weight parameters are used to determine the time needed to do the
job. As you rotate the TIME/WEIGHT dial, a number of pre-set weight
parameters display themselves one by one, when it comes up of the
right figure which matches the weight of the food you have placed into
the oven, push the START button.
The result of auto cooking depends on factors such as fluctuation of voltage, the shape and size of
food, your personal preference as to the doneness of certain foods and even how well you happen to
place food in the oven. If you find the result at any rate not quite satisfactory, please adjust the cooking
time a little bit accordingly.
Auto Defrost
The oven allows the defrosting of meat, poultry,
and seafood. The time and the defrosting
power are adjusted automatically once the
weight is programmed.
FOR EXAMPLE: Suppose you want to defrost
600g of shrimp.
1.
2.
3.
Place the shrimp to be defrosted into the
oven.
Turn TIME/WEIGHT dial to choose a
weight.600g.
Press START/QUICK START button.
Quick start
This feature allows you to start the oven
quickly.
Press the START/QUICK START button a
number of times to set the cooking time, the
oven starts work at full power level
immediately.

9
PRESS START/QUICK START BUTTON TIME
o
nce
0
:30
t
wice 1:00
t
hrice 1:30
… …
For example, to set the oven to cook for 2
minutes using this feature:.
Press START/QUICK START button 4 times,
the oven starts working immediately at full
microwave power.
Child Lock
Use to prevent unsupervised operation of the
oven by little children. The CHILD LOCK
indicator will show up on display screen, and
the oven can not be operated while the CHILD
LOCK is set.
To set the CHILD LOCK: Press and hold the
STOP/CANCEL button for 3 seconds, a beep
sounds and LOCK indicator lights.
To cancel the CHILD LOCK: Press and hold
the STOP/CANCEL button for 3 seconds until
lock indicator on display goes off.
Special Feature
AUTO REMINDER
After a cooking or defrosting program has
completed, the oven will automatically continue
to sound beeps every two minutes until the
oven door is opened or the STOP/CANCEL
button is pressed.
C
CL LE EA AN NI IN NG G A AN ND D C CA AR RE E
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Turn off the oven and remove the power plug from the wall socket before cleaning.
Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls,
wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty. Avoid the use of
spray and other harsh cleaners as they may stain, streak or dull the door surface.
The outside surfaces should be cleaned with a damp cloth. To prevent damage to the operating
parts inside the oven, water should not be allowed to seep into the ventilation openings.
Wipe the door and window on both sides, the door seals and adjacent parts frequently with a
damp cloth to remove any spills or spatters. Do not use abrasive cleaner.
Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the
control panel, leave oven door open to prevent oven from accidentally turning on.
If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This
may occur when the microwave oven is operated under high humidity condition. And it is normal.
It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy
water or in a dishwasher.
The roller ring and oven floor should be cleaned regularly to avoid excessive noise. Simply wipe
the bottom surface of the oven with mild detergent. The roller ring may be washed in mild sudsy
water or dishwasher. When removing the roller ring from cavity floor for cleaning, be sure to
replace in the proper position.
Remove odors from your oven by combining a cup of water with the juice and skin of one lemon
in a deep microwaveable bowl, microwave for 5 minutes. Wipe thoroughly and dry with a soft
cloth.
When it becomes necessary to replace the oven light, please consult NEC Service Center or
NEC Pro Care Center to have it replaced.
