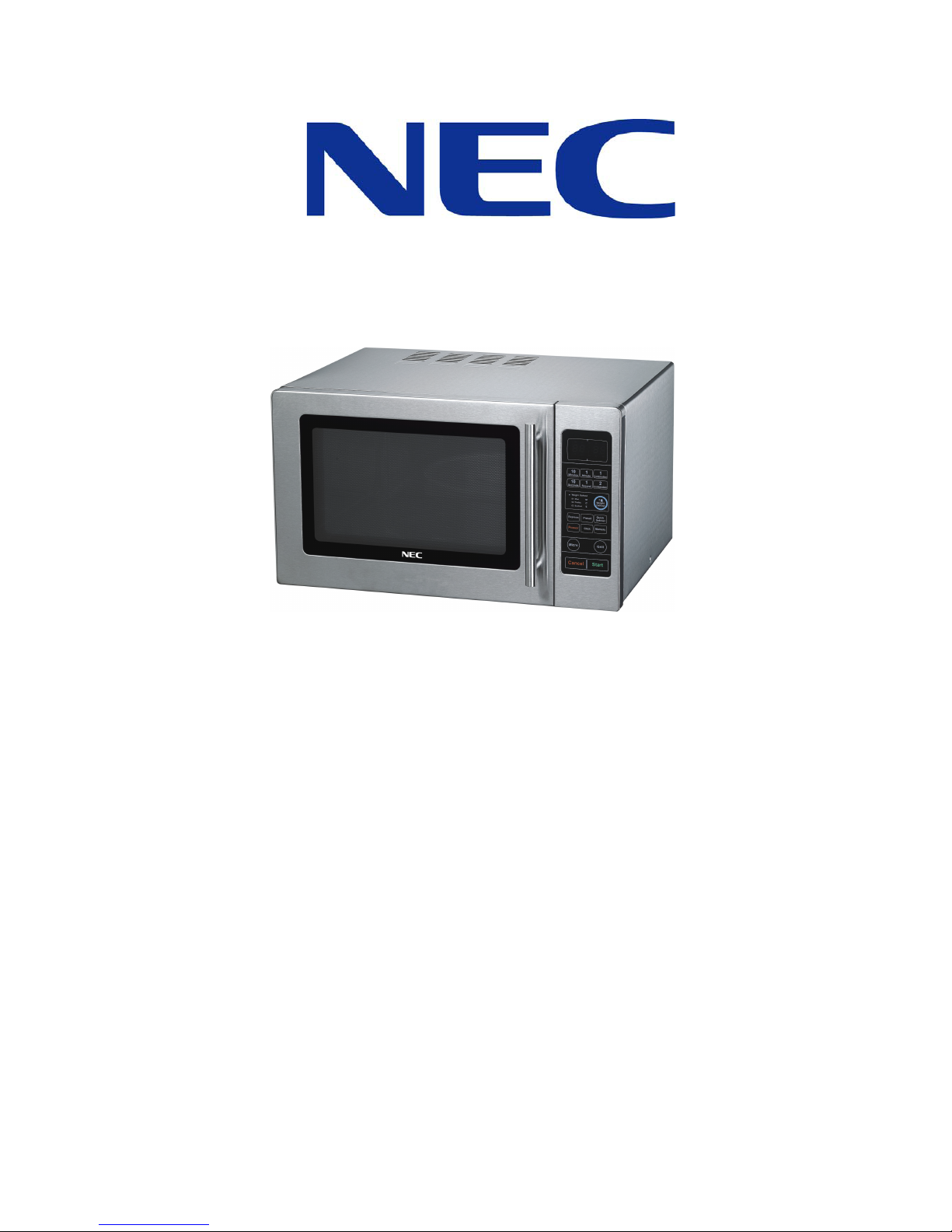

NEC N282GSS User manual

MODEL: N282GSS
Microwave oven Owner's Manual
Please read these instructions carefully before and operating the oven, and retain it future
reference

1. Do not attempt to operate this oven with the door open since open door operation
can result in harmful exposure to microwave energy. It is important not to defeat or
tamper with the safety interlocks.
2. Do not place any object between the oven front face and the door or allow soil or
cleaner residue to accumulate on sealing surfaces.
3. Do not operate the oven if it is damaged. It is particularly important that the oven
door close properly and that there is no damage to the
a. Door (bent),
b. Hinges and latches (broken or loosened),
c. Door seals and sealing surfaces.
4. The oven should not be adjusted or repaired by anyone except NEC Service
Centre.
CONTENTS
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE
1YGRENE
2SNOITACIFICEPS
2ECIVRESROFLLACUOYEROFEB
2NOITALLATSNI
3SNOITCURTSNIGNIDNUORG
3ECNEREFRETNIOIDAR
3SNOITCURTSNIYTEFASTNATROPMI
5SELPICNIRPGNIKOOCEVAWORCIM
5EDIUGSLISNETU
5SEMANTRAP
6LENAPLORTNOC
6NEERCSNOITCAUNEM
7SLORTNOCNEVOEHTTESOTWOH
7kcolcehtgnitteS
7gnikoocevaworciM
7gnikoocllirG
7gnikoocnoitanibmoC
7gnikoocegats-itluM
8gnikoocteS-erP
8gnikoocsserpxE
8tsorfedthgieW
8tsorfeDteJ
8remitgnitteS
9kcolytefaS
9noitarepOgniruDnevOehtpotSoT
9ERACDNAGNINAELC
NEC Service Centre 10
P
PR RE EC CA AU UT TI IO ON NS ST TO OA AV VO OI ID DP PO OS SS SI IB BL LE EE EX XP PO OS SU UR RE ET TO O
E
E
X
X
C
CE ES SS SI IV VE EM MI IC CR RO O
W
W
A
A
V
VE EE EN NE ER RG G
Y
Y
1

Power Consumption 230~240V，50Hz, 1400W(Microwave)
)llirG(W0001,V042~032
Operation Frequency: 2450MHz
Outside Dimensions: 305mm(H)×525mm(W)×460mm(D)
Oven Cavity Dimensions: 219mm(H)×350mm(W)×355mm(D)
Oven Capacity: 28 Litres
Cooking Uniformity: Turntable System
Net Weight: Approx.17.5kg
Gross Weight: Approx.19.6kg
If the oven fails to operate:
Check to ensure that the oven is plugged in
securely. If it is not, remove the plug from the
outlet, wait 10 seconds, and plug it in again
securely.
2.
1.
Check for a blown circuit fuse or a tripped
main circuit breaker. If these seem to be
operating properly, test the outlet with another
appliance.
3. Check to ensure that the control panel is
programmed correctly and the timer is set.
4. Check to ensure that the door is securely
closed engaging the door safety lock system.
Otherwise, the microwave energy will not flow
into the oven.
IF NONE OF THE ABOVE RECTIFY THE
SITUATION, THEN CONTACT NEC SERVICE
CENTRE. DO NOT TRY TO ADJUST OR REPAIR
THE OVEN YOURSELF.
1 Make sure that all packing materials inside
the oven are removed.
2 WARNING: Check the oven for any damage,
such as misaligned or bent door, damaged
door seals and sealing surface, broken or
loose door hinges and latches and dents
inside the cavity or on the door. If there is any
damage, do not operate the oven and contact
NEC Service Centre.
3 This microwave oven must be placed on a flat,
stable surface to hold its weight and the
heaviest food likely to be cooked in the oven.
4 Do not place the oven where heat, moisture,
or high humidity are generated, or near
combustible materials.
5 For correct operation, the oven must have
sufficient airflow. Allow 20cm of space above
the oven, 10cm at back and 5cm at both sides.
Do not cover or block any openings on the
appliance. Do not remove feet.
6 Do not operate the oven without glass tray,
roller support, and shaft in their proper
positions.
7 Make sure that the power supply cord is
undamaged and does not run under the oven
or over any hot or sharp surface.
S
SP PE EC CI IF FI IC C
A
AT TI IO ON NS S* *
B
BE EF FO OR RE E
Y
Y
O
OU UC C
A
A
L
LL LF FO OR RS SE ER RV VI IC CE E
I
IN NS ST T
A
A
L
LL L
A
A
T
TI IO ON N
2
*Specifications are subject to change without pior notice

8 The socket must be readily accessible so that
it can be easily unplugged in an emergency.
9 Do not use the oven outdoors.
This appliance must be grounded. This oven is
equipped with a cord having a grounding wire with
a grounding plug. It must be plugged into a wall
receptacle that is properly installed and grounded.
In the event of an electrical short circuit, grounding
reduces risk of electric shock by providing an
escape wire for the electric current. It is
recommended that a separate circuit serving only
the oven be provided. Using a high voltage is
dangerous and may result in a fire or other accident
causing oven damage.
WARNING Improper use of the grounding plug can
result in a risk of electric shock.
Note
1 If you have any questions about the grounding
or electrical instructions, consult a qualified
electrician or service person.
2 Neither the manufacturer nor the dealer can
accept any liability for damage to the oven or
personal injury resulting from failure to
observe the electrical connection procedures.
The wires in this cable main are colored in
accordance with the following code:
Green and Yellow = EARTH
Blue = NEUTRAL
Brown = LIVE
Operation of the microwave oven can cause
interference to your radio, TV, or similar equipment.
When there is interference, it may be reduced or
eliminated by taking the following measures:
1 Clean door and sealing surface of the oven.
2 Reorient the receiving antenna of radio or
television.
3 Relocate the microwave oven with respect to
the receiver.
4 Move the microwave oven away from the
receiver.
5 Plug the microwave oven into a different outlet
so that microwave oven and receiver are on
different branch circuits.
When using electrical appliance basic safety
precautions should be followed, including the
following:
WARNING: To reduce the risk of burns, electric shock,
fire, injury to persons or exposure to excessive
microwave energy:
1 Read all instructions before using the appliance.
2 Use this appliance only for its intended use as
described in this manual. Do not use corrosive
chemicals or vapors in this appliance. This type
of oven is specifically designed to heat, cook or
dry food. It is not designed for industrial or
laboratory use.
3 Do not operate the oven when empty.
G
GR RO OU UN ND DI IN NG GI IN NS ST TR RU UC CT TI IO ON NS S
R
R
A
AD DI IO OI IN NT TE ER RF FE ER RE EN NC CE E
I
IM MP PO OR RT T
A
A
N
NT TS S
A
A
F
FE ET T
Y
Y
I
IN NS ST TR RU UC CT TI IO ON NS S
3

4
4 Do not operate this appliance if it has a
damaged cord or plug, if it is not working
properly or if it has been damaged or dropped. If
the supply cord is damaged, it must be replaced
by the manufacturer or its service agent or a
similarly qualified person in order to avoid a
hazard
5WARNING: The appliance is not intended for
use by young children or infirm persons without
supervision. Young children should be
supervised to ensure that they do not play with
the appliance
6 To reduce the risk of fire in the oven cavity:
a. When heating food in plastic or paper
container, keep an eye on the oven due to
the possibility of ignition;
b. Remove wire twist-ties from paper or plastic
bags before placing bag in oven.
c. If smoke is observed, switch off or unplug the
appliance and keep the door closed in order
to stifle any flames.
d. Do not use the cavity for storage purposes.
Do not leave paper products, cooking
utensils or food in the cavity when not in use.
during use.
To avoid busrns young children should be kept
away.
7WARNING: Accessible parts may become hot
8WARNING
heated in sealed containers since they are liable
: Liquid or other food must not be
to explode.
9 Microwave heating of beverage can result in
delayed eruptive boiling, therefore care has to
be taken when handling the container.
10 Do not fry food in the oven. Hot oil can damage
oven parts and utensils and even result in skin
burns.
11 Eggs in their shell and whole hard-boiled eggs
should not be heated in microwave ovens since
they may explode even after microwave heating
has ended.
12 Pierce foods with heavy skins such as potatoes,
whole squashes, apples and chestnuts before
cooking.
13 The contents of feeding bottles and baby jars
should be stirred or shaken and the temperature
should be checked before serving in order to
avoid burns.
14 Cooking utensils may become hot because of
heat transferred from the heated food.
Potholders may be needed to handle the utensil.
15 Utensils should be checked to ensure that they
are suitable for use in microwave oven.
16 WARNING: It is hazardous for anyone other
than a trained person to carry out any service or
repair operation which involves the removal of
any cover which gives protection against
exposure to microwave energy. It is not
recommended for use in an environment where
excessive vibration could be experienced,
especially on the caravan.
17 This product is a Group 2 Class B ISM
equipment. The definition of Group 2 which
contains all ISM (Industrial, Scientific and
Medical) equipment in which radio-frequency
energy is intentionally generated and/or used in
the form of electromagnetic radiation for the
treatment of material, and spark erosion
equipment. For Class B equipment is
equipment suitable for use in domestic
establishments and in establishments directly
connected to a low voltage power supply
network which supplies buildings used for
domestic purpose.
18 This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they have
been given supervision or instruction concerning
use of the appliance by a person responsible for
their safety.
19 Children should be supervised to ensure that
they do not play with the appliance.
1 Arrange food carefully. Place thickest areas
towards outside of dish.
2 Watch cooking time. Cook for the shortest
amount of time indicated and add more as
needed. Food severely overcooked can
smoke or ignite.
3 Cover foods while cooking. Covers prevent
spattering and help foods to cook evenly.
4 Turn foods over once during microwaving to
speed cooking of such foods as chicken
M
MI IC CR RO O
W
W
A
AV VE EC CO OO O
K
KI IN NG GP PR RI IN NC CI IP PL LE ES S

The list below is a general guide to help you select the correct utensils.
NOITANIBMOCLLIRGEVAWORCIMERAWKOOC
Heat–Resistant Glass Yes Yes Yes
Non Heat–Resistant Glass No No No
Heat–Resistant Ceramics Yes Yes Yes
Microwave–Safe Plastic Dish Yes No No
Kitchen Paper Yes No No
oNseYoNyarTlateM
oNseYoNkcaRlateM
Aluminum Foil & Foil Containers No Yes No
1.Door Safety Lock System
2.Oven Window
3.Oven Air Vent
4.Shaft
5.Roller ring
6.Glass Tray
7.Control Pane
8..Grill Heater
9.Metal Rack
P
P
A
A
R
RT TN N
A
A
M
ME ES S
5
and hamburgers. Large items like roasts
must be turned over at least once.
5 Rearrange foods such as meatballs halfway
through cooking both from top to bottom
and from the center of the dish to the
outside
1 The ideal material for a microwave utensil is
transparent to microwave, it allows energy
to pass through the container and heat the
food.
2 Microwave can not penetrate metal, so
metal utensils or dishes with metallic trim
should not be used.
3 Do not use recycled paper products when
microwave cooking, as they may contain
small metal fragments which may cause
sparks and/or fires.
4 Round /oval dishes rather than
square/oblong ones are recommend, as
food in corners tends to overcook.
5 Narrow strips of aluminum foil may be used
to prevent overcooking of exposed areas.
But be careful don’t use too much and keep
a distance of 1 inch (2.54cm) between foil
and cavity.
U
UT TE EN NS SI IL LS SG GU UI ID DE E

MENU ACTION SCREEN
Cooking time, power, action indicators, and clock time
are displayed.
QUICK MINUTE BUTTONS
Touch to set clock, cooking time, enter food weight.
Micro
Touch this button to set a microwave cooking program.
Grill
Press it to set a grill cooking program
Combination 1 & 2
Touch this button when you want to set a combination
cooking session.
Weight Defrost
Automatically sets proper defrosting cycle once you
have entered the weight of the food to be thawed.
Quick Defrost
Customize defrosting time for food outside the
categories or exceeding the max. allowable weight by
weight defrost.
Express
To start the oven quickly at full microwave power, you
can press this button a number of times to indicate
cooking time.
Power
Press this button a number of times to set cooking
power level.
Preset
Delay start control allows you to put food into the oven
and program it to start cooking at a later time.
Memory
Use this button to set a multistage cooking program.
Clock
Use to set the time of day or recall the time of day. The
time of day will be displayed at all times except when
the oven is operating. In the event of a power failure or if
the oven is unplugged, the clock will have to be reset.
Cancel
Touch to clear the current setting or reset the system.
Start
Touch to start a cooking program. Each time a button is
touched, a beep will sound to acknowledge the touch.
C
CO ON NT TR RO OL LP P
A
AN NE EL L
6

SETTING THE CLOCK
To enter the oven clock time, ex. 11 : 30 (A.M
or P.M).
1. Touch CLOCK button.
2. Touch CANCEL button.
3. Touch 1-MIN. button 6 times.
4. Touch CLOCK button again to confirm.
Default setting is 1:01 when the oven is
plugged in.
You can check the clock time when cooking
is in progress by touching the CLOCK
button.
MICROWAVE COOKING
Suppose you want to cook for 5 minutes at
60% of microwave power.
1 Touch MICRO button.
2 Touch 1-MIN. button five times.
3 Touch POWER button 3 times.
4 Touch START button.
Step 3 is not necessary if you are to cook at
100% power level.
----------POWER BUTTON----------
By pressing the power button a number of
times, you are selecting different microwave
power levels as the following table shows
Press Screen display Power Level
Once 100 100% of
total
Twice 80 80%
Thrice 60 60%
4 times 40 40%
5 times 20 20%
6 times 0 (setting the timer) 0%
GRILL COOKING
Grill cooking is particularly useful for thin
slices of meat, steaks, chops, kebabs,
sausages or pieces of chicken. It is also
suitable for hot sandwiches and au grain
dishes
Suppose you want to grill for 40 minutes.
1 Touch GRILL button.
2 Touch 10-MIN. button 4 times.
3 Touch START button.
COMBINATION COOKING
COMBINATION 1
30% time for microwave cooking.
70% time for grill cooking.
Use for fish, potatoes, or au gratin.
COMBINATION 2
55% time for microwave cooking.
45% time for grill cooking.
Useful for cooking pudding omelets, baked
potatoes, and poultry.
Suppose you want to set the oven to
COMBINATION 1 for 25 minutes.
1 Touch COMBINATION 2 button.
2 Touch 10-MIN. button 2 times and 1-MIN.
button 5 times.
3 Touch START button.
H
HO O
W
WT TO OS SE ET TT TH HE EO OV VE EN NC CO ON NT TR RO OL LS S
MULTI-STAGE COOKING
The oven can be programmed to do several
consecutive functions.
The following steps are needed if we are
going to set a cooking program which
involves jet defrost, microwave, and grill.
1 Touch CANCEL button to reset the
system.
2 Input Quick-defrost program.
3 Input microwave-cooking program.
4 Touch MEMORY button.
7

5 Input grill-cooking program.
6 Touch START button.
NOTE
Logically, Quick DEFROST or WEIGHT
DEFROST must proceed any cooking
function in a multistage cooking program.
The respective lights will come on to indicate
which stage the oven is operating in. After
total time has elapsed, 3 beep sound.
PRE-SET COOKING
You can put food in the oven, and program
the oven to start up in a later time within the
oven's clock cycle.
Suppose you want to set the oven to start-up
at 2 o'clock.
1 Place food in the oven
2 Touch PRE-SET button.
3 Touch 1-MIN. button twice.
4 Set a cooking program.
5 Touch START button.
EXPRESS COOKING
With express cooking, you touch the
EXPRESS button a number of times to state
cooking time and the oven will work at full
power level immediately.
Touch Once 15 seconds
Touch Twice 30 seconds
Touch 3 Times 1 minute
Touch 4 Times 2 minutes
Suppose you want to set the oven to
microwave for 1 minute at 100% power level.
1 Touch the EXPRESS button 3 times,
"1:00" will appear in the display.
2 Touch START button.
WEIGHT DEFROST
Automatically sets proper defrosting cycle
once you have entered the weight of the
food to be thawed Maximum allowable
weight for each category is shown below. This additional feature is used for timing
things done outside the oven. Three beeps
FOOD
CATEGORY
MAXIMUM
WEIGHT DISPLAY
Meat 2300g d1
Poultry 4000g d2
Seafood 900g d3
Suppose you want to defrost 600g shrimp.
1 Touch WEIGHT DEFROST button 3
times. "d3" will appear in the display.
2 Touch 1-MIN. button 6 times.
3 Touch START button.
NOTE
The oven will not start if you happen to enter
weight in excess of the maximum
recommended.
For food exceeding these maximum weights,
use the Quick DEFROST program.
To serve as a reminder, after a cooking or
defrosting function has completed, the oven
makes beeps every two minutes until the
door is opened or the CANCEL button is
touched.
Quick DEFROST
With Quick DEFROST, you need to input
defrosting time,
Suppose you want to set the oven to Quick
DEFROST for 5 minutes and 30 seconds.
1. Touch Quick DEFROST button.
2.Touch 1-min. button 5 times and 10-sec.
button 3 times.
3. Touch START button.
SETTING TIMER
To set the minute timer, do the following,
1 Touch MICRO button.
2 Use number buttons to input needed
time.
3 Touch POWER button 6 times and the
display will show "0".
4 Touch START button.
NOTE:
8

will sound at the end of the elapsed time.
The oven light and cooling fan will turn on
while the time is counting down, but there is
no microwave present.
SAFETY LOCK
To set the child safety lock feature,
1 Touch CANCEL button.
2 Touch 10 MIN. and 1 SEC. buttons at
the same time. A beep sounds and the
lock indicator lights.
To cancel the SAFETY LOCK
1 Touch 10 MIN. and 1 SEC. buttons at
the same time. A beep will sound and
the child lock indicator light will go out.
NOTE:
You can not operate the oven while the child
lock is set.
TOSTOP THE OVEN DURING OPERATION
Open the door.
You can restart the oven by closing the door
and touching START button.
NOTE:
Oven stops operating the moment when door
is opened.
1. Turn off the oven and remove the power plug from the wall socket before cleaning.
2. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls,
wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty. Avoid the use of
spray and other harsh cleaners as they may stain, streak or dull the door surface.
3. The outside surfaces should be cleaned with a damp cloth. To prevent damage to the operating
parts inside the oven, water should not be allowed to seep into the ventilation openings.
4. Wipe the door and window on both sides, the door seals and adjacent parts frequently with a
damp cloth to remove any spills or spatters. Do not use abrasive cleaner.
5. Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the
control panel, leave oven door open to prevent oven from accidentally turning on.
6. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This
may occur when the microwave oven is operated under high humidity condition. And it is normal.
7. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy
water or in a dishwasher.
8. The roller ring and oven floor should be cleaned regularly to avoid excessive noise. Simply wipe
the bottom surface of the oven with mild detergent. The roller ring may be washed in mild sudsy
water or dishwasher. When removing the roller ring from cavity floor for cleaning, be sure to
replace in the proper position.
9. Remove odors from your oven by combining a cup of water with the juice and skin of one lemon
in a deep microwaveable bowl, microwave for 5 minutes. Wipe thoroughly and dry with a soft
cloth.
10. When it becomes necessary to replace the oven light, please consult NEC Service Centre
to have it replaced.
11. The oven should be cleaned regularly and any food deposits removed. Failure to maintain the
oven in a clean condition could lead to deterioration of the surface that could adversely affect the
life of the appliance and possibly result in a hazardous.
12. Please do not use harsh abrasive cleaner or sharp metal scrapers to clean the oven door glass
C
CL LE E
A
AN NI IN NG G
A
AN ND DC C
A
AR RE E
9
since can scratch the surface, which may result in shattering of the glass.

NEC Australia Pty. Ltd.
ABN 86 001 217 527
DISPLAY AND HOME GROUP
NEC Service Centres PH:131-632
New South Wales
Sydney 184 Milperra Rd, Revesby 2212 131-632
Newcastle Unit 5, 5-7 The Gateway, Channel Rd. Steel River
Eco-Industrial Estate, Mayfield West 2304 131-632
Victoria
Melbourne Unit 1/6 Garden Road, Clayton 3168 131-632
Queensland
Brisbane Unit 4 / 305 Montague Road, West End 4101 131-632
Southport Shop 1, 48 Ferry Road, Southport 4215 131-632
South Australia
Adelaide 84A Richmond Rd, Keswick, 5053 131-632
Western Australia
Perth 45 Sarich Court, Osborne Park 6017 131-632
For Service in outer areas, please contact your NEC retailer for the address of the nearest
Authorised NEC Service Centre
NEC Australia Pty. Ltd.
Display and Home Group
244 Beecroft Road EPPING 2121
Tel: 131 632
Fax: [phone]
