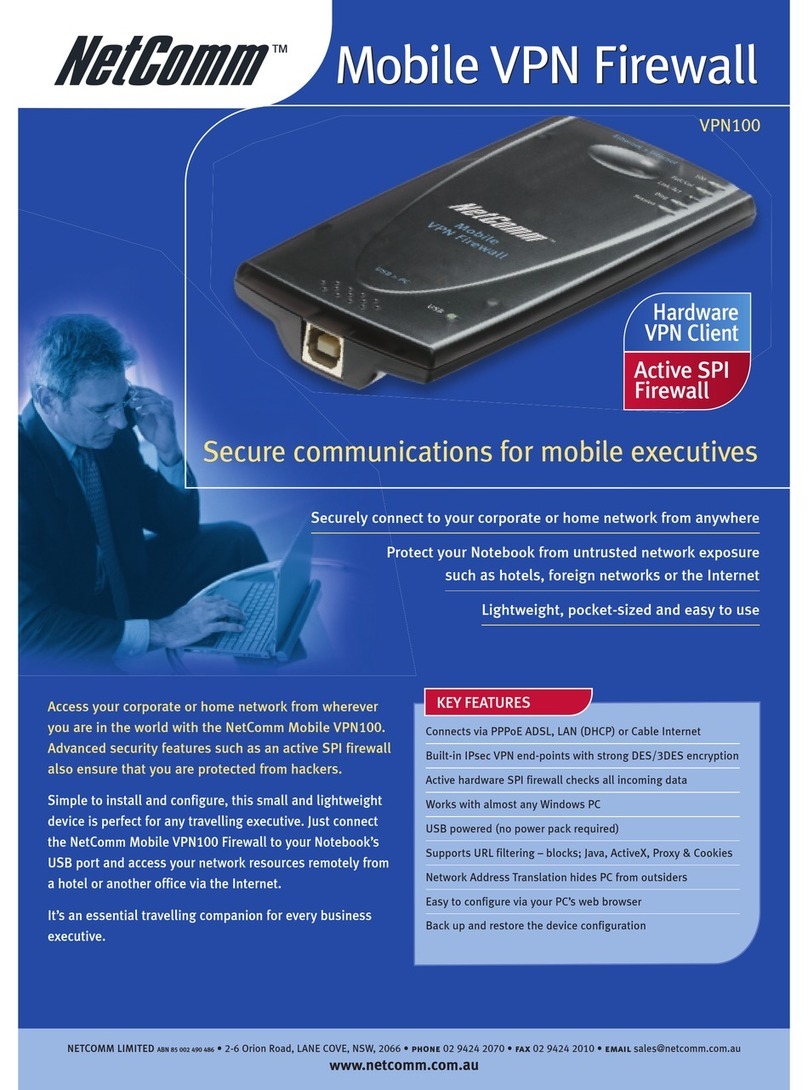

Introduction
The VPN100 will perform three main functions when used to connect your PC, these functions
are described below:
■Internet - Provide a Network/Internet connection
The VPN100 will provide a safe Network/Internet connection to:
■An Office Ethernet LAN and the Internet
■The Internet via an ADSL modem
■The Internet via an Cable Internet modem
■Firewall - Prevent Hacker attacks and Network Viruses.
Another use for the VPN100 is simply to protect you from viruses and trojans when sharing
files with a local network which you can’t trust (such as downloading a file from a
customer’s local server when out on-site). Of course at the same time you can use that
network’s Internet connection to Surf or connect to your Remote Office VPN. The
Hardware Firewall will protect your PC from Hacker attacks coming from the local network
or from the Internet. This protection is part of the VPN100 hardware and therefore does not
slow down your PC’s performance.
■VPN - access your office network from anywhere
The Built-in VPN end points can be pre-configured (usually by your company’s Network
Administrator) to connect to your Company’s IPsec VPN service via the Internet. This will
allow you to access your Company’s Office resources from anywhere whilst maintaining
data integrity and security.
Note: The VPN100 always connects to your computer via the USB socket and
USB Cable. The Ethernet socket is intended to be connected to the Internet
or an Un-trusted Network. If you connect your computer to the VPN100 via
the Ethernet socket, the VPN100 will not work.

www.netcomm.com.au Rev.1 - YML701
Page 4 VPN100 Traveller’s Guide
Package Contents
The following items should be contained in your NetComm Personal Firewall VPN Adaptor
Package:
■Package Contents Note and this Traveller’s Guide
■Etherent Network Cable (RJ-45)
■USB Connection Cable
■NetComm Personal Firewall VPN Adaptor (VPN100)
■NetComm Driver CD-ROM (including drivers and
additional user guide)
Check the contents of your package and, if any parts are missing or damaged, please contact
your Dealer.

Rev.1 - YML701 www.netcomm.com.au
VPN100 Traveller’s Guide Page 5
VPN100 LEDs
The following figure shows the top view of the NetComm VPN100.
The LEDs on the top indicate the status of the unit.
LED Colour Description
Session Orange The Session LED indicates a successful VPN Tunnel has been
established between two endpoints.
Diag Red The Diag LED lights up when the Adapter goes through its self-
diagnosis mode during every boot-up. It will turn off upon
successful completion of the diagnosis.
Link/Act Green The Link/Act LED serves two purposes. If the LED is
continuously lit, the Adapter is successfully connected. If the
LED is flickering, the Adapter is actively sending or receiving
data.
Full/Col Green The Full/Col LED also serves two purposes. If this LED is lit up
continuously, the connection is running in Full Duplex mode.
If the LED flickers, the connection is experiencing collisions.
If this LED flickers too often, there may be a problem with your
connection. See “Appendix A: Troubleshooting” if you
encounter this problem.
100 Orange The 100 LED lights up when a successful 100Mbps connection
is made.
If this LED does not light up, then your connection speed is 10
Mbps.
USB Green The USB LED lights up when the Adapter is connected to a PC
and powered on.

www.netcomm.com.au Rev.1 - YML701
Page 6 VPN100 Traveller’s Guide
Connecting your VPN100
1. Before you begin, make sure that all of your hardware is powered off, including the Adapter,
PCs, cable or DSL modem, and/or Router.
2. Connect one end of the USB cable to the USB port on the Adapter and the other end of the
USB cable to a USB port on your PC.
3. Connect one end of an Ethernet cable to the Ethernet port on the Adapter, and the other end
to an Ethernet port (LAN port) on a Network. If you are not using a Router, you can
connect it directly to a Cable or DSL modem.
If the PC is powered up:
• The USB LED will light up green as soon as the Adapter is connected correctly to the
PC.
• The Diag LED will light up red for a few seconds when the Adapter goes through its
self-diagnostic test. This LED will turn off when the self-test is complete.
4. Turn on the PC, cable or DSL modem and/or Router.
5. If this is the first time you have connected the VPN100 Adapter to this computer, you will
be prompted to install drivers by Windows. Refer to the following section and follow the
instructions for the version of Windows you are using.

Rev.1 - YML701 www.netcomm.com.au
VPN100 Traveller’s Guide Page 7
Installing USB drivers
The following section details the driver installation instructions for Windows XP. For other
operating systems, please refer to the User Guide on the CD-ROM
Windows XP
1. Insert the NetComm Driver CD-ROM in
your CD-ROM drive and turn on your
computer.
2. When prompted by the Found New
Hardware Wizard confirm that “Install
the software automatically
(Recommended)” is selected and click on
Next>.
3. The Found New Hardware Wizard will
search for the correct driver.
4. Select the NetComm Personal USB
VPN/Firewall and click on Next>.

www.netcomm.com.au Rev.1 - YML701
Page 8 VPN100 Traveller’s Guide
5. If prompted, click on Continue Anyway
to proceed with the installation.
6. Windows will install the driver on your
system.
7. Click on Finish to complete the
installation.
8. Windows XP will advise that a new
network device has been installed.

Rev.1 - YML701 www.netcomm.com.au
VPN100 Traveller’s Guide Page 9
Configuring the VPN100
Using the Web-based User Interface
The NetComm VPN100 uses a Web-based User Interface for configuration. Start your web
browser and type http://192.168.1.1 in the browser’s address box and press “Enter”. This
address is the factory default IP Address of your NetComm VPN100. You should check if it has
been changed by your Network Administrator.
The “Username and Password Required” prompt box will appear. Leave the “User Name”
empty and type “admin” (default password) for the “Password”. Click “OK”. The setup
screen will load.
Note: This password should be changed via the Administration page immediately.
The password can be reset by restoring the factory defaults with the Reset
button.
When making changes to the settings, click on the “Apply” button before moving to another
page. The router will reboot and refresh the screen in five seconds. Continue the session by
selecting more menu items.
Note: This log-in process will only be required when you are changing the connection
type, configuring other options or when you are Connecting / Disconnecting
VPN tunnels in the VPN100.
The VPN100 factory defaults have the WAN connection type set as “Obtain IP
Automatically” (known as DHCP). You may not need to configure anything if
this is the mode that suits your connection situation.
There are three sets of Username & Passwords described in this guide:
■ The ‘Admin’ password which allows you to access your VPN100 to make
configuration changes to it. This password belongs to the VPN100 and will
always be the same unless you change it.
■ The ‘PPP’ or ‘Heartbeat’ Username & Password which authenticates you
with your ISP. (Only required when using PPP or Heartbeat connection
types.) This password belongs to the ISP and it will depend upon your
account with the ISP.
■ Hotel or Airport Username & Passwords are some times issued when you
are accessing the Internet via a paid service. This username and password
is likely to be different for every different paid service you use.

www.netcomm.com.au Rev.1 - YML701
Page 10 VPN100 Traveller’s Guide
Choices when Travelling
Note: If this is the first time you are using the VPN100, you will need to install the
correct USB drivers for your operating system before choosing your connection
type. Refer to the “Installing USB Drivers” section.
When you are travelling you may need to change the configuration of the VPN100 to suit the
type of connection you wish to use.
The main connection types are:
■DHCP Ethernet Connection or “Obtain IP automatically”
■A Static IP Ethernet Connection or “Static IP”
■A directly connected ADSL modem or “PPPoE service”
■A PPTP Ethernet service or “PPTP service”
■A directly connected Telstra Cable modem or “Heartbeat”
To help you choose the type of connection you may need to use for your location please see the
following scenarios and follow the instructions given.

Rev.1 - YML701 www.netcomm.com.au
VPN100 Traveller’s Guide Page 11
Connecting to an office LAN (Ethernet connection)
Often when you are visiting a Client’s office you will need to connect back to your company’s
office network to retrieve a file or check your email. Most commonly, the connection provided is
an Ethernet (LAN) port on the wall or a Network Switch. When connecting in this way you can
access the local office, the Internet (presuming the local office has an Internet connection) and
your Companies office (presuming you have a VPN server / Gateway at your remote office).
Ask the Local Network Administrator
It is advisable to speak to the Local Network Administrator of the client’s office to see if there
are any restrictions (such as MAC / IP filtering or lack of VPN pass-through) on the network
that may block access to local resources and more importantly access to the Internet. You will
also need to enquire if the LAN supports DHCP, and what IP address you should use if it does
not.
DHCP or Static?
Most modern office networks run a DHCP server that will automatically allocate your VPN100
with the correct IP address settings – this is the easiest way to connect and you should try this
setting first. Alternatively you should ask the Local Network Administrator for “Static IP
address” settings to allow you to connect to the local network. Once you have decided your
connection method please refer to one of the two options as follows:
Note: In its factory default mode the VPN100 is already set to use DHCP.

www.netcomm.com.au Rev.1 - YML701
Page 12 VPN100 Traveller’s Guide
Option 1 - Using DHCP (follow these steps if the Local Network
supports DHCP)
If the office uses DHCP follow the steps below to configure your connection:
1. Join your VPN100 to your computer’s USB socket with the USB cable.
2. Use the Ethernet cable provided to connect the VPN100 to an Ethernet port provided by the
office you are visiting. Check that the “Link/Act” light on the VPN100 is now lit.
3. Log in to your VPN100 by typing the Device IP address into the location bar of your web
browser. The Default IP address is “192.168.1.1”
4. When prompted for the Username and Password, enter them as previously set by the owner
of the VPN100. The defaults are “admin” for username and “admin” for password.
5. In the Onepage setup screen, click the down arrow of the “WAN connection type” box and
choose “Obtain an IP Automatically”. Then click “Apply” at the bottom of the page.

Rev.1 - YML701 www.netcomm.com.au
VPN100 Traveller’s Guide Page 13
6. Your VPN100 will reboot ( and your connection will be lost temporarily). Once the reboot is
completed you can choose “Status Monitor” from the menu to view the IP address you have
obtained via DHCP.
Note: If your “Public IP address” is shown as “0.0.0.0” then you have not been
automatically assigned an IP address. Speak to the local network
administrator for further advice.
7. Your computer should now be able to view the Local Network as well as access the Internet
via the local network’s Internet connection. If you have a VPN tunnel pre-configured you
should also be able to enable that tunnel to connect through the Internet to your company’s
office network.
Option 2 - Using Static IP (follow these steps if the Local Network
does not support DHCP)
1. Consult your local Network Administrator and ask them for the following settings:
■Static IP Address
■Subnet Mask
■Gateway
■DNS
■DNS 2 (optional)
2. Join your VPN100 to your computer’s USB socket with the USB cable.
3. Use the Ethernet cable provided to connect the VPN100 to an Ethernet port provided by the
office you are visiting. Check that the “Link/Act” light on the VPN100 is now lit.
4. Log in to your VPN100 by typing the Device IP address into the location bar of your web
browser. The Default IP address is “192.168.1.1”
5. When prompted for the Username and Password, enter them as previously set by the owner
of the VPN100. The defaults are “admin” for Username and “admin” for password.

www.netcomm.com.au Rev.1 - YML701
Page 14 VPN100 Traveller’s Guide
6. In the Onepage setup screen, click the down arrow of the “WAN connection type” box and
choose “Static IP”. Enter the details as supplied by the Local Network Administrator, i.e.
Static IP Address (WAN), Subnet Mask, Gateway (Default Gateawy), DNS1. Then click
“Apply” at the bottom of the page.

Rev.1 - YML701 www.netcomm.com.au
VPN100 Traveller’s Guide Page 15
Connecting to a Hotel / Airport Ethernet (LAN) port
Often when you are visiting Hotels or Airports you will need to connect back to your office
network to retrieve a file or check your email. Most commonly, the connection provided is an
Ethernet port on the wall or a Network Switch. When connecting in this method using the
VPN100 you can access the Internet (and run a VPN tunnel to your office) whilst remaining
shielded (firewalled) from other people on the Hotel / Airport Network.

www.netcomm.com.au Rev.1 - YML701
Page 16 VPN100 Traveller’s Guide
Hotel / Airport Username & Password
Because most Airport / Hotel Internet services are “Pay for time” type services you may need
to also complete an extra log-in screen with a username and password that is given to you when
you purchase your internet access. This log-in screen can only be accessed after you have
chosen your VPN100 connection method. The Hotel / Airport log-in screen may look something
like the screen below:
Follow the steps below to configure your connection;
1. Join your VPN100 to your computer’s USB socket with the USB cable.
2. Use the Ethernet cable provided to connect the VPN100 to an Ethernet port provided by the
Hotel / Airport you are visiting. Check that the “Link/Act” light on the VPN100 is now lit.
3. Log into your VPN100 by typing the Device IP address into the location bar of your web
browser. The Default IP address is “192.168.1.1”

Rev.1 - YML701 www.netcomm.com.au
VPN100 Traveller’s Guide Page 17
4. When prompted for Username and Password enter them as previously set by the owner of
the VPN100. The defaults are “admin” for username and “admin” for password.
5. In the Onepage setup screen, click the down arrow of the “WAN connection type” box and
choose “Obtain an IP Automatically”. Then click “Apply” at the bottom of the page.
6. Your VPN 100 will reboot (your connection will be lost temporarily). Once the reboot is
completed you can choose “Status Monitor” from the menu to view the IP address you have
obtained via DHCP.
Note: If your “Public IP address” is shown as “0.0.0.0” then you have not been
automatically assigned an IP address, speak to the Hotel / Airport operator
for further advice.
7. Your computer should now be able to browse the Internet via the Hotel / Airport Internet
connection. If you find that when browsing your are presented with another (different) log-
in screen (such as shown above) then you may need to enter a Username and Password
issued by the Hotel / Airport before being allowed access to the Internet. Once you have
done this you should not only be able to access the Internet but you should also be able to
enable your pre-configured VPN tunnel.

www.netcomm.com.au Rev.1 - YML701
Page 18 VPN100 Traveller’s Guide
Connecting directly to an ADSL Internet modem
When using your VPN100 at home with an ADSL Internet service the best way to connect is by
plugging the VPN100 Ethernet port directly into the Ethernet port of an ADSL modem. In this
scenario the ADSL modem should be in ‘Bridged mode’ not ‘Routed mode’.
Note: If you wish to use your VPN100 with an ADSL Router (or ADSL Gateway)
which shares the ADSL connection with more than one computer then you
should treat the connection as an ‘Office LAN’ and follow the instructions
for “Connecting to an Office LAN”
Follow the steps below to configure your connection;
1. Turn on your ADSL modem, with an enabled ADSL line connected to your ADSL modem.
2. Join your VPN100 to your computer’s USB socket with the USB cable.
3. Use the Ethernet cable provided to connect the VPN100 to the Ethernet port of your ADSL
modem. Check that the “Link/Act” light on the VPN100 is now lit.
4. Log into your VPN100 by typing the Device IP address into the location bar of your web
browser. The Default IP address is “192.168.1.1”
5. When prompted for the Username and Password, enter them as previously set by the owner
of the VPN100. The defaults are “admin” for Username and “admin” for password.

Rev.1 - YML701 www.netcomm.com.au
VPN100 Traveller’s Guide Page 19
6. In the Onepage setup screen, click the down arrow of the “WAN connection type” box and
choose “PPPoE”.
7. The screen will change briefly, type in your PPP username and password as given to you by
your ISP (please note this is NOT the same as your Admin password used to log in to the
VPN100). Then click “Apply” at the bottom of the page.
Note: If you select PPPoE, you will no longer need to use any ISP supplied PPPoE
software on your computer to connect to the Internet (the VPN100 does this
for you)
8. Your VPN100 will reboot (and your connection will be lost temporarily). Once the reboot is
completed you can choose “Status Monitor” from the menu to view the IP address you have
obtained via DHCP.
Note: If your “Public IP address” is shown as “0.0.0.0” then you have not been
automatically assigned an IP address, speak to the local network
administrator for further advice.
9. Your computer should now be connected to the Internet via your ADSL modem. If you have
a VPN tunnel pre-configured you should also be able to enable that tunnel to connect
through the Internet to your company’s office network.

www.netcomm.com.au Rev.1 - YML701
Page 20 VPN100 Traveller’s Guide
Connecting directly to an Optus Cable Internet modem
When using your VPN100 at home with an Optus Cable Internet service the best way to
connect is by plugging the VPN100 Ethernet port directly into the Ethernet port of your Optus
Cable modem. The Optus cable system does not require a username and password and it uses
DHCP to assign you a Public IP address.
Note: If you wish to use your VPN100 with an existing Broadband Router, which
shares the Optus Cable connection with more than one computer, then you
should treat the connection as an ‘Office Network’ and follow the
instructions for “Connecting to an Office LAN”.
Follow the steps below to configure your connection:
1. Turn on your Optus Cable modem, ensure the Cable modem is connected to the Cable
network and has “Cable Sync”.
2. Join your VPN100 to your computer’s USB socket with the USB cable.
3. Use the Ethernet cable provided to connect the VPN100 to the Ethernet port of your Cable
modem. Check that the “Link/Act” light on the VPN100 is now lit.
4. Log into your VPN100 by typing the Device IP address into the location bar of your web
browser. The Default IP address is “192.168.1.1”
