Safety instructions
Caution! Closely follow the instructions set out in
this manual. All responsibility, for any eventual
inconveniences, damages or fires caused by not
complying with the instructions in this manual, is
declined. The extractor hood has been designed
exclusively for domestic use.
Warning! Do not connect the appliance to the
mains until the installation is fully complete.
Before any cleaning or maintenance operation,
disconnect hood from the mains by removing the
plug or disconnecting the mains electrical supply.
Always wear work gloves for all installation and
maintenance operations.
The appliance is not intended for use by children
or persons with impaired physical, sensorial or
mental faculties, or if lacking in experience or
knowledge, unless they are under supervision or
have been trained in the use of the appliance by
a person responsible for their safety.
This appliance is designed to be operated by
adults, children should be monitored to ensure
that they do not play with the appliance. This
appliance is designed to be operated by adults.
Children should not be allowed to tamper with
the controls or play with the appliance.
Never use the hood without effectively mounted
grating!
The hood must NEVER be used as a support
surface unless specifically indicated.
The premises where the appliance is nstalled
must be sufficiently ventilated, when the kitchen
hood is used together with other gas combustion
devices or other fuels.
The ducting system for this appliance must not
be connected to any existing ventilation system
which is being used for any other purpose such
as discharging exhaust fumes from appliances
burning gas or other fuels.
The flaming of foods beneath the hood itself is
severely prohibited.
The use of exposed flames is detrimental to
the filters and may cause a fire risk, and must
therefore be avoided in all circumstances.
Any frying must be done with care in order to
make sure that the oil does not overheat and
ignite.
Caution! Accessible parts of the hood may
became hot when used with cooking appliance.
With regards to the technical and safety
measures to be adopted for fume discharging
it is important to closely follow the regulations
provided by the local authorities. The hood must
be regularly cleaned on both the inside and
outside (AT LEAST ONCE A MONTH).
This must be completed in accordance with
the maintenance instructions provided in this
manual). Failure to follow the instructions
provided in this user guide regarding the
cleaning of the hood and filters will lead to the
risk of fires.
Do not use or leave the hood without the lamp
correctly mounted due to the possible risk of
electric shocks.
We will not accept any responsibility for any
faults, damage or fires caused to the appliance
as a result of the non-observance of the
instructions included in this manual.
Environment concerns
Recycle the materials with the symbol .
Put the packaging in applicable containers to recycle
it.
Help protect the environment and human health
and to recycle waste of electrical and electronic
appliances.
Do not dispose appliances marked with the symbol
with the household waste. Return the product to
your local recycling facility or contact your municipal
office department for household waste or the shop
where you purchased this product.
EN - User manual

8
Standard Guarantee Conditions and Exclusions.
All our products come with 12 month warranty. To
see our guarantee conditions and exclusions please
visit our Customer Care Department
www.benchmarxjoinery.co.uk.
Service and Spare Parts.
Service is provided by Electrolux Major Appliances as
authorised service partner network.
Please contact your local Service Centre on; 08445
616616 (Your call will automatically be routed to your
local centre). Please ensure you read all information
under ‘Troubleshooting’ in your instruction booklet
before contacting us for service. Servicing and/or
installation of your product should be carried out by
a suitably qualified engineer. In the user manual you
will find some useful information on how to deal with
minor faults and how to take care of your product.
When contacting us for Service please ensure
that you have proof of purchase and the following
information available:
Model No …………………………..................…………
Serial No …………………………………………………..
Product No ………………………………………………..
Date of Purchase….……………………………………...
Customer Care:
Please contact Electrolux Major Appliances,
Addington Way, Luton, Bedfordshire, LU4 9QQ
Contact No: 08445 613613
Use
The hood is designed to be used either for exhausting
or filter version .

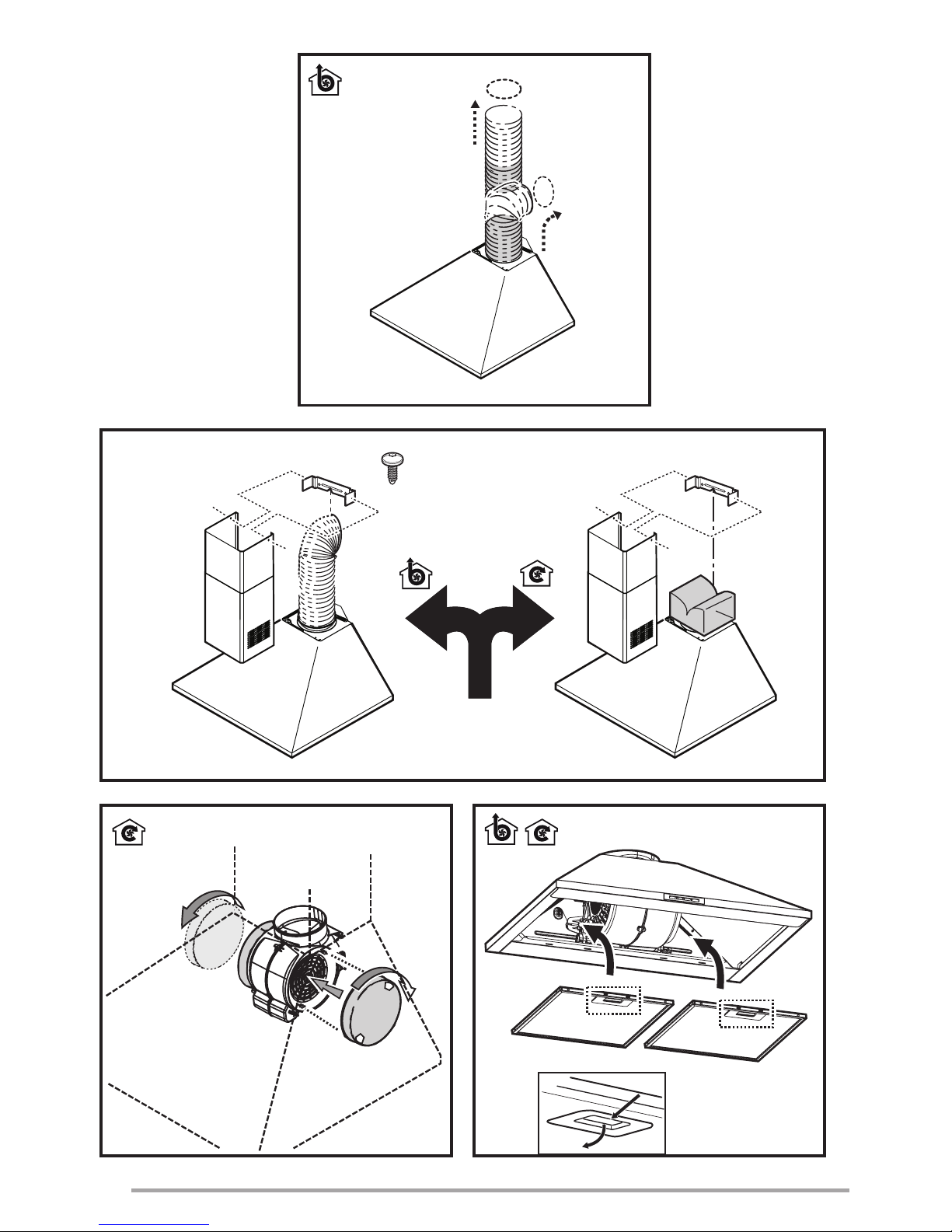

Installation
The mains power supply must correspond to the
rating indicated on the plate situated inside the hood.
If provided with a plug connect the hood to a socket
in compliance with current regulations and positioned
in an accessible area, after installation. If it not fitted
with a plug (direct mains connection) or if the plug is
not located in an accessible area, after installation,
apply a double pole switch in accordance with
standards which assures the complete disconnection
of the mains under conditions relating to over-
current category III, in accordance with installation
instructions.
Warning! Before re-connecting the hood circuit
to the mains supply and checking the efficient
function, always check that the mains cable is
correctly assembled.

9

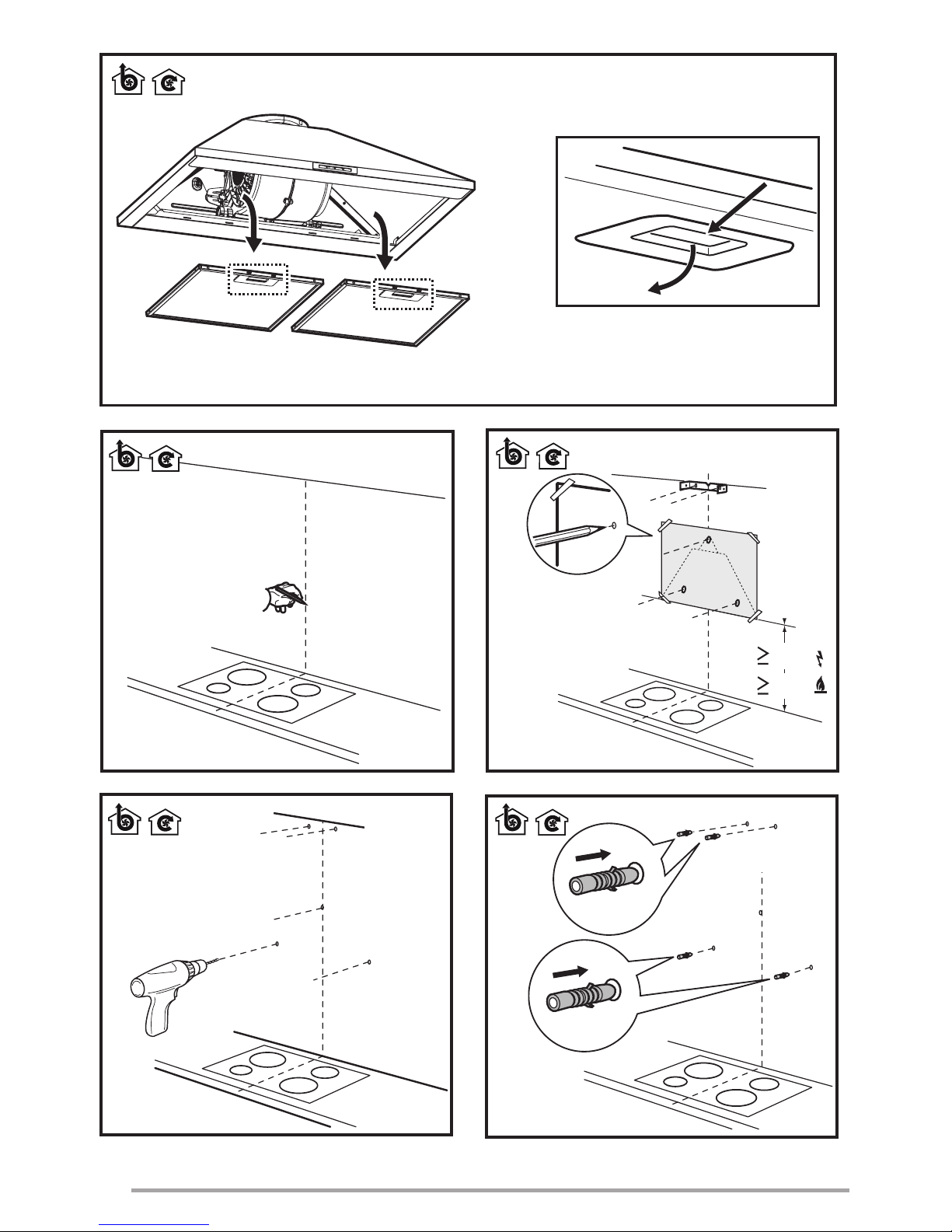

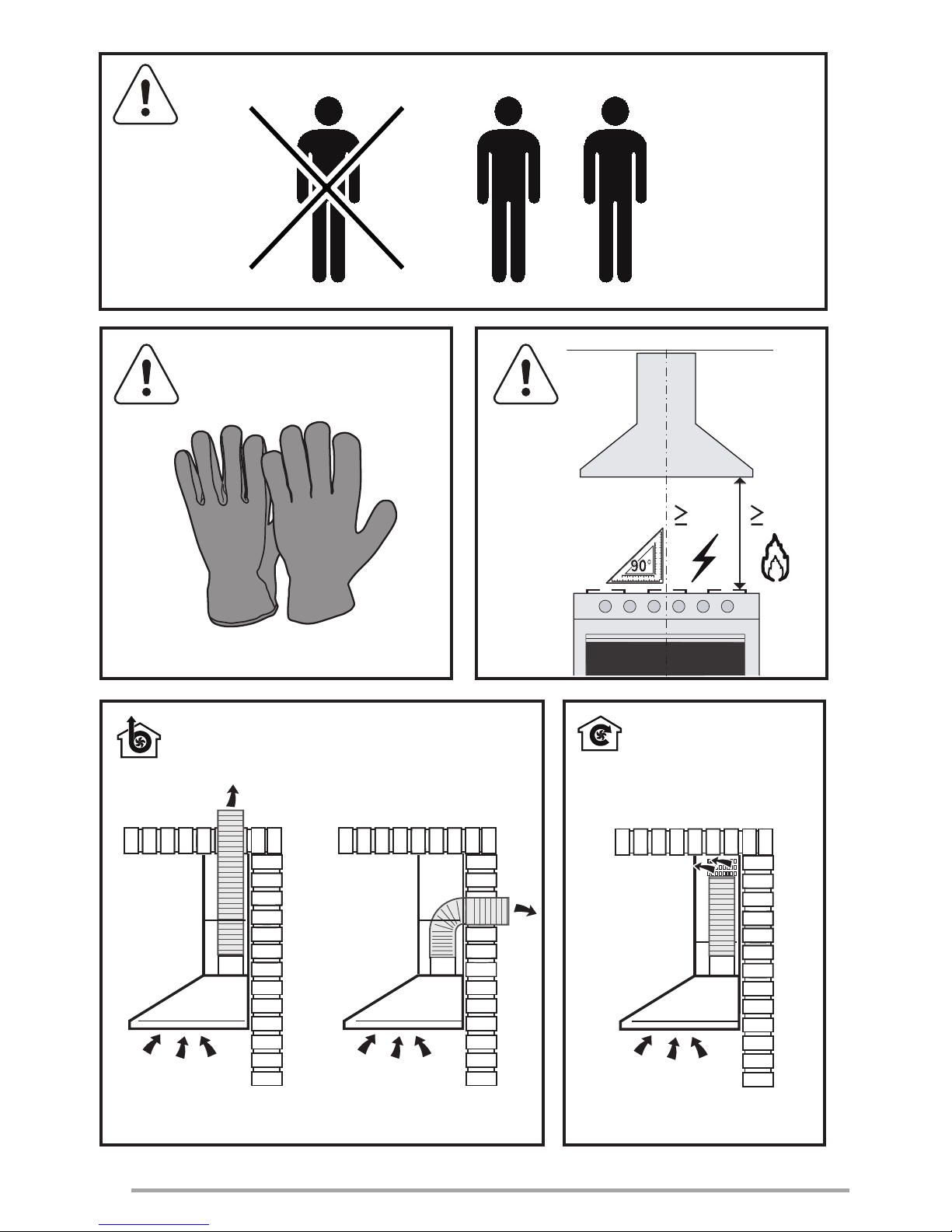

The minimum distance between the supporting
surface for the cooking equipment on the hob and the
lowest part of the range hood must be not less than
50cm from electric cookers and 65cm from gas or
mixed cookers. If the instructions for installation for
the gas hob specify a greater distance, this must be
adhered to.
Maintenance
ATTENTION! Before performing any
maintenance operation, isolate the hood from the
electrical supply by switching off at the connector
and removing the connector fuse. Or if the
appliance has been connected through a plug
and socket, then the plug must be removed from
the socket.
The cooker hood should be cleaned regularly
(at least with the same frequency with which you
carry out maintenance of the fat filters) internally
and externally. Clean using the cloth dampened
with neutral liquid detergent. Do not use abrasive
products. DO NOT USE ALCOHOL!
Warning! Failure to carry out the basic cleaning
recommendations of the cooker hood and
replacement of the filters may cause fire risks.
Therefore, we recommend observing these
instructions. The manufacturer declines all
responsibility for any damage to the motor
or any fire damage linked to inappropriate
maintenance or failure to observe the above
safety recommendations.
Grease filter - The grease filter must be cleaned
once a month using non aggressive detergents, either
by hand or in the dishwasher, which must be set to a
low temperature and a short cycle. When washed in
a dishwasher, the grease filter may discolour slightly,
but this does not affect its filtering capacity.
NON-washable activated charcoal filter
The saturation of the charcoal filter occurs after more
or less prolonged use, depending on the type of cook-
ing and the regularity of cleaning of the grease filter.
In any case it is necessary to replace the cartridge at
least every four mounths.
The charcoal filter may NOT be washed or regener-
ated.

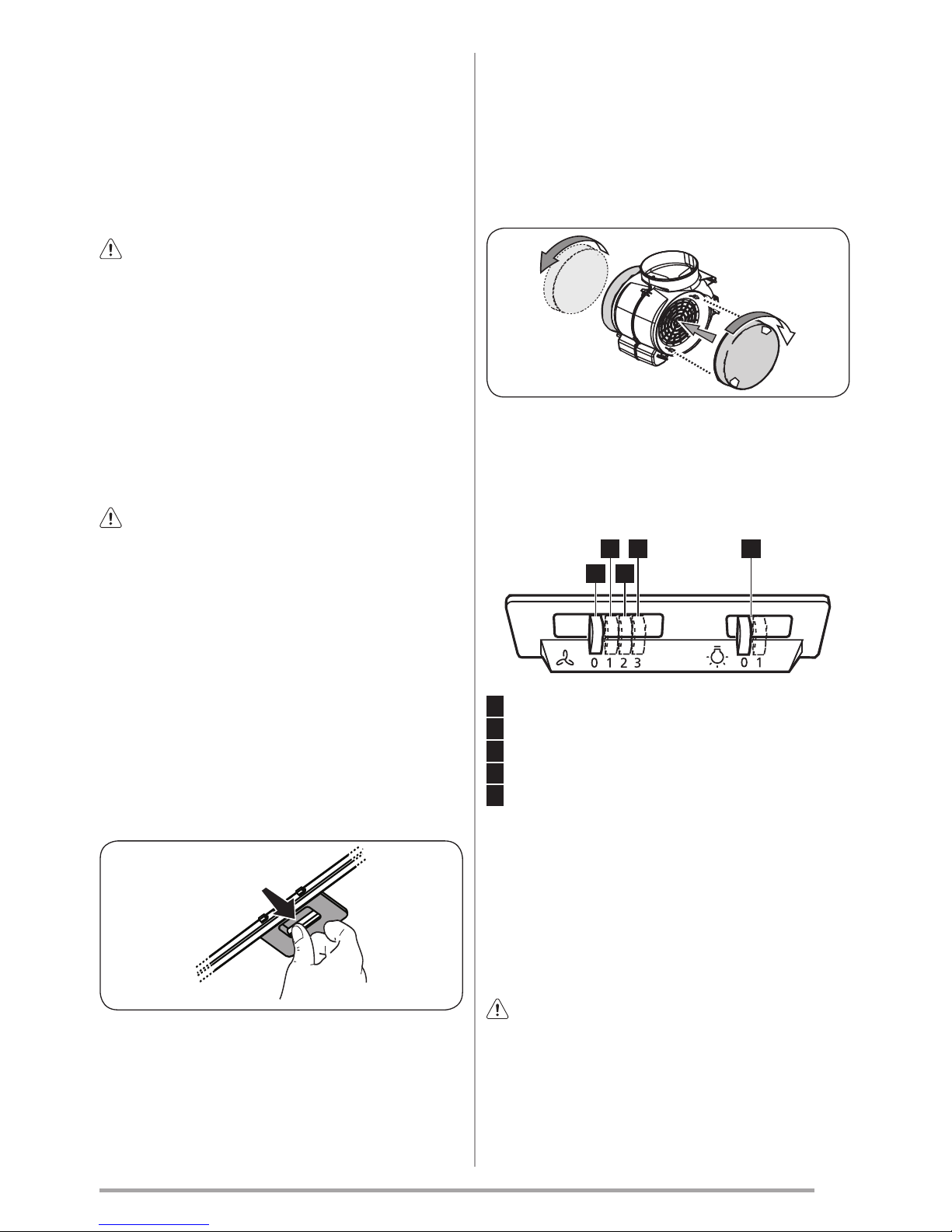

Controls
The hood is fitted with a control panel with aspiration
speed selection control and a light switch to control
cooking area lights.
2
3
4
5 1
1 - ON/OFF lights
2 - OFF motors
3 - Minimum suction power
4 - Medium suction power
5 - Maximum suction power
Use the high suction speed in cases of concentrated
kitchen vapours. It is recommended that the cooker
hood suction is switched on for 5 minutes prior to
cooking and to leave in operation during cooking
and for another 15 minutes approximately after
terminating cooking.
Lighting
Disconnect the hood from the electricity.
Warning! Prior to touching the light bulbs ensure
they are cooled down.
Replace the damaged lamp.
Use Ø35mm E14 28W halogen candle lamps only.
