Newgy Robo-Caddy User manual

www.newgy.com

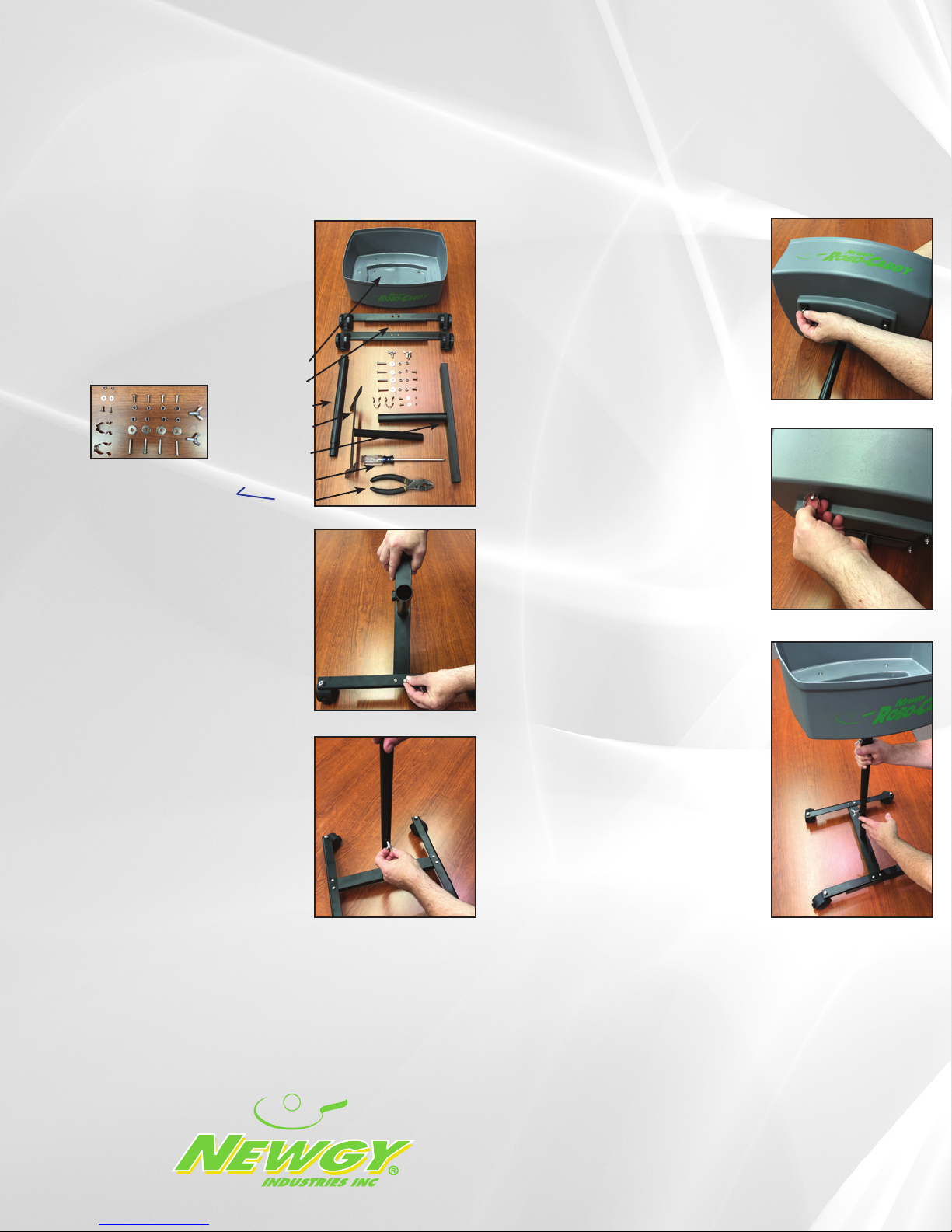

ASSEMBLY INSTRUCTIONS
®

Attach one of the Legs to
the Center Base Support
using the 1/4” x 1 1/4” bolts
and the 1/4” locknuts. Be
sure the leg lays on top of
the Center Base Support
as shown. Repeat with
the other leg. Thread 1
large wing nut into the
mounting nut.
Loosen the large wing
nut on the upright tube of
the Center Base Support.
Inster the small end of the
Extension Tube into the
top of the upright tube as
shown. Tighten the large
wing nut to fasten the
Extension Tube in place
Using Your Robo-Caddy
The Robo-Caddy can be used either as a robot holder or as a multiball holder. With the Robo Caddy serving as a robot
holder, you can move your Robo-Pong around in back of the table to simulate away-from-the-table shots such as loops,
lobs and chops. Also you can place the robot close to the table to simulate serves such as the high toss forehand serve
from the backhand corner. In addition, the Robo-Caddy enables your Robo-Pong robot to produce a much greater
range of angles and trajectories.
Verify All Parts
Unpack all parts and lay
them out on a table in front
of you. Your table tennis
table makes a handy work
surface if you first cover
it with a cloth or piece
of cardboard to prevent
scratching it.
1
2
3
The Robo-Caddy® will give added versatility to your Newgy Robo-Pong® Table Tennis Robot or serve as a handy
holding device for table tennis balls during multi-ball, 1-on-1 training or serve practice. Robo-Caddy is designed to
accommodate most models of Newgy Robo-Pong Robots.
When using the Robo-Caddy, you now have control over the height, the distance from the table, and the angle to the
table that the ball is delivered from. You also still have the regular controls for head angle, oscillator range, and ball
speed on the robot itself. This will allow an almost infinite number of possibilities to vary the ball trajectory to closely
simulate many other shots in table tennis.
You will need a #2 Phillips screwdriver and a pair of pliers for the assembly.
Tray
Legs
Extender Tube
Tray Support
Center Base
Support
Screwdriver*
Pliers*
Hardware
*Not Included
Attach the Tray Support
to the bottom of the
Tray using the 1/4” x 5/8”
screws, 3/4” washers,
and 1/4” locknuts. The
washers go directly under
the head of the screws on
the inside of the tray to
protect the plastic from
being marred.
Attach the Spring Clips
to the bottom of the
tray using the #6 x 3/16”
screws, 1/2” washers, and
#6 locknuts. The washers
go directly under the
head of the screws on
the inside of the tray to
protect the plastic from
being marred.
Loosen the large wing
nut of the Extender Tube
and then insert the tube
of the Tray Support into
the top of the Extender
Tube. Secure in place by
tightening the large wing
nut of the Extender Tube
Your Robo-Caddy is now
assembled and ready for
use!
4
5
6
