Newgy Versa-Net Quick setup guide

Attach the Front
Support/Center
Frame assembly to
one end of the table.
Connect Front Support
Plate (#7) to Robot
Center Frame (#6); one
side of the pivot tube
in the Front Support Plate will
mount to the pivot pin on the
front of the Robot Center
Frame and an Allen Bolt will
secure the other side.

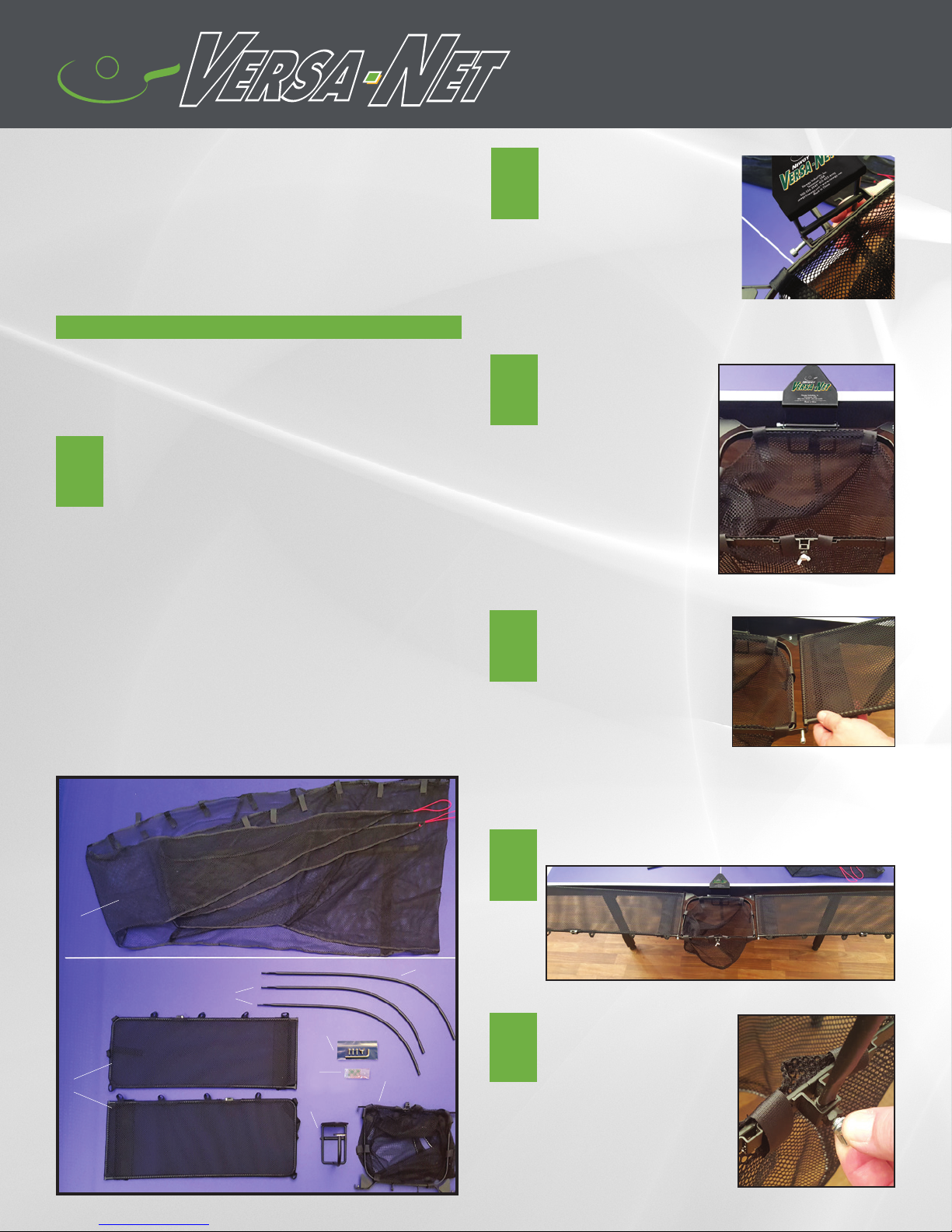

ASSEMBLY/USE INSTRUCTIONS
VERIFY ALL PARTS
Cover your table tennis table top with either
a towel or other soft cloth for protection.
Unpack all the parts from the box and lay
them out so you can identify them. Become familiar
with each part as shown in this diagram. If uncertain
of the identity of a part, look for a small silver tag
with the name of that part.
1. Collection Trays (1 Left/1 Right)
2. Curved Net Support Tube, Long (1 piece)
3. Curved Net Support Tube, Short (2 pieces)
4. Hardware Packet (3 Allen Head Bolts, Allen Head
Wrench, 1-Winged Head Thumb Screw)
5. Main Net (1 Piece)
6. Center Frame and Net Bag (1 Piece)
7. Front Support Mechanism (1 Set)
8. Side Net Clip in Small Plastic Bag (2 pieces)
The Newgy Versa-Net is a multi-function net system
to enhance your playing experience. Use it with
your Robo-Pong 540(+)/1040(+)/1050(+)/1055
to recycle balls, as well as work as a catch and
collection net for multi-ball and serve practice.
With the Versa-Net, now you can play and practice
longer; reduce the need to stop and pick up balls as
often!
ASSEMBLY STEPS
Please read each step in its entirety. Then perform
each step point by point. Pay close attention to the
directions, especially the italicized words. Refer often
to the diagrams of Step 1 for part identification.
Connect the
Collection Trays (#1)
to the Center Frame
assembly; place the
smooth edge toward the
table and insert the frame
onto the pivot pin at the front
of the Center Frame
assembly and use an Allen Head Bolt to secure the
other side.
Repeat the above steps for the other tray.
1
2
4
5
6
7
8
3
1
2
3
4
5
ERSA
V
ERSAERSA
VV
ET
N
ETET
NN
N
EWGY
™
Insert the Long, Curved
Net Support Tube into
the slot at the rear of
the Center Frame
assembly and use the Winged
Head Thumb Screw to secure
the Tube.
6

Use the Velcro
straps to secure the
Main Net to Center
Frame and
Collection Trays.
Unfold the Main
Net (#5) and
starting with the
center, insert the
Curved Support Tubes
into the pockets sewn
into the Main Net – You
may need to lift the
Collection Trays slightly to
align the pockets to the Support Tubes.
Insert a Curved Net
Support Tube into
each of the
Collection Trays.
Extend the red elastic bands under the
table net and attach to your table net
bracket tightening knob. If your table
mounts the net outside the edge of the
table, attach a Side Net Clip (#8) at 15 cm from the
table net, with the open end closest to the net.
7
8
9
10
On each side of mount for
the center/Long Support
Tube, there are square slots
to store the Short Support
Tubes and once folded into
an upright position the
Collection Trays have Velcro
to allow them to stay folded in position.
If you want to utilize the ball recycling feature of
the Versa-Net, you need to remove the Ball Bucket
Extender before placing your Robo-Pong
1040(+)/1050(+)/1055 into the Versa-Net system.
STORAGE
BALL MANAGEMENT
Newgy Industries, Inc.
Tennessee, USA
800-556-3949 • 615-452-6470
[e-mail]
www.newgy.com
A B
You can also use your new Versa-Net by placing
your robot on top of the table in front of the net
and practicing against the robot. When the robot
stops throwing balls, shut off your robot, go to the
back of the net, and pick up the collection bucket*.
Refill your robot with balls from the bucket and
you’re ready to go again!
*If you're using your Robo-Pong on top of the table, place a bucket
(not included) under the collection net.
If you want to be able
to manage the number
of balls played per
session, keep the Ball
Bucket Extender on
your Robo-Pong
1040(+)/1050(+)/1055
when placing it into the
Versa-Net system.
YOU’RE DONE!
