Newhaven Display International NHD-7.0-HDMI-N-RSXV User manual

Copyright © 2018
Newhaven Display International, Inc.
7.0” HDMI TFT Modules
Newhaven Display International
2661 Galvin Court ▪ Elgin IL ▪ 60124
Phone: [phone]
Fax: [phone]
www.newhavendisplay.com
Sales:
[e-mail]
Technical Support:
[e-mail]
User Guide
Copyright © 2018 | Newhaven Display International, Inc.

NHD 7 . 0 ” HDMI TFT User Guide
Rev 1.1
Copyright © 2018 | Newhaven Display International, Inc. [ 1 ]www.newhavendisplay.com

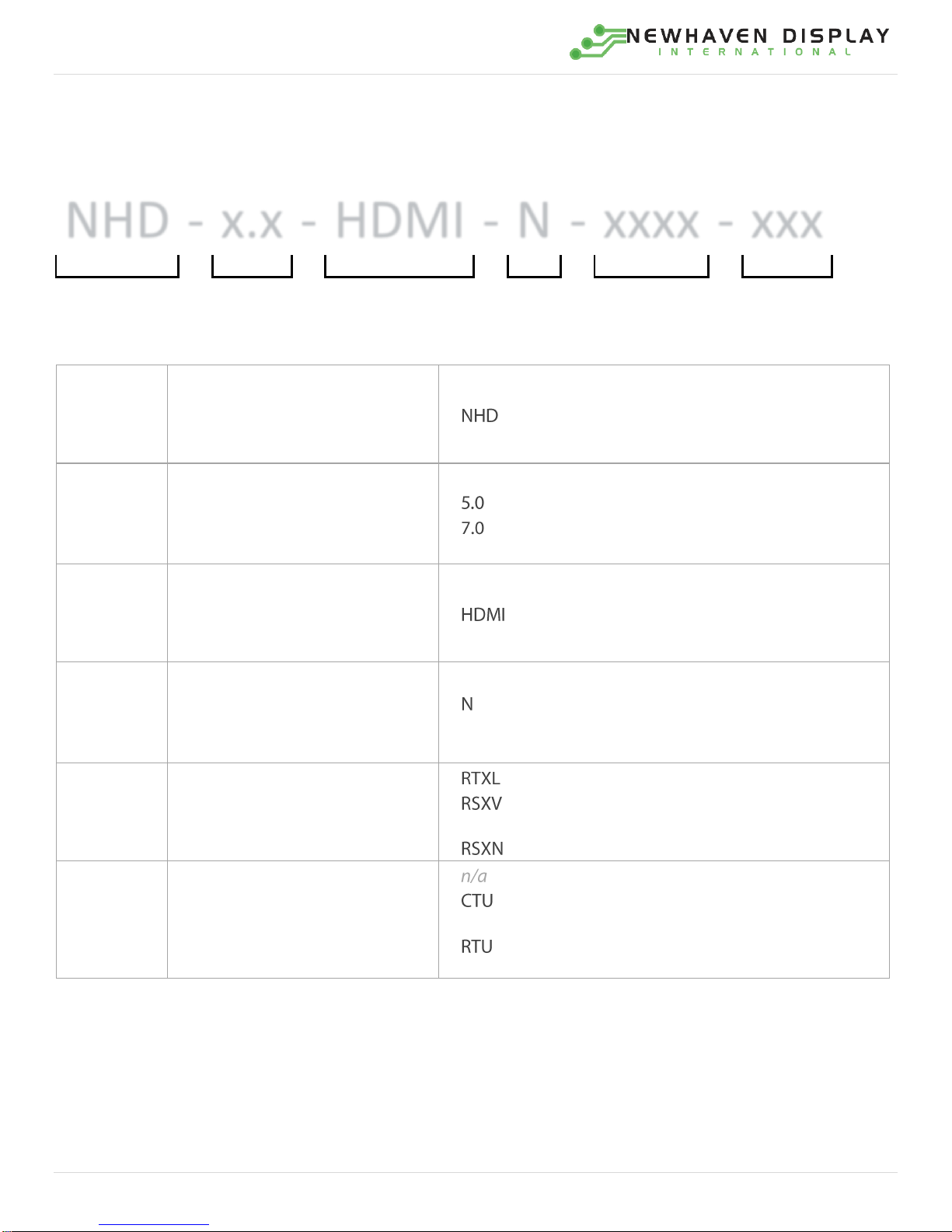

Part Numbering
NHD
-
x.x
-
HDMI
-
N
-
xxxx
-
xxx
1
2
3
4
5
6
1
Manufacturer
–Newhaven Display
2
Size (in inches)
–5.0” Diagonal
–7.0” Diagonal
3
Interface
–HDMI Interface
4
Descriptor
–800x480 Resolution, Video Only [HDMI audio
not supported]
5
Type
–Standard
–Premium MVA [Higher Brightness, Extended
Viewing Angles]
–Sunlight Readable
6
Touch Panel
–No Touch
–Capacitive USB-HID [Pre-calibrated, No
external drivers needed]
–Resistive USB-HID [Pre-calibrated, No
external drivers needed]

NHD 7 . 0 ” HDMI TFT User Guide
Rev 1.1
Copyright © 2018 | Newhaven Display International, Inc. [ 2 ]www.newhavendisplay.com
Table of Contents
Overview .............................................................................................................................................................................. 3
Functions and Features.................................................................................................................................................... 3
Model Information............................................................................................................................................................. 4
Electrical Characteristics ................................................................................................................................................. 4
HDMI Receiver Information............................................................................................................................................. 4
Interface Description ........................................................................................................................................................ 5
Connecting with Windows/Windows Embedded.................................................................................................... 6
Connecting with Linux...................................................................................................................................................... 8
Technical Resources ......................................................................................................................................................... 9
2D Drawings..................................................................................................................................................................... 9
3D Models ........................................................................................................................................................................ 9
EDID Timing ...................................................................................................................................................................... 9
Schematic........................................................................................................................................................................ 9
EDID Array ........................................................................................................................................................................ 9
Quality Information.......................................................................................................................................................... 10
Precautions for Using LCDs/LCMs................................................................................................................................ 10
Warranty Information...................................................................................................................................................... 10
Document Revision History............................................................................................................................................ 11

NHD 7 . 0 ” HDMI TFT User Guide
Rev 1.1
Copyright © 2018 | Newhaven Display International, Inc. [ 3 ]www.newhavendisplay.com

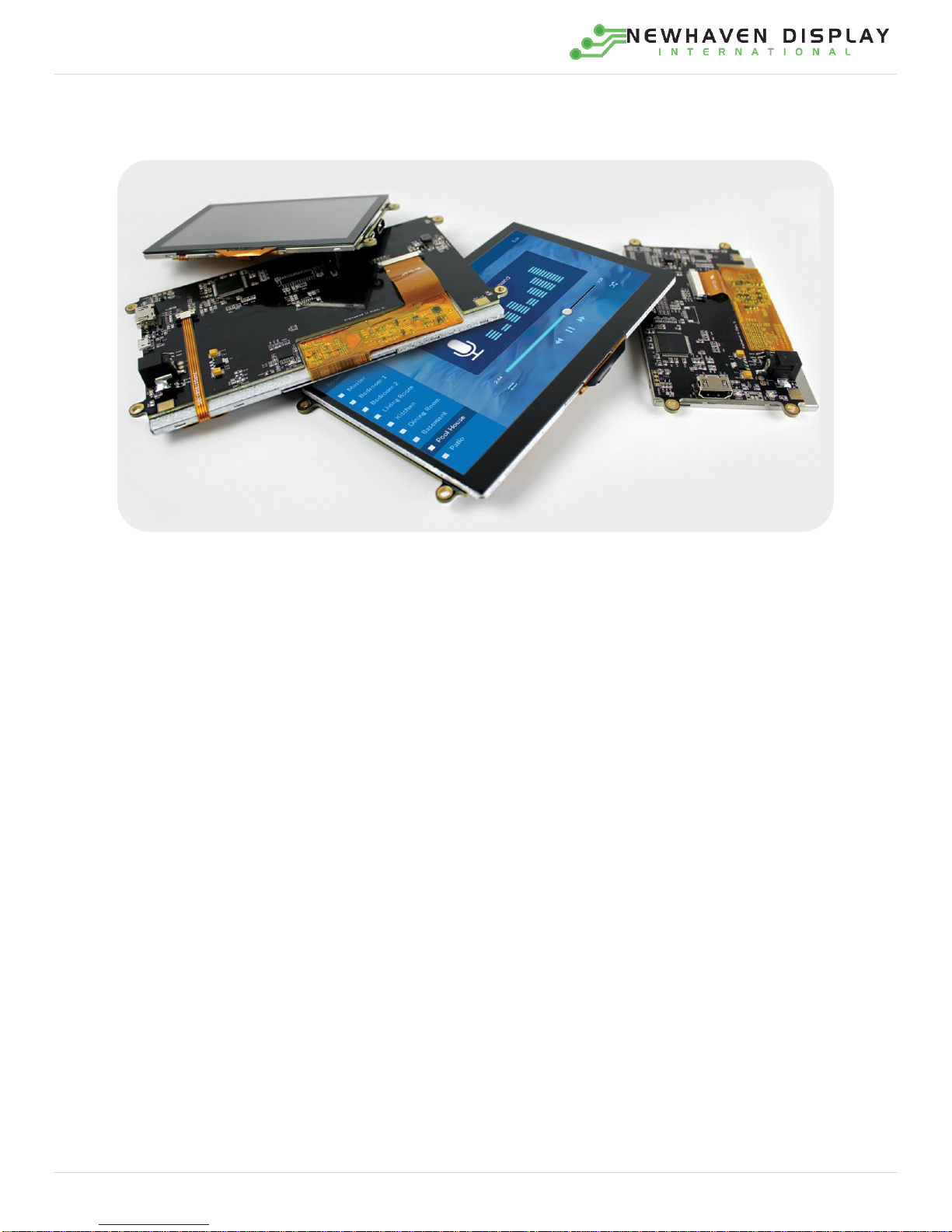

Overview
The HDMI interface has become the most popular video interface standard to date, and HDMI video
sources are easier to come by now than ever before. Whether you need an HDMI TFT display for your
Raspberry Pi/BeagleBone Black application, a Windows/Windows Embedded PC monitor, or a touch
screen HMI for your Linux or other embedded system, the Newhaven Display HDMI TFT product line
offers a solution.
Our HDMI TFT Modules unite our existing high-quality TFT display panels with a custom PCB engineered
in the USA by Newhaven Display. Assembled to the display, our PCB provides the user an all-in-one,
plug-and-play HDMI + USB Touch solution for virtually any application.
Functions and Features
7.0” HDMI TFT Module w/ USB-HID Capacitive or Resistive Touch options
On-board Texas Instruments TFP401A HDMI/DVI Receiver
HDMI (Type-A) Input
Compatible with PC (Windows/Linux)
Compatible with Linux based SBCs such as Raspberry Pi, BeagleBone, etc.
Plug-and-play USB-HID Touch, no external driver installation required
24-bit True Color, 800x480 Resolution (WVGA)
On-board Texas Instruments TPS61165 High Brightness LED Driver w/ PWM
Standard, Premium MVA, and Sunlight Readable options available
4 x 3.5mm Mounting Holes Enabling Standard M3 or #6-32 Screws
Open-Source Hardware, Engineered in Elgin, IL (USA)

NHD 7 . 0 ” HDMI TFT User Guide
Rev 1.1
Copyright © 2018 | Newhaven Display International, Inc. [ 4 ]www.newhavendisplay.com
Model Information
HDMI Module P/N
TFT Panel Used
Display
Type
Luminance
Rating
Optimal
Viewing
Angle
Touch
Panel
NHD-7.0-HDMI-N-RTXL
NHD-7.0-800480EF-ATXL#
Standard
280 cd/m²
12:00
No Touch
NHD-7.0-HDMI-N-RSXV
NHD-7.0-800480EF-ASXV#
Premium
MVA
800 cd/m²
75° all angles
NHD-7.0-HDMI-N-RSXN
NHD-7.0-800480EF-ASXN#
Sunlight
Readable
1000 cd/m²
12:00
NHD-7.0-HDMI-N-RTXL-CTU
NHD-7.0-800480EF-ATXL#-CTP
Standard
230 cd/m²
12:00
Projected
Capacitive
(USB-HID)
NHD-7.0-HDMI-N-RSXV-CTU
NHD-7.0-800480EF-ASXV#-CTP
Premium
MVA
660 cd/m²
75° all angles
NHD-7.0-HDMI-N-RSXN-CTU
NHD-7.0-800480EF-ASXN#-CTP
Sunlight
Readable
830 cd/m²
12:00
NHD-7.0-HDMI-N-RTXL-RTU
NHD-7.0-800480EF-ATXL#-T
Standard
220 cd/m²
6:00
4-Wire
Resistive
(USB-HID)
NHD-7.0-HDMI-N-RSXV-RTU
NHD-7.0-800480EF-ASXV#-T
Premium
MVA
600 cd/m²
75° all angles
NHD-7.0-HDMI-N-RSXN-RTU
NHD-7.0-800480EF-ASXN#-T
Sunlight
Readable
780 cd/m²
6:00
For detailed information on the TFT Panel used, please view its Product Specification by accessing the product webpage link above.
Electrical Characteristics
Item
Symbol
Condition
Min.
Typical
Max.
Unit
Operating Temperature Range
TOP
Absolute Max
-20
-
+70
⁰C
Storage Temperature Range
TST
Absolute Max
-30
-
+80
⁰C
Backlight PWM Frequency
fPWM
-
5
-
100
kHz
Module Supply Voltage
VDD
-
5.0
-
7.5
V
Standard models (RTXL)
Module Supply Current
IDD
VDD = 5V
-
550
580
mA
VDD = 7.5V
-
360
390
mA
Premium MVA / Sunlight Readable models (RSXV, RSXN)
Module Supply Current
IDD
VDD = 5V
-
750
790
mA
VDD = 7.5V
-
560
590
mA
HDMI Receiver Information
On-board Texas Instruments TFP401A Receiver.
To view the full TFP401A specification, please download it by accessing the link below:
http://www.ti.com/lit/ds/slds190a/slds190a.pdf

NHD 7 . 0 ” HDMI TFT User Guide
Rev 1.1
Copyright © 2018 | Newhaven Display International, Inc. [ 5 ]www.newhavendisplay.com
Interface Description
(Capacitive Touch model shown above as reference)
Num.
Description
1)
(LED2) LED Indicator for Touch –Resistive Touch models only
This is a Red LED that will blink slowly (once per second) if the RTP controller is powered ON, awake, and no touch is
detected. This LED will blink rapidly (5 times per second) if the RTP controller detects a touch.
2)
(LED4) LED Indicator for Touch –Capacitive Touch models only
This is a Red LED that will illuminate when there is a touch sensed on the CTP.
3)
(LED3) LED Indicator for Power
This is a Green LED that will illuminate when DC power is supplied to the module.
4)
(CN3) DC Jack (Center-Positive), 2.00mm ID, 5.50mm OD
This is used to supply power to the display module. A DC power supply in the range of 5V –7.5V must be used.
The output current rating of the DC power supply should be at least the maximum Supply Current (IDD) listed in the Electrical
Characteristics section on the previous page.
5)
(CN4) Surface Mount Pin Header, 2.54mm pitch, for Backlight PWM
The pin labelled ‘PWM’ is connected directly to the LED driver’s CTRL pin (T.I. TPS61165). This is a multifunctional pin which
can be used for enable control, PWM, and digital dimming. A PWM frequency in the range of 5kHz –100kHz must be used.
6)
(CN2) Micro-USB (Type-B) Connector for Touch –Touch Panel models only
This is to connect the Touch Panel of this module to a USB input to act as a USB-HID device.
7)
(LED1) LED Indicator for Video
This is a Blue LED that will illuminate when there is an active video signal detected.
8)
(CN1) HDMI (Type-A) Connector
This is a full-size HDMI connector meant to connect the HDMI source signal (Video only) to this module.
The on-board T.I. TFP401A HDMI/DVI Receiver does not scale video resolutions. Therefore, the output resolution of the
source must be 800x480 (WVGA). In most applications, this is automatically detected by the HDMI source.

NHD 7 . 0 ” HDMI TFT User Guide
Rev 1.1
Copyright © 2018 | Newhaven Display International, Inc. [ 6 ]www.newhavendisplay.com

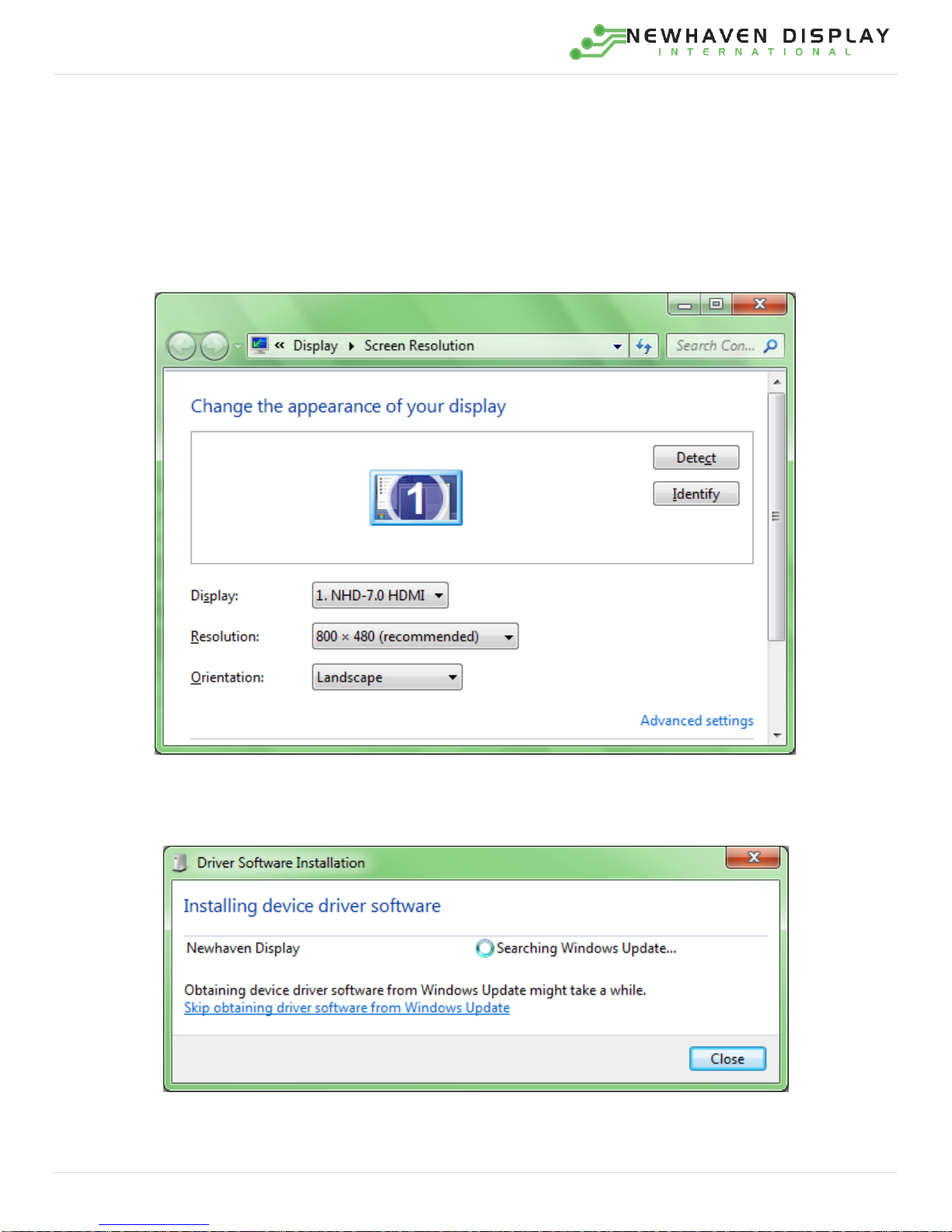

Connecting with Windows/Windows Embedded
Connecting our HDMI TFT Modules to a Windows system is fully plug-and-play. Start by plugging in a
DC power supply in the range of 5 - 7.5V, with at least 1A of output current . The green LED near the
DC jack will illuminate when the board has power supplied to it. Next, connect the display to your
system via HDMI cable. Due to the on -board EDID, the display will be detected automatically and the
system’s output resolution will set itself to 800x480.
For Touch Panel models, once the display is connected to the system via USB, Windows will
automatically detect and install the necessary drivers.
The above window is shown for the Capacitive Touch model. The Resistive Touch model will also install
automatica lly, however it will be labelled ‘AR1100 HID -MOUSE’ instead of ‘Newhaven Display’.

NHD 7 . 0 ” HDMI TFT User Guide
Rev 1.1
Copyright © 2018 | Newhaven Display International, Inc. [ 7 ]www.newhavendisplay.com
Once Windows has finished installing the drivers, the device will show as ‘Ready to use’.
For reference, in Device Manager the USB-HID Touch device will show as below:

NHD 7 . 0 ” HDMI TFT User Guide
Rev 1.1
Copyright © 2018 | Newhaven Display International, Inc. [ 8 ]www.newhavendisplay.com
Connecting with Linux
Most Linux applications with an HDMI so urce will also be fully plug-and-play, however when using our
HDMI TFT Modules with the Raspberry Pi, the config.txt file on the Pi’s microSD card will need to be
slightly modified by the user.
The following highlighted lines need to be added in config.txt for proper display output:
# For more options and information see
# http://rpf.io/configtxt
# Some settings may impact device functionality. See link above for details
# uncomment if you get no picture on HDMI for a default "safe" mode
#hdmi_safe=1
# uncomment this if your display has a black border of unused pixels visible
# and your display can output without overscan
#disable_overscan=1
# uncomment the following to adjust overscan. Use positive numbers if console
# goes off screen, and negative if there is too much border
#overscan_left=16
#overscan_right=16
#overscan_top=16
#overscan_bottom=16
# uncomment to force a console size. By default it will be display's size minus
# overscan.
#framebuffer_width=1280
#framebuffer_height=720
# uncomment if hdmi display is not detected and composite is being output
#hdmi_force_hotplug=1
# uncomment to force a specific HDMI mode (this will force VGA)
#hdmi_group=1
#hdmi_mode=1
hdmi_group=2
hdmi_mode=87
hdmi_cvt=800 480 60 6 0 0 0
# uncomment to force a HDMI mode rather than DVI. This can make audio work in
# DMT (computer monitor) modes
#hdmi_drive=2
# uncomment to increase signal to HDMI, if you have interference, blanking, or
# no display
#config_hdmi_boost=4
# uncomment for composite PAL
#sdtv_mode=2
#uncomment to overclock the arm. 700 MHz is the default.
#arm_freq=800
# Uncomment some or all of these to enable the optional hardware interfaces
#dtparam=i2c_arm=on
#dtparam=i2s=on
#dtparam=spi=on
# Uncomment this to enable the lirc-rpi module
#dtoverlay=lirc-rpi
# Additional overlays and parameters are documented /boot/overlays/README
# Enable audio (loads snd_bcm2835)
dtparam=audio=on

NHD 7 . 0 ” HDMI TFT User Guide
Rev 1.1
Copyright © 2018 | Newhaven Display International, Inc. [ 9 ]www.newhavendisplay.com

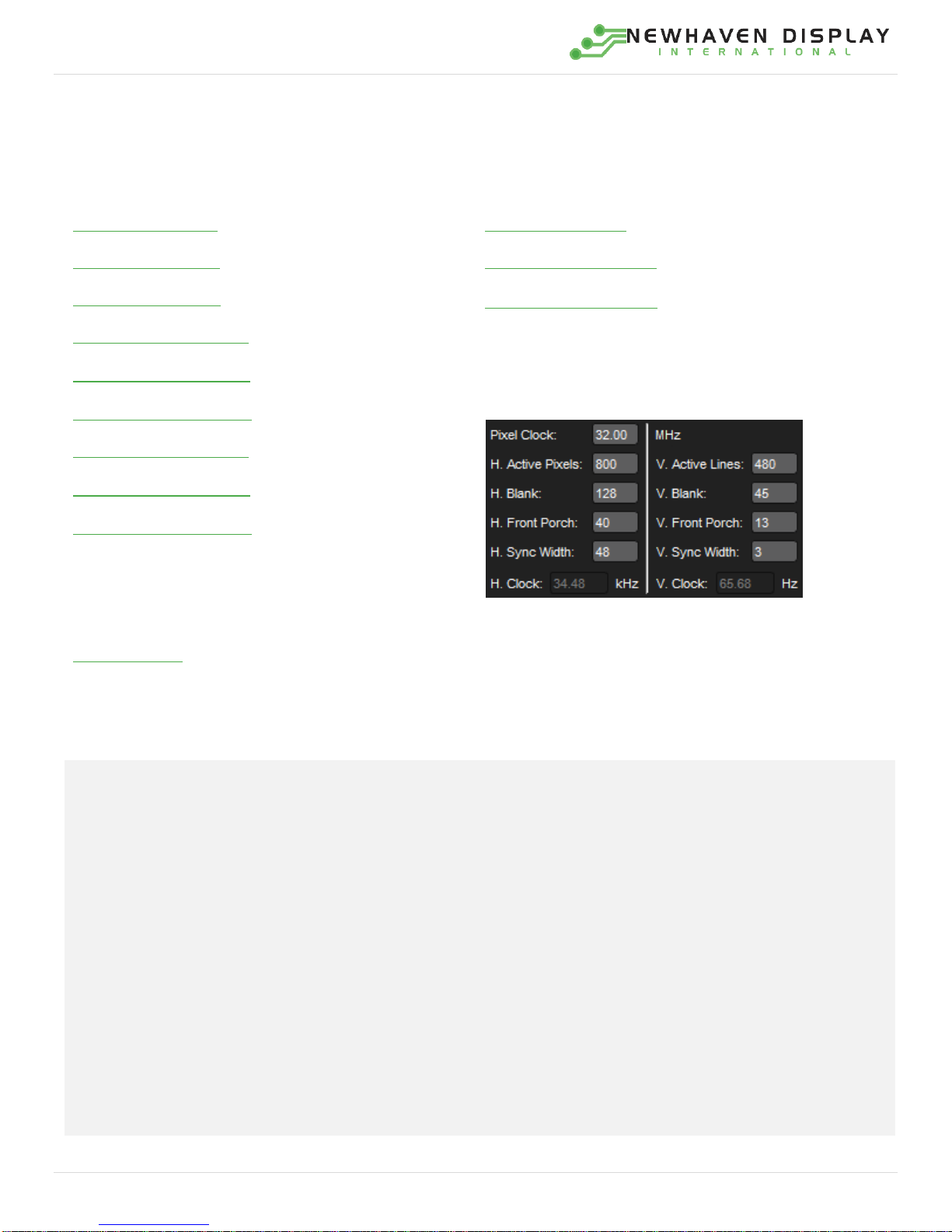

Technical Resources
2D Drawings
NHD-7.0-HDMI-N-RTXL
NHD-7.0-HDMI-N-RSXV
NHD-7.0-HDMI-N-RSXN
NHD-7.0-HDMI-N-RTXL-CTU
NHD-7.0-HDMI-N-RSXV-CTU
NHD-7.0-HDMI-N-RSXN-CTU
NHD-7.0-HDMI-N-RTXL-RTU
NHD-7.0-HDMI-N-RSXV-RTU
NHD-7.0-HDMI-N-RSXN-RTU
3D Models
NHD-7.0-HDMI-N-xxxx
NHD-7.0-HDMI-N-xxxx-CTU
NHD-7.0-HDMI-N-xxxx-RTU
EDID Timing
Schematic
NHD-7.0-HDMI-N
EDID Array
const unsigned char NHD_HDMI7[] = {
0x00, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0x00, 0x39, 0x04, 0x4F, 0x07, 0x00, 0x00, 0x00, 0x00,
0x01, 0x11, 0x01, 0x03, 0x80, 0x0F, 0x09, 0x00, 0x0A, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01,
0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x80, 0x0C, 0x20, 0x80, 0x30, 0xE0, 0x2D, 0x10, 0x28, 0x30,
0xD3, 0x00, 0x9A, 0x56, 0x00, 0x00, 0x00, 0x18, 0x00, 0x00, 0x00, 0xFC, 0x00, 0x4E, 0x48, 0x44,
0x2D, 0x37, 0x2E, 0x30, 0x20, 0x48, 0x44, 0x4D, 0x49, 0x0A, 0x00, 0x00, 0x00, 0x10, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x10,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xFB,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00
};

NHD 7 . 0 ” HDMI TFT User Guide
Rev 1.1
Copyright © 2018 | Newhaven Display International, Inc. [ 10 ]www.newhavendisplay.com
Quality Information
Test Item
Content of Test
Test Condition
Note
High Temperature storage
Endurance test applying the high storage temperature
for a long time.
+80⁰C, 96hrs
2
Low Temperature storage
Endurance test applying the low storage temperature
for a long time.
-30⁰C, 96hrs
1,2
High Temperature
Operation
Endurance test applying the electric stress (voltage &
current) and the high thermal stress for a long time.
+70⁰C, 96hrs
2
Low Temperature
Operation
Endurance test applying the electric stress (voltage &
current) and the low thermal stress for a long time.
-20⁰C, 96hrs
1,2
High Temperature /
Humidity Operation
Endurance test applying the electric stress (voltage &
current) and the high thermal with high humidity stress
for a long time.
+60⁰C, 90% RH, 96hrs
1,2
Thermal Shock resistance
Endurance test applying the electric stress (voltage &
current) during a cycle of low and high thermal stress.
-20⁰C, 30min -> 25⁰C, 5min
-> 70⁰C, 30min = 1 cycle
10 cycles
Vibration test
Endurance test applying vibration to simulate
transportation and use.
10-55Hz, 15mm amplitude.
60 sec in each of 3 directions
X,Y,Z
For 15 minutes
3
Static electricity test
Endurance test applying electric static discharge.
VS=800V, RS=1.5kΩ, CS=100pF
One time
Note 1: No condensation to be observed.
Note 2: Conducted after 4 hours of storage at 25⁰C, 0%RH.
Note 3: Test performed on product itself, not inside a container.
Precautions for Using LCDs/LCMs
See Precautions at www.newhavendisplay.com/specs/precautions.pdf
Warranty Information
See Terms & Conditions at http://www.newhavendisplay.com/index.php?main_page=terms

NHD 7 . 0 ” HDMI TFT User Guide
Rev 1.1
Copyright © 2018 | Newhaven Display International, Inc. [ 11 ]www.newhavendisplay.com
Document Revision History
Revision
Date
Comments
1.0
1/4/2017
Initial Release
1.1
2/8/2018
Add DC Jack size; Update Schematic link

Mouser Electronics
Authorized Distributor
Click to View Pricing, Inventory, Delivery & Lifecycle Information:
Newhaven Display:
NHD-7.0-HDMI-N-RTXL-RTU NHD-7.0-HDMI-N-RSXN NHD-7.0-HDMI-N-RSXV-CTU NHD-7.0-HDMI-N-RSXN-RTU
NHD-7.0-HDMI-N-RSXV-RTU NHD-7.0-HDMI-N-RTXL-CTU NHD-7.0-HDMI-N-RSXV NHD-7.0-HDMI-N-RSXN-CTU
NHD-7.0-HDMI-N-RTXL
