Sony LMD-X2710MD User manual

5-032-196-12(1)
LCD Monitor
Instructions for Use
Before operating the unit, please read this manual thoroughly
and retain it for future reference.
LMD-X2710MD
© 2021 Sony Corporation
2022-11

2
Indications for Use/Intended Use
The LCD Monitor is intended to provide 4K 2D color
video displays of surgical and other medical
images.
Notes
 This equipment is not intended for diagnostic
use.
 This equipment is for medical professionals.
 This equipment is intended for use in medical
environments, such as clinics, examination
rooms, and operating rooms.
To reduce the risk of fire or electric shock, do not
expose this equipment to rain or moisture.
To avoid electrical shock, do not open the
cabinet. Refer servicing to qualified personnel
only.
No modification of this equipment is allowed.
Warning
To avoid the risk of electric shock, this
equipment must only be connected to a supply
mains with protective earth.
Warning
To disconnect the main power, unplug the power
plug.
When installing the unit, incorporate a readily
accessible disconnect device in the fixed wiring, or
connect the power plug to an easily accessible
socket-outlet near the unit.
Do not position the ME equipment where it is
difficult to unplug the power plug.
If a fault should occur during operation of the unit,
operate the disconnect device to switch the power
supply off, or disconnect the power plug.
Warning

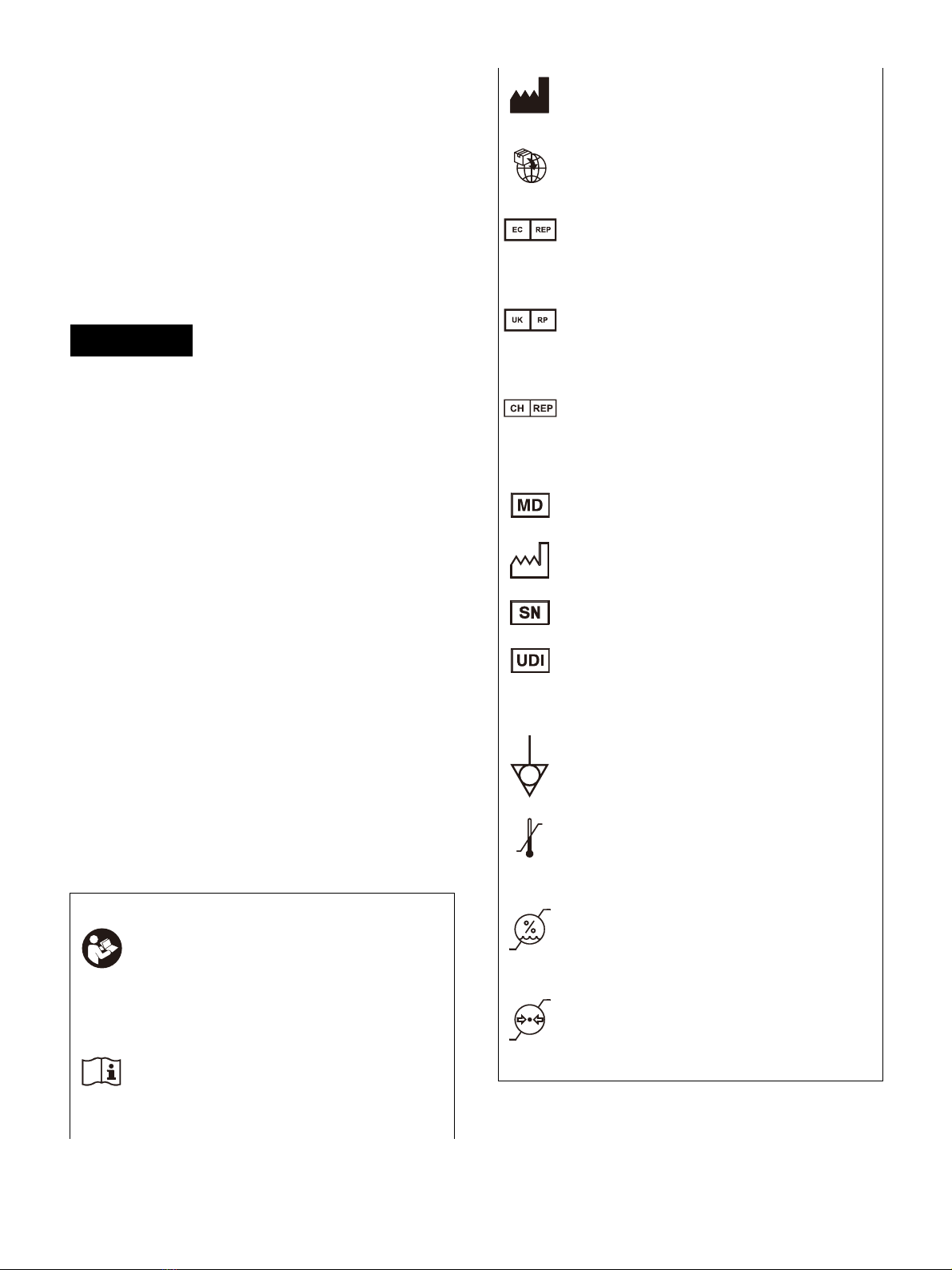

Symbols on the product
Safety sign
Follow the warnings in the instructions
for use for parts of the unit on which this
symbol appears.
NOTE Background color: Blue
Symbol: White
Consult the instructions for use
Follow the directions in the instructions
for use for parts of the unit on which this
symbol appears.
This symbol indicates the manufacturer,
and appears next to the manufacturers
name and address.
This symbol indicates the Importer, and
appears next to the Importers name and
registered office address.
This symbol indicates the European
Community representative, and appears
next to the European Community
representatives name and address.
This symbol indicates the UK
Responsible Person, and appears next to
the UK Responsible Persons name and
address.
This symbol indicates the Swiss
authorized representative, and appears
next to the Swiss authorized
representatives name and address.
This symbol indicates the medical device
in the European Community.
This symbol indicates the date of
manufacture.
This symbol indicates the serial number.
This symbol indicates the Unique Device
Identifier (UDI), and appears next to the
bar code representation of the Unique
Device Identification.
This symbol indicates the equipotential
terminal which brings the various parts
of a system to the same potential.
Storage and transport temperature
This symbol indicates the acceptable
temperature range for storage and
transport environments.
Storage and transport humidity
This symbol indicates the acceptable
humidity range for storage and transport
environments.
Storage and transport pressure
This symbol indicates the acceptable
atmospheric pressure range for storage
and transport environments.

3
For customers in the U.S.A.
This equipment has been tested and found to
comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference when the equipment
is operated in a commercial environment. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instruction manual, may
cause harmful interference to radio
communications. Operation of this equipment in a
residential area is likely to cause harmful
interference in which case the user will be
required to correct the interference at his own
expense.
You are cautioned that any changes or
modifications not expressly approved in this
manual could void your authority to operate this
equipment.
All interface cables used to connect peripherals
must be shielded in order to comply with the
limits for a digital device pursuant to Subpart B of
part 15 of FCC Rules.
If you have any questions about this product, you
may call;
Sony Customer Information Service Center 1-800-
222-7669 or http://www.sony.com/
For customers in the U.S.A.
Caution
Federal law (United States of America) restricts
this device to sale by or on the order of a licensed
healthcare practitioner.
For customers in Canada
This unit has been certified according to Standard
CAN/CSA-C22.2 No. 60601-1.
Important safeguards and notices for use
in the medical environments
1. All devices connected to the unit must be
certified or compliant according to IEC 60601-1,
IEC 60950-1, and IEC 60065 standards and
other IEC/ISO standards applicable to the
devices.
2. Furthermore, the system as a whole must
comply with IEC 60601-1 standards. All
peripheral devices connected to the signal
input/output sections of the unit constitute the
medical-use system, and therefore, the user is
responsible for ensuring that the system as a
whole complies with IEC 60601-1 standards. If
in doubt, consult qualified Sony service
personnel.
3. Connecting the unit to other devices may
increase the leakage current.
4. For all peripheral devices connected to the unit
that operate on commercial power supplies
and do not comply with IEC 60601-1 standards,
incorporate an isolation transformer that
complies with IEC 60601-1 standards and
connect to the commercial power supply via
the transformer.
5. The unit generates, uses, and may radiate radio
frequency energy. If it is not installed and used
in accordance with the instruction manual, it
may cause interference on other devices. If the
unit causes interference (which can be
determined by disconnecting the power cord
from the unit), try the following.
 Relocate the unit with respect to the affected
devices.
 Connect the unit and the affected devices to
different branch circuits.
For more information, consult qualified Sony
service personnel.
(Applicable standard: IEC 60601-1-2)
Suppliers Declaration of Conformity
Trade Name : SONY
Model : LMD-X2710MD
Responsible party : Sony Electronics Inc.
Address : 16535 Via Esprillo,
San Diego, CA 92127 U.S.A.
Telephone Number: 858-942-2230
This device complies with part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired
operation.

4
Important EMC notices for use in medical environments
 The LMD-X2710MD needs special precautions regarding EMC and needs to be installed and put into
service according to the EMC information provided in the instructions for use.
 The LMD-X2710MD is intended for use in a professional healthcare facility environment.
 Portable and mobile RF communications equipment, such as cellular phones, can affect the LMD-
X2710MD.
Warning
 Portable RF communications equipment should be used no closer than 30 cm (12 inches) to any part of
the LMD-X2710MD. Otherwise, degradation of the performance of this equipment could result.
 If the LMD-X2710MD will be used adjacent to or stacked with other equipment, normal operation of the
LMD-X2710MD under such configurations should be verified via observation.
 The use of accessories and cables other than those specified, with the exception of replacement parts
sold by Sony Corporation, may result in increased emissions or decreased immunity of the LMD-
X2710MD.
Guidance and manufacturers declaration  electromagnetic emissions
The LMD-X2710MD is intended for use in the electromagnetic environment specified below. The
customer or the user of the LMD-X2710MD should assure that it is used in such an environment.
Emission test Compliance Electromagnetic environment  guidance
RF emissions
CISPR 11 Group 1
The LMD-X2710MD uses RF energy only for its
internal function. Therefore, its RF emissions are
very low and are not likely to cause any
interference in nearby electronic equipment.
RF emissions
CISPR 11
CISPR 32
Class B
The LMD-X2710MD is suitable for use in all
establishments, including domestic
establishments and those directly connected to the
public low-voltage power supply network that
supplies buildings used for domestic purposes.
Harmonic emissions
IEC 61000-3-2
Class D
(AC input)
Not applicable
(DC input)
Voltage fluctuations/
flicker emissions
IEC 61000-3-3
Complies
(AC input)
Not applicable
(DC input)

5
Guidance and manufacturers declaration  electromagnetic immunity
The LMD-X2710MD is intended for use in the electromagnetic environment specified below. The
customer or the user of the LMD-X2710MD should assure that it is used in such an environment.
Immunity test IEC 60601
test level
Compliance level Electromagnetic environment 
guidance
AC input DC input
Electrostatic
discharge (ESD)
IEC 61000-4-2
±8 kV contact
±15 kV air
±8 kV contact
±15 kV air
±8 kV contact
±15 kV air
Floors should be wood, concrete
or ceramic tile. If floors are
covered with synthetic material, a
relative humidity of at least 30%
is recommended.
Electrical fast
transient/burst
IEC 61000-4-4
±2 kV for power
supply lines
±2 kV for power
supply lines
Mains power quality should be
that of a typical commercial or
hospital environment.
±1 kV for input/
output lines
±1 kV for input/
output lines
±1 kV for input/
output lines
Surge
IEC 61000-4-5
±1 kV line(s) to
line(s)
±2 kV line(s) to
earth
±1 kV differential
mode
±2 kV common
mode
Not applicable Mains power quality should be
that of a typical commercial or
hospital environment.
Voltage dips,
short
interruptions
and voltage
variations on
power supply
input lines
IEC 61000-4-11
0%
U
T
(100% dip in U
T)
for 0.5/1 cycles a
40% U
T
(60% dip in U
T)
for 5 cycles
70%
U
T
(30% dip in U
T)
for 25/30
cycles a
(for 0.5 sec)
0%
U
T
(100% dip in U
T)
for 250/300
cycles a
(for 5 sec)
0%
U
T
(100% dip in U
T)
for 0.5/1 cycles a
40% U
T
(60% dip in U
T)
for 5 cycles
70%
U
T
(30% dip in U
T)
for 25/30
cycles a
(for 0.5 sec)
0%
U
T
(100% dip in U
T)
for 250/300
cycles a
(for 5 sec)
Not applicable Mains power quality should be
that of a typical commercial or
hospital environment. If the user
of the LMD-X2710MD requires
continued operation during
power mains interruptions, it is
recommended that the LMD-
X2710MD be powered from an
uninterruptible power supply or a
battery.
Power
frequency
(50/60 Hz)
magnetic field
IEC 61000-4-8
30 A/m 30 A/m 30 A/m Power frequency magnetic fields
should be at levels characteristic
of a typical location in a typical
commercial or hospital
environment.
NOTE:
U
Tis the a.c. mains voltage prior to application of the test level.
a For example, 10/12 means 10 cycles at 50 Hz or 12 cycles at 60 Hz.

6
Guidance and manufacturers declaration  electromagnetic immunity
The LMD-X2710MD is intended for use in the electromagnetic environment specified below. The
customer or the user of the LMD-X2710MD should assure that it is used in such an environment.
Immunity test IEC 60601
test level
Compliance
level Electromagnetic environment  guidance
Portable and mobile RF communications
equipment should be used no closer to any part
of the LMD-X2710MD, including cables, than the
recommended separation distance calculated
from the equation appliance to the frequency of
the transmitter.
Recommended separation distance
Conducted RF
IEC 61000-4-6
3 Vrms
150 kHz to
80 MHz
outside ISM
bands c
3 Vrms d = 1.2 Ɗ P
6 Vrms
150 kHz to
80 MHz
in ISM bands c
6 Vrms
Radiated RF
IEC 61000-4-3
3 V/m
80 MHz to
2.7 GHz
3 V/m IEC 60601-1-2: 2007
d = 1.2 Ɗ P 80 MHz to 800 MHz
d = 2.3 Ɗ P 800 MHz to 2.5 GHz
IEC 60601-1-2: 2014
d = 2.0 Ɗ P 80 MHz to 2.7 GHz
Where
P is the maximum output power rating of
the transmitter in watts (W) according to the
transmitter manufacturer and
d is the
recommended separation distance in meters (m).
Field strengths from fixed RF transmitters, as
determined by an electromagnetic site survey, a
should be less than the compliance level in each
frequency range. b
Interference may occur in the vicinity of
equipment marked with following symbol:
NOTE 1: At 80 MHz and 800 MHz, the higher frequency range applies.
NOTE 2: These guidelines may not apply in all situations. Electromagnetic propagation is affected by
absorption and reflection from structures, objects and people.

7
a Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones
and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be
predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF
transmitters, an electromagnetic site survey should be considered. If the measured field strength in
the location in which the LMD-X2710MD is used exceeds the applicable RF compliance level above,
the LMD-X2710MD should be observed to verify normal operation. If abnormal performance is
observed, additional measures may be necessary, such as reorienting or relocating the LMD-
X2710MD.
b Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m.
c The ISM (industrial, scientific and medical) bands between 150 kHz and 80 MHz are 6.765 MHz to
6.795 MHz; 13.553 MHz to 13.567 MHz; 26.957 MHz to 27.283 MHz; and 40.66 MHz to 40.70 MHz.
Recommended separation distances between portable and mobile RF communications equipment
and the LMD-X2710MD
The LMD-X2710MD is intended for use in an electromagnetic environment in which radiated RF
disturbances are controlled. The customer or the user of the LMD-X2710MD can help prevent
electromagnetic interference by maintaining a minimum distance between portable and mobile RF
communications equipment (transmitters) and the LMD-X2710MD as recommended below, according to
the maximum output power of the communications equipment.
Rated maximum
output power of
transmitter
W
Separation distance according to frequency of transmitter
m
IEC 60601-1-2 : 2007 IEC 60601-1-2 : 2014
150 kHz to
80 MHz
d = 1.2 Ɗ P
80 MHz to
800 MHz
d = 1.2 Ɗ P
800 MHz to
2.5 GHz
d = 2.3 Ɗ P
150 kHz to
80 MHz
d = 1.2 Ɗ P
80 MHz to
2.7 GHz
d = 2.0 Ɗ P
0.01 0.12 0.12 0.23 0.12 0.20
0.1 0.38 0.38 0.73 0.38 0.63
1 1.2 1.2 2.3 1.2 2.0
10 3.8 3.8 7.3 3.8 6.3
100 12 12 23 12 20
For transmitters rated a maximum output power not listed above, the recommended separation
distance
d in meters (m) can be estimated using the equation applicable to the frequency of the
transmitter, where
P is the maximum output power rating of the transmitter in watts (W) according to the
transmitter manufacturer.
NOTE 1: At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies.
NOTE 2: These guidelines may not apply in all situations. Electromagnetic propagation is affected by
absorption and reflection from structures, objects and people.

8
Guidance and manufacturers declaration  electromagnetic immunity
The LMD-X2710MD is intended for use in an electromagnetic environment in which radiated RF
disturbances are controlled. Portable RF communications equipment should be used no closer than
30 cm (12 inches) to any part of the LMD-X2710MD. Otherwise, degradation of the performance of this
equipment could result.
Immunity test Band aService aModulation IEC 60601
test level
Compliance
level
Proximity fields
from RF wireless
communications
equipment
IEC 61000-4-3
380  390 MHz TETRA 400
Pulse
modulation
18 Hz
27 V/m 27 V/m
430  470 MHz GMRS 460
FRS 460
FM
±5 kHz
deviation
1kHzsine
28 V/m 28 V/m
704  787 MHz LTE Band 13, 17
Pulse
modulation
217 Hz
9 V/m 9 V/m
800  960 MHz
GSM 800/900
TETRA 800
iDEN 820
CDMA 850
LTE Band 5
Pulse
modulation
18 Hz
28 V/m 28 V/m
1,700 
1,990 MHz
GSM 1800
CDMA 1900
GSM 1900
DECT
LTE Band 1, 3, 4,
25
UMTS
Pulse
modulation
217 Hz
28 V/m 28 V/m
2,400 
2,570 MHz
Bluetooth
WLAN
802.11 b/g/n
RFID 2450
LTE Band 7
Pulse
modulation
217 Hz
28 V/m 28 V/m
5,100 
5,800 MHz WLAN 802.11 a/n
Pulse
modulation
217 Hz
9 V/m 9 V/m
NOTE: These guidelines may not apply in all situations. Electromagnetic propagation is affected by
absorption and reflection from structures, objects and people.
a For some services, only the uplink frequencies are included.

9
Caution
When you dispose of the unit or accessories, you
must obey the laws in the relative area or country
and the regulations in the relative hospital
regarding environmental pollution.
Warning on power connections
Use a proper power cord for your local power
supply.
1. Use the approved Power Cord (3-core mains
lead) / Appliance Connector / Plug with
earthing-contacts that conforms to the safety
regulations of each country if applicable.
2. Use the Power Cord (3-core mains lead) /
Appliance Connector / Plug conforming to the
proper ratings (Voltage, Ampere).
If you have questions on the use of the above
Power Cord / Appliance Connector / Plug, please
consult a qualified service personnel.
Warning on power connections for
medical use
Customers in the U.S.A. and Canada should use
the following type of power cord.
Customers in other countries or regions should
use the power cord prescribed by their country or
region.
* Note: Grounding reliability can only be achieved
when the equipment is connected to an
equivalent receptacle marked Hospital Only or
Hospital Grade.
Warning
The apparatus shall not be exposed to dripping or
splashing. No objects filled with liquids, such as
vases, shall be placed on the apparatus.
Warning
Make sure the surface is wide enough so that this
apparatuss width and depth dont exceed the
surfaces edges.
If not, this apparatus may lean or fall over and
cause an injury.
Warning
To prevent injury, if mounting the unit using a
mounting arm, wall fixture, or other mounting
device prepared by the customer, mount the unit
securely as described in the instruction manual
provided with the mounting device.
Check beforehand that the mounting device used
has sufficient strength to support the added
weight of the unit.
Check yearly that the mounting device is securely
attached.
Caution
When installing, ensure the following space
around the periphery of the unit, taking
ventilation and servicing into consideration.
 Rear side: 10 cm (4 in.) or more
 Left/Right sides: 10 cm (4 in.) or more
 Bottom side: 8 cm (3 1/4in.) or more
Topside:30cm(117/8in.) or more
Consult with Sony qualified personnel for the
following types of installation location.
 Wall mount
Mountingarm
Caution
The unit is not disconnected from the AC power
source (mains) as long as it is connected to the
wall outlet, even if the unit itself has been turned
off.
Caution
Do not use the device in a MR (Magnetic
Resonance) environment.
It may cause a malfunction, fire, and unwanted
movement.
Caution
This monitor should only be used with a specified
monitor stand.
For information on suitable stands, refer to
Specifications.
Installation of the monitor on any other stands
may result in instability, possibly leading to injury.
U.S.A. and Canada
Plug type HOSPITAL GRADE*
Cord type Min. Type SJT
Min. 18 AWG
Minimum rating for
plug and appliance
couplers
10 A / 125 V
Safety approval UL Listed and CSA

10
This equipment is not suitable for use in locations
where children are likely to be present.
Disposal of Old Electrical & Electronic
Equipment (Applicable in Republic of India)
This symbol and its variations indicate that this
product and its components, consumables, parts
or spares thereof shall not be treated as
household waste and may not be dropped in
garbage bins. Product owners are advised to
deposit their product at the nearest collection
point for the recycling of electrical and electronic
equipment. Your co-operation shall facilitate
proper disposal & help prevent potential negative
consequences/hazards to the environment and
human health, which could otherwise be caused
by inappropriate waste disposal including
improper handling, accidental breakage, damage
and/ or improper recycling of e-waste. The
recycling of materials will help to conserve natural
resources. For more detailed information about
recycling of this product, you may contact our
companys toll free number and website in India
for assistance.
Toll Free: 1800-103-7799
Visit: www.sony.co.in for product recycling
Reduction in the Use of Hazardous Substances
in Electrical & Electronic Equipment (Applicable
in Republic of India)
This product and its components, consumables,
parts or spares comply with the hazardous
substances restriction of Indias E-Waste
(Management) Rules. The maximum allowable
concentrations of the restricted substances are
0.1% by weight in homogenous materials for Lead,
Mercury, Hexavalent Chromium, Polybrominated
Biphenyls (PBB) and Polybrominated Diphenyl
Ethers (PBDE), and 0.01% by weight in
homogenous materials for Cadmium, except for
the exemptions specified in Schedule II of the
aforesaid Rules.
For the customers in the U.S.A.
SONY LIMITED WARRANTY - Please visit
www.sony.com/psa/warranty for important
information and complete terms and conditions
of Sonys limited warranty applicable to this
product.
For the customers in Canada
SONY LIMITED WARRANTY - Please visit
www.sony.com/psa/warranty for important
information and complete terms and conditions
of Sonys limited warranty applicable to this
product.
For the customers in Europe
Sony Professional Solutions Europe - Standard
Warranty and Exceptions on Standard Warranty.
Please visit https://pro.sony/support-services/
primesupport/support-professional-solutions-
europe-standard-product-warranty for
important information and complete terms and
conditions.
For the customers in Korea
SONY LIMITED WARRANTY - Please visit
https://pro.sony/ko_KR/support-services for
important information and complete terms and
conditions of Sonys limited warranty applicable
to this product.

11
Table of Contents
Precaution ........................................................12
On Safety ...................................................12
On Installation ...........................................12
Safety precautions for using this unit ......12
Precautions when connecting this unit to
medical equipment .................................12
To prolong the life of the unit ...................12
Cautions for RESPONSIBLE ORGANIZATION
when connecting this equipment to IT-
NETWORK ................................................12
Use with electrosurgical knives and
similar devices .........................................13
Recommendation to Use more than One
Unit ..........................................................13
LCD image display .....................................13
About the LCD Display Panel ....................13
On a Long Period of Use ...........................13
On Burn-in .................................................13
On Fan Error ............................................. 14
On Temperature Error .............................. 14
On condensation ...................................... 14
On Security ............................................... 14
On Cleaning .............................................. 14
On Repacking ............................................15
Features ........................................................... 15
Location and Function of Parts and Controls ... 16
Front Panel ................................................ 16
Input Signals and Adjustable/Setting
Items........................................................ 17
Rear/Bottom Panel ................................... 18
Preparation ......................................................20
Connecting ...............................................20
Turning on the Monitor/Switching Input
Settings ....................................................21
Initial Setting ................................................... 22
Using the Menu ............................................... 23
Adjustment Using the Menus .......................... 24
Items ......................................................... 24
Adjusting and changing the settings ...... 25
Color Tone Adjustment menu ............. 25
Screen Control menu .......................... 25
PIP / POP menu ................................... 26
Input/Output Configuration menu ..... 26
System Configuration menu ............... 27
Initial Setup menu ............................... 29
Preset menu ........................................30
Troubleshooting ..............................................30
Error Messages .................................................31
Specifications ...................................................31
Dimensions ...................................................... 37
Licenses ...........................................................38
The terms HDMI and HDMI High-Definition
Multimedia Interface, and the HDMI Logo are
trademarks or registered trademarks of HDMI
Licensing Administrator, Inc. in the United
States and other countries.

12
Precaution
On Safety
Operate the unit only with a power source as
specified in the “Specifications” section.
The nameplate indicating operating voltage,
etc. is located on the rear panel of monitor and
the AC adaptor.
Should any solid object or liquid fall into the
cabinet, unplug the unit and have it checked by
qualified personnel before operating it any
further.
Unplug the unit from the wall outlet if it is not
to be used for several days or more.
To disconnect the AC power cord, pull it out by
grasping the plug. Never pull the cord itself.
The socket-outlet shall be installed near the
equipment and shall be easily accessible.
On Installation
Prevent internal heat build-up allowing
adequate air circulation.
Do not place the unit on surfaces (rugs,
blankets, etc.) or near materials (curtains,
draperies) that may block the ventilation holes.
Do not install the unit near heat sources such as
radiators or air ducts, or in a place subject to
direct sunlight, excessive dust, mechanical
vibration or shock.
Do not place the monitor near equipment
which generates magnetism, such as a
transformer or high voltage power lines.
Safety precautions for using this unit
Viewing images may result in eye strain,
fatigue, nausea, or other symptoms of
discomfort. It is best to take frequent breaks
when viewing content. Because the length and
frequency of breaks will differ from person to
person, be sure to trust your instincts when
deciding to take breaks from viewing. When
feelings of discomfort occur, stop viewing the
images until the symptoms subside, and
consult with a specialist physician if necessary.
Avoid using this unit while walking or
exercising, or in areas that shake violently, as
doing so can increase the chances of feelings
of discomfort.
When connecting the unit to medical
equipment, refer to “Precautions when
connecting this unit to medical equipment”.
Precautions when connecting this unit to
medical equipment
Before using this unit for medical purposes, be
sure to confirm that use of this unit will not
cause symptoms that may interfere with
medical practice, such as eye strain, fatigue,
and nausea, etc.
Refrain from using this unit if symptoms occur
that interfere with medical practice, or if such
symptoms are likely to occur.
Depending on the conditions of the video input
to the unit (e.g., the steadiness, movement
speed, and focus position of the video, the
distance from subject, the area of the image
the user is viewing) and the general health of
the user, the user may experience visual
fatigue, tiredness, and other discomfort.
Before starting a medical procedure, make sure
that the image from the connected device is
displayed correctly on this unit.
To prolong the life of the unit
Turn off the power to preserve the performance
when not in use for a prolonged time.
Cautions for RESPONSIBLE ORGANIZATION
when connecting this equipment to IT-
NETWORK
– connection of the PEMS to an IT-NETWORK that
includes other equipment could result in
previously unidentified RISKS to PATIENTS,
OPERATORS or third parties;
– the RESPONSIBLE ORGANIZATION should
identify, analyze, evaluate and control these
RISKS;
– subsequent changes to the IT-NETWORK could
introduce new RISKS and require additional
analysis; and
– changes to the IT-NETWORK include:
changes in the IT-NETWORK configuration;
connection of additional items to the IT-
NETWORK;
disconnecting items from the IT-NETWORK;

13
update of equipment connected to the IT-
NETWORK; and
upgrade of equipment connected to the IT-
NETWORK.
Use with electrosurgical knives and
similar devices
If this unit is used together with an
electrosurgical knife, etc., the picture may be
disturbed, warped or otherwise abnormal as a
result of strong radio waves or voltages from the
device. This is not a malfunction.
When you use this unit simultaneously with a
device from which strong radio waves or
voltages are emitted, confirm the effect of this
before using such devices, and install this unit in
a way that minimizes the effect of radio wave
interference.
Recommendation to Use more than One
Unit
As problems can occasionally occur for the
monitor, when the monitor is used for safety
control of personnel, assets or stable picture, or
for emergencies, we strongly recommend you
use more than one unit or prepare a spare unit.
LCD image display
Due the physical characteristics of LCD panels,
there may be a decrease in brightness or change
in color temperature over a long period of use.
These problems are not a malfunction.
In addition, these occurrences will not affect
recorded data.
About the LCD Display Panel
The LCD panel fitted to this unit is
manufactured with high precision technology,
giving a functioning pixel ratio of at least
99.99%. Thus a very small proportion of pixels
may be “stuck”, either always off (black),
always on (red, green, or blue), or flashing. In
addition, over a long period of use, because of
the physical characteristics of the liquid crystal
display, such “stuck” pixels may appear
spontaneously. These problems are not a
malfunction.
Do not leave the LCD screen facing the sun as it
can damage the LCD screen. Take care when
you place the unit by a window.
Do not push or scratch the LCD screen. Do not
place a heavy object on the LCD screen. This
may cause the screen to lose uniformity.
If the unit is used in a cold place, a residual
image may appear on the screen. This is not a
malfunction. When the monitor becomes
warm, the screen returns to normal.
The screen and the cabinet become warm
during operation. This is not a malfunction.
On a Long Period of Use
Due to the characteristics of LCD panel,
displaying static images for extended periods, or
using the unit repeatedly in a high temperature/
high humidity environments may cause image
smearing, burn-in, areas of which brightness is
permanently changed, lines, or a decrease in
overall brightness.
In particular, continued display of an image
smaller than the monitor screen, such as in a
different aspect ratio, may shorten the life of the
unit.
Avoid displaying a still image for an extended
period, or using the unit repeatedly in a high
temperature/high humidity environment such
an airtight room, or around the outlet of an air
conditioner.
To prevent any of the above issues, we
recommend reducing brightness slightly, and to
turn off the power whenever the unit is not in
use.
On Burn-in
For LCD panel, permanent burn-in may occur if
still images are displayed in the same position on
the screen continuously, or repeatedly over
extended periods.
Images that may cause burn-in
Masked images with aspect ratios other than
16:9
Color bars or images that remain static for a
long time
Character or message displays that indicate
settings or the operating state

14
To reduce the risk of burn-in
Turn off the character displays
Press the MENU button to turn off the character
displays. To turn off the character displays of
the connected equipment, operate the
connected equipment accordingly. For details,
refer to the operation manual of the connected
equipment.
Turn off the power when not in use
Turn off the power if the monitor is not to be
used for a prolonged period of time.
On Fan Error
The fan for cooling the unit is built in. When the
fan error indication appears on the screen, turn
off the power and contact an authorized Sony
dealer.
On Temperature Error
When this unit is used in a high temperature
environment and the internal temperature rises,
a temperature error is displayed on the screen.
When the temperature error is displayed, contact
an authorized Sony dealer.
On condensation
If the unit is moved suddenly to a location with a
different temperature or the ambient
temperature changes suddenly, moisture may
form on the outer surface of the unit and/or
inside of the unit. This is known as condensation.
If condensation occurs, turn off the unit and wait
until the condensation clears before operating
the unit. Operating the unit while condensation
is present may damage the unit.
On Security
SONY WILL NOT BE LIABLE FOR DAMAGES OF
ANY KIND RESULTING FROM A FAILURE TO
IMPLEMENT PROPER SECURITY MEASURES ON
TRANSMISSION DEVICES, UNAVOIDABLE DATA
LEAKS RESULTING FROM TRANSMISSION
SPECIFICATIONS, OR SECURITY PROBLEMS OF
ANY KIND.
Depending on the operating environment,
unauthorized third parties on the network may
be able to access the unit. When connecting
the unit to the network, be sure to confirm that
the network is protected securely.
This unit is equipped with a maintenance
function performed via a network.
Maintenance may be performed with your
consent.
This product is used with a leased line or
intranet connection. Do not connect to an
external network, as security issues may occur.
On Cleaning
Before cleaning
Be sure to disconnect the AC power cord from
the AC outlet.
On cleaning the monitor
A material that withstands disinfection is used
for the front protection plate of the medical use
LCD monitor. The protection plate surface is
specially treated to reduce reflection of light.
When solvents such as benzene or thinner, or
acid, alkaline or abrasive detergent, or chemical
cleaning cloth are used for the protection plate
surface/monitor surface, the performance of the
monitor may be impaired or the finish of the
surface may be damaged. Take care with respect
to the following:
Clean the protection plate surface/monitor
surface with a 50 to 70 v/v% concentration of
isopropyl alcohol or a 76.9 to 81.4 v/v%
concentration of ethanol using a swab method.
Wipe the protection plate surface gently (wipe
using less than 1 N force).
Stubborn stains may be removed with a soft
cloth such as a cleaning cloth lightly dampened
with mild detergent solution using a swab
method and then clean using the above
chemical solution.
Never use solvents such as benzene or thinner,
or acid, alkaline or abrasive detergent, or
chemical cleaning cloth for cleaning or
disinfection, as they will damage the
protection plate surface/monitor surface.
Do not use unnecessary force to rub the
protection plate surface/monitor surface with a
stained cloth. The protection plate surface/
monitor surface may be scratched.
Do not keep the protection plate surface/
monitor surface in contact with a rubber or
vinyl resin product for a long period of time.
The finish of the surface may deteriorate or the
coating may come off.

15
On Repacking
Do not throw away the carton and packing
materials. They make an ideal container which to
transport the unit.
If you have any questions about this unit, contact
your authorized Sony dealer.
Features
This monitor displays color video images that are
output from medical imaging systems on the
LCD (liquid crystal display) panel.
Liquid crystal and color filters are laid on the front
of flat light source (backlight) on the LCD panel.
And then, the LCD panel displays images by
controlling the aperture of the liquid crystal
according to input signals.
Compliance with medical safety standards in
U.S.A., Canada and Europe
IEC 60601-1 and product safety standards in the
U.S.A., Canada and Europe have been obtained
for this monitor.
The monitor is designed for use in the medical
treatment field, with the sheet switch, screen
protect panel, etc.
High brightness/high-resolution 4K panel
A 4K high-resolution (3840 × 2160) panel and
wide field of view technology enables you to use
the monitor under various lighting conditions
and in numerous ways (installing on the wall,
using several monitors to view an image, etc.).
Control panel
Assigns functions frequently used during an
operation to buttons on the front surface of the
monitor. The panel provides an user interface
superior in operability through navigation by
luminescent colors and status of the buttons.
Flat surface for better maintenance
The design allows the user to easily wipe liquids
and gel off the LCD panel and control buttons –
ensuring a high standard of disinfection and
cleanliness.

16
Location and Function of Parts and Controls

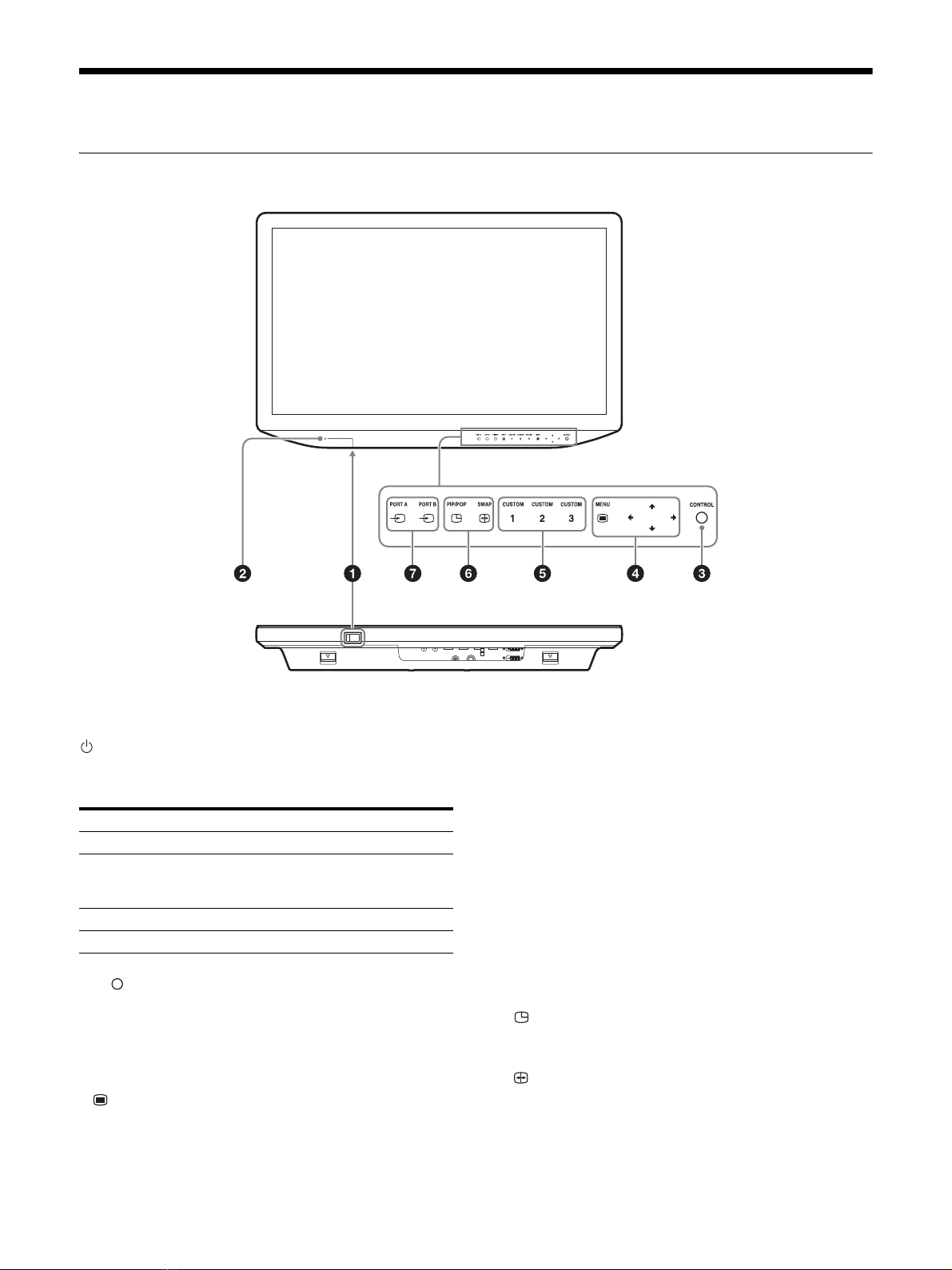

Front Panel
(On)/(Standby) switch
Press the side to turn the monitor on. Press the
side to switch the unit to standby state.
Power indicator
CONTROL button
Displays or hides the operation buttons on the
front panel.
Selects the items depending on the menu types.
OSD menu operation buttons
MENU button
Press to display the on-screen menu.
Press again to hide the menu.
///buttons
Press to select the items and setting values.
CUSTOM buttons
Turns on or off the assigned function. You can
adjust the assigned function by pressing the /
buttons. (Refer to the custom buttons of the
system configuration menu on page 29 and of
the default setting on page 29.)
The following functions are assigned in the
default setting.
CUSTOM 1: Brightness
CUSTOM 2: Contrast
CUSTOM 3: Flip Pattern
Multi-image display setting buttons
PIP/POP: For displaying the multi-image
display or switching the multi-image display
mode.
SWAP: For swapping between the main
display and the sub display.
Indicator Operating State
Green Power on
Flashes in Green Power on with image displayed
(reduced backlight due to high
temperature)
Orange Standby
Flashes in Orange No image displayed (remote standby)

17
Input select buttons
PORT A/PORT B: Each input connector can
be assigned for PORT A/B.
In the default setting, Display Port 1 is assigned
for PORT A and Display Port 2 is assigned for
PORT B.
When you press PORT A or PORT B when
it is lit in green, a menu for selecting the input
connector assigned to the PORT A/B is
displayed.
When you press PORT A or PORT B when
it is lit in white, an image from the input
connector assigned to the PORT A/B is
displayed.
Input Signals and Adjustable/Setting Items
: Can be adjusted/set
×: Cannot be adjusted/set
1) Reflected on the screen only when the 4K equivalent signal
is input.
2) Reflected on the screen only when the HD signal is input.
3) Reflected on the screen only when the SD signal is input.
4) The setting value can be changed but is not applied to the
screen when the PC signal is input.
Item
Input signal
DP1/DP2 HDMI DVI-D SDI
Video PC Video PC Video PC
Gamma 
Phase 
Chroma 
Brightness 
Contrast 
Color Temperature 
Mono 
Sharpness H 
Sharpness V 
RGB Range ×
Color Space 
4K Scan Size 1) ×4) 1) ×4) ××1)
HD Scan Size 2) ×4) 2) ×4) 2) ×4) 2)
SD Scan Size 3) ×4) 3) ×4) 3) ×4) 3)
Flip Pattern 
SD Aspect 3) ×4) 3) ×4) 3) ×4) 3)
HDMI Signal Format ×××××

18
Rear/Bottom Panel
HDMI cable holder
Secures the HDMI cable (Ø7 mm or less).
SERIAL REMOTE RS-232C connector (D-
sub 9-pin, female)
The monitor can be operated according to
control commands sent from connected external
equipment.
REMOTE connector (Stereo mini jack)
The monitor can be operated partially by
connecting the optional Foot Switch FS-24.
SERIAL REMOTE connector (RJ-45)
The monitor can be operated according to
control commands sent from connected external
equipment.
Connect to the network by using a 10BASE-T/
100BASE-TX LAN cable (non-shielded type of 5 or
more category, optional).
Note
Consult with Sony qualified personnel at using
this connector.
Caution
For safety, do not connect the connector to
peripheral device wiring that might have
excessive voltage.
Follow the instructions for use for this port.
Note
The connection speed may be affected by the
network system. This unit does not guarantee
the communication speed or quality of 10BASE-
T/100BASE-TX.
DVI-D input/output connector (DVI-D)
input connector
Input connector of DVI Rev.1.0 applicable
digital signal.
output connector
Active through output connector of the DVI
digital signal.
The signal protected by HDCP 1) is not output.
Close
Cable

19
1) HDCP (High-bandwidth Digital Content
Protection) is a copyright protection technology
using encryption technology of digital video
signals.
Notes
A signal is output from the connector only
when the monitor is turned on. When the
monitor is turned off, the signal is not output
from the connector.
The DVI-D input/output connector is not
compatible with the 4K equivalent signal. For
details, refer to “Available signal formats” on
page 34.
HDMI input connector
Input connector for HDMI signals.
Use the Premium High Speed cable that is
shorter than 3 m (meters) with the cable-type
logo. (Cables manufactured by Sony are
recommended.)
DP1 (Display Port 1) input connector
Input connector for Display Port signals.
Display Port is an interface developed by VESA
that supports transfer of both video and audio
digital signals on a single cable.
Use the DisplayPort standard version 1.2-certified
cable.
This monitor does not support Display Port audio
signals.
DP2 (Display Port 2) input/output
connector
input connector
Input connector for Display Port signals.
output connector
Output connector for Display Port signals. The
signals are output when signals input to the
DP2 input connector are displayed on the
screen. HDCP-protected signals are not output.
12V 2.5A (DC output) connector
Outputs 12 volts for connected external
equipment.
5V 2.0A (DC output) connector
Outputs 5 volts for connected external
equipment.
SDI input/output connector (BNC type)
input connector
Input connector for serial digital component
signals (4K/HD/SD).
output connector
Active through output connector for serial
digital component signals (4K/HD/SD).
Recommended cables
12G-SDI: Coaxial cable L-5.5CUHD manufactured
by Canare Electric Co., Ltd. or an equivalent cable
3G-SDI: Coaxial cable L-5CFB manufactured by
Canare Electric Co., Ltd. or an equivalent cable
HD-SDI: Coaxial cable L-5CFB manufactured by
Canare Electric Co., Ltd. or an equivalent cable
SD-SDI: Coaxial cable L-5CFB manufactured by
Canare Electric Co., Ltd. or an equivalent cable
An SDI signal is output from the output
connector only when the monitor is turned on.
When the monitor is turned off, the signal is
not output from the output connector.
Be sure to connect equipment or cables
specified by Instructions for Use of this monitor
to the SDI output connectors. If you connect
unspecified equipment or cables, the monitor
may affect the operation of the connected
equipment.
(Equipotential) terminal
Connects the equipotential plug.
AC input connector
Connects the supplied AC power cord.
(DC input) connector
Connect the DC connector of the optional AC
adaptor.
Warning
For the DC power supply, make sure to use the
optional AC adaptor, AC-300MD.
If another power supply is used, there is a risk of
fire or electric shock.

20
Warning
Using this unit for medical purposes
The connectors on this unit are not isolated.
Do not connect any device other than one which
conforms to IEC 60601-1 standards.
When an information technology device or AV
device that uses an alternating current is
connected, current leakage may result in an
electric shock to the patient or operator.
If use of such a device is unavoidable, isolate its
power supply by connecting an isolation
transformer, or by connecting an isolator
between the connecting cables.
After implementing these measures, confirm
that the reduced risk now conforms to IEC 60601-
1 standards.
Caution
Do not touch a connector terminal and the
patient at the same time.
Doing so may result in a generation of voltage
that can be harmful to patients if the unit is
malfunctioning.
Always disconnect the power cord before
connecting and disconnecting connectors.

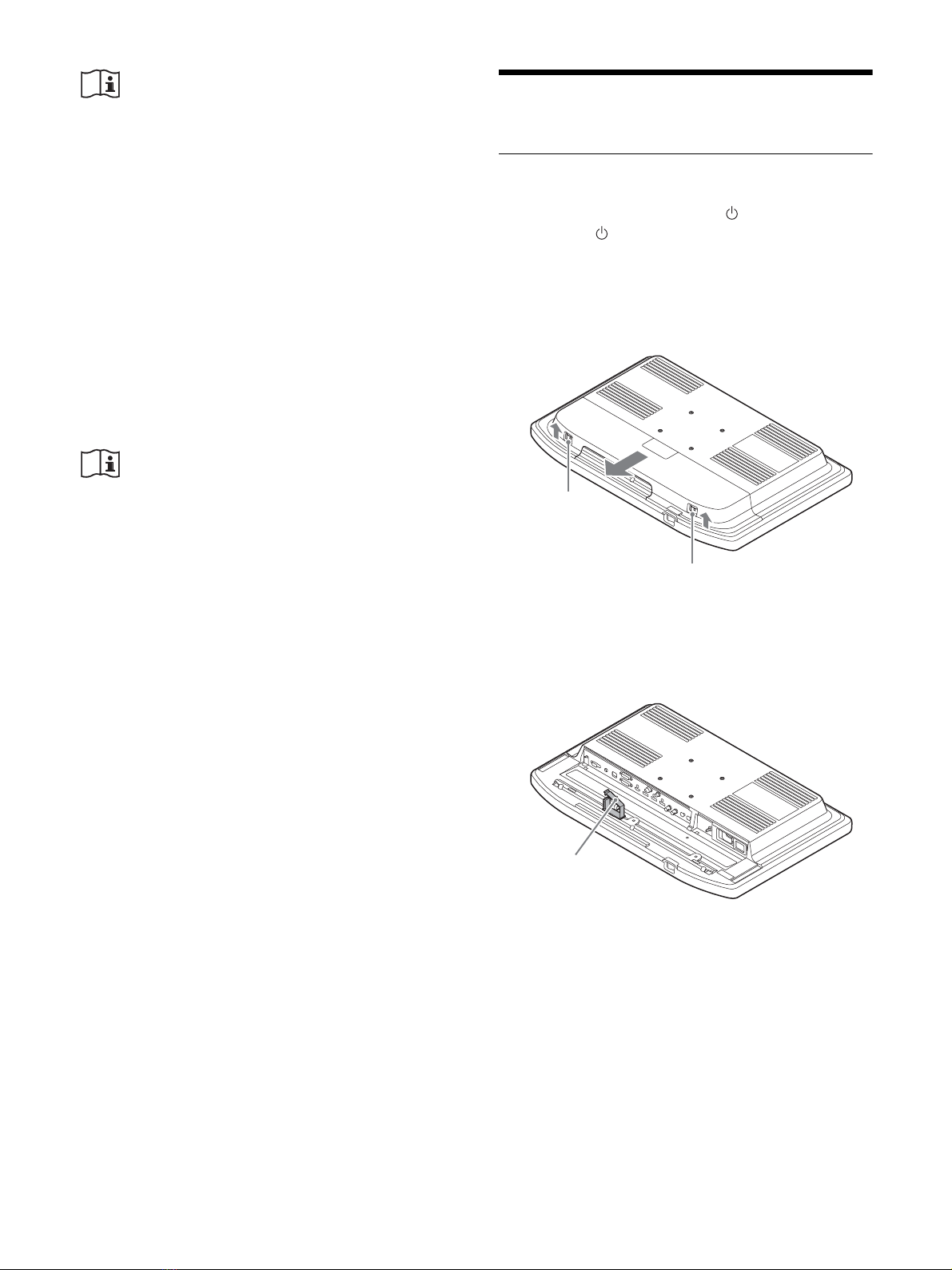

Preparation
Connecting
1 Make sure that the (On)/ (Standby) switch
is set to (Standby).
2 Remove the connector cover.
While pressing the lock levers to the
direction , slide off the connector cover.
3 Connect the connection cable.
The connection cable should be wired to fit
in the cable clamp.
4 Connect the AC power cord.
Slide the shutter of the AC power connector
to show the AC input connector, and plug the
AC power cord into the AC input connector.
Lock lever
Lock lever
Cable clamp
