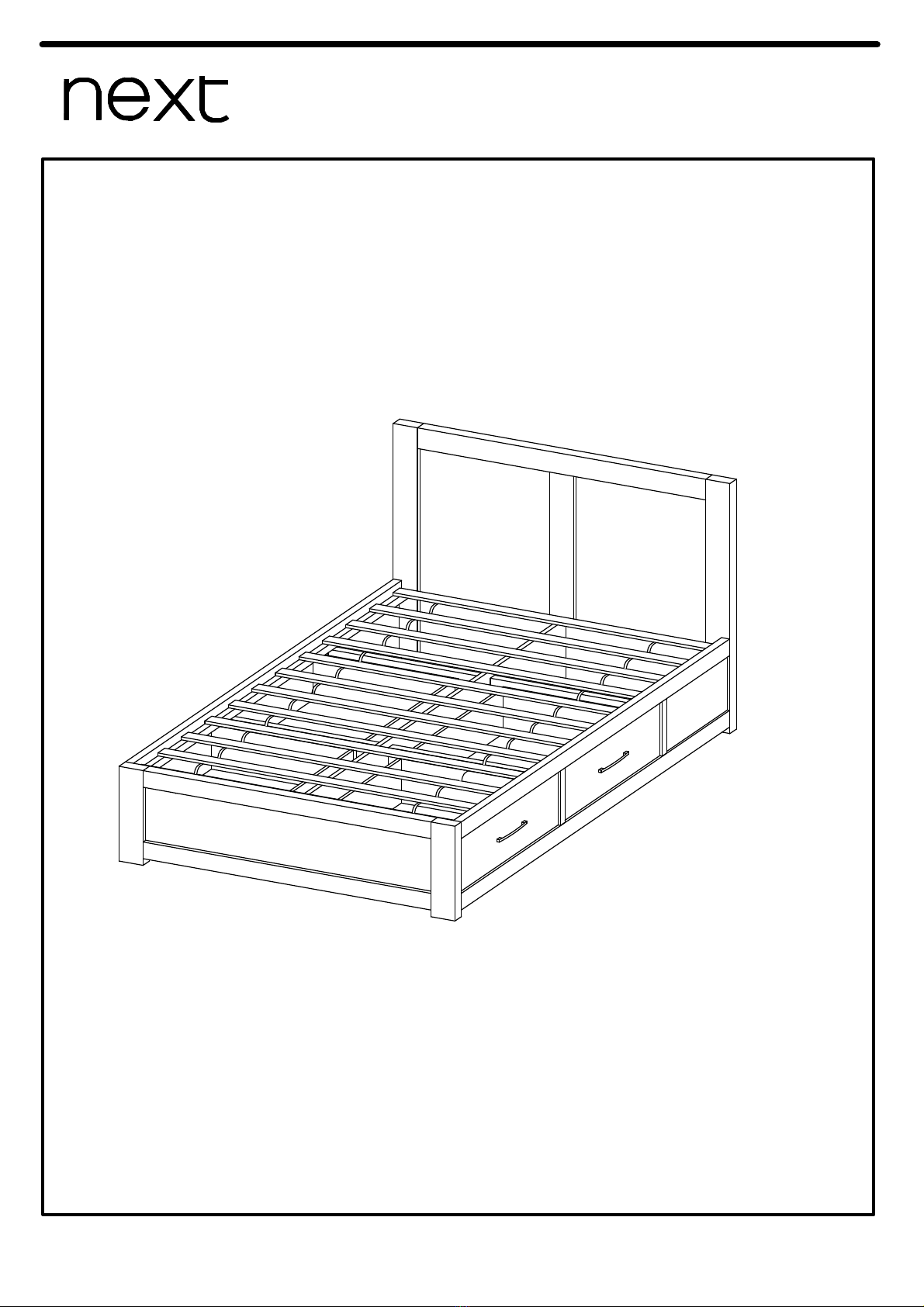

CUBA OAK DOUBLE BED
661609-206
Assembly instructions
Produced in Poland for Next Retail Ltd
661609-206-2014-V1
Actual product size
H112 x W145 x D200cm

1
CUBA OAK DOUBLE BED
661609-206
Assembly instructions
Produced in Poland for Next Retail Ltd
661609-206-2014-V1
BEFORE YOU START
Warnings
We suggest you retain these instructions for future reference.
Keep fittings out of children’s reach and keep children well
away from the construction area.
This product should only be used on firm, level ground.
Please periodically check all fittings and re-tighten as
necessary.
Please do not jump or stand on your bed.
Avoid exposing the furniture to excessive heat or direct
sunlight as this can cause damage to the materials and
deterioration of the colour
Do’s
We suggest you spend a short time reading through this
leaflet before you start.
When you are ready to start, make sure that you have the
right tools and plenty of space.
Due to the size of the product we recommend that it is
assembled in the room intended for use
Unwrap all packaging materials and place the components
on a clean surface to protect them from damage,
We recommend that the packaging is used to protect the
surfaces during assembly
Carefully check that you have all the parts before beginning
assembly
Ensure the product is fully assembled as illustrated and all
fixings fully tightened before use.
Check fixings regularly to ensure they remain tight
When moving your assembled bed. It is best to lift the bed and
never to drag it. Please check that the centre support rail is
securely fixed in place
When adjusting the support legs ensure that the foot is set
5-10mm from the floor surface without the mattress in place.
When in use the legs will create the required support for the
product
Wipe occasionally with a soft cloth dampened with water.
Then buff with a dry clean soft cloth
Don’ts
Do not drag or pull your furniture.
Do not use silicone based furniture polish. Silicone in furniture
polishes can break down the finish.
Never allow any kind of liquid to remain on your furniture.
Absorption can cause wood to warp or finishes to de-laminate.
Do not place hot items (e.g. hot drinks) directly on to the wood
surface. Please make sure you use a placement or coaster
Missing parts
If you are missing any fixtures and fittings for your product
please contact our customer service team on 0333 777 8999
and they will be happy to arrange for a replacement to be sent
to you free of charge.
Home service technicians
If you have a fault with your product please contact our
customer service team on 0333 777 8999. If you have had the
product for 28 days or less you may be offered a replacement,
refund or for a fully trained home service technician to visit your
home to assess the fault and repair the product where possible.
If you have had the product for more than 28 days we will send
an independant home service technician to review and repair
the product where possible and recommend further action.
You can write to us at
Home Customer Services
Next Retail Ltd,
Desford Road,
Leicester,
LE19 4AT
To View our full furniture range please visit www.next.co.uk
PH2
Number of people required to assemble
Two persons are required to assemble this item.
Time to assemble
1.5 hours
Tools required
not supplied not supplied

GETTING TO KNOW YOUR PRODUCT
CUBA OAK DOUBLE BED
661609-206
Assembly instructions
Produced in Poland for Next Retail Ltd
661609-206-2014-V1
C24-953
C24-880
C24-347
C24-881
C24-193
C24-883
C24-882
C24-347
C24-280
C24-285
C24-285
C24-285
C24-285
X4
C24-920
C24-925
C24-920
C24-060 C24-760
C24-930
C24-030
C24-030
2

CUBA OAK DOUBLE BED
661609-206
Assembly instructions
Produced in Poland for Next Retail Ltd
661609-206-2014-V1

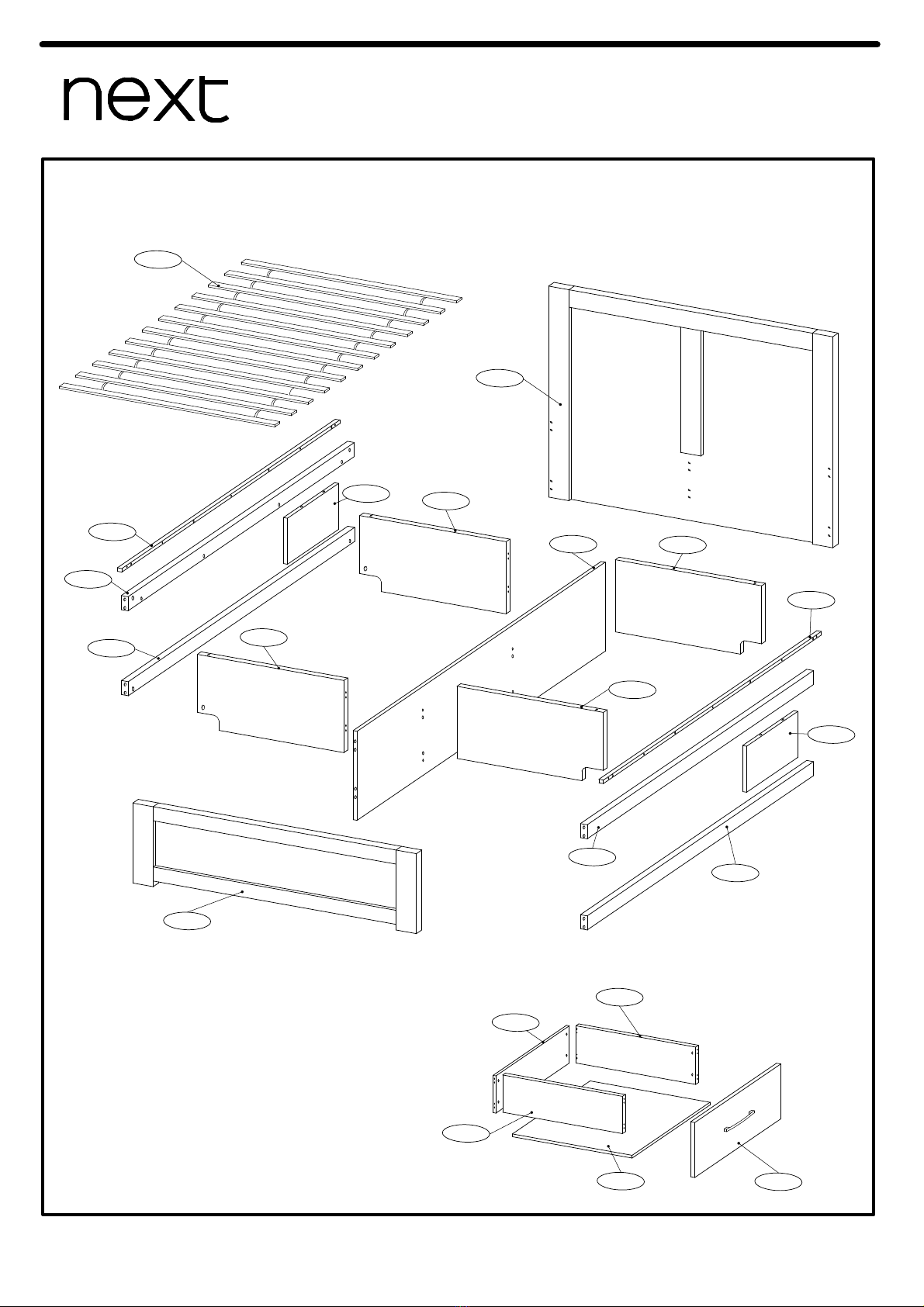

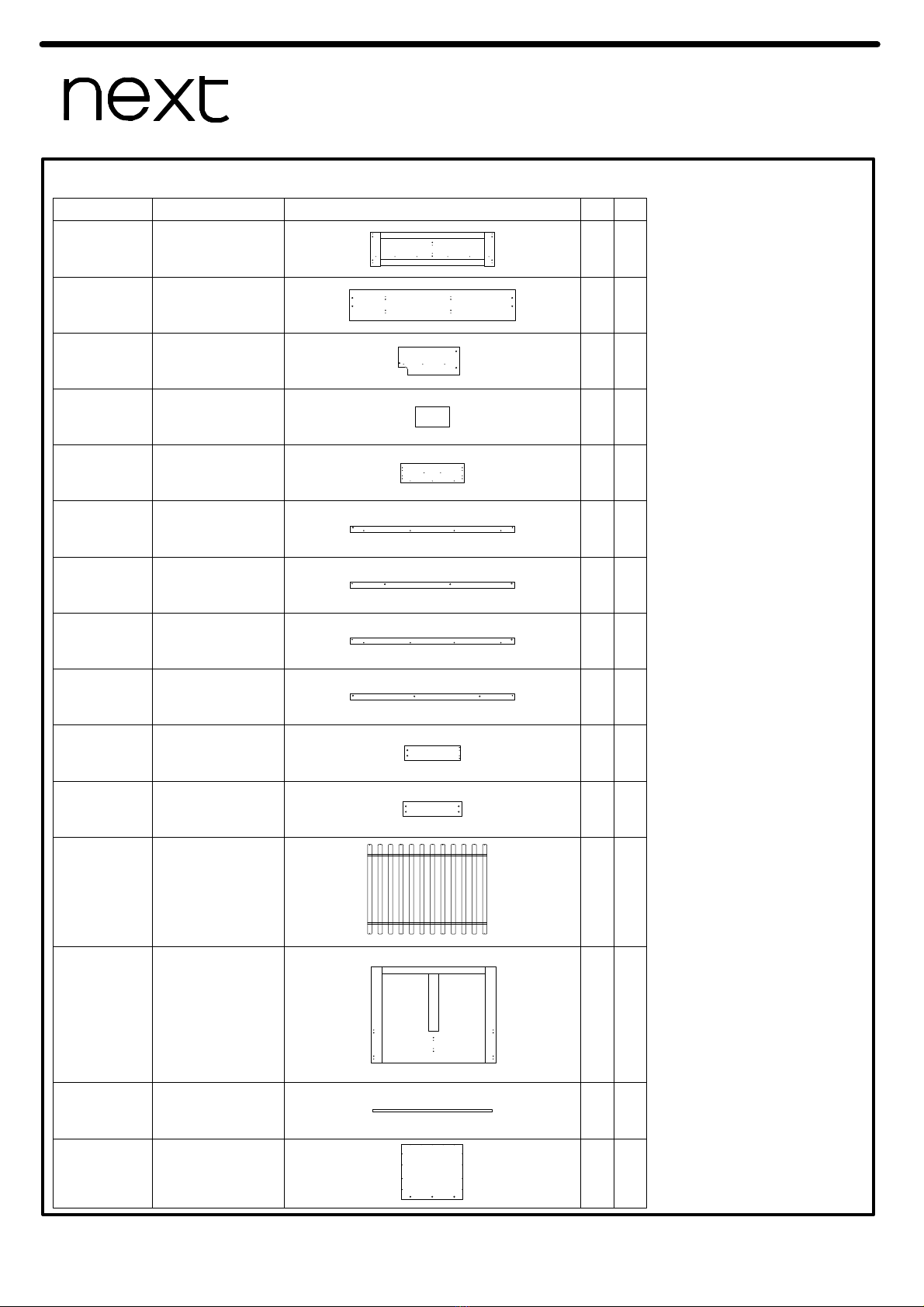

Components supplied. Please use this guide if you require replacement parts.
Ref Dimensions Visual QtyCtn
C24-193 40 x 145cm 1 2
193 x 36cm 1 1
71 x 33cm 43
40 x 23cm 2 3
192 x 7cm 1 1
192 x 7cm 1 1
C24-280
C24-285
C24-347
C24-880
C24-881
73 x 23cm 43
C24-760
C24-882 192 x 7cm 1 1
192 x 7cm 1 1
65 x 17cm 8 1
68 x 17cm 43
71 x 65cm 43
C24-883
C24-920
C24-925
C24-060
112 x 145cm 1 2
C24-953
181 x 136cm
C24-930 1 1
181 x 3cm 2 1
C24-030
3

CUBA OAK DOUBLE BED
661609-206
Assembly instructions
Produced in Poland for Next Retail Ltd
661609-206-2014-V1
Fixtures and fittings
supplied (actual size)
Ref Dimensions Qty
A
B
D
P1
6 x 43 mm 60
15 x 11 mm 32
8 x 30 mm 44
3 x 15 mm 8
P4 243 x 20 mm
mm.
0. 10 10020 30 40 50 60 70 80 90 110 120 130
Fixtures and fittings supplied (not to scale)
Ref Dimensions Visual Qty Ref Dimensions Visual Qty
MN/A 1
B1 15 x 15 mm 24
D1 10 x 35 mm 28
G4 x 22 mm 8
Ref Dimensions Visual Qty
U1 N/A 4N/A 4
Ref Dimensions Visual Qty
SL N/A 4
SR
F6 6.3 x 11 mm 24
B2 12 x 9 mm 12
C1 10 x 17 mm 4
H1 4 x 25 mm 8
O1 4 x 45 mm 10
N1 6 x 70 mm 4
K1 7 x 82 mm 4
S1 3 x 30 mm 52
4

5
CUBA OAK DOUBLE BED
661609-206
Assembly instructions
Produced in Poland for Next Retail Ltd
661609-206-2014-V1

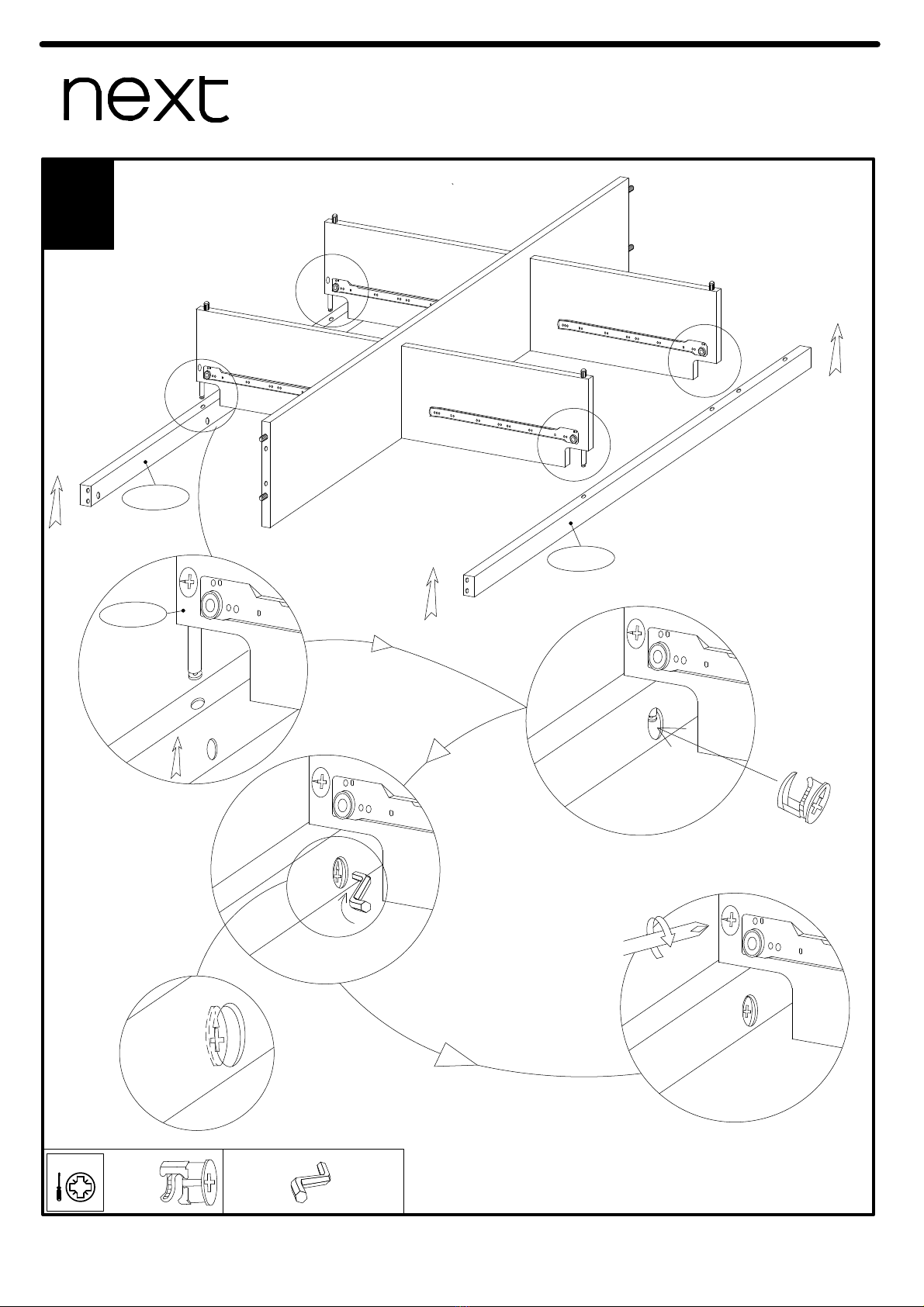

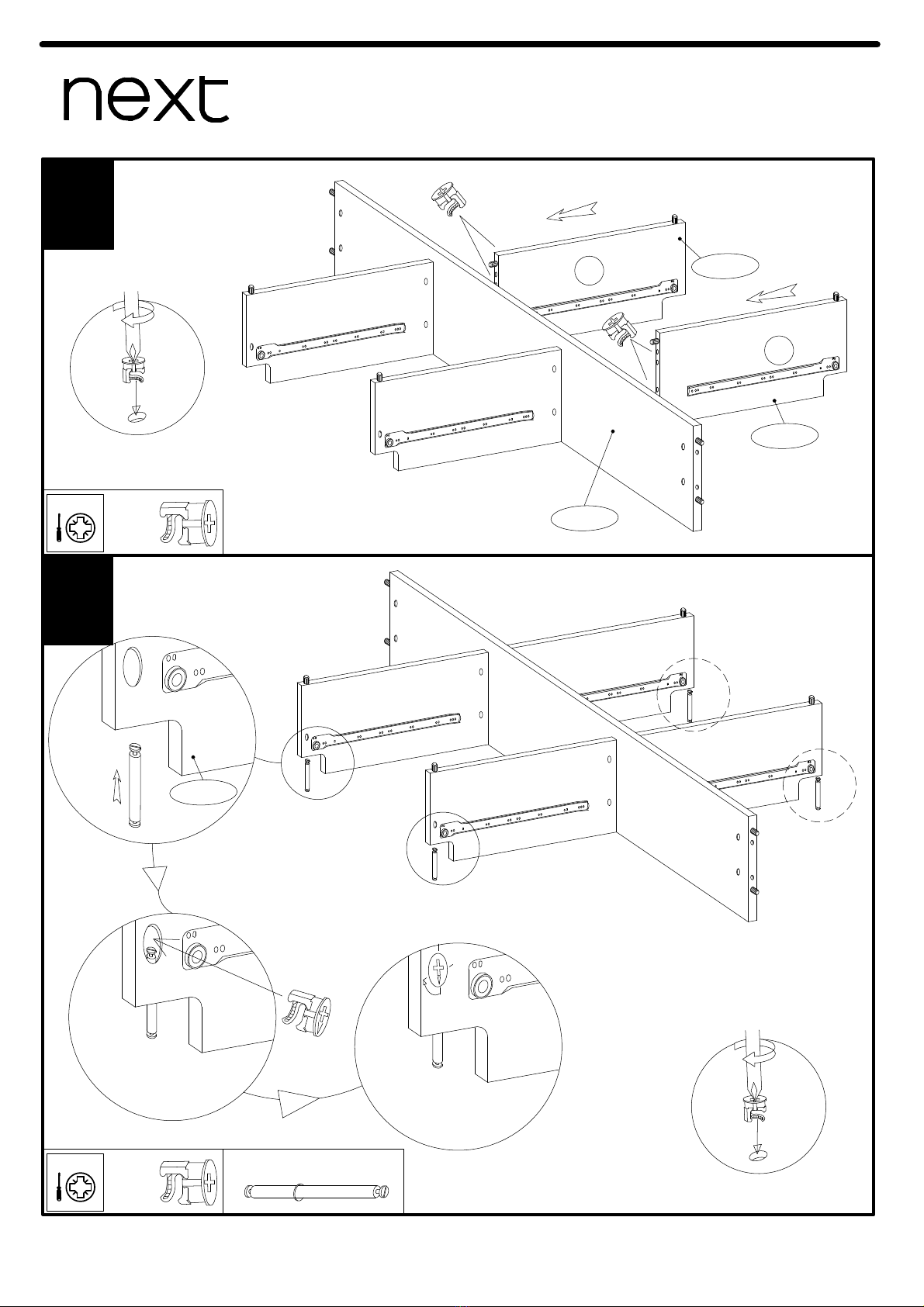

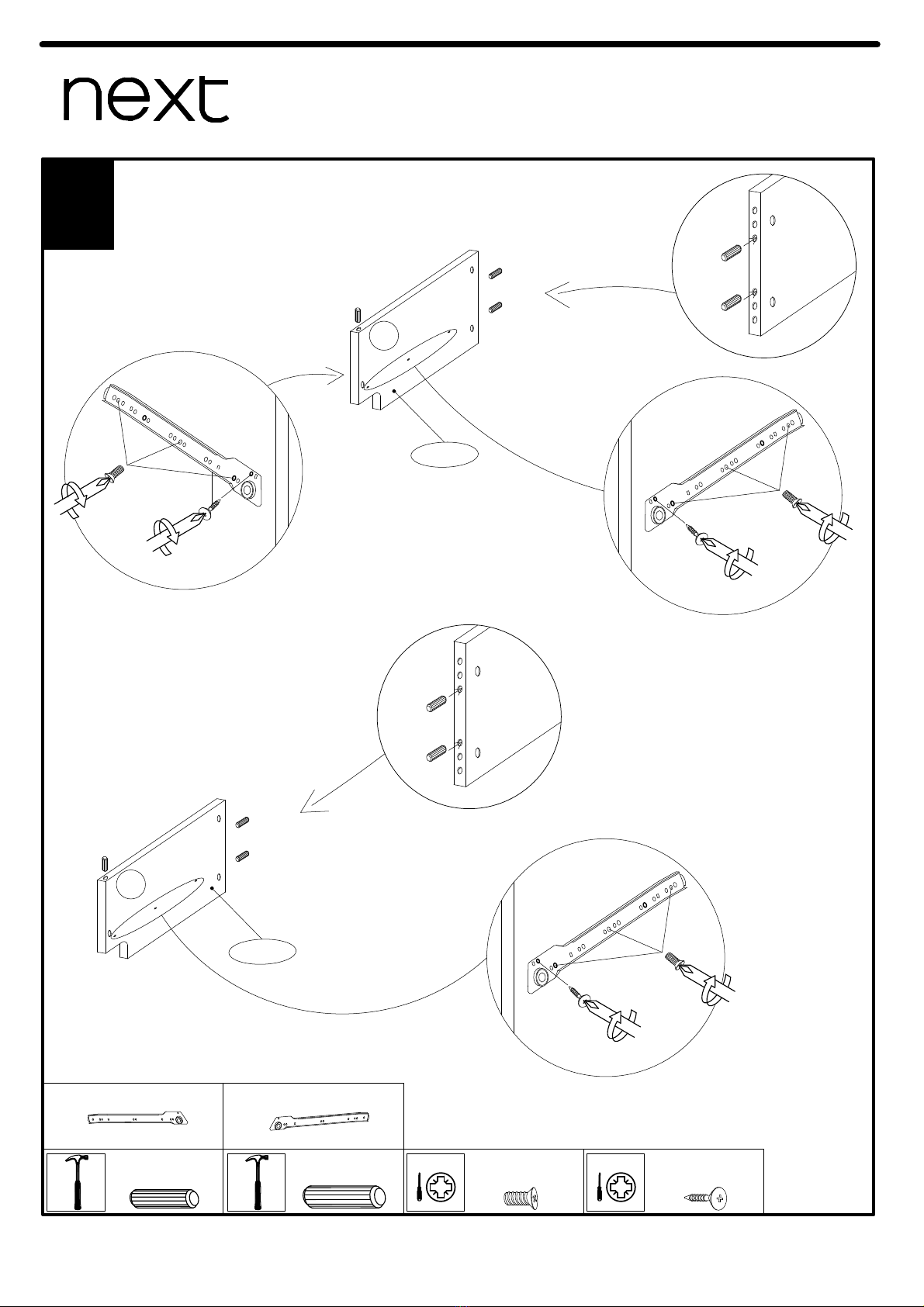

1
A
Ax44
PH2 Panel Panel
CAM-LOCK
Tighten until shoulder is flush
with panel. Do not overtighten
or undertighten (see example below)
Shoulder
NO GAP
x4
Dx32
8x30mm
A
A
A
A
A
D
D
D
D
D
C24-760
C24-920
C24-925
C24-920

6
CUBA OAK DOUBLE BED
661609-206
Assembly instructions
Produced in Poland for Next Retail Ltd
661609-206-2014-V1

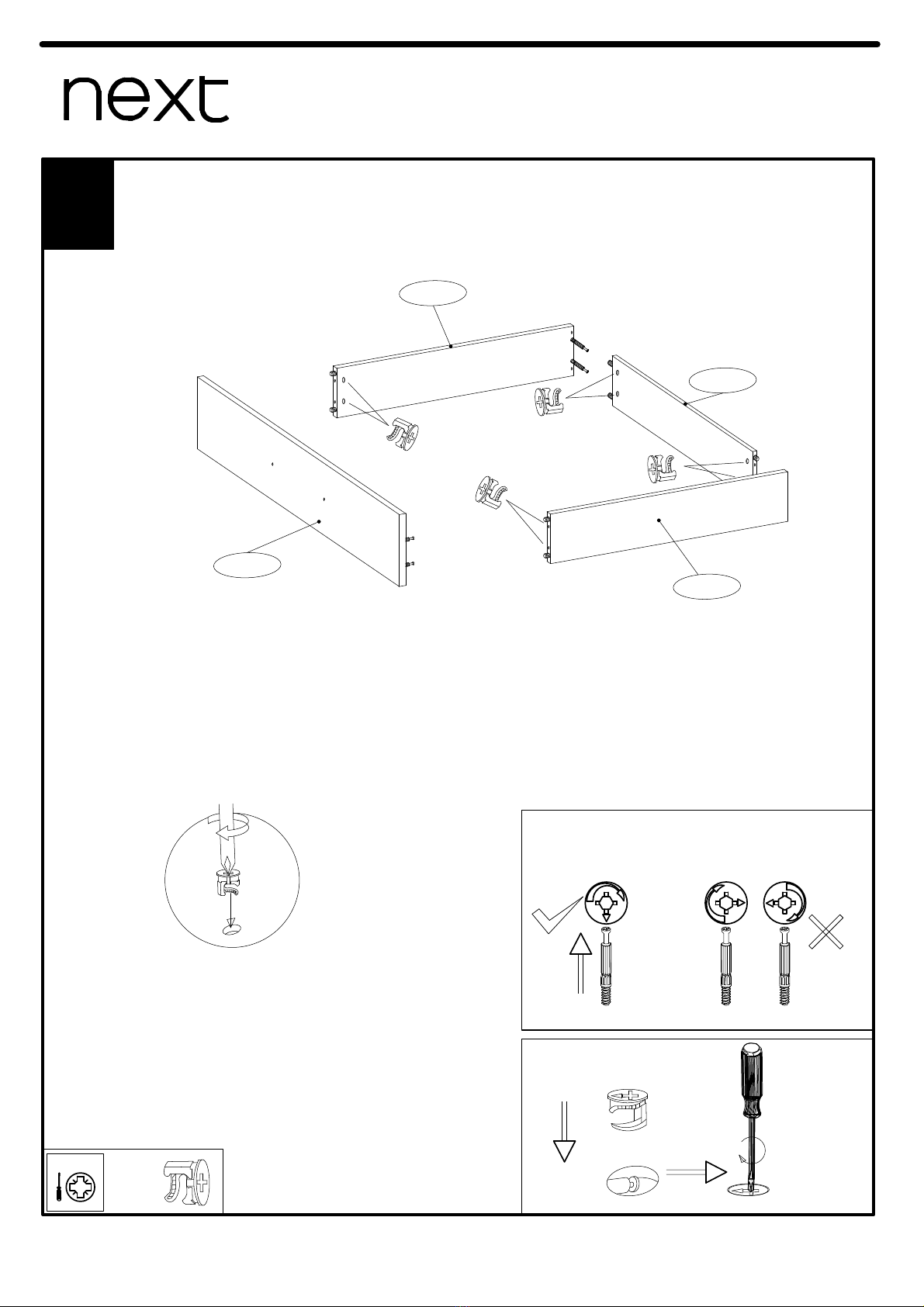

2
CORRECT WRONG
WHEN FITTING CAMS
ENSURE STARTING POSITION IS CORRECT
BEFORE YOU INSERT CONNECTING CAM-PILLAR
TURN CLOCKWISE UNTIL SECURE
x4
C24-920
C24-925
C24-760
C24-920
B
B
B
B
Bx32
PH2

7
CUBA OAK DOUBLE BED
661609-206
Assembly instructions
Produced in Poland for Next Retail Ltd
661609-206-2014-V1

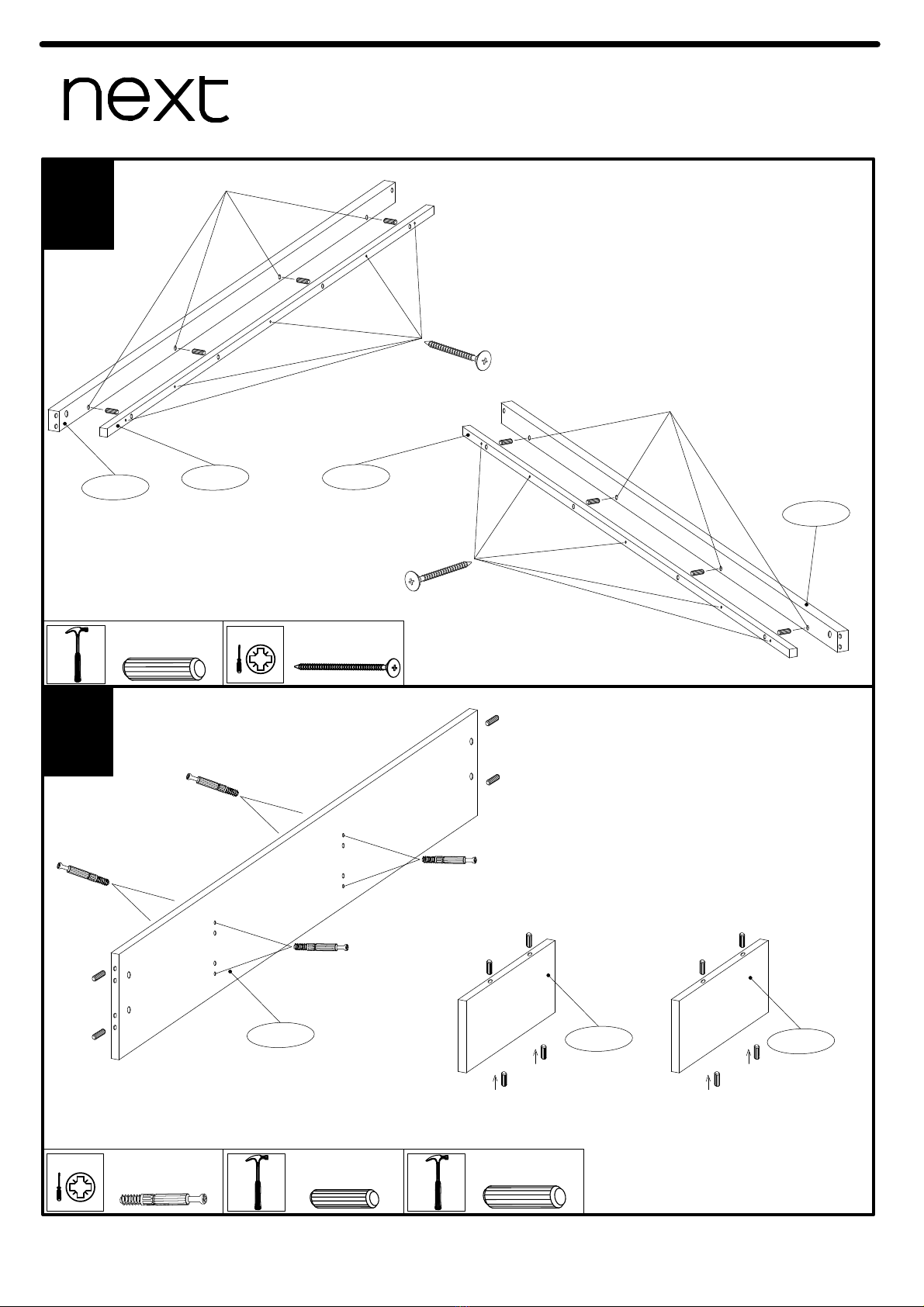

3
C24-760
x4
C24-060
B2x12
PH2
S1x52
PH2
S1
B2
S1
S1
3x30mm

8
CUBA OAK DOUBLE BED
661609-206
Assembly instructions
Produced in Poland for Next Retail Ltd
661609-206-2014-V1

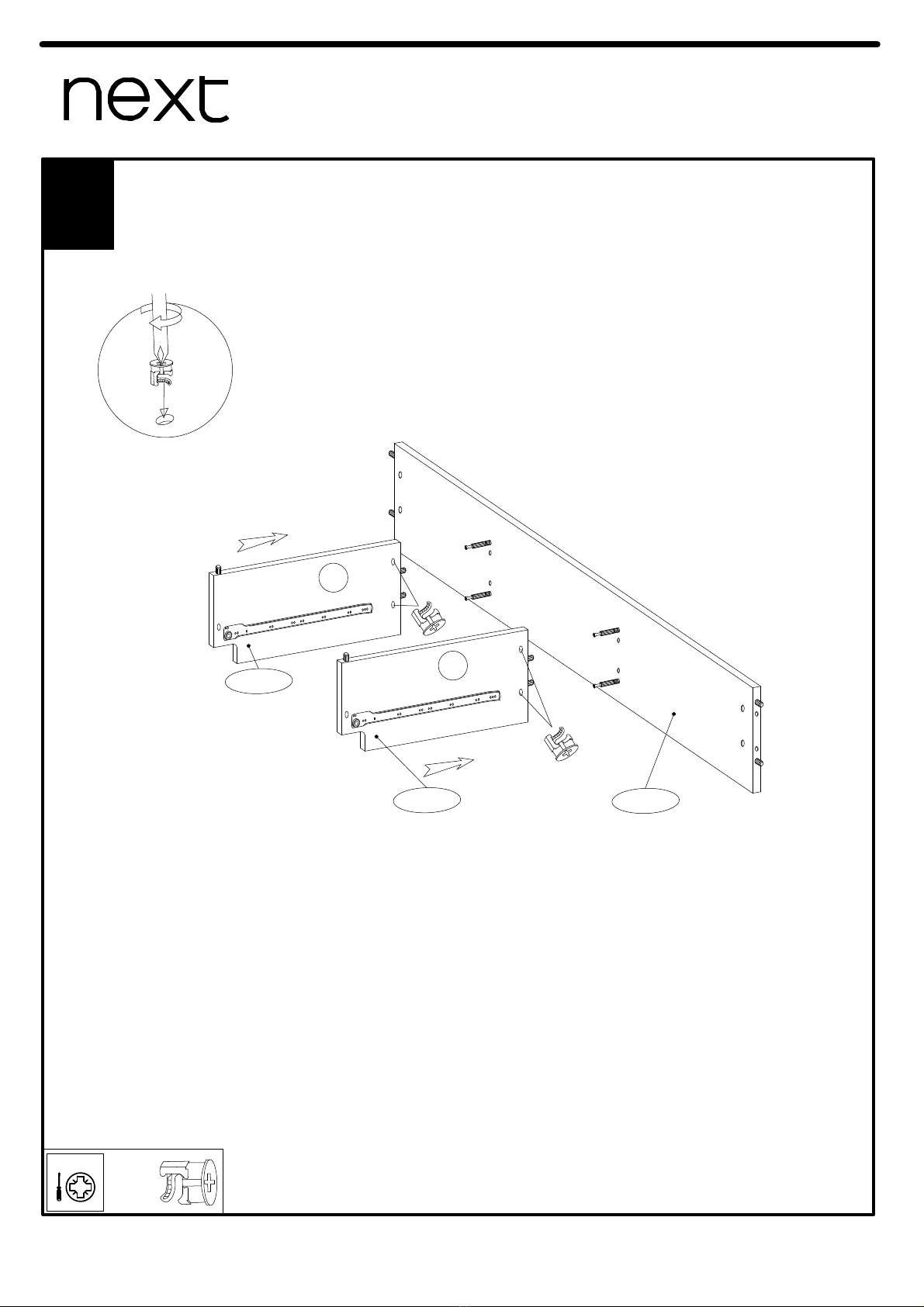

4
P4
P4
SR
SL
P4x24
3x20mm
PH2
SRx4
SLx4
P4
P4
U1
G
G
C24-760
C24-760
Gx8 U1x4
4x22mm
PH2
x4

9
CUBA OAK DOUBLE BED
661609-206
Assembly instructions
Produced in Poland for Next Retail Ltd
661609-206-2014-V1

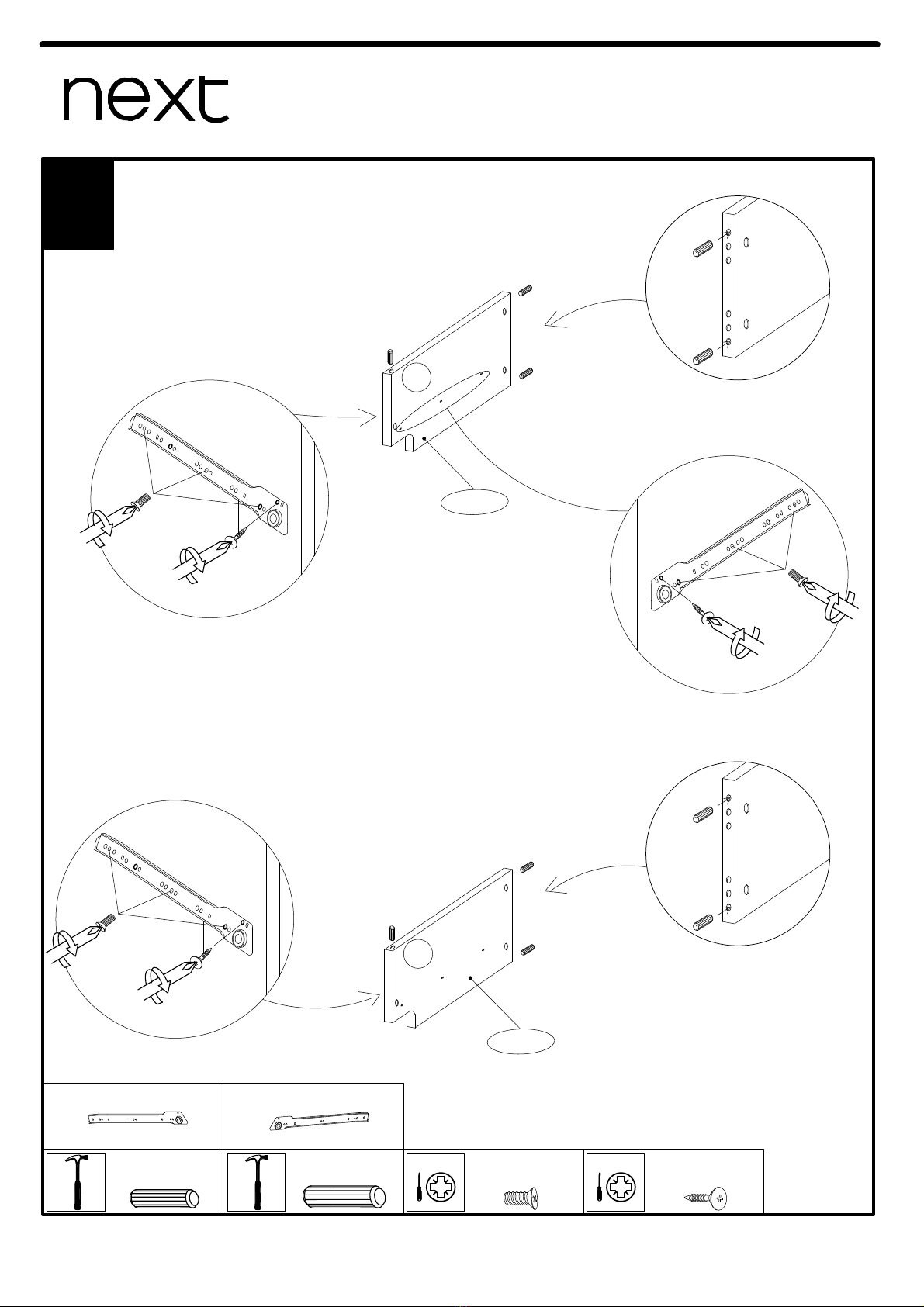

5
F6
SR
P1
9
A
C24-953
A
F6
SL
P1
A
A
A
A
A
C24-193
F6x6 P1x2
6.3x11mm 3x15mm
SRx1
PH2 PH2
SLx1
Ax8
PH2

10
CUBA OAK DOUBLE BED
661609-206
Assembly instructions
Produced in Poland for Next Retail Ltd
661609-206-2014-V1

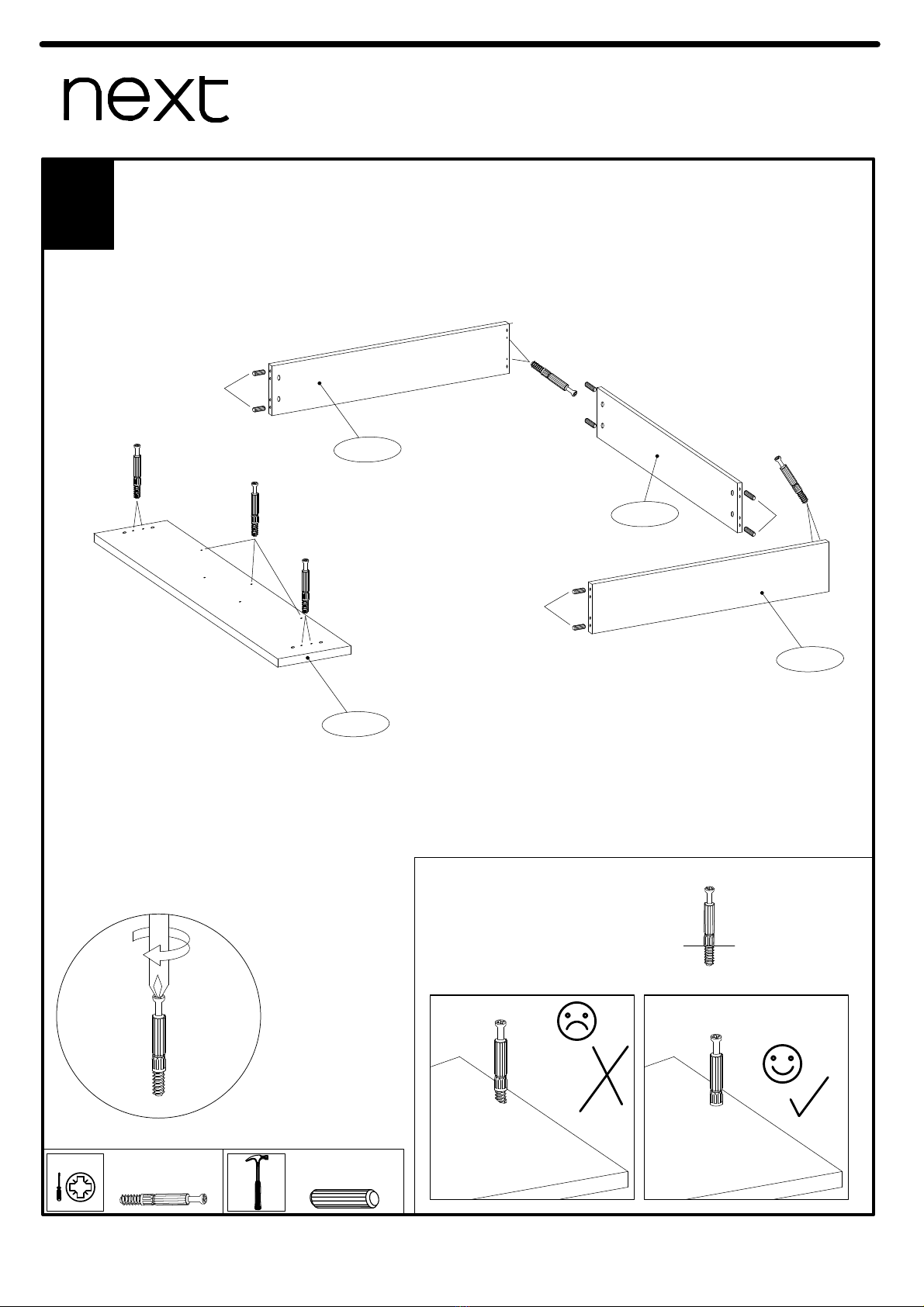

6
D1x8
10x35mm
O1x10
PH2
D1
D1
O1
O1
C24-880
C24-882
D1
D1
A
A
A
A
D1
D1
D
D
D
D
D
D
D
D
C24-280 C24-347 C24-347
Ax8
PH2
Dx8
8x30mm
D1x4
10x35mm
C24-030 C24-030
7

11
CUBA OAK DOUBLE BED
661609-206
Assembly instructions
Produced in Poland for Next Retail Ltd
661609-206-2014-V1

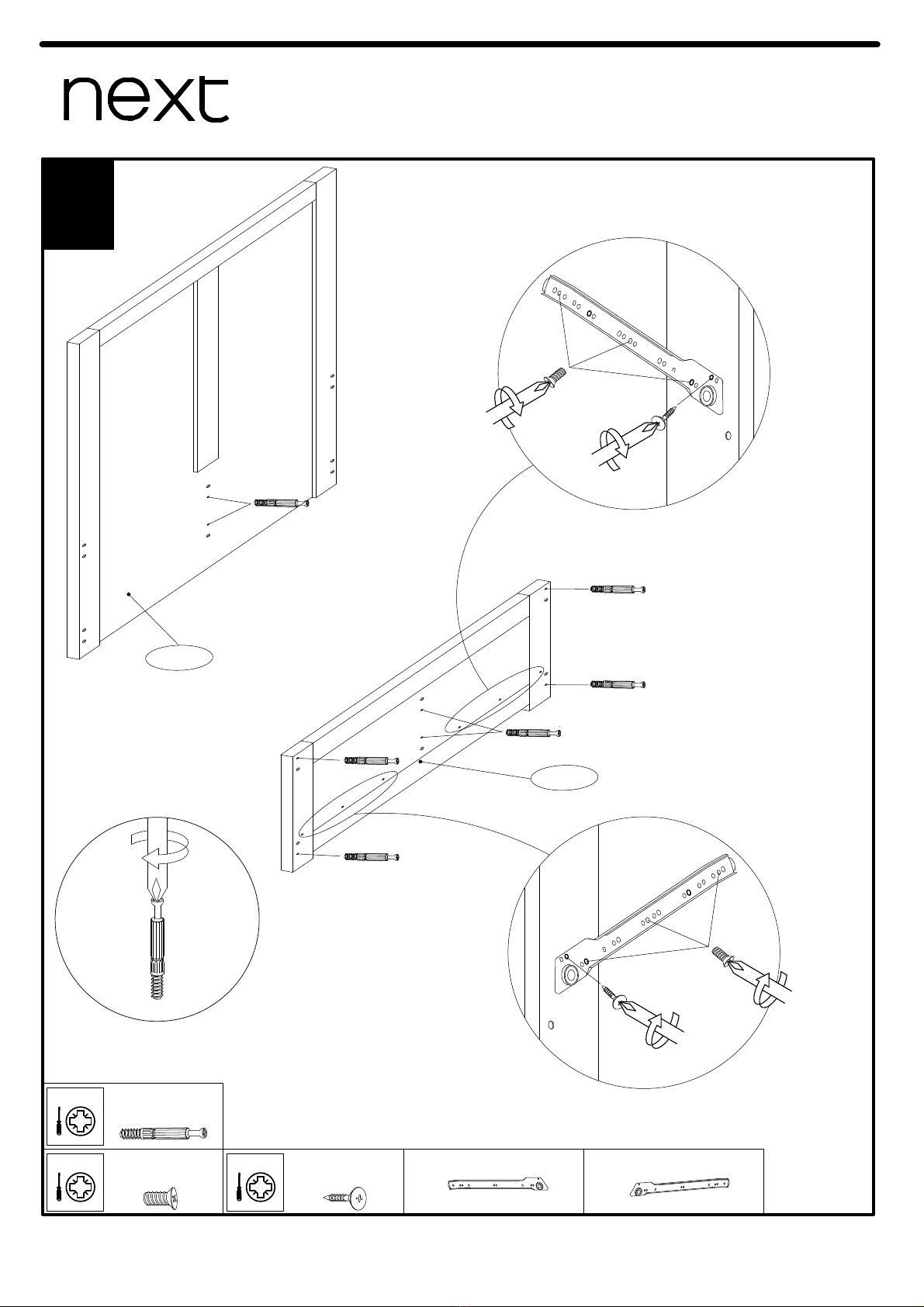

8
1
F6
SR
P1
F6
SL
P1
2
9
F6
SL
P1
D1
D1
D1
D1
D1
D1
D1
D1
D
D
Dx2
8x30mm
D1x4
10x35mm
F6x9 P1x3
6.3x11mm 3x15mm
SRx1
PH2 PH2
SLx2
C24-285
C24-285

12
CUBA OAK DOUBLE BED
661609-206
Assembly instructions
Produced in Poland for Next Retail Ltd
661609-206-2014-V1
9
2
1
C24-285
C24-285
C24-280
B1
B1
B1x4
PH2

13
CUBA OAK DOUBLE BED
661609-206
Assembly instructions
Produced in Poland for Next Retail Ltd
661609-206-2014-V1
10
2
1
F6
SR
P1 F6
SL
P1
F6
SR
P1
Dx2
8x30mm
D1x4
10x35mm
F6x9 P1x3
6.3x11mm 3x15mm
SRx2
PH2 PH2
SLx1
D
D
D1
D1
D1
D1
D1
D1
D1
D1
C24-285
C24-285

14
CUBA OAK DOUBLE BED
661609-206
Assembly instructions
Produced in Poland for Next Retail Ltd
661609-206-2014-V1
11
2
1
90%
1
2
3
B1x4
PH2
B1
B1
C24-285
C24-285
C24-280
B1x4
PH2 K1x4
B1
K1
K1
K1
K1
K1 C24-285
12

15
CUBA OAK DOUBLE BED
661609-206
Assembly instructions
Produced in Poland for Next Retail Ltd
661609-206-2014-V1
13
12
3
4
B1x4
PH2
C24-881
C24-883
B1
M
C24-285
Mx1

16
CUBA OAK DOUBLE BED
661609-206
Assembly instructions
Produced in Poland for Next Retail Ltd
661609-206-2014-V1
14
C24-347
C24-347
C24-880
C24-882
15

17
CUBA OAK DOUBLE BED
661609-206
Assembly instructions
Produced in Poland for Next Retail Ltd
661609-206-2014-V1
16
B1x8
PH2
D1x8
10x35mm
C1x4 Mx1 N1x4
D1
D1
D1
D1
B1
B1
B1
M
N1
C1
C24-347
C24-953
C24-193
C24-953
6x70mm

18
CUBA OAK DOUBLE BED
661609-206
Assembly instructions
Produced in Poland for Next Retail Ltd
661609-206-2014-V1
17
H1x8
PH2 4x25mm
H1
H1

19
CUBA OAK DOUBLE BED
661609-206
Assembly instructions
Produced in Poland for Next Retail Ltd
661609-206-2014-V1
18
C24-760
C24-760
