Nextlevel Acoustics CI-HV10 User manual
USER MANUAL

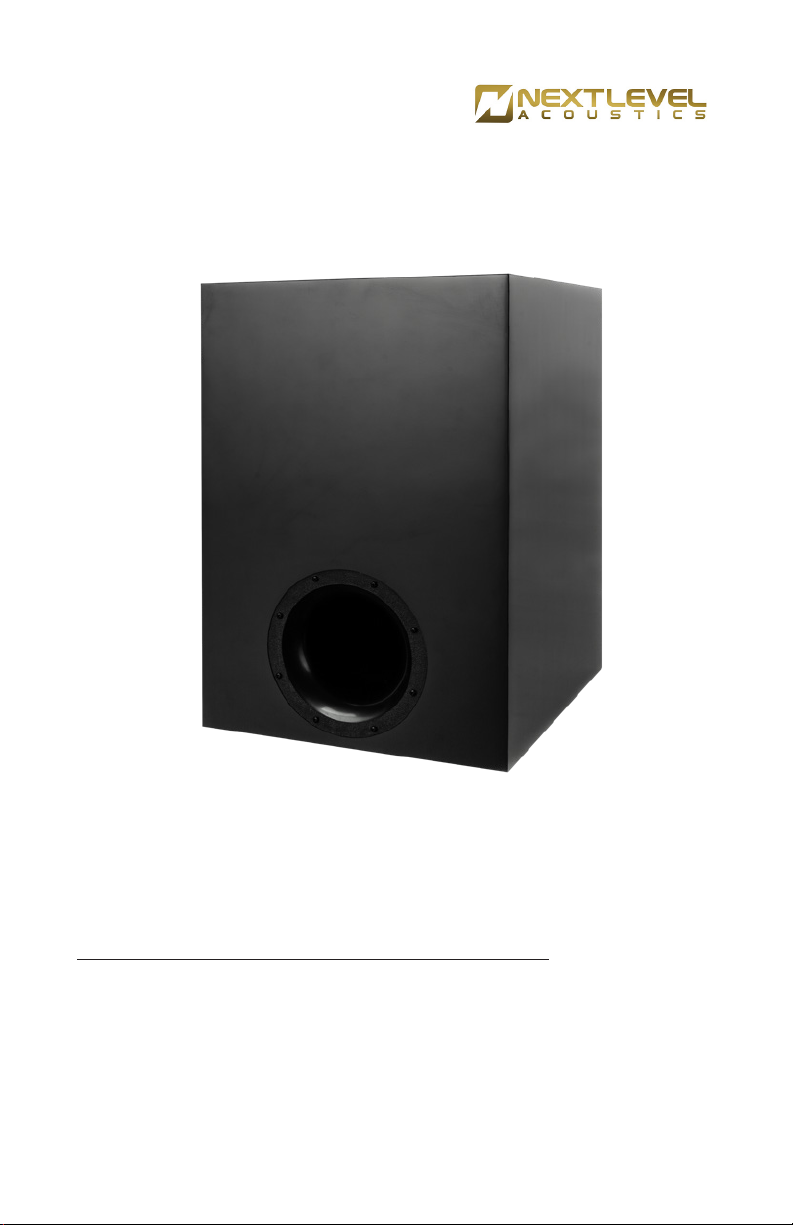

HIGH VELOCITY SUBWOOFER
CI-HV10 / HV12 / HV15 / HV18
CONTENTS: CI-HV10 / HV12 / HV15 / HV18:
• High Velocity Subwoofer
• Power Cord (Powered Versions)
• (4) Rubber Feet w/ hardware
• User Manual
SAFETY PRECAUTIONS
CAUTION! To reduce the risk of electric shock and re, do not remove the inner cover
below the top plate or the back plate of this device. There are no user serviceable parts
inside. Please refer all servicing to licensed service technicians. CAUTION! The inter-
national symbol of a lightning bolt inside a triangle is intended to alert the user to uninsu-
lated “dangerous voltage” within the device’s enclosure. The international symbol of an
exclamation point inside a triangle is intended to alert the user to the presence of important
operating, maintenance and servicing information in the manual accompanying the device.
CAUTION! To prevent electrical shock, match wide blade of plug to wide slot, fully insert.
CAUTION! To reduce the risk of electrical shock, do not expose this equipment to rain,
water or moisture.
1) Read Instructions—All safety and operating instructions should be read before operating
the device.
2) Retain Instructions—The safety and operating instructions should be retained for future
reference.
3) Heed Warnings—All warnings on the device and in the operating instructions should be
adhered to.
4) Follow Instructions—All operating and safety instructions should be followed.
5) Water & Moisture—The device should never be used in, on or near water for risk of
fatal shock.
6) Stands—The device is not intended to be used on a stand.
7) Ventilation—The device should always be located in such a way that it maintains proper
ventilation. It should never be placed in a built-in installation or anywhere that may impede
the ow of air around the product.
8) Heat—Never locate the device near heat sources such as radiators, oor registers, stoves
or other heat-generating devices.
09) Power Supply—The device should only be connected to a power supply of the type
described in the operating instructions or as marked on the device.
10) Power Cord Protection— Power cables should be routed so they are not likely to be
stepped on or crushed by items placed on them or against them. Special attention should
be paid to areas where the plug enters a socket or fused strip and where the cord exits the
device.
11) Cleaning—The device should be cleaned in accordance with manufacturer’s instruc-
tions.
12) Periods Of Non-Use—The device should be unplugged when not being used for ex-
tended periods.
13) Dangerous Entry—Care should be taken that no foreign objects or liquids fall or are
spilled inside the device.
14) Damage Requiring Service—The device should be serviced by licensed technicians
when: • The plug or power supply cord has been damaged. • Objects have fallen, or liquid
spilled inside of the device. • The device has been exposed to moisture. • The device does
not appear to be operating properly or exhibits a marked change in performance. • The
device has been dropped or the cabinet becomes damaged.
15) Service—The device should always be serviced by licensed technicians. Only replace-
ment parts specied by the manufacturer should be used. The use of unauthorized substitu-
tions may result in re, shock, or other hazards.
Please follow the guidelines below to ensure best performance:
AMPLIFIED VERSIONS
POWER SWITCH
• OFF/TRIG – Manually
turns the amplifier off. Also
used to turn amplifier on/
off through the 12v trigger
• AUTO – Senses an
input signal to turn on the
amplifier. Amplifier will turn
off automatically approx-
imately 20 minutes after
the input signal is no longer
sensed
• ON – Manually turns the
amplifier on continuously
STANDBY – Indicates AUTO
sense is on
ENABLE – Indicates the
amplifier is on. Power
Switch in ON or in AUTO
with input signal sensed
GAIN – Volume
control
LF ADJUST – +/-
12dB Peaking filter at
25Hz w/ Q = 2 Adjust to
compensate for listening
room acoustics and speaker
placement
Crossover – 60-500Hz Low
Pass Filter
Delay – 0 -20ms time delay.
Select to adjust for listening
room placement of the
subwoofer relative to main
speakers
RCA Inputs – left and right
inputs
12v Trigger Inputs/Out-
puts – Accepts 12V trigger
input to control amplifier
power
XLR Input and Looping
Output –Balanced input
with looping output to con-
nect multiple subwoofers.
When XLR input is detected,
and no RCA is connected,
RCA inputs are muted
This is a very high output
amplifier. Proceed with
caution when applying the
gain to ensure you are not
maxing out the signal
NON-AMPLIFIED VERSIONS
Connect the positive speaker wire and negative speaker wire from the
amplifier directly to the push terminals on the back of the subwoofer
Wire the positive speaker wire to the positive terminal and negative
speaker wire to the negative terminal located on the back of the
subwoofer
Strictly adhere to the subwoofers power handling capabilities
ROOM PLACEMENT
One of these placements may be best for your room/seating position.
This can only be done empirically and takes quite a bit of time, trial
and error. Listening, over a period of months, generally yields best sub
position.
Option 1 - Midway between front left and right main speakers. This
position is generally preferred for its transitional coherence but is not
“carved in stone”
Option 2 – Midway along sidewall relative to the listening position
Option 3 – Behind the listening position near a back-wall corner. Note:
Placing the sub in a corner will increase output between 3 - 6 db. Iron-
ically this corner option is generally least desirable due to loss of bass
detail
ADDITIONAL INFORMATION
Wall Outlet: In the US 110V – 20-amp service preferred as 12-gauge
wire, used for 20-amp service, provides a better draw supply to the
amplifier. There is a slight improvement in tightness and bass speed
going from 16 amp to 20 amp
Rubber feet are included to provide isolation between bottom of sub
and floor. This isolation is necessary for clean bass
Subwoofer response is complex and room interactive. In addition, there
is a break in period of about 2 weeks to attain best performance. We
suggest moving the sub to a variety of different positions within the
listening area
LIMITED WARRANTY
5-Years for Drivers, Cabinets, and Brackets, 2-years on ampliers for any defects or
performance issues realized during the product’s normal use, and 90 days for defects in
manufacture or workmanship covering the exterior t and nish for peeling and cracks.
JS Speaker Technology, LLC (herein “JS Speaker Technology”), warrants to the original retail
purchaser only that products manufactured by JS Speaker Technology (the “Product”) will be
free from defects in material and workmanship for a period of ve (5) years covering drivers,
cabinets and brackets, 2-years on ampliers, and ninety (90) days covering the exterior t and
nish for peeling and cracks from the date of the original purchase from a JS Speaker Tech-
nology Authorized Dealer. If the Product is defective in material or workmanship, JS Speaker
Technology or its Authorized Dealer will, at its option, repair or replace the warranted product
at no additional charge, except as set forth below. All replaced parts and Product(s) become the
property of JS Speaker Technology. The product that is repaired or replaced under this warranty
will be returned to you, within a reasonable time, freight collect. This warranty is non-transfer-
able and is automatically void if the original purchaser sells or otherwise transfers the Product
to any other party. This Warranty does not include service or parts to repair damage caused by
accident, misuse, abuse, negligence, inadequate packing or shipping procedures, commercial
use, voltage in excess of the rated maximum of the unit, cosmetic appearance of cabinetry not
directly attributable to defects in material or workmanship. This warranty does not cover the
elimination of externally generated static or noise, or the correction of antenna problems or
weak reception. This warranty does not cover labor costs or damage to the Product caused by
installation or removal of the Product. JS Speaker Technology makes no warranty with respect
to its products purchased from dealers or outlets other than JS Speaker Technology Authorized
Dealer. The warranty is automatically void if: 1) The product has been damaged, altered in
any way, mishandled during transportation, or tampered with. 2) The product is damaged due
to accident, re, ood, unreasonable use, misuse, abuse, customer applied cleaners, failure to
observe manufacturers warnings, neglect or related events. 3) Repair or modication of the
Product has not been made or authorized by JS Speaker Technology. 4) The product has been
improperly installed or used. The product must be returned (insured and prepaid), together with
the original dated proof of purchase to the Authorized Dealer from whom the Product was
purchased, or to the nearest JS Speaker Technology factory service center. The product must
be shipped in the original shipping container or its equivalent. JS Speaker Technology is not
responsible or liable for loss or damage to the Product in transit. This limited warranty is the
only express warranty that applies to your product. JS Speaker Technology neither assumes nor
authorizes any person or entity to assume for it any other obligation or liability in connection
with your product or this warranty. All other warranties, including but not limited to express,
implied, warranty of merchantability or tness for a particular purpose, are expressly excluded
and disclaimed to the maximum extent allowed by law. All implied warranties on products are
limited to the duration of this expressed warranty. JS Speaker Technology has no liability for
acts of third parties. JS Speaker Technology’s liability, whether based on contract, tort, strict
liability, or any other theory, shall not exceed the purchase price of the product for which a
claim has been made. Under no circumstance will JS Speaker Technology bear any liability
for incidental, consequential, or special damages. The consumer agrees and consents that all
disputes between the consumer and JS Speaker Technology shall be resolved in accordance
with Connecticut in Hartford County, Connecticut. JS Speaker Technology reserves the right to
modify this warranty statement at any time. Some states do not allow the exclusion or limitation
of consequential or incidental damages or implied warranties, so the above limitations may not
apply to you. This warranty gives you specic legal rights, and you may also have other rights
which vary from state to state.
(617) 237-2875
www.nextlevelacoustics.com
