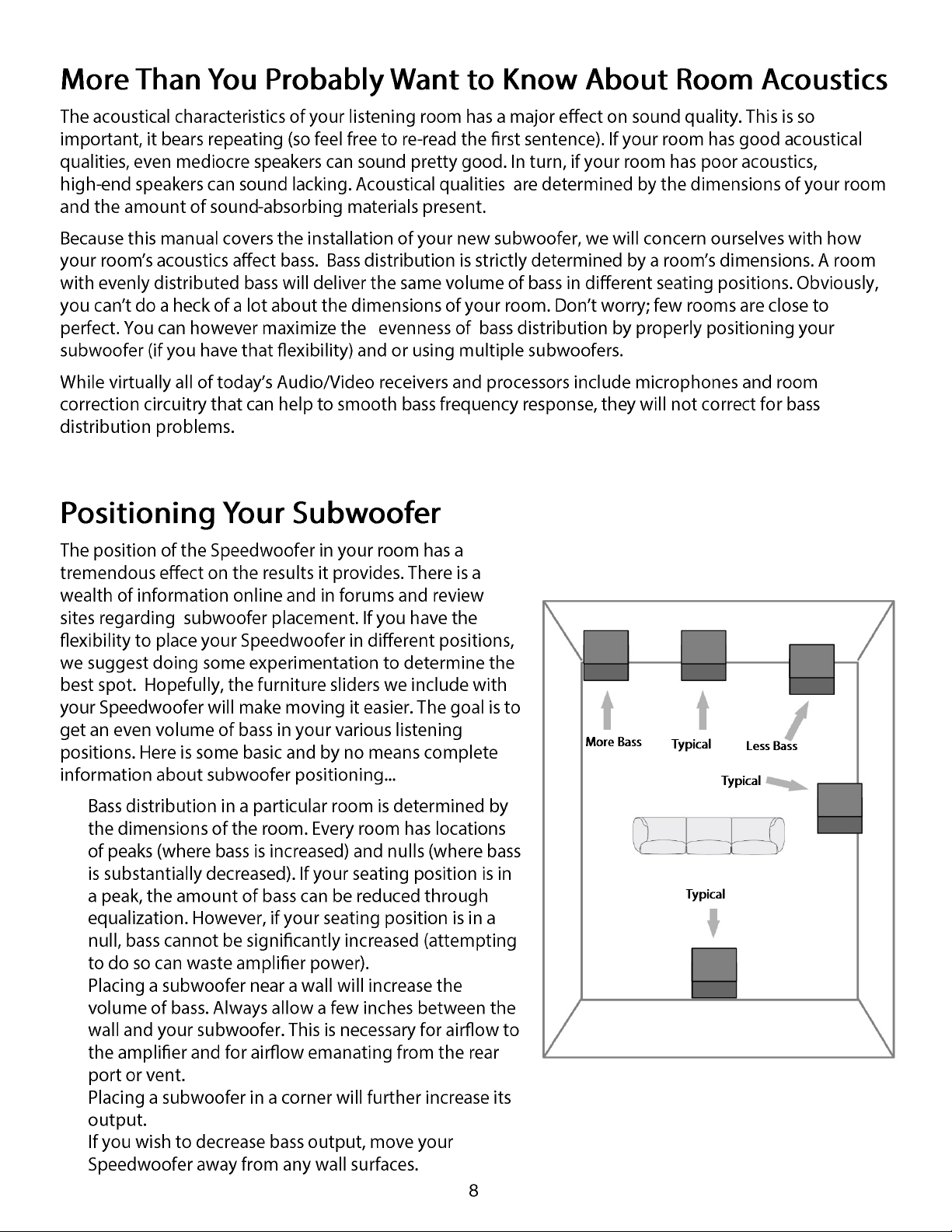

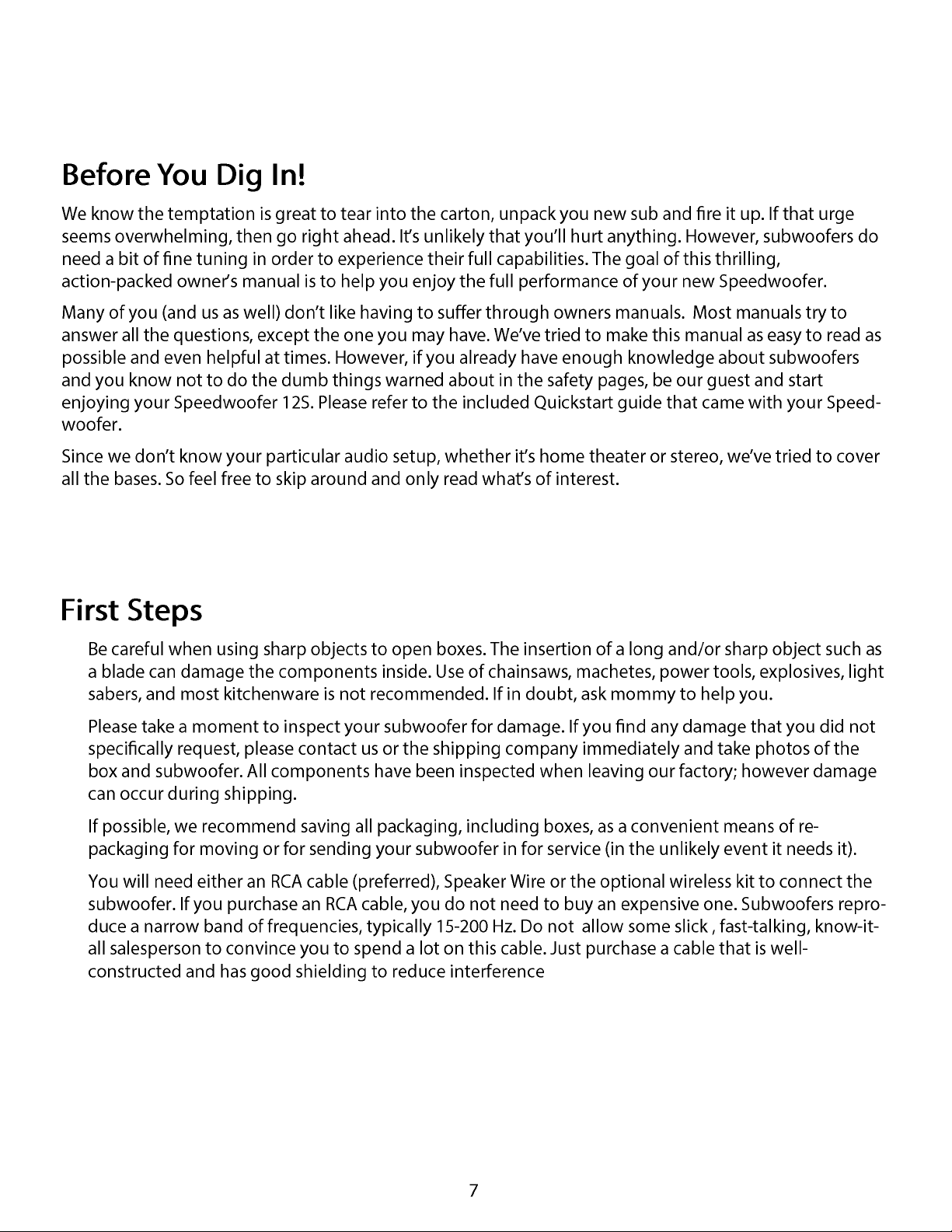

RSL SPEEDWOOFER 12S User manual

IMPORTANT SAFETY INSTRUCTIONS
READ THIS SECTION CAREFULLY BEFORE PROCEEDING!
CAUTION
RISK OF
ELECTRIC
SHOCK
DO NOT
OPEN
The lightning flash with arrowhead, within an equilateral
triangle, is intended to alert the user to the presence of
uninsulated “dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude to
constitute a risk of electrical shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating maintenance (servicing) instructions in the
literature accompanying the appliance.
CAUTION: To reduce the risk of electric shock, do not
remove the cover (or back). No user serviceable parts
inside. Please refer all servicing to licensed service
technicians.
WARNING: To reduce the risk of fire or electric shock,
do not expose this appliance to rain or moisture.
Objects filled with liquids, such as vases, should not be
placed on this appliance.
CAUTION: To prevent electric shock, match the wide
blade of the AC power plug to the wide slot of the wall
plug and insert it fully.
WARNING: This device generates a fair amount of
heat. Do not place near a heat source or in spaces that
can restrict ventilation.
CAUTION: For continued protection against risk of fire,
replace the fuse only with the same amperage and
voltage type. Refer replacement to qualified service
personnel.

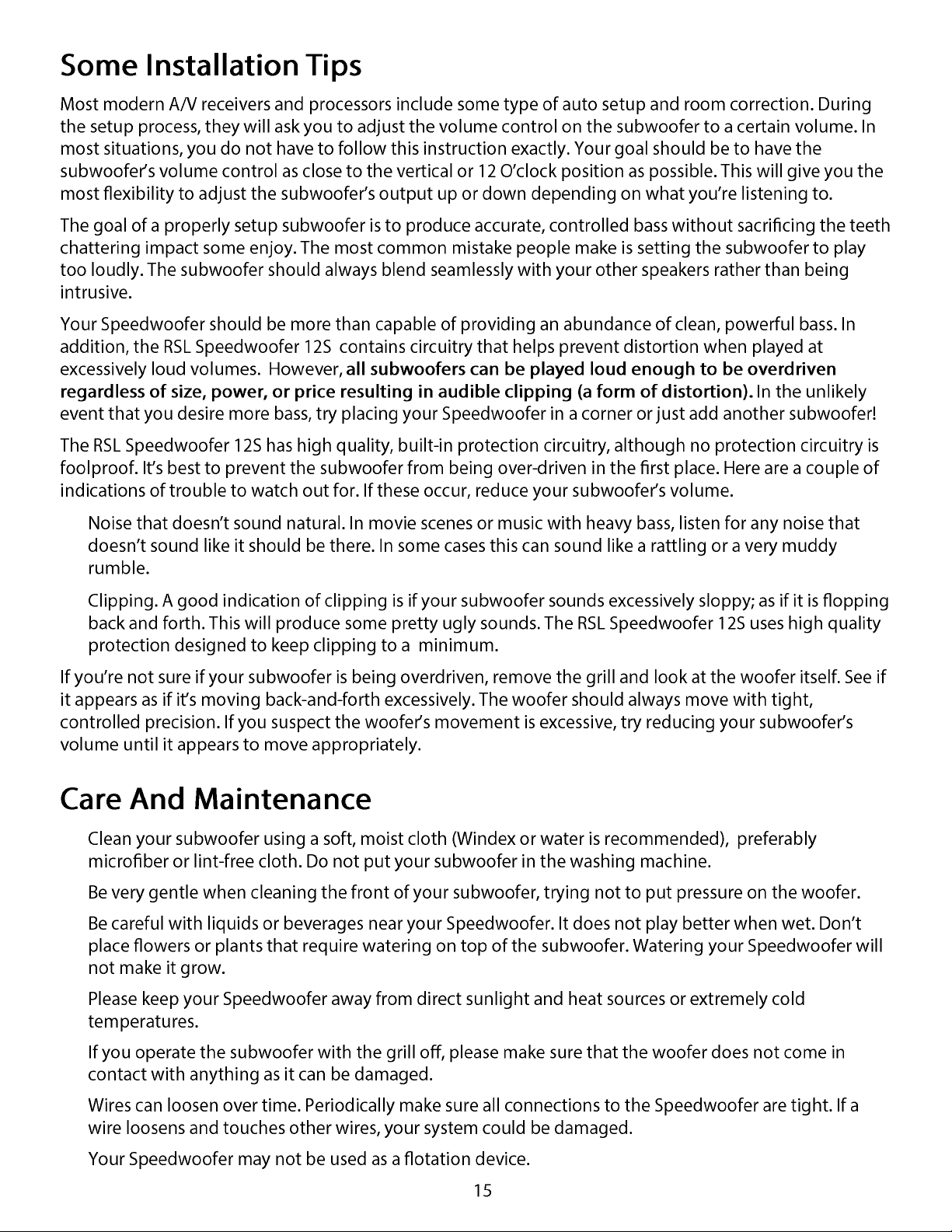

Cleaning – Unplug this product from the wall outlet
before cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a damp, soft cloth for cleaning.
Water and Moisture – Do not use this product near
water. For example, near a bath tub, wash bowl,
kitchen sink, or laundry tub; in a wet basement; or
near a swimming pool, etc.
Accessories – Only use attachments or accessories
specified by the manufacturer. Do not place this
product on an unstable cart, stand, tripod, racket or
table. The product may fall, causing serious injury
and damage to the product. When a cart is used, use
caution when moving the cart/apparatus combination
to avoid injury from tip-over.
Power Sources – This product should be operated only
from the type of power source indicated on the marking
label. If you are not sure of the type of power supply to your
home, consult the manufacturer or local power company.
Grounding and Polarization – This product may be
equipped with a polarized alternating-current line plug (a
plug having one blade wider than the other). This plug will fit
into the power outlet only one way. This is a safety feature. If
you are unable to insert the plug fully into the outlet, try
reversing the plug. If the plug should still fail to fit, contact
your electrician to replace your obsolete outlet. Do not defeat
the safety purpose of the polarized plug.
Power-Cord Protection – Power supply cords should be
routed so that they are not likely to be walked on or pinched
by items placed upon or against them, paying particular
attention to cords at plugs, convenience receptacles, and the
point where they exit from the product.
Lightning – For added protection for this product during a
lightning storm, or when it is left unattended and unused for
long periods of time, unplug it from the wall outlet.
Damage Requiring Service – Unplug this product from the
wall outlet and refer servicing to qualified personnel under
the following conditions:
· When the power cord or plug is damaged;
· If liquid has been spilled, or product is exposed to rain
or water or it objects have fallen onto the product;
· If the product does not operate normally.
· If the product has been dropped or damaged in any
way;
Replacement Parts – Use only replacement parts specified
by the manufacturer.. Unauthorized substitutions may result
in fire, electric shock, or other hazards.
Heat – The product should be used away from heat sources
such as radiators, heat registers, stoves, or other heat-
producing products.

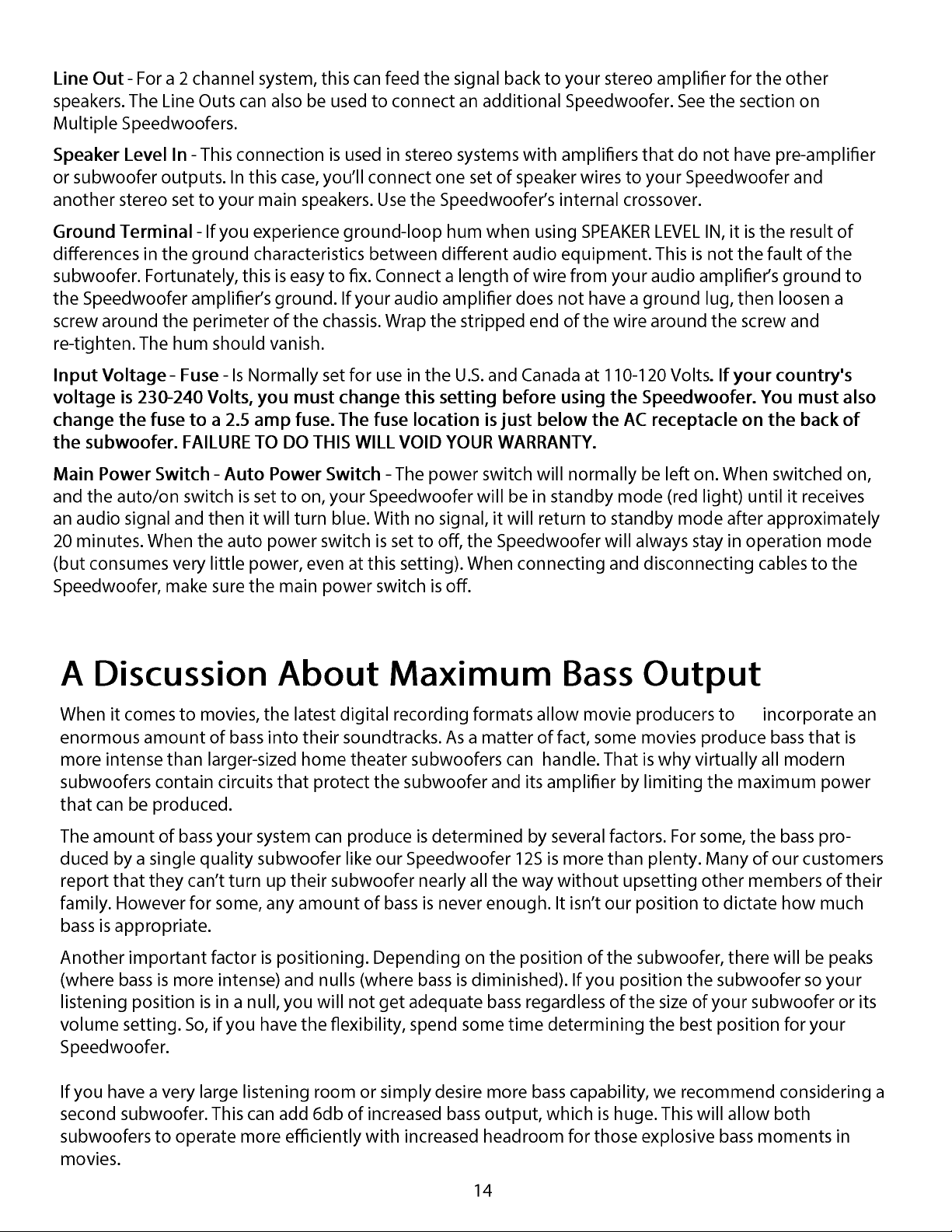

WARNING: The 110V~ to 240V~ voltage selector must be
set to the correct local voltage with the proper Fuse installed.
Plastic Bags – Be sure to keep all plastic bags away from
infants and small children to prevent the risk of choking or
suffocation.
Ventilation – Slots and openings into the cabinet are
provided for ventilation and to ensure reliable operation of
the product and to protect it from overheating, and these
openings must not be blocked or covered. The openings
should never be blocked by placing the product on a bed,
sofa, or other similar surface. This product should not be
placed in a built-in installation such as a bookcase or rack
unless proper ventilation is provided or the manufacturer’s
instructions have been adhered to.

·
·
·
·
·
·
·
·
·
·
·
·

·
·
·
·
.

·
·
·
·

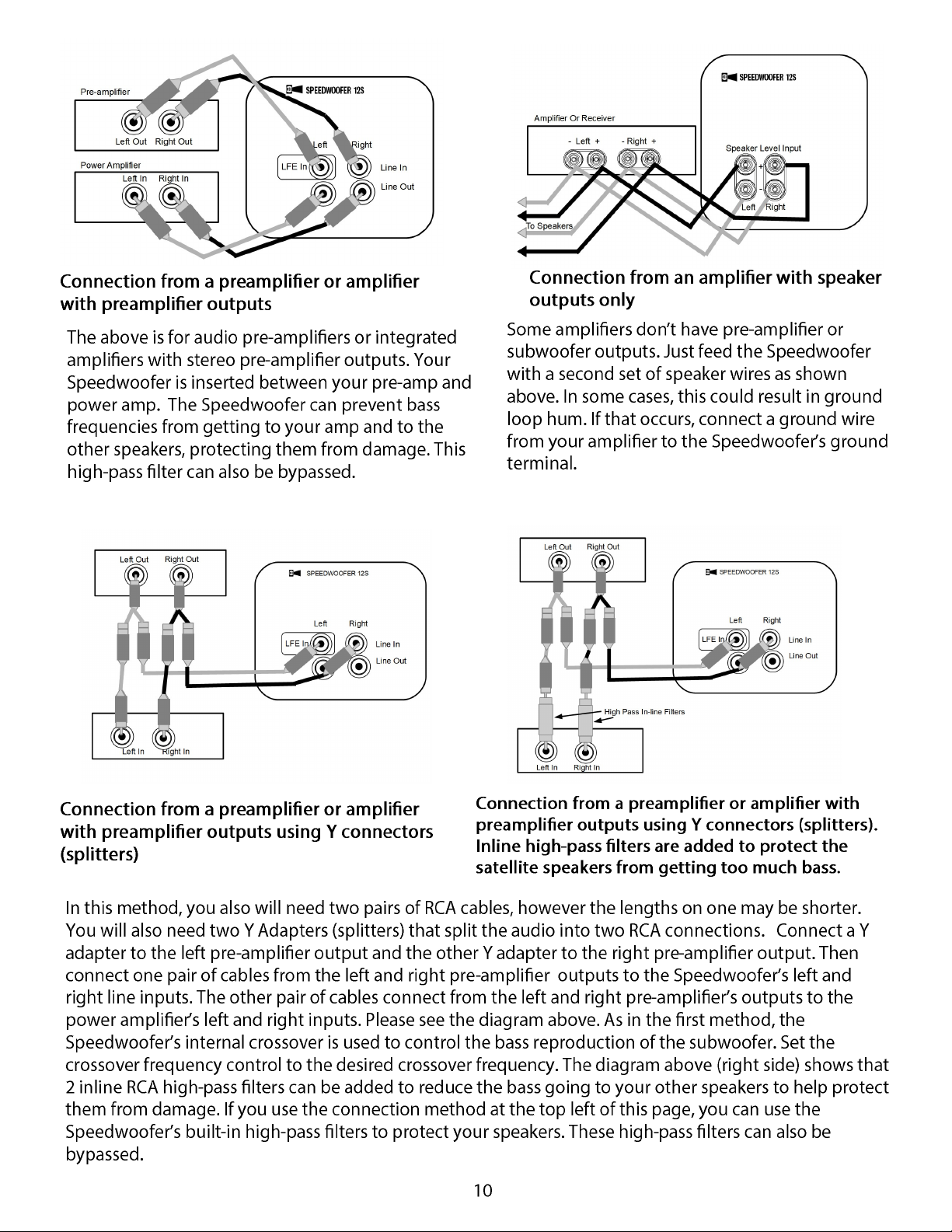

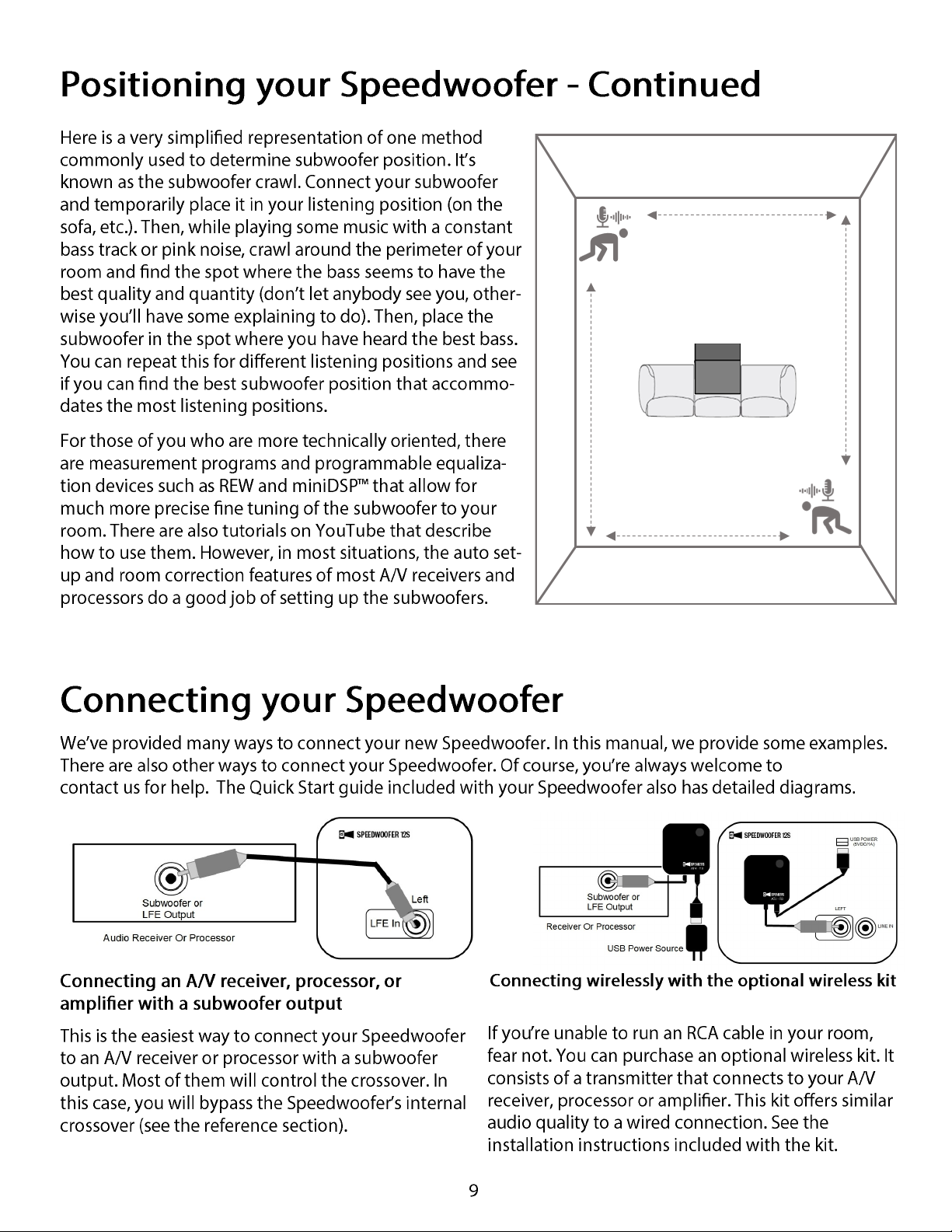

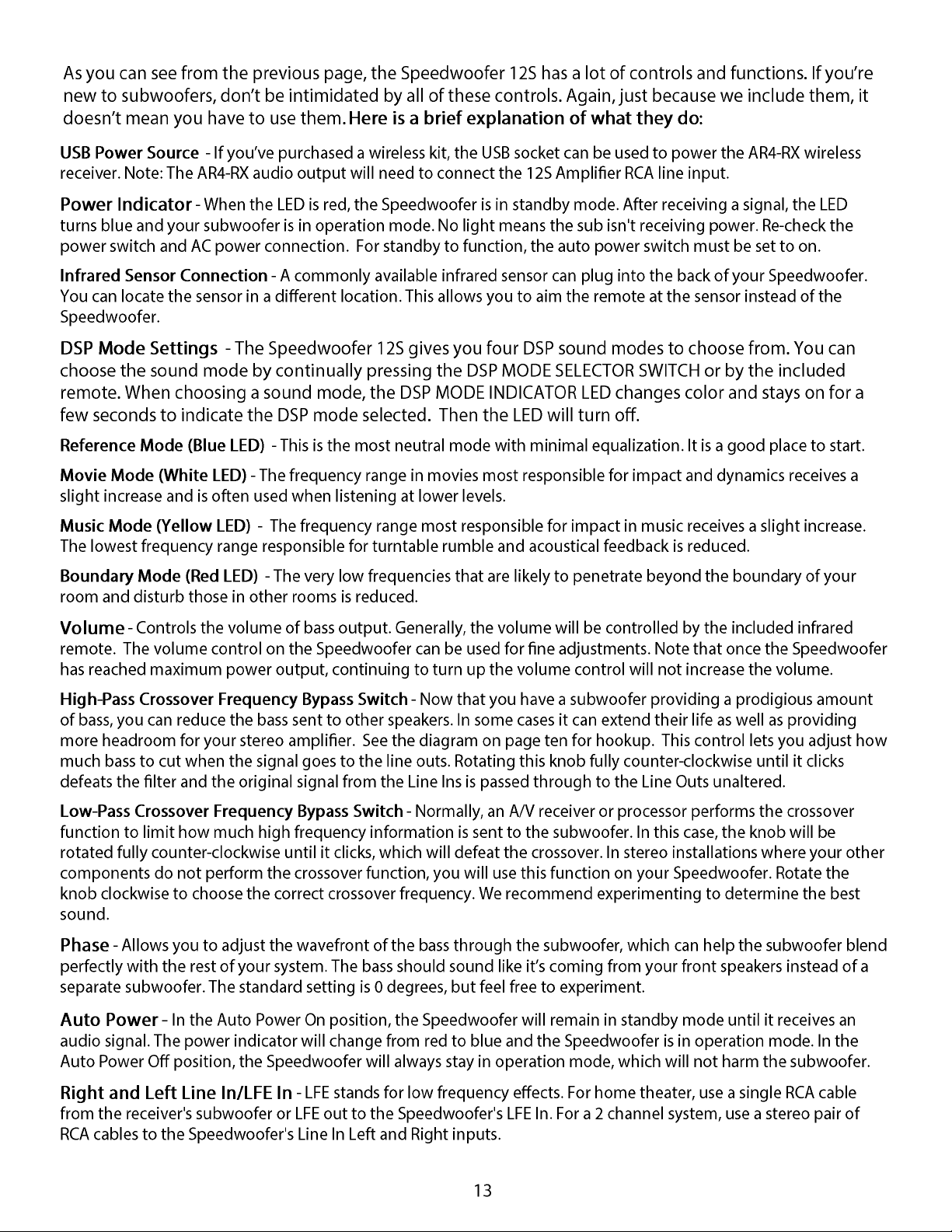

Pre-amplifier
Pre-amplifier
Power Amplifier Power Amplifier

·
·
·
·
·
·
·
·
·

·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·

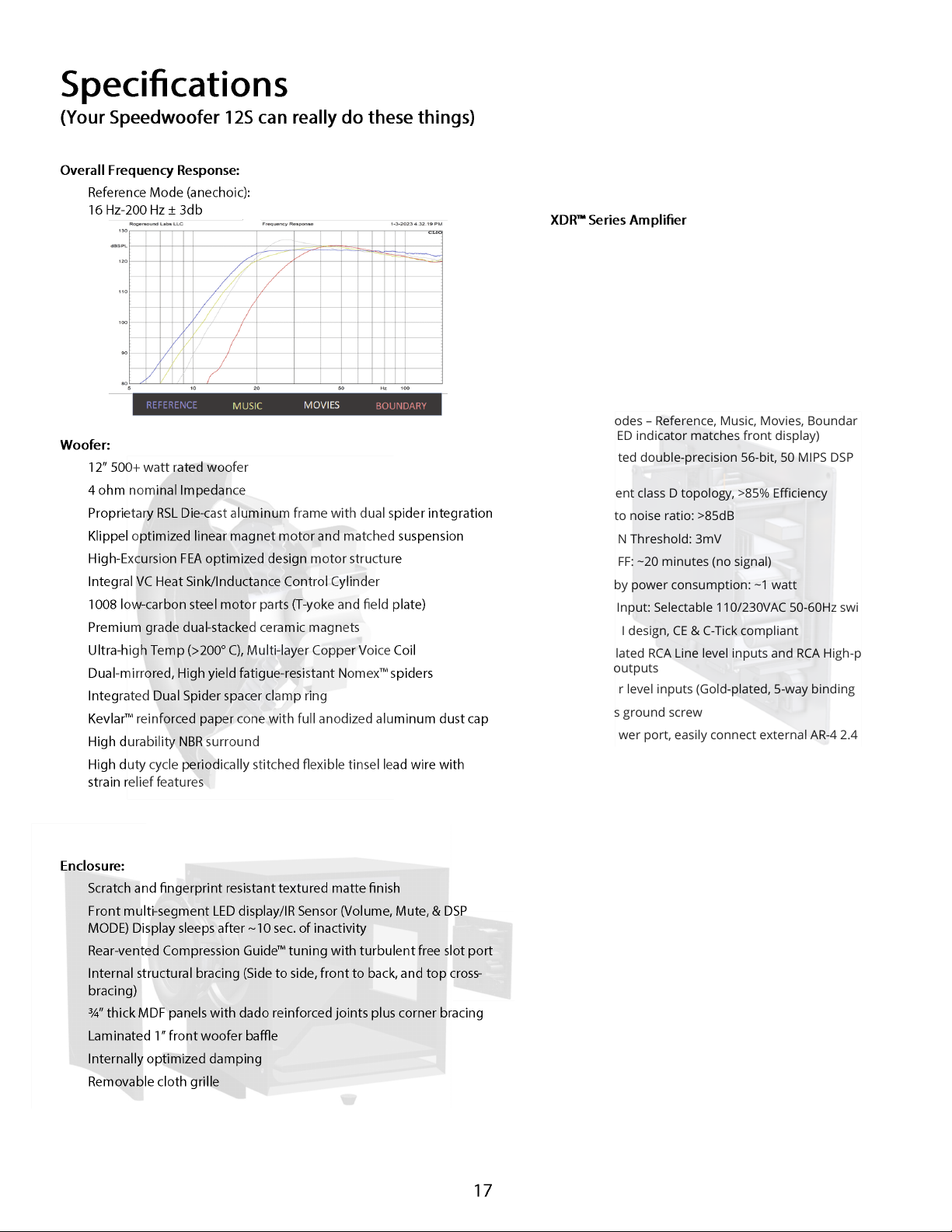

· IR Remote Control (Power Toggle, Volume +-, Mute,
DSP Mode direct select (Reference, Music, Movies,
Boundary)
· External 3.5mm IR input for wiring external IR sensor
(eye)

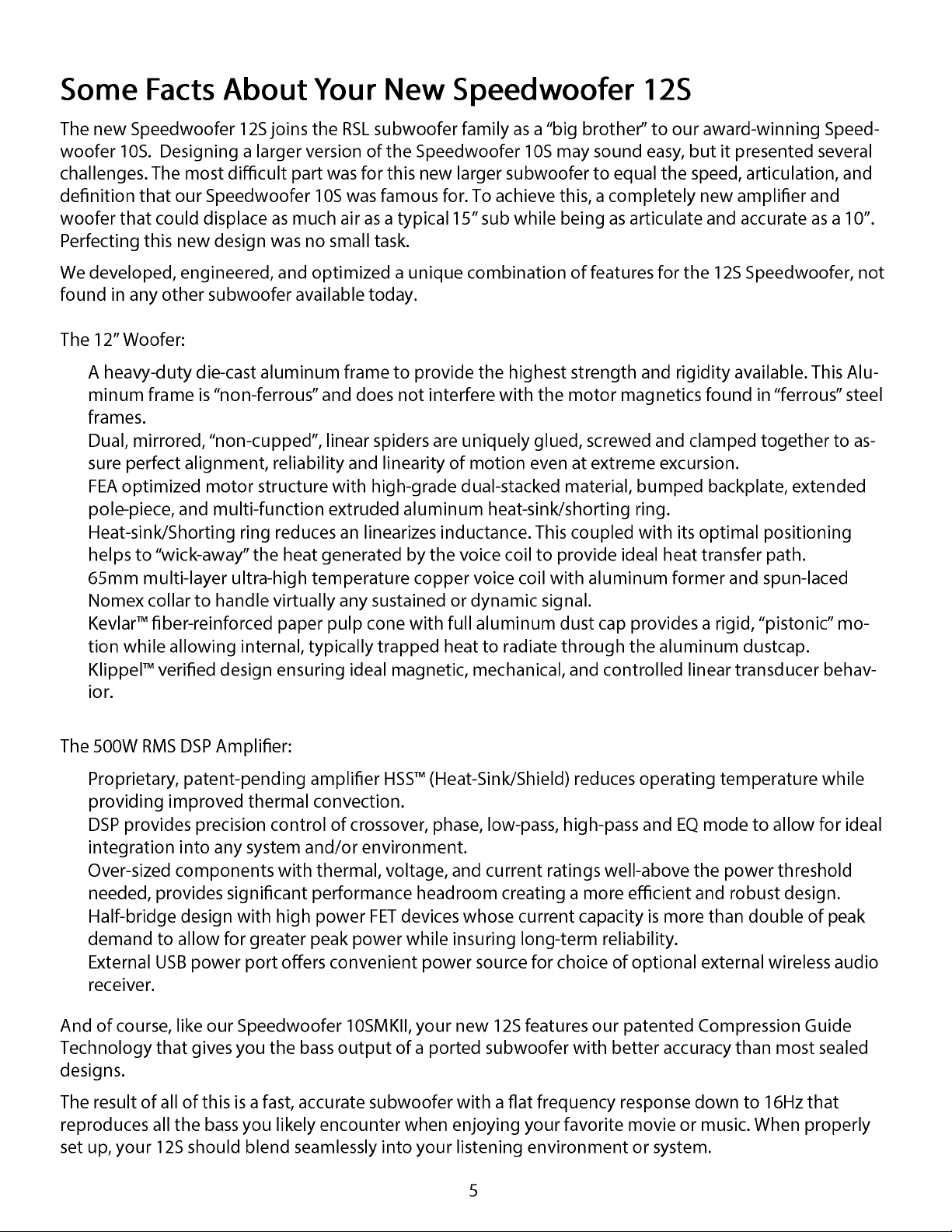

· 500 watts RMS < 1% THD
· 1550 watts peak
· Patent Pending HSS™ Heat Sink/Shield Technology for
greater thermal efficiency and capacity
· DSP Modes – Reference, Music, Movies, Boundary
(Rear LED indicator matches front display)
· Integrated double-precision 56-bit, 50 MIPS DSP pro-
cessor
· Intelligent class D topology, >85% Efficiency
· Signal to noise ratio: >85dB
· Auto-ON Threshold: 3mV
· Auto-OFF: ~20 minutes (no signal)
· Stand-by power consumption: ~1 watt
· Power Input: Selectable 110/230VAC 50-60Hz switch
· Low EMI design, CE & C-Tick compliant
· Gold-plated RCA Line level inputs and RCA High-pass
signal outputs
· Speaker level inputs (Gold-plated, 5-way binding posts)
· Chassis ground screw
· USB Power port, easily connect external AR-4 2.4GHz
wireless audio receiver
· Low Pass Crossover Frequency: 30-250 Hz variable
(with integrated bypass switch)
· Low Pass Crossover Slope: 24 dB/oct.
· High Pass RCA Output Crossover: 30-250 Hz variable
(with integrated bypass switch)
· High Pass RCA Output Crossover Slope: 24 dB/oct.
· Phase Control: 0 to 180° continuously variable
· Power Input: 115V, 60Hz; 230V, 50/60Hz AC
· Fuse: 115V (T6.3AL/250V) - 230V (T3.15AL/250V)
· Feet: Includes 4 rubber feet
· Dimensions with Feet: H: 22 ¼” W: 18 7/8” D: 22 1/8”
· Weight: 82 lbs.
· Shipping Dimensions: H: 29” W: 25” D: 29”
· Shipped Weight: ~105 lbs.
