Nightforce Xtreme Hi-Def TS-82 User manual

TS-82
™
Owner’s Manual
TS-82™Xtreme Hi-Def™
Spotting Scope

TS-82™

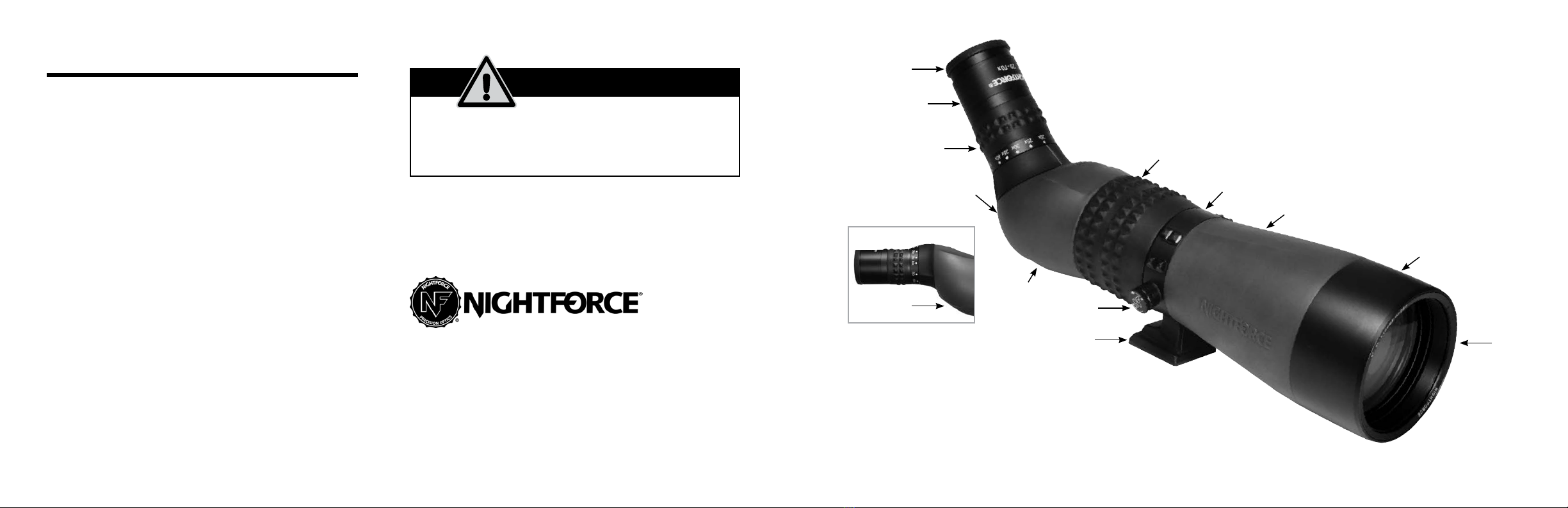

A: Body
B: Eyepiece
C: Retractable eyecup
D: Magnication Ring
E: Eyepiece Release Button
F: Focusing Ring
E
Benchrest
G: Rotational Axis Collar
H: Indexing knob
I: Mounting base for tripod
J: Retractable Sunshade
K: Objective Lens
Contents
Record the spotting scope serial number here for future reference: ___________________________________________________________
The serial number is located on the tripod mounting base, facing the eyepiece.
Nomenclature and features ..................................................3
Installing the eyepiece .........................................................4
Magnication settings .........................................................4
Retractable eyecup ..............................................................4
Removing the eyepiece ........................................................5
Retractable sunshade...........................................................5
Mounting on a tripod ...........................................................5
Focusing the image..............................................................6
Rotational axis collar............................................................6
Caring for your spotting scope ..............................................6
Using the TS-82™ for photography........................................7
Warranty and service............................................................8
Warranty registration card ...................................................9
Owner’s comments.............................................................10
Accessories and other information......................................11
Nightforce Optics, Inc.
336 Hazen Lane
Orono, ID 83544
tel [phone] • fax [phone]
[e-mail] • www.NightforceOptics.com
23
Nomenclature and features
Register your warranty at
www.NightforceOptics.com/WarrantyRegistration
Product specications, features, appearances and information subject to change without notice.
For the latest updates and information regarding our products, visit www.NightforceOptics.com.
XTREME HI-DEF™SPOTTING SCOPE
Instructions are the same
for straight or angled
spotting scopes.
To avoid permanent eye damage or blindness,
do not look directly at the sun or other extremely
bright lights through the spotting scope.
WARNING!
A
B
F
K
I
J
G
A
E
D
C
H

Installing the Eyepiece
To install the eyepiece, align the white
dot of the eye piece with the dot on the
scope body. This aligns the bayonet
mount of the eyepiece with the proper
slots on the spotting scope body. Gently
insert the eyepiece into the scope body,
and then rotate approximately 1/4
turn clockwise to lock the eyepiece in
place. Important: Do not change or
remove the eyepiece in the rain,
snow, or dusty environments, in order to keep foreign matter
or debris from entering and possibly damaging the optical and
mechanical system.
Magnication Settings
The standard TS-82™ eyepiece covers
a magnication range of 20x–70x. An
optional 30x–60x wide angle eyepiece is
also available. To change magnication,
rotate the magnication ring clockwise (less
magnication) or counter-clockwise (more
magnication). The magnication power
will be indicated on the numbered scale, aligned with the red index mark.
The numbers are relative to what the unaided human eye sees; for example,
a 20x setting will give the appearance of being 20 times closer to your
chosen target.
Retractable Eyecup
The rubber eyecup adjusts inward by turning
it clockwise, or outward by turning it counter-
clockwise.The full inward position is designed
for use while wearing glasses. The outer
position is for use with the unobstructed eye.
Removing the Eyepiece
To change the eyepiece, press the
Eyepiece Release Button located on
the scope body, under the eyepiece.
Hold the button down while grasping
the scope body securely with one
hand. Use your other hand to rotate
the eyepiece approximately 1/4 turn
counter-clockwise and gently pull it
away from the spotting scope body.
Your TS-82™ features a retractable
sunshade at the objective end of the
spotting scope. This can prevent glare
and provide limited protection for
the objective lens. Simply slide the
sunshade to it’s fully extended position
by grasping the sunshade and pulling
gently. Note: The sunshade is not a lter.
Using the eyeshade does not prevent potential damage to your eyes caused by
looking directly at the sun or other bright lights.
Mounting the TS-82™on a Tripod
The use of a sturdy tripod is recommended to prevent image shake and
viewing fatigue. It is almost impossible to hold a spotting scope steady,
especially at higher magnications.
The integral tripod base on the
TS-82™ accepts the standard 1/4"
20-thread screw found on virtually
every photographer’s tripod. The
screw should be tightened snugly
when mounting the TS-82™, but
do not tighten excessively to avoid
stripping the threads. Some tripods
allow direct mounting using the integral TS-82 tripod mount, avoiding the
need to use screws.
To avoid permanent eye damage or blindness,
do not look directly at the sun or other extremely
bright lights through the spotting scope.
WARNING!
45
Retractable Sunshade
For the latest updates and information regarding our products, visit www.NightforceOptics.com.
To avoid permanent eye damage or blindness,
do not look directly at the sun or other extremely
bright lights through the spotting scope.
WARNING!

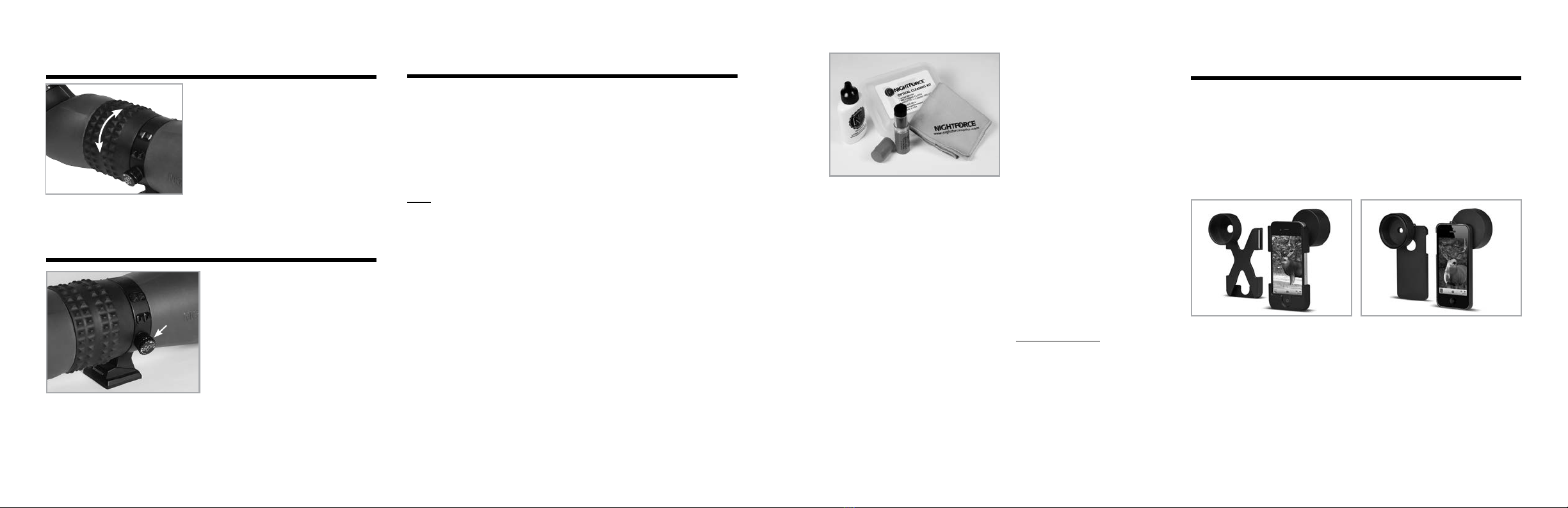

Cleaning Lenses
We recommend using the
Nightforce Cleaning Kit A130
to care for the lenses on your
spotting scope.The kit contains an
ultrasoft brush, microber cloth
and cleaning solution.
With the lens facing down to
allow the debris to fall away from the surface, remove loose dirt and dust
with a lens brush. Do NOT use high-pressure compressed air from cans (such
as found in oce supply stores). They have been known to destroy lens
coatings. If there is grit stuck to the lens that won’t come o with a brush,
ushing the surface with alcohol or distilled water will prevent that grit from
being rubbed into the glass by the cleaning swabs.
Using a soft, clean, lint-free cotton swab or lens cleaning cloth, and lens
cleaning uid applied to the swab, clean the lens starting in the center,
working to the outside in a circular motion. Make only one pass to the edge
where the glass meets the metal. Once you reach the edge of the lens, do
not re-use that swab as it will often contain abrasive grit that will scratch
the surface. Start over in the center with a new swab and repeat the process
until the glass is clean. Use a very small amount of cleaning solution for the
last pass to prevent streaks.
Store your spotting scope in a cool, dry, dust-free location.
Focusing the Image
While looking through the eyepiece,
slowly turn the focusing ring clockwise or
counter-clockwise until the image is sharp
and crisp. Closer images generally require
a counter-clockwise turn, while extremely
distant images generally require a
clockwise turn. You may need to readjust
your focus after changing magnication settings.
Rotational Axis Collar
When the TS-82™ is mounted on a
tripod, there may be times when you
want to rotate the spotting scope
to acheive a more comfortable or
suitable viewing position. Loosen the
indexing knob on the Rotational Axis
Collar by turning it counter-clockwise.
You can then grasp the spotting scope
body and turn the entire scope up to 360 degrees. Tighten the knob to hold
the spotting scope in the new position. Do not overtighten the knob. The
Rotational Axis Collar allows you to make adjustments in viewing position
without having to remove the scope from the tripod.
Caring for Your Spotting Scope
All Nightforce spotting scopes are 100% water-proof, dust-proof, fog-
proof and purged with inert nitrogen gas to prevent condensation from
accumulating on optical surfaces. Nevertheless, like any ne optical
instrument, it is necessary to carefully handle and protect all optical surfaces
from damage. When the scope is not being used, the objective and eyepiece
lenses should be covered by the protective caps which are provided.
Never use gun cleaning solvents, aerosols, other harsh solvents or chemicals,
cans of compressed air or insect repellants around your spotting scope or
another other optics with coated lenses, as these can ruin the coatings applied
to the glass surfaces.
Cleaning the Spotting Scope Exterior
Clean the scope’s body with a clean cloth lightly moistened with clean water
or alcohol. Do not use strong solvents. While cleaning your scope, be sure to
protect its lenses by installing the covers that came with it. Ammonia-based
solvents can destroy the coating on the glass.
In the event of submersion in mud, sand, dirty or salt water, ush the outside
of the scope with clean water to remove encrusted material and salt. Install
the lens covers before ushing with water. Wipe the outside metal surfaces
dry with a soft cloth then proceed to the step below.
Using the TS-82™ for Photography
The NightforceTS-82™ can produce spectacular photography of distant
objects. The optional A276 for the iPhone® 4/4S or A277 for the iPhone® 5
allow you to attach your iPhone to the eyepiece and capture
excellent high-resolution images and/or videos. There are also third-party
mounts available that will accept many point-and-shoot and DSLR cameras.
Visit www.NightforceOptics.com for more information.
67
For the latest updates and information regarding our products, visit www.NightforceOptics.com.
iPhone is a trademark of Apple Inc.
iPhone® 4 iPhone® 5

89
We are proud to back up Nightforce TS-82™ Xtreme Hi-Def™ Spotting Scopes with a
transferable Limited 20-Year Warranty which covers mechanical defects in materials and
workmanship in the optical and mechanical components of the spotting scope. In the
event of a defect in materials or workmanship that is covered by this warranty, we will
either repair the spotting scope or its defective parts, or replace it at no charge with a
comparable product at our discretion.
Exclusions to this warranty include intentional or accidental damage, abuse, misuse and
unauthorized modications or repairs.This warranty does not cover, nor will Nightforce
be responsible for, any consequential or incidental damages resulting from the inability
to use the spotting scope. Any serial number obliteration or alteration on the product
will void the warranty.
To ensure warranty coverage, please register online or ll out completely and mail in
the provided warranty card found in the back of the owner’s manual, along with a copy
of the sales receipt. The warranty begins on the date the product was purchased by the
original owner. The optical and mechanical components are covered for 20 years. Any
electronic components are covered for a period of one year.
This warranty gives you specic legal rights, and you may also have other rights
which vary from state to state. Some states do not allow the exclusion or limitation of
incidental or consequential damages, so the above limitations or exclusions may not
apply to you. Some states do not allow limitations on how long an implied warranty
lasts, so the above limitations may not apply to you.
Service and Warranty Procedure
Before sending a spotting scope in for service, please call Nightforce Optics,
Inc. at the number below, to determine if the problem can be resolved
without sending us the product. All returns must be accompanied by a Return
Merchandise Authorization (RMA) number. Failure to do so can result in lost
merchandise and/or severely delayed service time.
• Remove any accessories other than lens covers.
• Record and keep on hand the serial number.
• Include with the spotting scope a detailed description of the defect(s), the RMA
number, your name, phone number and the address you wish the spotting scope
returned to.
• Place the boxed or protectively wrapped spotting scope in a well-padded outer box
insured for replacement value and send it shipping prepaid, to the appropriate address
below. Write the RMA number on the outside of the package.
Limited 20-Year Warranty
U.S.A. & Canada:
Nightforce Optics, Inc.
Attention: Service Dept.
336 Hazen Lane
Orono, Idaho 83544
tel [phone]
fax [phone]
www.NightforceOptics.com
International:
Nightforce Optics
Attention: Service Dept.
28 Orsmond Street
Hindmarsh, SA 5007 Australia
tel [phone]
fax [phone]
www.NightforceOptics.com
Be sure to register your warranty at
www.NightforceOptics.com/WarrantyRegistration For the latest updates and information regarding our products, visit www.NightforceOptics.com.
Nightforce Warranty Registration Card: Spotting Scopes
Activate your warranty at www.NightforceOptics.com/WarrantyRegistration and be eligible for product support, updates and additional Nightforce
gear. If you do not have Internet access, please tear out, ll in and return this product registration card within 30 days of purchase. Return to the address
below along with a copy of your purchase receipt.We retain this card for warranty eligibility.
Name:________________________________________________________________________________
Address:______________________________________________________________________________
City: _______________________________________ State: _____________ Zip: ________________
Phone No.: __________________________________ Email: _________________________________
Model : _____________________________________ Serial No.: ______________________________
Date of Purchase: ____________________ Purchased From: ___________________________________
Nightforce Optics, Inc.
Attn: Warranty Registration
336 Hazen Lane
Orono, Idaho 83544
Attach a copy of your receipt and send to:
The serial number can be found on the tripod mounting base, facing the eyepiece.
Please detach here
Register online at
www.NightforceOptics.com/WarrantyRegistration
Please take a moment to provide your comments on the following page.

10 11
What changes or modications would you recommend be made to improve this product?
What new products would you like to see oered by us?
What magazines do you normally read?
What outdoor-related television programs do you like to watch?
Do you participate in Internet forums or blogs? Which ones?
How did you hear about Nightforce products?
Nightforce Owner’s Comments
Your feedback and suggestions will help us maintain the high level of quality and customer service Nightforce owners have come to expect. We encourage your input.
Please detach here
How do you plan to use your TS-82™ Spotting Scope? nPhotography nBird watching nWildlife watching nHunting nShooting
nOther (please explain)_______________________________________________________________________________
Please share digital photos or videos you’ve taken with your TS-82™ with us by emailing them to [e-mail]. Please note that by
doing so, you are giving your consent to Nightforce to share them with the public and use them in Nightforce advertising, promotion, and other applications.
Visit www.NightforceOptics.com to stay up
to date on the latest accessories and promotions
available for your TS-82™ Xtreme Hi-Def™ spotting scope.
TS-82™ Accessories
Nightforce accessories can enhance the exibility, applications and
protection of yourTS-82™ Xtreme Hi-Def™ spotting scope. These include:
Mil-Std. 1913 Accessory Rail allows the
attachment of components that are Mil-Std.
1913 compatible to your spotting scope.
Part No. A274
Nightforce Cleaning Kit includes an
ultrasoft brush, microber cloth and cleaning
solution. Highly recommended to allow
proper cleaning of the high-quality lenses
used in yourTS-82™. Part No. A130
30x-60x Wide Angle Eyepiece
interchanges with the standardTS-82™
eyepiece and provides a wider eld of view.
Highly useful for tracking moving and/or
multiple targets over a broad expanse.
Part No. A275
www.NightforceOptics.com
iPhone® adapters let you attach an iPhone® 4/4S (Part No. A276) or
iPhone® 5 (Part No. A277) to theTS-82™ for spectacular photography
or videos.
iPhone® 4 iPhone® 5

Factory/Headquarters U.S.A.
Customer Service, Technical & Warranty:
Nightforce Optics, Inc.
336 Hazen Lane
Orono, ID 83544
tel [phone] • fax [phone]
[e-mail]
U.S.A. and Americas Dealer Sales:
Nightforce Optics, Inc.
2749 Providence Church Road
Lavonia, GA 30553
tel [phone] • fax [phone]
[e-mail]
Military, Government & Law Enforcement:
Nightforce Optics, Inc.
2749 Providence Church Road
Lavonia, GA 30553
tel [phone] • fax [phone]
[e-mail]
European Sales:
Nightforce Optics, Inc.
2749 Providence Church Road
Lavonia, GA 30553
tel [phone] • fax [phone]
[e-mail]
Australia & South Pacic Sales:
Nightforce Optics
28 Orsmond Street
Hindmarsh, SA 5007
Australia
tel [phone]
fax [phone]
All trademarks, graphics and designs herein are the property of
Nightforce Optics, Inc. Product specications are subject to change
without notice. Products may dier in appearance from those
shown here; not responsible for typographical errors.
Visit www.NightforceOptics.com for current information, tutorials,
and video. Lightforce USA, dba Nightforce Optics, Inc.
®Nightforce Optics, Inc. 2013 7/13
