NISBETS ESSENTIALS FB046-A User manual

Refrigerators/
Freezers
Instruction manual
Model:
FB046-A / FB047-A / FB048-A / FB049-A
FB046-A_FB047-A_FB048-A_FB049-A_A5_v1_20191202.indb 1 2019/12/2 13:53

2
AU Telephone Helpline: 1300225960
Safety Tips
• Position on a flat, stable surface.
• A service agent/qualified technician should carry out
installation and any repairs if required. Do not remove any
components or service panels on this product.
• Consult Local and National Standards to comply with the
following:
- Health and Safety at Work Legislation
- Fire Precautions
- Wiring Regulations
- Building Regulations
• DO NOT use jet/pressure washers to clean the appliance.
• DO NOT use the appliance outside.
• DO NOT use this appliance to store medical supplies.
• DO NOT use electrical appliances inside the appliance
(e.g. heaters, ice cream makers etc.).
• DO NOT allow oil or fat to come into contact with the plastic
components or door seal. Clean immediately if contact occurs.
• DO NOT store products on top of the appliance.
• Bottles that contain a high percentage of alcohol must be
sealed and placed vertically in the refrigerator.
• Always carry, store and handle the appliance in a vertical
position and move by holding the base of the appliance.
• Always switch off and disconnect the power supply to the
unit before cleaning.
• Keep all packaging away from children. Dispose of the
packaging in accordance with the regulations of local
authorities.
• If the power cord is damaged, it must be replaced by a
Nisbets Essentials agent or a recommended qualified
technician in order to avoid a hazard.
• Children should be supervised to ensure that they do not
play with the appliance.
FB046-A_FB047-A_FB048-A_FB049-A_A5_v1_20191202.indb 2 2019/12/2 13:53

3
AU
Telephone Helpline: 1300225960
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience or knowledge, unless they
have been given supervision or instruction concerning the
use of the appliance by a person responsible for their safety.
• Nisbets Essentials recommends that this appliance should
be periodically tested (at least annually) by a Competent
Person. Testing should include, but not be limited to: Visual
Inspection, Polarity Test, Earth Continuity, Insulation
Continuity and Functional Testing.
Warning: Risk of Fire / flammable materials
• Do not store explosive substances such as aerosol cans
with a flammable propellant in this appliance.
Warning: Keep all ventilation openings clear of
obstruction. Unit should not be boxed in without
adequate ventilation.
• Warning: Do not use mechanical devices or other means
to accelerate the defrosting process, other than those
recommended by the manufacturer.
• Warning: Do not damage the refrigerant circuit.
• Warning: Do not use electrical appliances inside the food
storage compartments of the appliance, unless they are the
type recommended by the manufacturer.
Product Description
FB046-A - Nisbets Essentials Undercounter Fridge
FB047-A - Nisbets Essentials Undercounter Freezer
FB048-A - Nisbets Essentials Cabinet Fridge
FB049-A - Nisbets Essentials Cabinet Freezer
Introduction
Please take a few moments to carefully read through this manual. Correct maintenance and operation of this
machine will provide the best possible performance from your Nisbets Essentials product.
FB046-A_FB047-A_FB048-A_FB049-A_A5_v1_20191202.indb 3 2019/12/2 13:53

4
AU Telephone Helpline: 1300225960
Pack Contents
The following is included:
• Nisbets Essentials Refrigerator / Freezer
• Shelves:
FB046x 3 / FB047 x 2
FB048x 4 / FB049 x 6
• Keys x 2
• Spacers x 2
• Instruction Manual
Nisbets Essentials prides itself on quality and service, ensuring that at the time of packaging the contents are
supplied fully functional and free of damage.
Should you find any damage as a result of transit, please contact your Nisbets Essentials dealer immediately.
Installation
Note: If the unit has not been stored or moved in an upright position, let it stand upright for
approximately 12 hours before operation. If in doubt allow to stand.
1. Remove the appliance from the packaging. Make sure that all protective plastic film and coatings are
thoroughly removed from all surfaces.
2. Maintain a distance of 20cm (7 inches) between the unit and walls or other objects for ventilation. NEVER
LOCATE NEXT TO OR NEAR A HEAT SOURCE.
Note: Before using the appliance for the first time, clean the shelves and interior with soapy
water.

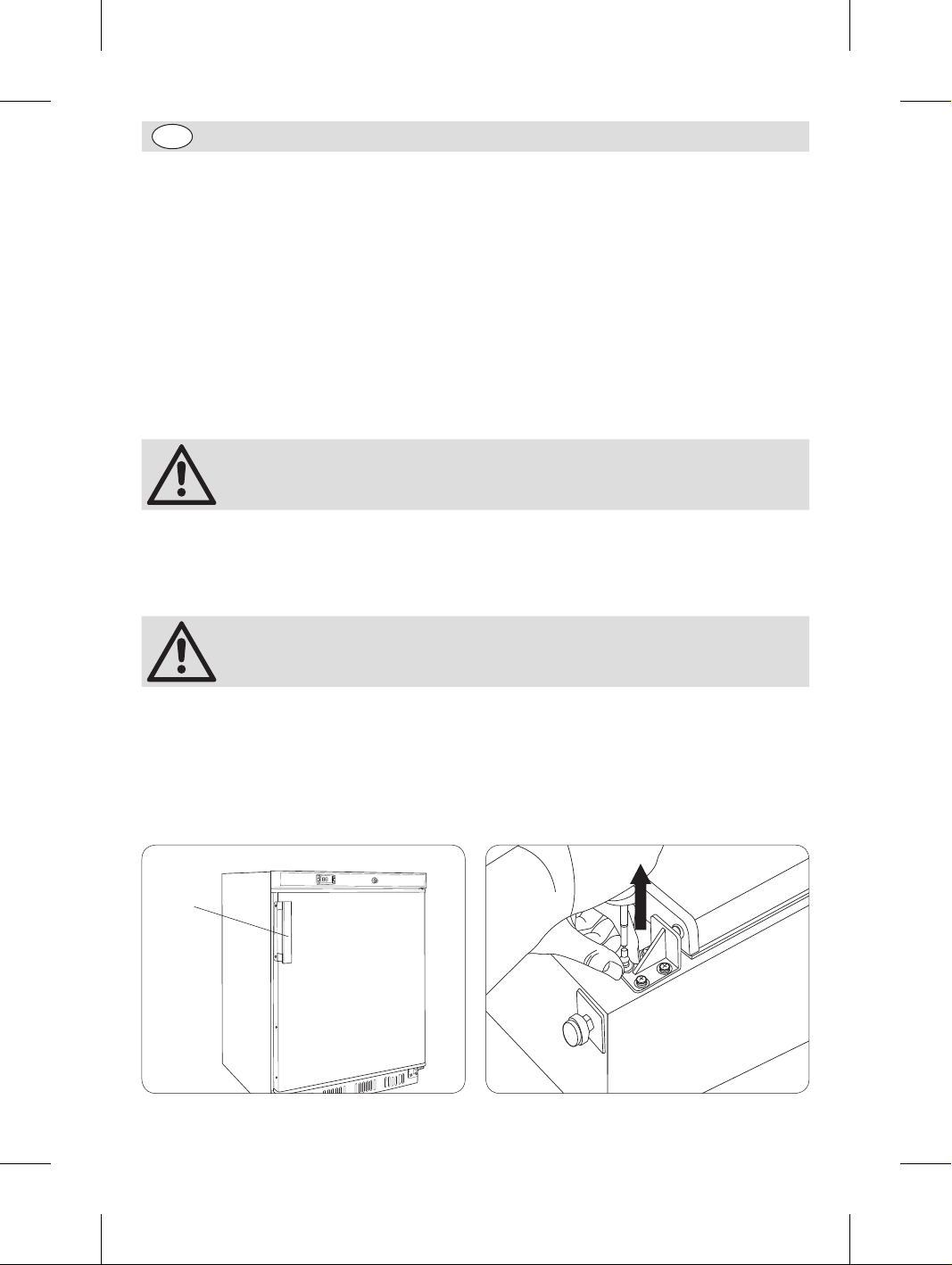

Reversing the door
Depending on the location of the appliance, it may be necessary to change the direction the door opens by
changing the side of the door handle.

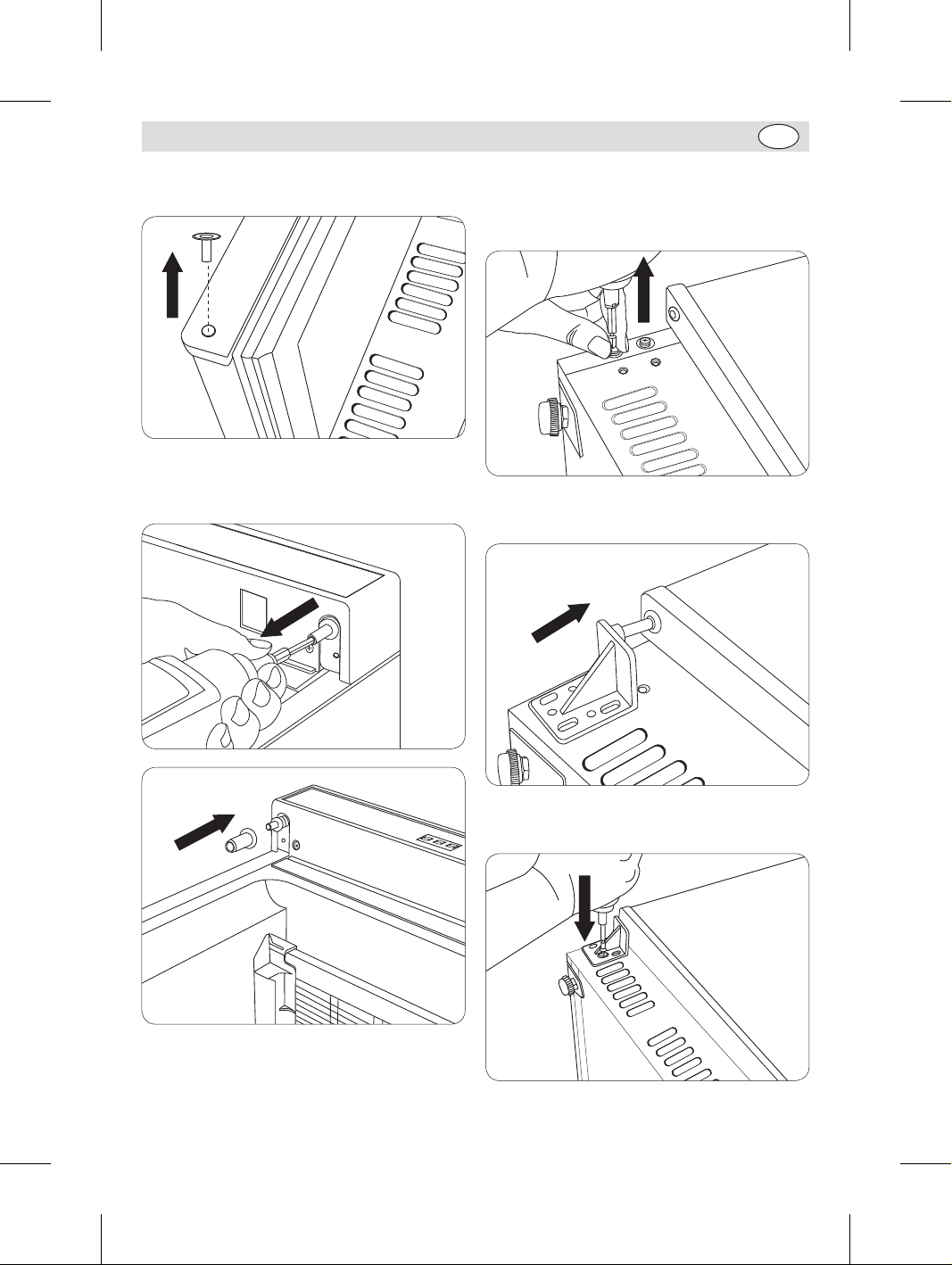

To reverse the door handle:
1. The door handle is on the left side. Disassemble the right lower hinge.
Handle
FB046-A_FB047-A_FB048-A_FB049-A_A5_v1_20191202.indb 4 2019/12/2 13:53

5
AU
Telephone Helpline: 1300225960
2. Remove the door from the right upper hinge.
Then remove the hinge sleeve from the door top.
3. Remove the right upper hinge and install it on
the left side. Afterwards, install the hinge sleeve
onto the hinge.
4. Reverse the door and hang it onto the left upper
hinge.
Remove the pre-mounted screws on the left
lower side.
5. Install the previously removed right lower hinge
on the left side.
6. Secure the hinge in place using the previously
removed screws.
FB046-A_FB047-A_FB048-A_FB049-A_A5_v1_20191202.indb 5 2019/12/2 13:53

6
AU Telephone Helpline: 1300225960
7. Now the door handle is on the right side (for
FB048/FB049).
8. For FB046/FB047, remove the screws at lower
part to release the handle. Then fix the handle
onto the upper part.
Operation
Control Panel
The control panel is located on the front of the
appliance.
Turn On
1. Close the door of the appliance.
2. Connect the appliance to a mains power supply.
Set the Operating Temperature
1. Press the SET button. The display will flash.
2. Press the or buttons to display the
required temperature.
3. Press the SET button to store the temperature.
Manual Defrost
Press and hold the defrost button “aux” for
2 seconds to begin a manual defrost. The defrost
light illuminates.
Storing Food
To get the best results from your Nisbets Essentials
appliance, follow these instructions:
• Only store foodstuffs in the appliance when it
has reached the correct operating temperature.
• Do not place uncovered hot food or liquid inside
the appliance.
• Wrap or cover food where possible.
• Do not obstruct the fans inside the appliance.
• Avoid opening the doors for prolonged periods
of time.
Lock/Unlock the Doors
• A lock is fitted to the doors to ensure foodstuffs
are kept secure within your Nisbets Essentials
appliance.
• Use the keys provided to lock/unlock the door.
FB046-A_FB047-A_FB048-A_FB049-A_A5_v1_20191202.indb 6 2019/12/2 13:53

7
AU
Telephone Helpline: 1300225960
Cleaning, Care & Maintenance
Switch off and disconnect from the power supply before cleaning.
• Clean the interior of the appliance as often as possible.
• Do not use abrasive cleaning agents. These can leave harmful residues.
• Clean the door seal with warm soapy water.
• Always wipe dry after cleaning.
• Do not allow water used in cleaning to run through the drain hole into the evaporation pan.
• Take care when cleaning the rear of the appliance. Sharp edges can cut.
• A Nisbets Essentials agent or qualified technician must carry out repairs if required.
Cleaning the Condenser
Periodically cleaning the condenser can extend the life of the appliance.
Nisbets Essentials recommend that a Nisbets Essentials agent or qualified technician should clean the
condenser.
Troubleshooting
If your Nisbets Essentials appliance develops a fault, please check the following table before making a call to
the Helpline or your Nisbets Essentials dealer.
Fault Probable Cause Solution
The appliance is not
working
The unit is not switched on Check the unit is plugged in correctly and
switched on
Plug and lead are damaged Call Nisbets Essentials agent or qualified
Technician
Fuse in the plug has blown Replace the fuse
Power supply Check power supply
Internal wiring fault Call Nisbets Essentials agent or qualified
Technician
The appliance turns on,
but the temperature is
too high/low
Too much ice on the evaporator Defrost the appliance
Condenser blocked with dust Clean the condenser
Doors are not shut properly Check doors are shut and seals are not
damaged
Appliance is located near a heat
source or air flow to the condenser
is being interrupted
Move the refrigerator to a more suitable
location
Ambient temperature is too high Increase ventilation or move appliance to a
cooler position
Unsuitable foodstuffs are being
stored in the appliance
Remove any excessive hot foodstuffs or
blockages to the fan
Appliance is overloaded Reduce the amount of food stored in the
appliance
FB046-A_FB047-A_FB048-A_FB049-A_A5_v1_20191202.indb 7 2019/12/2 13:53

8
AU Telephone Helpline: 1300225960
Fault Probable Cause Solution
The appliance is leaking
water
The appliance is not properly
levelled
Adjust the screw feet to level the appliance (if
applicable)
The discharge outlet is blocked Clear the discharge outlet
The appliance is leaking
water
Movement of water to the drain is
obstructed
Clear the floor of the appliance (if applicable)
The water container is damaged Call Nisbets Essentials agent or qualified
Technician
The drip tray is overflowing Empty the drip tray (if applicable)
The appliance is
unusually loud
The safety band has not been
removed
Remove the safety band
Loose nut/screw Check and tighten all nuts and screws
The appliance has not been
installed in a level or stable position
Check installation position and change if
necessary
The display lamp does
not light
Replace lamp Call Nisbets Essentials agent or qualified
Technician
Technical Specifications
Model Voltage Power Current Temperature
Range
Capacity
(litres) Refrigerant Dimensions H x W x D mm
Weight
(kg)
FB046-A 230V
50Hz
100W 0.7A -2°C to 8°C 78 R600a
(35g)
855X600X585 44
FB047-A 230V
50Hz
105W 0.8A -10°C to
-25°C
78 R600a
(60g)
855X600X585 45
FB048-A 230V
50Hz
185W 0.8A -2°C to 8°C 265 R600a
(75g)
1855X600X585 69
FB049-A 230V
50Hz
150W 0.9A -10°C to
-25°C
258 R600a
(90g)
1855X600X585 74
FB046-A_FB047-A_FB048-A_FB049-A_A5_v1_20191202.indb 8 2019/12/2 13:53

9
AU
Telephone Helpline: 1300225960
Electrical Wiring
The plug is to be connected to a suitable mains socket.
Nisbets Essentials appliances are wired as follows:
• Live wire (coloured brown) to terminal marked L
• Neutral wire (coloured blue) to terminal marked N
• Earth wire (coloured green/yellow) to terminal marked E
This appliance must be earthed.
If in doubt consult a qualified electrician.
Electrical isolation points must be kept clear of any obstructions. In the event of any emergency disconnection
being required they must be readily accessible.
Compliance
The product must not be disposed of as household waste. To help prevent possible harm to human health
and/or the environment, the product must be disposed of in an approved and environmentally safe recycling
process. For further information on how to dispose of this product correctly, contact the product supplier, or
the local authority responsible for waste disposal in your area.
Nisbets Essentials parts have undergone strict product testing in order to comply with
regulatory standards and specifications set by international, independent, and federal
authorities.
Nisbets Essentials products have been approved to carry the following symbol:
All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic, mechanical,
photocopying, recording or otherwise, without the prior written permission of Nisbets Essentials.
Every effort is made to ensure all details are correct at the time of going to press, however, Nisbets Essentials reserve the right to change
specifications without notice.
FB046-A_FB047-A_FB048-A_FB049-A_A5_v1_20191202.indb 9 2019/12/2 13:53

DECLARATION OF CONFORMITY
Equipment Type
Model
Legislation
Standards
Producer Name
Producer Address
Undercounter Refrigerator Black - 150Ltr
Undercounter Freezer Black - 140Ltr
Upright Refrigerator Black - 400Ltr
Upright Freezer Black - 365Ltr
FB046-A
FB047-A
FB048-A
FB049-A
Electrical Safety
Electromagnetic Compatibility
AS/NZS 60335.1:2011 +A1:2012 +A2:2014 +A3:2015 +A4:2017
AS/NZS 60335-2-24:2010 +A1:2013
EN 55014-1:2017
EN 55014-2:2015
EN 61000-3-2:2014
EN 61000-3-3:2013
Nisbets Essentials
15 Badgally Road,
Campbelltown,
NSW 2560
I, the undersigned, hereby declare that the equipment specified above conforms to the above Legislation and Standard(s).
Date
29th November 2019
Signature
Full Name
Ashley Hooper
Position
Global Quality Manager
Date
29th November 2019
Signature
Full Name
Josie Holt
Position
Commercial Manager/ Responsible Supplier
FB046-A_FB047-A_FB048-A_FB049-A_A5_v1_20191202.indb 10 2019/12/2 13:53

FB046-A_FB047-A_FB048-A_FB049-A_A5_v1_20191202.indb 11 2019/12/2 13:53

FB046-A_FB047-A_FB048-A_FB049-A_A5_v1_20191202
http://www.nisbets.com/
FB046-A_FB047-A_FB048-A_FB049-A_A5_v1_20191202.indb 12 2019/12/2 13:53
