Dear Owner
Congratulations for your purchase of the SN-165 Drum Mower.
It is a top-notch quality product, especially designed to meet your needs.
This manual contains operating and maintenance instructions, when
properly abided by it assures good operation, safety, and durability to your
SN-165 Nogueira. We recommend carefully reading it, before beginning to
operate the machine.
There is an identification plate fastened on the machine, which displays the
manufacturing serial number. Write this number, in the end of this manual.
This information is extremely important to identify your machine, in cases
when you need technical support or replacement parts.
Nogueira S/A is always at your disposal to answer any questions or doubts
and supply efficient and permanent technical support.
The images displayed in this manual are only for illustrative purposes. Thus to facilitate your
viewing, the images show cutaway or the safety shielding removed to display it more clearly. Do
not operate the machine under any circumstances without these respective protective shields.
The reproduction of this manual is not allowed except when previous written permission is
granted by the Nogueira Indústria e Comércio de Implementos e Máquinas Agrícolas S.A.
English

4Instructions Manual
Index
Notes:
1- Nogueira seeks to constantly and improve its products; it reserves the right to introduce
modificationsinitscomponentsandaccessorieswithoutpreviousnotice.
2- The illustrations contained in this manual are merely illustrative. All safety instructions
mustbeabidedbyforbothmachineconfigurations.
Introduction 03
Environmentalconservation 05
Safety 05
Safetyadhesivelabels 09
Purpose 11
Couplingtothetractor 11
Operatingpreparation 12
Mowing 13
Adjustingthemowingheight 13
Transportingthemachine 14
Maintenance 14
Replacingthebladeholder 16
Lubrication 16
Belttightening 17
Safetydevice 17
Technicalspecifications 18
Additionalinformation 19
Technicalsupport 20
Warrantycertificate 21
Warrantycontrol 23

5
SN-165
Nogueiraiscontinuallyconcernedwiththeenvironmentalconservation,inthedevelopmentphase,as
well in the utilization of processes and materials ecologically appropriate in its production and its
products.
PROTECT AND RESPECT THE ENVIRONMENT, remember that conservation is the social
responsibility of everyone. These concepts include compliance with legally defined disposal of used
lubrication products and fluids, old tires, and packaging. Never dispose of these products or empty
packaging in swamplands, lakes, rivers, puddles etc. Share these recommendations with others and
makeotherpeopleawareoftheimportanceofconservingtheenvironment.
TheNogueiraCompanyisconcerned about the safety ofpeopleinvolvedinoperatingandperforming
maintenanceproceduresonthemower.
In developing this design, we have considered every detail in order to avoid unexpected accidents
whileoperatingit.Wehavedevelopedsafetyshieldingandeliminateddangeroussituations.
Remember, keeping people healthy and their physical integrity must always be considered to the
upmost.
We have prepared this manual to make your familiar with your mower and, so that you can use it
correctlyandsafely.
Werecommendcarefullyreadingitbeforeoperatingthemachinethefirsttime.Ifyouhaveanydoubts
or questions, please get in touch with us at your Nogueira reseller or our Technical Support
Department.
Safety warning labels alert users on situations which pose some type of danger. They are
accompaniedbyinstructionsforprotectingthesafetyoftheoperatorandotherusers.
These warnings refer to dangerous situations, which may result in
serious accidents and be life threatening, if the instructions are not
strictlyabidedby.
This type warns on dangerous situations and informs on necessary
precautionsinordertoavoidanypossibleaccidents.
SAFETYALERT
SYMBOL
SAFETYWARNINGLABELS
DANGERwarnings!
CAUTIONwarnings!
Environmental conservation
Safety
English

6Instructions Manual
- Read the instruction manual before turning on the machine. Pay attention and respect all the
operating and safety recommendations while running the machine. SHARE THIS INFORMATION
WITHALLOTHERUSERS.
- Do not operate the machine while or after drinking alcoholic beverages or medications which affect
your normal condition. Pay attention to what you are doing and use your good sense. Any lack of
attentionwhileoperatingthemachinecanresultinaseriousaccident.
- Disconnect from the power take-off, the tractor motor, and remove the key from the ignition before
performing any adjustment, lubrication, or any maintenance job on the machine. Never try to perform
anyrepairswhilethemachineisturnedon.Alwayspaycompleteattention!
-Beforeturningonthemachine,checktoseeiftherearenotoolsoranyotherobjectonit.
- Look around the machine before operating it. Keep animals and spectators at a safe distance, away
fromthepowersupplyarea.Payspecialattentiontoanychildrennearby.
- Dress appropriately for operating the machine. Keep long hair tied up and do not wear loose-fitting
clothing. Remove rings, chains, and any other objects which can become stuck in the moving parts or
mechanisms.
- Wear personal protective equipment - PPE while operating the machine. Exposure to noise for
prolongedperiodcancausehearingdamageorloss.Wearearplugsandsafetyglasses.
- Never try to clean or remove remnants of products while the machine is turned on. This type of
procedure can only done while the power take-off is disconnected, the key removed from the ignition,
andthemachineiscompletelymotionless.
- Never touch the pulleys, belts, and other moving parts while the machine is turned on. Keep your
handsawayfrommovingparts.
-Keeptheshieldsandprotectionsintheproperplacesanddonotoperatethemachinewithoutthem.
-Keepthesafetylabelsingoodconditionandlegible.Replacethemwhenevernecessary.
- It is prohibited for people to stand on any part of the machine while operating. Whenever it is
necessary to get on the machine for any adjustment or repair, disconnect the power take-off from the
tractorandwaituntilthecomponents/partsarecompletelymotionless.
Safety

7
SN-165
-Performthefollowingmeasuresinordertoavoidanyunbalancingofthemachineand,consequently,
makingaccidentspossible:
Bothmowingdrumsmustbeequippedwithalltheblades,neworequallyworn.
Donotchangeonlyonebladeinthedrum,butchangetheentireset.
Thedrumsmustbeequippedwithallthetransportplates.
Anydamagedorworndrums,plates,andbladeholdersmustbereplacedassoonaspossible.
Donotexceedaspeedof540RPMinthepowertake-off.
-Movingcomponents/partsduetoinertiacontinuemovingafterthepowerisshutofftothemachinefor
sometime. So, before changing any component/part, disconnect the power source, look, and listen to
check if there is any evidence of movement. Only touch the component/part when you are sure it is
motionless.Alwayspaycloseattention!
-Keeppeopleandanimalsawayatasafedistancewhilethemachineisoperating.
-Ifitisnecessarytooperatethemachinewhileitissuspendedbythehydraulicsystem,itmustbedone
safety. The hydraulic mechanisms can descend without any reason or due to leakage in the system
andcauseanaccident.
- Do not place the machine on cement blocks, hollow tiles, or other supports which can crush from a
prolongedweightload.
-Donotworkunderamachineliftedbyonlyjacks;alwaysuseasafesupportbase.
-Always check the terrain before starting your mowing job. Mark any dangerous places or obstacles
whichmayimposeahazardtotheoperatingmachine.
- If you notice any abnormality in the operation: vibrations, different noises etc., turn off the machine
immediately.Checkandeliminatethecausebeforeturningitonagain.
- Never operate the machine in closed surroundings and without any ventilation, the gases released
fromthetractormotorarehighlyharmfultoyourhealth.
-Donotusethedriveshaftwithoutthesafetyshield.Keepasafedistancefromthemovingdriveshaft.
- Whenever maneuvering the machine connected to the tractor, make sure there is enough space for
performingthemaneuvers.
- Always set the speed of the tractor movement based on the local conditions. Avoid any sudden
maneuversespeciallyinplaceswhereitissloped.Whenhitchingaloadthatisheavierthanthetractor,
neverexceedaspeedof16km/hour.
Safety
English

8Instructions Manual
- The tractor must always be maneuverable. Place enough counterweights on it so the front tires stay
incontactwiththeground.
-Beespeciallycarefulwhencouplinganddetachingthemachinetoorfromthetractor.Payattentionto
the coupling pins to make sure they are latched. Always use the cotter pins to avoid the pins from
releasingaccidentally.
- Pay even more attention when working on sloped terrain. If you notice any unbalancing, reduce the
speed.Whengoingdowntheslope,alwayskeepthetractorhitched.
- When driving the tractor with the machine on public roadways, obey the current valid legislation
regarding the maximum height and width for transport. Pay close attention to the height of the load,
especiallywhengoingunderoverpassesandbridges.
-Neverleavethetractorwhenthemachineisturnedon.Stopthemotor,disconnectthepowertake-off,
engagetheparkingbrake,andremovetheignitionkey.
- Using this equipment for applications not mentioned in this manual and considered as unacceptable
and unauthorized by the manufactured; adaptations or replacing after-market parts causing a
negativeimpactonitsoperation,orendangertheoperatorwillrevokethemanufacturer’sguarantee.
- Be prepared for any possible accident. Keep a first-aid kit on hand and easily accessible and know
howtouseit.
- Comply with the safety recommendations and pay close attention. Any lack of attention during the
operationmayresultinaccidents.
Safety

9
SN-165
Safety adhesive labels
English

10 Instructions Manual
Safety adhesive labels

11
SN-165
TheDrumMowerSN-165 was manufactured exclusively formowingplantsusedformaking pre-dried
hay or silage, such as alfalfa, oatmeal, ryegrass, coast-cross, clover, rhodes, in fact, any plants with
thinstalkswhichgrowneartheground,especiallyherbs.
TheDrumMowerispreparedforcouplingtothethreepoints,categoryIandII(fig.01).Ifitisnecessary
to adjust the driveshaft, proceed as shown in figure 2. Place both parts parallel and mark the place for
cuttingtheends,leaving25millimetersofplay.
Removethedriveshaftfromthemachineandcutit.
Fasten the hydraulic arms rigidly the chains of bars so that the Drum Mower is placed in the correct
position. Adjust the hydraulic amrs so that the drums are aligned in the correct operating position
(fig.03).
ThisadjustmentmustbedoneinsuchawaysotheDrumMowerisliftedinparallelalignment.
HitchtheupperarminalowerholeontheDrumMowerorhigheroninthetractortodothis.
Purpose
Coupling to the tractor
English

12 Instructions Manual
Check to see if the machine does not articulate inadvertently and spontaneously into the operating
position, and never stay in the machine articulating zone, and definitely not, between the tractor and
themachine.
Donotarticulatethemachineintothecuttingpositionunlessitisinoperatingarea.

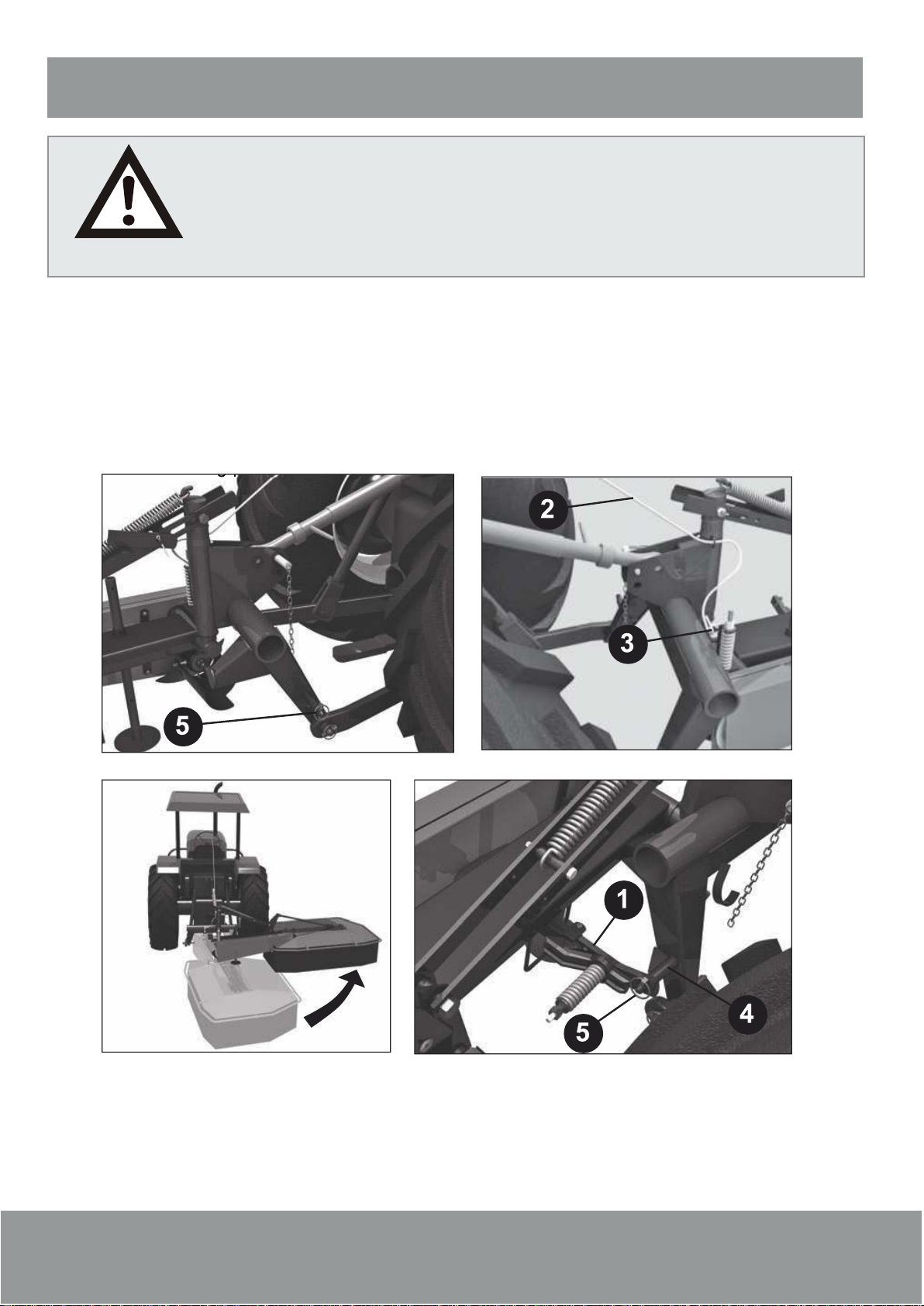

1-Placethemachineandthetractoronaflatplace,sothattheyarelevel.
2-Checkifthedrumsarefreelyturning.
3-LowertheDrumMowertoabout10centimetersfromthegroundandremovethelockingpin(5).
4- Pull the rope (2) making the locking pin release (3), unlatching the head. Afterwards, move the
machineintotheoperatingposition.
5-Assemblethesafetydevice(1)tothepin(4)andplacethelockingpin(5).
Operating preparation
BEWARE
During the preparation phase, the power take-off must be disengaged.

13
SN-165
1-Makesurethesafetydeviceisworking(1)beforestartingyourwork.
2-Checktheshieldsandlatchestomakesuretheyareproperlyassembledandrepairanypartswhich
maybewornoutordamaged.
3-Putintherightgearandspeedforobtainingthebestmowingperformance.
4-Changeanywornblades.Sharpbladesprovidebettingmowing.
1- Adjust the arm of the third point to the tractor so that the Drum Mower is in the correct operating
height,whichisinahorizontalpositionorslightlytiltedforwards.
Thiswaytheshoesworkmoreefficiently.Themowingheightcanbechanged(lowered)usingthethird
armtothetractorconnectingpoint.
CAUTION:Inordertoavoidwastingfodder,nevertiltthemachinebackwards.
2-Incaseyouareworkingonslopedterrains,theDrumMowermustalwaysonthehigherside.

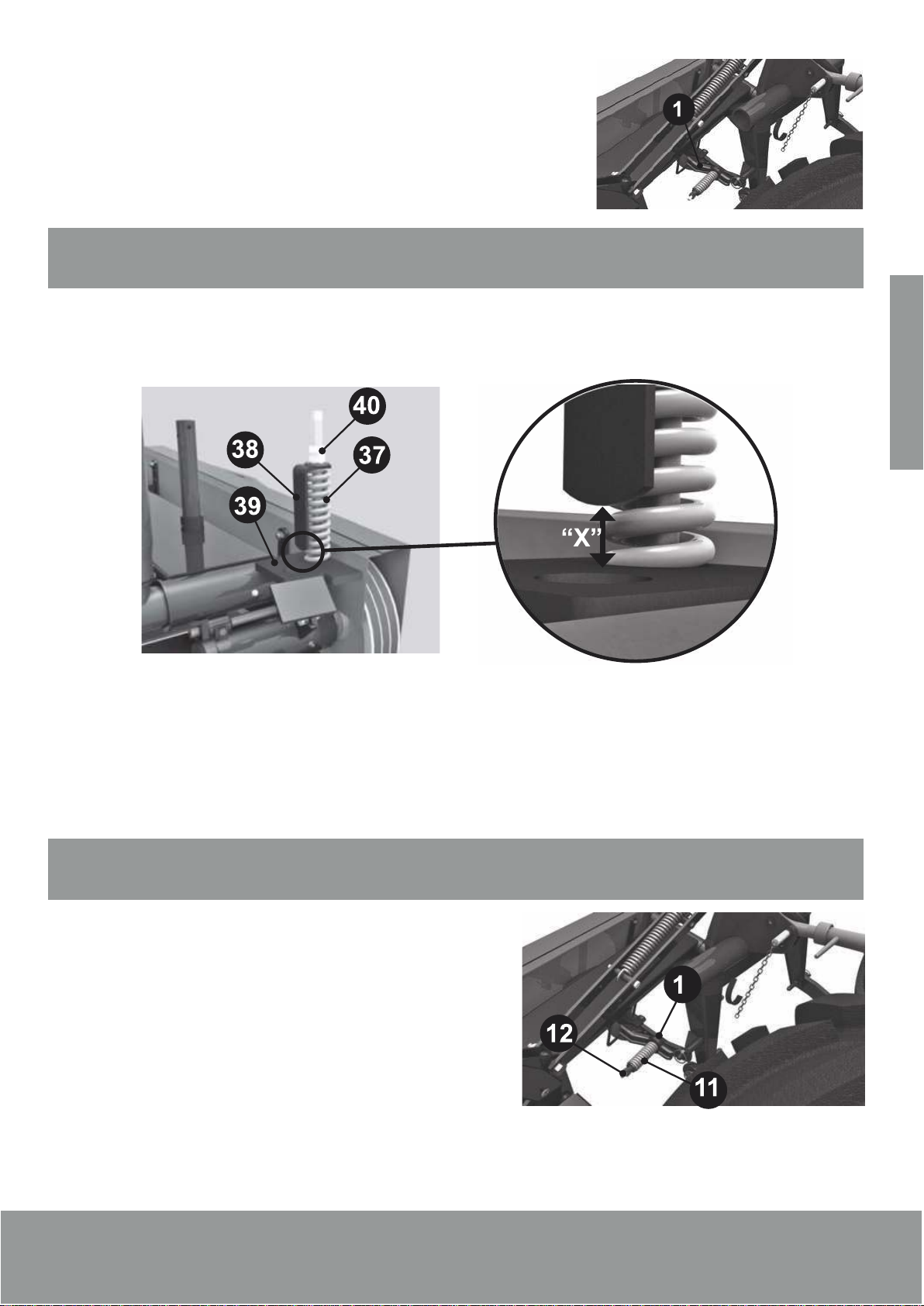

NOTE: When working on rocky terrain, it is possible to reduce the pressure on the machine applied to
the ground by assembling the spring to the lower hole. This way, it decreases the wear on the drum
blades.
5-Beforebeginningthemowing,thedrums(14)mustbe
rotating full speed (540 RPM from the power take-off) in
ordertoassuregoodperformance.
6- The spring (6) reduces the support pressure from the
ground. It actuates between the head and head and the
liftingbar.
Thepressuresustainstheintermediatestructuresinthe
horizontalposition:
6-Releasethelockinglever(9),lowerthemachinetothegroundandconnectthedriveshaft(7).
Mowing
Adjusting the mowing height
English

14 Instructions Manual
Transporting the machine
Maintenance

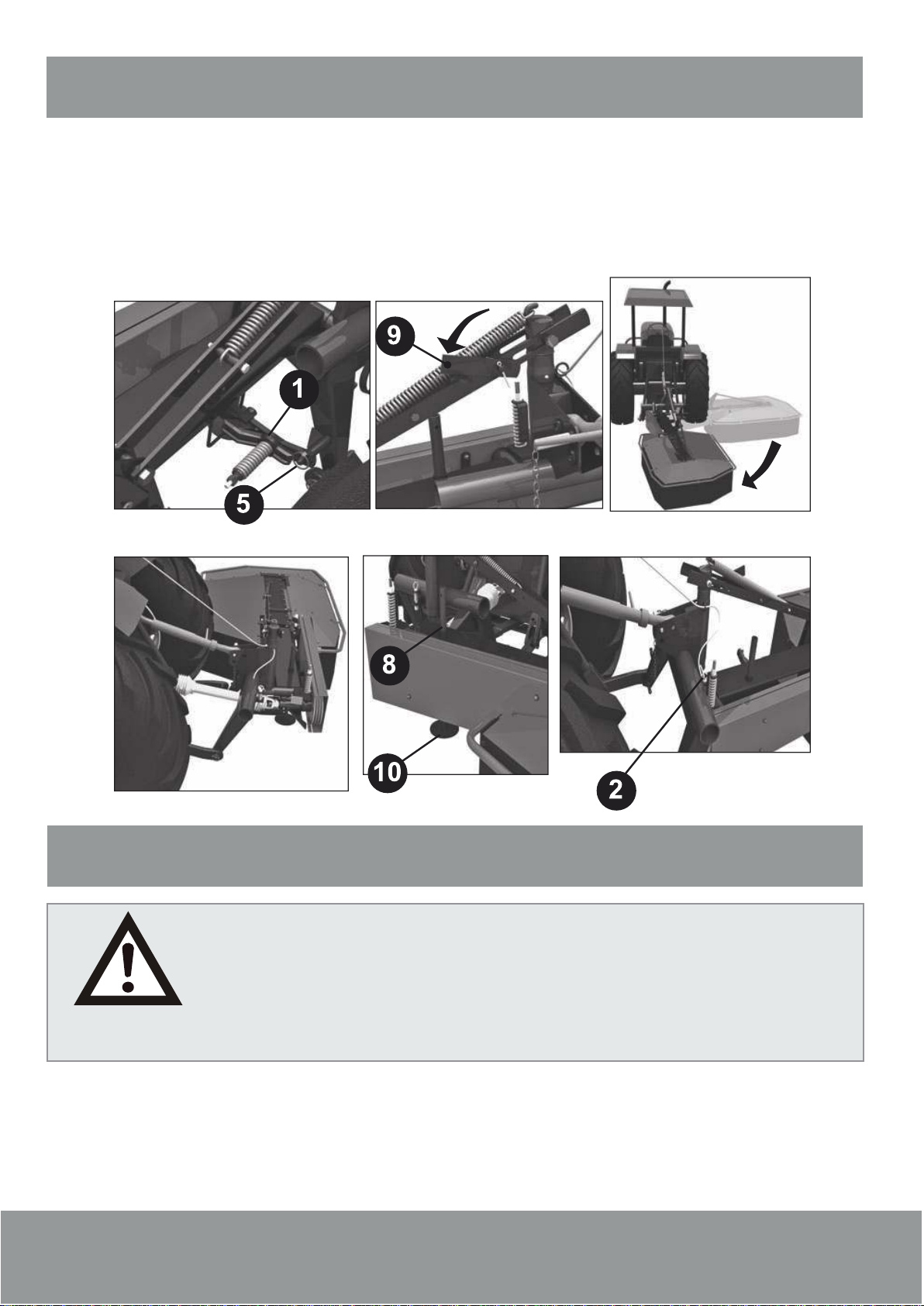

1-Usethehydraulicsystemofthetractortoliftthemachinealittle.
2-Removethelockingpin(5)fromthesafetydevice(1)andreleasethelever(9).
3-Turnthemachinetotherear,untilthepinfastenedtotheendoftherope(2)engagesautomatically.
Parking:After the machine is in the transport position, lower the support base (10), fastening it to the
cotterpin(8).Lowerthemachineuntilthegroundanddisengageitfromthetractor.
BEWARE
Disconnect the power take-off, the tractor motor, and remove the key from the
ignitionbeforeperforminganyadjustment,maintenanceorcleaningjobonthe
machine.
Also remember that suspended equipment on the hydraulic supports is not
completely safe. We recommend placing an appropriate shim to prop it up so
thatyoucansafelyperformthemaintenancejobunderthemachine.

15
SN-165
BLADES:

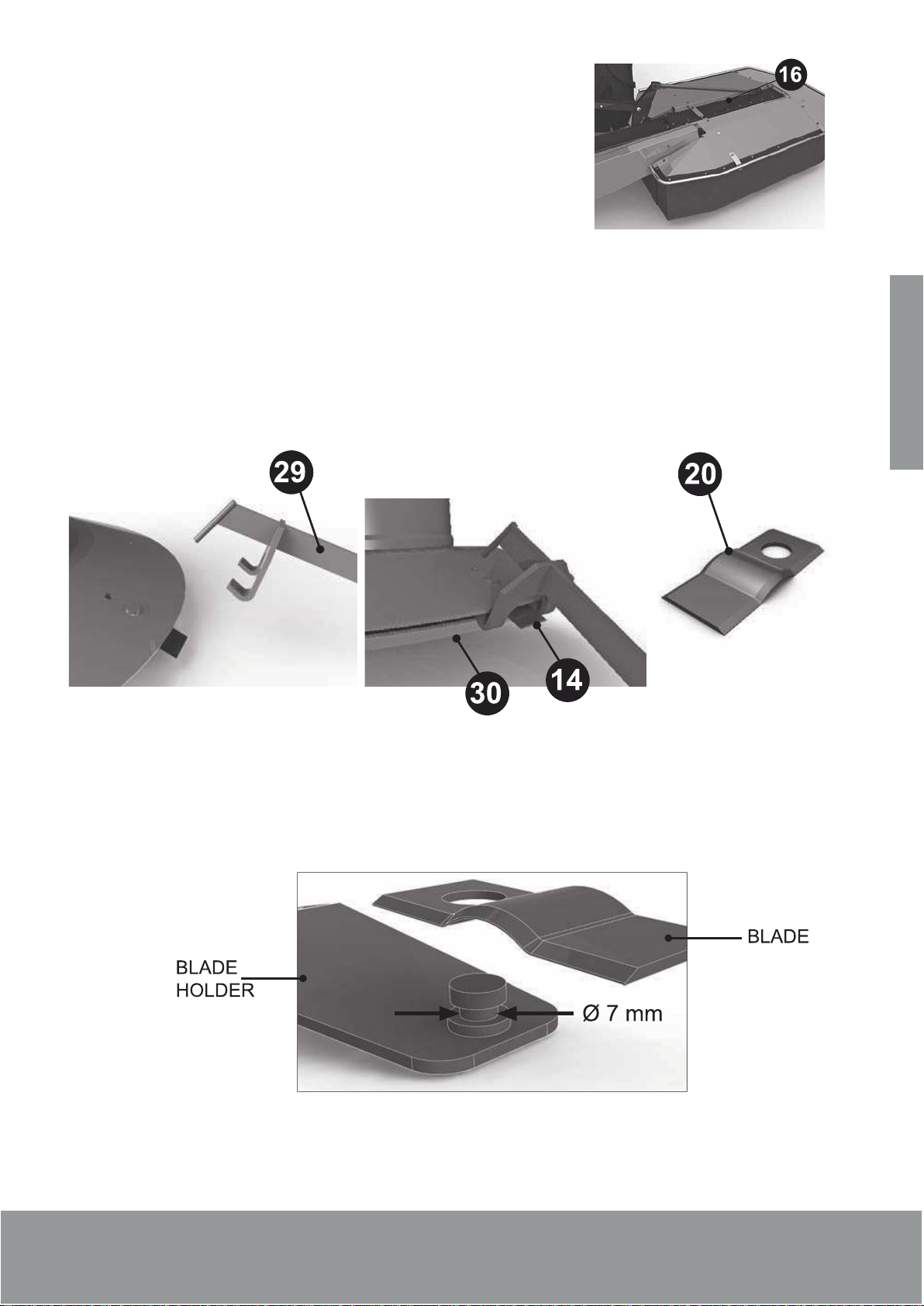

The mowing blades are very sharp and dangerous, so when changing them, use the wrench (29)
suppliedwiththemachine.
InstallonlyOEMblades(20).Thesebladeshavetwocuttingedgesandlasttwiceaslongbyinstalling
themon thedrumandthenontheopposite sideaswell.Assemblinganddetachingthem isextremelly
easyusingthespecialsuppliedwrench(29).
Pushthebladeholders (30) using the specialwrench(29),changetheblade (14), remove the wrench
(29) and, then check for good fastening of the blade. Clean the scraps of fodder in this area and then
checkforproperfasteningofthebladeholderpins.
CAUTION:
Thebladeholderpinsmustberoutinelyinspected.
Checkifthepindiameterisequalto7mm(asshowninthebelowfigure).
Iftheyaresmallerthanthismeasurement,thebladeholdersmustbereplaced.
- Mowing exerts a considerable load on the transmission
gearbox (16). For this reason, the cover was made from sturdy
material and fastened by many adjustment screws. Routinely
checktoseethatthescrewsaretightenough.
-Change thecovertrim onthetransmission gearboxwhenever
necessary.
English

16 Instructions Manual
1-Removethefasteningscrews(16)andtheshoe(17).
2-Replacethe3bladeholder(15)fromeachdrum.
LUBRICATINGOTHERPARTS-ASSHOWNBELOW:
Greasedaily:
Greasenozzle(1),(2),(3),(4),(5)and(6).
Cross bars and driveshaft tubes, as explained in their
respectiveinstructions.
Lubricatethemachineandthedriveshaftusinggoodqualitygrease,thusyouwillmaketheequipment
worksmoothlyandlastlonger.
TRANSMISSIONGEARBOX:
TheDRUM MOWERisdelivered fromthefactory withthetransmission gearbox(13)lubricated by5.5
Kg of grease. Generally, it is necessary to only lubricate once a year. When doing repairs, use only
goodqualitygreaseandnevermixbrandsordifferenttypes.
Replacing the blade holder
Lubrication
Perform this operation only when the tractor is turned on and the key is
removed from the ignition.

17
SN-165
There is a spring device for tightening the belt (37). When the “X” distance between the indicator (38)
and the base (39) reaches 3 mm (or more) it is necessary to tighten the belts using the nuts (40) to
tightenuntilreachingtheindicator(38)thattouchesthebase(39).
CAUTION:
The “V” belts are the most critical parts in the machine, thus it is essential that routine and adequate
maintenance is performed. It is always important to adapt the speed of the tractor to the working
conditionsasto avoidoverloadingthe belts.Anexcessiveload causesoverheatingand consequently
beltslippage.Likewise,thebeltswillslipwhenthetensionistooloose.
Changingtheoilafter50mowinghours:
Safetydevice(1).
Belt tightening
TheDrumMowerisequippedwithasafetydevice(1)that
will be activated whenever an obstacle is hit; this makes
the machine go around it. If this occurs, you should
immediatelystopthetractorandengageinreversegear.
When going in reverse, the device will automatically
engage.
If the safety device (1) is automatically activated while
mowing, without hitting obstacle, it is probable that the
spring tension (11) is too low. In this case, use the nut to
tightenit(12).
CAUTION:
Nevertightenthenutsothespringisblocked,astopreventthesafetydevicefromactivation.
Safety device
English

18 Instructions Manual
Technical specifications
Mowing width
165 cm
Transport width
137 cm
Transport length
312 cm
Mowing height
122 cm
Weight
420 Kg
Number of blades
6
Number of drums
2
Application slanted above
+ 25 degrees
Application slanted below
- 25 degrees
Rotation of the power take-off
540 RPM
Connection to three points
categories I and II
Power in the power take-off
beginning at 23 kw
Mowing capacity
up to 2 h/p hr.
Maximum mowing speed
10 Km/h
Maximum transport speed
15 Km/h

19
SN-165
Key gauge table
Torque table
N.mTorqueunit
Additional information
English

20 Instructions Manual
The SN-165 is identified by a serial number,
engraved on a plate (1), located on the machine
housing.
Writetheserialnumberofyourmachinehere: 1
Technical Support
