PART NO.629923
NORCOLD 03/25/2008
PARTS LIST
GAS ELECTRIC MODELS
PANEL TYPE DOORS
1210
1210IM
1210IMD
1210IMPFS
1211IM
WRAP TYPE DOORS
1210BK
1210IMBK
1210IMBKD
1210IMSS
1210IMSSD
1210SS
1211IMSS
1211IMWPM
1211WPM
MODEL IDENTIFICATON CODES
AC = ALL ELECTRIC MODELS
IM = ICE MAKER MODELS
BK = BLACK WRAPPED MODELS
PFS = PANEL DOOR WITH FAUX SS DOOR PANELS INSERTED
SS = STAINLESS STEEL WRAPPED MODELS
WPM = PEWTER ROYCE WRAPPED DOOR MODELS
D = WATER DISPENSER MODELS
1210 SERIES
ALL ELECTRIC MODELS
PANEL TYPE DOORS
1210ACIM
1210ACIMD
WRAP TYPE DOORS
1210ACIMSSD
1210ACSS

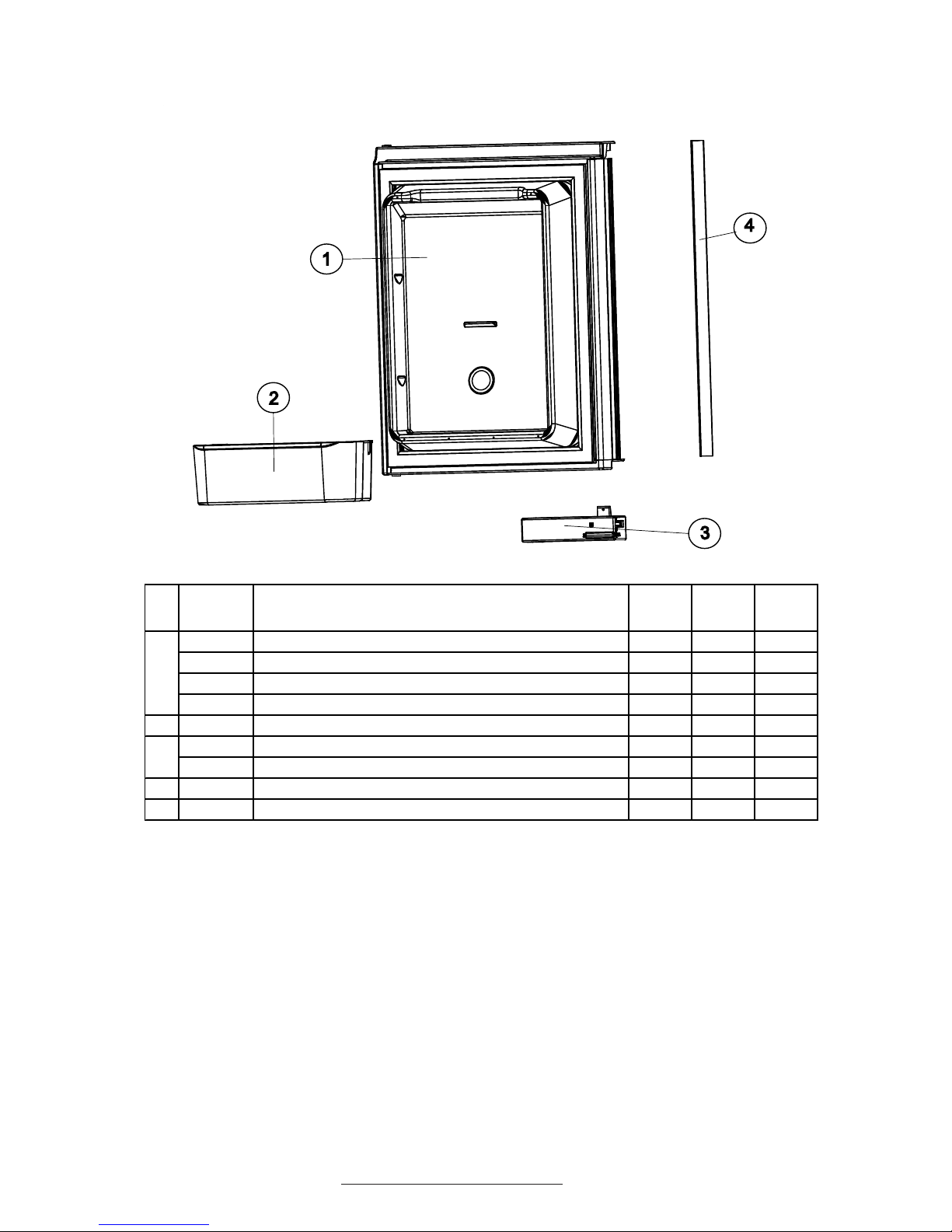

1210 SERIES PARTS LIST - PAGE 2
DOOR - UPPER RH - 1210 SERIES
NO. PART # DESCRIPTION 1210AC
MODELS
1210
MODELS
1211
MODELS
1 627942 DOOR LINER ASSY-UPPER/RH/PANEL PN PN PN
629130 DOOR LINER ASSY-UPPER/RH/WRAP/BLACK BK
630094 DOOR LINER ASSY-UPPER/RH/WRAP/SS (VALSPAR) SS SS SS
62913401 DOOR LINER ASSY-UPPER/RH/WRAP/PEWTER ROYCE WPM
2 628686 BIN-DOOR SHELF ALL ALL ALL
3 629815 DOOR HANDLE ASSY-UPPER RH DOOR/LOWER LH DOOR ALL ALL
621106 DOOR HANDLE ASSY-UPPER RH DOOR/LOWER LH DOOR ALL
NS 619374 STORAGE LATCH-DOOR/BLACK (NOT SHOWN) ALL
4 627947 PANEL RETAINER-UPPER/PANEL TYPE ONLY PN PN PN
PN = PANEL TYPE DOORS
BK = BLACK WRAP TYPE DOORS
SS = STAINLESS STEEL WRAP TYPE DOORS
WPM = PEWTER ROYCE WRAP TYPE DOORS

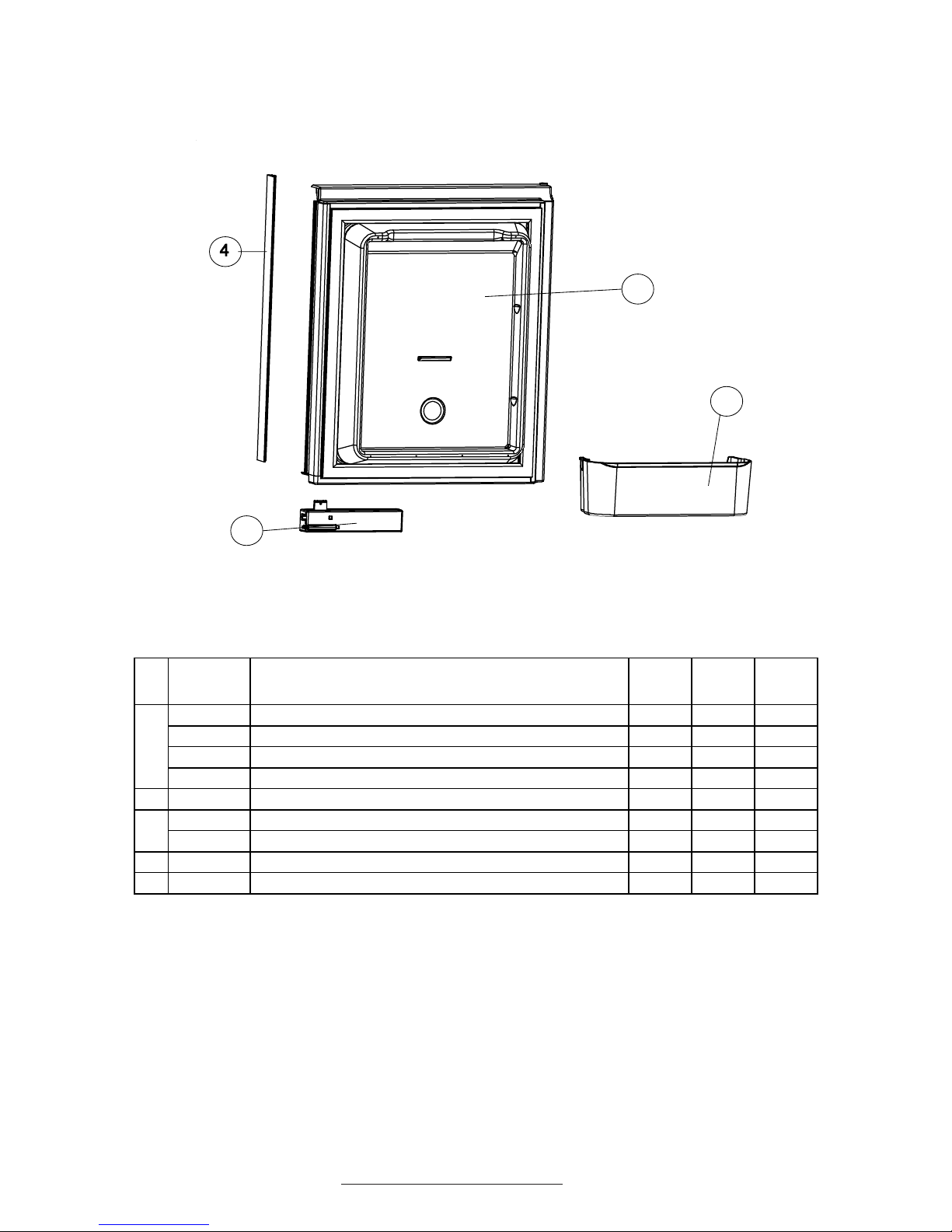

1210 SERIES PARTS LIST - PAGE 3
DOOR - UPPER LH - 1210 SERIES
NO. PART # DESCRIPTION 1210AC
MODELS
1210
MODELS
1211
MODELS
1 627941 DOOR L INER ASSY- UPPER/L H/PANEL PN PN PN
629129 DOOR L INER ASSY-UPPER/L H/WRAP/BLACK BK
630095 DOOR LINER ASSY-UPPER/LH/WRAP/SS (VALSPAR) SS SS SS
62913301 DOOR L INER ASSY-UPPER/L H/WRAP/PEWTER ROYCE WPM
2 628686 BIN-DOOR SHELF ALL ALL ALL
3 629814 DOOR HANDLE ASSY-UPPER LH DOOR/LOWER RH DOOR ALL ALL
621107 DOOR HANDLE ASSY-UPPER LH DOOR/LOWER RH DOOR ALL
NS 619374 STORAGE LATCH-DOOR/BLACK (NOT SHOWN) ALL
4 627947 PANEL RETAINER-UPPER (PANEL TYPE ONLY) PN PN PN
PN = PANEL TYPE DOORS
BK = BL ACK WRAP TYPE DOORS
SS = STAINLESS STEEL WRAP TYPE DOORS
WPM = PEWTER ROYCE WRAP TYPE DOORS
1
2
3

1210 SERIES PARTS LIST - PAGE 4
DOOR - LOWER RH - 1210 SERIES
NO. PART # DESCRIPTION 1210AC
MODELS
1210
MODELS
1211
MODELS
1 627944 DOOR LINER ASSY-LOWER/RH/PANEL PN PN PN
629132 DOOR LINER ASSY-LOWER/RH/WRAP/BLACK BK
630096 DOOR LINER ASSY-LOWER/RH/WRAP/SS (VALSPAR) SS SS SS
62913601 DOOR LINER ASSY-LOWER/RH/WRAP/PEWTER ROYCE WPM
2 628686 BIN-DOOR SHELF ALL ALL ALL
3 627948 PANEL RETAINER-LOWER (PANEL TYPE ONLY) PN PN PN
4 629814 DOOR HANDLE ASSY-UPPER LH DOOR/LOWER RH DOOR ALL ALL
621107 DOOR HANDLE ASSY-UPPER LH DOOR/LOWER RH DOOR ALL
NS 619374 STORAGE LATCH-DOOR/BLACK (NOT SHOWN) ALL
PN = PANEL TYPE DOORS
BK = BLACK WRAP TYPE DOORS
SS = STAINLESS STEEL WRAP TYPE DOORS
WPM = PEWTER ROYCE WRAP TYPE DOORS
1
2
3
4

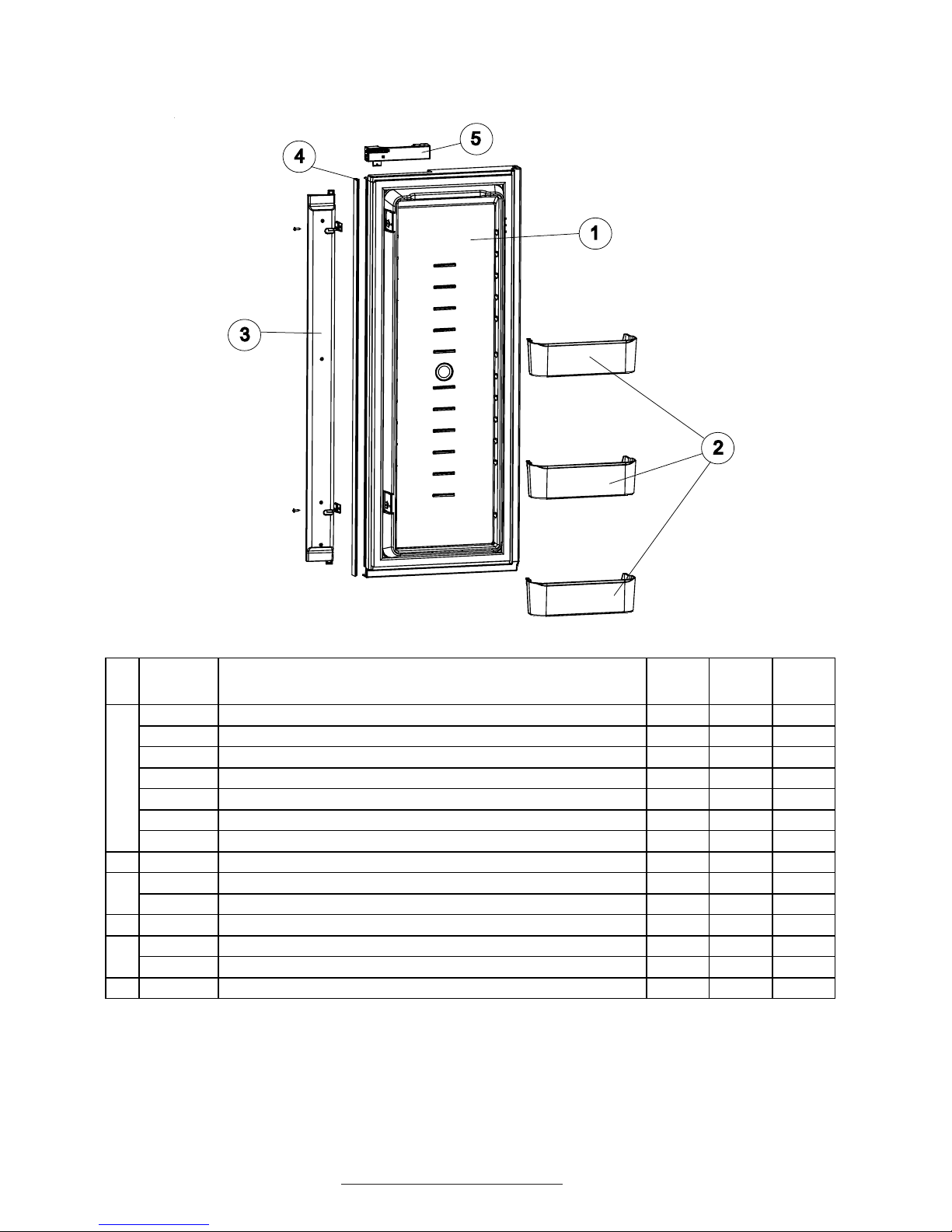

1210 SERIES PARTS LIST - PAGE 5
DOOR - LOWER LH - 1210 SERIES
NO. PART # DESCRIPTION 1210AC
MODELS
1210
MODELS
1211
MODELS
1 627943 DOOR LINER ASSY-LOWER/LH/PANEL PN PN PN
629146 DOOR LINER ASSY-LOWER/LH/PANEL/DISPENSER PND
629131 DOOR LINER ASSY-LOWER/LH/WRAP/BLACK BK
629148 DOOR LINER ASSY-LOWER/LH/WRAP/BLACK/DISPENSER BKD
630097 DOOR LINER ASSY-LOWER/LH/WRAP/SS (VALSPAR) SS SS SS
630098 DOOR LINER ASSY-LOWER/LH/WRAP/SS/DISPENSER (VALSPAR) SSD SSD SSD
62913501 DOOR LINER ASSY-LOWER/LH/WRAP/PEWTER ROYCE WPM
2 628686 BIN-DOOR SHELF ALL ALL ALL
3 631030 FLAPPER ASSY (SERIAL # 10414601 AND ABOVE) ALL ALL ALL
631366 KIT-FLAPPER ASSY/GUIDE BLOCKS (SERIAL# 10414600 & BELOW) ALL ALL ALL
4 627948 PANEL RETAINER-LOWER (PANEL TYPE ONLY) PN PN PN
5 629815 DOOR HANDLE ASSY-UPPER RH DOOR/LOWER LH DOOR ALL ALL
621106 DOOR HANDLE ASSY-UPPER RH DOOR/LOWER LH DOOR ALL
NS 619374 STORAGE LATCH-DOOR/BLACK (NOT SHOWN) ALL
PN = PANEL TYPE DOORS
PND = PANEL TYPE DOORS DISPENSER M ODELS
BK = BLACK WRAP TYPE DOORS
BKD - BLACK WRAP TYPE DOORS DISPENSER MODELS
SS = STAINLESS STEEL WRAP TYPE DOORS
SSD = STAINLESS STEEL WRAP TYPE DOORS DISPENSER MODELS
WPM = PEWTER ROYCE WRAP TYPE DOORS

1210 SERIES PARTS LIST - PAGE 6
CABINET ASSEMBLY - FRONT VIEW - 1210 SERIES
1
2
3
4
5
2
67
8
9
4
10
1
11
13 12
15
16
17
18
1920
210
14
22
22
6
4
2
7
5
9
23
24
24
24
4
3
8
25
25
26
26
26
27
28
21
29

1210 SERIES PARTS LIST - PAGE 7
CABINET ASSEMBLY - FRONT VIEW - 1210 SERIES
.
.
NO. PART # DESCRIPTION 1210AC
MODELS
1210
MODELS
1211
MODELS
1 623528 KIT-INSTALLATION ("U" TRIM PIECES/SCREWS/CAPS) X X X
NS 618170 HOL E PL UG- FOR T OP TRIM PIECE/BL ACK X X X
2 623899 HINGE PIN- UPPER/BLACK X X X
3 628946 HINGE-OUTSIDE/UPPER RH/LOWER LH X X X
4 61550722 HINGE PIN-LOWER X X X
5 624363 HINGE-INSIDE/UPPER RH/LOWER LH X X X
6 6 24 364 HINGE- I NSI DE/ UPPER L H/L OWER RH X X X
7 627955 COVER-HINGE/1210 SERIES X X X
8 623254 TRIM PIECE-SIDE/WITH "U" TOP/BOTTOM TRIM PIECE X X X
9 622033 RETAINER-SHELF X X X
10 628945 HINGE-OUTSIDE/UPPER LH/LOWER/RH X X X
11 631360 GUIDE BLOCK ASSY-BOTTOM/BLACK (SERIAL # 10414601 & ABOV
E
XXX
631366 KIT-FLAPPER ASSY/GUIDE BLOCKS (SERIAL# 10414600 & BELOW) X X X
12 618785 FINS XXX
13 618774 DRIP TRAY-INSIDE/CABINET X X X
NS 622392 DRAIN HOSE ASSY- 1200 SERIES X X X
14 620689 PROBE-CONTACT/LARGE X X X
15 623918 SWITCH-DOOR LIGHT/1200 SERIES X X X
16 620871 LAMP THERMISTER WIRE ASSY X X X
17 629113 CONTROL ASSY-OPTICAL/GE/1210 SERIES X X
629817 CONTROL ASSY-OPTICAL/AC/1210 SERIES X
18 621827 COVER-LAMP BRACKET X X X
NS 61629722 LAMP BRACKET ASSY X X X
NS 61628922 LAMP-GE #214-2/DC LIGHT BULB X X X
19 631359 GUIDE BLOCK ASSY-TOP/BLACK (SERIAL # 10414601 & ABOVE) X X X
631366 KIT-FLAPPER ASSY/GUIDE BLOCKS (SERIAL# 10414600 & BELOW) X X X
20 628473 STRIKE PLATE-BLACK X X X
21 624366 FRONT BOX- DUM M Y BOX ( NON-DISPENSER M ODELS ONL Y) X X X
NS 628460 PLATE- FOR DUM M Y BOX ( NON- DISPENSER M ODELS ONLY) X X X
628454 CONTROL PANEL (DISPENSER MODELS ONLY) X X X
22 618847 SHELF-WIRE/FREEZER/1200 SERIES X X X
23 618849 SHELF-WIRE/SHORT/1200 SERIES X X X
24 618848 SHELF-WIRE/LONG/1200 SERIES X X X
25 618757 CRISPER COVER-GLASS SHELF X X X
26 628688 BIN-BOTTLE/CRISPER X X X
27 628694 DIVIDER-BOTTLE CRISPER X X X
28 618840 SUPPORT WALL-FOR CRISPER BIN X X X
29 625210 STRIP-FREEZER-BLACK X X X
NS 61630422 ICE CUBE TRAY- PL ASTIC (NON- ICE M AKER M ODELS ONL Y) X X X
NS = NOT SHOWN

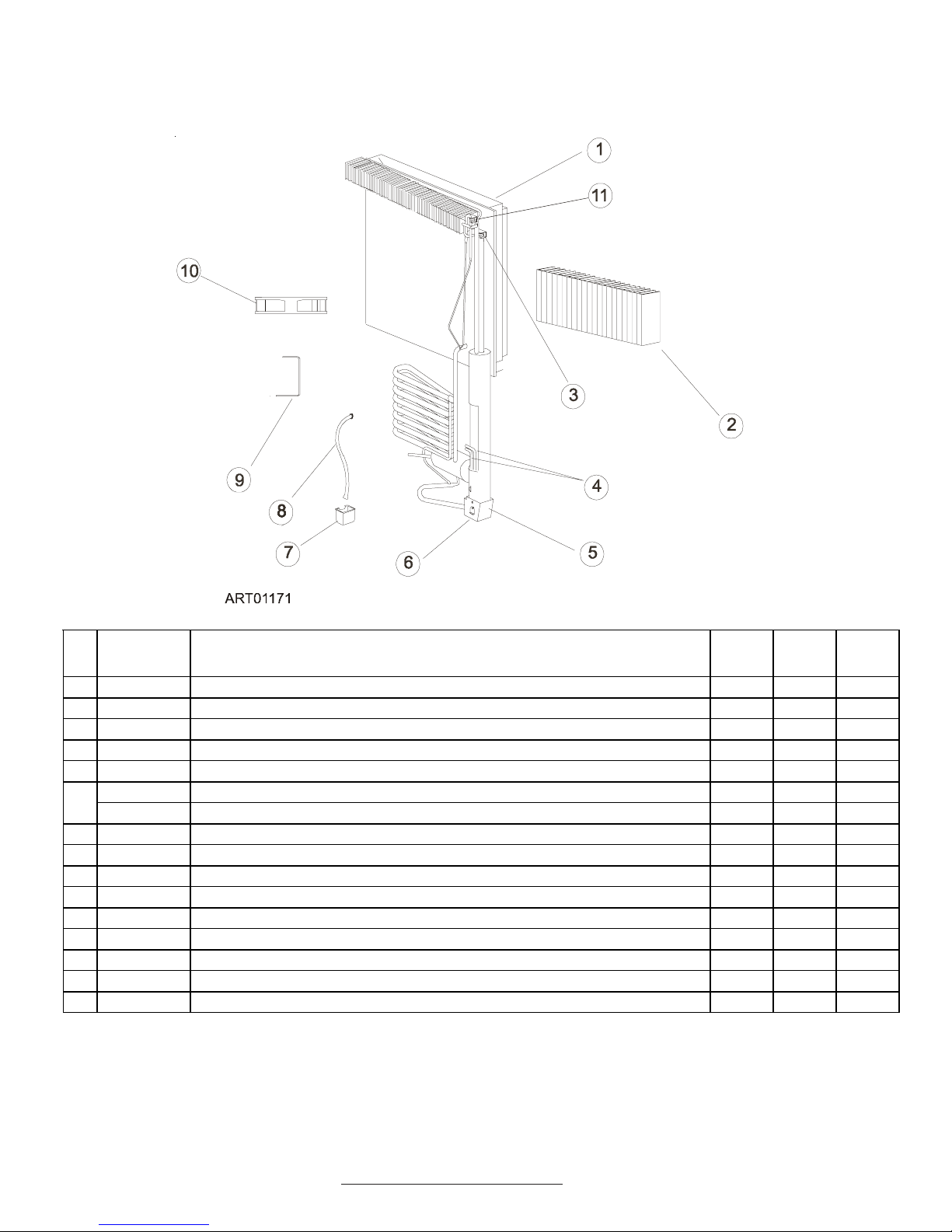

1210 SERIES PARTS LIST - PAGE 8
CABINET ASSEMBLY - REAR VIEW (COOLING UNIT AREA) - 1210 SERIES
NO. PART # DESCRIPTION 1210AC
MODELS
1210
MODELS
1211
MODELS
1 632321 NSC SYSTEM PACK-COOLING UNIT/STEP (BACKER HEATER) X X X
NS 630037 KIT-THERMAL SWITCH REPLACEMENT (SERIAL# 9767070 & BELOW) X X X
NS 630103 KIT-THERMAL SWITCH REPLACEMENT (SERIAL# 9767071 & ABOVE) X X X
2 618785 FINS-EVAPORATOR XXX
3 629099 CAP-HEAT DEFLECTOR X X X
4 618872 HEATER-AC (2 PER SYSTEM)(COOLING UNIT SERIAL# 11231145 & BELOW) X X X
630807 HEATER-AC/BACKER (2 PER SYSTEM)(COOLING UNIT SERIAL# 11231146 & ABOVE) X X X
5 618902 BASE-BURNER BOX XXX
6 618910 COV ER ASSY- BURNER BOX X X X
7 622546 DRIP CUP-REAR/PLASTIC X X X
8 622392 DRAIN HOSE ASSY XXX
9 628747 BRACKET-DC FAN (2 PER SYSTEM)(SERIAL # 9144576 & ABOVE) X X X
NS 628011 SPACER-NYLON XXX
10 628685 FAN-EXTERNAL DC (2 PER SYSTEM)(914576 & ABOVE) X X X
12 618093 THERMOSTAT-DC FAN/THERMO DISC X X X
NS 618915 BAFFLE DIFFUSER/WIRE ASSY-COOLING UNIT/55.15" (NOT SHOWN) X X X
NS = NOT SHOWN

1210 SERIES PARTS LIST - PAGE 9
CABINET - REAR VIEW CONTROLS - 1210 SERIES (G/E)
NO. PART # DESCRIPTION 1210
MODELS
1210IM
MODELS
1211
MODELS
1211IM
MODELS
1 628674 BASE-POWER BOARD X X X X
2 628661 POWER BOARD X X X X
3 628677 COVER-POWER BOARD X X X X
4 628993 BRACKET-GAS VALVE X X X X
5 628741 GAS VALVE X X X X
6 624683 BURNER TUBE-1200 SERIES X X X X
7 629013 KIT- BURNER ORIFICE ADAPTER ASSY (ORIFICE REPLACEM ENT) X X X X
8 61554422 CORD-AC POWER X X X
621755 CORD-POWER/WHIT E ( ICE M AKER M ODELS ONL Y) X
618406 CORD-AC POWER/ICE MAKER X
9 618910 COVER ASSY-BURNER BOX X X X X
10 618902 BASE-BURNER BOX X X X X
11 61692222 ELECTRODE-SPARK/SENSE/SINGLE ELECTRODE/0.25" X X X X
Art01318A
1
2
3
4
5
6
7
8910
11

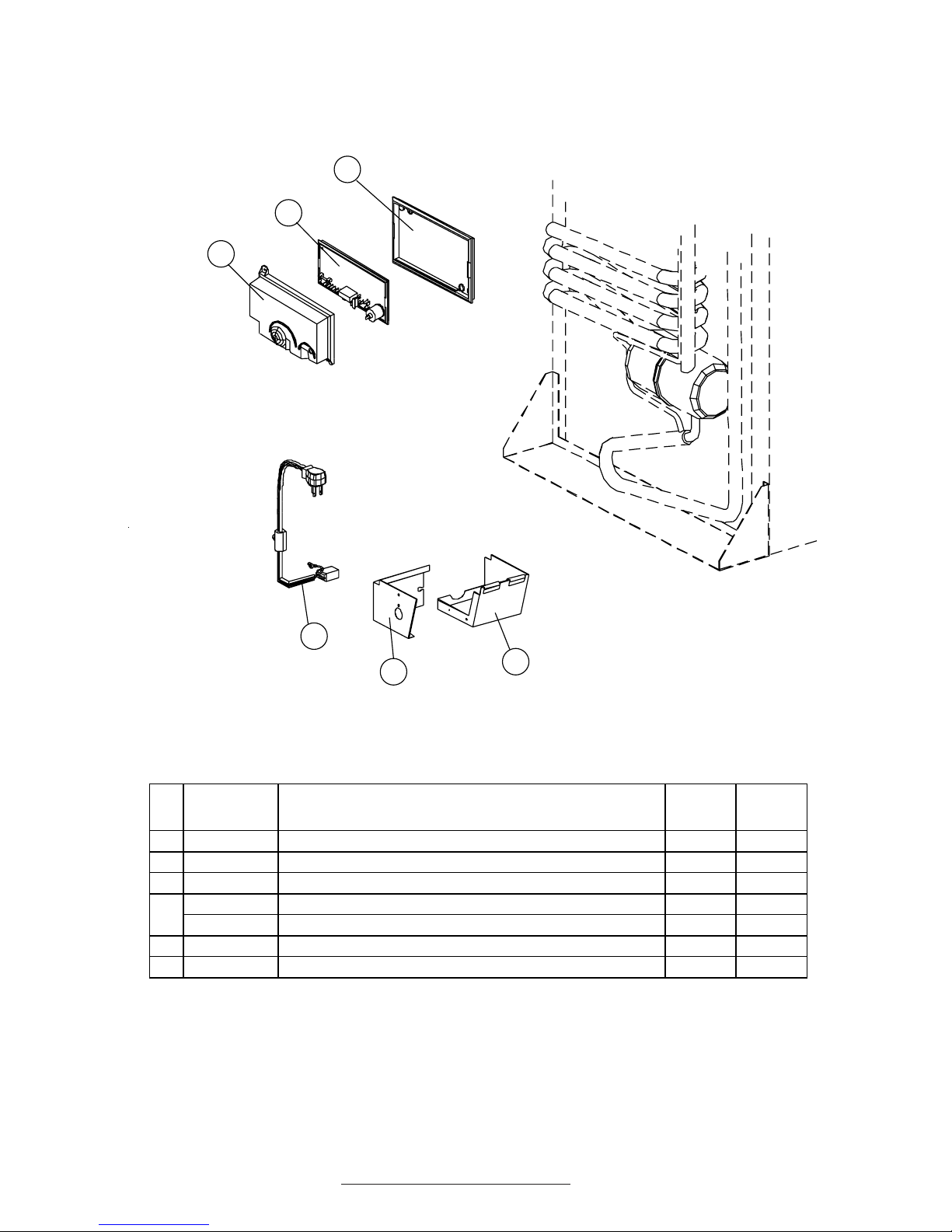

1210 SERIES PARTS LIST - PAGE 10
CABINET - REAR VIEW CONTROLS 1210AC SERIES (ALL ELECTRIC MODELS)
NO. PART # DESCRIPTION 1210AC
MODELS
1210ACIM
MODELS
1 628674 BASE-POWER BOARD X X
2 628661 POWER BOARD (SERIAL # 9098172 & ABOVE) X X
3 628677 COVER-POWER BOARD (SERIAL # 9098172 & ABOVE) X X
4 61554422 CORD-AC POWER X X
621755 CORD-POWER/ICE MAKER/WHITE X
5 618910 COV ER ASSY-BURNER BOX X X
6 618902 BASE-BURNER BOX X X
3
2
1
5
4
Art01318B
6

1210 SERIES PARTS LIST - PAGE 11

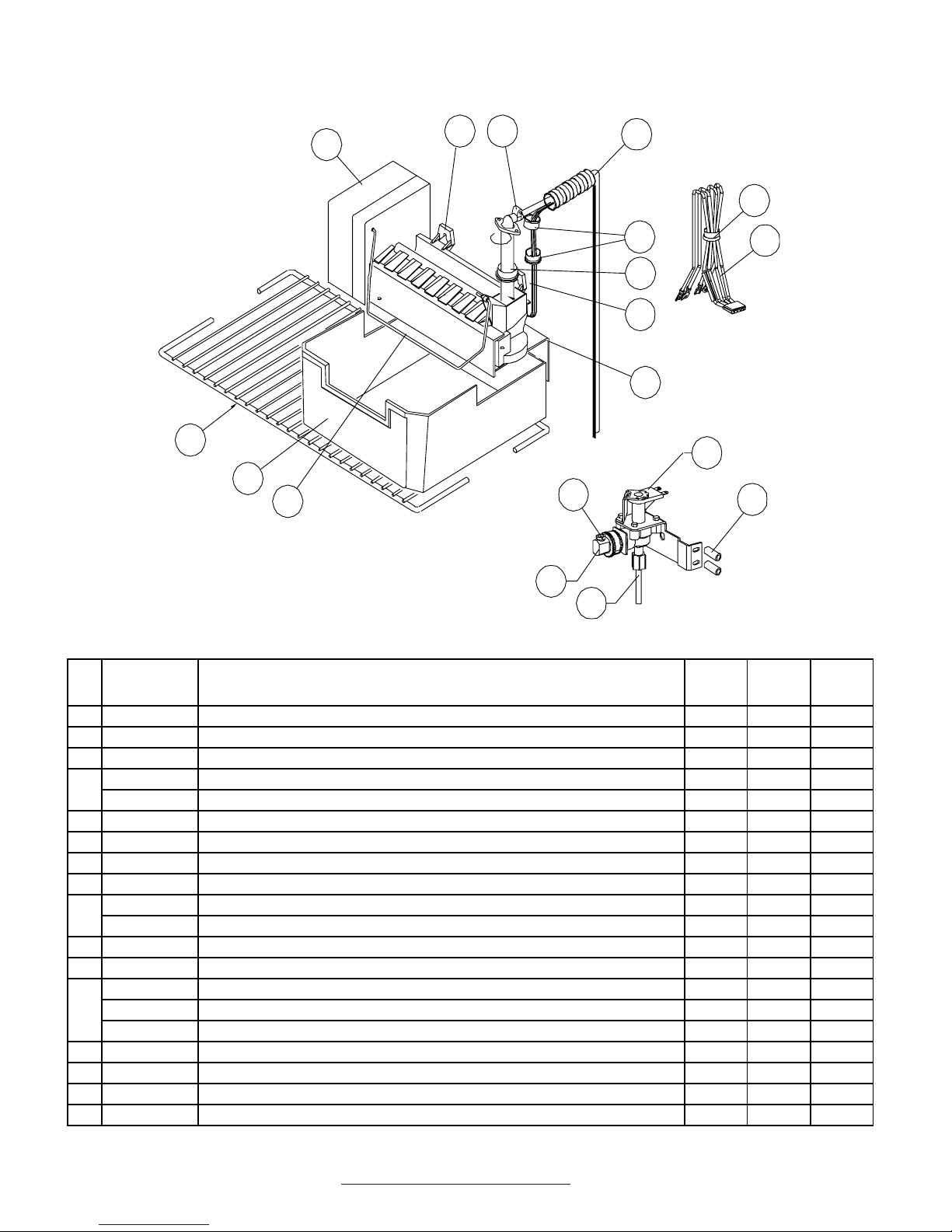

ICE MAKER AND RELATED COMPONENTS - 1210 SERIES - NON-DISPENSER MODELS
NO. PART # DESCRIPTION 1210AC
MODELS
1210
MODELS
1211
MODELS
1 61656822 COVER-FRONT/ICE MAKER X X X
2 621266 ICE MAKER (61656522 WITH AREA AT FILL TUBE ENTRY REM OVED) X X X
3 61690822 CLAMP-TUBING/IM X X X
4 621429 WAT ER T UBE/HEAT ER ASSY/FOR ICE M AKER (M ODELS WIT HOUT DISPENSER) X X X
625879 WAT ER T UBE/HEAT ER ASSY/FOR ICE M AKER (M ODELS WIT H DISPENSER) X X X
5 61541422 BUSHING-SNAP X X X
6 620039 FITTING-WATER TUBE/IM/4.17" X X X
7 618407 WIRING HARNESS-IM X X X
8 620890 BRACKET-IM MOUNTING X X X
9 618253 WATER VALVE-SINGLE PORT X X X
624516 WAT ER V AL V E- DUAL PORT /DISPENSER X X X
10 618169 SPACER- WAT ER V AL V E/NYLON (2 PER ASSEM BLY) X X X
11 61679622 GARDEN HOSE ADAPTER-STRAIGHT/IM X X X
12 622991 NUT-COMPRESSION/WATER VALVE FITTING/IM/PLASTIC X X X
622846 NUT- BRASS/GARDEN HOSE ADAPT ER X X X
625880 NUT- COM PRESSION 5/16"/DISPENSER M ODEL S X X X
13 61656922 SHUT OFF ARM/IM X X X
14 618803 BIN-ICE XXX
15 618847 SHELF-WIRE/FREEZER X X X
NS 620240 THERMOSTAT-IM HEATER ASSY X X X
NS = NOT SHOWN
ART00912B
15
14
13 12
11
10
9
8
7
7
6
5
5
4
4
23
1

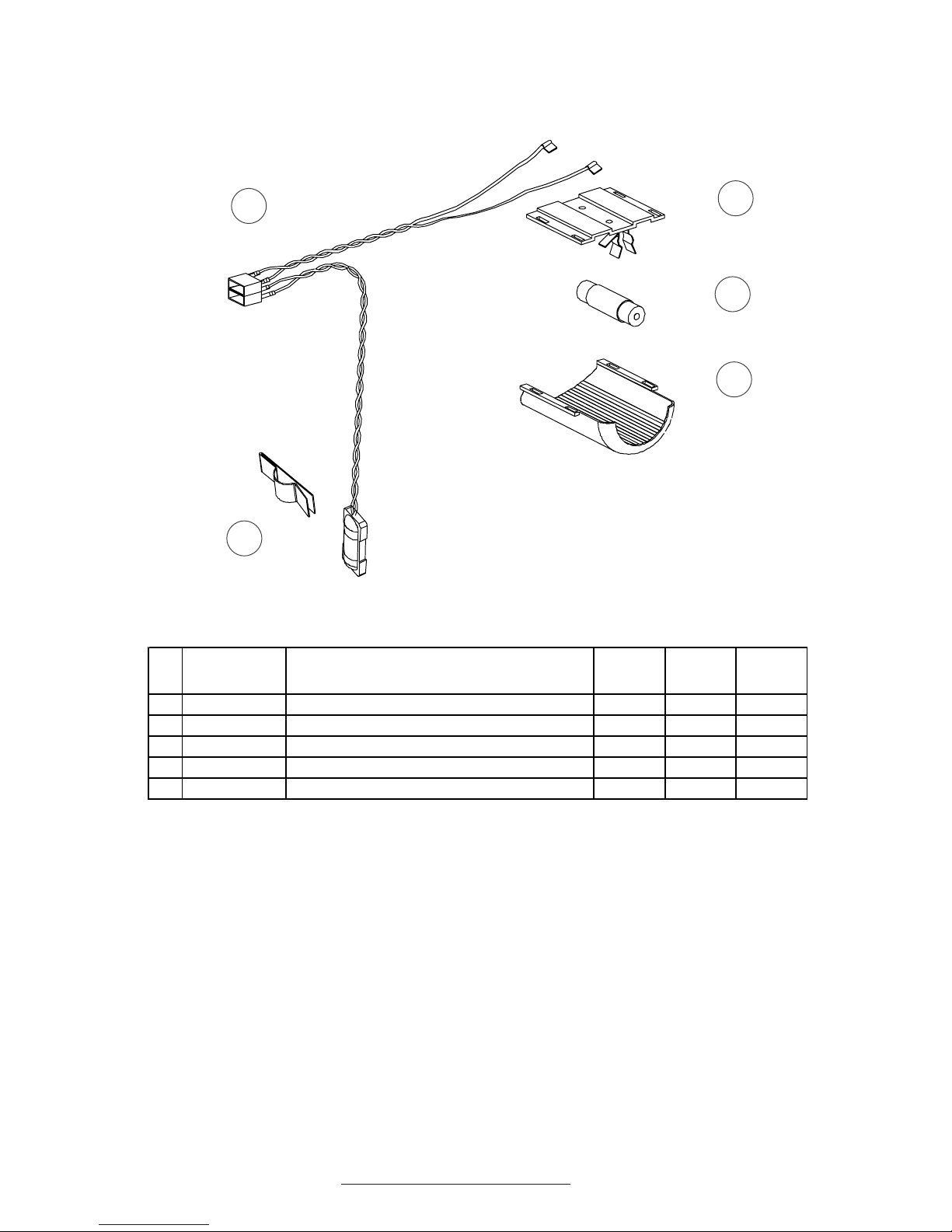

1210 SERIES PARTS LIST - PAGE 12
INTERIOR LIGHT/THERMISTER ASSEMBLY - 1210 SERIES
NO. PART # DESCRIPTION 1210AC
MODELS
1210
MODELS
1211
MODELS
1 61629722 LAMP BRACKET ASSY X X X
2 621827 COVER-LAMP BRACKET X X X
3 61628922 LAMP-GE #214-2/DC LIGHT BULB X X X
4 61689122 CLIP-THERMISTER MOUNTING/FIN X X X
5 620871 LAMP/THERMISTER WIRE ASSY X X X
1
2
3
5
4
Art01178

1210 SERIES PARTS LIST - PAGE 13
WATER DISPENSER - 1210 SERIES - FRONT VIEW
NO. PART # DESCRIPTION 1210AC
MODELS
1210
MODELS
1211
MODELS
1 629528 BACKSPLASH ASSY X X X
2 627570 BACKSPLASH/CLIP ASSY X X X
3 625366 DRIP TRAY X X X
4 618182 SPRING-COMPRESSION X X X
5 624391 PADDLE X X X
6 625385 DRIP CUP X X X
7 625241 DRAIN GRID X X X
8 628454 CONTROL PANEL- HOUSING X X X
9 626820 SPIGOT X X X
10 627143 BOARD-LED X X X
11 628476 BRACKET-SWITCH X X X
12 624574 SWITCH X X X
13 624392 PLUNGER-SWITCH X X X
14 625006 FASTENER-LED BOARD X X X
15 624573 RING- RET AINING X X X
16 629526 SWITCH/BRACKET ASSY X X X
17 624390 TRIM PANEL X X X

1210 SERIES PARTS LIST - PAGE 14
WATER DISPENSER PARTS LISTING - LISTED ALPHABETICALLYBY DESCRIPTION
PART # DESCRIPTION 1210AC
MODELS
1210
MODELS
1211
MODELS
629528 BACKSPLASH ASSY-DISPENSER X X X
627570 BACKSPLASH/CLIP ASSY X X X
627143 BOARD-L ED/DISPENSER X X X
628476 BRACKET - SWIT CH/DISPENSER/1210 SERIES X X X
624503 BRACKET-WATER VALVE/DISPENSER X X X
625881 CONNECTOR-5/16" UNION/DISPENSER X X X
625528 CONNECT OR-UNION/DISPENSER X X X
628454 CONTROL PANEL-HOUSING/DISPENSER/1210 SERIES X X X
625886 COV ER ASSY- RESERV OIR/WIT H V ELCRO/CABINET /DISPENSER X X X
629146 DOOR LINER ASSY-LOWER/LH/PANEL/DISPENSER X X X
629148 DOOR LINER ASSY-LOWER/LH/WRAP/BLACK/DISPENSER X X X
630098 DOOR LINER ASSY-LOWER/LH/WRAP/SS/DISPENSER (VALSPAR) X X X
625241 DRAIN GRID-DISPENSER X X X
625385 DRIP CUP-DISPENSER X X X
625366 DRIP TRAY-DISPENSER X X X
625006 FASTENER- L ED BOARD/DISPENSER X X X
626803 HEATER-WATER LINE-DISPENSER X X X
626804 HEATER-WATER VALVE/DISPENSER X X X
626802 JUMPER-WIRE HARNESS/DISPENSER X X X
625882 KIT-IM TUBE FITTINGS/DISPENSER X X X
625880 NUT-COMPRESSION 5/16"/DISPENSER X X X
624391 PADDLE-DISPENSER X X X
624392 PLUNGER-SWITCH/DISPENSER X X X
624502 WAT ER RESERV OIR- DISPENSER X X X
624573 RING-RETAINING/DISPENSER X X X
626820 SPIGOT-WATER DISPENSER X X X
618182 SPRING-COMPRESSION/DISPENSER X X X
629526 SWITCH/BRACKET ASSY-DISPENSER X X X
624574 SWITCH-DISPENSER X X X
624390 TRIM PANEL-DISPENSER X X X
625879 WATER TUBE/HEATER ASSY/FOR ICE M AKER/DISPENSER X X X
625856 WATER VALVE/HEATER ASSY-DISPENSER X X X
624516 WAT ER V AL V E- DUAL PORT /DISPENSER X X X
NOT E: PART S SPEC IFIC T HE T HE WA T ER DI SP ENSER M ODEL S.
