NORPOLE NP1F User manual
READ THIS MANUAL CAREFULLY BEFORE USING YOUR REACH-IN
FREEZER AND KEEP IT FOR FUTURE REFERENCE.
Model NP1F / NP2F / NP3F
Reach-In Freezer
User’s Manual
2
PRODUCT REGISTRATION
Thank you for purchasing a Norpole® product. The rst step to protect your new product is to complete the product
registration on our website: www.mcappliance.com/register. The benets of registering your product include the following:
1. Registering your product will allow us to contact you regarding a safety notication or product update.
2. Registering your product will allow for more efcient warranty service processing when warranty service is
required.
3. Registering your product could act as your proof of purchase in the event of insurance loss.
Once again, thank you for purchasing a Norpole product.
3
CONTENTS
PRODUCT REGISTRATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
IMPORTANT SAFETY INSTRUCTIONS...............................2
INSTALLATION INSTRUCTIONS ....................................3
OPERATING INSTRUCTIONS ......................................4
CARE AND MAINTENANCE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
TROUBLESHOOTING ............................................6
WARRANTY ....................................................7
4
IMPORTANT SAFETY INSTRUCTIONS
WARNING: Hazards or unsafe practices which COULD result in severe personal injury or death.
CAUTION: Hazards or unsafe practices which COULD result in minor personal injury or property damage.
1. Read all instructions before using the appliance.
2. CAUTION: Installation and maintenance should only be performed by certied professionals.
Improper installation could result in serious harm or death and may void your warranty.
3. Any self-modication, improper installation, adjustment or maintenance can lead to property loss or
casualty. Please contact customer service for any adjustment or maintenance, and have the work
done by a trained & qualied person.
4. To minimize shock and re hazards, be sure not to overload the outlet or circuit. Please designate
one outlet for the unit.
5. WARNING: DO NOT insert or pull out the plug with wet hands.
6. The power cord is equipped with a 3-prong grounding plug to protect against shock hazards. ALWAYS
plug cord into a properly installed and grounded 3-prong wall receptacle. Refer to the manufactures
rating label for electrical and other technical data specic to this unit.
7. DO NOT modify or cut the power cord, or use any other cord or plug. DO NOT use an extension cord.
8. This appliance should not be operated by anyone that is not able to follow proper safety procedures
or does not have experience with this type of equipment, unless under close supervision. Keep
children away from the device.
9. WARNING: DO NOT store anything ammable or explosive in or near the unit.
10. ALWAYS unplug the unit if it is not being used for long periods.
11. ALWAYS unplug the unit for cleaning or maintenance.
12. WARNING: DO NOT put your hands or feet under the unit when moving it.
13. CAUTION:DO NOT hang on the doors.
READ AND FOLLOW THIS
SAFETY INFORMATION CAREFULLY
SAVE THESE INSTRUCTIONS
5
INSTALLATION INSTRUCTIONS
CAUTION:Read all instructions before installing
• Allow the unit to stand in place at least 24 hours after transporting or moving before plugging it in.
• Make sure that the unit has reached the desired operating temperature before loading product into it.
• Make sure that there is proper ventilation around the unit and in the space in which it will be used.
• Verify that all accessories (shelf clips, shelves, casters, etc.) are correctly installed and in place prior
to plugging in.
• Be sure to read the manual in its entirety before using the unit.
• Make sure that the unit is not resting on or against the electrical cord or plug.
INSTALLATION LOCATION
• Install the unit on a level surface that can support weight of the unit. Uneven surfaces may cause the
unit to make noises or not function properly.
• Install in an indoor, well-ventilated area. The unit will function more efciently with proper ventilation.
ALWAYS allow for 4” of clearance in the back of the unit.
• This unit is not intended for outdoor use. Using it outdoors can result in decreased efciency and
may cause the unit to malfunction or become damaged.
• DO NOT install in an area with high humidity or that is very dusty. Humidity can lead to rusting of the
components or surfaces, and dust can cause the condenser coil to malfunction. Be sure to clean the
condenser regularly, at least once a month, with a brush or clean cloth.
• DO NOT install the unit near any sources of heat or moisture generating equipment. High ambient
temperatures can cause the compressor to overwork, leading to higher energy consumption and
gradual breakdown of the unit.
NOTE:Installing the unit in an improper location or manner may result in failure of the unit, and could
void the warranty.
ELECTRICAL SUPPLY
ALWAYS make sure that the unit is plugged into a properly installed and grounded dedicated outlet that
meets the requirements listed on the ratings label and that has appropriate overcurrent protection. Voltage
that is too high or too low can detrimentally affect the operation of, or damage, the unit. DO NOT modify or
cut the power cord, or use any other plug or an extension cord.
6
OPERATION INSTRUCTIONS
CONTROL PANEL AND DISPLAY
CONTROL PANEL AND DISPLAY
Function Description
On On Off Blink Start Up
Compressor
On when the compressor starts.
Flashes when compressor is
delayed by safety times.
Compressor
on
Compressor
off
Awaiting
activation
Fan
On when the fan starts. Flashes
when fan is prevented due to being
disabled or procedures in progress.
Off Fan off Awaiting
activation
Defrost
On when defrost is activated.
Flashes when defrost is prevented
due to being disabled or procedures
in progress.
Off Defrost not
in progress
Awaiting
activation
Clock
On if at least one timed defrost has
been set up. At start up, comes on
for a few seconds to indicate the
Real Time clock is tted.
Output Off
No timed
defrost
event set
Alarm clock
On if
real-time
clock is
present
Light Flashes if the anti-sweat heater is
active. No Alarm
Light
auxiliary
output off
Anti-sweat
heater
function active
Continuous
Cycle
The control panel and display are located
at the top, right side on the front of the
unit, next to the main power switch.
a. Door Lock
b. Door
c. Display
d. Control Panel
e. Main Power Switch
abc d e
Figure 1
Figure 3Figure 2
Prg
Set
auxmute
def
7
NOTE: Not all features and functions are programmed on all models.
NOTE: It is not recommended to change the default operating parameters for the temperature and
defrost settings, or other advanced settings within the controller. If adjustments to these settings are
needed, please contact customer service or a qualied service technician.
TURNING THE UNIT ON AND OFF
Use the main power switch at the top of the freezer next to the control panel to turn it on and off.
SETTING THE TEMPERATURE
1. Press the SET “Set” button for at least 1 second.
2. Use the UP “aux ” or DOWN “def ” button to increase or decrease the set temperature. The temperature
can be set with a range of -8° F (-22° C) to -0° F (-18° C).
3. Press the SET “Set” button to save the new setting. The unit will now cool to the set temperature.
NOTE: Setting the temperature control too low may result in the evaporator coil building up excessive
ice which can lead to the freezer not cooling properly.
DEFROSTING
There is also an automatic electric defrost system to keep ice from building up on the cooling system. The
defrost cycle is set to operate for a preset amount of time at preset intervals. To manually run a defrost
cycle, press and hold the Down-Defrost button “def ” for 5 seconds.
NOTE: The manual defrost will only happen if the temperature is within the defrost parameters.
NOTE: Opening the door often, or for long periods can cause excessive ice buildup and higher temperatures
in the cabinet, and should be avoided.
CONTINUOUS CYCLE
Press the UP “aux ” or DOWN “def ” buttons simultaneously for 5 seconds to put the unit into Continuous
Cycle mode.
NOTE: It is not recommended to put the unit into the Continuous Cycle mode as doing so may result in
the evaporator coil building up excessive ice which can lead to the freezer not cooling properly.
LOADING PRODUCT
Before loading product onto the pre-installed shelves, make sure that all the shelf clips are securely
fastened, and that the shelves are stable and level. In order to maintain proper airow in the freezer,
be sure to leave 2-4” of clearance between the back wall and product stored in the unit. Blocking the
evaporator fans may result in the cabinet not cooling properly, and can lead to compressor failure. Always
allow the unit to cool down to the set temperature before loading product into it.
NOTE: After unplugging the unit, wait at least 10 minutes before plugging it back in. Failure to do so
could result in damage to the compressor.
8
CARE AND MAINTENANCE
CLEANING THE CONDENSER COIL

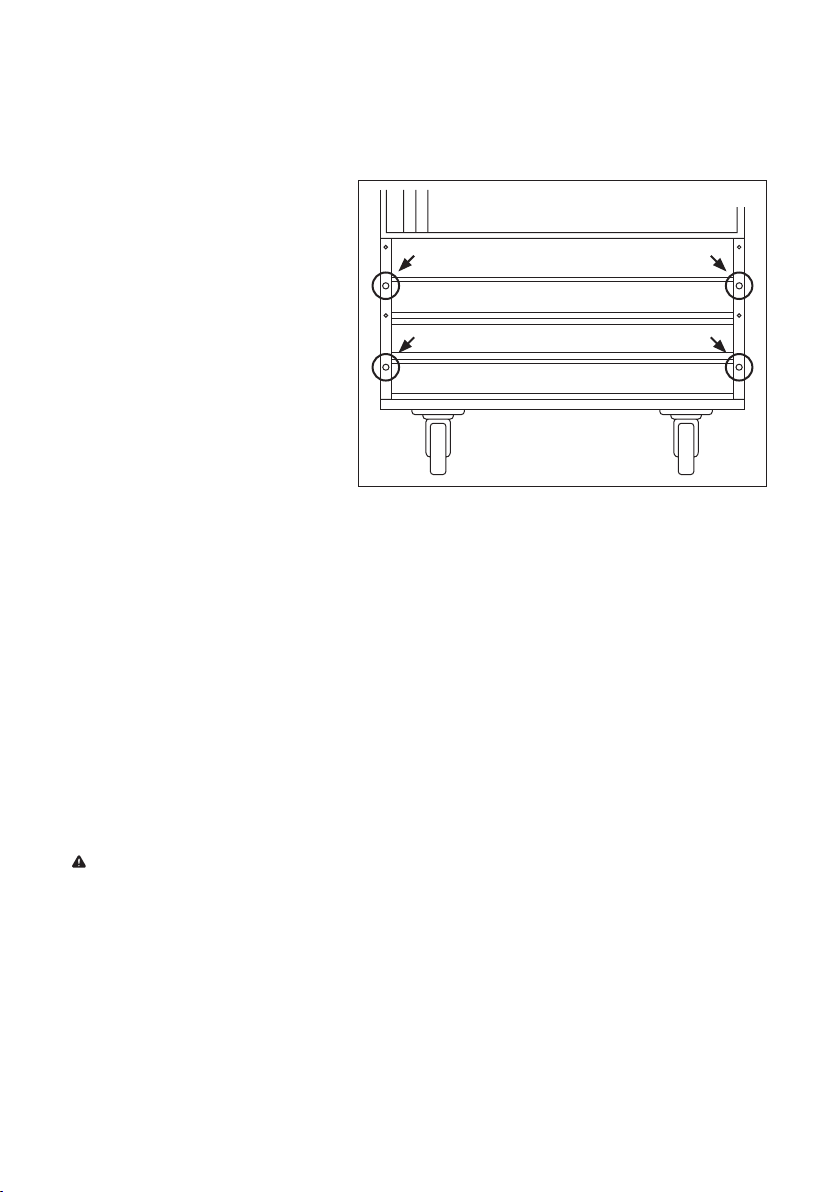

Figure 4
For efcient operation, it is important that
the condenser surface be kept free of
dust, dirt, and lint. It is recommended to
clean the condenser coil and the ns at
least once per month.
Remove the screws holding the vent
cover at the bottom of the unit in the front
(see Figure 4) to access the condenser.
Use a commercial condenser coil
cleaner, available from any kitchen
equipment retailer. Brush the condenser
ns from top to bottom, not side to side.
After cleaning, straighten any bent
condenser ns with a n comb.
CLEANING THE FAN BLADES AND MOTOR
If necessary, clean the fan blades and motor with a soft cloth. When washing the fan blades, be sure to
cover the fan motor to prevent moisture damage.
CLEANING THE INTERIOR
When cleaning the cabinet interior, use a solvent of warm water and mild soap. DO NOT use steel wool,
abrasive cleaners, caustic soap or bleach as those may damage the surfaces.
Door gaskets should be washed on a weekly basis. Simply remove the door gasket from the frame of the
door, soak in warm water and soap for 30 minutes, dry with a soft cloth, and replace on the door. Be sure
to check that they are properly sealing after they are replaced.
Periodically remove the shelves and pilasters from the unit and clean them with mild soap and warm
water. To remove the pilasters, rst remove the shelves and shelf brackets, and then simply lift the pilaster
up and out.
WARNING: ALWAYS disconnect the power cord before cleaning any parts of the unit.
9
TROUBLESHOOTING
Before requesting any service on your unit, please check the following points.
Please note that this guide serves only as a reference for solutions to common problems.
Symptom Possible Cause Corrective Action
Compressor
not running.
Fuse blown or circuit breaker tripped. Replace fuse or reset circuit breaker.
Power cord unplugged. Plug in power cord.
Thermostat set too high. Set thermostat to lower temperature.
Cabinet in defrost cycle. Wait for defrost cycle to nish.
Condensing
unit runs for
long periods
of time.
Excessive amount of warm product
placed in unit.
Allow adequate time for product to cool down.
Prolonged door opening or door ajar. Ensure doors are closed when not in use. Avoid opening
doors for long periods of time.
Door gasket(s) not sealing properly. Ensure gaskets are properly in place.
Remove gasket and clean with soap and water.
Check condition of gasket, replace if necessary.
Dirty condenser coil. Clean the condenser coil.
Evaporator coil iced over. Unplug the unit and allow coil to defrost.
Make sure thermostat is not set too cold.
Ensure that door gaskets are sealing properly.
Cabinet
temperature
is too warm.
Thermostat set too warm. Set thermostat to lower temperature.
Air ow is blocked. Re-arrange contents to allow for proper air ow.
Make sure to allow at least 4” clearance from the evaporator.
Excessive amount of warm product
placed in unit.
Allow adequate time for product to cool down.
Fuse blown or circuit breaker tripped. Replace fuse or reset circuit breaker.
Dirty condenser coil. Clean the condenser coil.
Prolonged door opening or door ajar. Ensure doors are closed when not in use. Avoid opening
doors for long periods of time.
Unit is
noisy.
Loose part(s). Locate and tighten loose part(s).
Tubing Vibrating. Ensure that tubing is not contacting other tubing or any other
components.
10
LIMITED WARRANTY
Norpole, Inc. warrants each new Freezer to be free from defects in material and workmanship and agrees to remedy any
such defect or to furnish a new part(s) (at the company’s option) for any part(s) of the unit that has failed during the war-
ranty period. Parts and labor expenses are covered on this unit for a period of three years from the date of purchase.
In addition, Norpole, Inc. warrants the compressor (parts only) to be free from defects in material and workmanship for a
period of 5 years. The consumer is responsible for all labor and transportation expenses related to the diagnosis and
replacement of the compressor after the initial three-year warranty expires. In the event that the unit requires replacement
or refund under the terms of this warranty, the consumer is responsible for all transportation expenses to return the unit
to our factory prior to receiving a replacement unit or refund. A refund or replacement will be issued at the discretion of
Norpole, Inc. A copy of the dated sales receipt/invoice is required to receive warranty service or a refund.
This warranty covers appliances in use within the contiguous United States, Alaska, Hawaii and Puerto Rico. The warranty
does not cover the following:
• Damages due to shipping damage or improper installation.
• Damages due to misuse or abuse.
• Punctures to the evaporator system due to improper defrosting of the unit.
• Content losses due to failure of the unit.
• Inside components such as the shelves, light bulbs, etc.
• Repairs performed by unauthorized service agents.
• Service calls that do not involve defects in material and workmanship, such as instructions on proper use of the
product or improper installation.
• Replacement or resetting of fuses or circuit breakers.
• Failure of this product if used for purposes other than its intended purpose.
• Disposal costs for any failed unit not returned to our factory.
• Any delivery or installation costs incurred as the result of a unit that fails to perform as specied.
• Expenses for travel and transportation for product service if your appliance is located in a remote area where
service by an authorized service technician is not available.
• The removal and reinstallation of your appliance if it is installed in an inaccessible location or is not installed in
accordance with published installation instructions.
• Refunds for non-repairable products are limited to the price paid for the unit per the sales receipt or invoice.
• This warranty is non-transferable. This warranty applies only to the original purchaser and does not extend to any
subsequent owners.
LIMITATIONS OF REMEDIES AND EXCLUSIONS
Product repair in accordance with the terms herein, is your sole and exclusive remedy under this limited warranty. Any and
all implied warranties including merchantability and tness for a particular purpose are hereby limited to three years or the
shortest period allowed by law. Norpole, Inc. is not liable for incidental or consequential damages and no representative
or person is authorized to assume for us any other liability in connection with the sale of this product. Under no circumstances
is the consumer permitted to return this unit to the factory without the prior written consent of Norpole, Inc.
Some states prohibit the exclusion or limitation of incidental or consequential damages, or limitations on implied warranties.
This warranty gives you specic legal rights, and you may also have other rights which vary from state to state.
Model Parts &Labor Compressor (Part Only) Type of Service
NP1F, NP2F, NP3F 3 Years 5 Years In-Field
For Service or Assistance please call 888-775-0202 or visit us on the web at www.mcappliance.com.
This manual suits for next models
2
Table of contents
Other NORPOLE Freezer manuals
