Nortek NDVT 3000 User manual

NDVt3000NDVt3000

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO
USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightening flash with arrowhead symbol, within an equilateral triangle, is intended the alert the
user to the presence of uninsulated dangerous voltage within the products enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert user to the presence of
important operating and maintenance (servicing) instructions in the literature accompanying the
appliance.
GB-1
Laser product symbol: located on the rear panel of the unit, indicate this player is a class
laser product, only use weak laser and no hazardous radiation outside of the unit.
1.Read through this instruction manual before installation and use.
2.Do not touch the power plug with wet hand.
3.Switch off the main power when the unit is not in use. (Disconnect the power plug from the power outlet
when you do not intend to use the unit for a prolonged period of time.) Before moving the unit, remove the disc
from the unit/ tray first.
4.Do not open the cover or touch any of the components exposed out of the unit, only for qualified technicians.
5.Do not expose the unit under direct sunlight or nearby objects that radiate heat to avoid damage the unit.
6.Do not place the unit in moist and humid conditions, which effect the pick-up of the unit lead to out of work.
7.Place the unit on a flat surface and ventilative condition. Please ensure the ventilation holes are not covered
to avoid overheating and malfunction.
8.Clear the panel and case with soft dry cloth only, do not apply any kind of thinner, alcohol
orsprays.
9. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as
vases, shall be placed on the apparatus
10. unplug the apparatus when not using for a long time oriented to disconnect from the Mains power
11. No naked flame sources, such as lighted candles, should not be placed on the apparatus.
12.Make sure there is free circulation of air (do not place the device on shelves, on a thick carpet, on a bed, or
anywhere that obstructs the ventilation slots, and leave at least 10cm clearance on all sides.
13.The apparatus shall not be exposed to dripping or splashing.
14.The mains plug is used as the disconnect device, the disconnect device shall remain readily operable.
If the electric cable is damaged, it must be replaced by the manufacturer, or by the qualification persons, in
order to avoid a danger.
Macrovision:
This product incorporates copyright protection technology that is protected by method claims of certain U.S
patents and other intellectual property rights owned by Macrovision Corporation, and is intended for home and

GB-2
other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering
or disassembly is prohibited.
Manufactured under license from Dolby Laboratories.
"Dolby" and the double-D symbol are trademarks of Dolby Laboratories.
The product's function maybe reset when it is subjected to electrostatic discharge
disturbance. Just follow the instruction described in this manual to set the function again
for normal operation.
Mains plug is used as the disconnect device. It shall remain readily operable, and should
not be obstructed during intended use.
Please do not use USB extension cords longer than 25cm.
Contents
1. Precautions-----------------------------------------------------------------------------------------3
2. Front Panel and Rear Panel Illustration ------------------------------------------------------------4
3. Remote Control------------------------------------------------------------------------5
4. Connections------------------------------------------------------------------------------------6
5. Function Operation-------------------------------------------------------------------------------------8
6. Playing WMA,MP3 and JPEG discs---------------------------------------------------------------11
7. CD Ripping---------------------------------------------------------------------------------------------12
8. System Setup--------------------------------------------------------------------------------------------13
9. DVB-T Function Operation---------------------------------------------------------------------------17
10. Specification -----------------------------------------------------------------------------------------26
11. Troubleshooting --------------------------------------------------------------------------------26
12 . Recycling---------------------------------------------------------------------------------27

GB-3
1. PRECAUTIONS
Before using this unit, be sure to read the applicable items of the operating instructions and
these safety suggestions carefully.
Afterwards keep them handy for future reference.
Take special care to follow the warnings indicated on the unit itself as well as in the
operating instructions.
Safety
Power Source-The unit should be connected to power supply only of the type described in
the operating instructions or as marked on the unit.
The product's function maybe reset when it is subjected to electrostatic discharge
disturbance. Just follow the instruction described in this manual to set the function again for
normal operation
Environment
1. Water and moisture do not use this unit near water.
For example, near a bathtub, wash bowl, swimming pool, or the like, Damp basements
should also be avoided.
2. Condensation-moisture may form on the lens in the following conditions.
Immediately after a heater has been turned on.
In a steamy or very humid room.
When the unit is suddenly moved from a cold environment to a warm one, if moisture
forms inside this unit, it may not operate properly, to correct this problem wait about one
hour for the moisture to evaporate.
3. Heat never use or place this unit near a heat source.
Do not leave it in an automobile exposed to direct sun light for a long time with the
doors and windows closed as this may deform the cabinet.

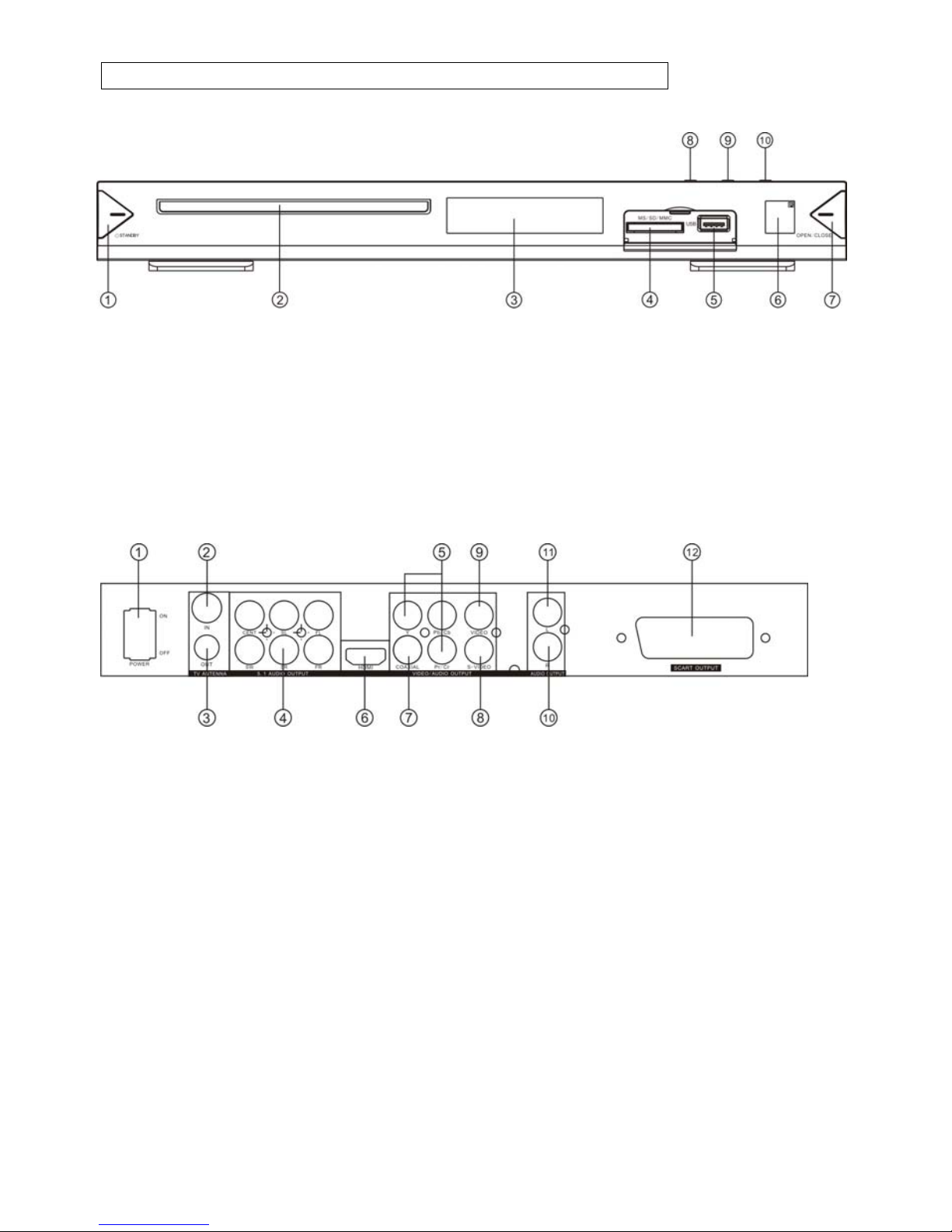

2. FRONT PANEL AND REAR PANEL ILLUSTRATION
Front panel
1. Standby 2. Disc Tray
3.DisplayScreen 4.CardReader
5.USBPort 6.IRSensor
7.OPEN/CLOSE 8.PLAY
9.PAUSE 10.STOP
Rear panel
1.MainPower 2.TVANTENNAIN
3. TV ANTENNA OUT 4. 5.1 Channel Audio Output
5. Component Video Output 6. HDMI Output
7.CoaxialOutput 8.S-videoOutput
9. Composite Video Output 10. AUDIO OUTPUT R
11.AUDIOOUTPUTL 12.ScartOutput
GB-4

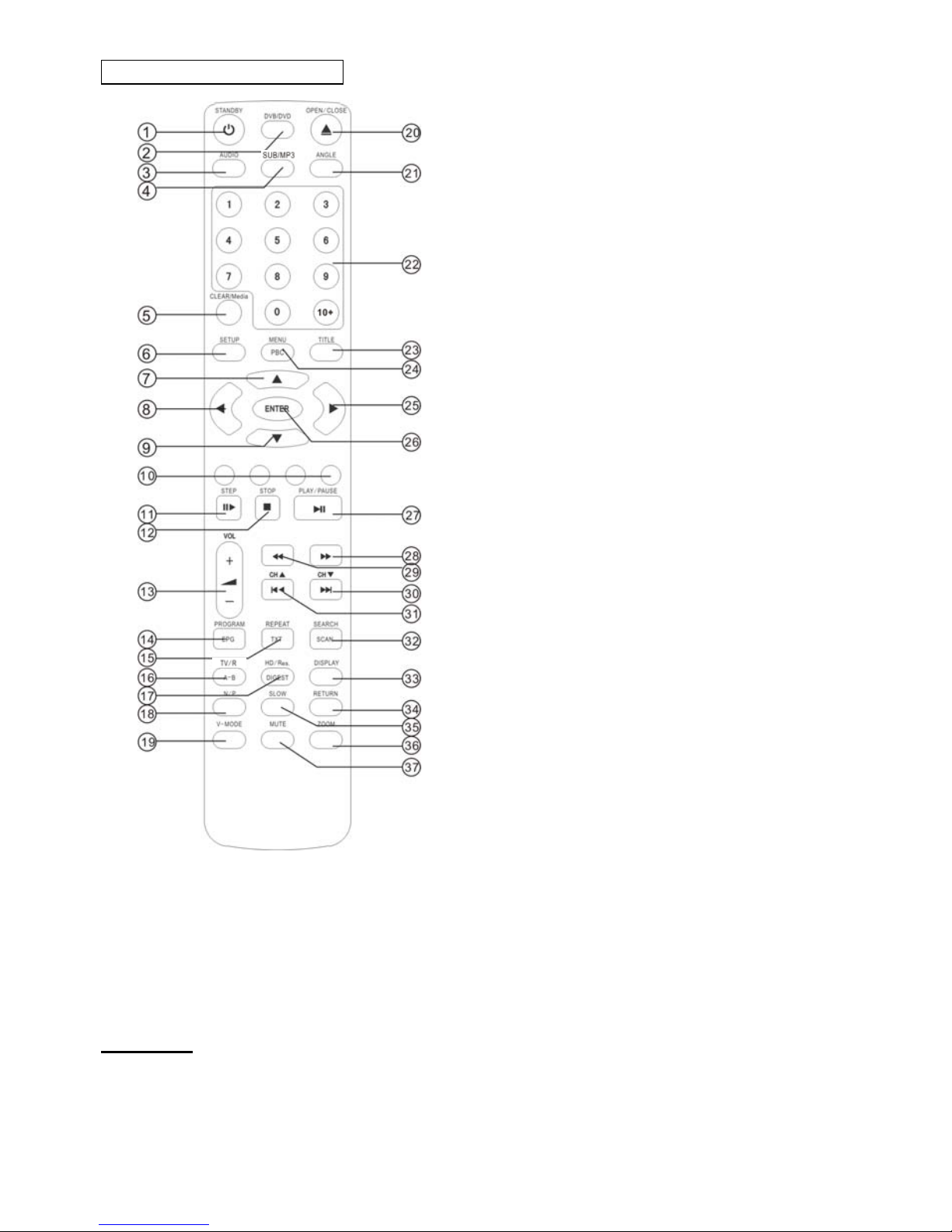

3. REMOTE CONTROL 1. STANDBY
2. DVB/DVD
3. AUDIO
4. SUB/MP3
GB-5

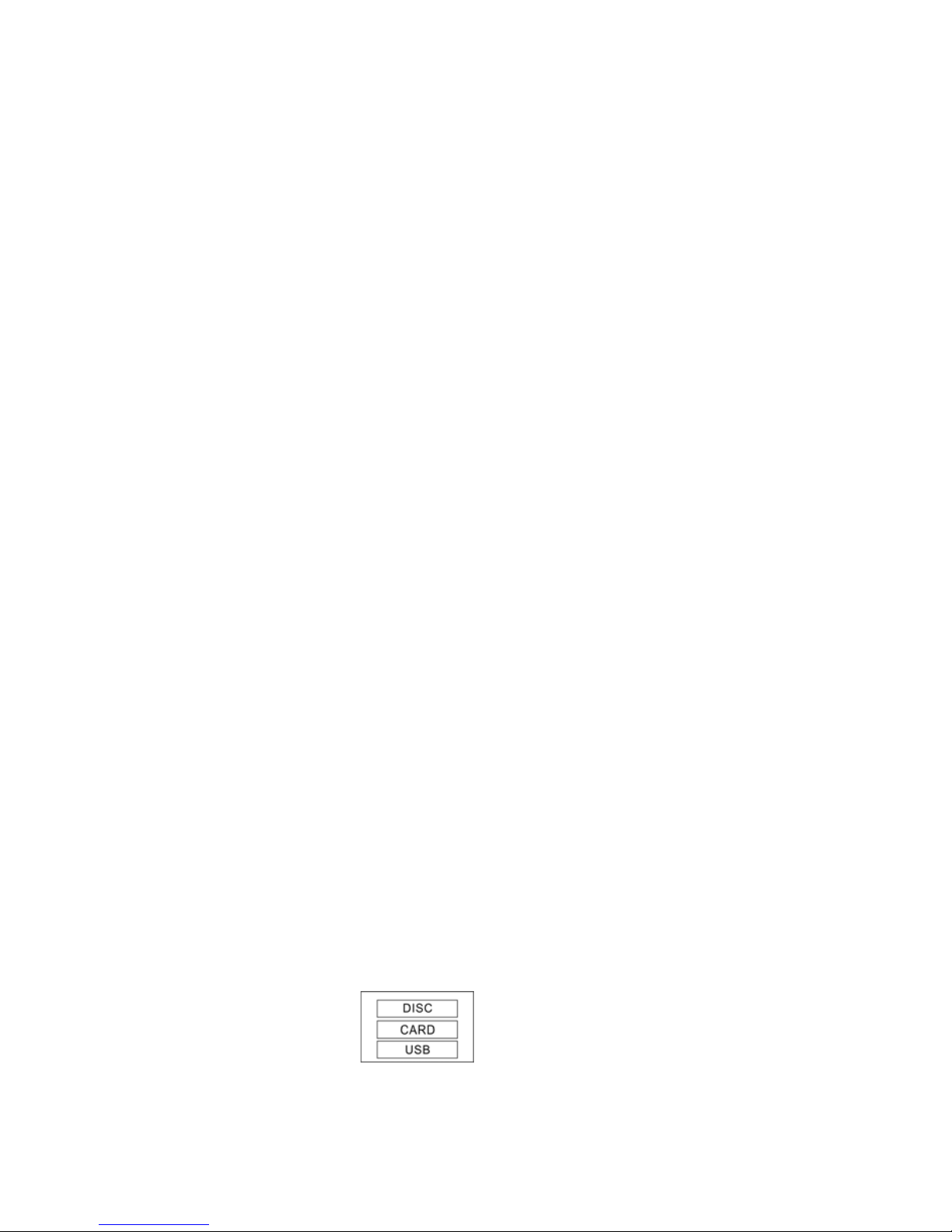

5. CLEAR/Media
6. SETUP
7. UP button
8. LEFT button
9. DOWN button
10.Teletext button
11.STEP
12.STOP
13.VOLUME+/-
14.PROGRAM
15.REPEAT
16.TV/R
17.HD/Res.
18.N/P
19.V-MODE
20.OPEN/CLOSE
21.ANGLE
22.Nuber button
23.TITLE
24.MENU
25.RIGHT button
26.ENTER
27.PLAY/PAUSE
28. Fast forward button
29. Fast reverse button
30.Skip to the next (NEXT) chapter/track/TV channel
31.Skip to the previous (PREV) chapter/track/TV channel
32.SEARCH
33.DISPLAY
34.RETURN
35.SLOW
36.ZOOM
37.MUTE
Using the Remote Control
Unless stated other wise, the remote control can operate all the features of the DVD Player, Always point the
remote control directly at the remote sensor on the front of the DVD Player, not the TV.
Battery Installation
Remove the battery compartment lid on the rear of the remote control by sliding the lid down, then off.
Place two AAA batteries inside the battery compartment with their + and ends aligned as indicated.
Do not mix old and new batteries or different types of batteries
Replace the battery compartment lid. Slide the lid until you hear it click into place.
Important:
When replacing batteries, please take care to waste them in accordance with current regulation. For this
matter please put them in the right assigned place, in order to ensure they are surely recycled while respecting
environment. Do not burn them or burry them.

4.CONNECTIONS
● Turn off the power before connection.
● Turn on the power after finishing connection.
Wires must be firmly connected; especially the plug shall be fully inserted.
DVD+TV
Notes :

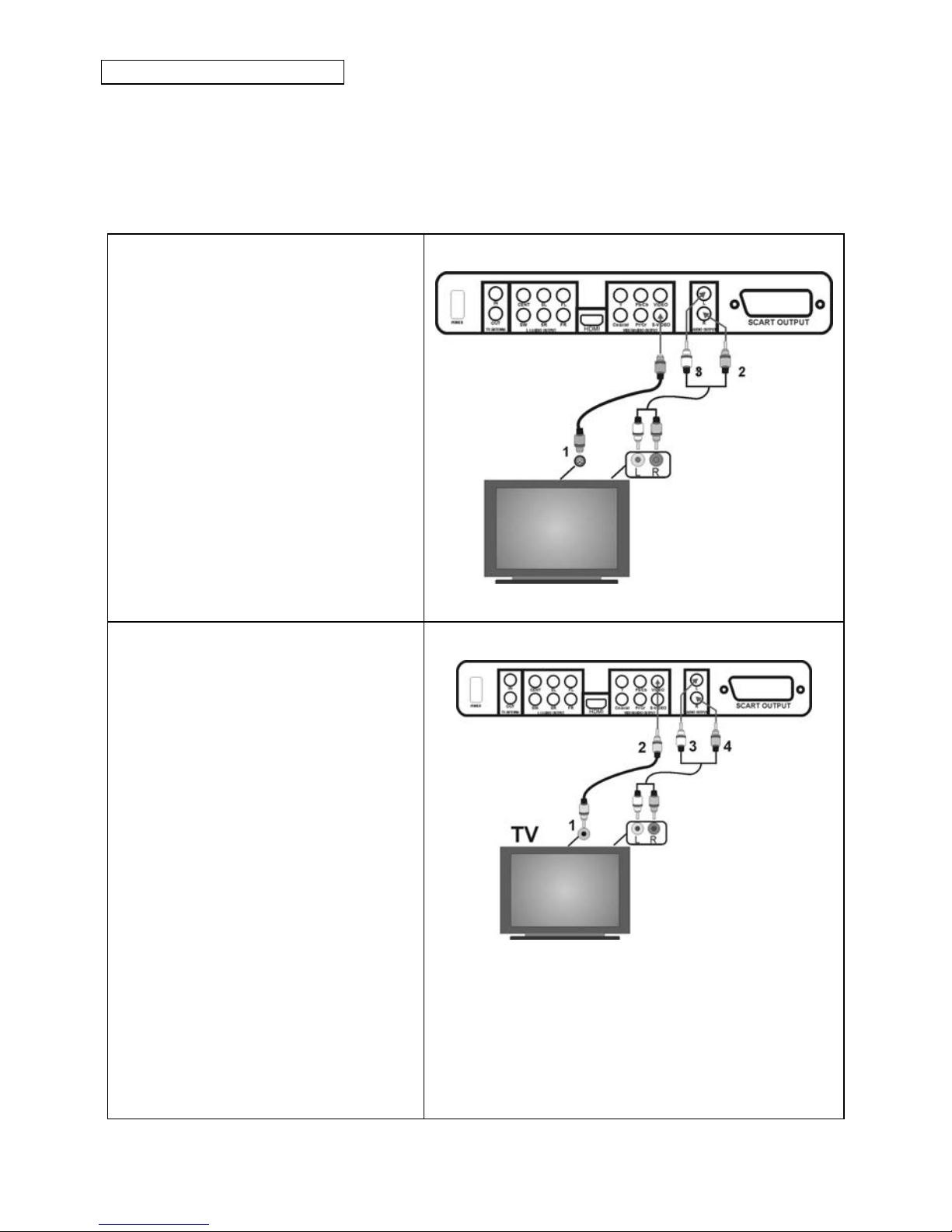

There are the following ways of connecting the player AV output to the TV set:
S-video (Separate video – S-Video cable
not include)
Connect the S-video cable to the S-Video
output of DVD player. Connect the other side
to the S-Video input of your TV. Connect red
and white audio cable to the R – L Audio input
of the player then connect the other side to
the Right / Left audio input of your TV. (use
V-Mode button to set the Video mode on
S-Video).
1- TV S-Video Input
2- Red jack
3- White jack
Composite video cable (on packing)
Connect the Composite video cable on the
Video output of player and the other side to
the Video input of your TV. Connect red and
white audio cable to the R – L Audio input of
the player then connect the other side to the
Right / Left audio input of your TV.
1-TV Video Input (yellow)
2-Yellow Jack
3- White jack
4- Red Jack
GB-6

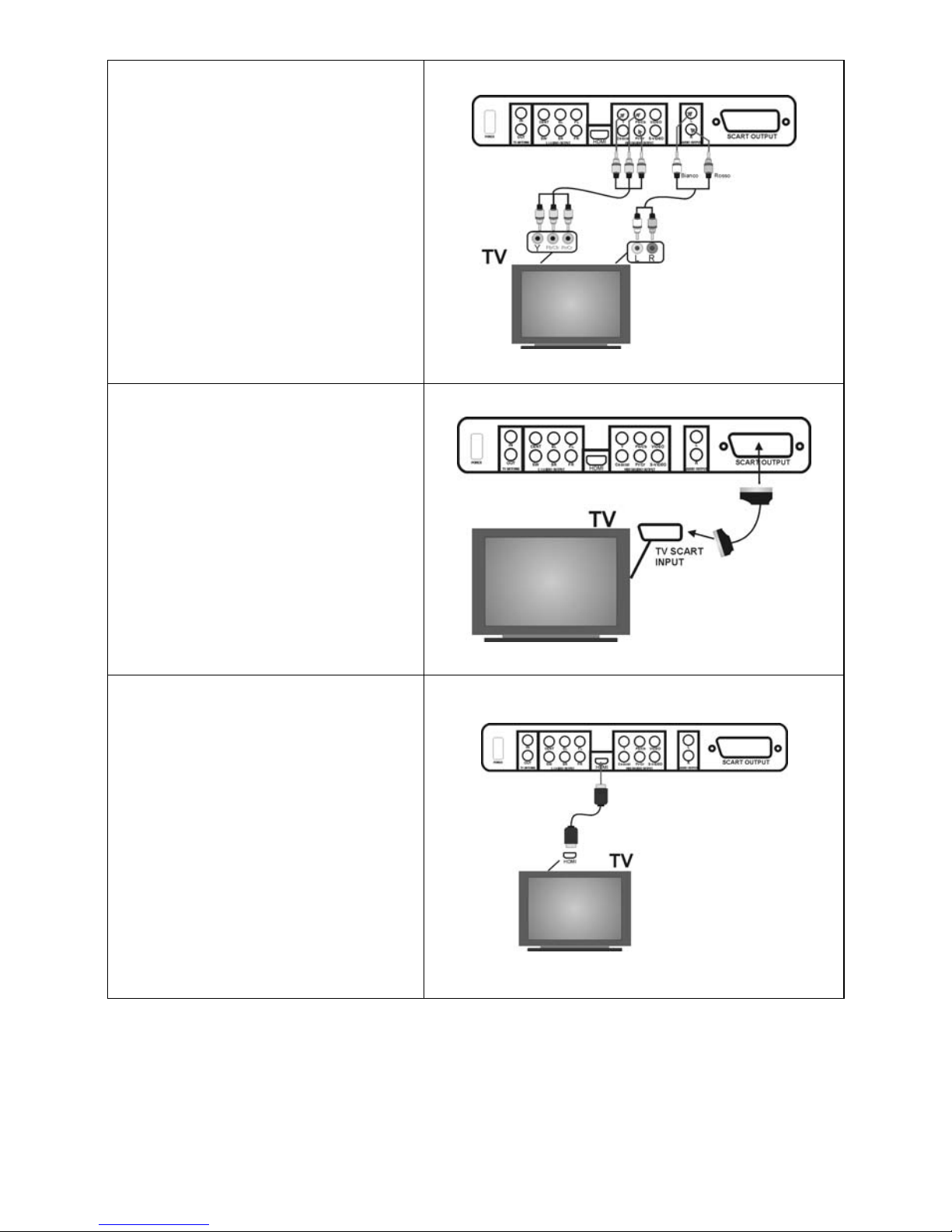

Component Cable (not included in
dotazione)
Connect the Component video cable on the
Y ; Pb/Cb ; Pr/Cr output of player and the
other side to the Y ; Pb/Cb ; Pr/Cr input of
your TV (use the V-Mode button to set the
video mode to component YUV, if your TV
support progressive scan set the Video mode
to P-Scan Ypbpr). Connect red and white
audio cable to the R – L Audio input of the
player then connect the other side to the
Right / Left audio input of your TV.
Scart cable (not included)
Connect the SCART cable to the SCART
output of player, and the other side to the
SCART input of TV. (use the V-Mode button to
set the video mode to RGB).
Cable HDMI (not include)
Connect the HDMI cable to the HDMI output
of player and the other side to the HDMI input
of your TV. (set the Video Mode on HD).
GB-7

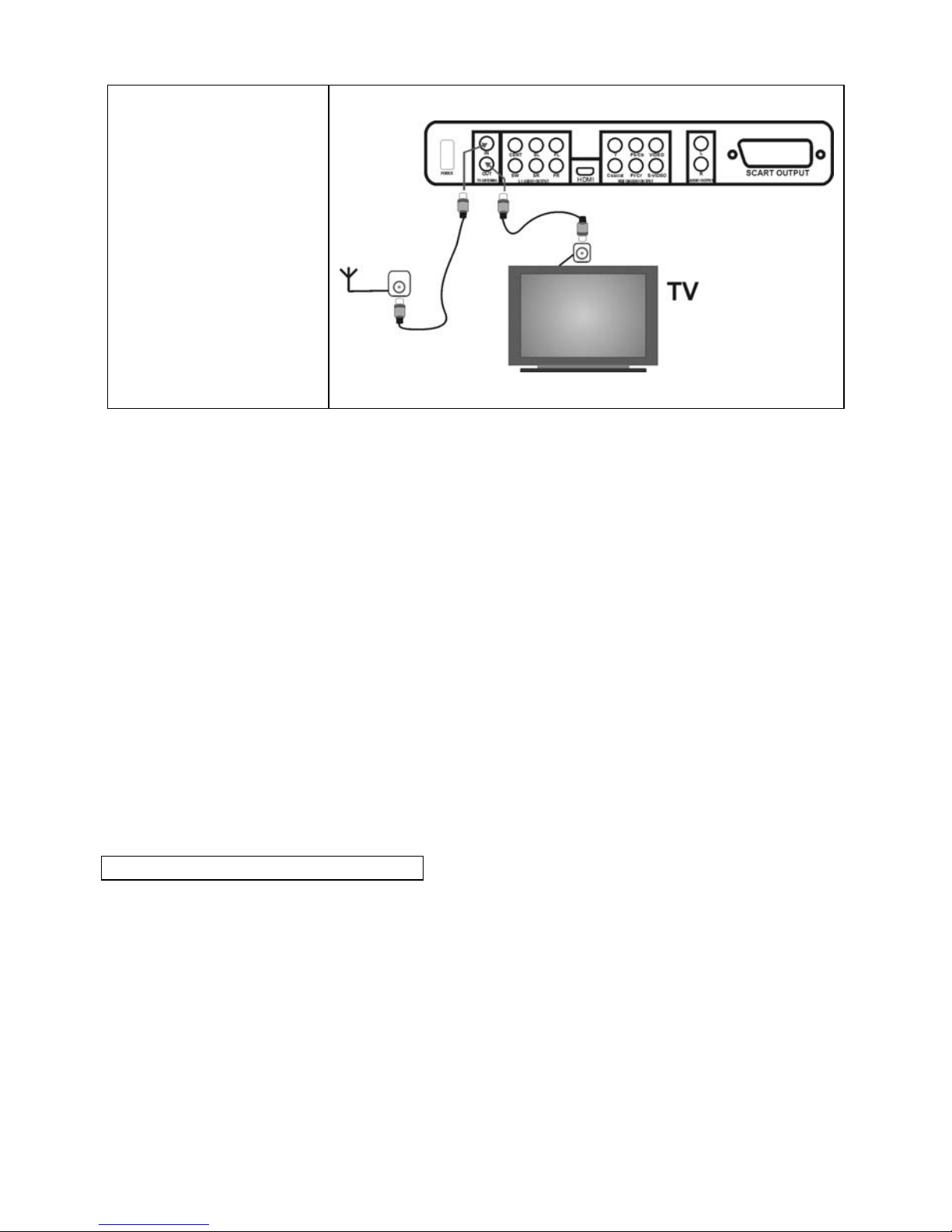

DVB-T
Connect the RF coaxial
antenna cable to the
antenna socket, then
connect the other side
to the Antenna TV IN of
player, connect the
other RF coaxial to the
“TV ANTENNA OUT” of
the player then connect
to the TV antenna IN of
the TV.
DVD+ AV Amplifier:
Notes :
There are the following ways of connecting the player with amplifier:
zleft/right audio output
z5.1 channel audio output
zcoaxial audio output
Warning:
Do not connect any amplifier with coaxial connector that does not contain Dolby digital AC 3
or DTS decoder. Any attempt to do so and play of DVD disc will result in damaging your
speakers and causing possible hearing injury. Other than DVD disc, VCD and CD can be
operated normally without conforming to the above restriction.
Setting of TV system
If you find the image like non-fully zoomed picture, brim picture covered or black & white
picture etc, please select PAL or NTSC by systems setting or press N/P button to switch the
TV system on the remote control. This DVD disc is capable of supporting different scales
picture, as a result, non-full zoomed picture could appear or picture be partially covered on
user’s TV set.
5. FUNCTION OPERATION
5.1 Function Buttons On the Front Panel
These button’s function is the same as the corresponding buttons on the remote control. For
the detail information, please see the following texts.
5.2 Function Buttons On the Remote Control
Menu Play (compatible with DVD, SVCD, VCD2.0 discs)
Press Menu Button to display the DVD Root Menu or SVCD or VCD 2.0 menu.
When menu display, you can press Arrow buttons to highlight the menu item you want to
choose. Press Enter, you can begin to play with the highlighted item.
Title Play (compatible with DVD discs only)
During DVD playback, press Title button to display the DVD title content.
Sequence Play (compatible with DVD, SVCD, VCD, WMA, MP3/JPEG discs)
GB-8

When a SVCD or VCD disc is loaded and MENU is on, once MENU button pressed, MENU
switches off. Then the player can play in sequence playback mode; when MENU button
pressed twice, MENU switches on.
Except for SVCD or VCD discs, in the stop state, when press Playpause button, the player
then enters sequence playback mode. This feature is effective to all the compatible discs.
Program Play (compatible with DVD, SVCD, VCD, CD, WMA, MP3/JPEG discs)
The Program Playback option allows you to enter the order in which you want chapters or
tracks to play, maximum to 16.

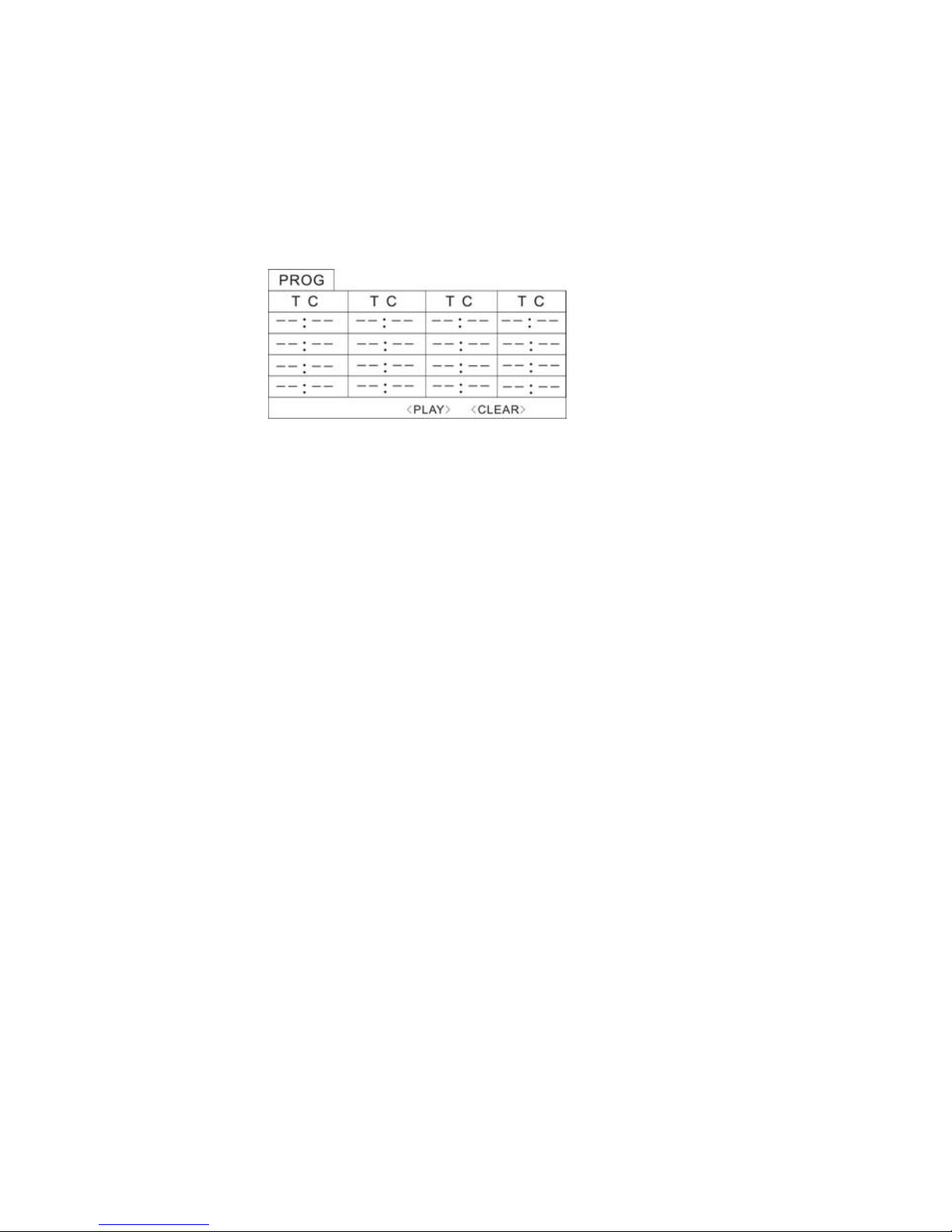

Program Menu:
Press PROGRAM button to enter program playing state.
Using ARROW key to highlight the item.
Using numeric key to enter chapter/track.
Using Play/Pause to start play.
Notes:To clear the programmed order, use Arrow buttons to highlight the “CLEAR” item,
then press Enter.
To modify the programmed order, use Arrow buttons to highlight the modifying item and
enter the new chapter / track you want to program directly.
Advanced operation(some function are invalid for some discs)
Selecting Tracks (compatible with DVD, SVCD, VCD, CD, WMA, MP3/JPEG discs)
Press Numeric buttons to select desired title/ tracks.
Notes: To select tracks from 1 to 9, press corresponding Numeric buttons (1-9, 10).
When selecting track of 10 above, Press 10+button and Numeric buttons(0-9).
Skipping Tracks (compatible with DVD, SVCD, VCD, CD, WMA, MP3/JPEG discs)
To skip forward to the beginning of the next title / chapter / track on a disc, press Next
To skip backward to the beginning of the preceding title / chapter / track on a disc, press
Prev.
Multispeed Fast Motion Playback (compatible with DVD, SVCD, VCD, CD, WMA, MP3
discs)
Press the F.F button to fast forward play.
Fast Forward Playback has four speeds: ×2, ×4, ×8, ×20.
Press the F.R button to fast reverse play. Fast Reverse Playback has four speeds: ×2, ×
4, ×8, ×20.
Note :Press Playpause button to resume normal playback.
Multispeed Slow Motion Playback (compatible with DVD, SVCD, VCD discs)
Press Slow button to enter Slow Motion Playback mode.
Slow Motion Playback has six speeds: 1/2, 1/3, 1/4, 1/5, 1/6, 1/7.
Press Playpause button to resume normal playback.
GB-9

Freeze Frame and Frame Advance (compatible with DVD, SVCD, VCD, CD,HDCD,
WMA, MP3/JPEG discs)
During CD, HDCD, WMA or MP3 / JPEG playback, press Playpause once to freeze
playback; Press the Playpause button again or Playpause button to resume normal
playback.
During DVD, SVCD or VCD playback, press Playpause once to freeze playback; Press of
the Playpause button again to advance the picture one frame at a time; Press Playpause to
resume normal playback.
Using the Repeat Feature (compatible with DVD, SVCD, VCD, CD, WMA, MP3/JPEG
discs)
While a disc is playing, press Repeat button to switch repeat mode.
DVD playback: Off, Chapter Repeat, and Title Repeat.
VCD playback: Off, chapter Repeat, and Disc Repeat.
Using the Display Feature (compatible with DVD, SVCD, VCD, CD, WMA, MP3/JPEG discs)
Press Display to show playing information.
Changing the Audio Language (compatible with DVD, SVCD discs)
Press Language to change the audio language.
Subtitles (compatible with DVD, SVCD discs)
Press the SUB/MP3 button to switch subtitle language or subtitle off.
Changing the Camera Angle (compatible with DVD discs)
Press Angle to switch camera angle.
Changing the TV System (compatible with DVD, SVCD, VCD, CD, WMA, MP3/JPEG
discs)
Press N/P button to change TV system: NTSC, PAL, and AUTO.
Zoom In the Video Image (compatible with DVD, SVCD, VCD, JPEG discs)
The Zoom Function allows you to enlarge or zoom out the video image .zoom factor: Zoom
2, Zoom 3, Zoom 4, Zoom 1/2, Zoom 1/3, Zoom 1/4, Zoom Off.
Use the Arrow buttons to pan across the screen when the zoom factor is 1, 2 or 3.
Repeat a Specific Segment on the Disc that You Define (compatible with DVD, SVCD,
VCD, CD, WMA, MP3 discs)
During the normal or fast motion playback, press the A-B button once, and “REPEAT A-” will
appear on the screen. This indicates the start of the loop to be repeated.
During the normal of fast motion playback, press A-B again, and “REPEAT A-B” will appear
on the screen. It indicates the end of the loop.
Volume control (compatible with DVD, SVCD, VCD, CD, WMA, MP3/JPEG discs)
You can press the Volume button on the remote controller or the TV set or the amplifier to
control the sound level.
Note: During DVD PCM output playback, this feature does not work.
CLEAR/Media(Disc/USB playback selection )
Press CLEAR/Media button, to switch among Disc/ CLEAR/Media playback, please see the
following interface:
If you want to select disc playing, move the cursor to the DISC and press Enter button,
DISC MODE will be display on the top left corner on your TV.
If you want to select USB playing, move the cursor to the USB and press Enter button, USB
GB-10

MODE will be display on the top left corner on your TV.
If you want to select CARD playing, move the cursor to the CARD and press Enter button,
CARD MODE will be display on the top left corner on your TV.
HD/Res.(HD-Mode)
Press the button to switch HD video output resolution
Note: Under HD mode, this button is used to select the output resolution.
Your DVD player can generate some resolutions that may not be supported by your TV set.
If this happen ,your TV screen will probably turn black. To solve the problem, please
repeatedly press “HD/Res.” button until you select a resolution that can be well supported
by your TV set.
Mute the Audio Output (compatible with DVD, SVCD, VCD, CD, WMA, MP3/JPEG discs)
Pressing the Mute button allows you to reduce sound to an inaudible level. Press the button
again to normal condition.
6. Playing WMA, MP3 and JPEG discs
GB-11
Place a MP3 / JPEG disc into the tray, and the player will auto search the directories saved MP3 / JPEG files.
After searching, it will auto go to the first directory saved MP3 files (to the disc containing both mp3 and jpeg
files; To the disc containing single type of files, it will auto go to the first directory) and play the first song in the
directory (“01:” is highlighted).The screen displays as the picture below:
Use the Arrow buttons to enter the Directory Region and highlight the desired directory, then the first track
under it starts playback; Also you can use the Arrow buttons to enter the File Region and select the file you
want to play.
I. Press the Left and Right arrow buttons, you can activate Directory Region, File Region and File
Switch Region separately.
II. The highlight in Directory Region and File Region is shown as the picture above; While it appears a
transparent rectangle in File Switch Region.
III. In File Switch Region, you can press the Left and Right arrow buttons to switch the highlight, then
press PLAY; the “M”, “P”, and “V” button is illustrated in the above picture. For example, if a disc with
MP3 and JPEG files but without any NES files is loaded, the color of the letter “M” and “P” will appear
to white and “V” black. If a MP3 file playing, “M” turns darker.
IV. To the disc with WMA, MP3 and JPEG files, when playing a JPEG picture, press the Return button to
return to JPEG list.
V. When a picture playing or pausing, press the Arrow buttons to change the display angle:
Up: flip vertical
Down: flip horizontal

Left: rotate 90Ocounter-clockwise
Right: rotate 90Oclockwise
VI. When a picture stop, press the Menu button, the screen displays small pictures. Up to 6 small
pictures are displayed per screen. To view the next 6 pictures, press the Next button or the RIHGT
button to go forward and the Prev button or the LEFT button to go to the previous page.
VII. You can press the Numeric buttons to select the file you want to play. For example, if you desire the
15th track in current list, press the “10+” button once, then press “5”, the 15th starts playback.
Notes: When playing a disc with MP3 files, video cannot be output while only digital audio can.
VIII. When playing JPEG pictures, press the Program button to choose the pictures switched mode.
There are 17 switch modes; Press Program repeatedly to activate the function and choose the required
switch mode: Spread from Up to Down, Spread from Down to Left, Spread from Left to Right, Spread from
Right to Left, Spread from Left Up to Right Down, Spread from Right Up to Left Down, Spread Left Down
to Right Up, Spread from Right Down to Left Up, Spread from Center to Up / Down, Fold from Up / Down
to Center, Fold from Left / Right to Center, Horizontal Shutter, Vertical Shutter, Fold from the Corners to
the Center, Random Play, Off.

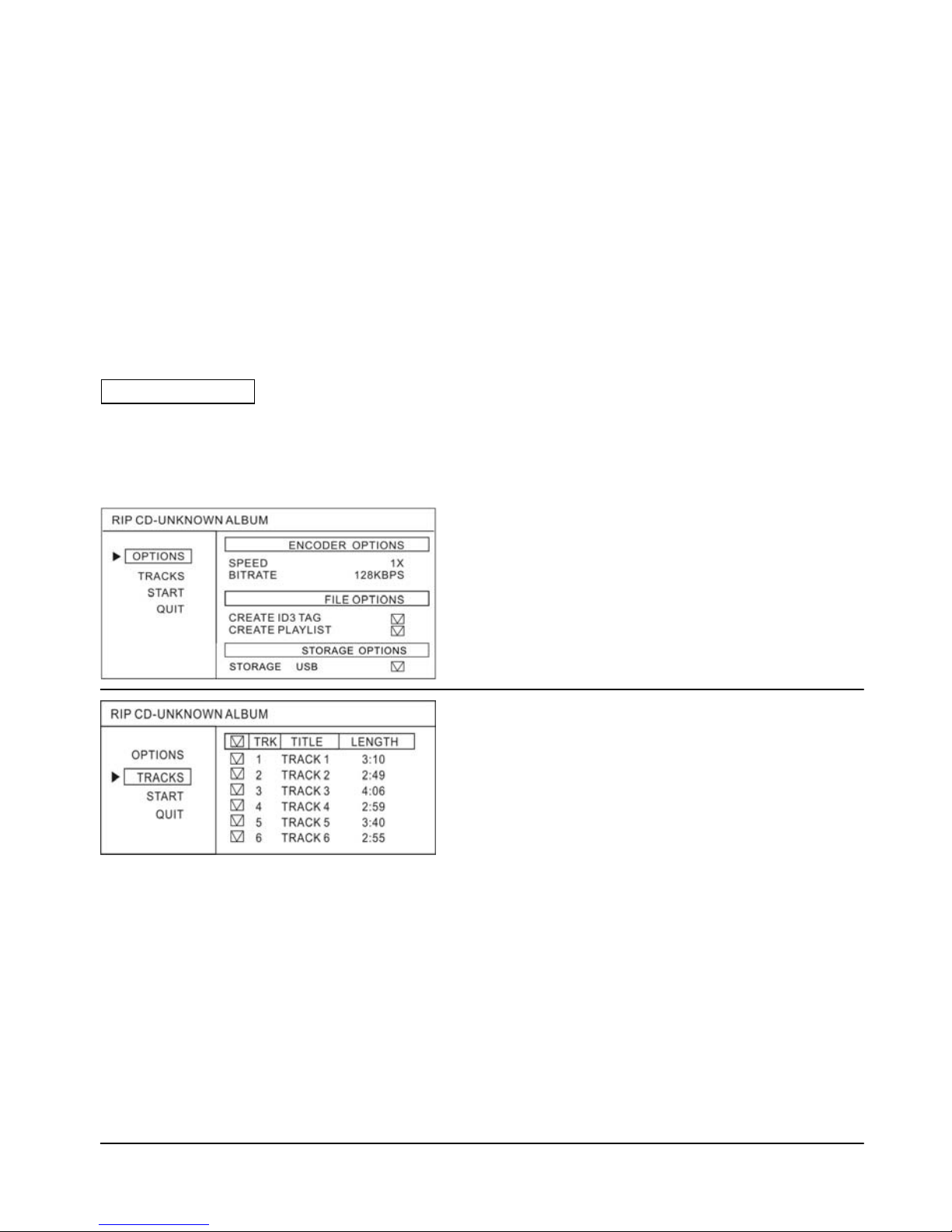

7. CD-RIPPING
Press the SUB/MP3 button on the remote control, the following interface will be display.
Use the direction button(UP,DOWN,LEFT,RIGHT), you can select your desired options
displayed in the interface
Press the ENTER button repeatedly, you can
select different speed, different bitrate, and
create or cancel ID3 tag , create or cancel
palylist.
Use the DOWN direction button ,you can select
TRACKS option, the following interface will be
displayed.
On the top of the picture, press the ENTER
button repeatedly, you can select all the tracks,
and press again, you can unselect all the tracks.
Use the DOWN and UP direction button, and
press ENTER button, you can select or unselect
your desired tracks.

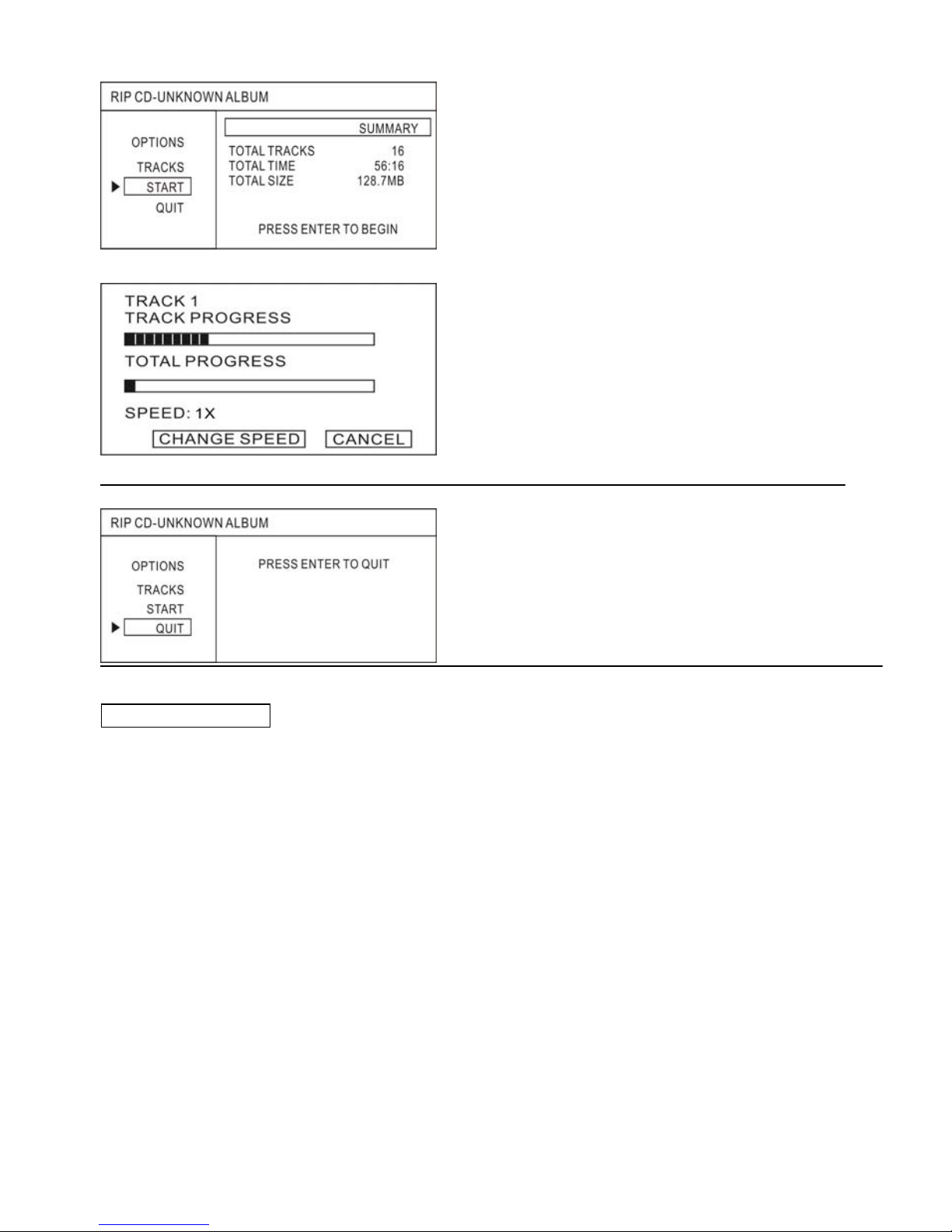

Use the DOWN direction button ,you can select
START option, the following interface will be
displayed.
GB-12

Press the ENTER button, the CD-RIPPING will
begin. In the CD-RIPPING progress, you can
change the speed by pressing ENTER button
and also you can cancel the current operation.
Use the DOWN direction button ,you can select
QUIT option, the following interface will be
GB-13
displayed.
ress ENTER button, you can exit the
. System Setup
P
CD-RIPPING interface.
8
General Steps of Setup Menu setup menu appears.
to pause.
esired page, then press
u. ill turn off the setup menu, while
e illustrated below:
ystem of the TV, you can choose the TV System.
em TV.
Press the Setup button, the main
When the main menu displayed, the DVD system will au
Press the Left and Right arrow buttons to highlight the icon of the d
the Down or Right arrow button to activate that page;
Press the SETUP button again, you can exit Setup Men
Notes: When setup, the pressing of the following buttons w
the choices that have been changed will be saved: N / P, Subtitle, F.F, F.R, MENU, Play,
Stop, Pause / Step, Next, Prev, Zoom, PREV, Repeat, Angle, language, Display, Setup.
8.1 SYSTEM SETUP
The system setup options ar
8.1.1 TV SYSTEM
According to the Color S
AUTO: Choose this settings if your DVD player is connected to a multi-syst
NTSC: Choose this settings if your DVD player is connected to a NTSC TV.
PAL: Choose this settings if your DVD player is connected to a PAL TV.
8.1.2 SCREEN SAVER

GB-14
hen your DVD player is in Stop, Open, or No Disc state, or there
screen saver.
select different resolution. Under this condition, the VIDEO and TV
lution from the normal video output,
ose this setting if your DVD player is connected to a TV with an RGB cable.
YPBPR: Choose this setting if your DVD player is connected to a progressive scan
your DVD player is connected to TV with S-Video cable. g
n): Choose this setting if your DVD player is connected to a wide screen
er is connected to a normal ratio
d to a normal
orded disc format. Some disc can not
have.
s initialized locked, and you cannot set the ratings limit or change the
e is a rating limit system, like movie ratings. It works with DVD discs that
these rating options: 1 KID SAFE,2 G,3 PG,4 PG13,5 PG-R,6 R,7 NC-17,8
If the screen saver is on, w
is a frame frozen for more than 3 minutes, the screen saver will be displayed. This feature
can protect the screen from damage.
ON: Choose this setting to activate the
OFF: Choose this setting to cancel the screen saver
8.1.3 HD OUTPUT
In this option, you can
TYPE are both invalid. The default set is HD OFF.
When you change to the HDMI output with different reso
a interface will be displayed. Select “yes” to confirm change, select “no” to exit.
8.1.4 VIDEO
TV-RGB: Cho
YUV: Choose this setting if your DVD player is connected to a TV with Y, Cb, Cr video
cables.
P-SCAN
TV with Y, Cb, Cr video cables.
S-VIDEO : Choose this setting if
Notes:When your DVD player output composite video, you can choose the settin
randomly.Choose TV-RGB if your DVD player is connected to a RGB TV.
8.1.5 TV TYPE
16 : 9 (Wide Scree
TV. If you choose this setting and you don’t have a wide screen TV, the images on the
screen may appear distorted due to vertical compression.
4 : 3 LB (Letter Box): Choosing this setting if your DVD play
TV. connector You’ll see the movies in their original aspect ratio (height-to-width ratio). You’ll
see the entire frame of the movie, but it will take up a smaller portion of the screen vertically.
The movie might appear with black bars at the top and bottom of the screen.
4 : 3 PS (Pan & Scan): Choosing this setting if your DVD player is connecte
ratio TV. You can fill the movie to the entire screen of your TV. This might mean that parts of
the picture (the left and right edges) won’t be seen.
Notes:The image display ratio is related to the rec
display images in the aspect ratio you choose. If you play a disc recorded in 4:3 format on a
wide screen TV, black bars will appear on the left and right side of the screen.
You must adjust the screen setting depending on the type of the television you
8.1.6 PASSWORD
The password option i
password. In order for the Ratings feature work, the password mode must be turned on. If
you want to set the ratings limit, you will need to enter the default password, which is
0000(press the ANGLE button four times), then press Enter button to confirm.
8.1.7 RATING
The Rating featur
have been assigned a rating. This helps you control the types of DVDs that your family
watches.
There are
ADULT.

GB-15
he password option is locked, you cannot set the ratings limit; the rating limit doe
to resume all the setup options to default settings.
llustrated below:
press the Arrow buttons to choose the
ht the AUDIO LANG option, and press the Arrow buttons to choose the audio
the Arrow buttons to choose the
ns to choose the menu
efault language will be played.
c’s default language will be played.
e illustrated below:
ress the Arrow buttons to choose the audio
utput. If you select this option, the
tting if your DVD player is connected to a power amplifier with
e this setting if your DVD player is connected to a 2-channel digital
nd Down arrow button to move the scroll and adjust the key.
audio effect function could process 2CH audio source into 5CH sound. The
2) DA/MP3/VCD/AC3 2CH audio source.
Notes:If t
not work when the password option unlocked.
8.1.8 DEFAULT
Choose this option
8.2 LANGUAGE SETUP
The language setup options are i
8.2.1 Highlight the OSD LANGUAGE option, and
OSD language you prefer. Press ENTER button to confirm, and it will display OSD in that
language.
8.2.2 Highlig
language you prefer. Press ENTER button to confirm. If the disc you are playing has that
language available, it will output audio in that language.
8.2.3 Highlight the SUBTITLE LANG option, and press
subtitle language you prefer. Press ENTER button to confirm. If the disc you are playing has
that language available, it will displays subtitles in that language.
8.2.4 Highlight the MENU LANG option, and press the Arrow butto
language you prefer. Press ENTER button to confirm. If the disc you are playing has that
language available, it will displays menu in that language
Notes:If your preferred language isn’t available, the disc’s d
8.2.5 Highlight the DIVX SUBTITLE option, and press the Arrow buttons to choose the
Subtitle you prefer. Press ENTER button to confirm.
Notes:If your preferred language isn’t available, the dis
8.3 AUDIO SETUP
The audio setup options ar
8.3.1 Highlight the AUDIO OUT option, and p
output mode you prefer. Press ENTER button to confirm; There are 3 optional audio output
modes: SPDIF/OFF, SPDIF / RAW, and SPDIF/ PCM.
SPDIF/OFF : From the Coaxial Output, no signal is o
HDMI has not audio output.
SPDIF/ RAW: Choose this se
a coaxial cable; When playing a disc recorded with Dolby Digital, DTS and MPEG audio
formats, the corresponding digital signals will be output from the Coaxial Output jack. This
player’s digital output jacks are designed for a connection to a Dolby Digital, DTS , or MPEG
receiver or decoder.
SPDIF / PCM: Choos
stereo amplifier; When playing a disc recorded with Dolby Digital and MPEG audio formats,
audio signals will be modulated into a 2-channel PCM signal, and it will be output from the
Coaxial Output jack. (The default set is SPDIF/PCM for the HDMI audio output )
8.3.2 KEY
Use the Up a
8.3.3 GM5
1) GM5
different modes are achieved by different DSP operating method, and the effects
will be different, too.
GM5 can support CD

GB-16
MA/OFF
orresponding audio effect will be
8.4 VIDEO re illustrated below: N\SHARPNESS
.5 SPEAKER SETUP illustrated below:
n arrow button to move the scroll and adjust the saturation.
movie the
format playing, the
n this option: OFF / ON. When ON is chosen, the player will auto
R DELAY\ REAR DELAY tion
dio channels.
illustrated below:
e this setting to line out the input signal. It will be more suitable for playing
this setting for playing in the day time, for the
E: When “LINE OUT” is selected, choose this setting to adjust the
NMIX OFF.
R mono output mode; There are four modes in this
a. There are extended items of GM5 function: SONG/CINE
b. GM5 will be unable when it is set to OFF.
c. When it is set to SONG or CINEMA, the c
achieved by GM5 function.
SETUP
The video setup options a
BRIGHTNESS\CONTRAST\HUE\SATURATIO
Use the Up and Down arrow button to move the scroll and adjust
8
The speaker setup options are
8.5.1 DOWNMIX
Use the Up and Dow
LT / RT: Choose this setting, it will be sound like in a movie theatre if the original
disc was recorded from was encoded in the Pro Logic Dolby Digital format.
STEREO: when 2-channel sound playing, stereo signal will be output.
VSS: Choose this setting, when a disc recorded with 5.1-channel sound
fictitious surround soundtracks effect will be heard from the main soundtrack.
5.1CH:Choose this setting to output the 5.1-channel sound.
8.5.2 SUBWOOFER
There are two settings i
detect the subwoofer input then output it. When OFF is chosen and the subwoofer input will
not be output
8.5.3 CENTE
You can adjust center \rear delay in this op
8.5.4 FRONT\ CENTER\ REAR
Settings of the front \center \rear au
8.6 DIGITAL SETUP
The video setup options are
8.6.1 OP MODE
LINE OUT: Choos
in the night time, for the output volume is low.
RF REMOD: It will be more suitable to choose
output volume is high.
8.6.2 DYNAMIC RANG
line out ratio and get different effect. If adjusting to FULL, the audio signal peak value will be
the minimum; while adjusting to OFF, maximum.
NOTE: This option will be validated when the DOW
8.6.3 DUAL MONO (LEFT + RIGHT)
Choose this option to setup the L and
option: STEREO, MONO L, MONO R, and MIX MONO.

GB-17
. DVB-T Function Operations9
I. Switch on
Press the power switch (hardware) to turn on the TV set, and the boot screen will be
his operation. The system will first ask the user
hart(9)
Functional
displayed. DVD or DVB mode will be selected by the setting of last time when it’s shut off. If
it is DVD, the system will start reading disk and judge whether there is one in the set. When
there is a disk, it will read and enter play mode, and then the user may operate by the
guiding of DVD remote control keys. When DVB mode is entered, the system will play by
default the program of the channel of last time when it’s shut off. By default, the UI interface
is in English, and the user may operate by the guiding of DVD remote control keys. If there
wasn’t any channel selected last time when it’s turned off or this is the first time the system
is turned on, the options of “initial use installation” will be popped up to enable the initial
settings by the user. Please refer to the detailed introductions of relevant operations.
Introduction on initial use installation
Chart(7), (8) and (9) are for reference of t
whether installation of initial use is needed. Press “YES” to go on, “NO” to exit initial use
installation interface. In Chart (8), it shows how to select country/area, OSD language by the
direction keys. After this setting, select “NEXT” to enter Chart (9), “BACK” to go back to
Chart (8). In Chart (9), the system asks whether to begin auto scan channels. Select “YES ”
to enter Chart (10), and the system to begin auto scanning. Scanning results will be saved
after completion and the first channel will be played. Select “NO” to give up auto scan
channels and exit initial use installation menu, and “BACK” to return to Chart (8) interface.

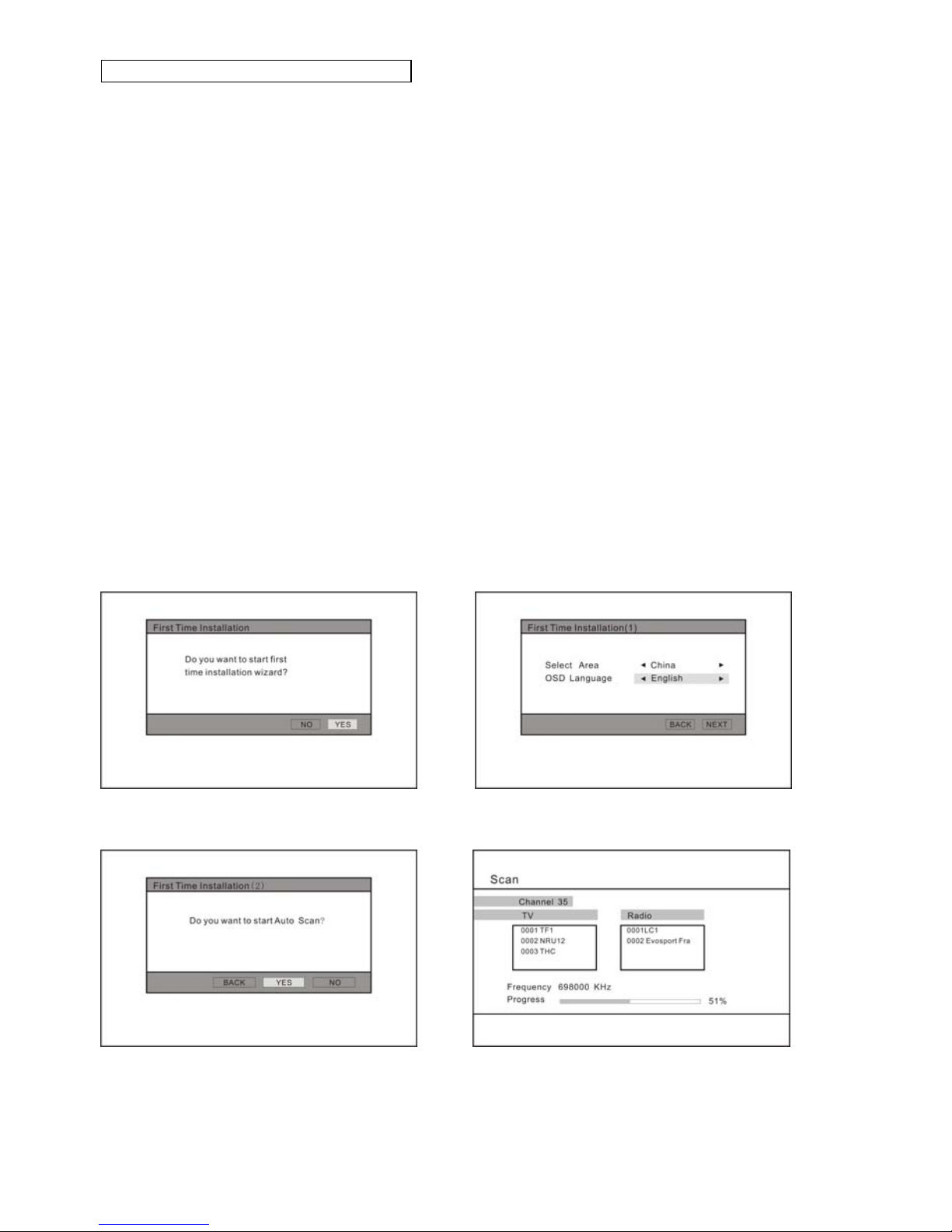

Chart(7) Chart(8)
C Chart(10)
main menu
1. enter the main menu

GB-18
nctional main menu, refer to Chart (11). Press “SETUP” again or
Entering the m e user can select
,
ding TV Setting, Video Setting, Audio Setting, Language, Parent
ult Setup (Chart (13)).
tions of each
ls sub-menu(Chart (15)), and the channel list is on the left, including
Press “SETUP” to enter fu
“RETURN TO” to exit the main menu. There are three options of the main menu, the page
icons, page titles and options of different pages. There are four pages of the main menu,
“Channel Guide”, “System Config”, “Installation”, “Game”.
Chart(11)SunplusDVB-Tmainmenu Chart(12)
Chart(13) Chart(14)
ain menu will first go to “Channel Guide” page, and th
desirable pages by pressing <LEFT>, <RIGHT> key, and select desirable options by
pressing <UP>/<DOWN> key. Options included in the four menu pages are as following:
1)Channel Guide: including TV Channels, Radio Channels, Channels Class, Channels Edit
Book List (Chart (11)).
2)System Config: inclu
Control, Time Setting, System Info (Chart (12)).
3)Installation: including Auto Scan, Manual Scan, Defa
4)Game: including Box Man, Burning Tetris, Hit Rat (Chart (14)). Detailed op
page will be explained later.
2. Channel Guide
(1) TV Channels
Entering TV Channe
channel number and channel name. The VPP zoom-in program is displayed on the right,
and press <UP>/<DOWN> key to browse TV programs while press “ENTER” to select a
program；After editing in Channel class, program types (favorite, sports, entertainment…)
can be selected by pressing <LEFT>/<RIGHT> key. Press “DISPLAY” to sequence
programs. The pop-up menu at the right(Chart (16)), enables A-Z, Z-A, Free-Scramble,
Scramble-Free, Transponder sequences.(Notice: if there is no program in the list, entering

GB-19
to escape and return to the main menu interface.
(2) R
sub-menu (Chart (17)) and the channel list is on the left, including
to escape and return to the main menu interface.
Chart (17) Radio Channel sub-menu
(3) Channel Class
ub-menu(Chart (18)) to edit channel class. Press direction keys to
nu interface.
Chart (18) Channel Class sub-menu
“TV Channel” will be failed.)
Press <RETURN TO>/<SETUP>
Chart (15) TV Channel sub-menu Chart (16) program sequence sub-menu
adio Channels
Entering Radio Channels
channel number and channel name. The VPP zoom-in program is displayed on the right,
and press <UP>/<DOWN>key to browse radio programs while press “ENTER” to select a
program；After editing in Channel class, program types (favorite, sports, entertainment…)
can be selected by pressing <LEFT>/<RIGHT> key. Press “DISPLAY” to sequence
programs. The pop-up menu at the right(Chart (16)), enables A-Z, Z-A, Free-Scramble,
Scramble-Free, Transponder sequences.(Notice: if there is no program in the list, entering
“Radio Channel” will be failed.)
Press <RETURN TO>/<SETUP>
Entering Channel Class s
move to desirable location and press “ENTER”to set up. After editing Channel class, press
“TV/RADIO” to select TV program list or RADIO program list to be entered.(Notice: if there
is no program in the list, entering “Channel Class Edit” will be failed.)
Press <RETURN TO>/<SETUP> to escape and return to the main me
