Northeast Color DSP-SLIM-BKLITFRM-48X72 User manual

Two Persons are
Recommended
for this Installation
Slim Backlit Frame
INSTALLATION GUIDE
SKU# DSP-SLIM-BKLITFRM-48X72
SKU# DSP-SLIM-BKLITFRM-96X48
SKU# DSP-SLIM-BKLITFRM-96X96
ver. 070523
For Support Call: 603.436.8210

©2023 Northeast Color | 603.436.8210 2
DSP-SLIM-BACKLITFRM-48X72
DSP-SLIM-BACKLITFRM-96X48
Assembly Instructions
DSP-SLIM-BACKLITFRM-96X96

©2023 Northeast Color | 603.436.8210 3
Bottom
Cleat, Bottom
Raw MDF
Cleat, Right
Raw MDF
Top
End, Left
Front, Left
Cleat, Top
Plywood
Cleat, Left
Raw MDF
Front, Top
Cleat, Wall
Plywood
Front, Top
Front, Right
End, Right
Aluminum
Extrusion
Parts Identification

©2023 Northeast Color | 603.436.8210 4
Ball-end Hex Screwdriver
#2 Phillips Screwdriver
3” Multi-purpose Screw
#20 Biscuit
Wood Glue
(optional)
Hammer
Cabineo
Connector
#8 x 1” pan head screw
DSP-SLIM-BACKLITFRM-96X48 &
DSP-SLIM-BACKLITFRM-96X96 only
#8 x 5/8” pan head screw
Other Tools
Required
Tools & Hardware
Included

©2023 Northeast Color | 603.436.8210 5
Front
Top / Bottom
Line Up Connector Screws With Mating Holes
Top / Bottom
Ball-end Hex Screwdriver
Step 1
Assemble Fronts To Top & Bottom
Assemble Fronts To Ends

©2023 Northeast Color | 603.436.8210 6
Plywood Cleat With Angled Edge
Insert #20 Biscuit Into Each End Of This Cleat
You May Need To Gently Tap It In With A Hammer
(Add Wood Glue For Best Results)
Step 2
Attach Unfinished Cleats
To Their Mating Parts

©2023 Northeast Color | 603.436.8210 7
Connect The Bottom Sub-assembly
To The Left & Right Side Sub-assemblies
Connect The Top Sub-assembly
To The Left & Right Side Sub-assemblies
Step 3

©2023 Northeast Color | 603.436.8210 8
On the larger frames there are 1 or 2 strips of ¼" material
that you can temporarily attach as shown to provide
some additional rigidity to the unit when installing it on the wall.
If you install this bracing, remove it after the frame is attached to the wall.
#8 X 1" Pan Head Screws
Optional Bracing

©2023 Northeast Color | 603.436.8210 9

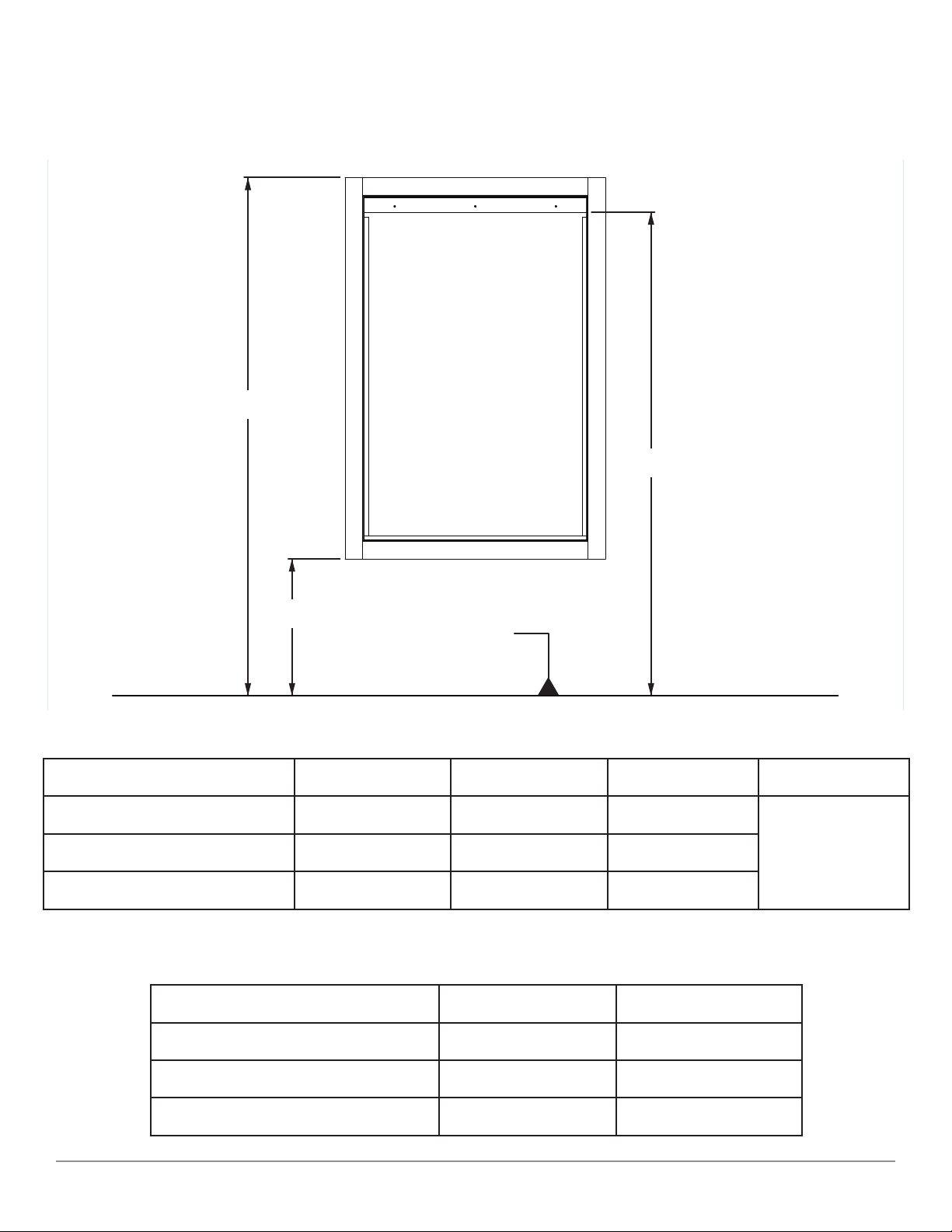

A
Floor
C
B
Frame ID Frame HT Frame WD Using B Using C
DSP-SLIM-BACKLITFRM-96x96 98” 98” A = B + 91-1/8”
A = C - 6-7/8”DSP-SLIM-BACKLITFRM-96x48 51-11/16” 99-11/16” A = B + 44-7/8”
DSP-SLIM-BACKLITFRM-48x72 75 -11/16” 51-11/16” A = B + 68-7/8”
Examples If B=60” then A = If C=120” then A =
DSP-SLIM-BACKLITFRM-96x96 151-1/8” 113-1/8”
DSP-SLIM-BACKLITFRM-96x48 104-7/16” 113 -1/8”
DSP-SLIM-BACKLITFRM-48x72 128 -7/16” 113-1/8”
A = Distance from Floor to bottom of Wall Cleat
Install the wall cleat using 3" multipurpose screws to available wall studs. Once hung, secure frame to wall studs
along the bottom horizontal side of frame using 3" multipurpose screws to eliminate sagging over time. Once
hung and secured, remove cross bars if edge lighting is being used.
