NOVUM Aran 505 User manual

Aran / Burren Technical Manual
1 | P a g e
Novum Overseas. The Novum Building. Clonshaugh Ind Est. Dublin 17. Ireland | [email protected] | [phone]
Models: Aran: 505/506L |605/606L | 805/806L | 906L | 706L
Burren: 608/609L |808/809L | 908L | 708L | 710L
________________________________________________________________________
Aran Range
Burren Range

Aran / Burren Technical Manual
2 | P a g e
Novum Overseas. The Novum Building. Clonshaugh Ind Est. Dublin 17. Ireland | [email protected] | [phone]
Specifications - Aran____________________________________________________________________

Aran / Burren Technical Manual
3 | P a g e
Novum Overseas. The Novum Building. Clonshaugh Ind Est. Dublin 17. Ireland | [email protected] | [phone]
Specifications - Burren____________________________________________________________________

Aran / Burren Technical Manual
4 | P a g e
Novum Overseas. The Novum Building. Clonshaugh Ind Est. Dublin 17. Ireland | [email protected] | [phone]
Dimensions - Aran____________________________________________________________________

Aran / Burren Technical Manual
5 | P a g e
Novum Overseas. The Novum Building. Clonshaugh Ind Est. Dublin 17. Ireland | [email protected] | [phone]

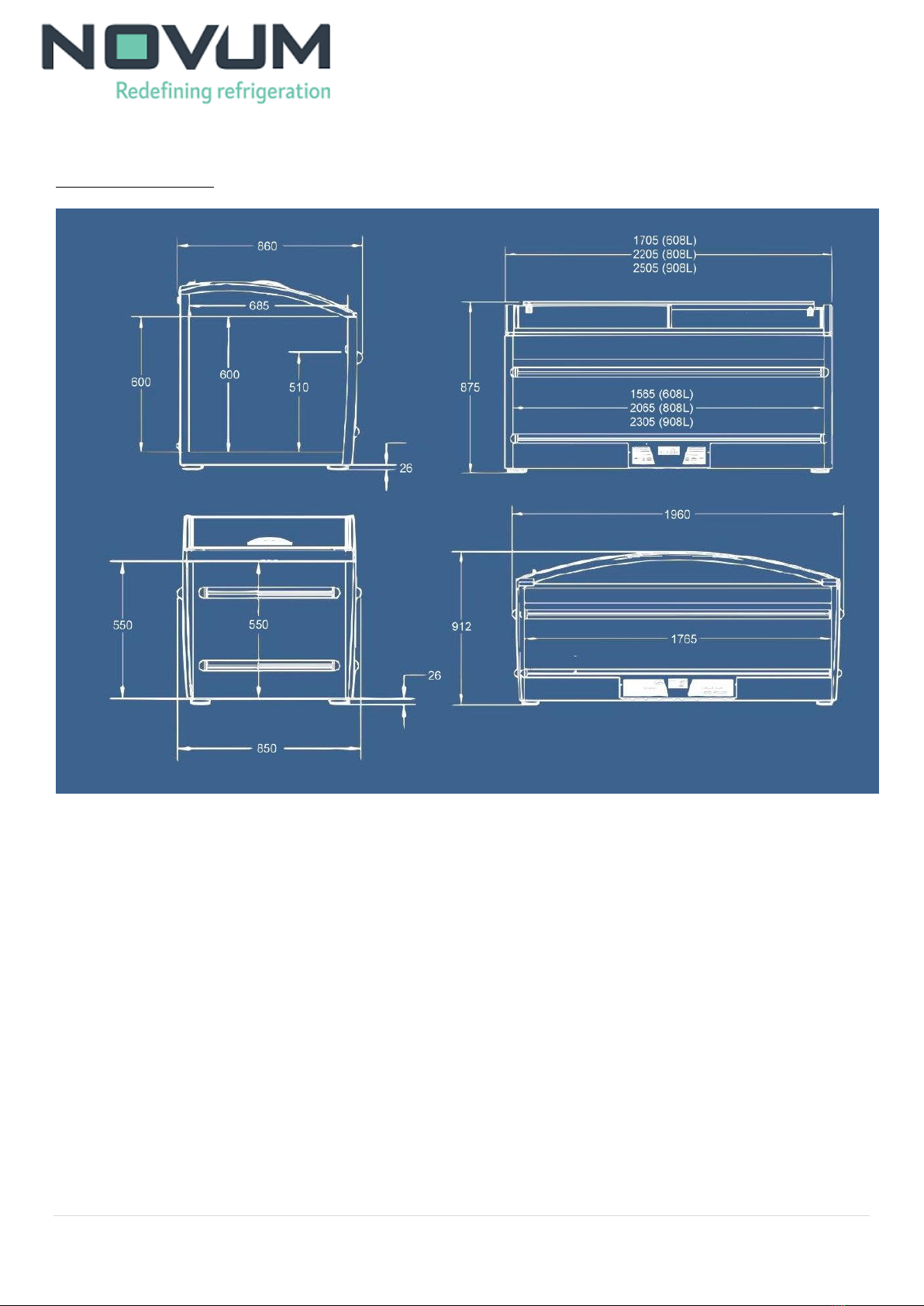

Dimensions –Burren______________________________________________________________________

Aran / Burren Technical Manual
6 | P a g e
Novum Overseas. The Novum Building. Clonshaugh Ind Est. Dublin 17. Ireland | [email protected] | [phone]
Product Loading______________________________________________________________________
•Novum Cabinets are conservators in nature and can be used to store and display previously frozen food.
•NEVER merchandise product above the red load limit sticker.
•As soon as the Cabinet has reached a storage temperature of below -18°C (as indicated by the Electronic
Controller display), it can be loaded with Frozen Foods up to the maximum of the Load Limit line.
•Do not load the Cabinet with non-frozen foods or try to freeze products in the Cabinet.
•DO NOT LEAVE LID OPEN for extended periods during merchandising.
•Exercise due care when loading heavy product, do not damage internal liner.
•Exercise due care when loading product so as not to damage liner, particularly heavy product.
Universal Cabinets (Freezer / Chiller)________________________________________________________
For universal cabinets (Freezer & Chiller), there is a manual switch in the front control panel to switch
between freezer and chiller modes.
•The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been given supervision or instruction.
•Children being supervised not to play with the appliance.

Aran / Burren Technical Manual
7 | P a g e
Novum Overseas. The Novum Building. Clonshaugh Ind Est. Dublin 17. Ireland | [email protected] | [phone]
Stand Alone / Single Row Installation_________________________________________________________
When the case is installed as stand-alone unit against a wall a minimum distance of 100mm must be
maintained between the back of the case and the wall to ensure air can enter the back of the case.

Aran / Burren Technical Manual
8 | P a g e
Novum Overseas. The Novum Building. Clonshaugh Ind Est. Dublin 17. Ireland | [email protected] | [phone]
Back to Back Installation____________________________________________________________
If two Aran cases are to be installed back to back, a ventilation panel must be fitted to ensure adequate airflow.
These are simply clipped into place. When an end of aisle case is fitted to an island configuration, an end of aisle
ventilation kit must be fitted.
Vent System__________________________________________________________________________
Top Vent.
• Position cabinets back to back 250mm apart.
• Drop vent panel into factory fitted receiving brackets.
End Panel
• Secure End wall brackets to back panel using screws provided.
• Push panel gently into brackets.

Aran / Burren Technical Manual
9 | P a g e
Novum Overseas. The Novum Building. Clonshaugh Ind Est. Dublin 17. Ireland | [email protected] | [phone]
706 Vent System____________________________________________________________

Aran / Burren Technical Manual
10 | P a g e
Novum Overseas. The Novum Building. Clonshaugh Ind Est. Dublin 17. Ireland | [email protected] | [phone]
Europe Rating
Brown
Live
Blue
Neutral
Green
Earth

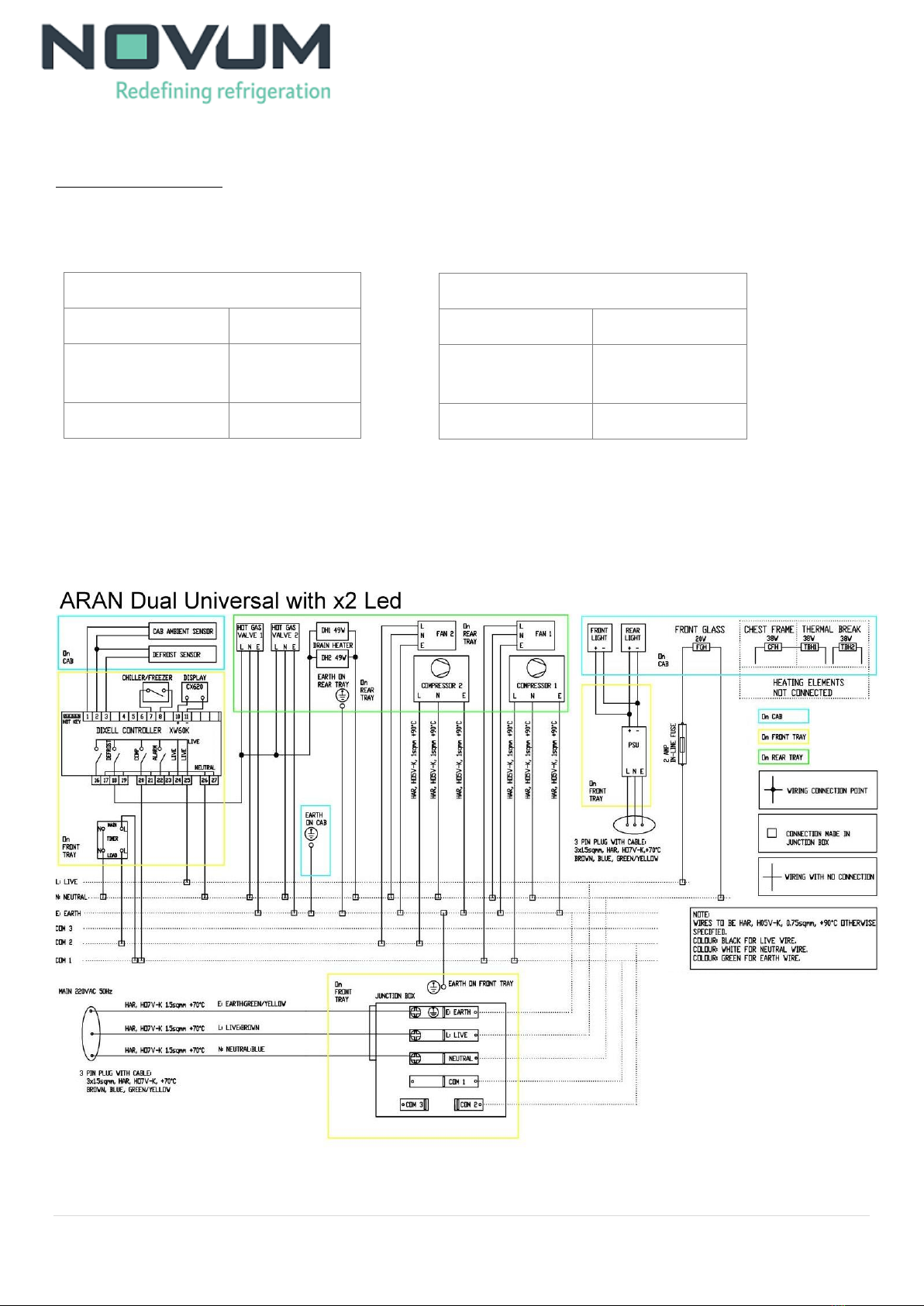

Electrical Connections____________________________________________________________
All Cabinets must be wired as per international standards.
US Rating
Black
Live
Light grey, white or
silver
Neutral
Green
Earth
Notes:
• If you are in any doubt concerning the electrical connection of your Novum
Conservator we recommend that you contact a qualified Electrician.
• If the Supply Cord is damaged, it must be replaced by Novum, it’s Service
Agent or similarly qualified persons in order to avoid a hazard.

Aran / Burren Technical Manual
11 | P a g e
Novum Overseas. The Novum Building. Clonshaugh Ind Est. Dublin 17. Ireland | [email protected] | [phone]

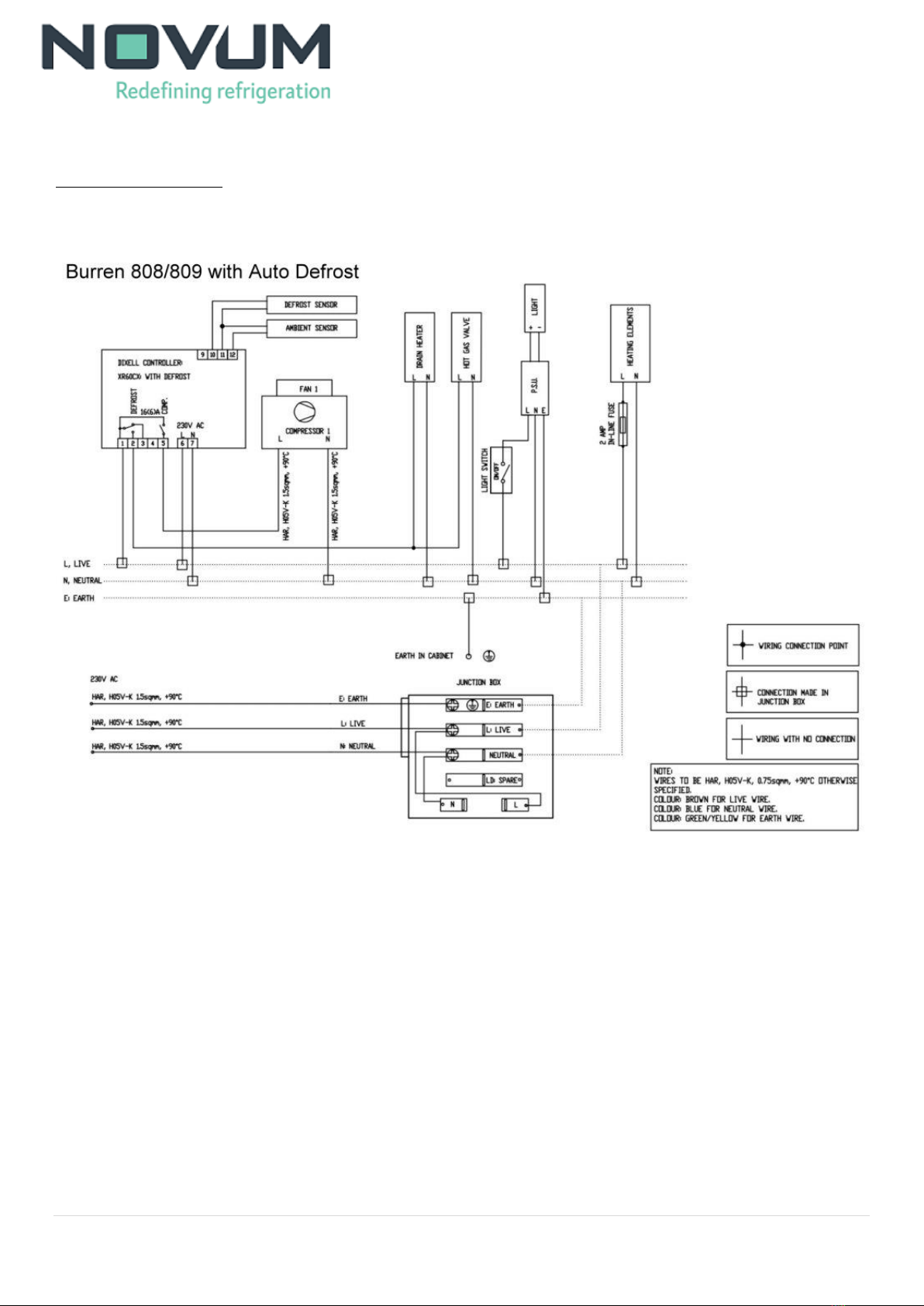

Electrical Connections____________________________________________________________

Aran / Burren Technical Manual
12 | P a g e
Novum Overseas. The Novum Building. Clonshaugh Ind Est. Dublin 17. Ireland | [email protected] | [phone]
Compressor Assembly___________________________________________________________
Item No.
Part No.
Description
1
003.222.075
Copper Tube 220x6x0.71mm Condenser Outlet
2
003.603.005
603L Condenser Type STFT
3
003.610.375
Copper Tube 315x0.71mm Discharge & Suction
4
003.801.006
13.5GM Filter Dryer
5
003.805.031
Copper Tube 430x6x0.71mm Condenser Outlet
6
003.805.132
Copper 400x6x0.9mm Process Pipe Assembly
7
003.805.505
Compressor Tray (1.2mm Galv)
8
003.805.707
NEK 2150GK Compressor
9
006.8BM.012
Burn-Off Tray
10
012.805.422
30.5x580mm Woven Mesh

Aran / Burren Technical Manual
13 | P a g e
Novum Overseas. The Novum Building. Clonshaugh Ind Est. Dublin 17. Ireland | [email protected] | [phone]

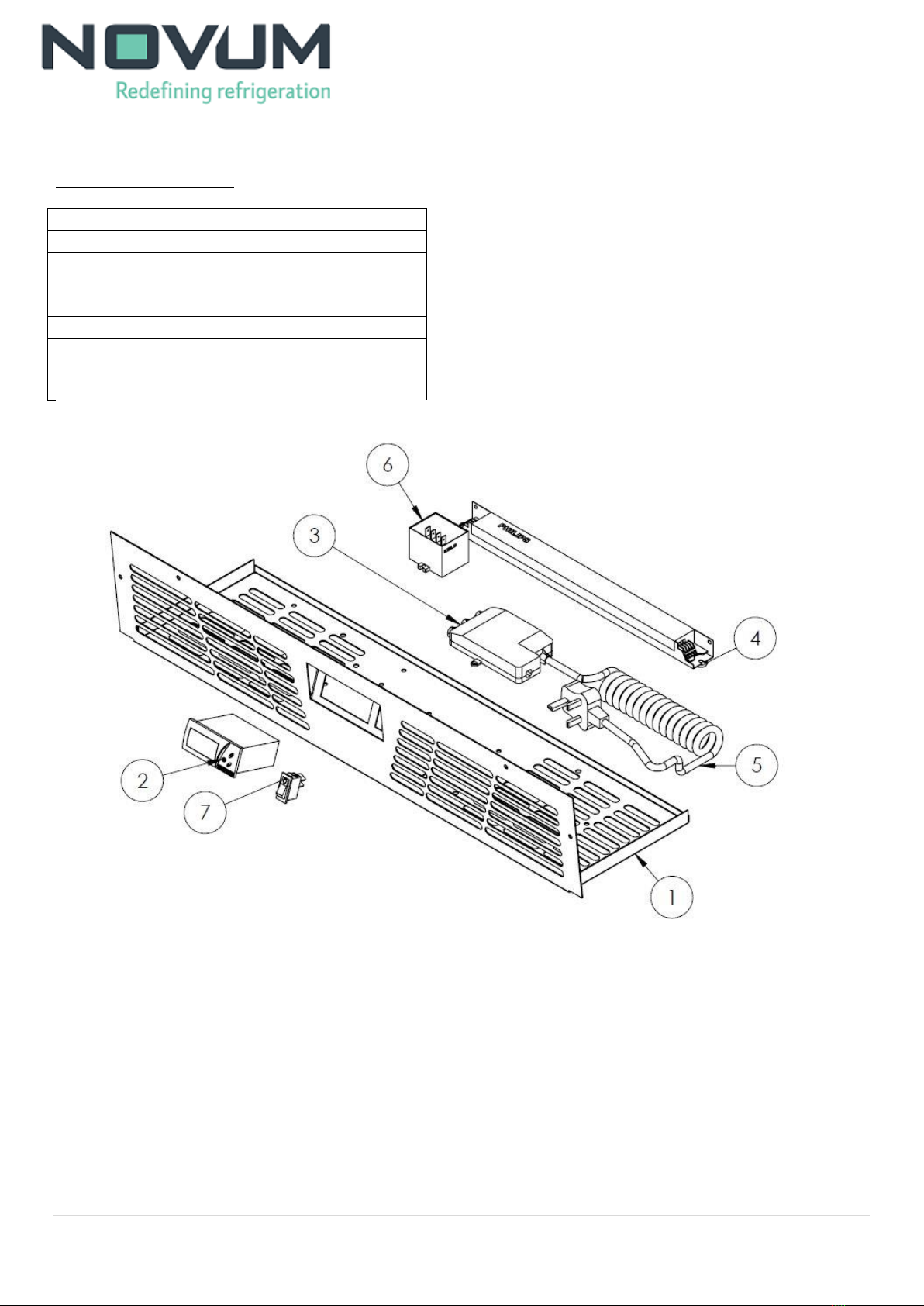

Control Panel Assembly______________________________________________________________
Item No.
Part No.
Description
1
006.805.813
Grille CW Recess & Switch
2
018.610.204
Digital Controller
3
018.805.015
Terminal Box
4
018.805.312
LED Driver
5
018.805.330
Moulded 3 Pin Plug
6
018.805.417
Keld Timer Unit
7
018.805.609
ON/OFF L/Switch

Aran / Burren Technical Manual
14 | P a g e
Novum Overseas. The Novum Building. Clonshaugh Ind Est. Dublin 17. Ireland | [email protected] | [phone]

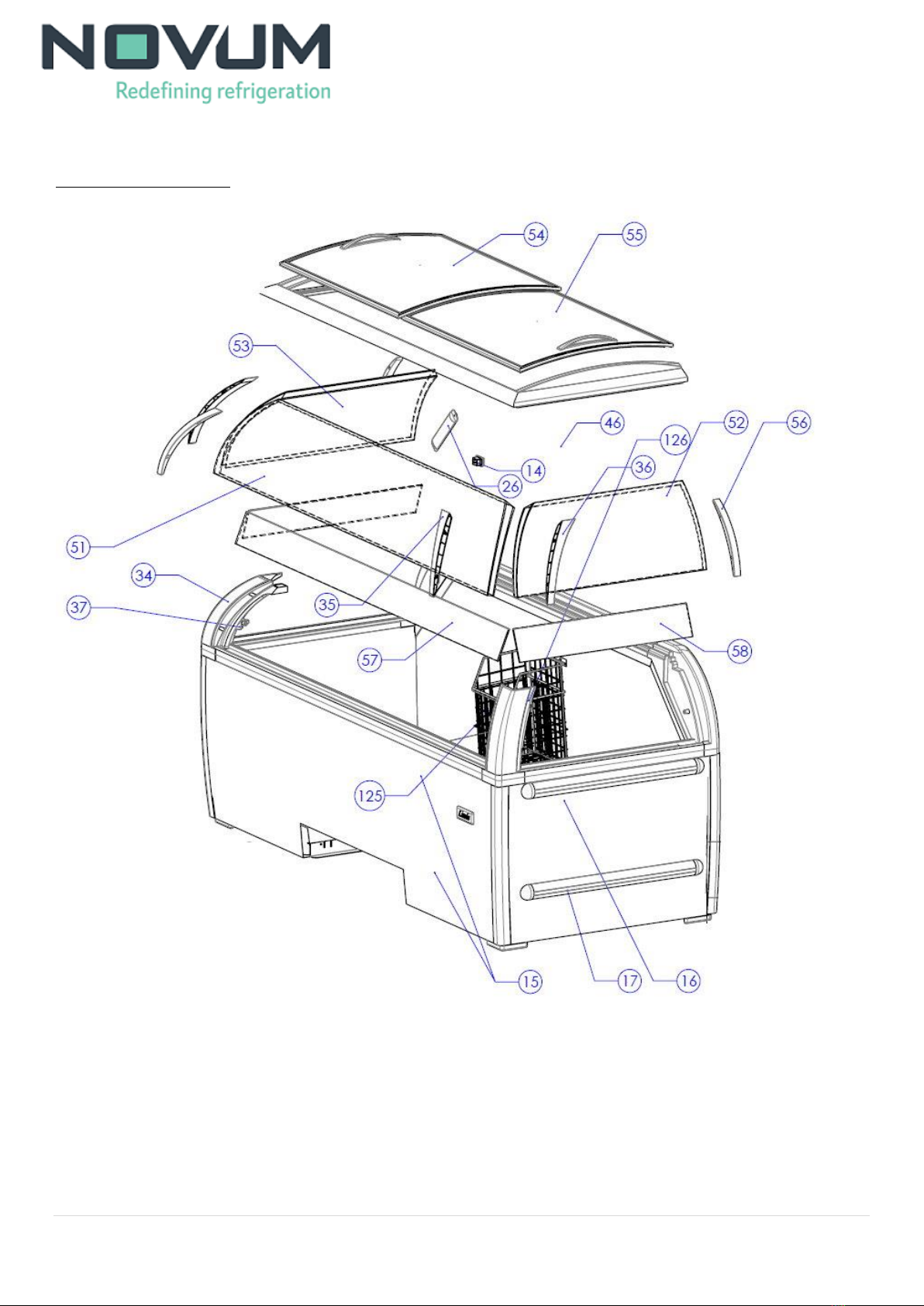

706L Cabinet Assembly_______________________________________________________________

Aran / Burren Technical Manual
15 | P a g e
Novum Overseas. The Novum Building. Clonshaugh Ind Est. Dublin 17. Ireland | [email protected] | [phone]

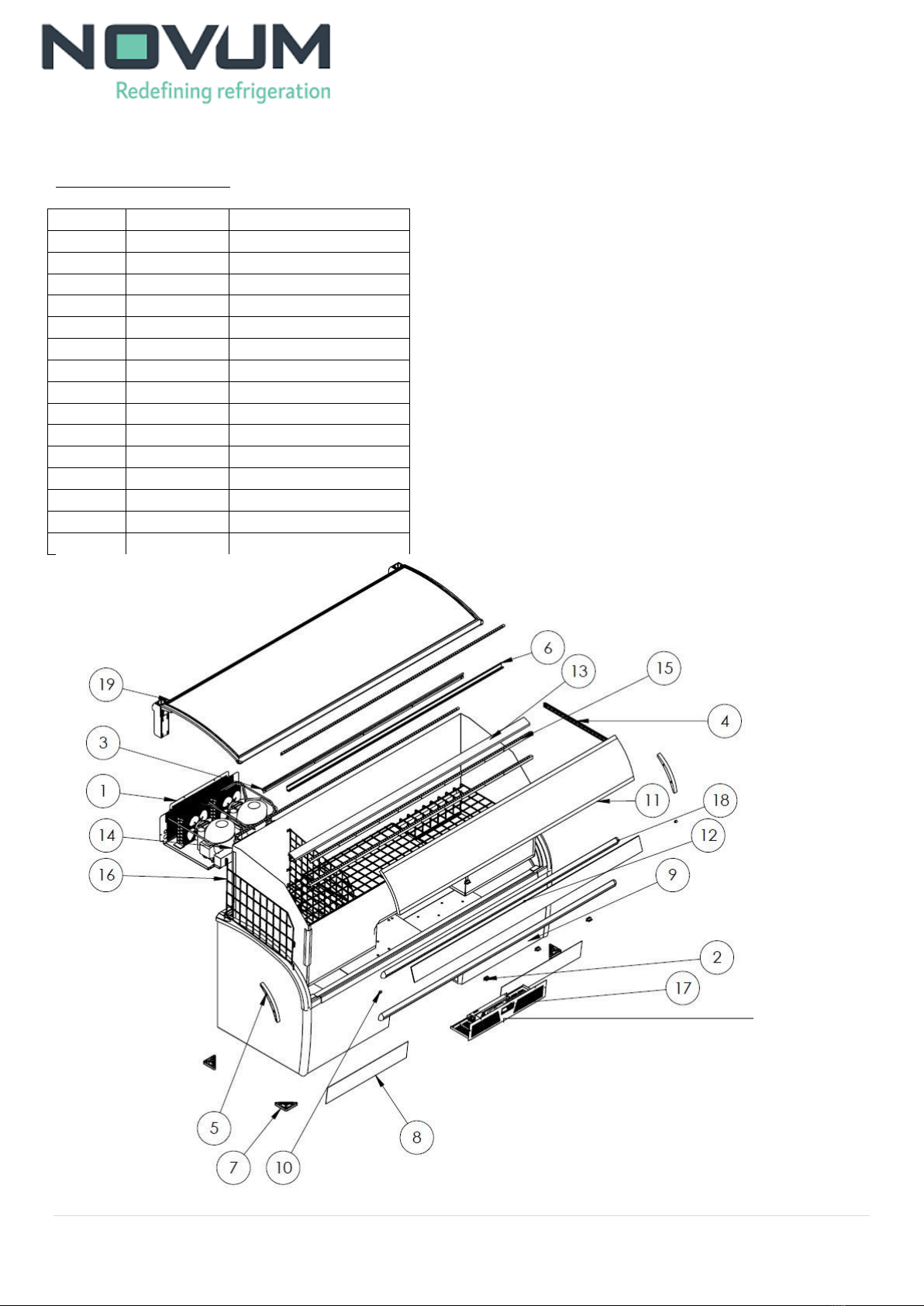

Aran Cabinet Assembly_______________________________________________________________
Item No.
Part No.
Description
1
003.805.302
Compressor
2
006.154.105
Plastic Holder For Glass
3
006.601.249
Joiner Panel Bracket
4
006.610.259
Separator Profile White
5
006.805.011
Glass End Moulding
6
006.805.026
Ticket Strip Holder
7
006.805.125
Corner Foot
8
006.805.414
Dark Grey Kick Strip
9
006.805.620
(Fluorescent) White
10
009.805.005
Inner Glass Retainer
11
009.805.212
Double Glazed Unit
12
009.805.307
Internal Glass
13
009.805.614
Crossbeam Lens
15
012.805.215
Aluminium Inner Rail
16
015.805.501
Short Divider

Aran / Burren Technical Manual
16 | P a g e
Novum Overseas. The Novum Building. Clonshaugh Ind Est. Dublin 17. Ireland | [email protected] | [phone]

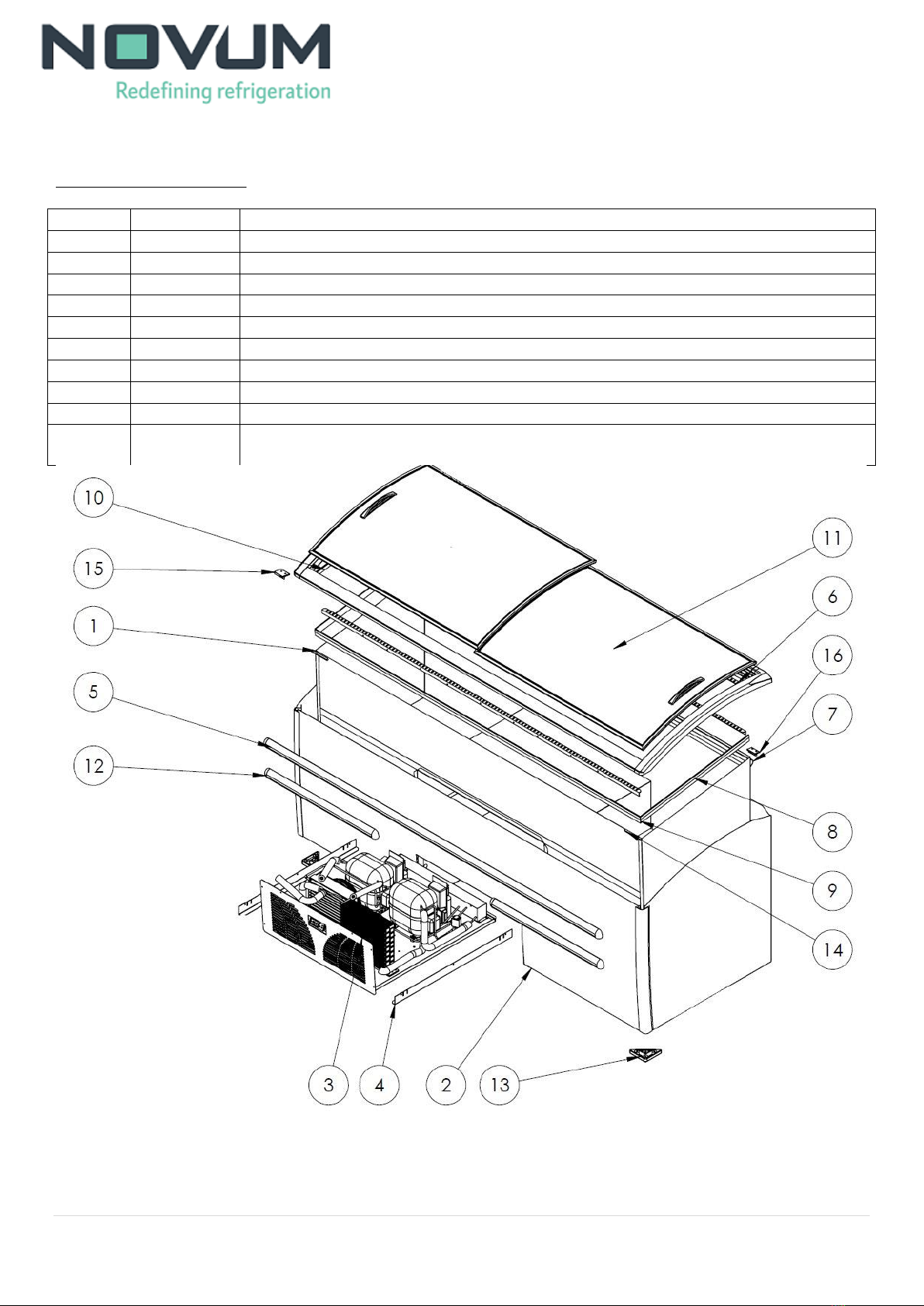

Burren Cabinet Assembly_______________________________________________________________
Item No.
Part No.
Description
3
003.8BM.200
Comp Tray Assy
4
006.805.237
Service Tray Runner
6
012.805.215
Aluminium Inner Rail
7
006.808.005
Light Holder
10
006.808.100
Chest Frame Assembly
11
009.808.100
Lid Upper /Lower Lid Assy
13
006.805.125
Injection Moulded Corner Foot
14
006.806.004
Aran Lid Stop Grey
15
009.808.003
Sliding Lid Retainer L/Hand
16
009.808.004
Sliding Lid Retainer R/Hand

Aran / Burren Technical Manual
17 | P a g e
Novum Overseas. The Novum Building. Clonshaugh Ind Est. Dublin 17. Ireland | [email protected] | [phone]

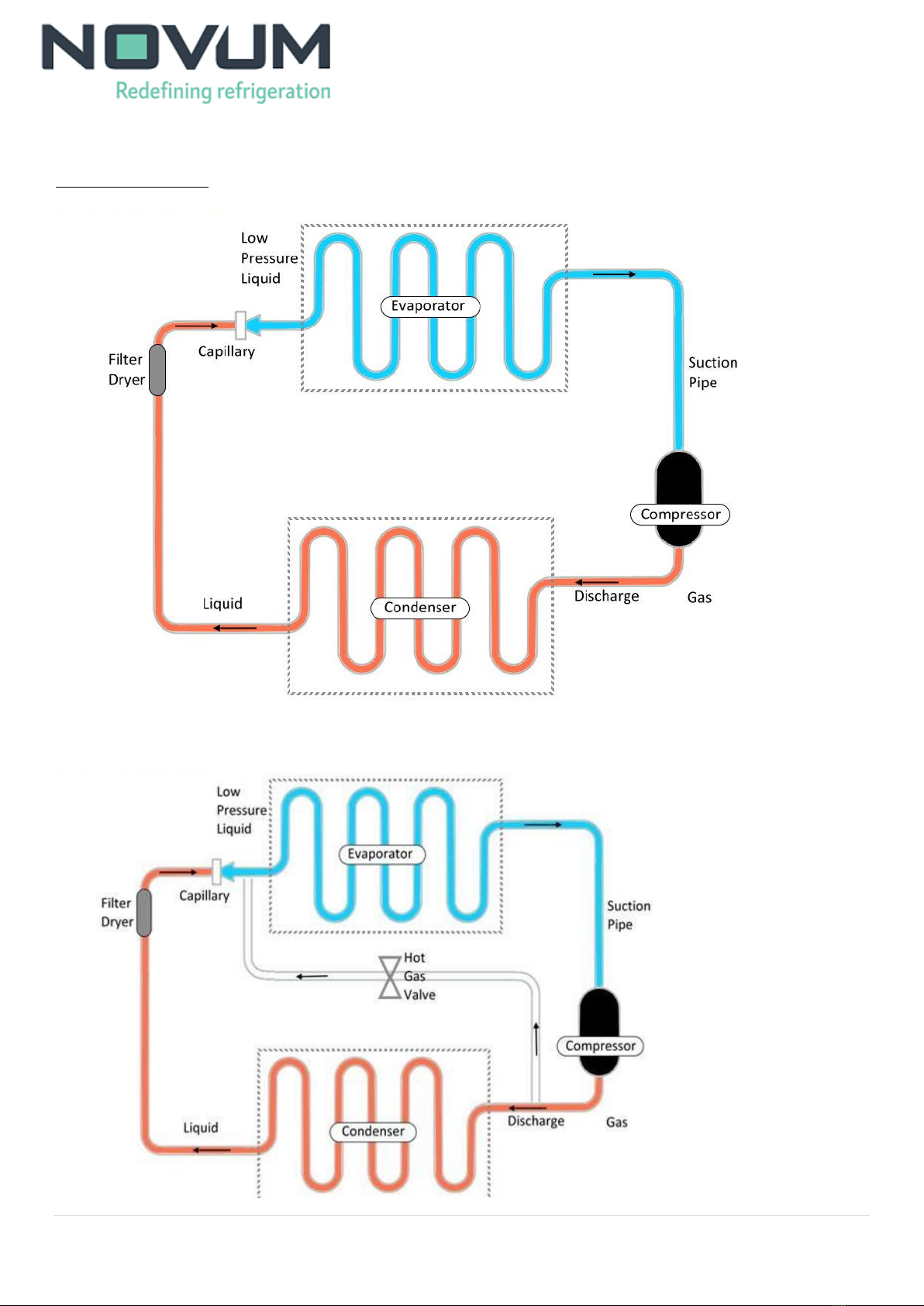

Refrigeration Circuit_____________________________________________________________________
Auto Defrost Circuit

Aran / Burren Technical Manual
18 | P a g e
Novum Overseas. The Novum Building. Clonshaugh Ind Est. Dublin 17. Ireland | [email protected] | [phone]

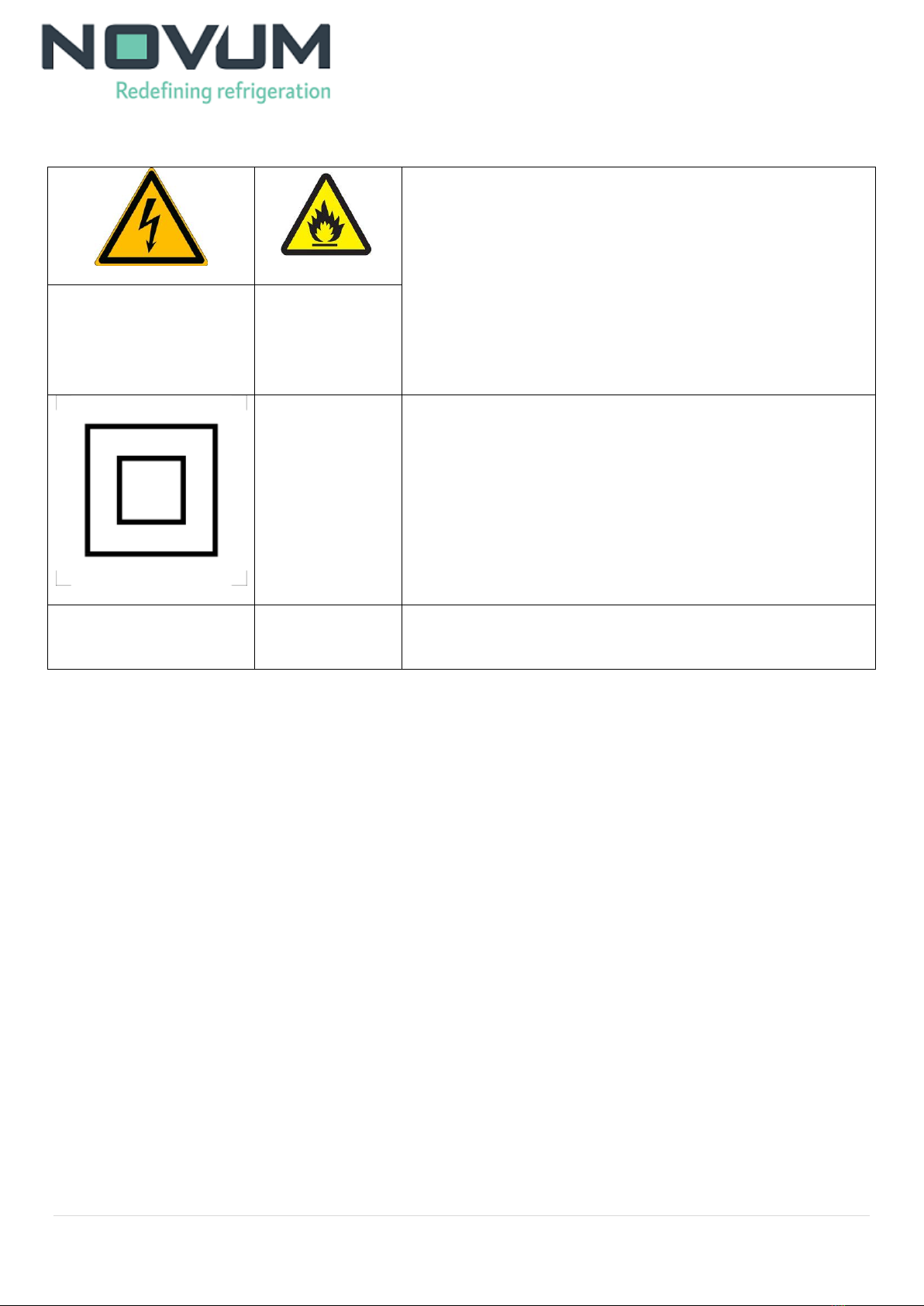

Warning: Do not use mechanical devices or other means to
accelerate the defrosting process, other than those
recommended by the manufacturer.
Warning: Do not damage the refrigerant circuit.
Warning: Risk of Fire or Explosion. Dispose of properly in
accordance with Federal or Local regulations.
Danger
Electrical Shock Risk
R290 Refrigerant
Risk of Fire or
Explosion
Maximum loading of each shelf: 25kg
Class II Appliance
[IEC 60417-5172}

Aran / Burren Technical Manual
19 | P a g e
Novum Overseas. The Novum Building. Clonshaugh Ind Est. Dublin 17. Ireland | [email protected] | [phone]
Care & Maintanance______________________________________________________________________
Note! Always unplug your Conservator before beginning any maintenance work.
To ensure trouble free operation of your Novum Cabinet, the following routine should be instituted.
•Inspect the area behind Cabinets
periodically and remove any debris.
•Clean the exterior and exterior plastic
components of your cabinet with a mild
detergent. (Never use bleach or
abrasive material)
•Use proprietary glass cleaner with soft
cloth to clean glass lid and front. (Never
use abrasive materials to clean glass)
•Periodically inspect the finned Condenser
for dust build up and remove with a non-
metallic Brush or vacuum cleaner. The
Condenser is located at the rear of the
Cabinet. Monthly inspection is
recommended.
Defrosting - Remove frozen food to a suitably refrigerated area
.
Manual Defrosting
For Novum Cabinets fitted with a manual defrost system, the following procedure should be
followed:
• Remove frozen food to a suitably refrigerated area.
• Unplug Cabinet and open lid.
• When frost has melted and cleaning has been complete, use a clean, dry cloth to mop up excess
condensate from the inside of the Cabinet.
• For units fitted with Drain Plugs, place a shallow tray below drains and remove Drain Plug. The
condensate will then drain through the drain hole and into the tray.
• When condensate has drained, replace drain plug and re-connect Cabinet to electrical supply and
then allow Cabinet to re-freeze.
• For units without Drain Plugs, condensate should be mopped clean.

Aran / Burren Technical Manual
20 | P a g e
Novum Overseas. The Novum Building. Clonshaugh Ind Est. Dublin 17. Ireland | [email protected] | [phone]
• When digital display on the Electronic Controller displays -18°C, it is then safe to re-merchandise the
Cabinet.
Note: Best practice demands that all Cabinets should be thoroughly cleaned three or four times per
year.
Automatic Defrosting
For Novum Cabinets fitted with an automatic defrost system:
• Defrost Cycle will start and finish automatically –at Factory set intervals.
• No intervention is required as the Frost melts and the Water then flows through the Drain
Channels, which is then evaporated in the Burn-off Tray (no fixed Land Drains required).
• All Drain Channels and Burn-off Tray should be cleaned and disinfected periodically.
Note: Best practice demands that all Cabinets should be thoroughly cleaned at least once per year.
Symptom
Status
Cause
Action
No Display
Critical
No Power
1. Check product temp, if above -120C,
move product.
2. Check plug connected to socket.
3. Check plug is connected to back of
cabinet.
4. Check breaker is not tripped on
distribution panel.
5. Check plug fuse.
6. Call Service Agent.
HA Alarm
Critical
High Cabinet
Temperature
1. Check product temp, if above -120C,
move product.
2. Call Service Agent.
P1 Alarm
Not Critical
Loose Temperature
Probe
1. Call Service Agent.
P2 Alarm
Not Critical
Loose Temperature
Probe
1. Call Service Agent.
