NuEra 370 User manual

© 2015 MacroAir Technologies Toll Free: 866 668 3247 Fax: [phone] www.macroairfans.com 1
Rev. Date 032615

© 2015 MacroAir Technologies 1
Rev. Date 032615
Table of Contents
Caution & Safety ................................................................................................................................. 2
Fusing Chart ....................................................................................................................................... 4
Fan Placement.................................................................................................................................... 5
Fan Clearance & Placement .............................................................................................................. 6
Fan Dimensions .................................................................................................................................. 7
Fan Components & Tools ................................................................................................................... 8
Step 1 - Fan Mounting ................................................................................................................. 9

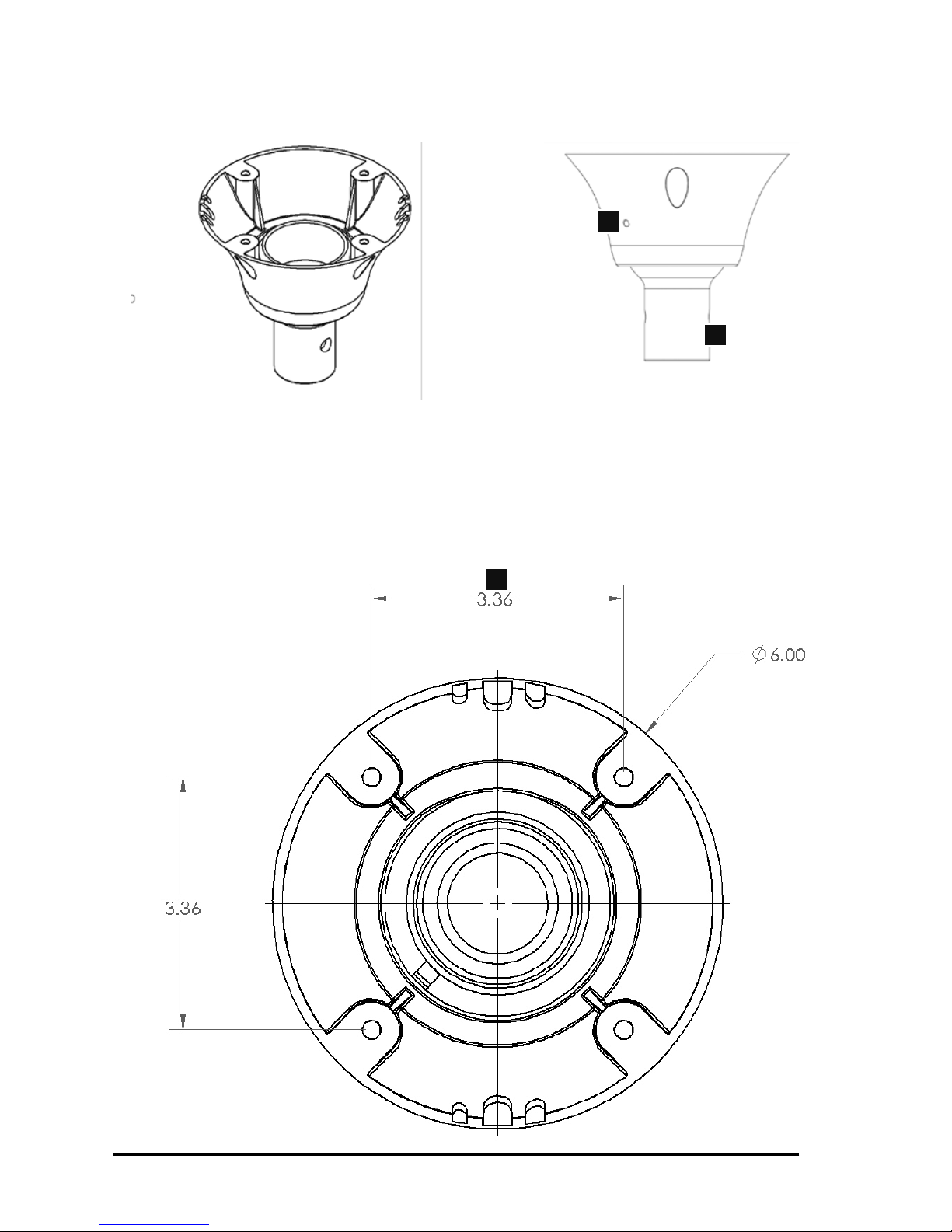

Rapid Mount Commercial .......................................................................................................... 10

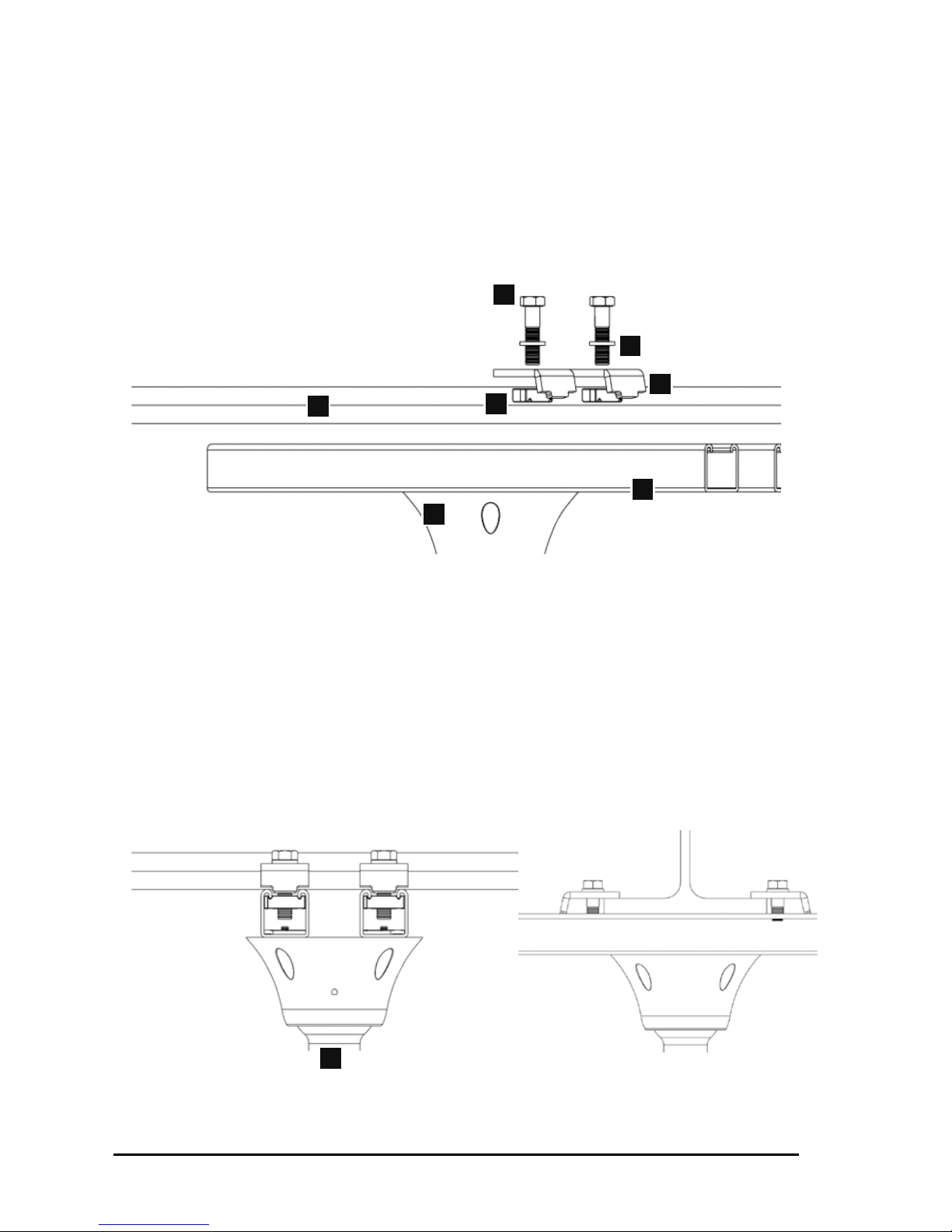

1.1 Unistrut Span Mounting ....................................................................................................... 11
1.2 I-Beam Mounting .................................................................................................................. 12
1.3 Glulam/Wood Beam Mounting ............................................................................................. 14
Step 2 - Extension and Motor Unit Installation ........................................................................... 16
2.1 Extension and Motor Unit Installation ................................................................................. 17
Step 3 - Safety Cable and Electrical Installation ......................................................................... 18
3.1 Touchpad Remote Mounting................................................................................................. 19
3.2 Safety Cable & Electrical Installation .................................................................................. 21
3.3 Emergency Disconnect Schematic ...................................................................................... 22
Step 4 - Airfoil Installation .......................................................................................................... 23
4.1 Airfoil Installation .................................................................................................................. 24
Step 5 - Touchpad Remote Navigation and Operation ................................................................. 27
5.1 Touchpad Remote Navigation............................................................................................... 28
5.2 Touchpad Remote Operation ................................................................................................ 29
Maintenance Information ................................................................................................................... 30
Warranty and Technical Support ........................................................................................................ 31
www.nueraheat.com 1-800-347-9575

© 2015 MacroAir Technologies 2
Rev. Date 032615
Caution & Safety
READ THE ENTIRE MANUAL BEFORE OPERATING THE FAN. Ensure that all safety practices
and instructions are followed during the installation, operation and servicing of the fan. Failure
to apply these safety practices could result in death or serious injury. If you do not understand
the instructions please call our Technical Department for guidance (Technical Support contact
information can be found on page 31).
The fan installation should follow the recommendations outlined in this manual. MacroAir is not
responsible for any injury or damage to people or property as a result of the user and/or installer
not complying with the recommendations outlined in this manual.
All fan controls and incoming power should only be installed by qualified technicians familiar
with the requirements of the NEC and local codes. Refer to appropriate portions of this manual
for other important requirements. Failure to follow these guidelines will void the manufacturer’s
warranty.
NOTICE: All electrical controls are configured at the factory and are ready to use. No user
adjustments are available. Follow the included wiring schematics and installation instructions
when installing this device to ensure proper operation. Do not make any changes to any part of
the fan without first consulting MacroAir.
Installation is to be in accordance with the national electrical code, ANSI/NFPA 70-1999 and local
codes.
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH.
Read and understand this manual before installing or operating a fan unit. Installation,
adjustment, repair, or maintenance must be performed by qualified personnel.
The user is responsible for compliance with all international and national electrical code
requirements with respect to grounding of all equipment.
Many of the parts of this unit operate at line voltage. DO NOT TOUCH.
Install all covers before applying power or starting and stopping the unit.
DAMAGED EQUIPMENT
Do not operate or install any fans or fan accessories that appear to be damaged.
Failure to follow this instruction can result in death, serious injury, or equipment damage.
MAINTENANCE AND SERVICE:
If the fan does not operate properly using the procedures in this manual, BE CERTAIN TO
REMOVE ALL POWER TO THE UNIT and contact our technical department for further assistance.
Keep all body parts clear of moving part at all times.
All electrical troubleshooting and repair must be done by a qualified technician and meet all
applicable codes.
www.nueraheat.com 1-800-347-9575

© 2015 MacroAir Technologies 3
Rev. Date 032615
Caution & Safety
Key Safety System Components
MacroAir fans are engineered with key safety features to prevent pieces of the fan from falling
in the unlikely event of a catastrophic failure. Used together, these systems and devices provide
comprehensive protection of people, equipment and property. Follow the detailed instructions
precisely when installing fans, including the following:
Install Safety cable on EVERY fan. The Safety cable, if installed per MacroAir specifications,
will prevent the fan from falling in the unlikely event that the mounting system should fail. A
MacroAir fan should never be run without a properly installed Safety cable, which is supplied
with every fan along with all required hardware. You must install a Safety cable for the warranty
to be in effect. Refer to page 21.
Mark the Floor to Alert Personnel
When mounting a fan in an area where materials may be elevated into its path, MacroAir
recommends marking or painting the floor with a large crosshatched circle to alert personnel of
the overhead location of fans.
Weight Considerations
We recommend that a building structure be capable of holding approximately twice the stated
hanging weight of the fan. The maximum hanging weight for the Model 370 is 108 lbs including
the weight of an additional extension. If there is some doubt of this, a professional structural
engineer should perform a thorough evaluation of the building prior to purchasing the fans.
MacroAir provides guidelines for mounting fans; however, it is the sole responsibility of the
building owner and installer to ensure the safety of the mounting system, that the building
structure is sound and that the installation complies with all federal, state, and local codes.
Torque
The maximum torque (twisting force) that must be handled by the mounting system, including the
building structure. For a Model 370, the maximum potential torque is 20 ft-lbs.
Check Federal, State, and Local Codes
Check all relevant codes to make sure that all product certifications, product listings, and building
regulations are met. Code compliance is the responsibility of the installer.
Windy Conditions
Fans should not be operated when wind is present. Fans should not be installed in applications
where it is frequently windy.
www.nueraheat.com 1-800-347-9575

© 2015 MacroAir Technologies 4
Rev. Date 032615
Fusing Chart
IT IS STRONGLY RECOMMENDED THAT THE FANS ARE FUSED TO PROTECT THE ELECTRICAL
COMPONENTS.
Max Amp Draw / Recommended Fuse
Voltage and Phase 6ft 8ft 10ft 12ft
110 VAC 1-Phase 1.5A / 5 5.9A / 10 3.8A / 5 2.0A / 5
120 VAC 1-Phase 1.4A / 5 5.4A / 10 3.5A / 5 1.8A / 5
208 VAC 1-Phase 0.8A / 5 3.1A / 5 2.0A / 5 1.0A / 5
www.nueraheat.com 1-800-347-9575

© 2015 MacroAir Technologies 5
Rev. Date 032615
Fan Placement
Sprinkler Systems and Fan Placement
In any installation where fire sprinklers are in place, fan should not interfere with their correct
operation. Fans should be located no less than 3 feet below a sprinkler, and placed central to
each sprinkler quadrant. Our AirBrain motor controller can be connected to a fire suppression
control system, which will emergency-stop fans in case of fire. Prior to installing fans, review all
codes applicable to sprinkler systems and fans to ensure code compliance (refer to NFPA 13).
Please call our Technical Department for guidance (Technical Support contact information can be
found on page 31). However, it is your sole responsibility to see that the installation is completed
to code and that it is correct.
Other Information on Placement and Spacing
If possible, avoid mounting fans directly below lights or skylights to avoid any strobe effect caused
by moving airfoils. Note, a large fan, 20 – 24 feet in diameter, performs best at 20 to 30 feet above
the floor, but acceptable performance has been demonstrated as low as 10 feet and as high as 50
feet.
If the building has a mezzanine, fans should be mounted so a person can not reach a fan in any
way from the upper level/deck. Make certain that fans are positioned so that the airfoil tips are at
least 3 feet away from any area where a person may be able to extend outward to reach them.
www.nueraheat.com 1-800-347-9575

© 2015 MacroAir Technologies 6
Rev. Date 032615
Fan Clearance & Placement
WARNING: FANS ARE NOT MEANT TO BE OPERATED IN WINDY CONDITIONS.
The minimum distance of a fan to a wall or similar obstruction should be no less than twice the
diameter of the fan. The minimum distance of a fan to a wall or similar obstruction should be
no less than 1.5 times the diameter of the fan.
Maximum Angle for Mount (feet)
Slope (in) 0 2/12 4/12 6/12 8/12 10/12
Roof Angle 0 9.5o18.4o26.6o33.7o39.8o
Diameter Recommended Total Drop (Mount to Blade) Length
6 feet 2 2 2 N/A* N/A* N/A*
8 feet 2 2 2 N/A* N/A* N/A*
10 feet 2 2 2 N/A* N/A* N/A*
12 feet 2 2 3 N/A* N/A* N/A*
*The Rapid Mount Commercial does not support this angle
The extension lengths above are minimum recommendations only, based solely on roof pitch
and fan diameter. Other factors must be evaluated when determining extension requirements. In
addition, MacroAir strongly recommends that the fan airfoils must be a minimum of 10 feet (3.05
meters) above the floor. Contact our technical department for assistance with fan placement and
extension selection (technical support contact information can be found on page 31).
Minimum Clearance (Horizontal / Vertical inches):
Airfoil / Extension 12345678910
6 feet 3 / 3 3 / 3 3 / 3 3 / 3 3 / 3 3 / 3 3 / 3 3 / 3 3 / 3 3 / 3
8 feet 3 / 3 3 / 3 3 / 3 3 / 3 3 / 3 3 / 3 3 / 3 3 / 3 3 / 3 3 / 4
10 feet 3 / 3 3 / 3 3 / 4 3 / 4 3 / 4 3 / 4 3 / 4 3 / 4 3 / 4 3 / 4
12 feet 3 / 4 3 / 4 3 / 4 3 / 4 3 / 4 3 / 4 3 / 5 3 / 5 3 / 5 3 / 5
The table above shows the clearance needed from the fan to obstructions such as lighting,
conduit, etc.
www.nueraheat.com 1-800-347-9575

© 2015 MacroAir Technologies 7
Rev. Date 032615
The Model 370 has a standard airfoil to mounting point clearance of 2 feet [0.61 m] with the
Rapid Mount Industrial. Refer to the Fan Clearance & Placement chart on page 6 for allowable
mounting options.
Fan Dimensions
1.833
6'0"
ILLUSTRATION
SHOWN WITH
STANDARD EXTENSION
0.441
1'5.375"
0.609
2'0"
0.720
2'4"
6' Airvolution D
300 Series
Rapid Mount Commercial
A-01
DO NOT SCALE DRAWING
MA06XS3706
SHEET 1 OF 1
9/9/2014
7/17/2014
7/17/2014
xxxx
xxxx
xxxx
xxxx
MD
JH
EV
UNLESS OTHERWISE SPECIFIED:
SCALE: 1:20
WEIGHT:
REV
DWG. NO.
A
SIZE
TITLE:
MacroAir
794 S Allen St. San Bernardino, CA 92408
NAME
DATE
COMMENTS:
Q.A.
MFG APPR.
ENG APPR.
CHECKED
DRAWN
FINISH
MATERIAL
INTERPRET GEOMETRIC
TOLERANCING PER:
DIMENSIONS ARE IN FEET AND INCHES
BRACKETED DIMENSIONS ARE IN METERS
TOLERANCES:
FRACTIONAL .010
ANGULAR: MACH 1 BEND 1
TWO PLACE DECIMAL .01
THREE PLACE DECIMAL .001
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
MacroAir TECHNOLOGIES. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
MacroAir TECHNOLOGIES IS
PROHIBITED.
5
4
3
2
1
www.nueraheat.com 1-800-347-9575

© 2015 MacroAir Technologies 8
Rev. Date 032615
Fan Components and Tools
A
2.442
8'-0"
0.609
2'-0"
0.442
1'-5"
0.721
2'-4"
8' Airvolution D
300 Series
Rapid Mount Commercial
A-01
DO NOT SCALE DRAWING
MA08XS3706
SHEET 1 OF 1
8/5/2014
7/17/2014
7/17/2014
xxxx
xxxx
xxxx
xxxx
MD
JH
EV
UNLESS OTHERWISE SPECIFIED:
SCALE: 1:24
WEIGHT:
REV
DWG. NO.
A
SIZE
TITLE:
MacroAir
794 S Allen St. San Bernardino, CA 92408
NAME
DATE
COMMENTS:
Q.A.
MFG APPR.
ENG APPR.
CHECKED
DRAWN
FINISH
MATERIAL
INTERPRET GEOMETRIC
TOLERANCING PER: PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
MacroAir TECHNOLOGIES. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
MacroAir TECHNOLOGIES IS
PROHIBITED.
5
4
3
2
1
DIMENSIONS ARE IN FEET AND INCHES
BRACKETED DIMENSIONS ARE IN METERS
TOLERANCES:
FRACTIONAL .010
ANGULAR: MACH 1 BEND 1
TWO PLACE DECIMAL .01
THREE PLACE DECIMAL .001
C
B
D
A - D-Drive Motor & Controller
B - Bottom Cover
C - XS Airfoil
D - Top Cover
Tools Required for Provided Hardware:
5/32’’ Allen Wrench
1/8’’ Allen Wrench (Mount Set Screw)
3/32’’ Allen Wrench
5/16’’ Allen Wrench
9/16’’ Wrench
Phillips Screwdriver
3/8’’ Socket
3/4’’ Wrench
3/4’’ Socket
Ratchet and Torque Wrenches
www.nueraheat.com 1-800-347-9575

© 2015 MacroAir Technologies 9
Rev. Date 032615
Step 1 - Fan Mounting
Choose the appropriate method for
mounting the fan(s) based upon your
specific application.
www.nueraheat.com 1-800-347-9575

© 2015 MacroAir Technologies 10
Rev. Date 032615
Rapid Mount Commercial
A
C
Components:
A - Locking Set Screws (2 locations on mount)
B - Extension Attachment Point
C - Break-outs for Power Wire, Remote Cable and Safety Cable
Note: For concrete installations (mounted directly to concrete), use provided 3/6” x 1-3/4”
Climaseal Steel Hex-Washer-Head Concrete Anchors.
B
www.nueraheat.com 1-800-347-9575

© 2015 MacroAir Technologies 11
Rev. Date 032615
1.1 Unistrut Span Mounting
Components:
A - 1/4-20 x 1” Grade 5 Bolts (4)
B - 1/4”-20 Unistrut Spring Nuts (P1006-1420) (4)
C - Liquid Thread Lock
D - Rapid Mount Commercial
E - 1-5/8” Unistrut Unpierced Channels (P1000 or P1001B) (2) (not included)
F - Extension Attachment Point
This method is used to span components of a building structure. The attachment point to the
building structure can vary greatly and we recommend Unistrut be contacted so they may
recommend the best method to attach the Unistrut to the building (www.unistrut.us). If the
spanning distance is greater than 6 feet (P1000) or 10 feet (P1001B), please consult a Structural
Engineer. Please refer to pg. 3 for a list of fan weights and torques.
1.1.1: Cut two lengths of 1-5/8” Unistrut to the appropriate length. Span the two pieces of 1-5/8”
Unistrut open side facing down and space apart so there is 5” from outside edge to outside edge
(see illustration for example).
1.1.2: Once the Unistrut is in place, apply liquid thread lock to the recommended bolts and use
the remaining recommended hardware to attach the mount to the Unistrut. Torque the bolts to
6ft-lbs. Recommended torque is based on 1/4-20” hardware.
1.1.3: Tighten the locking set screws on the mount once the extension attachment point is level.
Refer to page 9 for illustration.
Final Results:
A
B
C
D
E
F
www.nueraheat.com 1-800-347-9575

© 2015 MacroAir Technologies 12
Rev. Date 032615
Components:
A - 1/4-20 x 1” Long Grade 5 Bolts (4) (not included)
B - 1/4”-20 Unistrut Channel Nuts (P3016-1420) (4) (not included)
C - Liquid Thread Lock (not included)
D - Rapid Mount Commercial
E - 1-5/8” Unistrut Pierced Channels (P1000T) (2) (not included)
F - Extension Attachment Point
This method is used to install the Rapid Mount Commercial to an I-Beam. The attachment point
to the building structure can vary greatly and we recommend Unistrut be contacted so they may
recommend the best method to attach the Unistrut to the building (www.unistrut.us). Please refer
to pg. 3 for a list of fan weights and torques.
1.2.1: Cut two lengths of 1-5/8” Unistrut approximately 4” wider than the I-Beam or Bar Joist you
will attach the fan to.
1.2.2: Apply the liquid thread lock to each bolt and fasten both pieces of Unistrut (open side up) to
the Rapid Mount Commercial as close to center as possible using the recommended hardware
and torque the bolts to 6ft-lbs. Recommended torque is based on 1/4-20” hardware.
1.2 I-Beam Installation (1 of 2)
A
B
C
D
E
F
www.nueraheat.com 1-800-347-9575

© 2015 MacroAir Technologies 13
Rev. Date 032615
1.2 I-Beam Installation (2 of 2)
Components:
A - 1/2”-13 Grade 5 Bolts (4) (not included)
B - 1/2” Spring Washer (4) (not included)
C - Unistrut Beam Clamps (P1386) (4) (not included)
D - Unistrut 1/2” Nuts (P3010) (4) (not included)
E - 1-5/8” Unistrut Pierced Channels (P1000T) (2) (not included)
F - Rapid Mount Commercial
G - I-Beam
H - Extension Attachment Point
1.2.3: Once the Unistrut is attached to the mount, you can use the recommended hardware to
attach the assembly to your I-Beam or Bar Joists.
1.2.4: Ensure that there is adequate engagement between all clamps and the attachment point
and torque the bolts to 70 ft-lbs. For more information on the Unistrut clamp system, please
contact Unistrut. Recommended torque is based on 1/2-13” hardware.
1.2.5: Tighten the locking set screws on the mount once the extension attachment point is level.
Refer to page 9 for illustration.
Final Results:
A
B
C
D
F
E
G
H
www.nueraheat.com 1-800-347-9575

© 2015 MacroAir Technologies 14
Rev. Date 032615
Components:
A - #10 2-1/2” External Hex Flange Hex-Head
Structural-Connector Screw (4)
B - Rapid Mount Commercial
C - Glulam
D - Extension Attachment Point
This method is recommended for Glulams or wood beams 6” or wider. For narrower attachment
points please refer to the Unistrut mounting method to span across two or more beams to
increase the structural integrity.
1.3.1: Place the mount against the bottom of the beam and position the holes so that they are the
furthest from the edge as possible. Keep in mind there are breakouts for wire and safety cable
around the upper edge of the Rapid Mount Commercial. Determine where you want to route the
power, remote, and safety cable and orientate the mount appropriately. It is ideal to route the
safety cable on the opposite side of the power wire.
1.3.2: Mark each hole location and use a 3/16” drill bit to drill a pilot hole for each lag. The pilot
hole depth must be as deep or deeper than the length of the lag bolts. Once the pilot holes are
drilled, remove the breakouts to be used for power, remote, and safety cable.
1.3 Glulam/Wood Beam Installation (1 of 2)
A
B
C
D
www.nueraheat.com 1-800-347-9575

© 2015 MacroAir Technologies 15
Rev. Date 032615
Components:
A - #10 2-1/2” External Hex Flange Hex-Head
Structural-Connector Screw (4)
B - Rapid Mount Commercial
C - Glulam
D - Extension Attachment Point
1.3.3: Place the mount against the bottom of the beam and drive the four lag bolts into the pilot
holes but do not drive them all the way in as there needs to be roughly 1/2” of gap between the
top of the mount and the bottom of the beam to run wire and cable.
1.3.4: Once the power wire, remote cable, and safety cable have been routed and are sitting in
their appropriate breakouts the lags can be tightened (refer to lag manufacturer for torque
specs). While tightening the lags it is recommended that you observe all wires and cables to
ensure they are not getting damaged between the mount and beam.
1.3.5: Tighten the locking set screws on the mount once the extension attachment point is level.
Refer to page 9 for illustration.
Final Results:
1.3 Glulam/Wood Beam Installation (2 of 2)
A
B
C
D
www.nueraheat.com 1-800-347-9575

© 2015 MacroAir Technologies 16
Rev. Date 032615
Step 2 - Extension & Motor Unit
Installation
Attach the extension to the bottom of the
mount and the motor to the bottom of the
extension.
www.nueraheat.com 1-800-347-9575

© 2015 MacroAir Technologies 17
Rev. Date 032615
Components:
A - 3/8-16 x 3” Grade 5 (or higher) Bolts (2)
B - 3/8” Flat Washer (4)
C - 3/8”-16 Nylon Locking Nuts (2)
D - Rapid Mount Commercial
E - Extension
F - Motor Unit
2.1.1: The image above illustrates the proper assembly of the motor unit, extension, and mount.
The provided hardware can be installed and hand tightened until the fan is installed and the
power wire, safety cable, and remote cable are installed. Once completed, torque the bolts to 30
ft-lbs.
DO NOT RUN THE FANS WITHOUT AIRFOILS. THE FAN IS NOT CONFIGURED
TO OPERATE WITHOUT AIRFOILS ATTACHED.
Final Results:
2.1 Extension & Motor Unit Installation
A
B
C
D
F
E
www.nueraheat.com 1-800-347-9575

© 2015 MacroAir Technologies 18
Rev. Date 032615
Step 3 - Safety Cable and
Electrical Installation
Install the Safety cable and insert the
wires into the appropriate terminals on the
controller.
www.nueraheat.com 1-800-347-9575
