Okayo OTG -102 Series User manual

OTG-102
Omnitour Guiding System ﹝ User Manual ﹞

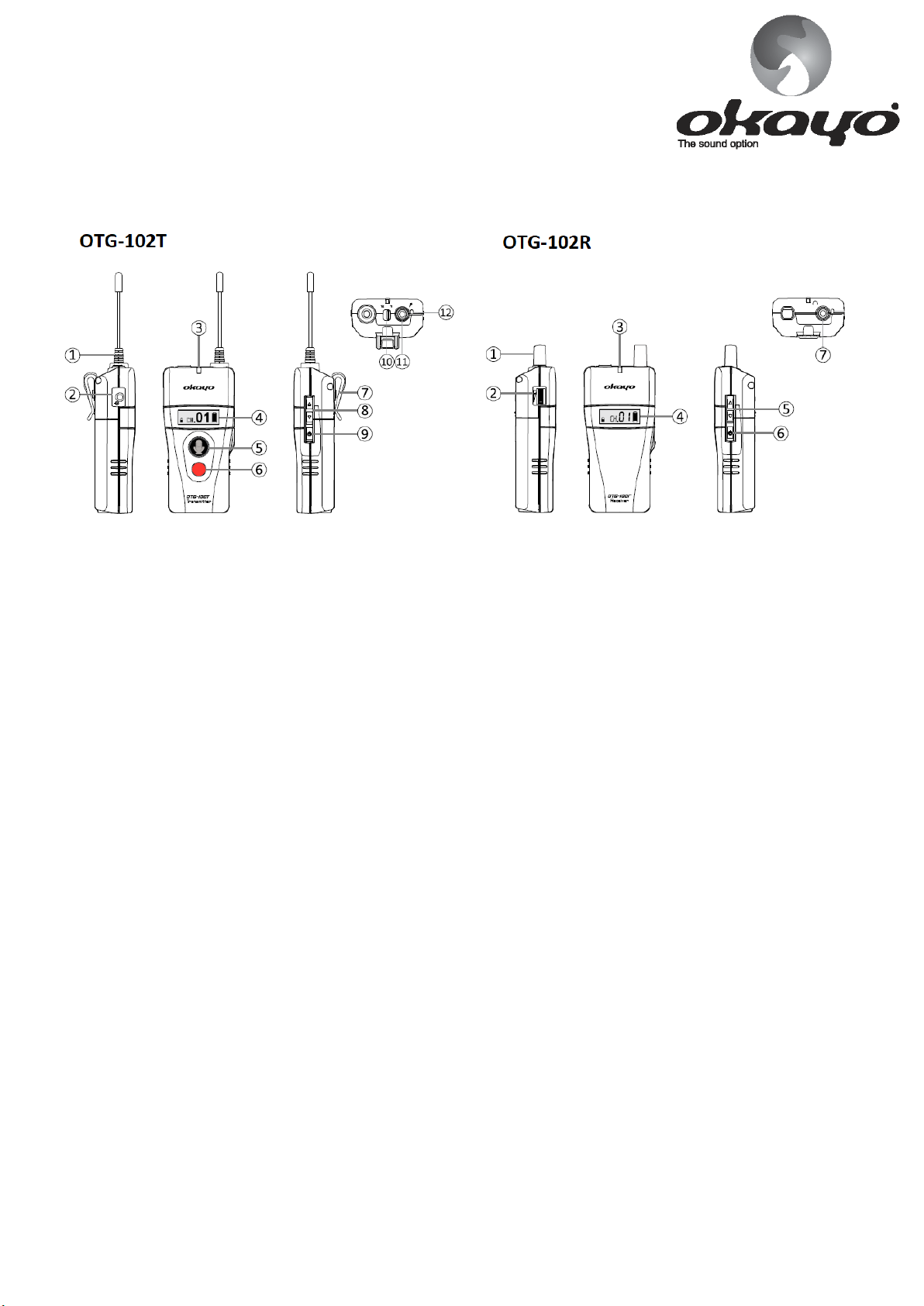

1. Whip antenna
1. Antenna
2. Aux‐in jack
2. Volumecontrol
3. Signal/Statusindicator
3. Signal/Statusindicator
4. OLED screen (see below)
4. LCD screen (see below)
5. Talk/Mutebutton
5.Up/Down button
6. Call button
6.Power button
7. Belt clip
7.Earphonejack
8. Up/Down button
9. Power button
10.T1/T2switch
11.Microphonejack
12.Inbuilt microphone

 Transmitter
1. Press both ▲(8) and power(9) buttons to turn transmitter on.
2. Following settings will show up in sequence for selection via or button (8).
Mic Gain
1~5 (default: 3)
 Channel Lock
Auto channel lock when the transmitter is turned on.
 ON
 OFF
RF Power
Hi
Low
ADNR
OFF
LOW
MID
HI
Audio Priority
Simultaneous transmission for both AUDIO and MIC. If this function is
activated (ON), only audio will be transmitted (MIC message will be
muted).
ON
OFF
3. To confirm (underline) each selection, press the power button (9) and enter next setting.
4. When final selection is completed, the transmitter will exit the menu and automatically be turned on
afterwards.
 Receiver
1. Press both (5) and power (6) buttons to turn receiver on.
2. Following settings will show up in sequence for selection via or button(6).
Channel Lock
Auto channel lock when the receiver is turned on.
ON
OFF
Auto Power‐Off
Receiver will automatically be off if it does not get the transmitter
signal for 20 minutes.
ON
OFF
Auto Power‐On
Receiver will automatically be powered on when leaving charger.
ON
OFF
Alarm
Out‐of‐range alarm will be activated if receiver does not get the
transmitter signal for 3 minutes.
ON
OFF
Earphone Output
Earphone level can be tuned to be compatible with HAC users.
LOW
HI
3. To confirm (underline) each selection, press the power button (6) and enter next setting.
4. When final selection is completed, the receiver will exit the menu and automatically be turned on
afterwards.
 Back to default
Settings on both transmitter and receiver can be back to default at any time if , (8) (5)and power
(9) (6) buttons are pressed simultaneously when transmitter/receiver is off. Followings are default
settings for transmitter/receiver.

 Transmitter
Channel: 01
Channel Lock: ON
RF Power: Low
Mic. Gain: 3
Audio Priority: OFF
ADNR: Mid
 Receiver
Channel: 01
Channel Lock: ON
Auto Power‐Off: ON
Auto Power‐On: OFF
Alarm: ON
Earphone out: Lo
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one of the following measures:
. Reorient or relocate the receiving antenna.
. Increase the separation between the equipment and receiver.
. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
. Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules.
FCC Caution: To assure continued compliance, any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate this equipment. (Example - use
only shielded interface cables when connecting to computer or peripheral devices).
FCC SAR evaluation:
This equipment complies with SAR test exclusion thresholds.
Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, no change to the
antenna orthe device is permitted. Any change to the antenna or the device could result in the device
exceeding the RFexposure require-ments and void user’s authority to operatethe device.

OTG-102T
Emission modulation
4 GFSK
Frequency range
470~608 MHz
RF power
Low ：10 ± 2 dBm
Hi ：13 ± 2 dBm
Sampling rate(SR)
12+12 kHz
Operating range
> 60 M @ Low power
> 100 M @ Hi power with OTG-102R, Indoor Field face to back
Frequency response
300 Hz ~ 4.5kHz with OTG-102R Ear. output
BLE Frequency range
2402~2480 MHz
BLE Operating range
> 5 M
Operating temperature
-10 ~ +60 ℃
Battery life
> 15 hours with 2100 mAh Type Ni-MH Rechargeable
> 15 hours with Alkaline batteries
Mic in /Aux in connector
3.5 mm jack socket
Certification standard
FCC、CE
Dimensions(D*W*H)
24*46.5*95 mm without Antenna & Belt clip
Weight
55 ± 5 g without batteries
OTG-102R
Emission modulation
4 GFSK
Frequency range
470~608 MHz
Latency (Delay time)
16.4 ~ 24.5 ms
Frequency response
300 Hz ~ 4.5 kHz with OTG-102T
Operating temperature
-10 ~ +60 ℃
DC Current
40 ± 5 mA @ no load 2.4 V
Battery life
> 45 hours with Alkaline batteries*2
Ear-out connector
3.5 mm jack socket
Dimensions(D*W*H)
24*46.5*108 mm
Weight
55 ± 5 g without batteries
