Product Identification
880377
Happy Air Fan Plus
Definition and Application
High extraction capacity 100 m3/h
Compatible with OLI74 Plus cistern and all its control plates
Removes 30% of odours
Removes 70% of condensation
Can adjust between 85 m3/h and 100 m3/h
Technical Features
Dual function on a single aspiration fan
It can be installed on the wall or ceiling
Activated by switch or sensor
960 Lumen LED
Humidity sensor that can be set to automatically turn on
Possible to adjust the operating time after the user switches the switch off (2min-
20min)
Anti-back flow valve
Paintable cover panel
Melamine filter –noise reduction

Technical Sheet
Happy Air PLUS
FTC.1296.00
Technical Sheet
Page 2
www.oli-world.com
[e-mail]
[e-mail]
Millimetres measures
Technical Data
Frequency: 50hz
Power Supply: 220V
The extractor fan operates at 220V/50Hz
Active current: 0.14 A
Power: 31W
Insulation: IP35
Performance Data
Capacity 85m3/h- 12W 34dB
Capacity 100m3/h- 20W 38dB.
Maximum suction pressure: 190 Pa
Rotating speed: 1900rpm
Accessories
1 Fan fixation kit
1 Fan tank
1 Connecting pipe for aspiration system
1 Connecting pipe for exhaustion system
1 Fan
1 Filter protection plate
Dimensional Data

Technical Sheet
Happy Air PLUS
FTC.1296.00
Technical Sheet
Page 3
www.oli-world.com
[e-mail]
[e-mail]
Millimetres measures
1.
Main Pipelin Measuring

Technical Sheet
Happy Air PLUS
FTC.1296.00
Technical Sheet
Page 4
www.oli-world.com
[e-mail]
[e-mail]
Millimetres measures
Two installation systems:
1. Configuration A –One Happy Air in every flat
2. Configuration B –Two Happy Air in every flat
According to following conditions
Contemporaneous utilization factor: 100% (all Happy Air systems work at the same
time)
Vertically installed main pipeline
Constant main pipeline diameter
Outlet residual pressure: 75 Pa
Pipeline roughness: 0.15mm
Flat height: 2.75m
Pipelin length up to the roof aerator: 1.50m Secondary pipelines made of DN 80
pipes, are 2 m long and include 2 elbows
Pipes Laying and Configuration
Depends on the chosen configuration of the system
The ventilator connection pipe must be connected to the main pipe, the dimension
of which must be calculated beforehand and sized as described in the product
handbook
The connection must be made with 45º branches in order to facilitate expulsion of
the inhaled air

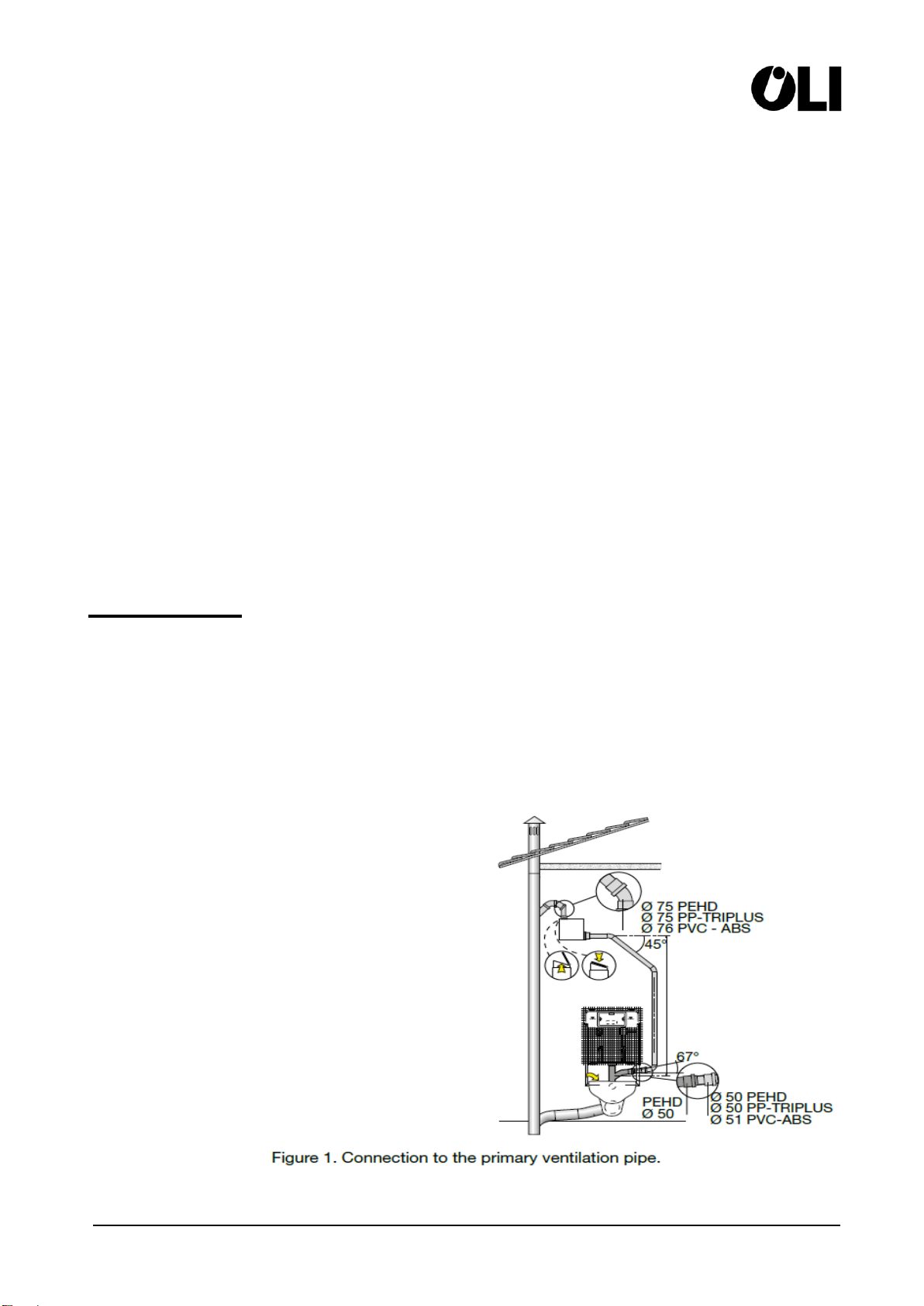

The connection can be made directly to the soil stack with primary ventilation, as
long as it is higher than emission points of discharge networks of the stack
In the case of waste systems with parallel ventilation, the connection pipe can be
connected to the parallel ventilation stack

Technical Sheet
Happy Air PLUS
FTC.1296.00
Technical Sheet
Page 5
www.oli-world.com
[e-mail]
[e-mail]
Millimetres measures
Warranty
Two (2) years warranty according to the general selling terms, starting from the
purchase date of the product.
If the product is not correctly installed the warranty is not valid
Observations
For more information please consult our Sanitary Installation Systems catalogue or
our site www.oli.pt

Technical Sheet
Happy Air PLUS
FTC.1296.00
Technical Sheet
Page 6
www.oli-world.com
[e-mail]
[e-mail]
Millimetres measures
This product is artistically made in conformity to applicable CEE rules and is manufactured to allow rooms
and similar air change, wherever the product is installed. Please follow all these indication to ensure
performance, mechanical and electrical reliability and keep always this instruction leaflet. Do not use this
product for different application unless indicated by us.
1-Remove packing and make sure that the appliance is undamaged.
2-Check that your electrical voltage and frequency correspond to those marked on the fan rating label.
3-This appliance must only be used for the purpose it was built for, i.e. air replacement for domestic and similar
purposes.
4-Do not operate the appliance in the presence of inflammable vapours (alcohol, petrol, etc.).
5-Before carrying out any cleaning or maintenance disconnect the mains electrical supply to the fan by means of a
double pole switch or remove the plug. Any maintenance and cleaning operation that requires dismounting the unit
must only be done by someone who is a property qualified person.
6-Make sure you have completely assembled the product before running.
7-Periodically, at least once a year or more frequently in case of heavy use, remove dirt and incrustation from the
impeller and motor casing and, if necessary, clean or replace the filter. It is also very important to make sure the
impeller is not deformed or cracked, is able to rotate freely and without oscillation, and is properly fixed to the
shaft.
8-When the appliance is out of use, remove the power lead. Moreover, make potentially dangerous parts
harmless, especially with regard to children who might play with appliance when it is not in use.
9-Installation must be carried out by qualified personnel according to manufacturer’s instructions. Incorrect
installation can cause damage to people, animals or properties for which the manufacturer cannot be considered
liable.
10-The fan is a fixed appliance and the main supply must be done by flexible cable with plug or by a onnipolar
switch with a minimum opening of the contacts of 3 mm.
11-When installing the fan in a room containing a combustion heater ensure that there is sufficient air to supply
both appliances.This is to ensure the efficient operation of the heater and to allow a proper operation of the fan.
The fan must discharge into a single fume pipe or directly outside.
12-This appliance can be used by children aged from 8 years and above and persons with reduced physical
sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance shall not be made by children without supervision
