Olimpia OC 1280 P User manual

OC 1280 P IP Camera
with receiver for alarm systems from
the ProHome and Protect series
Quick Start Guide
...easy to operate using the ProHome
or ProHome IPC app

Do you need detailed descriptions on
how to use the app and operate the camera?
Visit us at www.olympia-vertrieb.de

Contents
Before You Start . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . 4
Intended Use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
General Overview . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Package Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . 6
General View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Interfaces on Connection Cable . . . . . . . . . . . . . . . . . 8
Receiver for Connection to Alarm System . . . . . . . . 8
Connecting the Camera . . . . . . . . . . . . . . . . . . . . . 9
Connecting the Camera. . . . . . . . . . . . . . . . . . . . . . . . 9
Connecting the Camera - Network Cable . . . . . . . . 11
Last Steps Prior to Assembly . . . . . . . . . . . . . . . . . . 11
Determining the Installation Location. . . . . . . . . . . 11
Installing the Camera. . . . . . . . . . . . . . . . . . . . . . . . . 12
Assembling the Cable Box. . . . . . . . . . . . . . . . . . . . . 13
Aligning the Camera. . . . . . . . . . . . . . . . . . . . . . . . . . 15
Detailed Operating Instructions . . . . . . . . . . . . 15
Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Technical Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Cleaning and Service . . . . . . . . . . . . . . . . . . . . . . . . . 18
Information on Disposal . . . . . . . . . . . . . . . . . . . . . . 18
Guarantee and Service . . . . . . . . . . . . . . . . . . . . . . . 18
Information on Conformity. . . . . . . . . . . . . . . . . . . . 18

4IP CAMERA OC 1280
BEFORE YOU START
Before You Start
Read the operating manual thoroughly and
observe all the information contained when using
the OC 1280 P IP camera. Keep the operating
manual in a safe place for future reference.
Pay attention to this symbol. Texts which are
highlighted by this symbol provide helpful informa-
tion on handling the OC 1280 P IP camera.
Safety Instructions
Read and observe all the safety information to protect
yourself and the environment from any harm.
The following warnings indicate potentially dangerous
situations which could lead to serious injuries or even
fatal injuries if the information is ignored.
WARNING! Risk of fatal injury from electric shock!
NEVER use the device if you suspect damage to the
power cable or power plug or there are visible signs
of damage to the power cable or power plug.
WARNING! Risk of suocation! Children can swallow
small parts, packaging and protective foils. Keep the
device and packaging out of reach of children.
NEVER complete any repairs to the device yourself.
Never open the device because it contains no
components which you may service yourself. In the
event of a fault, contact our Service Department.

5
IP CAMERA OC 1280
SAFETY INSTRUCTIONS
The following warnings indicate potentially dangerous
situations which could lead to property damage if the
information is ignored.
IMPORTANT! Only use original accessories. Only connect
accessories approved by the manufacturer to the camera
and only use the power adapter supplied.
IMPORTANT! Repairs to this device may only be completed
by properly qualied service personnel.
Intended Use
The OC 1280P IP camera (subsequently referred to as
camera) is designed to perform video surveillance (CCTV)
of indoor and outdoor areas by day and night.
When installing and selecting the area of application
of the camera, pay attention to the personal rights of
third-parties and that the respective, applicable local laws
and regulations are not violated.
A condition for complying with the intended use is that
the equipment is installed correctly and the information
in the manual is observed and maintained. Any other use
is considered unintended use.
The camera is not intended for use in wet rooms or
potentially explosive atmospheres. Monitoring of third-
parties is not permitted without having obtained the
respective, explicit authorisation and doing so could have
legal consequences.
Unauthorised modications or reconstructions are not
permitted.
The camera is only intended for private use.

6IP CAMERA OC 1280
GENERAL OVERVIEW
General Overview
This section provides information on the package con-
tents of the camera, the system requirements to operate
it with the app and contains a summary of the functions
and operating elements available on the camera.
Package Contents
Please check the contents of the package carefully.
If anything is missing or has been damaged during
transport, DO NOT put the camera into operation!
IP Camera OC 1280 1
Power adapter 1
Receiver 1
Cable box 1
Assembly material 3 x screws, 3 x dowels
Network cable 1 x Cat.5e (RJ45)
Operating manual 1
System Requirements
When using an alarm system from the Protect series, the
installation location of the camera must be within trans-
mission range of the base unit of the alarm system.
You need a web-capable smartphone which has the
Android (from 4.4) or iOS (from 7) operating system and
the latest version of our app.

7
IP CAMERA OC 1280
GENERAL OVERVIEW
General View
1 2 3 4
56789
1Connection cable (several interfaces)
2Device mounting bracket
3Union nut for mounting bracket
4Antenna (Wi)
5Interfaces (see Page 11)
6Infrared LEDs (night vision)
7Brightness sensor
8Lens
9Interfaces (see Page 8)

8IP CAMERA OC 1280
GENERAL OVERVIEW
Interfaces on Connection Cable
1
2 3 4 5
1LEDs (network activity)
2Port (for network cable)
3Port (for connection to the receiver)
4Port (for power supply)
5Reset button
Receiver for Connection to Alarm System
1
3
4
2
1Plug (for power supply)
2Status LED (not illustrated here)
3Port (for power supply)
4Plug (for connection to camera)

9
IP CAMERA OC 1280
CONNECTING THE CAMERA
Connecting the Camera
This section provides information on how to connect and
position the camera.
Connecting the Camera
This section explains how to connect the camera to the
power supply and then decide whether the camera is to
be integrated in an existing alarm system.
Use With an Alarm System
If you want to integrate the camera in an alarm system,
you must use the receiver supplied. If you do not want to
integrate the camera in an alarm system, skip this section
and continue with Use Without an Alarm System.
The receiver is connected directly to the camera and
power adapter of the camera. In this case, power is
supplied to the camera from the receiver.
1 Connect the plug on the receiver to the port on the
connection cable of the camera to enable data
exchange with the alarm system.
2 Connect the plug on the receiver to the port on the
connection cable of the camera for the power
supply.
3 Connect the power adapter supplied to the port on
the receiver and plug the power adapter in a power
socket.

10 IP CAMERA OC 1280
CONNECTING THE CAMERA
Registering the Receiver on the Alarm System
The following section describes how to register the
receiver on the alarm system.
1 Disconnect the power adapter from the power
socket.
2 Select the Register menu option on the base unit of
the alarm system according to the relevant operating
manual.
3 Connect the power adapter to a power socket.
4 The display on the alarm system indicates that
registration was successful.
5 The receiver is now registered on the alarm system.

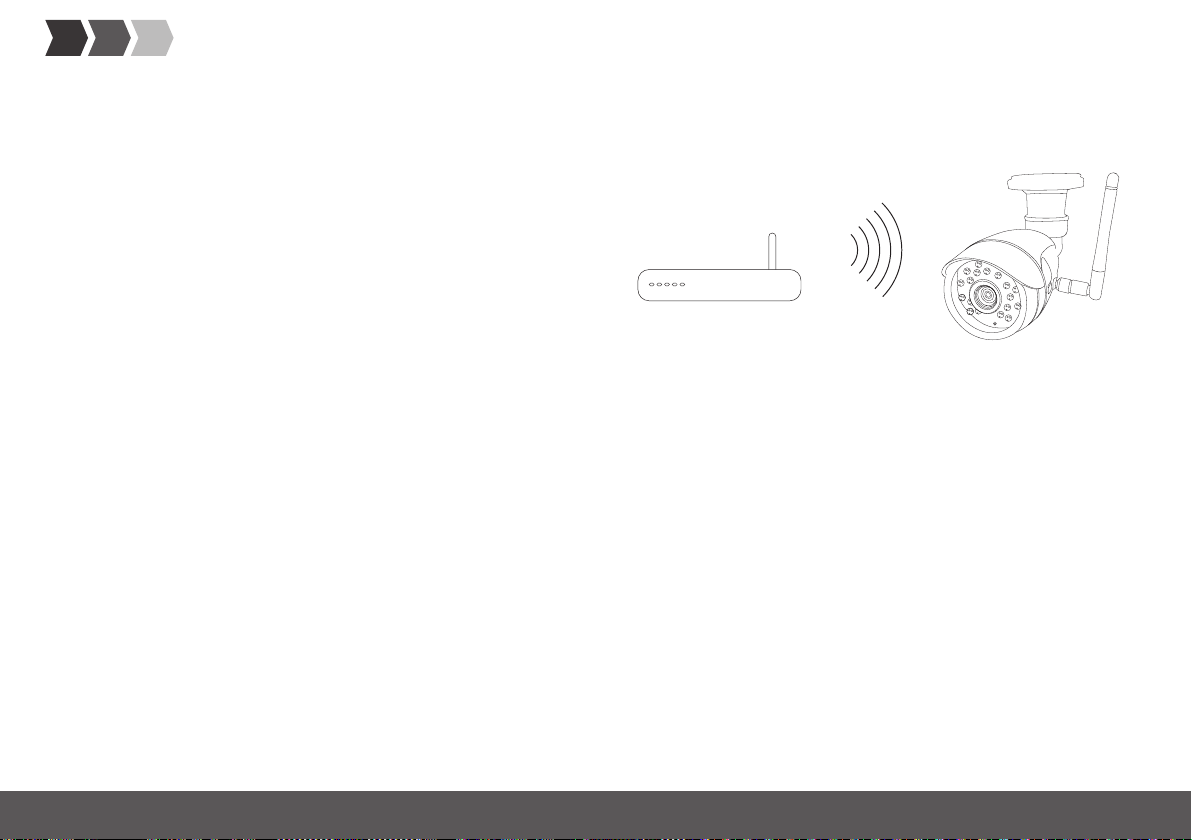

Use Without an Alarm System
If you want to use the camera without an alarm system,
you do not need the receiver supplied.
1 Connect the power adapter supplied to the port on
the camera's connection cable and a power socket.
