Olive Olive 4 HD User manual
QUICK START GUIDE
OLIVE 4HD
3
OLIVE 4HD QUICK START GUIDE
English ............................................................................................................................................................
Deutsch .........................................................................................................................................................
Français .........................................................................................................................................................
Italiano ............................................................................................................................................................
Español ..........................................................................................................................................................
中國 ..................................................................................................................................................................
中国 ..................................................................................................................................................................
Suomi ............................................................................................................................................................
Português .....................................................................................................................................................
Notices ...........................................................................................................................................................
4
18
32
46
60
74
88
102
116
130
4OLIVE 4HD QUICK START GUIDE
Package Contents ...................................................................................................................
Setup & First Steps .................................................................................................................
Connecting your Olive 4HD ................................................................................................
Navigation Basics ....................................................................................................................
Connecting to your Network .............................................................................................
Importing Music ........................................................................................................................
Ripping CDs ................................................................................................................................
Importing from a PC or Mac ..............................................................................................
Music Library ..............................................................................................................................
Finding Music .............................................................................................................................
Play Modes ..................................................................................................................................
Playlists ..........................................................................................................................................
Deleting Music ...........................................................................................................................
Burning CDs ................................................................................................................................
Editing Music Information ....................................................................................................
Internet Radio .............................................................................................................................
Remote Control .........................................................................................................................
Music Streaming over your Network ............................................................................
Network Music Player ............................................................................................................
Streaming from PC/Mac/NAS to the Olive 4HD ....................................................
Your Music in iTunes & Windows Media Player ......................................................
Support ..........................................................................................................................................
Software updates .....................................................................................................................
Recovery .......................................................................................................................................
Backup ...........................................................................................................................................
Restore ...........................................................................................................................................
Tips & Tricks ................................................................................................................................
Handling & Care ........................................................................................................................
6
6
6
8
10
11
11
12
13
13
13
13
14
14
14
15
15
16
16
16
16
16
16
16
16
17
17
17
1
2
2.1
2.2
2.3
3
3.1
3.2
4
4.1
4.2
4.3
4.4
4.5
4.6
5
6
7
7.1
7.2
7.3
8
8.1
8.2
8.3
8.4
8.5
8.6
Contents
5
OLIVE 4HD QUICK START GUIDE
Congratulations and thank you for your purchase of
the Olive 4HD music server. This Quick Start Guide
summarizes the most important functionality of your Olive
4HD, and highlights a few useful tips and tricks so you can
take full advantage of its capabilities.
WARNING To avoid injury or damage to the product, please read all operating instructions in
this guide and the safety information listed in the complete User Guide in the support section
at www.olivehi.com before using the Olive 4HD. More questions? Simply send us an email to
info@olivehi.com. We look forward to hearing from you.
WELCOME
6OLIVE 4HD QUICK START GUIDE
1 Package Contents
Your Olive 4HD comes with the following items:
1. Quick Start Guide
2. Power Cable
3. WiFi Antenna
4. Remote Control & Batteries
2Setup & First Steps
2.1 Connecting your Olive 4HD
5. Digital Audio Outputs
6. Analog Audio Outputs
4. Digital Input
3. WiFi (802.11n)
9. HDMI
10. USB Port
8. Ethernet Connector (Gigabit)
2. Power Switch
7. IR Input
1. Power Connector
7
OLIVE 4HD QUICK START GUIDE
1. CONNECTING TO YOUR NETWORK
The Olive 4HD can be connected wirelessly or wired to
your router.
WIRELESS: Attach the WiFi antenna that came with
your Olive 4HD to the main connector marked “WiFi
1”. This antenna should be positioned upright for best
performance. We recommend to attach additional WiFi
antennas to the connectors* “WiFi 2” and “WiFi 3” in
case the reception is not optimal. For best performance
please use WiFi antennas that are on a wire and can
be positioned exibly (WiFi antennas must have a SMA
Connector).
WIRED: If you have a wired connection please use the
Ethernet Connector (8) for connection to your router.
For more information about connecting to your network
please refer to page 10.
2. CONNECTING TO YOUR AMPLIFIER/RECEIVER:
Connect the Analog (6) or Digital (5) outputs to the
corresponding inputs on your receiver.
3. CONNECTING TO YOUR TV: The Olive 4HD can be
connected via HDMI (9) to your TV. It replicates the user
interface that you would otherwise see on the LCD of
the Olive 4HD. iTo switch between the LCD and the TV
interface simply press both the LEFT and RIGHT navigation
buttons shortly (page 8).
4. OTHER CONNECTIVITY
USB (10): To backup and restore of your music library
(page 16-17).
DIGITAL INPUT (4): Connect the digital audio output of
an additional source (e.g. TV) to take advantage of the
high-resolution DAC of the Olive 4HD. To switch to the
source simply go to SOURCES in the main menu and
select DIGITAL INPUT.
IR INPUT (7): For connecting an external IR Receiver in
case the Olive 4HD is inside a cabinet.
5. STARTING UP YOUR OLIVE 4HD: Connect the Power
Cord to the Power Connector (1) and to the power outlet
on your wall. Turn on the Power Switch (2) and your
Olive 4HD will start up. Booting to the Startup Screen
usually takes between 30-45 seconds.
*The original version of the Olive 4HD has only 2 WiFi-antenna
connectors.
8OLIVE 4HD QUICK START GUIDE
2.2 Navigation Basics
To navigate with the touchscreen, simply tap on the item
on the screen.
NAVIGATION CONCEPT
The user interface on the touschscreen is split into three
areas: two Menu Panels (6) and the Navigation Bar (7).
The Left Menu Panel shows the main categories, the
Right Menu Panel displays the items that can be found
under each category. Select an item in the left panel to
see what can be found in each category. Select an item in
the right panel and the navigation will shift to the left to re-
veal the items that can be found in the selected category.
2 Navigation
Buttons1 Touchscreen
5 Sleep/Wake
Button
7 Navigation Bar
6 Menu Panels
4 Player
Buttons
3 Select
Button
ACCESSING THE MENU
Once the Startup Screen appears, tap on the touchscreen
(1) or press the Sleep/Wake Button (5) to get to the main
menu. iWe recommend using the Sleep/Wake Button on
the front of the device to put your Olive 4HD to sleep (or wake
it). Only switch off your Olive 4HD with the Power Switch on the
backside if you do not intend to use it for an extended period of
time (e.g. going on vacation). iWe also recommend that you
unplug the Power Cord when leaving for a long period of time.
TOUCHSCREEN OR BUTTONS?
Navigate your Olive 4HD with both the Touchscreen (1)
and the buttons. The Navigation Buttons (2) allow you
to move up/down and left/right in the menu. The Select
Button (3) is a dynamic button and gives you access to
different functions depending on where you are in the
menu. The Player Buttons (4) allow you to start playback
of your music and skip between tracks. iKeep the play/
pause button pressed for a few seconds to stop the music
playback. iKeep the left navigation button pressed to quickly
jump back to the main menu at all times.
10:25 PM
1
0:25 PM
10:43 PM
0:25 PM
10:43 PM
0:25 PM
MUSIC LIBRARY GENRES
MUSIC SOURCES ALBUM ARTWORK
INTERNET RADIO ALBUM NAME
SETTINGS ARTISTS
TRACKS
PLAYLISTS
9
OLIVE 4HD QUICK START GUIDE
THE MAIN MENU
Here is what you will nd in each main category:
MUSIC LIBRARY Access all the music that is stored on
your Olive 4HD. Browse by genre, album, artist, track or
playlist.
MUSIC SOURCES Play music that is stored on an
external source such as a PC, Mac or NAS* or start
music playback from a source that is connected to the
Digital Input.
INTERNET RADIO Browse internet radio stations from
all over the world. This feature only appears if the Olive
4HD is connected to the internet (page 15).
SETTINGS Access all system settings, including
network setup, software update, backup & restore and
more.
*PC, Mac or NAS must be in same network as Olive 4HD
and music must be shared with a fully UPnP DLNA compliant
software package. We support Tversity for PC and Twonky
Media for Macintosh.
The Navigation Bar (7) is always visible and allows you to
access key functionality at all times.
Tap to navigate to the left in the menu structure.
Adjust the time and date.
Set your play mode to repeat and/or shufe.
Shows the remaining playback time of the current
track. Tap to access the different play screens.
Set the volume or mute your Olive.
The Neworks icon shows the current network connection
status and allows you to access the network setup wizard.
Wirelessly connected to your network.
Wired connection to your network.
Not connected to the network.
iA white network logo indicates you have network
connection and internet access. An orange network logo
indicates you are connected to the network, but have no
internet connection. For more information about connecting
to your network please refer to page 10.
10:25PM
-03:29
10 OLIVE 4HD QUICK START GUIDE
2.3 Connecting to your Network
To start the network setup wizard simply tap on the
network logo in the lower right corner of the Navigation
Bar or go to SETTINGS > NETWORK SETTINGS >
NETWORK SETUP. Please follow these simple steps:

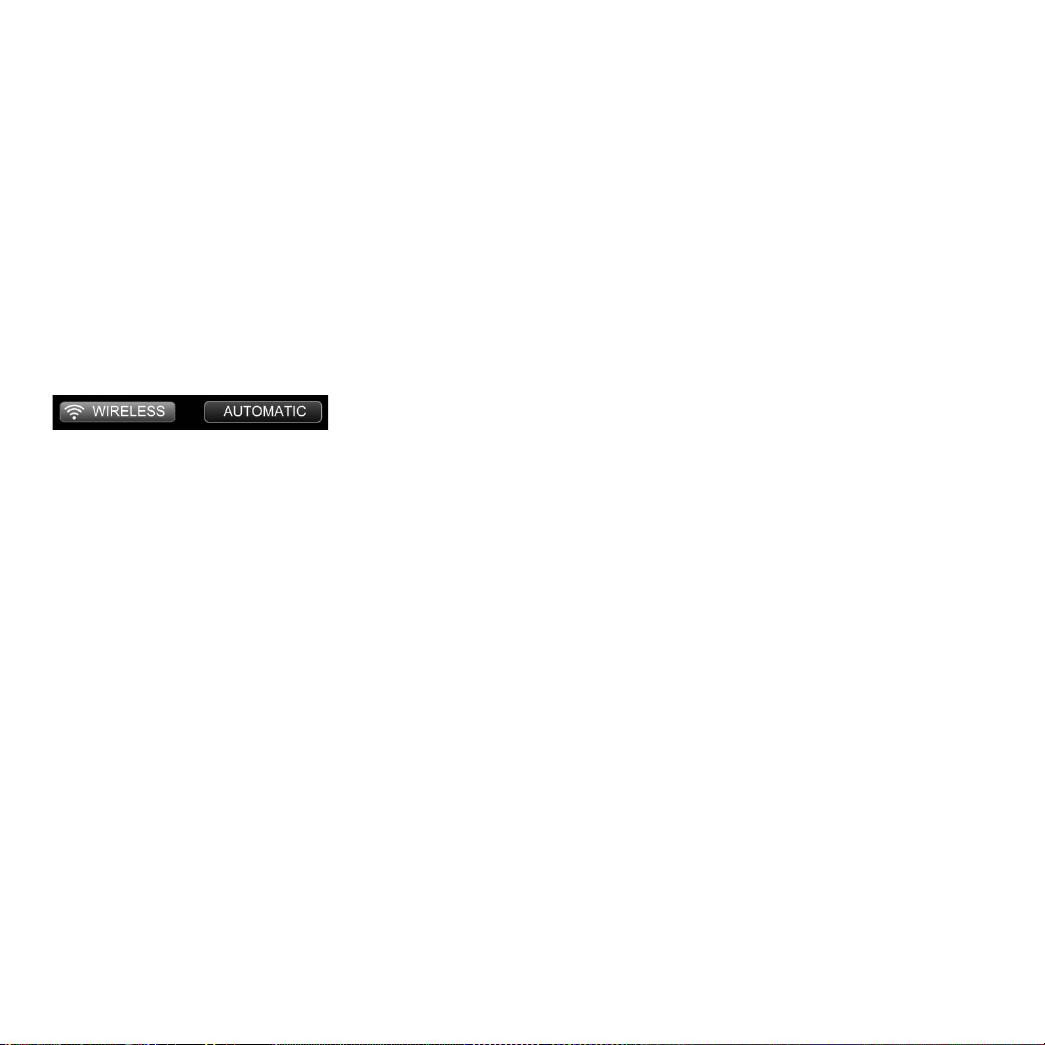

1. CHOOSE YOUR NETWORK CONNECTION
Select wired or wireless and the setup mode (automatic
or manual). We recommend using the automatic mode as
it covers most of the network scenarios.
2. CHOOSE YOUR NETWORK
If you have chosen a wired (and automatic) connec-
tion the system will automatically setup the connection
and you are done. If you have chosen wireless, the next
screen will show you a list of available networks. Please
select your network and press SAVE.
3. CHOOSE YOUR ENCRYPTION
If you have an open network, the Olive 4HD will
automatically setup the connection and you are done. If
your network is secured with a password, an entry mask
will appear. Please enter your password (case sensitive)
and press SAVE. The Olive 4HD will now setup the
connection and you are done.
i In rare instances the network login can take several minutes
and can happen after the network conrmation window appears
(indicating rst that the network connection has failed).
What if the Olive 4HD does not connect to the network?
Here are a few things to consider:
DISTANCE The Olive 4HD should not be more than 20 to
30 feet away from your router (wireless connection only).
ANTENNA Make sure to connect the main antenna to the
“WiFi 1” connector on the back and position it upright.
You can attach additional WiFi antennas to optimize the
reception.
LOCATION If your Olive 4HD is placed inside a cabinet
you might have to use an external antenna to get recep-
tion.
NETWORK CONGESTION Make sure no other WiFi de-
vices are directly next to the Olive 4HD. Microwaves and
wireless phones can also prevent wireless devices from
communicating with each other.
What if the Olive 4HD connects to the network but gets
no internet access?
This is usually related to the DNS settings. Please email
support@olivehi.com for assistance in setting up your
connection.
11
OLIVE 4HD QUICK START GUIDE
3 Importing Music
3.1 Ripping CDs
To import CDs into your Olive 4HD library please follow
these simple steps:
1. SELECT THE AUDIO FORMAT
Go to SETTINGS > CD SETTINGS > CD IMPORT
QUALITY and select the quality of the encoding. We
recommend FLAC as it preserves the original CD quality
while reducing the storage requirement to about 50% of
uncompressed music (WAV). Once you set the quality, it
will apply to all CDs that you rip.
2. INSERT THE CD
A pop-up screen will appear, displaying the album title,
artist and the album artwork.
If the CD is not recognized (i.e. the title of the album
and artist show up as “unknown”) we recommend
connecting the Olive 4HD to the internet to browse the
online CD database. If the CD is still not recognized
you can edit the information through the Maestro web
interface (page 14) later on. Please do not edit the
information until the CD is fully transcoded.
iYour Olive 4HD needs to be connected to the internet in
order to get album artwork. If album artwork is not available,
an Olive logo will appear as a placeholder.
iThe Olive 4HD only supports regular Audio CDs. SA-CD
and DVD Audio is not supported.
3. RIP THE CD
Tap on the IMPORT button and the CD will be ripped.
You can check the import status in the main menu under
CD IMPORT STATUS.
The CD ripping is done in two stages: 1) Copying the
music in uncompressed format onto the hard drive (takes
5-7 minutes per CD); 2) Transcoding the music into the
format you have selected in step 1 (takes 20-25 minutes
per CD).
If you have selected the uncompressed WAV format,
the ripping process is complete after the CD has been
copied to the HDD.
iThe transcoding of CDs takes a lot of processing power
and we recommend to pause after importing 20 to 30 CDs
so the Olive 4HD can nish the transcoding process. During
transcoding the navigation of the Olive 4HD can appear slow
as only limited processing power is available.
IMPORTING FROM A MAC
1. Go to GO > CONNECT TO SERVER in the main menu
on your desktop (or press COMMAND + K).
2. Enter the IP address of your Olive 4HD, preceded by
“smb://” into the pop-up window and click OK.
3. An “Import” folder will pop-up.
Drag and drop your complete music folder from your PC/
Mac into the Import folder. Once the music is copied over
into the Import folder, the Olive 4HD will import it into the
local library and categorize it. This can take several hours
for large libraries.
Your music will only show up in the local library if the Olive
4HD has successfully imported it from the Import folder.
Once the music is completely imported into the library the
Import folder will be empty.
iThe Olive 4HD will only import music formats that are
supported (FLAC, WAV, MP3 and AAC). Please be aware that
music in WAV Format does not have metadata and will show up
as “Unknown” artist/album/track on your Olive 4HD.
i For large libraries we recommend that you split the library
into several batches before dragging it into the “Import” folder.
12 OLIVE 4HD QUICK START GUIDE
3.2 Importing Music from a PC or MAC
WHAT YOU NEED
1) Please make sure the PC is connected to the same
network as the Olive 4HD. We recommend a wired
connection if you are transfering large music libraries.
2) Note the IP address of your Olive 4HD (SETTINGS >
NETWORK CONNECTION > NETWORK INFO).
IMPORTING FROM A PC (Windows Operating System)
1. Press the WINDOWS + R keys on your keyboard.
2. Enter “\\” into the pop-up window, followed by the Olive
4HD IP address you noted above.
3. Click OK and an “Import” folder will appear in your
network environment.
\\ x x.x.x.xx
smb://x x.x.x.xx
13
OLIVE 4HD QUICK START GUIDE
4Music Library
4.1 Finding Music
Select MUSIC LIBRARY from the main menu and browse
your music alphabetically by genre, artist, album, track,
or album artwork. Choose the SEARCH function in each
category and simply enter a few letters of the word (e.g.
“CAL” for “Hotel California”). The Olive 4HD will now only
display music that includes the search term.
4.2 Play Modes
Pressing the play/pause button allows you to play your
music in different ways depending on where you are in
the navigation.
TO PLAY: HIGHLIGHT:
All albums ...........the ALBUMS category & press play/pause.
One album ...........the album name & press play/pause.
All tracks ...............the TRACKS category & press play/pause.
One artist .............the artist & press play/pause.
All albums of this artist will be played.
Shufe and Repeat can only be activated if music is
playing. Simply choose your music playback mode
above, then set the play mode by tapping the shufe/
repeat icon in the Navigation Bar.
REPEAT Tap once for repeating only one song.
REPEAT ALL Tap twice to repeat all songs.
SHUFFLE Can only be activated if repeat is set to
ALL SONGS or OFF.
4.3 Playlists
To create a playlist simply follow these steps:
1. ADD PLAYLIST
Go to MUSIC LIBRARY > PLAYLISTS >
ADD PLAYLIST and enter the name of your playlist.
2. PLAY TRACK
Play the track you want to add to the playlist and press
the SELECT Button.
3. ADD TO PLAYLIST
Select ADD TO PLAYLIST in the pop-up window.
Choose the playlist you created in step 1 and press
SAVE.
4. REPEAT STEPS
Choose the next track and repeat step 2 and 3 until
your playlist is complete.
The playlist appears in your music library under the
PLAYLISTS menu.
14 OLIVE 4HD QUICK START GUIDE

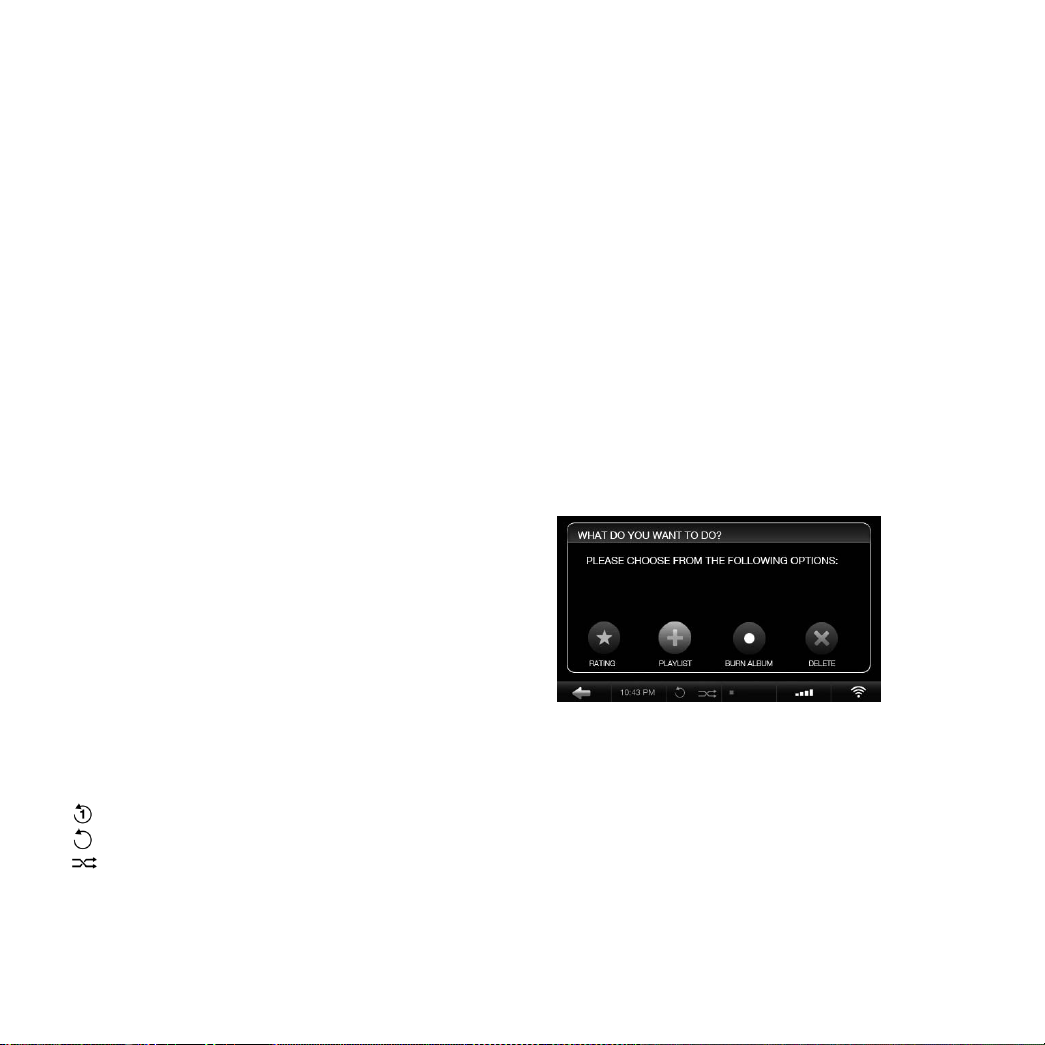

4.4 Deleting Music
To delete music simply play the track and press the
SELECT Button. Choose DELETE in the pop-up window
and then select to delete the track or the complete album.
To delete a playlist simply highlight the specic playlist
and press the SELECT Button. Choose DELETE in the
pop-up window.
4.5 Burning CDs
You can burn CDs both from albums as well as playlists. To
burn an album to CD play a track and press the SELECT
Button. Choose BURN ALBUM and insert a blank CD
when prompted. To burn a playlist to CD, highlight the
specic playlist and press the SELECT Button. Choose
BURN TO CD and insert a blank CD when prompted.
4.6 Editing Music Information
To edit the metadata of your music (album title, artist,
tracks, artwork etc.) the Olive 4HD features a special
web-interface called Maestro.
To access this interface please launch the web-browser
on your PC/Mac and enter the following address:
http://xx.x.x.xx:8163/maestro.php
(Replace the xx.x.x.xx with the Olive 4HD IP address).
Visit the support section at www.olivehi.com for more
details on the iMaestro application.
iYour PC/Mac must be in the same network as your Olive.
iCurrently only the Firefox browser is supported with Maestro.
Download the browser for free at www.refox.com.
15
OLIVE 4HD QUICK START GUIDE
5 Internet Radio
Internet radio will appear as a separate category in the
main menu if the Olive 4HD is connected to the internet.
Stations are categorized into genre, region and public
& info. To add a station to your FAVORITES you have
to play the station, then press the SELECT Button and
choose OK in the pop-up window.
You can also add your own radio station. Select ADD
NEW STATION, enter the station name and then the
web address. The stream must be in .pls, .mp3 or .m3u
format.
6Remote Control
Your Olive 4HD comes with a standard infrared remote
control to allow you to control key functions conveniently
from your couch. If you have an Apple®iPhone™ or
iPod™ Touch you can also use Olive’s free iMaestro
remote control application. Simply enter the App Store
on your iPhone™/iPod™ Touch, go to SEARCH and
enter “iMaestro.”
Navigation Buttons
Shortcut Buttons
Sleep/Wake Button
Player Buttons
10:25 PM
1
0:25 PM
10:43 PM
0:25 PM
10:43 PM
0:25 PM
MUSIC LIBRARY FAVORITES
MUSIC SOURCES GENRES
INTERNET RADIO REGIONS
SETTINGS PUBLIC & INFO
ADD NEW STATION
16 OLIVE 4HD QUICK START GUIDE
7Music Streaming
7.1 Network Music Player
Olive offers its own network music player to allow stream-
ing of music from the Olive 4HD to additional rooms.
Therefore, 3rd party network players are not actively
supported.
7.2 Streaming from a PC/MAC/NAS to Olive 4HD
The Olive 4HD incorporates local storage to allow quick
and reliable access to your music content. Therefore we
recommend consolidating your music onto the Olive 4HD
hard drive, where it is safe from usual computer problems
(malware/viruses etc.). Olive provides limited support to
streaming from external sources, currently focusing on
Tversity (PC) and Twonky Media (Mac).
7.3 Your Music in iTunes & Windows Media Player
Music stored on your Olive 4HD can be accessed in most
UPnP DLNA compatible software such as iTunes and
Windows Media Player. The Olive 4HD library will appear
as a separate music source in these software packages.
i Some software packages (e.g. iTunes) do not support the
FLAC format and this music will therefore not be accessible.
8Support
8.1 Software Updates
Olive constantly updates the software for your product so
check regularly if a new update is available. Simply go to
SETTINGS > SYSTEM SERVICES and select SOFTWARE
UPDATE. If you do not have internet access at home you
can also upload the software update via a USB stick.
8.2 Recovery
A recovery erases the hard drive of your Olive 4HD and
installs the operating system and CD database from
scratch. All music and playlists are lost, therefore, this
should only be done if you have rst spoken with Olive’s
support team. To do a recovery you need a USB stick
with at least 4GB of memory. Please contact us at
support@olivehi.com on how to perform a recovery.
8.3 Backup
It is always a good idea to backup your music regularly.
To do so please format a USB hard drive in FAT32 and go
to SETTINGS > SYSTEM SERVICES and select BACKUP.
Follow the on-screen instruction and connect the USB
hard drive only when prompted. A pop-up window will
conrm when the backup process has started.
i The backup process will erase all data stored on your exter-
nal hard drive, and replace it with the backup les. Make sure
you are using a dedicated hard drive for this process.
i The capacity of the USB hard drive should be at least as
big the amount of capacity used on on your Olive 4HD (see
SETTINGS > ABOUT YOUR OLIVE).
17
OLIVE 4HD QUICK START GUIDE
NEVER PUSH OBJECTS of any kind through the product
openings. Never spill liquid of any kind on the product.
Contact Olive support if something drops into the case.
DO NOT CLEAN YOUR OLIVE WITH aerosol sprays,
chemical solvents, alcohol or abrasives. Do not remove
dust with air pressure.
8.6 Tips & Tricks
IS YOUR OLIVE NOT RESPONDING? Please keep the Left
arrow button pressed. It should unfreeze the navigation.
If this does not work, press and hold the Sleep/Wake
Button on the front for about 5 seconds. The system
will restart. Allow 40-60 seconds for the main menu to
reappear and for network connections to re-establish.
If this happens regularly please contact us.
THE TV INTERFACE DOES NOT WORK. Make sure you
have updated your Olive 4HD software to the latest
version. Also check if your TV is set to a manual
resolution of 480P and automatic scaling is switched
off. Try connecting the Olive 4HD to another HDMI
connector on your TV and make sure the correct source
is selected.
TOUCHSCREEN NOT RESPONDING? Please calibrate the
touchscreen under SETTINGS > SYSTEM SERVICES
> CALIBRATE TOUCHSCREEN. Use a stylus pen for
accuracy.
Visit us online at www.olivehi.com for a complete list of FAQs
or email us at support@olivehi.com if you cannot nd an
answer to your question.
8.4 Restore
The restore process will erase all music on your Olive
4HD and will overwrite it with the music from your
backup. Go to SETTINGS > SYSTEM SERVICES and
select RESTORE. Follow the on-screen instructions
and connect the USB hard drive only when prompted.
A pop-up window will conrm when the restore has
started.
CAUTION Never unplug the USB hard drive during
backup or restore. It can damage your Olive 4HD and
erase your music. Turn off your Olive 4HD (Power
Switch on backside) when the process is complete and
disconnect the USB hard drive.
iThe backup and restore process can take several hours
depending on the capacity of your Olive 4HD. We therefore,
recommend that you perform it overnight. iDuring the
backup and restore process your Olive 4HD cannot perform
any other operations.
8.5 Care & Handling
TURN OFF OTHER STEREO COMPONENTS BEFORE
switching off the Master Power Switch on your Olive
4HD. Turn down amplier/receiver volume before
pressing the Sleep/Wake Button to avoid a volume surge
that could impact other components.
WHEN PLANNING NOT TO USE YOUR OLIVE for long
periods of time (e.g. vacation, etc.) disconnect the Power
Cable from the wall outlet. Always grab the plug, never
the cable itself.
Lieferumfang ..................................................................................................................................
Erste Schritte .................................................................................................................................
Installation ........................................................................................................................................
Navigation ........................................................................................................................................
Anschluss an Ihr Netzwerk ....................................................................................................
Musik importieren ........................................................................................................................
CDs einlesen ..................................................................................................................................
Musik vom PC oder Mac importieren ..............................................................................
Ihre Musiksammlung .................................................................................................................
Musik nden.....................................................................................................................................
Wiedergabemodus .....................................................................................................................
Playlisten ..........................................................................................................................................
Musik löschen ...............................................................................................................................
CDs brennen ..................................................................................................................................
Musikinformationen editieren ................................................................................................
Internetradio ...................................................................................................................................
Fernbedienung ..............................................................................................................................
Musik-Wiedergabe über das Netzwerk ..........................................................................
Netzwerk-Player ...........................................................................................................................
Musik von einem PC/Mac/NAS auf dem Olive 4HD abspielen ........................
Musik auf Ihrem Olive 4HD in iTunes/Windows Media Player abspielen .....
Support .............................................................................................................................................
Software Updates .......................................................................................................................
Neuinstallation ..............................................................................................................................
Sichern ..............................................................................................................................................
Wiederherstellen ..........................................................................................................................
Sicherheit & Pege .....................................................................................................................
Tipps und Tricks ...........................................................................................................................
20
20
20
22
22
25
25
26
27
27
27
27
27
28
28
28
29
29
29
29
29
30
30
30
30
30
31
31
1
2
2.1
2.2
2.3
3
3.1
3.2
4
4.1
4.2
4.3
4.4
4.5
4.6
5
6
7
7.1
7.2
7.3
8
8.1
8.2
8.3
8.4
8.5
8.6
Inhalt
Herzlichen Glückwunsch zu Ihrem neuen Olive 4HD und vielen Dank für Ihr
Vertrauen in Olive. Diese Kurzanleitung wird Ihnen in wenigen Seiten die
wichtigsten Funktionen und Fähigkeiten Ihres HD Musikservers erklären.
Und nun viel Spaß mit Ihrer Musik.
Wichtiger Hinweis: Um Beschädigungen an Ihrem Produkt zu vermeiden, lesen Sie bitte diese Anleitung komplett und
auch die Sicherheitshinweise in der detaillierten Bedienungsanleitung unter www.olivehi.com. Gerne stehen wir Ihnen
bei weiteren Fragen zur Verfügung. Schicken Sie uns einfach eine Email an support@olivehi.com.
WILLKOMMEN
20 OLIVE 4HD SCHNELLSTART ANLEITUNG
1 Lieferumfang
Beim Auspacken Ihres Olive 4HD nden Sie die folgenden Komponenten:
1. Olive 4HD
2. Bedienungsanleitung
3. WiFi-Antenne
4. Netzkabel
5. Fernbedienung mit Batterien
2Erste Schritte
2.1 Installation
5. Digitale Audio Ausgänge
6. Analoge Audio Ausgänge
4. Digitaler Eingang
3. WiFi (802.11n)
9. HDMI
10. USB Anschluss
8. Ethernet (Gigabit)
2. Ein/Aus-Schalter
7. Infrarot Eingang
1. Netzstecker
Other manuals for Olive 4 HD
1
Table of contents
Languages:
Other Olive Home Theater Server manuals
