Omega WiFi Amp User manual

Table of Contents
Omega WiFi Amp – Overview ....................................................................................1
Quick Start Guide: Connecting and Using the Omega WiFi Amp ..................................3
Getting Started with the Omega WiFi Amp.................................................................7
Configuring the Omega WiFi Amp ..............................................................................9
Configuring the Omega WiFi Amp Wirelessly ............................................................. 10
Configuring the Omega WiFi Amp with Rj45 Cable ...................................................... 13
Configure the Omega WiFi Amp via Wireless AP Mode ................................................. 16
Configuring Your Computer/Laptop......................................................................... 19
Configuring Your Computer/Laptop via Network IP Address ......................................... 20
Configuring Your Computer/Laptop via Web Browser .................................................. 22
Connecting Your Computer/Laptop via WPA Function .............................................. 24
Changing Your Password......................................................................................... 25
Upgrading the Omega WiFi Amp Firmware............................................................... 26
Restoring Factory Default Settings ..........................................................................27

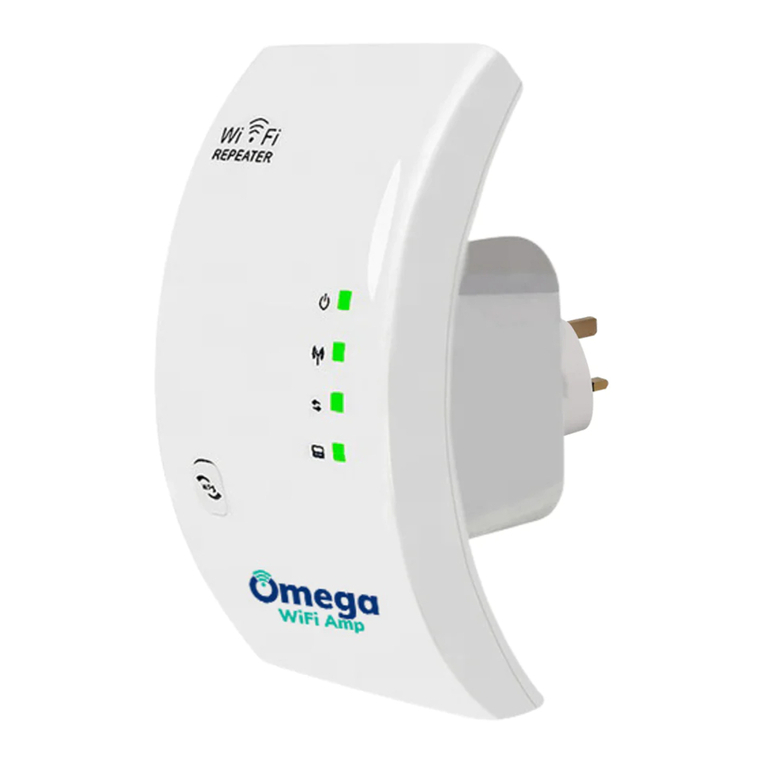

Omega WiFi Amp – Overview
Introduction
The Omega WiFi Amp is a combined wired/wireless network connection device designed
specifically for small businesses, large homes, and more. It allows a wireless network to be
expanded using multiple access points without the need for a wired backbone to link them. It
also works well with other 11b/g and 11n wireless protocol products.
NOTE: If you need to reset the Omega WiFi Amp, you need to press and hold the reset button
inside the tiny hole for 10 seconds until all LED indicators re-flash.
Package Contents
+ 1x Wireless-N Repeater
+ 1x RJ-45 Networking Cable
+ 1x Quick Installation Guide
Omega WiFi Amp - Official User Guide - 1_en
Page 1 of 27

Copyright © 2022 Omega WiFi Amp. All Rights Reserved.
NOTE: Before using the Omega WiFi Amp, please check if there’s anything
missing in the package, and contact your dealer of purchase to claim for missing
items
!
WEEE Directive & Product Disposal At the end of its serviceable life, this
product should not be treated as household or general waste. It should be
handed over to the applicable collection point or returned to the supplier for
disposal.
*
Omega WiFi Amp - Official User Guide - 1_en
Page 2 of 27

Quick Start Guide: Connecting and
Using the Omega WiFi Amp
Step 1. Plug the Omega WiFi Amp into an available wall socket.
Step 2. Click the network icon on the bottom right of your desktop, and you will find the signal
from the Omega WiFi Amp. Click “Connect” and wait for a few seconds.
Step 3. Open the web browser and type http://192.168.10.1/, the default IP address in the
address bar. Then press Enter to continue. For better compatibility, we recommend using a
Microsoft browser.
*NOTE: The default IP address for this extender is http://192.168.10.1/
**If you cannot load the management page on your browser, please hold the reset button for
5-8 seconds until all LED indicators re-flash, then remove the Omega WiFi Amp from the power
socket and retry steps A1 to A3 again.
Step 4. Type the username and password into the appropriate spaces on the login page. The
default username and password are both admin. Click Submit button to continue.
Omega WiFi Amp - Official User Guide - 1_en
Page 3 of 27

Step 5. After logging into the management page, please select the Repeater mode by clicking
on the ‘Repeater’ button.
Step 6. Select your current wireless router SSID to continue.
*If you can not find your WiFi router, please refresh the page and try again.
Step 7. When you get the page below, please do NOT change the repeater SSID. Simply input
your current WiFi security key and continue.
Omega WiFi Amp - Official User Guide - 1_en
Page 4 of 27

Click on the ‘Apply’ button. Wait for a few seconds as the Omega WiFi Amp restarts. Once the
unit has turned back on, it is ready for use.
*We suggest that your current WiFi Security Key should not include strange symbols such as $
*& ^, as these might lead to a failed configuration. Characters and numbers are highly
recommended.
Step 8. Wireless Repeater mode configure successfully!
*The default wireless SSID and security key is the same as your AP/router, after successful
installation.
*The Management Page will be locked after your successful configuration. You CANNOT log
into the management page via http://192.168.10.1. If you want to log into the Management
Page again, please hold the ‘Reset’ button for 8-10 seconds to make all settings revert to
Factory Default Settings. Once the unit has reset, reconfigure the Omega WiFi Amp again.
Step 9. Go to your available Wireless connections (i.e. just like in Step 2) and connect to the
wireless connection called “YourSSID_ext”. Completing this step will add your computer to
your main network via the Omega WiFi Amp device.
Example: If your main Wi-Fi network at home has an SSID called “MacNeice”, after
configuring the OWA using the steps above, you should now have a “MacNeice_Ext”
connection. The “MacNeice_Ext” will be the Omega WiFi Amp and the correct netowkr to
connect to if you wish to use the Omega WiFi Amp connection.
Omega WiFi Amp - Official User Guide - 1_en
Page 5 of 27

Omega WiFi Amp - Official User Guide - 1_en
Page 6 of 27

Getting Started with the Omega WiFi
Amp
Setting up a Wireless Infrastructure Network
For a typical wireless setup at home (as shown below), please do the following:
Wireless Repeater Mode:
You will need WiFi Ap/Router Internet access
In the wireless repeater mode, the Omega WiFi Amp will expand the wifi coverage of your
current wifi network and enhance the strength of the wifi signal. No wired connection is
required to your Router or broadband, extending the WiFi signal wirelessly.
Omega WiFi Amp - Official User Guide - 1_en
Page 7 of 27

Wireless AP Mode
You will need Broadband Router Internet access
Connect the Omega WiFi Amp to the wired broadband interface (or wired router at home) with
the included RJ45 network cable. You will create a new WiFi hot spot and full WiFi coverage in
your home.
Omega WiFi Amp - Official User Guide - 1_en
Page 8 of 27

Configuring the Omega WiFi Amp
How to Configure the Omega WiFi Amp
You can configure the Omega WiFi Amp via RJ45 network cable (included) or wirelessly on
your PC or laptop.
First, decide how you would like to set up your Omega WiFi Amp:
A. Configure the Omega WiFi Amp Wirelessly
B. Configure the Omega WiFi Amp via Wireless AP Mode
C. Configure the Omega WiFi Amp with Rj45 Cable
Omega WiFi Amp - Official User Guide - 1_en
Page 9 of 27

Configuring the Omega WiFi Amp
Wirelessly
Step 1. Plug the Omega WiFi Amp into an available wall socket.
Step 2. Click the network icon on the bottom right of your desktop, and you will find the signal
from the Omega WiFi Amp. Click “Connect” and wait for a few seconds.
Step 3. Open the web browser and type http://192.168.10.1/, the default IP address in the
address bar. Then press Enter to continue. For better compatibility, we recommend using a
Microsoft browser.
*NOTE: The default IP address for this extender is http://192.168.10.1/
**If you cannot load the management page on your browser, please hold the reset button for
5-8 seconds until all LED indicators re-flash, then remove the Omega WiFi Amp from the power
socket and retry steps A1 to A3 again.
Step 4. Type the username and password into the appropriate spaces on the login page. The
default username and password are both admin. Click Submit button to continue.
Omega WiFi Amp - Official User Guide - 1_en
Page 10 of 27

Step 5. After logging into the management page, please select the Repeater mode by clicking
on the ‘Repeater’ button.
Step 6. Select your current wireless router SSID to continue.
*If you can not find your WiFi router, please refresh the page and try again.
Step 7. When you get the page below, please do NOT change the repeater SSID. Simply input
your current WiFi security key and continue.
Omega WiFi Amp - Official User Guide - 1_en
Page 11 of 27

Click on the ‘Apply’ button. Wait for a few seconds as the Omega WiFi Amp restarts. Once the
unit has turned back on, it is ready for use.
*We suggest that your current WiFi Security Key should not include strange symbols such as $
*& ^, as these might lead to a failed configuration. Characters and numbers are highly
recommended.
Step 8. Wireless Repeater mode configure successfully!
*The default wireless SSID and security key is the same as your AP/router, after successful
installation.
*The Management Page will be locked after your successful configuration. You CANNOT log
into the management page via http://192.168.10.1. If you want to log into the Management
Page again, please hold the ‘Reset’ button for 8-10 seconds to make all settings revert to
Factory Default Settings. Once the unit has reset, reconfigure the Omega WiFi Amp again.
Omega WiFi Amp - Official User Guide - 1_en
Page 12 of 27

Configuring the Omega WiFi Amp with
Rj45 Cable
Step 1. Plug the Omega WiFi Amp into an available wall socket and connect it to your PC/
Laptop via included RJ45 network cable.
Step 2. Follow process A3 to A8 to configure your Wi-Fi Repeater
Step 3. Open the web browser and type http://192.168.10.1/, the default IP address in the
address bar. Then press Enter to continue. For better compatibility, we recommend using a
Microsoft browser.
*NOTE: The default IP address for this extender is http://192.168.10.1/
_**If you cannot load the management page on your browser, please hold the reset button for
5-8 seconds until all LED indicators re-flash, then remove the Omega WiFi Amp from the power
socket and retry steps A1 to A3 again.
Step 4. Type the username and password into the appropriate spaces on the login page. The
default username and password are both admin. Click Submit button to continue.
Step 5. After logging into the management page, please select the Repeater mode by clicking
on the ‘Repeater’ button.
Omega WiFi Amp - Official User Guide - 1_en
Page 13 of 27

Step 6. Select your current wireless router SSID to continue.
*If you can not find your WiFi router, please refresh the page and try again.
Step 7. When you get the page below, please do NOT change the repeater SSID. Simply input
your current WiFi security key and continue.
Click on the ‘Apply’ button. Wait for a few seconds as the Omega WiFi Amp restarts. Once the
unit has turned back on, it is ready for use.
*We suggest that your current WiFi Security Key should not include strange symbols such as $
*& ^, as these might lead to a failed configuration. Characters and numbers are highly
recommended.
Step 8. Wireless Repeater mode configure successfully!
Omega WiFi Amp - Official User Guide - 1_en
Page 14 of 27

*The default wireless SSID and security key is the same as your AP/router, after successful
installation.
*The Management Page will be locked after your successful configuration. You CANNOT log
into the management page via http://192.168.10.1. If you want to log into the Management
Page again, please hold the ‘Reset’ button for 8-10 seconds to make all settings revert to
Factory Default Settings. Once the unit has reset, reconfigure the Omega WiFi Amp again.
Omega WiFi Amp - Official User Guide - 1_en
Page 15 of 27

Configure the Omega WiFi Amp via
Wireless AP Mode
Step 1. Plug the Wi-Fi Repeater into a wall socket.
Step 2. Open the web browser and type http://192.168.10.1/, the default IP address in the
address bar. Then press Enter to continue. For better compatibility, we recommend using a
Microsoft browser.
*NOTE: The default IP address for this extender is http://192.168.10.1/
_**If you cannot load the management page on your browser, please hold the reset button for
5-8 seconds until all LED indicators re-flash, then remove the Omega WiFi Amp from the power
socket and retry steps A1 to A3 again.
Step 3. Type the username and password into the appropriate spaces on the login page. The
default username and password are both admin. Click Submit button to continue.
Step 4. Click on the ‘AP’ button to continue.
Omega WiFi Amp - Official User Guide - 1_en
Page 16 of 27

Step 5. The following message will be displayed on your web browser:
SSID The “SSID” of your wireless network
Channel Auto (recommend)
Security
Type
Setup wireless security and encryption to prevent unauthorized access and
monitoring. Supports 64/128-bit WEP, WPA, WPA2, WPA/WPA2 encryption methods
Security
Key The password of your wireless network.
*We suggest that your current WiFi Security Key should not include strange symbols such as $
*& ^, as these might lead to a failed configuration. Characters and numbers are highly
recommended.
Step 6. Click the ‘Apply’ button and the Omega WiFi Amp will begin to restart.
Step 7. AP mode configured successfully!
Please connect your Omega WiFi Amp to your router via Rj45 Cable, as AP mode is ready for
use.
*The Management Page will be locked after your successful configuration. You CANNOT log
into the management page via http://192.168.10.1. If you want to log into the Management
Omega WiFi Amp - Official User Guide - 1_en
Page 17 of 27

Page again, please hold the ‘Reset’ button for 8-10 seconds to make all settings revert to
Factory Default Settings. Once the unit has reset, reconfigure the Omega WiFi Amp again.
Omega WiFi Amp - Official User Guide - 1_en
Page 18 of 27
