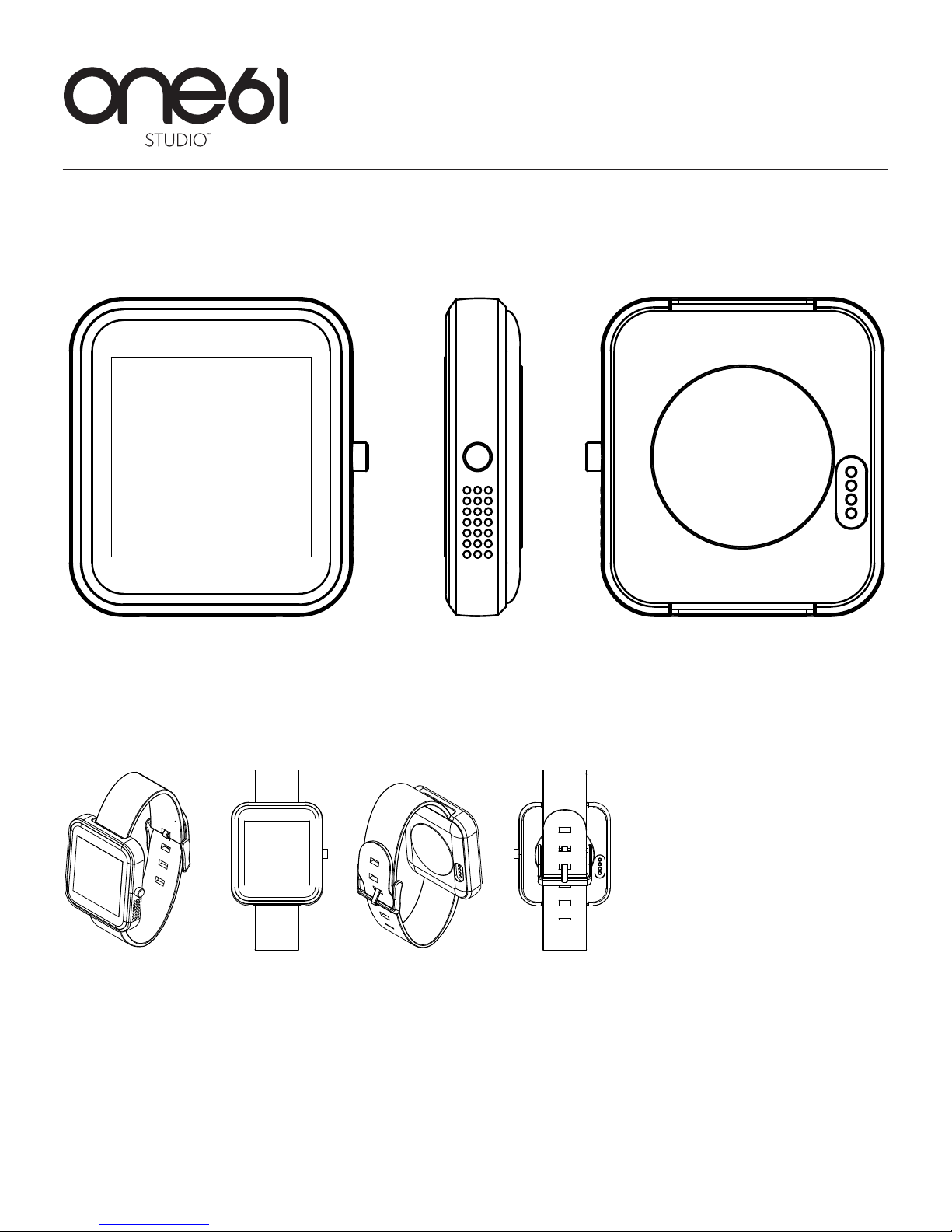

One61 Studio SW01 User manual

SMARTWATCH USER MANUAL
Model #: SW01
www.one61.com
FRONT SIDE BACK
FRONT 3/4 BACK 3/4
FRONT 3/4 BACK 3/4
FRONT SIDE BACK
FRONT SIDE BACK
FRONT 3/4 BACK 3/4
FRONT 3/4 BACK 3/4
FRONT SIDE BACK
FRONT SIDE BACK
FRONT 3/4 BACK 3/4
FRONT 3/4 BACK 3/4
FRONT SIDE BACK
FRONT SIDE BACK
FRONT 3/4 BACK 3/4
FRONT 3/4 BACK 3/4
FRONT SIDE BACK
FRONT SIDE BACK
FRONT 3/4 BACK 3/4
FRONT 3/4 BACK 3/4
FRONT SIDE BACK

2
One61 Smartwatch Hardware
Here’s a guide to the hardware features of the One61 Studio Smartwatch.
One61 Smartwatch tech specs:
OS Nucleus RTOS
Screen 1.54” 240 x 240 IPS LCD
Dimensions 40 x 46 x 10 mm
Watch Weight 53g
Case Weigth 36g
Battery 250 mAh
Processor MT2502C
Wireless Bluetooth 4.0 and BLE
Memory 16MB ROM with 8MB RAM
Ports and Connectors USB (pogo pin) on One61 watch, Micro USB on Charging Cradle
Sensors 6 Axis (Accelerometer/Gyro)
FRONT SIDE BACK
FRONT 3/4 BACK 3/4
FRONT 3/4 BACK 3/4
FRONT SIDE BACK
1
2
2
3
5
8
4
7
1. Display
2. Mic
3. Power button
4. Speaker
5 Charging terminals
6. USB cable
7. Charging terminals
8. Charging cradle
By numbers

3
Charge your One61 Watch
Place the One61Watch on the charging cradle, matching each charging terminal (line up the gold pins).
Make sure the cradle is connected to a power outlet.
1. Plug Micro USB into Cradle
2. Charging terminals
- Use only the approved cradle and micro USB cable that come with your One61 Watch.
- The input voltage range between the wall outlet and this power adapter is AC 100V– 240V, and the power adapter’s
output voltage is DC 5V, 0.85A.
- Charging One61 Watch through a USB cable attached to another device, such as a laptop computer, takes the same
charging time as with the power adapter.
- One61 Watch’s battery can’t be removed. Don’t attempt to open the watch.
- If the Smartwatch is OFF, you will see a charging indication on the center of screen.
- If the Smartwatch is ON, you will see a charging indication on the top right corner main menu.
Turn One61 Watch on or off / Factory Reset
Initial Power On
- Connect the charging cradle to a power outlet and place the a One61 Watch on it. Press and hold the power button until
the screen turns on.
- When you turn the One61 Watch on for the first time, follow the instructions displayed on the watch screen.
- The instructions will guide you on how to connect the One61 Watch to your mobile device.
Turn the watch Power Off
1. If your screen is off, press and hold the power button to wake up the watch
2. Press and hold the power until you see the power down screen
Factory Reset:
Option 1:
- Unpair the One61 Watch from the mobile app and device. Note: unpairing from the app will reset your watch to factory
settings. Go to: Me > [Name] Device > Unpair Watch > Confirm.
Option 2:
- Turn off the Bluetooth off from your device reset through the One61 watch by Going to: Settings > Reset > Confirm Reset.
Note, this will erase all the data from the watch and reset your watch to factory settings.
FRONT SIDE BACK
FRONT 3/4 BACK 3/4
FRONT 3/4 BACK 3/4
FRONT SIDE BACK

4
Setup and Pairing
Pair your watch with your Device
Your watch is meant to work together with your mobile device, so you’ll need to pair them. The watch requires paring for
both Bluetooth Classic and Bluetooth Low Energy (BLE). If you’re pairing your watch for the first time, make sure your
device Bluetooth is turned on and your device is connected to mobile data or Wi-Fi. You need a data connection to
complete setup. You should also keep the watch connected to power during setup.
Here’s how to pair:
1. Turn on your watch, and make sure it is within a few feet of your phone.
2. Download and install the One61 Smartwatch app on your device.
- You can search for “One61 Watch” in Google Play or Apple App Store
3. Open the One61 Smartwatch app on your device and follow the onscreen prompts form the watch.
4. On your device, you will need to create a user account in the One61 Smartwatch app
- Launch the app
- Tap “Signup”
- Enter your valid email address
- Enter your name or username
- Enter a password
- Tap “Submit”
5. One you’ve completed your signup, set up your user profile.
- Select a profile image
- Select a name
- Select your gender
- Select your height
- Select your weight
- Select your daily step goal
- Tap “Next” to save your profile setup
5. Paring screen will automatically launch once you confirm your profile settings, you’ll see a list of nearby devices.
Tap your watch’s name.
- You can check the name of your watch on the watch display.
6. You will receive a message telling you to pair Bluetooth Classic through your device setting.
7. For Android device, you will see a pairing confirmation passkey on your device; confirm and the watch will start pairing
8. You will receive several Permission notifications for you to allow on your Device
- Allow Access to Messages - Allow
- Allow Access to Contacts and Logs – Allow
9. Open the Bluetooth settings for the watch and turn “Text Input” on.
10. Pairing is now complete

5
Different ways to pair your watch
Pairing an iOS device:
Turn on your watch, and make sure it is within a few feet of your phone.To sync the One61 Smartwatch for notifications,
pair using Bluetooth Low Energy (BLE):
1. Launch the One61 Smartwatch app and login
2. Tap “Me” at bottom right corner
3. Tap “Pair Watch” and tap your watch name to starting pairing
To sync the One61 Smartwatch for hands free functions, pair using Bluetooth Classic:
1. In the device going to: Settings > Bluetooth
2. Tap on your One61 Smartwatch name to pair device
3. Once paired, tap on the info icon next to the Smartwatch name
4. Enable “Show Notifications” and “Sync Contacts”
5. Close Settings
Pairing an Android device:
Turn on your watch, and make sure it is within a few feet of your phone.
To sync the One61 Smartwatch for notifications, pair using Bluetooth Low Energy (BLE):
1. Launch the One61 Smartwatch app and login
2. Tap “Me” at bottom right corner
3. Tap “Pair Watch” and tap your watch name to starting pairing
To sync the One61 Smartwatch for hands free functions, pair using Bluetooth Classic:
1. In device going to: Settings > Bluetooth
2. Tap on your One61 Smartwatch name to pair device
3. Once paired, tap on the gear icon next to the Smartwatch name
4. Enable “Call audio” and “Text input”
5. Close Settings
Un-Pairing device:
Option 1:
Unpair the One61 Watch from the mobile app and device. Note: unpairing from the app will reset your watch to factory
settings. Go to: Me > [your] Device > Unpair Watch > Confirm.
Option 2:
Turn off the Bluetooth off from your device reset through the One61 watch by Going to: Settings > Reset > Confirm Reset.
Note, this will erase all the data from the watch and reset your watch to factory settings.

6
Get to know your One61 Smartwatch
Watch Face/Home Screen (where you see the time) Start by waking up your watch. If your watch’s screen is off,
you can wake up the watch by:
- Turning your wrist so your watch face is upright. - Pressing the button on the watch. Change the watch face: Tap and
hold anywhere on the watch face screen for two seconds. Swipe right or left to browse the designs, then Tap “Okay”
to choose one.
Scrolling Menu:
You can see all of the applications from here.
1. Start by waking up your watch. If your watch’s screen is off, you can wake up the watch by:
- Turning your wrist so your watch face is upright
- Pressing a button on the watch
You can also see a menu of things you can do, right on your watch:
2. Swipe left to access the menu
3. Swipe up or down to see different menu options
4. To choose an option, just tap it.
Watch tips
WHAT YOU WOULD LIKE TO DO ACTION
Wake watch to view home screen Turning your wrist so your watch face is upright.
Pressing a button on the watch
Change watch face
Tap and hold anywhere on the watch face screen for two
seconds. Swipe right or left to browse the designs,
then Tap “Okay” to choose one
Access Menu Turn the watch on and swipe to the left to
access Menu options
View Setting
Turn the watch on and swipe to the left to access
Menu options. Swipe up or down until you see
“Settings” and Tap it
See your remaining battery life Turn the watch on and swipe to the left to access Menu
options. Battery Icon will be in the top right corner
Increase Battery life
Leave default settings for optimal battery life
Keep default screen brightness low
Keep default volume low
Keep default sound alert Ring only
Note: Vibrate will consume more battery
Check Bluetooth connection
Turn the watch on and swipe to the left to access Menu
options. Bluetooth Icon will be in the top left corner.
A Blue/Green icon means you are connected to both
Classic and BLE. Solid Blue means only Classic. Solid Green
means only BLE
Control Music
Open Music player on device.
From the watch face (home screen) Swipe left to
access the menu. Swipe up or down until you see
“Music Controller” and tap it
Control Camera
Open Camera on device. From the watch face
(homescreen) Swipe left to access the menu. Swipe up or
down until you see “Camera Controller” and tap it.

7
ICON MEANING
Connected to the device through both Bluetooth
(BLE and Classic)
Connected to the device through BLE only
Connected to the device through Classic only
Disconnected from device
Bluetooth status
ICON MEANING
100% battery full
50% battery remaining
10% battery remaining
Battery status
Other icons
ICON MEANING
Patrol Reminder (Sedentary Reminder) ON
Notification/Message
Alarm ON
Do Not Disturb/ Sleep Monitoring ON
Power Saving mode ON
Sleep Monitoring ON
Anti-Lost ON

8
What can your One61 Smartwatch do?
Track your fitness and health
- Crime Fighting (Step Tracking)
- Patrol Reminder (Sedentary Reminder)
- Sleep Monitoring
Device Integration
- Contacts
- Call Logs
- Messages Log
- Phone Dialer
- Voice Assistant
Features and Functions
- Notifications
- Music Controller
- Camera Controller
- Phone Finder
- Calendar
- Alarms
- Stop Watch
- Timer
- Do Not Disturb
- Settings
Track your fitness and health
Crime Fighting (Step Tracking)
This application will track the number of steps, calories burned, and distance covered.
Unlock character-based content for each milestone achieved per day. The data will reset at midnight each night.
Setting Step Goals:
This is completed during profile setup
View Steps Goals:
1. From the watch face (home screen) Swipe left to access the menu
2. Swipe up or down until you see “Crime Fighting” and tap it.
3. Status view - steps, calories, and distance
4. Swipe left to view the character celebrations that have been unlocked
5. Swipe left to access “Step Goal” or “Pedometer Switch”

9
Change step goal in the Smartwatch:
The new step goal chosen in the Smartwatch will be synced with the app.
1. From the watch face (home screen) Swipe left to access the menu
2. Swipe up or down until you see “Crime Fighting” and tap it.
3. Status view - steps, calories, and distance
4. Swipe left to view the character celebrations that have been unlocked
5. Swipe left to access “Step Goal” and Tap it
6. Set new goal
Change step goal in the app:
The new step goal chosen in the app will be synced with the Smartwatch.
1. Make sure the watch is Paired to the App
2. Open the One61 Smartwatch app, tap on “Me” in bottom right corner
3..Tap “Profile” do edit the step goal
4. Tap “Goal” and select new goal and confirm
Patrol Reminder (Sedentary Reminder)
This application sends a reminder notification to stand up and move around.
Setting Patrol Reminder:
1. From the watch face (home screen) Swipe left to access the menu
2. Swipe up or down until you see “Patrol Reminder” and tap it.
3. Tap “Minutes” to edit the reminder interval and Tap “Ok” when done
4. Tap “On” to activate or “Off” to deactivate the patrol reminder function
Sleep Monitoring
This application will monitor the quality of sleep every night. (Restful, Light, Awake)
Setting Sleep Monitoring:
1. From the watch face (home screen) Swipe left to access the menu
2. Swipe up or down until you see “Sleep” and tap it.
3. Swipe left twice to access Sleep settings
4. Tap “Switch” to enable or disable sleep monitoring (not available in all models)
5. Tap “Time to sleep” to adjust the time you go to sleep (not available in all models)
6. Tap “Time to get up” to adjust the time you wake up (not available in all models)
7. Tap “Smart wakeup” to enable or disable smart wake up alarm (not available in all models)

10
Device Integration
Contacts
This application will sync with the device’s contacts. The watch can store more than 1500 contacts.
View Contacts:
1. From the watch face (home screen) Swipe left to access the menu
2. Swipe up or down until you see “Contacts” and tap it.
3. Tap “Sync with phone” to sync all contacts
4. Tap “Hide” to allow syncing in the background
5. Tap “Cancel” to stop syncing
Calling a contact:
The call audio will default to the smartwatch speaker.
1. From the watch face (home screen) Swipe left to access the menu
2. Swipe up or down until you see “Contacts” and tap it.
3. Swipe up or down until you see the contact you want to call, or swipe left to access quick search and
tap on alphabet you need
4. Tap the name to dial out
5. Tap “End” to end the call
In the connected device, you can choose the audio source for the call, example – Phone, Speaker, Smartwatch or any other
Bluetooth device. Audio will be directed to the device you choose.
Call Logs
This application will sync and pull the device’s call logs. The call audio will default to the smartwatch speaker.
1. From the watch face (home screen) Swipe left to access the menu
2. Swipe up or down until you see “Call Logs” and tap it.
3. Swipe up or down until you see the contact you want to call and tap the name
4. Tap the number to dial out
5. Tap “End” to end the call
In the connected device, you can choose the audio source for the call, example – Phone, Speaker, Smartwatch or any
other Bluetooth device. Audio will be directed to the device you choose.
Messages Log
This application sync and pull the connected device’s messages or SMS history. Note that iOS does not
support this functionality.
Reply to a Messages:
1. From the watch face (home screen) Swipe left to access the menu
2. Swipe up or down until you see “Messages” and tap it.
3. Swipe up or down until you see the message you want to reply to
4. Tap on “Reply” and select from pre-defined text and Tap “Reply”.
