ONELAN OMNI-HD1 Instruction sheet

INSTALLATION&CONFIGURATIONMANUAL
OMNI‐HD1
HDIPStreamingServer
ONELAN Limited
Andersen House, Newtown Road,
Henley-on-Thames, Oxfordshire. UK, RG9 1HG
Tel: [phone] Fax: [phone]
Web site: www.onelan.com
OMNI-HD1 Manual V1.0
1

Content
SAFETYPRECAUTIONS...................................................................................................................................3
PACKAGECONTENTS......................................................................................................................................3
PRODUCTDESCRIPTION.................................................................................................................................4
SPECIFICATIONS.............................................................................................................................................5
UNPACKINGandINSPECTION..........................................................................................................................................................................6
HARDWAREINSTALLATIONandCONNECTIONS....................................................................................................................................6
Front‐Panel.................................................................................................................................................7
ProceduretoconnecttotheStreamingServerviatheNetworkport.............................................................8
Streamingmethods:(Note:IfusingVLCplayer,pleaseinstallversion2.0.8ornewerversion)........................................18
Case1:DLNA.........................................................................................................................................................................................................18
Case2:UDP/RTPMulticasting.......................................................................................................................................................................20
Case3:TCP/UDP/RTPUnicasting................................................................................................................................................................22
OMNI‐HD1StreamingServerNotes.............................................................................................................24
OMNI-HD1 Manual V1.0
2

SAFETYPRECAUTIONS
The presence of this symbol is to alert the installer and user to the presence of
uninsulated dangerous voltages within the product’s enclosure that may be of sufficient
magnitude to produce a risk of electric shock.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS DEVICE
TO RAIN OR MOISTURE. DO NOT OPEN THE UNIT. REFER SERVICING TO QUALIFIED
PERSONNEL ONLY.
DO NOT apply power to the unit until all connections have been made, all components have been installed
and all wiring has been properly terminated.
DO NOT terminate, change or uninstall any wiring without first disconnecting the unit’s power adapter from
the device.
This device is supplied with the appropriately rated 12VDC power supply with the center pin positive. The
use of any other power supply could cause damage and invalidate the manufacturer’s warranty.
DO NOT power on the unit until all cables and connections to the device have been properly connected.
The device should be installed in an environment consistent with its operating temperature specifications.
Placement next to heating devices and ducts is to be avoided as doing so may cause damage. The device
should not be placed in areas of high humidity.
DO NOT cover any of the device’s ventilation openings.
If the device has been in a cold environment allow it to warm to room temperature for at least 2 hours
before connecting power.
PACKAGECONTENTS
This package contains:
One OMNI-HD1 Streaming Server
One Adaptor
One installation / configuration manual
Inspect the package before starting installation to ensure there is no damage and all supplied contents are
present. Contact your distributor or dealer should the device be damaged or package contents are incomplete.
OMNI-HD1 Manual V1.0
3

PRODUCTDESCRIPTION
ONELAN's OMNI-HD1 IP Streamer allows the user to stream any one audio/video source
over a IP Network to multiple Smart HDTV's or connected computers within the IP Network.
The IP Streamer accepts a HDMI, Component, or Composite video input and the unit is
designed to deliver a rich HD/SD Streaming experience for its users deploying MPEG-2 or
MPEG-4 standards.
Combine any sources and stream them over the network for multiple sources. The OMNI-
HD1 Streaming server enables high-definition streaming with resolutions up to 1080p,
providing a high quality viewing experience for your customer. The unit is MPEG2 or MPEG4
switchable and supports UDP/RTP Streaming. The compact design saves space and is easily
controlled via a web GUI for rapid deployment.
The OMNI-HD1 features:
Front panel LED Status Display
Video resolution: Up to 1080p
HDMI, Component, Composite inputs with auto detection
Dual Mode H.264 AVC / MPEG-2 selectable
Variable Bit Rate Control
Closed Captioning Support
Audio format : MPEG-1-Layer2(MP2), AAC,
AC-3 Pass through
Easy installation and use
Web GUI for setup and control
GigE output port
Light weight and compact design
OMNI-HD1 Manual V1.0
4

SPECIFICATIONS
*Specifications subject to change without prior notice
OMNI-HD1 Manual V1.0
5
Interfaces Ethernet (output) 1Gbps, RJ-45
USB (optional) USB 2.0
Video Input HDMI, YPbPr, CVBS
Audio Input Analog, Coaxial, Optical
Encoding Video Format MPEG-2, AVC
Audio Format
Resolution 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video bitrate
Audio bitrate 128, 256, 384Kbps
Streaming Protocols
MISC MediaServer 1.5
Closed Caption Yes
Power Supply 12VDC 1.5Amp.
Consumption 500mA
Operating Temperature
Storage Temperature
Dimension 236mm x 155mm x 35mm
Weight 940g
MPEG-1 Layer2(MP2),
AAC,
AC-3 passthrough
MPEG-2 HD: 10~20Mbps
MPEG-2 SD: 2~8Mbps
AVC HD: 2~10Mbps
AVC SD: 1~4Mbps
HTTP Server (DLNA)
UDP/RTP multicasting
UDP/RTP unicasting
TCP unicast
Digital Living Network
Alliance (DLNA)
+32
o
F to +104
o
F (0
o
C to +40
o
C)
+14
o
F to +140
o
F (-10
o
C to +60
o
C)

INSTALLATION
System Installer must adhere to Article 820-40 of the NEC that provides guidelines for
proper grounding and specifies that the cable ground shall be connected to the
grounding system of the building, as close to the point of cable entry as possible.
UNPACKINGandINSPECTION
Each unit is shipped factory tested. Ensure all items are removed from the container prior to discarding any
packing material.
Thoroughly inspect the unit for shipping damage with particular attention to connectors and controls. If there is
any sign of damage to the unit or damaged or loose connectors contact your distributor immediately. Do not
put the equipment into service if there is any indication of defect or damage.
HARDWARE INSTALLATION and CONNECTIONS
It is highly recommended that quality cables and connectors be used for all video and audio
source connections
1. Connect the media source (Satellite STB, Media player, or other media device) to the
OMNI-HD1 streaming server by HDMI, YPbPr, or CVBS cables.
2. Connect the OMNI-HD1 streaming server to local area network (LAN)
3. Plug the power adapter to the device and power up
4. Network Setup
5. In the same network segment, find the OMNI-HD1 streaming server from Windows XP/7 “My
Network Places”
** Note: For Windows XP enable UPnP.
6. Open the streaming server’s configuration web page by double-clicking the device
icon(XP)
7. There are three (3) use cases supported by OMNI-HD1 streamer: DLNA media server,
UDP/RTP multicasting, and TCP/UDP/RTP unicasting.
Limitations:
1. All UPnP/DLNA devices, including the OMNI-HD1 streaming server (media-server), media-
players, the SmartTV, the set-top-box, and the controlling PC, should be located within
same network segment/LAN.
2. If a DHCP server is present in the private network, the OMNI-HD1 streaming server will
use the IP address assigned by the DHCP server.
3. If no DHCP server is present, the OMNI-HD1 streaming server will use an assigned IP
address (169.254.xxx.x).
OMNI-HD1 Manual V1.0
6

Front‐Panel
Buttons/LEDs Description
Reboot button Reboots the device (unsaved settings will be lost)
RST / UPG
button To reset all the settings of the device to factory default: 1.Press and hold the RST/UPG button and boot-up the
device
2.Hold the button until CFG led to flashes 10 times
(about 10 seconds)
3.After the CFG led stops flashing release the button
To upgrade firmware using the USB port:
1.Plug-in the USB drive with the upgraded firmware
image (“xxxx_upg.img”)
2.Press and hold the RST/UPG button and boot-up the
device
3.USB led will flash while copying the image from USB
drive (about 3~5 seconds)
4.Wait until the CFG led stop flashing
5.Release the RST/CFG button and wait for the device
to reboot and upgrade the firmware (about 1
minutes)
PWR Power is ON
CFG Indicates device is in configuration mode
USB Indicates USB drive is mounted
MPEG-2 Indicates device is encoding video using MPEG-2
AVC Indicates device is encoding video using AVC
MP2 Indicates device is encoding audio using MPEG-1 Layer 2
AAC Indicates device is encoding audio using AAC
AC-3 Indicates device is encoding audio using AC-3
OMNI-HD1 Manual V1.0
7
For
recording
IP

Procedure to connect to the Streaming Server via the Network port
The following procedure will allow the installer to setup the Streaming Server via the GUI
1. Connecting a standard CAT5e cable from OMNI-HD1 Network port to to a switch then connecting
from the switch to TV and PC.
2. Set the PC via the Control Panel to “Obtain an IP address automatically”
Start- Control Panel ==> View Network Status and Tasks
3. Select 'Change Adapter Settings' from the left plane
OMNI-HD1 Manual V1.0
8

4. Select Local Area Connection Icon
Then Right Click – Select Properties

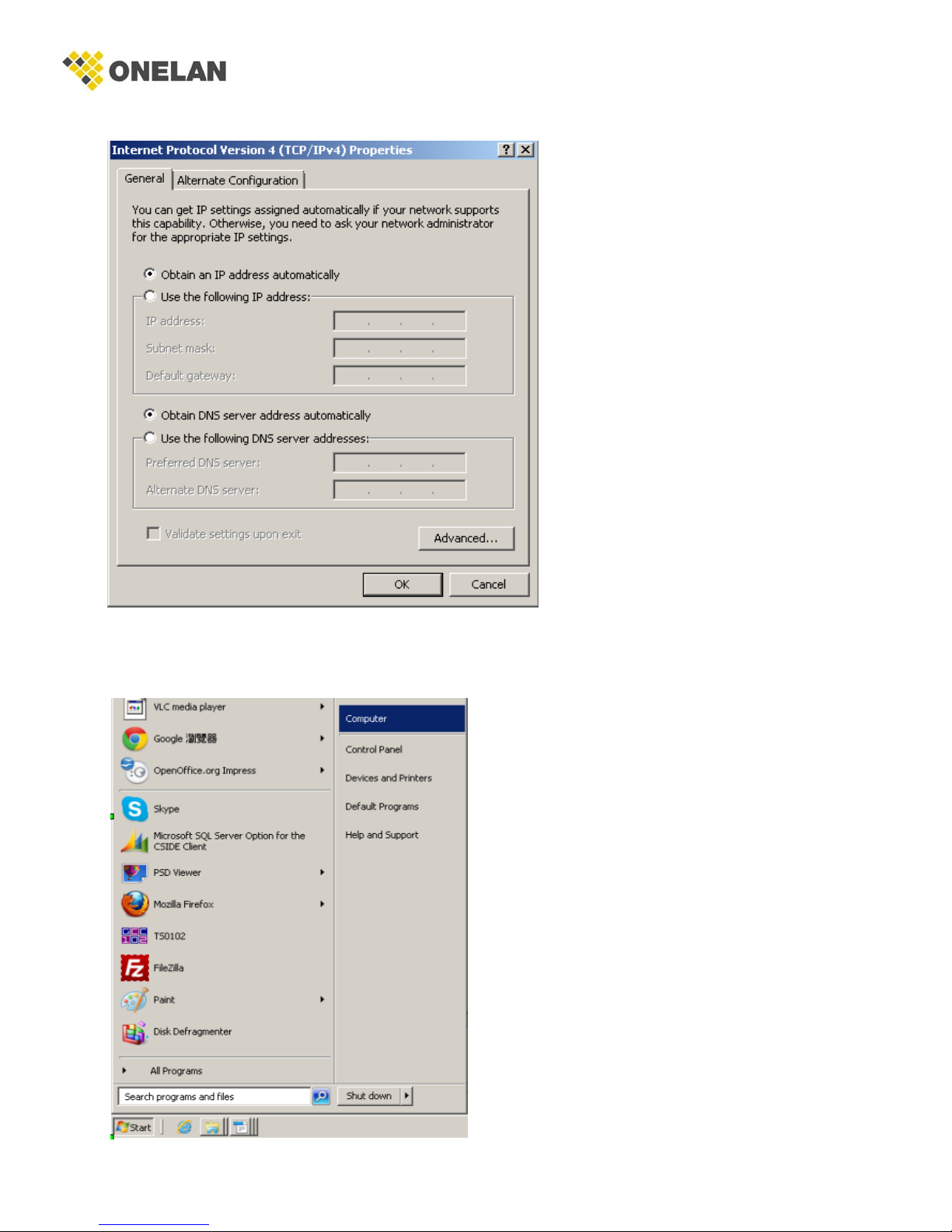

Internet Protocol Version 4(TCP/IPv4) Properties
OMNI-HD1 Manual V1.0
9

5. Select “ObtainanIPaddressautomatically”&“ObtainDNSserveraddressautomatically”
6. After setting the PC to obtain IP address & Obtain DNS server automatically
Select Start ==> Computer ==> Network
OMNI-HD1 Manual V1.0
10

7. After selecting Network- the OMNI-HD1 Icon will show up on the right side under Media
Devices. Each device found will be displayed by the Device Address.
8. Right Click on the device icon, Select 'View Device Webpage'
OMNI-HD1 Manual V1.0
11

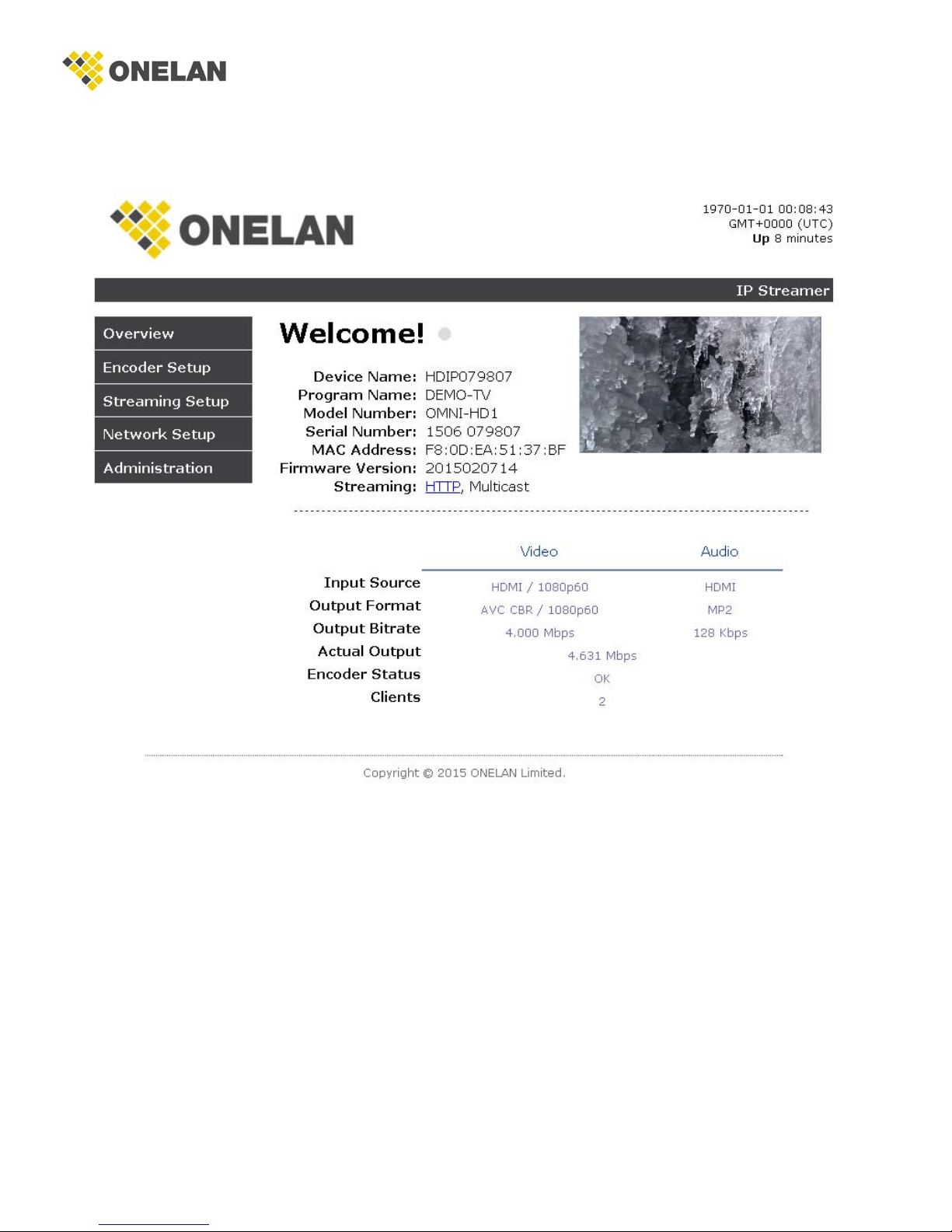

9. Overview Welcome page will be displayed
OMNI-HD1 Manual V1.0
12

OntheWelcomeScreen,wehaveaddedatooltohelptheinstallerlocateaunitinarackor
headend.PresstheLEDONbutton(shownbelow).ThiswillcausetheCFGLEDlighttoflash
continuouslyfortheinstallertoidentifyandlocatetheOMNI‐HD1.Toturnoff,simplypressthe
LEDtoolagain.
OMNI-HD1 Manual V1.0
13

Encoder Setup : User Name: admin Default Password: Admin123
OncetheWelcomePageisdisplayedselecttheEncoder
SetuptabandthebelowLogin“AuthenticationRequired”
screenwillbepresented.EntertheUserNameand
PasswordthenclickLogin.
OMNI-HD1 Manual V1.0
14

Enable Closed Caption :
1. Connect Video source to HDMI or YPbPr port.
2. Connect Video with supporting Closed Caption source to CVBS port.
3. A supporting Closed Caption Player/TV must be used for this function.
Network Configuration :
OMNI-HD1 Manual V1.0
15
Closed Caption input

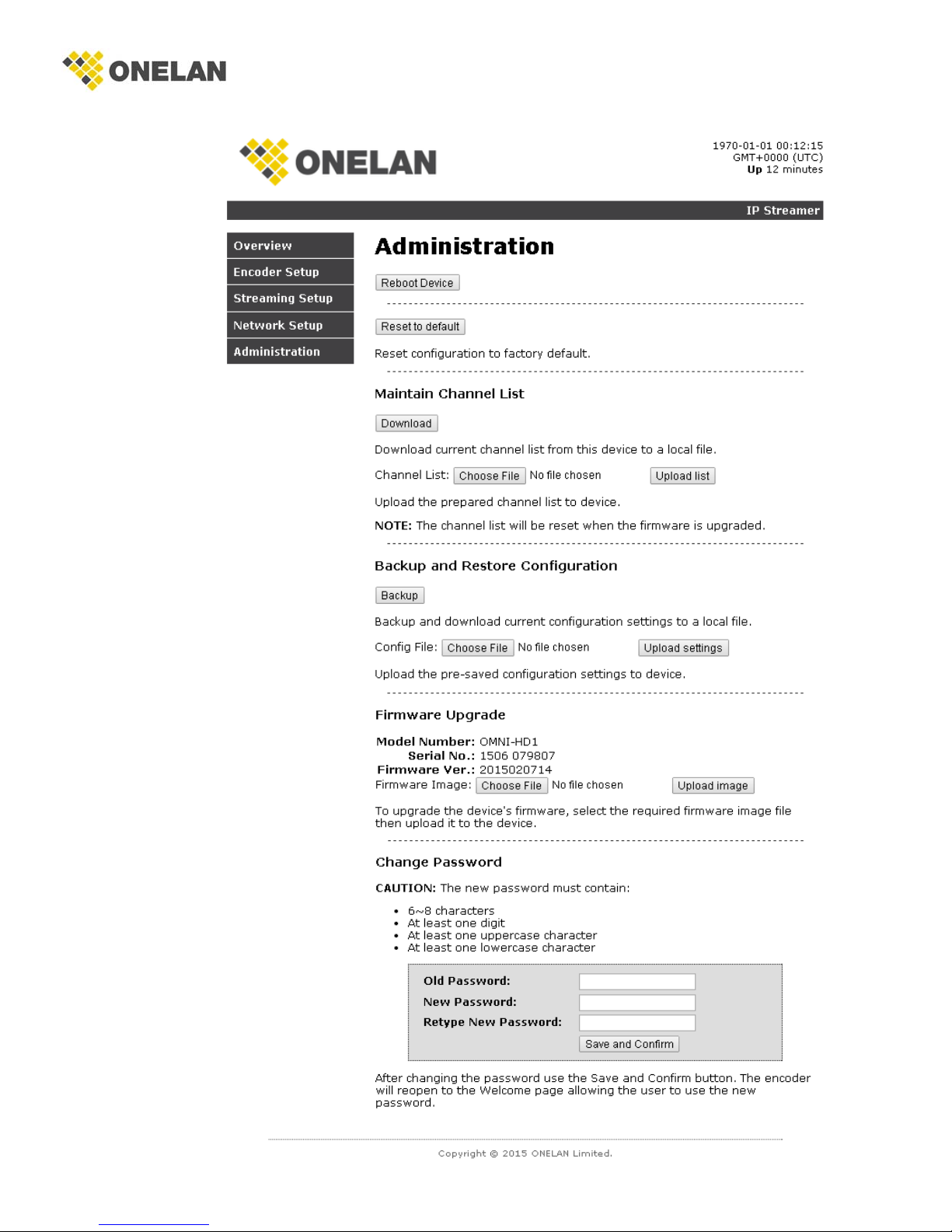

Administration:
OMNI-HD1 Manual V1.0
16

Savingyourconfigurationfiles:
Wehighlyrecommendyousaveyourencoderconfigurationfiles.SimplyClickthe“Backup”buttonand
theconfigfileswillbesavedtoyoucomputer.
Touploadaconfigurationfile‐simplyclick“ChooseFile”thenlocatethefileyouwanttoupload.Click
“UploadSettings”toinstalltheconfigurationfiles.Thisfunctionishelpfultotheinstallerwheninstalling
alargenumberofencodersinasinglesystem.
Wehighlyrecommendsavingthesettingsofyourencoder.
A“config.cfg”filewillbecreated.LocatethefileMyComputer>CDirectory>DocumentsandSettings>
User>MyDocuments>Downloads>configs.cfg.
OMNI-HD1 Manual V1.0
17

Streamingmethods:(Note: If using VLC player, please install version 2.0.8 or newer version)
Case1:DLNA
StreamingSetupExample:
OMNI-HD1 Manual V1.0
18
Enable/Disable
Authentication
ex. VLC media player
http://@169.254.22.127:8888/VideoInput/play.ts
Enable/Disable
HTTP
EnterRADIUSIP
EnterRADIUS
Secret,the
password
betweenHDIP
serverand
RADIUSserver

UsingVLCmediaplayer,selectMedia==>OpenNetworkStream...
OntheNetworkProtocol,keyintheOutputIPaddressandOutputPortasfollowingexample,
ex.http://172.21.6.88:8888/VideoInput/play.ts
PressPlaybuttontoviewthevideo.
OMNI-HD1 Manual V1.0
19

Case2:UDP/RTPMulticasting
StreamingSetupExample:
OMNI-HD1 Manual V1.0
20
SelecttoEnableRTP,
DisabletoUDP
Enable/Disable
Multicast
EnterMulticastingGroup
IPaddressbetween
224.x.x.xand239.x.x.x
Recommendfrom
1024to65535
ex. VLC media player
rtp://@224.1.1.8:1234
ex. VLC media player
rtp://@224.1.1.8:1234
MulticastTTL
from1to255
Default4
