OneTech OTP-MG610 Mini Mega-Pixel User manual

Mini Mega-pixel
IP Network Camera
User Manual
Revision: 030701
Date: 2014/10/12
For firmware version v030701

Mini Mega-pixel IP Camera
2
Table of Contents
LIST OF FIGURES AND TABLES......................................................................................................4
1. INTRODUCTION..........................................................................................................................6
2. HARDWARE DESCRIPTION AND QUICK INSTALLATION/USAGE ................................9
2.1. MAJOR HARDWARE COMPONENTS.......................................................................................9
2.2. QUICK INSTALLATION AND USAGE ......................................................................................10
2.3. WIRELESS CONNECTION (IF ROUTER/AP HAS WPS BUTTON)..........................................16
2.4. WIRELESS CONNECTION (IF WPS NOT SUPPORTED ON ROUTER/AP) ..............................16
2.5. PUSH NOTIFICATION ............................................................................................................17
3.1. INFORMATION ......................................................................................................................20
3.2. VIDEO DISPLAY ...................................................................................................................21
3.3. NETWORK............................................................................................................................22
3.4. WIFI SECURITY....................................................................................................................24
3.5. ADVANCED NETWORK.........................................................................................................26
3.6. VIDEO SETTINGS .................................................................................................................27
3.7. MOBILE VIDEO SETTINGS....................................................................................................29
3.8. NIGHT MODE CONTROL .......................................................................................................30
3.9. EMAIL/FTP ALARM ...............................................................................................................31
3.10. SPEAKER ALARM SETTINGS ...............................................................................................34
3.11. NAS SETTINGS....................................................................................................................35
3.12. CLOUD STORAGE SETTINGS...............................................................................................37
3.13. SD-CARD SETTINGS ...........................................................................................................39
3.14. SCHEDULING .......................................................................................................................41
3.15. LED DISPLAY CONTROL......................................................................................................43
3.16. DATE/TIME...........................................................................................................................44
3.17. ADMIN..................................................................................................................................45
3.18. UPGRADE ............................................................................................................................46
3.19. REBOOT...............................................................................................................................47
3.20. SET TO FACTORY DEFAULT..................................................................................................48
4. FEATURES AND SPECIFICATIONS......................................................................................49
4.1. FEATURES ...........................................................................................................................49
SPECIFICATIONS..................................................................................................................50
5. PACKAGE CONTENTS............................................................................................................52
APPENDIX A. LIST OF TESTED NAT/ROUTER DEVICES........................................................53

Mini Mega-pixel IP Camera
3
APPENDIX B. MAXIMUM ALLOWED VIDEO USERS.................................................................54
APPENDIX C. PERFORMANCE INFORMATION .........................................................................55
APPENDIX D. TROUBLE SHOOTING............................................................................................56
APPENDIX F. SNAPSHOT PICTURE ON ANY BROWSER........................................................59

Mini Mega-pixel IP Camera
4
List of Figures and Tables
Figure 2-1: Major components in the front panel
Figure 2-2: Major components in the back panel

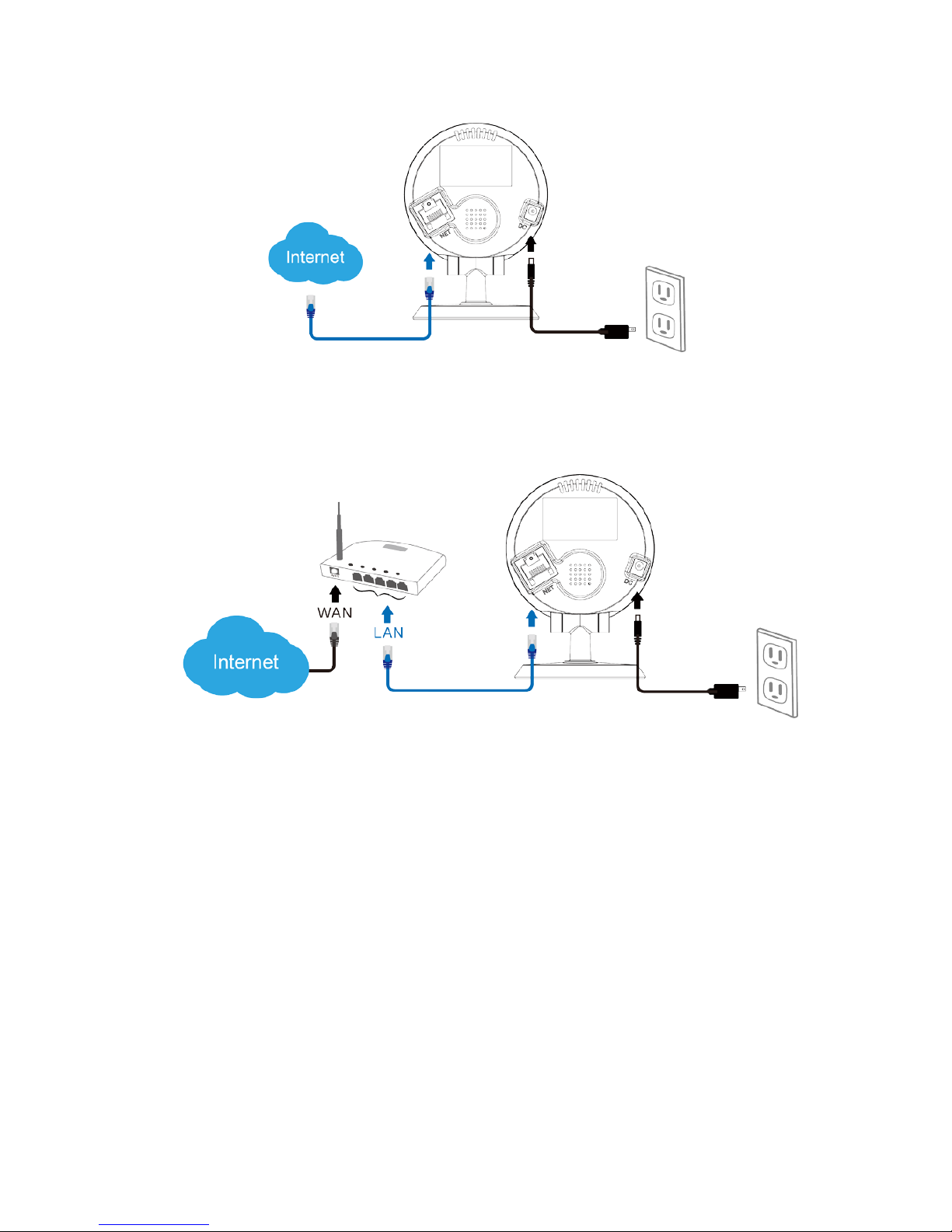

Figure 2-3: IP CAM connection diagram.
Figure 2-4: Connect Ethernet cable to a switch/router.
Figure 2-5: Download the latest CamView software
Figure 2-6: The ID/Password card
Figure 2-7: Running window of CamView program
Figure 2-8: Pop-up play-video password window
Figure 2-9: Unplug the Ethernet cable to enable the WiFi function
Figure 3-1: Open the web configuration page from CamView software
Figure 3-2: IP CAM Web configuration login page
Figure 3-3: IP CAM Information page
Figure 3-4: Video display page
Figure 3-5: Network settings page for DHCP function
Figure 3-6: Network settings page for fixed IP address
Figure 3-7: WiFi security disabled page
Figure 3-8: WiFi security enabled page
Figure 3-9: WiFi testing page
Figure 3-10: Advanced network settings page
Figure 3-11: Video settings page
Figure 3-12: 3GPP/RTSP enabled page
Figure 3-13: Email/FTP Alarm page
Figure 3-14: SMTP server settings page
Figure 3-15: D/O Settings page
Figure 3-16: NAS Storage settings page
Figure 3-17: Cloud Storage settings page
Figure 3-18: Cloud Storage logged in page
Figure 3-19: SD-Card settings page
Figure 3-20: SD-Card information page
Figure 3-21: Schedule Management page
Figure 3-22: Led Control settings page
Figure 3-23: System date/time settings page
Figure 3-24: Admin settings page
Figure 3-25: Firmware upgrade settings page
Figure 3-26: Firmware upgrade status page
Figure 3-27: System reboot settings page

Mini Mega-pixel IP Camera
5
Figure 3-28: System reboot under-going page
Figure 3-29: Stick on the reset button to set to the factory default
Figure 5-1: The IP camera body
Figure 5-2: Power Adaptor
Figure 5-3: Quick installation guide
Figure 5-4: Ethernet cable
Figure 5-5: Anchors and Screws
Figure 5-6: ID/Password Card
Table A-1: List of tested Wireless AP/router devices
Table A-2: List of tested Wired NAT/router devices

Mini Mega-pixel IP Camera
6
1. Introduction
The IP Camera is designed for all day video surveillance on your iPhone/iPad and
Android mobiles/pads. The setup is truly 1-2-3 :
1. Connect the camera to the network
2. Download the app mCamView into your iPhone/iPad or Android
3. View video by the camera ID/password
The push notification is supported, so that you will get the notification from your
iPhone/iPad and Android once there is any events detected through the motion
detection or sound detector on the camera, even when your mobile is on sleep mode.
The SD card recording is supported, and you could playback the recorded video
on your iPhone/iPad and Android. You could also do the SD card recording only when
there is motion or sound detection to save the SD card storage size. The motion and
sound detected recording has a 5 seconds pre-recording, so that you will always catch
the critical moment.
The NAS and cloud storage is supported. You can record the video files into any
normal NAS devices or to your Dropbox account. And you can playback those
recorded video files remotely on your mobile devices or computers.
For day & night usage, there are two video sensors/lens on the camera, one for
day and one for night. The day lens and night lens focus are separately tuned for day
light and Infra Red light for best video quality. No ICR, no mechanical problem.
Two-way audio is supported. You can monitor the synchronized video/audio and
talk to or warn the people around the camera from your iPhone/iPad and Android once
you got the push notification. There is a built-in speaker so that you could connect any
high power speaker to the camera for your needs.
The WPS(WiFi Protected Setup) is supported. You could set up the WiFi
connection of the camera with the router by clicking the WPS button on the camera
and on the router at the same time. No more complicated WiFi configuration.
The IP camera is ideal for securing small businesses, home offices and
residences. The IP Camera is a perfect replacement of the alarm system and baby

Mini Mega-pixel IP Camera
7
monitor in your house and shop. .

Mini Mega-pixel IP Camera
8
The differences
It’s very easy to see the video of the IP Camera, you only need to key in the
ID/Password of the IP CAM any where in the world, you do not need to remember the
IP address or domain name or DDNS name or port number. And you do not need to
modify the settings(like port mapping, fixed IP, DDNS, virtual server) of the NAT/router
devices, it’s just a plug & play usage.
So, the differences are the followings:
♦Public IP address needed ? No
♦Dynamic DNS needed ? No
♦Port mapping in router? No
♦Virtual server in router ? No
♦UPnP support in router ? No
♦What’s needed ? ID and Password

Mini Mega-pixel IP Camera
9
2. Hardware description and quick installation/usage
The IP CAM is designed to be very easy to install and use. First, let’s see the
major components of the IP CAM products.
2.1. Major hardware components.
The major components on the front panel of the IP CAM products are the
followings :
1. Lens – the lens is inside the camera body and the focus of the lens is fixed, you do
not need to spend time to adjust the focus, the effective focus range is from 30cm
to infinity. There are two lens for day and night usage separately.
2. IR LED – there Is an IR LED for the night mode usage.
3. Microphone – for receiving the audio/voice. Effective distance is about 5 meters.
4. Status indication LED (red) – this LED is to indicate the Internet connection status.
When the Internet connection is connected, the LED will be constant red light. If
there is any Internet connection problem, the LED will be blinking red light.
5. Ethernet indication LED (blue) – this LED is to indicate if the Ethernet link is ok
and packet traffic is sending/receiving. When the Ethernet cable is connected, the
LED is constant blue light. When there is packet sending/receiving, the LED is
blinking blue light.
6. SD card LED – for the indication of the SD card activity( recording ).
7. Micro-SD card slot – for inserting the micro SD-Card. (support up to 32G bytes)
8. WPS button – for the setup of the WiFi connection with WPS function.
9. Reset button – this is the button to reset the IP CAM to default factory settings.
You need to use a small stick like pencil or tooth stick to press the reset button for
more than 3 seconds to enable the reset function. Usually when you forgot the
administrator account, you will probably need to do this reset action to reset to the
default factory settings. Please refer to section 3.19 for more details.
10. Light detector – for switching between day time and night time automatically.

Mini Mega-pixel IP Camera
10
Figure 2-1: Major components in the front panel
The major components on the back panel and bottom of the IP CAM products are
the followings:
1. Power jack – this is the place to plug in the power adaptor. The power needed for
this IP CAM is 12V/1.0A, please make sure you are using the correct power
adaptor.
2. Internal speaker – there is an internal speaker inside.
3. Ethernet jack – this is the place to plug in the RJ45 Ethernet cable. When the
Ethernet link is ok, the Ethernet indication LED on the front side will be blue light.
Figure 2-2: Major components in the back panel
2.2. Quick installation and usage
There are only three things that you need to do to see the video from the IP CAM.
1. Connect the IP CAM to the home/office network.
2. Install the CamView/app software on the notebook/PC/mobiles.
3. Key in the ID/password of the IP CAM(from the ID/Password card) on the
