onga GP960 User manual

1
Should the installer or owner be unfamiliar with the correct
installationoroperationofthistypeofequipmentyoushould
contact the distributor/manufacturer for the correct advice
before proceeding with the installation or operation of the
product.
Owner’s Manual
Engine Driven
Pump
Model GP960
Rainbow Pool Products
PO Box 2388, Mansfield Qld 4122
Telephone STD 61-7-3849 5385
Facsimile STD 61-7-3849 5384
Email: [email protected]
Web: www.rainbowpoolproducts.com.au

2
Relax - you’ve bought an onga ...
Congratulations on your decision to purchase an onga
product. onga is one of the best known companies in its
field, with a proud local and international reputation.
In fact, wherever people need to move water from one point to
another - whether in industry, horticulture, agriculture or in and
around the home - onga is a byword for reliability, value for money
and technological innovation. So why does onga lead its field?
Here are a few simple reasons ...
1. Continual Product Improvement
onga employ the best engineers both in Australia and around the
world to develop new and better ways to pump and handle water.
2. Dedication to Quality
There is only one standard that we at onga set ourselves for both
product quality and the quality of our service. That standard is
excellence ... to have no-one better than us at what we do ... nothing
short of that is acceptable.
3. A Fair Price
onga pumps are neither the cheapest nor the most expensive in their
field. Our products do, on the other hand, always represent very
good value for money - they always have and they always will.
4. Our Team of Dealers
We believe onga’s hand picked authorised dealer network -
throughout Australia and worldwide - are second to none. We in
vest a huge sum training them and supporting them. They are your
link to us, and we value their expertise and trust.

3
OPERATING INSTRUCTIONS
ongaonga
ongaonga
onga Engine Driven Pump
Model GP960
Please read these instructions in full before installing and commission-
ing the pump unit.
Pump Protection
Warranty of these pumps is void unless they are housed correctly and
protected from weather, floods, chemicals, dust, vermin, insects etc.
Housing used should be weather-proof and well vented so that engine
heat and exhaust fumes can escape. To obtain best possible perform-
ance, pumps should be installed as close to water as possible.
Suction and Discharge Pipes
Suction pipe should be laid so that it rises evenly from water source to
pump. This makes priming easy and avoids airlocks.
Hoses should be the same size as the pump inlet and/or larger than the
discharge port.
All pipe joints must be sealed to ensure they are airtight.
Priming
To prime pump, remove priming plug and fill pump and suction pipe
with water. Pump is equipped with suction flap valve and should be
capable of drawing air out of normal size suction pipes or hoses. Re-
place plug and start the pump. If the pump pumps a little and stops,
turn the pump off, check suction pipe for possible leaks and repeat
priming procedure until the pump operates satisfactorily.
Self priming pumps, when filled with water, will gradually draw air out
of the suction line (depending on model) to a maximum vertical lift of
6 metres (20 ft). If priming a long or large diameter pipe, additional
water may have to be added to the pump at 3 minute intervals.

4
Suction Limitations
Theoretically, no pump can lift water higher than 9 metres (30 ft) verti-
cally, and the practical limit is approximately 6 metres (20 ft), depend-
ing on the installation.
The pump is equipped with an internal suction flap valve. If pump fails
to prime, it could be due to a leak in the suction pipe, a worn impeller
or too great a suction lift. Self priming pumps do not self prime when
subject to a high discharge head. Under these conditions the suction
flap valve should be removed and a foot valve installed on the end of
the suction line.
Suction Strainer
For portable pump use, a suction hose strainer must be used. This
removes the risk of gravel or large pieces of foreign matter entering and
damaging the pump.
Type of Water
Pumps are capable of pumping septic tank effluent, sink wastes, small
amounts of dirt or sand, drainage or polluted water and some industrial
wastes. They are not designed to pump large quantities of foreign mat-
ter. If fluid contains large or stringy material, then an adequate suction
strainer should be used.
If chemicals are to be pumped, compatability of pump material should
be checked with your local onga office.
SERVICE
Pump runs but fails to pump water:
1) Check for an air leak in suction pipe.
2) The pump has not been filled with water.
3) Water has evaporated leaving pump dry.
4) Foreign matter has clogged the impeller or pipe.
5) Suction lift too high.

5
Engine
See instructions supplied by engine manufacturer. Be sure to initially
put oil in engine and check level regularly. Low speeds extend engine
life dramatically. We recommend for continuous pumping that the pump
be operated at approximately 3000 r.p.m.
Be aware that unstable mounting practices may be hazardous to the
operator and/or property.
200 400 600 800 1000
36
Q(lpm)
Q(g3h)
10
20
30
48
Head [m]
02.0
2.5
3.0
3.5
4.0
Power
[kW]
4.5
P-Q @ 3000
5.0
24
12 60
10
20
30
40
50
Pump Eff.[%]
Please note:All tests carried out with potable water @ ambient air temperature.
Eff.[%] @ 3000 rpm
GP960 with Honda
GX200 Petrol Engine
H-Q @ 3600
H-Q @ 3000
P-Q @ 3000
Eff.[%] @ 3600 rpm

6

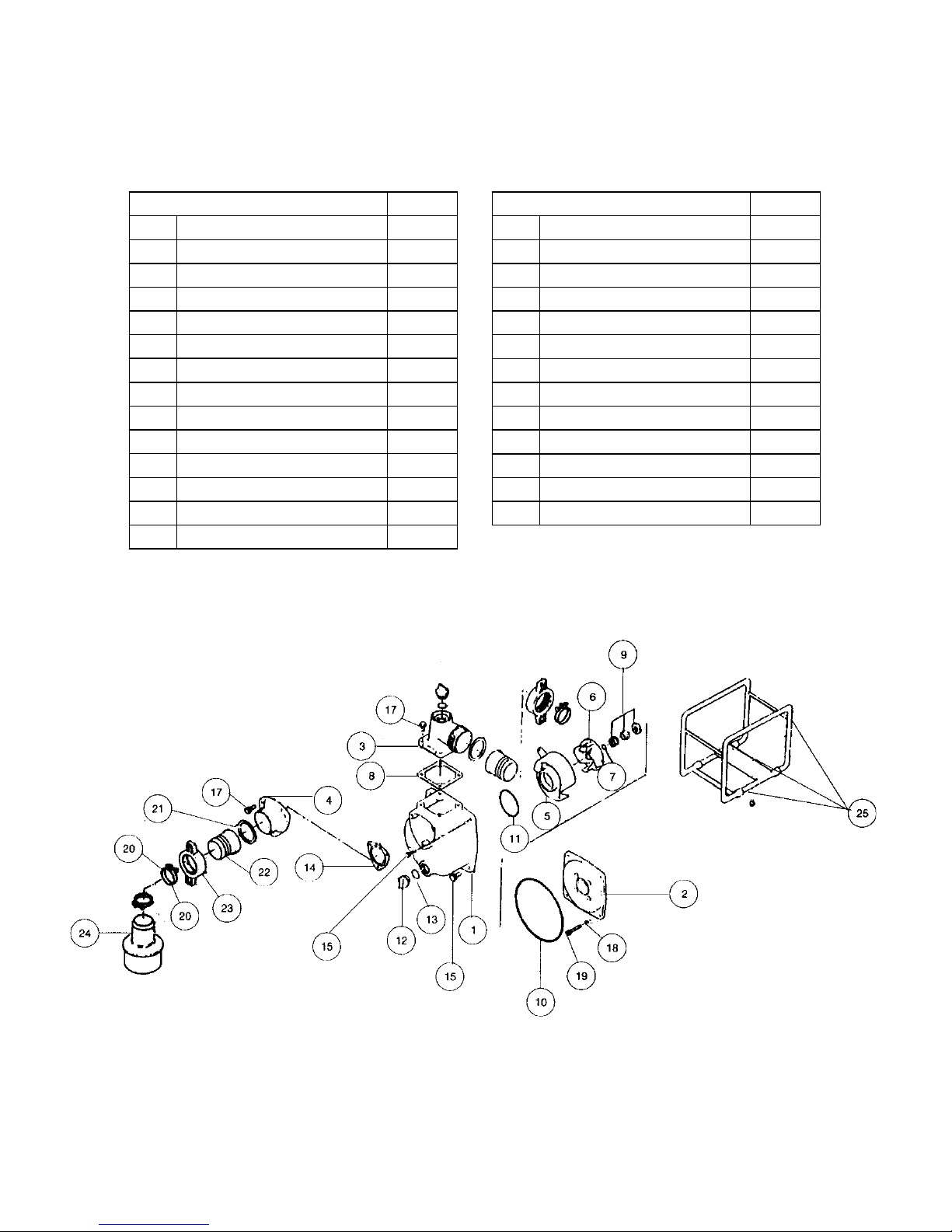

Model GP960
Description Part No
1 Casing 801000
2 Yoke 801001
3 Delivery Flange 801002
4 Suction Flange 801003
5 Diffuser 705077
6 Impeller 705078
7 Shim Impeller 705079
8 Gasket 705080
9 Seal Assembly 705081
10 'O' Ring Casing 705082
11 'O' Ring Diffuser 705083
12 Drain Plug 705084
13 Plug 'O' Ring 705085
14 Clacker 705086
Description Part No
15 Bolt Casing 705015
16 Flexible Mount Kit* 800626
17 Bolt Suction 705088
18 Seal Washer 705018
19 Bolt 5/16" UNF UNBRAKO X55 705090
20 Hose Clamp 705091
21 Suction Gasket 705092
22 Hose Barb 705093
23 Nut Barb 705094
24 Suction Stainer 705095
25 Roll Frame Kit 800625
26 Standard Base* 504300
* Not Shown

7
Onga Pty. Ltd.Onga Pty. Ltd.
Onga Pty. Ltd.Onga Pty. Ltd.
Onga Pty. Ltd. --
--
-WarrantyWarranty
WarrantyWarranty
Warranty
1. Your Onga unit, when used for its designed purpose, correctly housed and vented against weather, vermin, dirt etc should render trouble free service. You
should carefully read the instructions supplied and your unit should be installed and operated in accordance with these, otherwise this warranty will not apply.
The warranty does not cover damage, malfunction or failure resulting from, use on incorrect voltages, alteration, accident, misuse, neglect, abuse, faulty or
improper installation, misadjustment, mains supply problems, thunderstorms, lightning, infestation by insects or vermin, tampering by unauthorised persons,
failure due to non company supplied components or products being substituted as part of the system, or exposure to abnormal corrosive conditions.
2. Onga Pty Ltd (The Company) hereby warrants in accordance with and subject to the provisions herein contained your unit against defects in material and
workmanshipundernormaluseandserviceandwhenproperlyinstalledandconnectedforaperiodof(Domestic)12monthsor2000hoursoperation(whichever
occurs first) and (commercial) 3 months or 2000 hours (whichever occurs first) from the date of purchase of new equipment to the original owner and used in
the original installation. This warranty is limited in time to two years from date of manufacture. In the event of a breakdown or failure of your unit or part there
of,within theperiodof 12monthsor 2000hourswhich preventsnormalworking, theCompanywill, ifyourunit isreturnedto oneof theaddresses listed,repair
the breakdown or failure and replace any defective part free of charge. Freight charges to us both ways and risk of loss or damage will be your responsibility.
Ifneworreplacementpartsaresuppliedforinfieldreplacementwork,anylabourortravellingchargeswillbeyourresponsibility. Sparepartsarenormallystocked
for a period of 5 years and generally stocked for the life of the unit.
Failureofunderwaterlightbulbswillonlybewarrantedifwiringistoapprovedstandards,andanapprovedtransformerincorporatingthermistorshasbeenused.
Hydrostaticreliefvalvessuppliedseparatelyorincorporatedinproductsaresoldwiththeexpressunderstandingthatsuchproductsofferlimitedhydrostaticrelief
andnoofferismadeorimpliedastothesuitabilityofsuchproductsforaspecificapplication,astheconditionsofuseare unknownandbeyondthecompany's
control. It is the purchaser's responsibility to ensure that the performance of the valve meets the required application.
3. Thiswarrantydoesnotextendtoengines,pressuregauges,orcomponentpartsofUnitsnotmanufacturedbythecompanybutwherepermissibleandpossible
the Company will make available to you the benefit of any warranty of that manufacturer thereof.
4. The Company will not be liable for costs involved with the taking out and re-installing of equipment that has failed under the warranty period. This includes
electrician's time with wiring costs, and plumber's time and materials.
5. Thiswarrantydoesnotextend to or cover your Unit or any part of it which in the reasonable opinion of the Company has wornby fair wear and tear, abraded
orcorrodedby fluidpumped, runinadrycondition, operatedat hightemperaturesoroutsidethe technicalspecification oftheequipment,orhasbeendamaged
orrendered defectivebyaccident, wilfulact,negligence (otherthanthat ofthe Company) misuse,alteration, or repaircarriedoutby other thanthe Company (or
bypermissionwithitsdealers),usageofotherthantheCompany'sparts,operationonvoltagesorfrequenciesotherthanindicatedontheratingplate,incorrectly
setvoltageregulator, electricalfusion,lightning,orby forcemajeure. Thiswarrantyisan exclusivewarrantyandisin lieuofallotherwarrantiesandconditions,
expressed or implied, whether statutory or otherwise.
Swimmingpools or spa equipment will not bewarrantedwherethe Langelier saturation index “pH” range isoutside7.4to 7.8 andthey havenotbeenregularly
treated with Chlorine or Bromine based sanitising system. Use of any other chemical treating system voids warranty.
6. SaveasforesaidtheCompanyshallnotbeliableforanylossordamageofanykindwhatsoever(includinginjuryordeathtopersonsoranimalsorlossordamage
toproperty) whethersufferedorincurredbyyouorbysomethirdpartywheresuchlossordamagearisesinrelationtoorasaresultoftheUnitoranypartthereof
andwhetherarisingwhollyorpartlyasaresultofnegligenceoftheCompany,itsservantsoragentsorotherwise. Withoutlimitation upon the provisions of the
foregoingprovisionsof thisclausetheCompanyshall notbeliableforany consequentiallossordamage(including financiallossordamage)and innoeventand
in no circumstances shall the liability of the Company to you or any third party exceed the total purchase price of the Unit or parts thereof in question.
7. Nothing in this warranty limits or restricts, or is intended to derogate from, any right or remedy which the purchaser or ultimate user of the Unit may have
pursuant to Australian State and/or Australian Federal Consumer Protection Legislation and where necessary shall be so read and construed.
8. Claimsunderthis warranty must give evidence of dateofpurchase,model and serial number of the pumporequipment. Alsothe claimant'sname,address
and telephone number.
IMPORTANT
Please attach your sales invoice/docket here as proof of purchase
should warranty service be required.
Please do not return Warranty - Retain for your records.
Purchased From
Purchase Date Serial No Model No
