onsen 3.0 User manual

[e-mail]
ONSENPRODUCTS.CA
800.996.5559

2onsenproducts.ca 800-996-5559
[e-mail]
INDEX
Features and Specications......................................................... 3
Installation ..................................................................................... 4
Wiring ............................................................................................. 8
Plumbing........................................................................................ 9
Operation..................................................................................... 10
Sanitizing...................................................................................... 11
Winterizing................................................................................... 11
Troubleshooting.......................................................................... 13
Warranty ...................................................................................... 15
Thank you for purchasing the
ONSEN 3.0 DIAPHRAGM RV / MARINE WATER PUMP
Please take the time to read this manual carefully before attempting to
install or operate the pump. Improper use or installation may void the war-
ranty.
If you have any questions about how to use this product, please contact
Onsen at [email protected] or 800-996-5559.

onsenproducts.ca 800-996-5559
3
[e-mail]
ENGLISH
Self-Priming
6 Feet Suction Lift
Runs Dry Without Damage
Quiet Operation
Low Power Draw

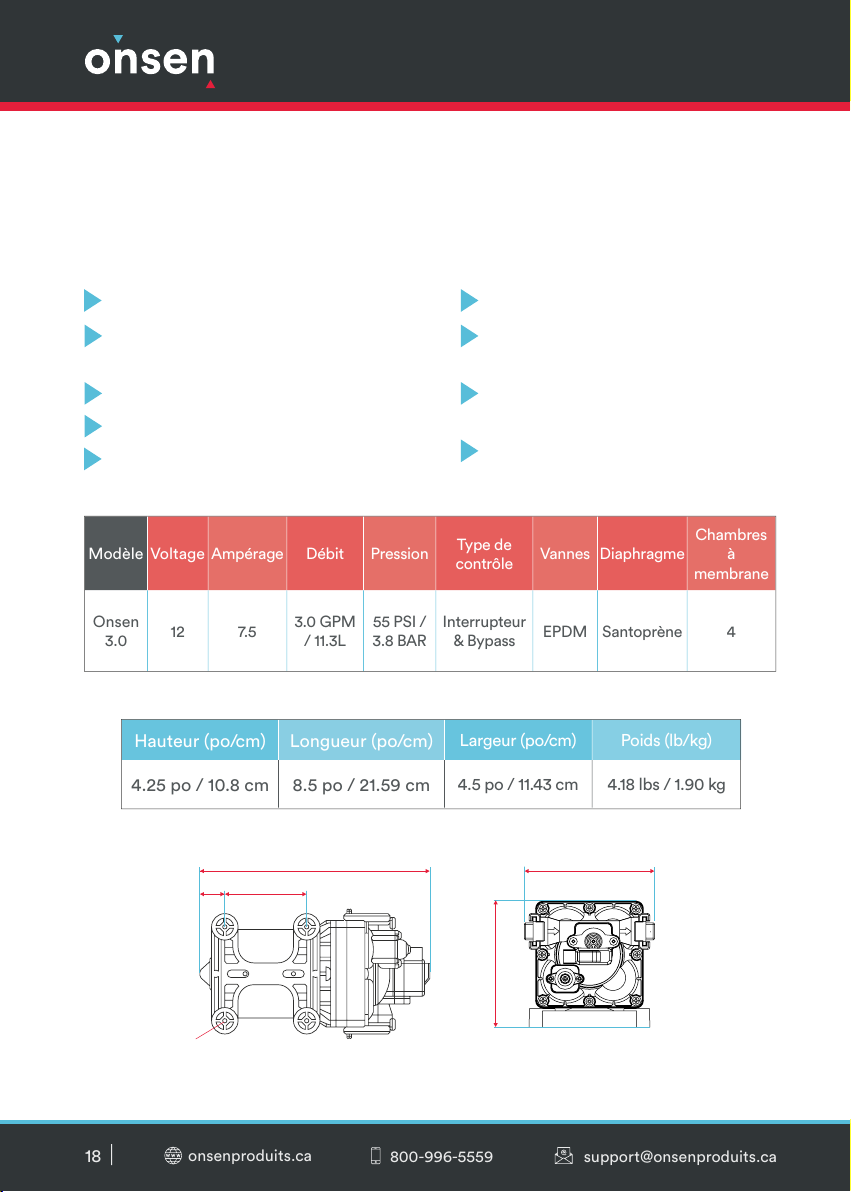

FEATURES AND SPECIFICATIONS
Snap-In Port Fittings
Corrosion Resistant Materials
Soft Noise Absorbing Mounts
Built-In Check Valve And
Thermal Overload
Model Voltage Amp Flow
Rate
Pressure
Rating
Control
Type Valves Diaphragm Chambers
Onsen
3.0 12 7.5 3.0 GPM
/ 11.3L
55 PSI /
3.8 BAR
Switch &
Bypass EPDM Santoprene 4
Height (in/cm) Length (in/cm) Width (in/cm) Weight (lb/kg)
4.25 in / 10.8 cm 8.5 in / 21.59 cm 4.5 in / 11.43 cm 4.18 lbs / 1.90 kg
0.16 in
4.0 cm
4.25 in / 10.8 cm
4.5 in / 11.43 cm8.5 in / 21.59 cm
8.87 in / 7.3 cm1.02 in / 2.6 cm

4onsenproducts.ca 800-996-5559
[e-mail]
NOTE: When installing the pump, some water from factory testing may spill
out.
INSTALLATION

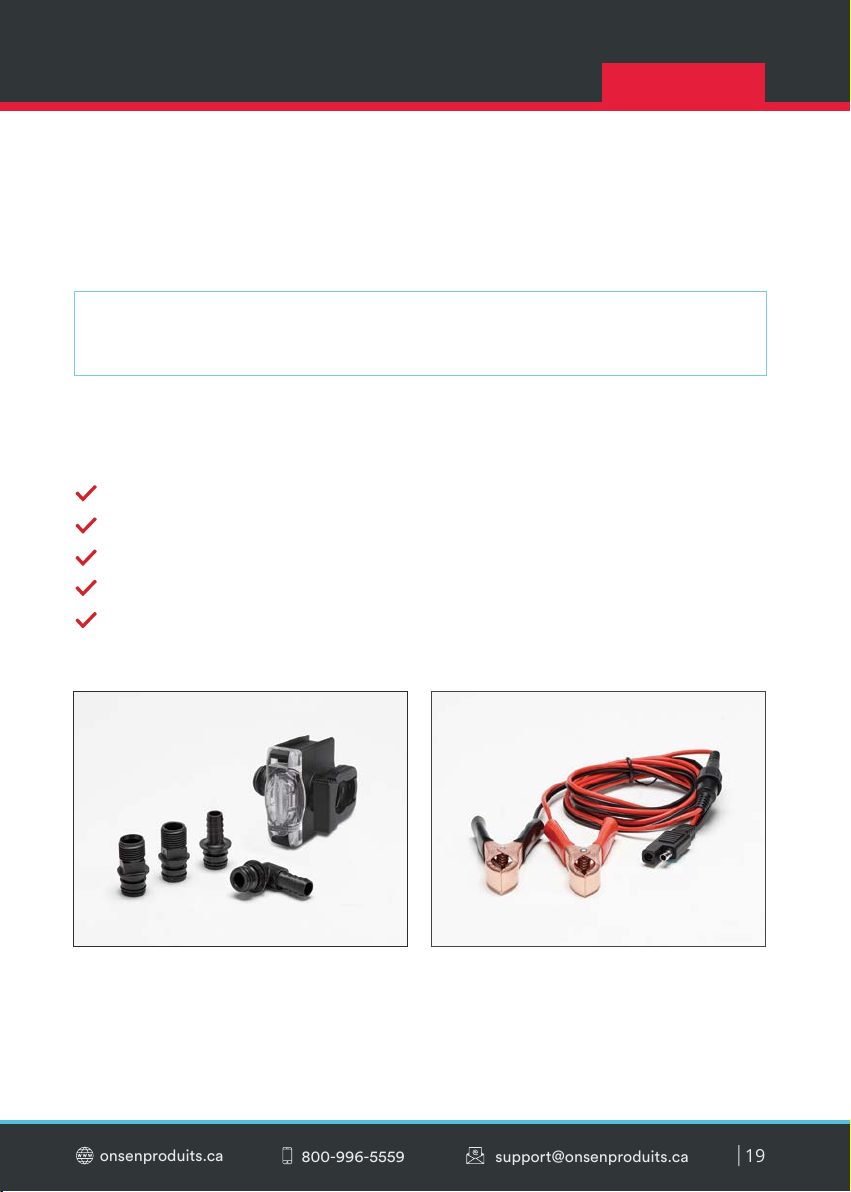

Before installing the pump, check that all of the following components and
accessories are included in the box:
Water pump
Strainer
2 X ½” hose barb adapters
2 X ½” threaded adapters
12 volt battery alligator clips (w/ 15A fuse)

onsenproducts.ca 800-996-5559
5
[e-mail]
ENGLISH
Make sure to install the pump indoors in a dry area.
Mount the pump horizontally or vertically. If mounting vertically, make
sure to mount with pump head down to avoid damaging the motor in
case of leakage.
Secure the feet with 4 screws.
STEP 1 MOUNT PUMP
City Water
Inlet
Water
Tank
Water
Heater
Check
Valve
Strainer

6onsenproducts.ca 800-996-5559
[e-mail]
Insert the included hose barb or threaded quick connect adapters in the
inlet and outlet pump ports , and slide clips to lock port connec-
tions.
If using the included strainer, insert into the inlet port and slide clip to
lock port connection.
Use ½” (13mm) I.D. exible hose (preferably braided or reinforced) to
connect to the inlet and outlet of the pump. Use hose clamps to secure
the hose to the hose barb connectors (if hose barb adapters are being
used).
A
A B C
C
C
B
STEP 2 CONNECT WATER LINES

onsenproducts.ca 800-996-5559
7
[e-mail]
ENGLISH
Connect the positive red wire to the positive (+) terminal of your battery
and the negative black wire to the negative (-) terminal of your battery.
A 15 amp switch is recommended and should be installed on the
positive red wire.
Use a 15 amp fuse protection on the positive red wire to protect the
pump.
STEP 3 CONNECT PUMP TO 12V BATTERY
Ft. (m) AWG (mm2)
0-30 (0-9) AWG14
30-50 (9-15) AWG12
50-65 (15-19) AWG10
NOTE: Connect using stranded wire with gauge size in relation to
distance or length as dened in the table below.
Black (-)
(-)
Red (+) (+)
Fuse
Switch
Battery

8onsenproducts.ca 800-996-5559
[e-mail]
WIRING
The pump should be wired on its own dedicated circuit protected by the
recommended fuse indicated in this Operating Manual.
It is highly recommended to install an approved marine duty (ignition
protected) switch rated at 15 amps or above to control power to the
pump.
Make sure to shut o power to the pump when not being used for ex-
tended periods of time.
Proper wire sizing is required for good pump operation. If the wire is
too small, low voltage will aect the pump performance and can create
a re hazard.
The total current draw on the circuit must not exceed 15 amps. If the
pump is used in conjunction with other components, overload current
protection (fuse or circuit breaker) and wire size must be for the total
amp requirements of all devices on the circuit.

onsenproducts.ca 800-996-5559
9
[e-mail]
ENGLISH
The inlet and outlet hose must be a minimum ½” (13mm) I.D. exible
hose to both ports. Using a hose with a smaller diameter can cause high
backpressure, cycling, low ow and noise.
Installation of a strainer is required to prevent debris from entering
the pump. Pump failure due to foreign debris is not covered by the
warranty.
Mount the pump within 5 feet of the tank (or any other water source) for
best performance and pump life. The greater the distance between the
pump and the water source, the greater the strain on the pump.
Plumb the system using high pressure, braided, exible hose to mini-
mize vibration and noise. The pump’s ports and strainer should not
be connected to plastic or rigid pipes. The pump’s normal oscillation
motion will transmit through rigid plumbing, causing noise and possibly
loosening or cracking components.
To prevent rapid cycling (pulsating ow) caused by excessive back pres-
sure, check for the following restrictive elements within your plumbing
system:
Water lters / puriers NOT on separate feed lines
Flow restrictors in faucets and showerheads
I.D. hoses and pipes smaller than ½” (13mm) throughout the plumbing
system
PLUMBING

10 onsenproducts.ca 800-996-5559
[e-mail]
OPERATION
NOTE: This pump is designed for intermittent duty only. Continuous
duty usage will shorten the life of the pump and is not covered under
the warranty.
Make sure the pump is installed properly according to the installation
instructions above (wait before powering the pump).
Make sure the battery being used to power the pump is fully charged.
Open the water source (showerhead, faucets, etc.) connected to the pump.
Switch ON power to the pump. Water will begin to ow and ll the
water lines connected to a water heater, toilet, shower, etc. The goal
is to remove the air from the plumbing system and ll it with water.
Once the lines are completely lled with water, shut o all water x-
tures (showerhead, faucets, etc.).
When all water xtures are shut o, the pump will stop automatically
(if the pump fails to stop, switch OFF power to the pump and refer to
the Troubleshooting section of this Operating Manual).
The pressurized plumbing system is now ready for use. Open the water
xture needed and the pump will automatically start pumping water to it.
1
2
3
4
5
6
7
ALWAYS SWITCH OFF POWER TO THE PUMP WHEN
LEAVING IT UNATTENDED OR WHEN NOT IN USE.
CAUTION

onsenproducts.ca 800-996-5559
11
[e-mail]
ENGLISH
Potable water systems require periodic maintenance to keep components
working and to deliver a consistent ow of fresh water. Depending on use
and the environment the system is subjected to, sanitizing is recommend-
ed prior to storage and before using the water system after a period of
storage.
If water is left to freeze in the water system, serious damage to the plumb-
ing and the pump may occur. Failures of this type will void the warranty. The
best guarantee against damage is to completely drain the water system.
SANITIZING
WINTERIZING
NOTE: Check your RV, watercraft or other equipment manufacturer’s
manual for specic sanitizing instructions.
NOTE: When used per the manufacturer’s recommendations, non-
toxic antifreeze for potable water is safe for use with the Onsen 3.0
Pump. Refer to the manufacturer for specic winterizing and drainage
instructions.
DO NOT USE AUTOMOTIVE ANTIFREEZE TO WINTER-
IZE POTABLE WATER SYSTEMS. THESE SOLUTIONS ARE
HIGHLY TOXIC AND MAY CAUSE SERIOUS INJURY OR
DEATH IF INGESTED.
WARNING

12 onsenproducts.ca 800-996-5559
[e-mail]
Drain the water tank. If the tank doesn’t have a drain valve, open all
water xtures and allow the pump to operate until the tank is empty.
Do not operate the pump for longer than 15 minutes continuously.
Switch OFF power to the pump and make sure that all water in the
drain lines is evacuated.
Remove the quick connect inlet and outlet ttings from the pump
and switch ON power to the pump to remove any remaining water
from the pump head. Switch OFF power to the pump and leave the
ttings disconnected from the pump until the system is ready to be
used again.
All xtures must be left open to safeguard against any damage to the
plumbing.
1
2
3
4
Perform the following steps to properly drain the system:

onsenproducts.ca 800-996-5559
13
[e-mail]
ENGLISH
For support in English and French with troubleshooting and installation,
contact Onsen at [email protected] or 800-996-5559.
TROUBLESHOOTING
NOTE: Vibration induced by sea conditions or transporting can cause
plumbing or pump hardware to loosen. Check for system components
that are loose. Many symptoms can be resolved by simply tightening
the hardware. Check the following items along with other particulars
of your system.
BEFORE SERVICING THE PUMP, SHUT OFF THE PUMP
AND DRAIN WATER FROM THE SYSTEM!
WARNING
Symptom Possible Causes
Pump does not prime
(motor operates, but
no pump
discharge)
Restricted intake or discharge line
Air leak in intake line
Debris in pump
Punctured pump diaphragm (pump leaks)
Crack in pump housing
Amp supply is insucient to fully start the motor
Motor fails to turn on
Loose wiring connection
Pump circuit has no power
Blown fuse
Pressure switch failure
Defective motor
Pulsating ow
Restricted pump delivery: check discharge lines,
ttings and valves for clogging or undersizing

14 onsenproducts.ca 800-996-5559
[e-mail]
Symptom Possible Causes
Pump fails to shut o
after all xtures are
closed
Empty water tank
Insucient voltage to pump (low battery)
Punctured pump diaphragm (pump leaks)
Discharge line leak
Defective pressure switch
Low ow and pressure
Air leak at pump intake
Accumulation of debris inside pump and plumbing
Worn pump bearing (excessive noise)
Punctured pump diaphragm (pump leaks)
Defective motor

onsenproducts.ca 800-996-5559
15
[e-mail]
ENGLISH
WARRANTY
ONSEN LIMITED WARRANTY
Limited Warranty Coverage
This Limited Warranty covers any product defects in material or workman-
ship under normal use and maintenance when installed and operated
according to the Operating Manual.
During the Warranty Period, Onsen will repair or replace, at no charge,
products or parts of a product that proves defective because of improp-
er material or workmanship, under normal use and maintenance when
installed and operated according to the Operating Manual.
Except as expressly set forth herein, there are no representations or warranties,
express or implied, including, without limitation, as to merchantability or tness
for a particular purpose with respect to any goods sold hereunder. Buyer’s ex-
clusive remedy is limited to repair or replacement of the goods sold, at Onsen’s
discretion. Onsen shall not be liable for incidental or consequential damages.
Limited Warranty Period
The Warranty Period is as follows:
2 YEARS from date of purchase on Parts
30 DAYS from date of purchase on Accessories

16 onsenproducts.ca 800-996-5559
[e-mail]
Limited Warranty Exclusions
This Limited Warranty becomes null and void if product failure is deter-
mined to be the result of any of the following:
Careless operation or handling, misuse, abuse and/or lack of main-
tenance or use not in accordance with the Onsen Operating Manual.
Freeze damage.
Pumping liquids containing chemical agents (ex: cleaning liquids).
Pump failure due to foreign debris (use a strainer to prevent debris
from entering the pump).
Installation in a corrosive or otherwise destructive environment.
Inadequate water quality.
Scale buildup.
Acts of Force Majeure.
Limited Warranty Claims and Shipping Costs
All warranty claims must be pre-approved by Onsen before shipment of
products and/or parts.
Any warranty related shipments to Onsen that have not been pre-approved
by Onsen will be the responsibility of the shipper.
For pre-approved warranty claims, responsibility for shipping costs will be
allocated as follows:
Within 60 DAYS of the date of purchase: ground shipping within Canada
only (territories excluded) will be covered by Onsen with the carrier of
Onsen’s choosing.
After 60 DAYS of the date of purchase: customer is responsible for ship-
ping costs.
1
2
5
8
3
6
4
7

onsenproduits.ca 800-996-5559
17
[e-mail]
Félicitations pour votre acquisition d’une
POMPE À DIAPHRAGME RV/MARINE ONSEN
Veuillez prendre le temps de lire attentivement ce manuel avant de tenter
l’installation et l’utilisation de ce produit. Une utilisation ou une installation
inappropriée pourrait annuler la garantie.
Pour toutes questions sur l’utilisation de ce produit, veuillez contacter
Onsen à l’adresse [email protected] ou au 800-996-5559.
TABLE DES MATIÈRES
Caractéristiques et spécications............................................. 18
Installation ................................................................................... 19
Raccordement électrique........................................................... 23
Raccordement de plomberie..................................................... 23
Utilisation et fonctionnement ................................................... 25
Désinfection................................................................................. 26
Hivernisation ............................................................................... 26
Dépannage .................................................................................. 28
Garantie ....................................................................................... 30
FRANÇAIS

18 onsenproduits.ca 800-996-5559
[e-mail]
Amorçage automatique
Aspiration jusqu’à 6 pieds de hau-
teur
Capacité de fonctionner à sec
Fonctionnement très silencieux
Faible consommation énergétique
CARACTÉRISTIQUES ET SPÉCIFICATIONS
Raccords encliquetables
Fabriqué de matériaux anti-
corrosion
Supports réduisant le bruit et
les vibrations
Vanne intégrée et protection
thermique
Modèle Voltage Ampérage Débit Pression Type de
contrôle Vannes Diaphragme
Chambres
à
membrane
Onsen
3.0 12 7.5 3.0 GPM
/ 11.3L
55 PSI /
3.8 BAR
Interrupteur
& Bypass EPDM Santoprène 4
Hauteur (po/cm) Longueur (po/cm) Largeur (po/cm) Poids (lb/kg)
4.25 po / 10.8 cm 8.5 po / 21.59 cm 4.5 po / 11.43 cm 4.18 lbs / 1.90 kg
0.16 po
4.0 cm
4.25 po / 10.8 cm
4.5 po / 11.43 cm8.5 po / 21.59 cm
8.87 po / 7.3 cm1.02 po / 2.6 cm

FRANÇAIS
onsenproduits.ca 800-996-5559
19
[e-mail]
REMARQUE : Lors de l’installation de la pompe, il est possible que de l’eau
provenant des tests en usine s’écoule des raccords.
INSTALLATION
Avant d’installer la pompe, assurez-vous que toutes les composantes et
accessoires suivants sont inclus dans la boîte :
Pompe à diaphragme
Filtre
2 X adaptateurs de raccord cannelés ½”
2 X adaptateurs de raccord letés ½”
Pinces alligator 12 volts (fusible 15A)

20 onsenproduits.ca 800-996-5559
[e-mail]
Assurez-vous d’installer la pompe à l’intérieur dans un endroit sec.
Installez la pompe horizontalement ou verticalement. Si installée à la
verticale, assurez-vous que la tête de la pompe soit positionnée vers le
bas pour éviter d’endommager le moteur en cas de fuite d’eau.
Fixez les pieds avec 4 vis.
ÉTAPE 1
INSTALLER LA POMPE
Clapet
antiretour
Filtre
