Open House H722C User manual

The H722 video cameras are solid state cameras designed to fit deep double gang J-boxes.
The H722 must be used with one of its companion channel injectors
(H511HHR or H511BID). When used with an H511, video received from
the H722 is used to create a new channel to add to existing television
channels. The H722 is connected to the H511 by a single run of CAT-5
wire. Although this camera mount is intended for use indoors, or under an
eave, a drip cap is supplied for use in exposed areas.
Two models are available:
Model H722
Model H722C
Black & White, 2 lux, 3.6 mm lens, smoked window
Color, 8 lux, 3.6 mm lens, smoked window
Note: The H722 is not a standalone video camera
Use only with an H511 channel injector.
ChannelPlus Video Camera

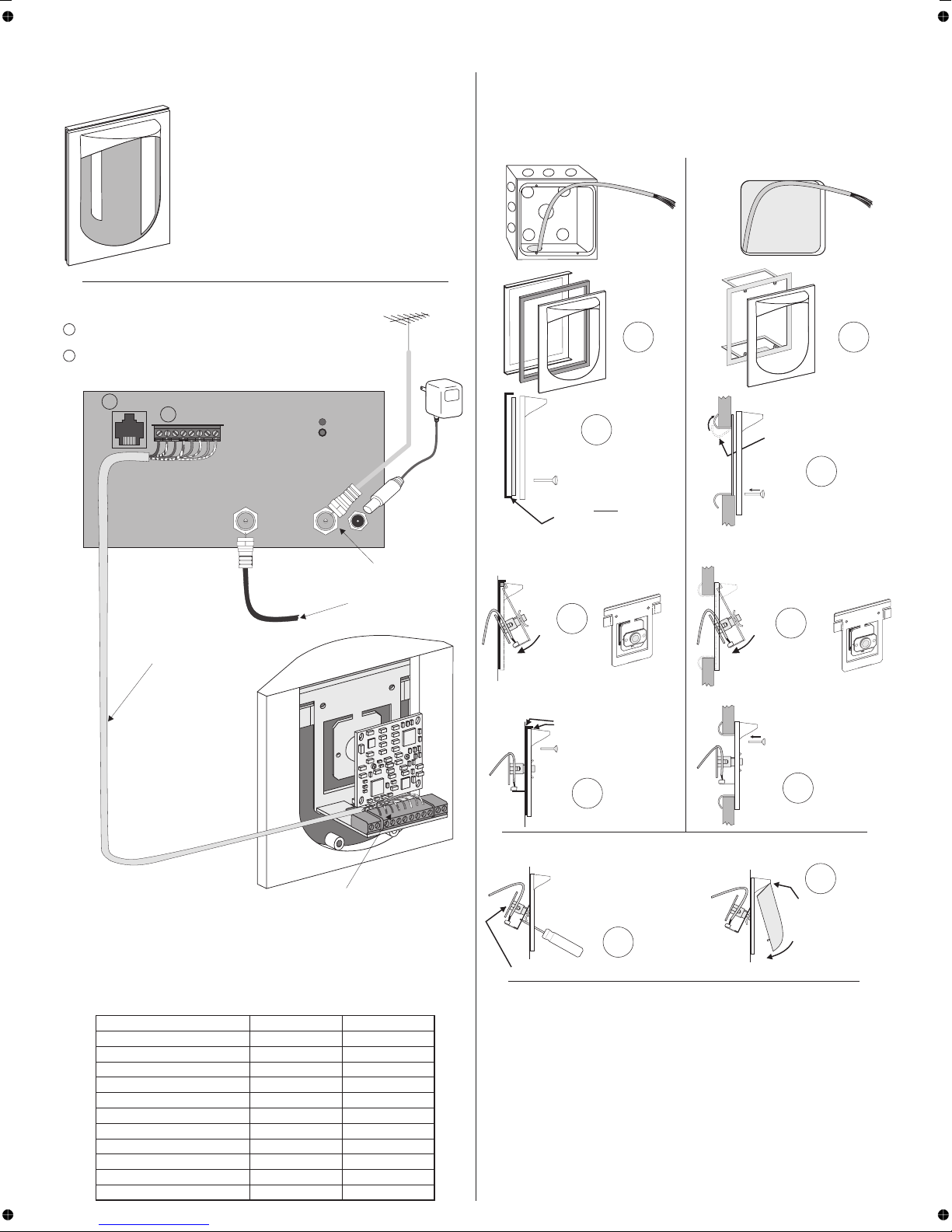

Typical Installation
DECLARATION OF CONFORMITY
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT
TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL
INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE
RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
FCC classifies this product under part 15 of its rules as a “television interface device”.
Systems designed using television interface devices have the following legal requirements:
1) The modulated channel signal strength may not exceed 15.56dBmV at any television.
2) If an antenna is used in the system, the modulated channel signal strength may not exceed
-51dBmV at the antenna input port.
Any system you design must comply with these regulations. As the installer, you are
responsible. The H722 or H722C (when used with an H511) has the necessary characteristics
to comply with the above requirements as designed without additional accessories.
The H511HHR is suitable for use with an antenna or with CATV systems.
The H511BID is suitable for use with CATV systems only.
Installation requirements:
For the Installer:
Federal Regulation 47CFR15.115(b)(1)(i).
Federal Regulation 47CFR15.115(c)(4).
Connect H511 output to splitter
or distribution panel input.
(See H511 manual)
Output
Program
CATV
/Ant Power
Channel Injector
CAT-5 video
Connect antenna or incoming
cable to H511 CATV/Ant input.
Channel Injector
(H511HHR shown)
H722
(rear view)
Connect the H722 camera using only method:
1 Terminate cable with a CAT-5 jack and connect to the H511 using
supplied RJ45 jumper. (Also see example H628 manual).
2 Wire camera or wall plate directly to the 8 position terminal block
matching the CAT-5 wire colors to the colors on the terminal block.
Insert wires and tighten screws.
one
1
2
Power the H511 last -
make all cable and
CAT-5 connections first.
Installing the Camera
Deep
double-gang
J-box
Attach drip cap, gasket & frame
drip cap
Outside
Installation
Inside
Installation
gasket
CADDY bracket
®
frame
frame
drip cap
frame
gasket
Insert 6-32 screws into frame
and bottom holes of 2 gang box
Note: bottom lip of drip
cap goes frame.
(You may have to rotate drip
cap 180 for proper placement.)
inside
o
Add top screws
3
2
Aiming the Camera Attaching the Window
Rotate downward
and snap into place.
Window rides on
the lip of the frame.
4
5
The H722 is designed to be mounted outside in a J-box or inside into dry wall. When mounting outside,
use the supplied drip cap and gasket. When mounting inside, use the supplied CADDY bracket.
®
The H722 series cameras work best when they are looking down on their subject. For a front door
application, place the camera about 7 feet off the ground, adjacent to the door.
Add RTV to seal from weather
3.6mm F2.0
>45 dB
8 lux
Yes
1/60 to 1/50000 second
automatic
78O
100 feet
3.6mm F2.0
>45 dB
2 lux
Yes
1/60 to 1/50000 second
automatic
78O
300 feet
525 lines
525 lines
Resolution, horizontal
Specifications: typical @ 25 C ± 5 C
OO
H722C
H722
Model
NTSC (Color)
EIA (Black & White )
Image format
350 lines
350 lines
Resolution
Lens
Signal to Noise ratio
White balance
Minimum illumination
Lens viewing angle
AGC
Electronic shutter speed
Maximum distance to H511
Maximum CAT-5 run:
H722 to H511 300 feet
H722C to H511 100 feet
Insert wire into terminal block and tighten screws. Use the color bar to match
wire colors. The color bar has two rows, one for CAT-5 and one for quad wire:
- For CAT-5 wire, remove the default resistor and use all 8 wires.
- For quad wire , leave default resistor in place and match four color wire.
The H722/H722C was designed to work with CAT-5 wiring. Although the system will function with
quad wire, CAT-5 delivers the highest quality picture. CAT-5 allows the use of an automatic line
length sensor and picture compensator. Quad wire does not take advantage of this enhancement.
*
1
1
Insert 6-32 screws into frame and
bottom holes of CADDY bracket.
®
Drywall
Use
these
parts
Use
these
parts
CADDY®
bracket
Make a square cut-out in the
drywall that is 3¾” wide by
3½” high. Insert clip into
drywall, and bend to form.
Prepare the CAT-5 wires by stripping
1” of outer sheath and 1/8” of
insulation. Insert wires into 8 position
terminal block and tighten screws.
Insert 1/8“ screwdriver in the
steering slot below the lens.
Using the screwdriver, bend
the mount to point the camera
in the desired direction.
Never use camera to bend the mount!
Insert camera at an angle and
rotate into place. Make sure
gasket is behind camera
Add top screws
3
2
Prepare the CAT-5 wires by stripping
1” of outer sheath and 1/8” of
insulation. Insert wires into 8 position
terminal block and tighten screws.
Insert camera at an angle
and rotate into place.
*

multiplex
technology, inc.
®
***
3001 Enterprise Street, Brea, CA 92821-6213, U.S.A.
714-996-4100 800-999-5225 FAX [phone] www.channelplus.com
TM
ChannelPlus®
Video Cameras
Models H722 & H722C
