Orange Micro iBOT2 User manual

1
Operators Manual
http://www.orangemicro.com
Revision date: December 24, 2002

2
About this manual
The information in this manual is subject to change without notice. We welcome your comments on any area of Orange
Micro products or services. Please send your comments to:
Product Manager
Orange Micro, Inc.
1400 N. Lakeview Ave.
Anaheim, California 92807
[email protected]
Orange Micro may use or distribute any of the information you supply in any way it deems appropriate without incurring any
obligations whatsoever.
Warning
This manual and the software described herein are protected by United States Copyright law (Title 17 United States Code).
Unauthorized reproduction and/or sales may result in imprisonment for up to one year and fines of up to $10,000 (17 USC
506). Copyright violators may also be subject to civil liability.
Copyright Information
iBOT2is a trademark of Orange Micro, Inc.
Copyright © Orange Micro, Inc. 2003. All rights reserved.
No part of this manual may be reproduced in any form except by written permission from Orange Micro, Inc.

3
Table of Contents
About this manual ...............................................................................................................................................................................2
Table of Contents................................................................................................................................................................................3
Package Contents...............................................................................................................................................................................4
Software Included ............................................................................................................................................................................... 4
System Requirements......................................................................................................................................................................... 4
Chapter 1.............................................................................................................................................................................................5
Introduction.......................................................................................................................................................................................5
Installation Overview........................................................................................................................................................................5
Chapter 2.............................................................................................................................................................................................6
How to install the USB 2.0 PCI Host Controller card .....................................................................................................................6
Installing OrangeUSB 2.0 Hi-Speed Drivers in Windows Me .....................................................................................................6
Installing OrangeUSB 2.0 Hi-Speed Drivers in Windows 2000 ..................................................................................................8
Installing OrangeUSB 2.0 Hi-Speed Drivers in Windows XP....................................................................................................10
Installing OrangeUSB 2.0 Hi-Speed Drivers in Windows 98 ....................................................................................................13
Chapter 3...........................................................................................................................................................................................16
How to install the iBOT2 ................................................................................................................................................................16
Installing iBOT2 Drivers in Windows 98SE, Me, 2000 ..............................................................................................................16
Verify the proper installation of the iBOT2 Drivers..................................................................................................................................17

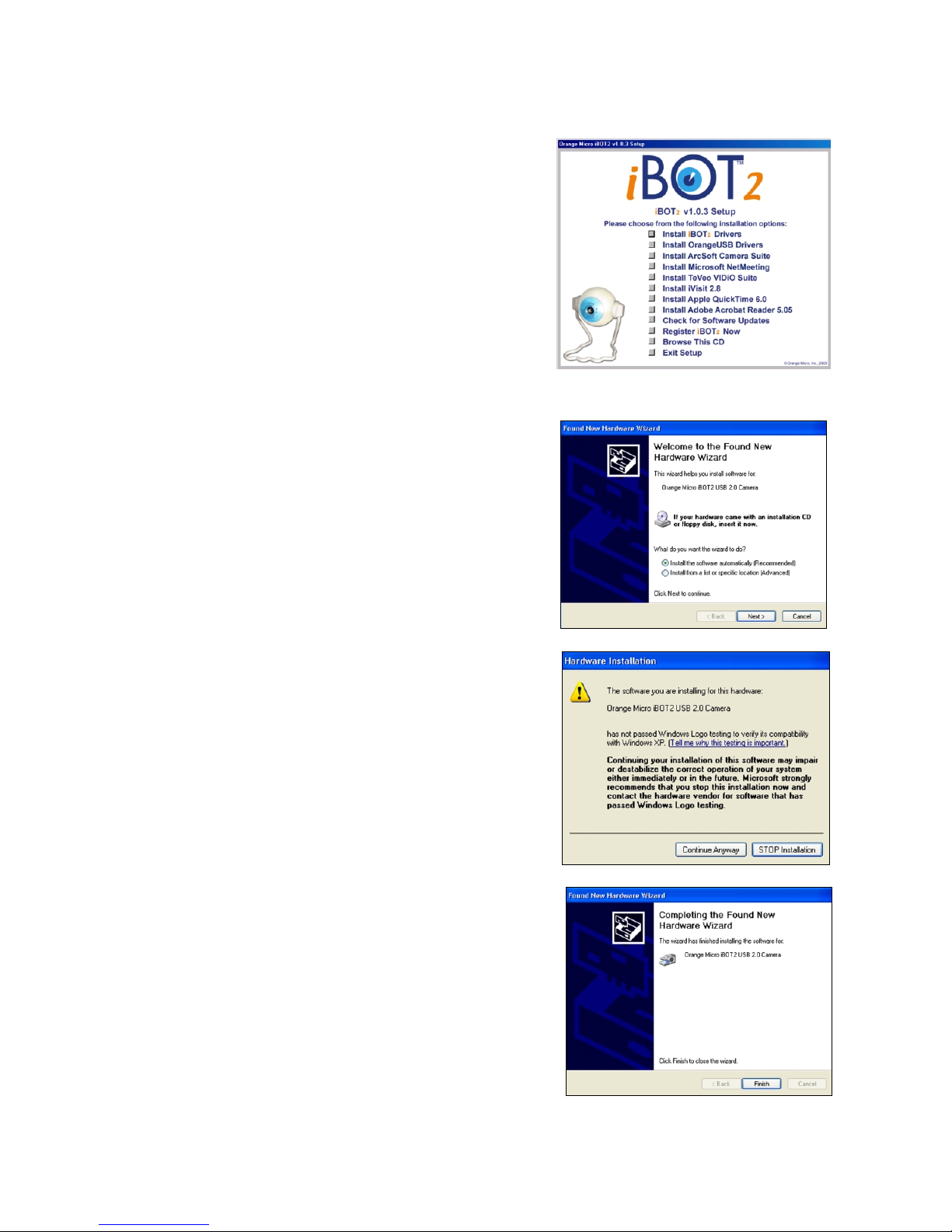

Installing iBOT2 Drivers in Windows XP....................................................................................................................................18
Verify the proper installation of the iBOT2 Drivers..................................................................................................................................19
ArcSoft Camera Suite .................................................................................................................................................................20

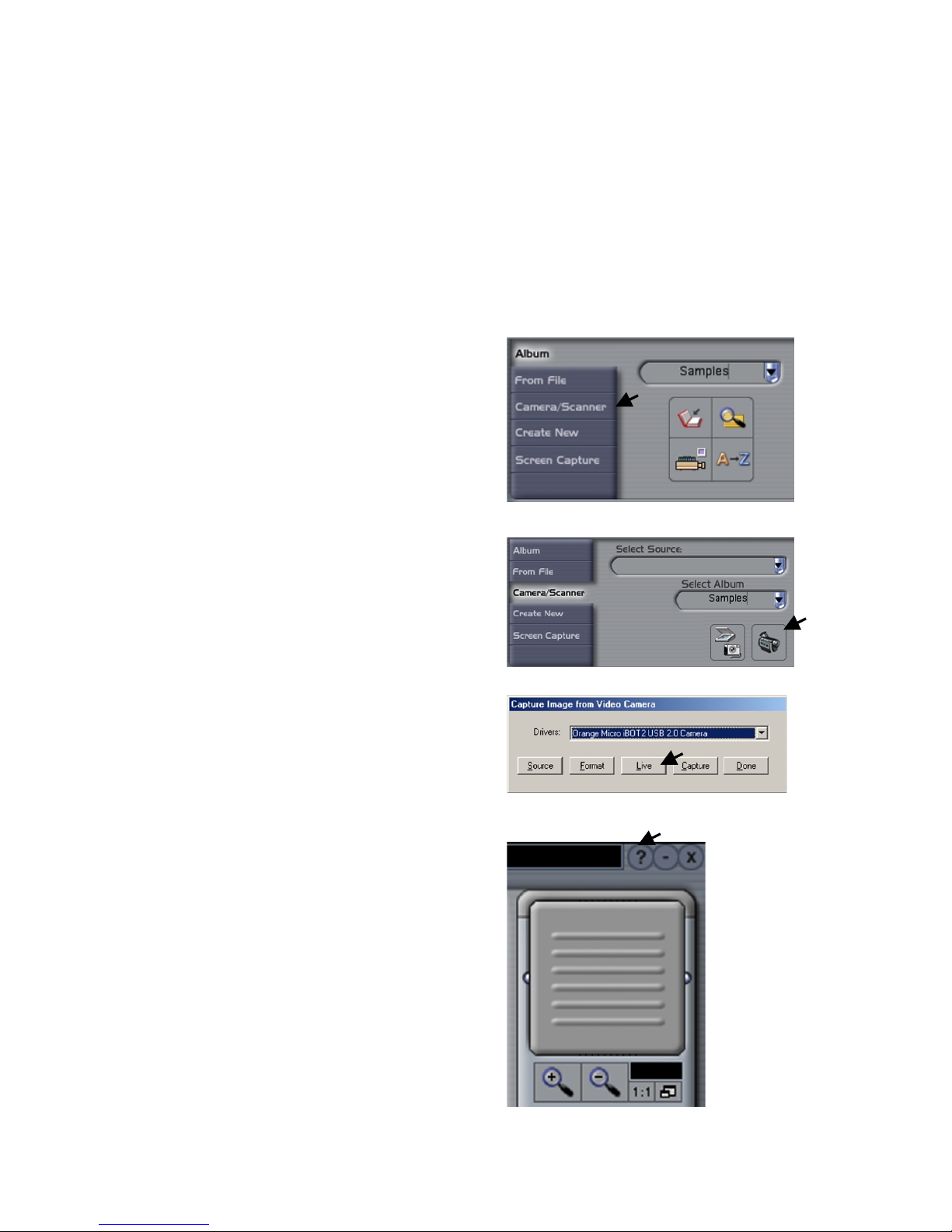

PhotoImpression ..........................................................................................................................................................................................20
VideoImpression..........................................................................................................................................................................................21
iVisit .............................................................................................................................................................................................22
Microsoft NetMeeting..................................................................................................................................................................22
How to Adjust iBOT2 Color and Format Properties......................................................................................................................23
AMCAP........................................................................................................................................................................................23
PhotoImpression .........................................................................................................................................................................23
VideoImpression .........................................................................................................................................................................24
iVisit .............................................................................................................................................................................................24
NetMeeting ..................................................................................................................................................................................25
TeVeo Suite.................................................................................................................................................................................25
Frequently Asked Questions .........................................................................................................................................................26
Additional iBOT2 Workflow Recommendations and Known Issues .........................................................................................27
Appendix A ........................................................................................................................................................................................28
Optional Hardware .........................................................................................................................................................................28
Appendix B ........................................................................................................................................................................................29
Specifications .................................................................................................................................................................................29
Appendix C........................................................................................................................................................................................30
Warranty Information .....................................................................................................................................................................30
FCC Class B Information...............................................................................................................................................................31
Index ..................................................................................................................................................................................................32

4
Package Contents
•iBOT2USB 2.0 Web Cam w/6 foot attached cable and USB Type A connector
•iBOT2Installation Software, Manual and Software CD-ROM
•USB 2.0 PCI Host Controller add-in card (optional)
•Quickstart Card
Software Included
•Apple QuickTime for Windows
•ArcSoft PhotoImpression for Windows (photo editing application)
•ArcSoft VideoImpression for Windows (video editing application)
•iVisit for Windows (video conferencing software)
•Microsoft NetMeeting (video conferencing software)
•TeVeo Suite (stream live video to the web)
System Requirements
Hardware
•400 MHz or above Intel Pentium compatible with an available PCI slot
•iBOT2requires one available USB 2.0 Port supplying at least 5v 500mA of power
•64 MB System RAM
•200 MB free hard drive space
•CD-ROM drive (for software installation)
Operating System
•Windows 98SE, Me, 2000 or XP

5
Chapter 1
Introduction
What is iBOT2?
Orange Micro is first to market the iBOT2, a USB 2.0-based desktop video camera. IBOT2 harnesses the speed and power
of USB 2.0 technology unmatched by the slower USB 1.1-based web cams. Orange Micro's iBOT2is the desktop video
camera for the rest of us, providing crisp, clear video at a price you can afford.
What is USB 2.0?
USB 2.0 technology extends the speed of the USB connection from 12 Mbps on USB 1.1 up to 480 Mbps on USB 2.0,
providing an attachment point for next-generation peripherals which complement higher performance PCs and user
applications. USB 2.0 is both forward and backward compatible with USB 1.1, resulting in a seamless transition process for
the end user. In fact, USB 2.0 uses the same cables and connectors as USB 1.1.
iBOT2 Features
Exclusive USB 2.0 Speed and Clarity
With a data transfer rate that's 4000% times faster than traditional USB 1.1 web cams, you'll experience a Video Frame
Rate of 30 frames/second. And that's with a big 640 x 480 image size in living color.
Create, Edit and Retouch Photos
Create, edit and retouch your photos, then add special effects or place them in cards, calendars, frames and templates.
Polish Your Presentations
With clarity only iBOT2can provide, you can record and save super-crisp video in your home or office. Spice up important
presentations with film clips. Hone your persuasion skills with instant video feedback.
Affordable Movie Making
iBOT2can make you a star! Record special family events, such as Christmas, Thanksgiving dinner, or even just everyday
life. Produce your own documentaries. The iBOT2's 480 Mb/s data transfer speed lets you easily input, edit, and show-off
movies with pride.
Video Teleconferencing for the Internet
With Microsoft NetMeeting, you can talk to anyone, face-to-face, via the Internet, with a whole new level of clarity. Whether
it’s the grandparents, relatives, or old friends you haven't seen, only iBOT2provides quality video conferencing unmatched
by older USB 1.1 web cams.
Video E-Mail
Attach super-clear video clips to your email for a whole new dimension of communication. Show off brand-new additions to
your family immediately! Send video greetings from Fiji! Keep the people you love updated on what you're up to.
Installation Overview
In order to ensure proper operation of your iBOT2, it is important to install the hardware and software in the following order.
•Install the OrangeUSB 2.0 Hi-Speed drivers
•Install the USB 2.0 PCI Host Controller board
•Install the iBOT2drivers
•Attach the iBOT2camera to the USB 2.0 PCI Host Controller
•Install remaining software as needed

6
Chapter 2
How to install the USB 2.0 PCI Host Controller card
Orange Micro USB 2.0 PCI Host Controller may be used on any Windows compatible system running Microsoft Windows
98, SE, Me, 2000 or Windows XP.
In order to ensure proper operation of your USB 2.0 Host Controller card, please follow the instructions in the order they
appear. Refer to the section below that represents the Operating system you have installed in your computer..
Note: Do not install USB 2.0 PCI Host Controller Board before installing OrangeUSB drivers in Windows.
Installing OrangeUSB 2.0 Hi-Speed Drivers in Windows Me

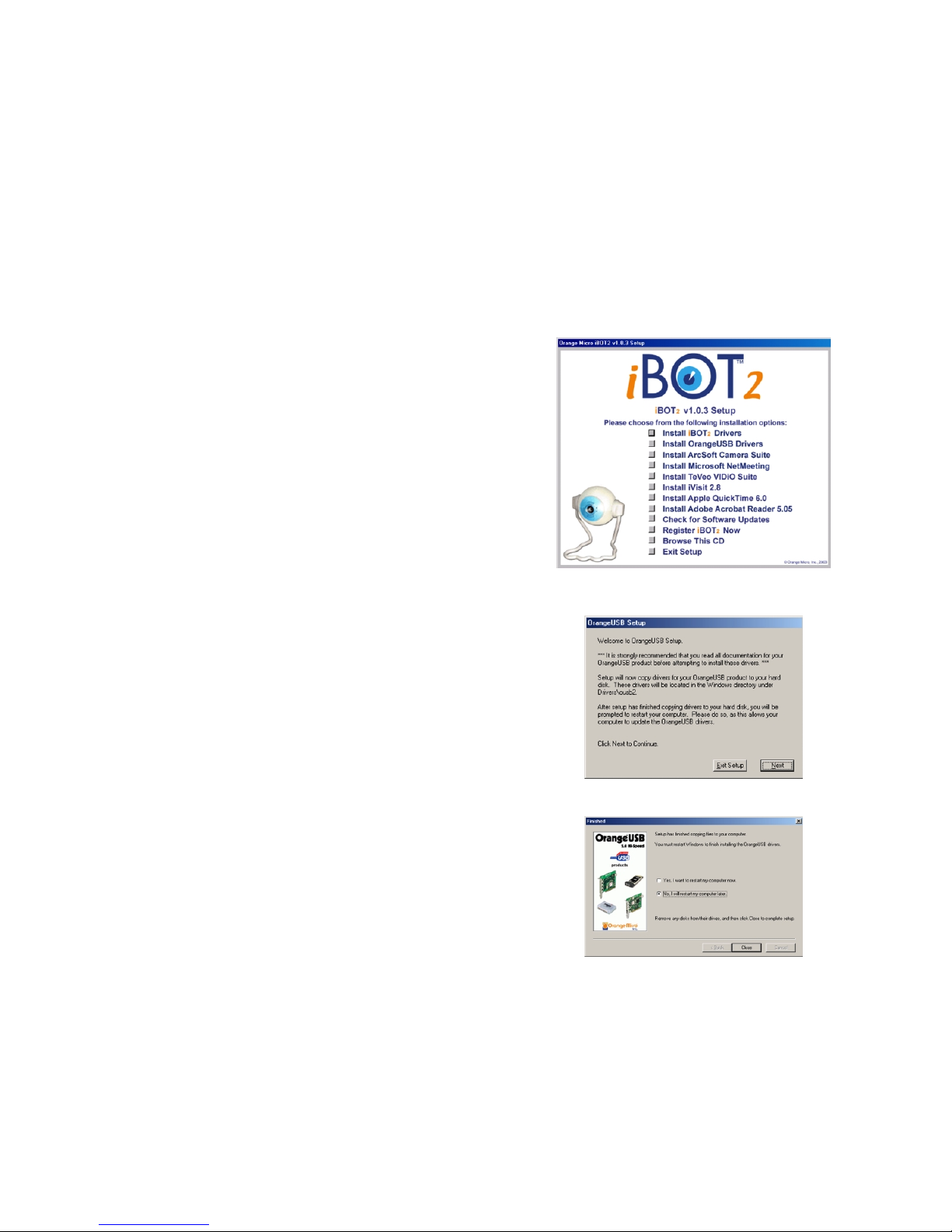

Step 1
•Insert the iBOT2 Installer CD. Once
inserted, the iBOT2Installer will
automatically start and display the menu to
the right.
•Click on "Install OrangeUSB Drivers"
•Follow the onscreen instructions.
•The OrangeUSB 2.0 drivers will be copied
to: C:\windows\drivers\ousb2\
Step 2 •The OrangeUSB Setup dialog to the right
will appear. Click “Next.” To continue.
•Another OrangeUSB Setup dialog will
appear. Click “Finish” to continue.
•The iBOT2Setup dialog, as displayed in
Step 1 above, will appear. Click on the box
next to the “Exit Setup”.
Step 3
•When Setup has finished, select “No, I will
restart my computer”.
•Click on the Close button,
•Shutdown Windows Me and install the USB
2.0 PCI Host Controller board.

7
NOTES: Refer to your computer’s manual for instructions on how to open your computer and install a
PCI card.
IMPORTANT: Before handling the PCI board or touching anything in the computer ground yourself by
touching the power supply for a couple of seconds. Failure to do this may damage the
board and/or your computer.
Step 4 •With your computer off, open your computer
case.
•Locate an open PCI slot. If there is a
faceplate covering the opening to the back
panel, remove it.
•Locate the USB 2.0 PCI Host Controller
board and insert it into the free slot. Once
inserted, screw the board in securely.
•Connect your internal devices as needed.
•Close computer.
•Turn the computer power on.
Step 5

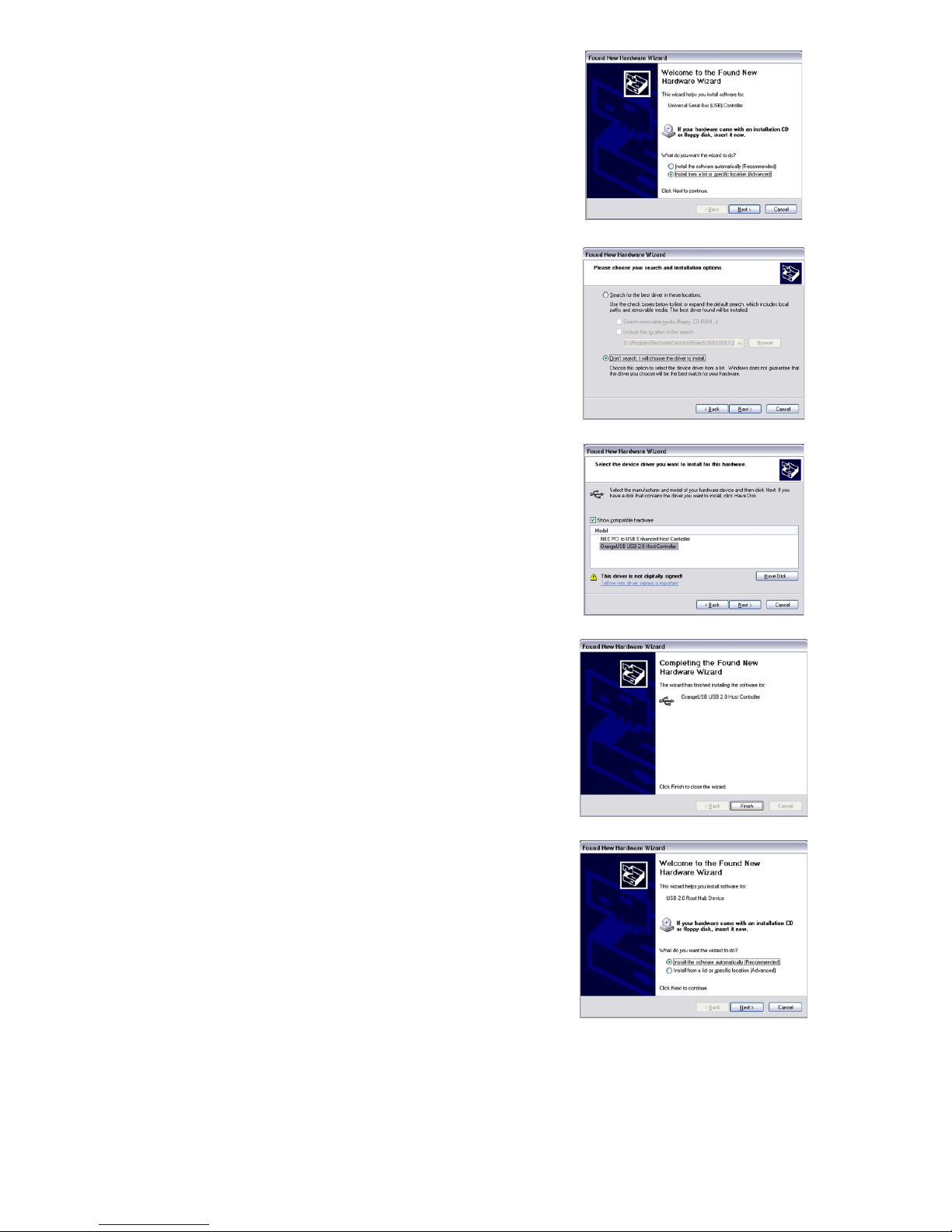

Once the OrangeUSB card is installed and the computer is
restarted, all necessary USB drivers will be detected and
installed automatically.
•Restart Windows to activate the drivers.
•Congratulations your OrangeUSB driver
installation is complete!
Finalizing USB 2.0 Hi-Speed hardware settings
OrangeUSB 2.0 Hi-Speed products that use an NEC chipset have 3 USB host controller engines on board. Two of the host
controller engines handle USB 1.1 transactions. One of the host controllers engines handle, USB 2.0 transactions.
USB data traffic is automatically routed to the proper host controller engine depending on the speed of the device that is
plugged into the OrangeUSB port. This essentially creates 3 concurrent USB buses. These USB buses allow devices to run
in a less congested traffic environment. This helps devices such as color printers, scanners, video cameras and mass
storage devices, which require a high bandwidth, to work well together.
The OrangeUSB USB 2.0 Host Controller driver handles USB 2.0 Hi-Speed (480 Mbits/s) traffic. The two NEC USB Open
Host Controllers handle Full-Speed (12 Mb/s) and Low-Speed (1.5 Mb/s) traffic.

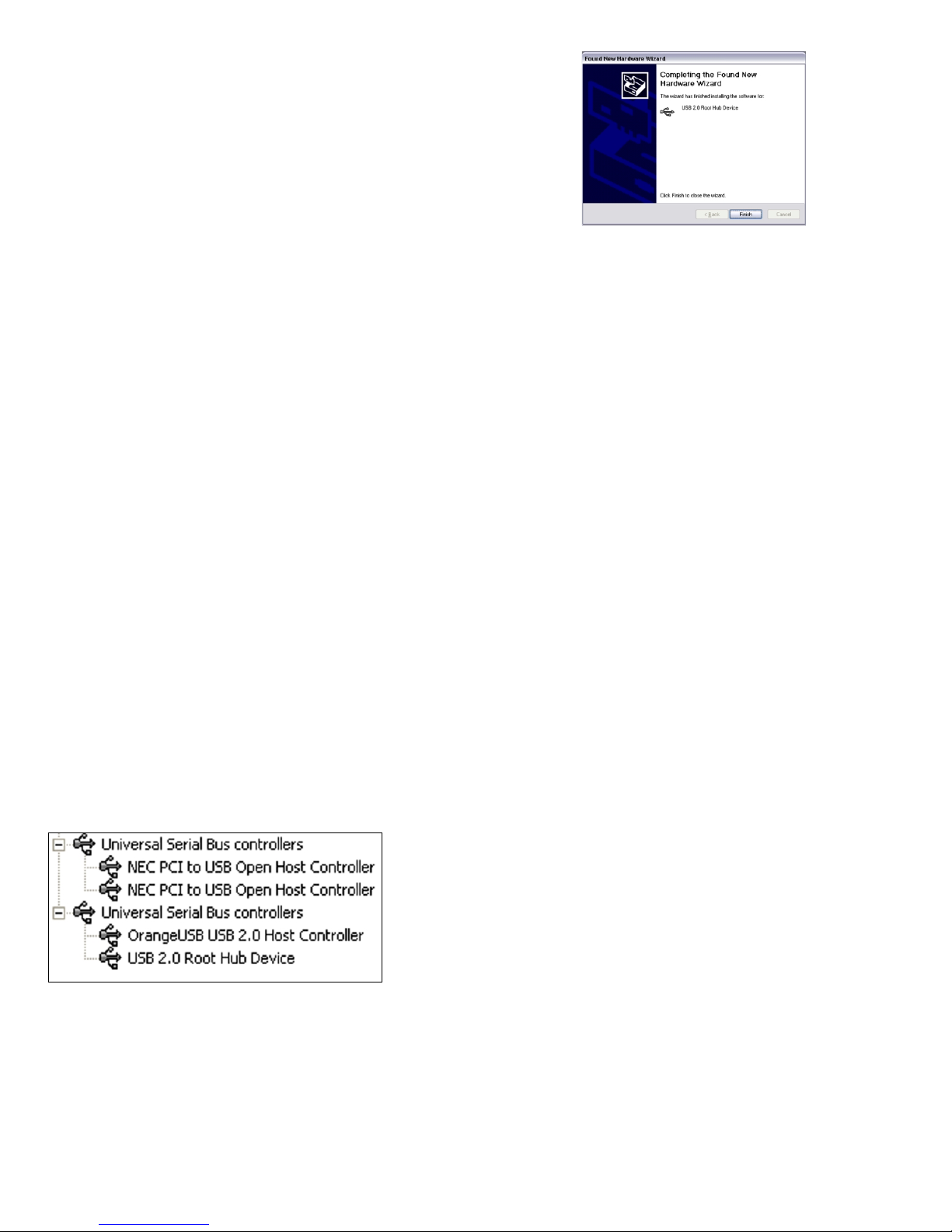

Check your Windows System/Device Manager to confirm proper installation of USB 2.0 Hi-Speed drivers:
Right click on the “My Computer” icon. Select Properties from the pop up menu, then click on the “Device Manager” tab.
Scroll down to the “Universal Serial Bus controllers” category and click on the plus sign next to it. There may be additional
devices in the list being displayed, but all of the below devices should appear.
An X through a device’s icon means the device as been disabled. A circled exclamation point through the device’s icon
means the device has a problem. The type of problem will appear in the Properties dialog box for the device. To view the
Properties dialog box for a device, double click on it.

8
Installing OrangeUSB 2.0 Hi-Speed Drivers in Windows 2000

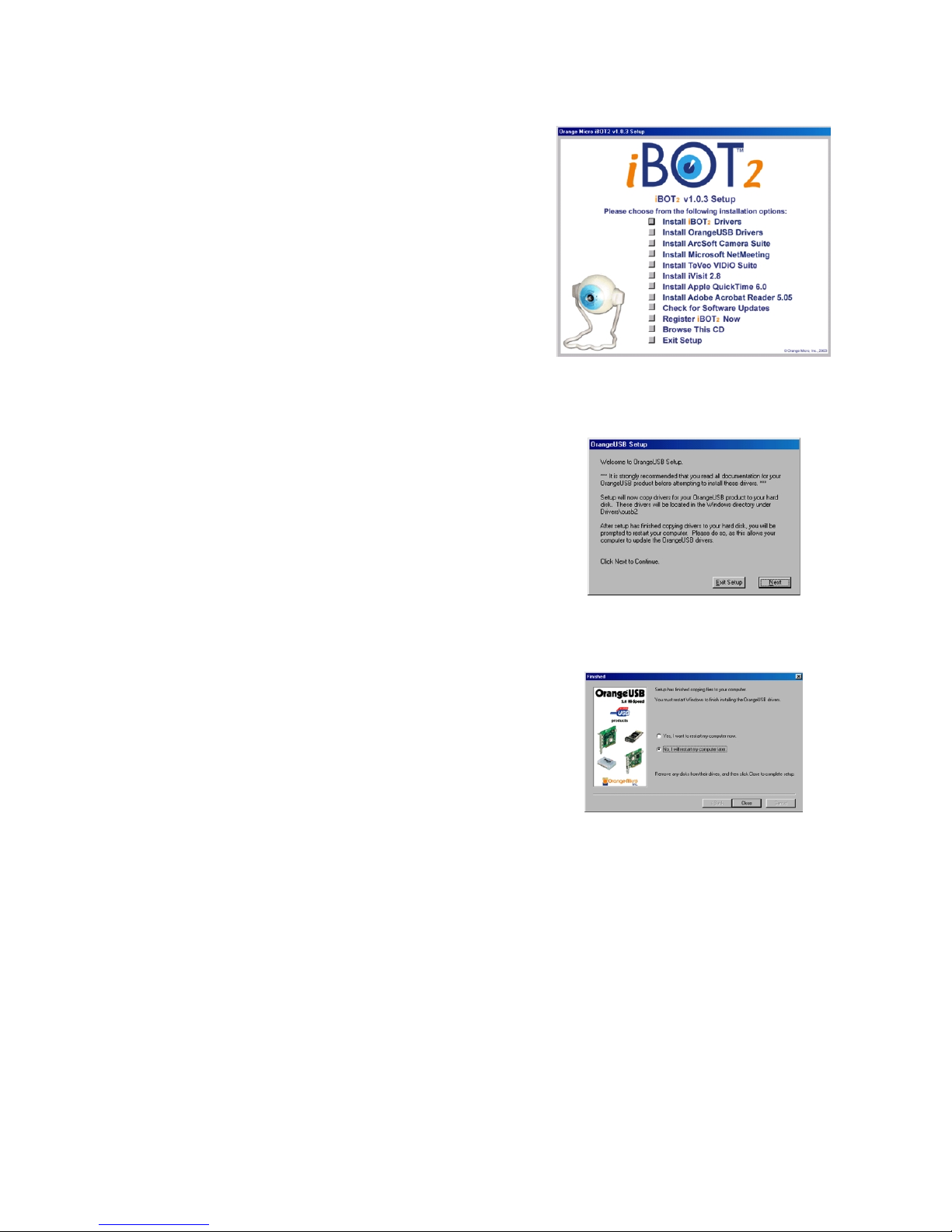

Step 1 •Insert the iBOT2Installer CD. Once
inserted, the iBOT2Installer will
automatically start and display the menu to
the right.
•Click on "Install OrangeUSB Drivers"
•Follow the onscreen instructions.
•The OrangeUSB 2.0 drivers will be copied
to: C:\winnt\drivers\ousb2\
Step 2 •The OrangeUSB Setup dialog to the right
will appear. Click “Next.” To continue.
•Another OrangeUSB Setup dialog will
appear. Click “Finish” to continue.
•The iBOT2Setup dialog, as displayed in
Step 1 above, will appear. Click on the box
next to the “Exit Setup”.
Step 3
•When Setup has finished, select “No, I will
restart my computer”.
•Click on the Close button,
•Shutdown Windows 2000 and install the
USB 2.0 PCI Host Controller board.
NOTES: Refer to your computer’s manual for instructions on how to open your computer and install a
PCI card.
IMPORTANT: Before handling the PCI board or touching anything in the computer ground yourself by
touching the power supply for a couple of seconds. Failure to do this may damage the
board and/or your computer.

9
Step 4 •With your computer off, open your computer
case.
•Locate an open PCI slot. If there is a
faceplate covering the opening to the back
panel, remove it.
•Locate the USB 2.0 PCI Host Controller
board and insert it into the free slot. Once
inserted, screw the board in securely.
•Connect your internal devices as needed.
•Close computer.
•Turn the computer power on.
Step 5
Once the OrangeUSB card is installed and the computer is
restarted, all necessary USB drivers will be detected and
installed automatically.
•Restart Windows to activate the drivers.
•Congratulations your OrangeUSB driver
installation is complete!
Finalizing USB 2.0 Hi-Speed hardware settings
OrangeUSB 2.0 Hi-Speed products that use an NEC chipset have 3 USB host controller engines on board. Two of the host
controller engines handle USB 1.1 transactions. One of the host controllers engines handle, USB 2.0 transactions.
USB data traffic is automatically routed to the proper host controller engine depending on the speed of the device that is
plugged into the OrangeUSB port. This essentially creates 3 concurrent USB buses. These USB buses allow devices to run
in a less congested traffic environment. This helps devices such as color printers, scanners, video cameras and mass
storage devices, which require a high bandwidth, to work well together.
The OrangeUSB USB 2.0 Host Controller driver handles USB 2.0 Hi-Speed (480 Mbits/s) traffic. The two NEC USB Open
Host Controllers handle Full-Speed (12 Mb/s) and Low-Speed (1.5 Mb/s) traffic.
Check your Windows System/Device Manager to confirm proper installation of USB 2.0 Hi-Speed drivers:
Right click on the “My Computer” icon. Select Properties from the pop up menu, click on the “Hardware” tab then click on
the Device Manager button. Scroll down to the “Universal Serial Bus controllers” category and click on the plus sign next to
it. There may be additional devices in the list being displayed, but all of the below devices should appear.
An X through a device’s icon means the device as been disabled. A circled exclamation point through the device’s icon
means the device has a problem. The type of problem will appear in the Properties dialog box for the device. To view the
Properties dialog box for a device, double click on it.

10
Installing OrangeUSB 2.0 Hi-Speed Drivers in Windows XP
Step 1 •Insert the iBOT2Installer CD. Once
inserted, the iBOT2Installer will
automatically start and display the menu to
the right.
•Click on "Install OrangeUSB Drivers"
•Follow the onscreen instructions.
•The OrangeUSB 2.0 drivers will be copied
to: C:\windows\drivers\ousb2\
Step 2 •The OrangeUSB Setup dialog to the right
will appear. Click “Next.” To continue
•Another OrangeUSB Setup dialog will
appear. Click “Finish” to continue.
•The iBOT2Setup dialog, as displayed in
Step 1 above, will appear. Click on the box
next to the “Exit Setup”.
Step 3
•When Setup has finished, select “No, I will
restart my computer”.
•Click on the Close button,
•Shutdown Windows XP and install the USB
2.0 PCI Host Controller board.
NOTES: Refer to your computer’s manual for instructions on how to open your computer and install a
PCI card.
IMPORTANT: Before handling the PCI board or touching anything in the computer ground yourself by
touching the power supply for a couple of seconds. Failure to do this may damage the
board and/or your computer.
Step 4 •With your computer off, open your computer
case.
•Locate an open PCI slot. If there is a
faceplate covering the opening to the back
panel, remove it.
•Locate the USB 2.0 PCI Host Controller
board and insert it into the free slot. Once
inserted, screw the board in securely.
•Connect your internal devices as needed.
•Close computer.
•Turn the computer power on.

11
Step 5
Once the OrangeUSB card is installed and the computer is
restarted,
•Windows will detect “Universal Serial Bus
(USB) Controller”.
•Select “Install from a list or specific location”
•Click Next to continue.
Step 6
•The Windows “choose you search and
installation options” dialog appears.
•Select “Don’t search, I will choose the driver
to install”.
•Click Next to continue.
Step 7
•The Windows “Select the device driver you
want to install” dialog appears.
•Select “OrangeUSB USB 2.0 Host
Controller.
•Click Next to continue
Step 8
•The Windows “wizard has finished installing
the software” dialog appears.
•Click “Finish” to continue
Step 9
•Windows will detect “USB 2.0 Root Hub
Device”.
•Select “Install the software automatically”
•Click “Next” to continue

12
Step 10
•The Windows “wizard has finished installing
the software” dialog appears.
•Click “Finish” to continue
Finalizing USB 2.0 Hi-Speed hardware settings
OrangeUSB 2.0 Hi-Speed products that use an NEC chipset have 3 USB host controller engines on board. Two of the host
controller engines handle USB 1.1 transactions. One of the host controllers engines handle, USB 2.0 transactions.
USB data traffic is automatically routed to the proper host controller engine depending on the speed of the device that is
plugged into the OrangeUSB port. This essentially creates 3 concurrent USB buses. These USB buses allow devices to run
in a less congested traffic environment. This helps devices such as color printers, scanners, video cameras and mass
storage devices, which require a high bandwidth, to work well together.
The OrangeUSB USB 2.0 Host Controller driver handles USB 2.0 Hi-Speed (480 Mbits/s) traffic. The two NEC USB Open
Host Controllers handle Full-Speed (12 Mb/s) and Low-Speed (1.5 Mb/s) traffic.
Check your Windows System/Device Manager to confirm proper installation of USB 2.0 Hi-Speed drivers:
Right click on the “My Computer” icon. Select Properties from the pop up menu, click on the “Hardware” tab then click on
the Device Manager button. Scroll down to the “Universal Serial Bus controllers” category and click on the plus sign next to
it. There may be additional devices in the list being displayed, but all of the below devices should appear.
An X through a device’s icon means the device as been disabled. A circled exclamation point through the device’s icon
means the device has a problem. The type of problem will appear in the Properties dialog box for the device. To view the
Properties dialog box for a device, double click on it.
If the Windows XP Device Manager “Universal Serial Bus controllers” category does not look the same as it does below,
Windows XP may have installed the Microsoft NEC PCI to USB Enhanced Host Controller instead of the OrangeUSB USB
2.0 Host Controller. This will work fine as long as the NEC PCI to USB Enhanced Host Controller (Driver Date 6/1/2002) is
from Windows XP Service Pack 1.
NOTES: To verify the NEC PCI to USB Enhanced Host Controller driver date, double click on it. Select
the Driver tab. The NEC PCI to USB Enhanced Host Controller driver date must be 6/1/2002 or
newer.
If you wish to use the OrangeUSB USB 2.0 drivers instead of the Microsoft USB 2.0 driver, double click on the “NEC PCI to
USB Enhanced Host Controller” driver. Click on the Driver tab, then the Update Driver button. Go back to Step 5 in the
Installing OrangeUSB 2.0 Hi-Speed Driver in Windows XP section and follow the instructions through Step 12.

13
Installing OrangeUSB 2.0 Hi-Speed Drivers in Windows 98
Step 1 •Insert the iBOT2 Installer CD. Once
inserted, the iBOT2 Installer will
automatically start and display the menu to
the right.
•Click on "Install OrangeUSB Drivers"
•Follow the onscreen instructions.
•The OrangeUSB 2.0 drivers will be copied
to: C:\windows\drivers\ousb2\
Step 2 •Insert your Microsoft Windows 98 CD-ROM
into your CD-ROM bay. Some of the USB
drivers are provided by Microsoft.
•The OrangeUSB Setup dialog to the right
will appear. Click “Next.” To continue
•Another OrangeUSB Setup dialog will
appear. Click “Finish” to continue.
•The iBOT2Setup dialog, as displayed in
Step 1 above, will appear. Click on the box
next to the “Exit Setup”.
Step 3
•When Setup has finished, select “No, I will
restart my computer”.
•Click on the Close button,
•Shutdown Windows 98 and install the USB
2.0 PCI Host Controller board.
NOTE: Refer to your computer’s manual for instructions on how to open your computer and install a
PCI card.
IMPORTANT: Before handling the PCI board or touching anything in the computer ground yourself by
touching the power supply for a couple of seconds. Failure to do this may damage the
board and/or your computer.

14
Step 4 •With your computer off, open your computer
case.
•Locate an open PCI slot. If there is a
faceplate covering the opening to the back
panel, remove it.
•Locate the USB 2.0 PCI Host Controller
board and insert it into the free slot. Once
inserted, screw the board in securely.
•Connect your internal devices as needed.
•Close computer.
•Turn the computer power on.
Step 5
Once the OrangeUSB card is installed and the computer is
restarted,
•Windows will detect “NEC USB Open Host
Controller”.
•The “This wizard searches for new driver
for:” dialog appears.
•Click Next to continue
Step 6
•The “What do you want Windows to do?”
dialog appears.
•Select “Search for the best driver for your
device”.
•Click Next to continue.
Step 7
•The “Window will search for new drivers”
dialog appears.
•Deselect all check boxes.
•Click Next to continue.
Step 8
•The “Windows has found an update driver
for this device” dialog appears.
•Select “The updated driver (Recommended)
NEC USB Open Host Controller”
•Click Next to continue
Step 9
•The “Windows driver file search for the
device” dialog appears.
•Click Next to continue.

15
Step 10
•The “Windows has finished installing the
software” dialog appears.
•Click Finish to continue
•Repeat steps 4 through step 9 above
•Restart Windows
Congratulations your OrangeUSB driver installation is
complete!
Finalizing USB 2.0 Hi-Speed hardware settings
OrangeUSB 2.0 Hi-Speed products that use an NEC chipset have 3 USB host controller engines on board. Two of the host
controller engines handle USB 1.1 transactions. One of the host controllers engines handle, USB 2.0 transactions.
USB data traffic is automatically routed to the proper host controller engine depending on the speed of the device that is
plugged into the OrangeUSB port. This essentially creates 3 concurrent USB buses. These USB buses allow devices to run
in a less congested traffic environment. This helps devices such as color printers, scanners, video cameras and mass
storage devices, which require a high bandwidth, to work well together.
The OrangeUSB USB 2.0 Host Controller driver handles USB 2.0 Hi-Speed (480 Mbits/s) traffic. The two NEC USB Open
Host Controllers handle Full-Speed (12 Mb/s) and Low-Speed (1.5 Mb/s) traffic.
Check your Windows System/Device Manager to confirm proper installation of USB 2.0 Hi-Speed drivers:
Right click on the “My Computer” icon. Select Properties from the pop up menu, then click on the “Device Manager” tab.
Scroll down to the “Universal Serial Bus controllers” category and click on the plus sign next to it. There may be additional
devices in the list being displayed, but all of the below devices should appear.
An X through a device’s icon means the device as been disabled. A circled exclamation point through the device’s icon
means the device has a problem. The type of problem will appear in the Properties dialog box for the device. To view the
Properties dialog box for a device, double click on it.
Where to go for additional Troubleshooting assistance?
Visit the OrangeUSB Windows troubleshooting web site.
http://www.orangemicro.com/orangeusbwinfaqs.html
Contact Orange Micro for technical support.
http://www.orangemicro.com/supportform.html

16
Chapter 3
How to install the iBOT2
In order to ensure proper operation of your iBOT2, please follow the instructions below in the order they appear. These
instructions document the installation process for the iBOT2on your Windows PC.
The Orange Micro iBOT2 USB 2.0 Web Cam may be used on any Windows compatible system with an available USB 2.0
port.
NOTE: NON-ORANGE MICRO USB 2.0 HOST CONTROLLERS: The Orange Micro USB 2.0 drivers are
compatible with all known USB 2.0 Host controllers. It is recommended that you install the Orange
Micro USB 2.0 Host controller drivers. Double click on the USB 2.0 Enhanced Host Controller in your
Windows System Device Manager. Select the Driver tab and click on Update Drivers to begin the USB
2.0 driver update.
Installing iBOT2Drivers in Windows 98SE, Me, 2000
Step 1
•Insert the iBOT2 Installer CD. Once
inserted, the iBOT2 Installer will
automatically start and display the menu to
the right.
•Click on "Install iBOT2 Drivers". The iBOT2
drivers will be copied to:
Windows 98SE, Me
C:\windows\drivers\ibot2\
Windows 2000
C:\winnt\drivers\ibot2\
•Follow the onscreen instructions. The iBOT2
Setup dialog will appear. Click on the box
next to the “Exit Setup”.
•When prompted, restart your computer.
Step 2
•Connect the iBOT2 Camera to an available
USB 2.0 port. Windows will detect the
iBOT2 camera, then automatically install all
necessary drivers.
•Restart Windows.

17
Verify the proper installation of the iBOT2Drivers
Windows 98SE, Me
Right click on the “My Computer” icon. Select Properties from the pop up menu, then click on the “Device Manager” tab.
Scroll down to the “Imaging Device” category and click on the plus sign next to it. There may be additional devices in the list
being displayed, but the “Orange Micro iBOT2 USB 2.0 Camera” should appear.
Windows 2000
Right click on the “My Computer” icon. Select Properties from the pop up menu, click on the “Hardware” tab then the
Device Manager button. Scroll down to the “Imaging Device” category and click on the plus sign next to it. There may be
additional devices in the list being displayed, but the “Orange Micro iBOT2 USB 2.0 Camera” should appear.
An X through a device’s icon means the device as been disabled. A circled exclamation point through the device’s icon
means the device has a problem. The type of problem will appear in the Properties dialog box for the device. To view the
Properties dialog box for a device, double click on it.
If the Orange Micro iBOT2driver shows up as displayed below the drivers have been installed successfully.
Use the AMCAP application to verify the iBOT2functions properly. Click on the Windows Start/Programs menu and select
“Orange Micro iBOT”/AMCAP. Pull down the AMCAP “Options” menu and select Preview. A video stream should appear
from your iBOT2camera.
If you wish to adjust the brightness, pull down the AMCAP “Options” menu and select “Video Capture Filter…”. Then slide
the brightness bar with your mouse to the desired position.
NOTE: A Tripod mount is located on the bottom of the iBOT2Web Cam.
Congratulations! You have successfully installed the iBOT2on your PC.
Additional software is included with the iBOT2 for video editing, video teleconferencing, etc. Documentation may be provided
in Adobe Acrobat Reader format or as online help within the application.

18
Installing iBOT2 Drivers in Windows XP
Step 1
•Insert the iBOT2 Installer CD. Once
inserted, the iBOT2 Installer will
automatically start and display the menu to
the right.
•Click on "Install iBOT2 Drivers". The iBOT2
drivers will be copied to:
C:\windows\drivers\ibot2\
•Follow the onscreen instructions. The iBOT2
Setup dialog will appear. Click on the box
next to the “Exit Setup”.
•When prompted, restart your computer.
Step 2
•Connect the iBOT2 Camera to an available
USB 2.0 port. Windows will detect the
iBOT2 camera. The dialog to the right will
appear.
•Select “Install the software automatically
(Recommended)”
•Click Next to continue
Step 3
•The dialog “The software you are installing
for this hardware has not passed Windows
Logo testing” appears.
•Click Continue Anyway,
NOTE: The warning appears because the software
drivers have not yet been submitted to Microsoft
for certification. However, the drivers have been
thoroughly tested with Windows XP
Step 4
•The dialog “Completing the Found New
Hardware Wizard” appears.
•Click Finish to close the wizard
•Restart Windows

19
Verify the proper installation of the iBOT2Drivers
Windows XP
Right click on the “My Computer” icon. Select Properties from the pop up menu, click on the “Hardware” tab then the
Device Manager button. Scroll down to the “Imaging Device” category and click on the plus sign next to it. There may be
additional devices in the list being displayed, but the “Orange Micro iBOT2 USB 2.0 Camera” should appear.
An X through a device’s icon means the device as been disabled. A circled exclamation point through the device’s icon
means the device has a problem. The type of problem will appear in the Properties dialog box for the device. To view the
Properties dialog box for a device, double click on it.
If the Orange Micro iBOT2driver shows up as displayed below the drivers have been installed successfully.
Use the AMCAP application to verify the iBOT2functions properly. Click on the Windows Start/Programs menu and select
“Orange Micro iBOT”/AMCAP. Pull down the AMCAP “Options” menu and select Preview. A video stream should appear
from your iBOT2camera.
If you wish to adjust the brightness, pull down the AMCAP “Options” menu and select “Video Capture Filter…”. Then slide
the brightness bar with your mouse to the desired position.
NOTE: A Tripod mount is located on the bottom of the iBOT2Web Cam.
Congratulations! You have successfully installed the iBOT2on your PC.
Additional software is included with the iBOT2 for video editing, video teleconferencing, etc. Documentation may be provided
in Adobe Acrobat Reader format or as online help within the application.
Where to go for additional Troubleshooting assistance?
Visit the iBOT Windows troubleshooting web site.
http://www.orangemicro.com/faqs.html
Contact Orange Micro for technical support.
http://www.orangemicro.com/supportform.html

20
ArcSoft Camera Suite
•Insert the iBOT2Installer CD.
•Once the iBOT2Installer window has opened, click on the box next to “Install ArcSoft Camera Suite and follow the
prompts to complete the ArcSoft Camera Suite installation.
•When the iBOT2Installer window reappears, click on the box next to Exit Setup.
PhotoImpression
PhotoImpression is a full-featured and easy-to-use 32-bit photo image editing program.
Getting Started with PhotoImpression
Click on the Windows Start button then select Programs/ArcSoft Camera Suite/PhotoImpression.
•Click on the Camera/Scanner button.
•Click on the Video Camera icon as shown on the right.
•The “Capture Image from Video Camera” dialog will
appear.
•This dialog will allow you to verify the video source,
alter the video format, initiate live preview and capture
a photo.
•To preview iBOT2video, click on the Live button
•For additional details on the operation of
PhotoImpression review the online help by clicking on
the ?as shown on the right.
