Orbitsound T9 User manual

1
Handbook v1.0
Compact spatial stereo soundbar with dock for
iPhone/iPod and compact subwoofer

2

1
Contents
Welcome 2
Orbitsound contact information: 2
Package contents 2
The soundbar 3
Remote control 3
The subwoofer 3
Setting up the orbitsound T9 4
1. Connect subwoofer 4
2. Connect power 5
3. Connect a sound source 5
1. Power on 6
2. Source selection 6
3. Volume / Mute 7
4. Tone adjustment 7
Advanced Setup 8
1. Positioning: getting the most from spatial stereo 8
2. Subwoofer placement: 8
Connection to TV 9
Enhancement to TV sound (replacing TV speakers, analogue) 10
Video output 10
iPhone/iPod control & charge 10
Charge / Menu 11
Maintenance 11
Cleaning and care 11
Battery replacement (remote) 12
Troubleshooting 12
No sound is heard 12
The sound is out of sync with the TV 12
Remote does not work 12
Sound is distorted 13
Sound is noisy / ‘hissy’ 13
Sound stops when I plug in my iPod 13
Digital optical issues: ‘Clicking’ or no sound 13
Orbitsound Warranty 14
Warranty Terms 14
Making a Warranty Claim 14
Orbitsound Ltd Warranty Terms and Conditions 14
Contact Information 16
Specications 17

2
Welcome
Thank you for purchasing the orbitsound T9 compact spatial stereo soundbar with
iPhone/iPod dock. With proper use the orbitsound T9 delivers superb sound fidelity,
engaging stereo sound and will provide you with a fantastic listening experience.
This instruction booklet covers important safety and setup information as well as
advice on how to get the most out of your orbitsound T9.
Orbitsound contact information:
ORBITSOUND LTD.
UK Support Tel: [phone]
International Support: www.orbitsound.com
Email: suppor[email protected]om
Package contents
Inside the packaging you will nd:
• T9 soundbar with iPod/iPhone dock
• Subwoofer
• Remote control
• Inline power supply
• Subwoofer speaker cable
• Mains cable
• Handbook
• Quick start guide
• Audio connection cables - RCA
• Jack audio connection cable
• Digital optical connection cable

3
The soundbar
IR receiver
Spatial stereo generators
Status LED
LED State
RED: Standby
BLUE: On
BLUE (FLASHING): Mute or remote operation
OFF: Power off
iPod Dock
The orbitsound T9 soundbar produces most of the sound that you hear. It produces
the main signal and stereo information. It also houses the ampliers for itself and the
subwoofer.
Remote control
The remote control provides volume control, tone control and sound source
selection, and additionally play/menu controls when using an iPod connected to the
iPod dock on the soundbar.
The subwoofer
The subwoofer is a passive loudspeaker that produces powerful Hi-Fi bass. It has
been designed specially to complement the T9 soundbar.

4
Setting up the orbitsound T9
1. Connect subwoofer
Connect the subwoofer to the subwoofer output on the stereo soundbar as shown:
Note: The speaker wire is colour marked to make identifying the correct wire for the
speaker/soundbar terminal easy. Connect the wire marked with a red tab to the red
terminal on the soundbar and the subwoofer.
IMPORTANT: Make certain that the metal core of the wires only is inserted into
the wire socket to ensure metal-metal contact. The contact area is shown:

5

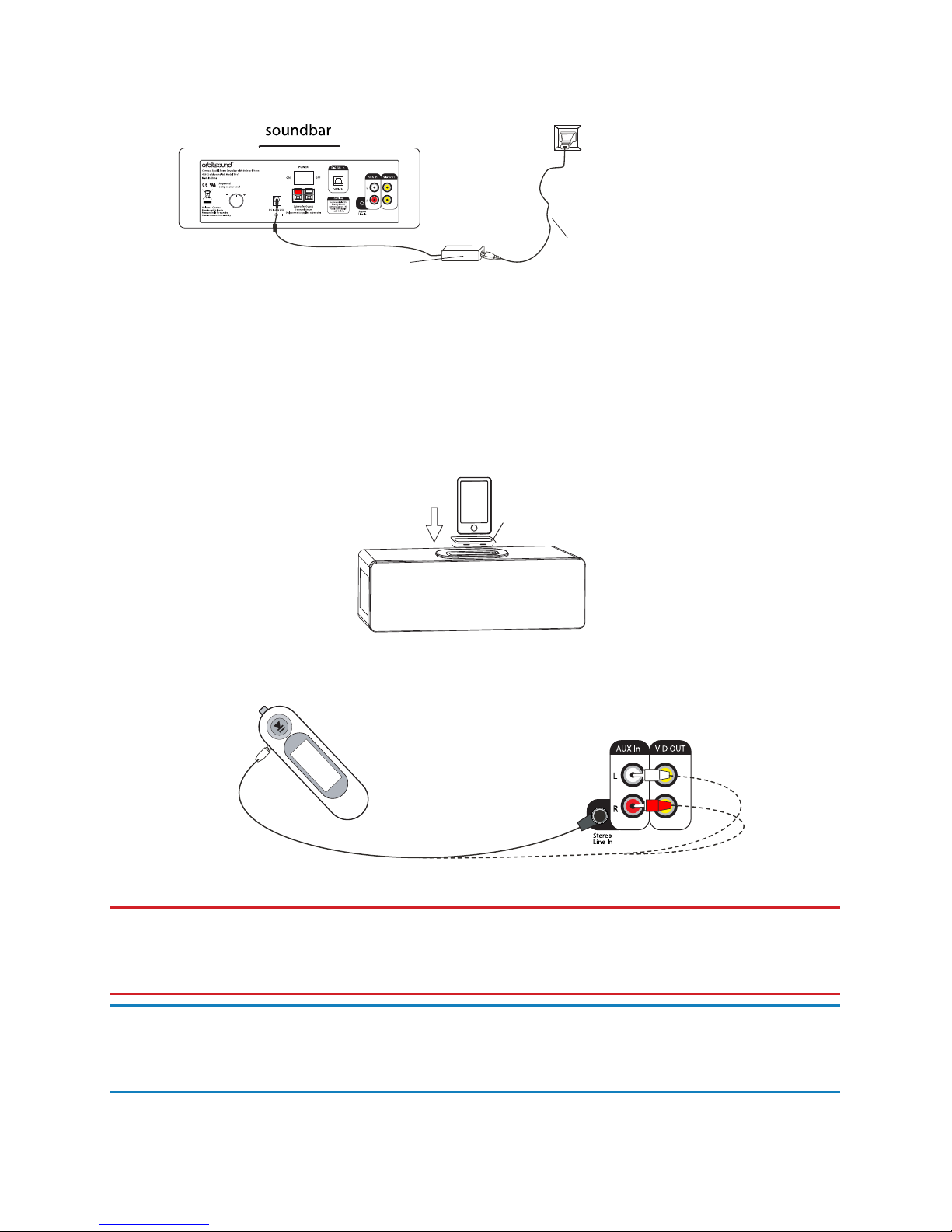

2. Connect power
AC Adaptor
Power Cable
- use correct country plug type
Connect the power supply as shown.
3. Connect a sound source
You can connect multiple sources to the unit and listen to either:
iPod/iPhone iPod Dock
Adapter
Music source
(optional)
A)
B)
iPod connection
AUX connection (rear of sound bar)
IMPORTANT: (A) It is strongly advised that the iPod dock is used with the correct
adaptor for your iPhone/iPod model. Dock adaptors are available from Apple
inc.
NOTE: (B) You can connect your sound source to either the 3.5mm line input OR dual
RCA (phono) AUX IN connectors OR optical (TOSLINK) inputs. Use which ever is most
convenient.

6

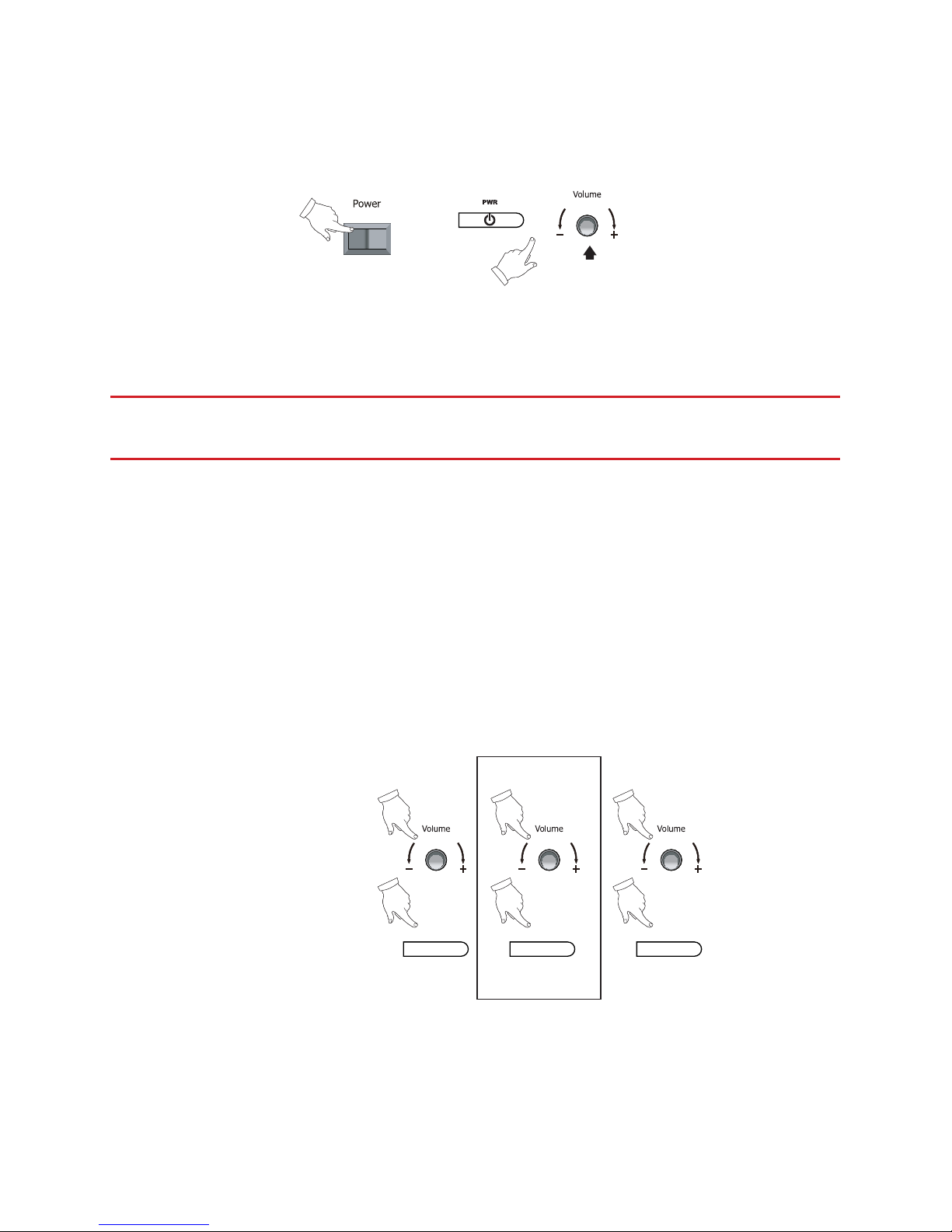

Basic operation
1. Power on
Power on Standby
or
ON OFF
Press & hold
(2 seconds)
IMPORTANT: The main power switch must be‘ON’ for soundbar operation. This
is located on the rear of the soundbar unit.
Standby (sleep) / On: The soundbar may be put into ‘standby’ or resumed from
standby by pressing the [power] button on the remote. Briey pressing the volume
control on the rear of the soundbar also resumes the unit when it is in standby.
Pressing and holding the rear volume button for 2 seconds will enable standby
mode.
NOTE: The colour of the LED on the front of the soundbar shows the current status of the
unit. Red means the unit is in standby mode. Solid blue indicates that the unit is on.
2. Source selection
Optical iPod dock Aux
or
(PUSH)
or
(PUSH)
or
(PUSH)
(when iPod connected)
Source Source Source
on soundbar
on remote
Source select: Press the ‘Source’ button on the remote (or briey press the volume
knob on the unit’s rear) to cycle the sound source from optical, to iPod dock, to
analogue (AUX). The iPod selection is skipped if no iPod is present (i.e. only 2 inputs
are available when no iPod is in use).

7
3.Volume / Mute
or
Mute Main Volume adjust
Volume+Volume -
Mute: Press the [mute] button on the remote to silence or resume play through the
soundbar.
NOTE: When the soundbar is on and mute is enabled, you will see a blue ashing light on
the front of the soundbar. A continuous blue light indicates that the soundbar is on.
Volume: Volume may be adjusted from the [volume] + and - buttons on the remote,
or by turning the volume control on the rear of the unit. The blue light ashes as the
volume is adjusted.
4.Tone adjustment
Bass adjustTreble adjust
Bass+Bass-Treble+Treble-
The sound tone may be adjusted with the remote control.
Note: the blue indicator light on the front of the sound bar will ash as the tone is
adjusted. It will stop ashing when the minimum or maximum bass or treble adjustment
is reached.

8
Advanced Setup
The orbitsound T9 is easy to set up and enjoy, but even better sound can be achieved
by following these guidelines.
1. Positioning: getting the most from spatial stereo
The spatial stereo sound eld is produced by the speakers in the sides of the
soundbar. These stereo signals interact with the main signal (front) to produce true
stereo in your listening environment:
Spatial generation zones
IMPORTANT: The areas marked need to be clear of obstacles in order for the
spatial stereo sound eld to work properly.
HINT: Because Orbitsound produces a uniform stereo sound eld, the soundbar does
not need to be placed directly in front of the listener. Therefore, placing the soundbar
conveniently so that the sides are not obstructed is more important than central
placement, i.e. on low or high shelf, countertop, below/above TV
2. Subwoofer placement:
Subwoofer placement does not aect the overall sound much. Position the
subwoofer after optimising placement of the soundbar.
HINT: The sound output from the subwoofer is omni directional, so this can be placed
anywhere. However, try to avoid placing the subwoofer too far from the soundbar as this
can cause a noticeable ‘separation’ eect. A good place is behind or beside your TV. For
standalone operation, try the subwoofer on the oor, next to the shelf or table that hte T9
is on.
IMPORTANT: Always make sure that the subwoofer’s side with a port (rear) is
clear from obstruction. Facing the nearest wall or corner of a room with the
open port sometimes increases the bass eect.

9
Connection to TV
This conguration can be used for TVs with an optical digital output. The TV sends
stereo sound directly to the soundbar. Connecting sound from the TV like this
is usually the best sound connection method for many reasons. Connecting the
soundbar directly to a set-top box / Blu Ray can introduce A/V sync issues as some
TVs will delay the video a little. We recommend that the sound source should be the
TV’s optical output.
Analogue connection (alternative)
R
L
Aux In
Digital connection (preferred):
Use optical cable to connect to TV
sound output
OR
Connect to audio output
DIGITAL In
OPTICAL
HINT: When using the soundbar in this way, it is normal that the speakers on the TV will
need to be turned down or muted to stop sound coming from the TV’s own speakers.
HINT: Make sure that the sound output mode for the optical output on the TV is set to
‘PCM’, or ‘Normal’. This provides the best overall listening experience.
IMPORTANT: Remember to remove the protective plastic covers from a new
TOSLINK (optical) cable before connecting to the optical sockets. Failure to
remove these covers may result in damage and will interrupt the sound output.
IMPORTANT: FIRMLY CONNECT THE TOSLINK CONNECTOR UNTIL IT‘CLICKS’
INTO PLACE

10

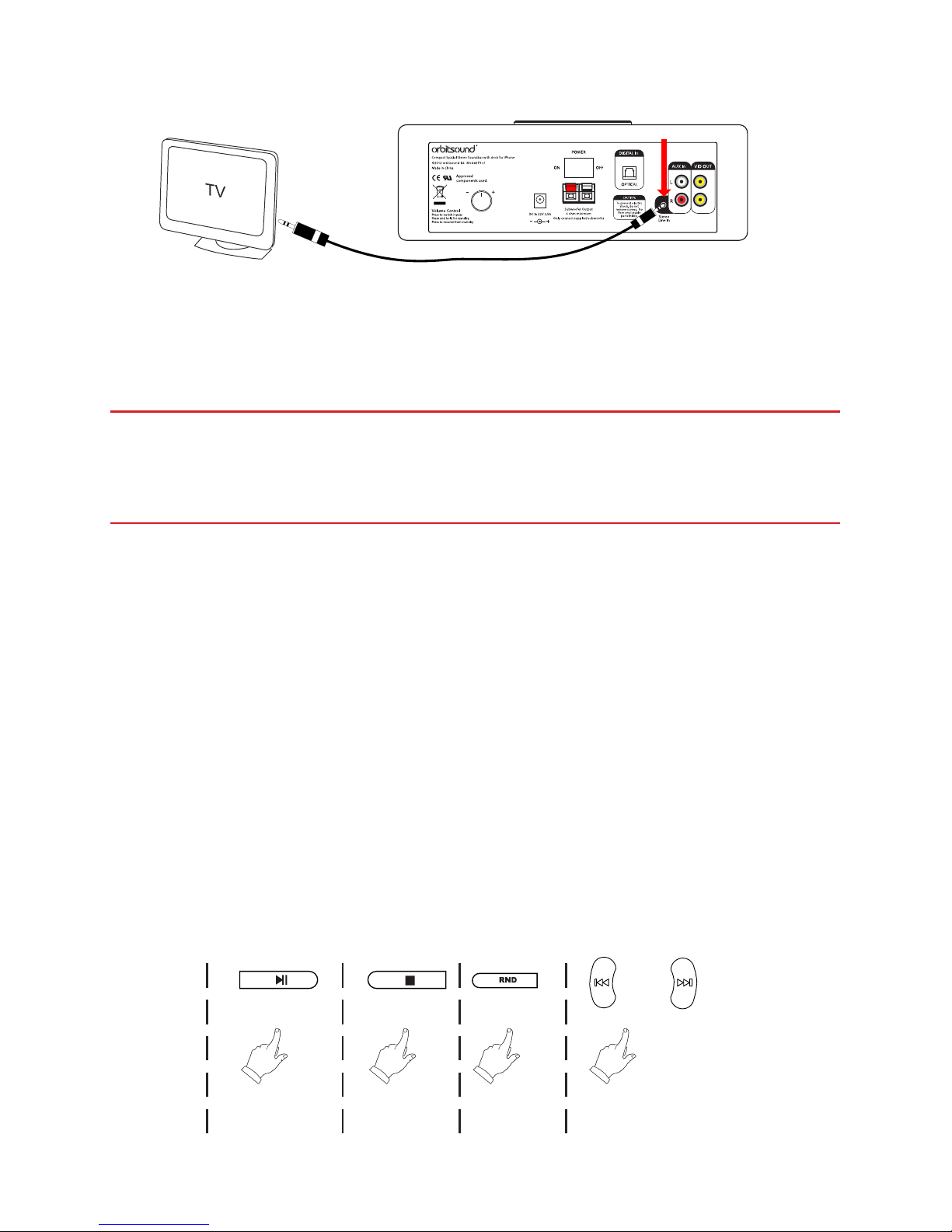

Enhancement to TV sound (replacing TV speakers, analogue)
Connect headphones out on TV to 3.5mm input on soundbar (alternative connection)
HINT: When used in this way, the TV remote control should adjust the volume into the
soundbar, but the iPod dock volume will be dierent to the TV listening level. Please be
careful of volume level when using this way.
IMPORTANT: Make sure that the soundbar is initially turned down when
connecting to a TV this way. Once the soundbar is connected, raise the TV
volume to about half, then adjust the soundbar volume to a comfortable
listening level.
HINT: If the TV speakers do not automatically mute when the 3.5mm jack cable is
inserted, check the TV sound menu.
Video output
The soundbar features 2 x RCA composite video outputs. These will display video
content and/or photos from your iPod/iPhone when it is played. There is no on
screen menu, the video output is to watch video ouput only (i.e. youTube and stored
videos).
iPhone/iPod control & charge
Basic play control is achieved by pressing the following buttons on the orbitsound T9
remote control unit:
RandomStopPlay/Pause Prev. track / Next track

11
Charge / Menu
The iPod/iPhone is charged when it needs charge and when connected. Also, the
menus may conveniently be navigated from the remote for most iPod models.
Pressing the ‘iMenu’ button enters the iPod menu. You can use the remote control’s
navigation functions to control your iPhone/iPod.
Maintenance
Cleaning and care
Use a soft, clean cloth moistened with plain, luke-warm water to clean the exterior
of the unit. Glass cleaner is a good way to remove nger marks, but please use it
sparingly, and avoid contact with the actual loudspeaker driver units.
IMPORTANT: Never use solvents such as benzene or other strong chemical
cleaners since these could damage the unit’s nish. It is VERY important that no
liquid reaches the inside of the unit.

12
Battery replacement (remote)
Replace remote battery with anode up (+) from back-side.
BATTERY: CR 2025
Troubleshooting
No sound is heard
• Check power connections and that there is a continuous blue light on the front
of the unit.
• Check that the iPod/TV or other sound source is playing and that it is connected
properly to the soundbar. With iPod, check that the unit is docked fully. If
unsure that your media device is playing, unplug, and test with headphones.
• Press the sound source button on the remote (or briey press volume knob on
rear of soundbar) to change the sound source. The blue light ashes briey
when the sound source is changed.
• Adjust the volume of the soundbar until sound is heard and press source button
again if there is still no sound.
The sound is out of sync with the TV
• Make sure all video sources are connected to the TV and that the soundbar is
connected to the TV optical sound output or RCA sound output sockets. This
connection method should re-align the sound. If it is still out of sync, look for a
sound/time alignment menu in the TV menus.
Remote does not work
• Check that plastic strip in remote (if there is one) has been removed
• If the remote has had a lot of use, replace the battery.
• Check there are no obstructions between the remote and the front of the
soundbar.

13
Sound is distorted
• Turn down the output of the device playing into the soundbar
• Turn up the master volume on the soundbar if necessary.
• Check that all audio connections are well seated / plugged in fully.
Sound is noisy / ‘hissy’
• Turn down the volume of the soundbar unit
• Turn up the output volume of music source to compensate.
• Use the digital optical (TOSLINK) inputs if possible to reduce noise.
Sound stops when I plug in my iPod
• The source is automatically changed to iPod when an iPod or iPhone is
connected to the dock. Press‘source’ or briey press the volume control on the
rear panel to cycle the source back to what you had before.
Digital optical issues:‘Clicking’ or no sound
• Connect the TV optical output to the soundbar optical input preferentially.
• Ensure both ends of the optical cable have had the protective plastic tip
removed.
• Ensure both ends of the cable have been inserted fully; a distinct ‘click’ will be
felt when the cable is properly seated.
• Check the output format of the optical signal from the playing device. Choose
‘normal’ or ‘PCM’ format. Refer to the TV manufacturer’s handbook for more
information. You can also contact Orbitsound for advice, see contact helpline in
this handbook and on the packaging.

14
Orbitsound Warranty
This Orbitsound product is supplied with a 12 month limited manufacturer’s
warranty dated from new purchase date. This warranty covers repairs or replacement
that may be required in the event of unit failure during normal use, subject to the
terms and conditions stated below and at the Agent’s discression. This warranty is
non transferable and excludes any routine maintenance, consumables or parts, or
any work arising from use of the equipment outside the recommendations in the
handbook, misuse or negligence.
Warranty Terms
‘Agent’means Orbitsound Ltd. or an Orbitsound representative appointed for the
purposes of fullling the manufacturer’s warranty.
‘Purchaser’ means the company, rm or person using the product for the warranty
period.
‘Product’ means the good sold to the Purchaser under contract.
Making a Warranty Claim
In the event that the unit stops working or performing as described in the handbook,
the following procedure must be followed in order to have the unit restored or
replaced by this warranty:
1. Contact your Orbitsound support agent FIRST.
2. If the support agent advises to do so, return the unit in its original packaging
complete with PROOF OF PURCHASE to the address advised.
3. You will be advised by the Agent on the action that will be taken and any costs
payable, subject to the conditions of this warranty.
Orbitsound Ltd Warranty Terms and Conditions
1.RETURN TO BASE WARRANTY
Faulty products will be repaired or replaced (as deemed appropriate by the relevant
Agent) at the Agent’s premises.
2. LIMITATIONS
The warranty covers the product and any agent installed accessories provided

15
that the equipment has been installed and used in accordance with the supplied
handbook instructions. The warranty will not cover repairs or replacements arising
from misuse or accidental damage. See Warranties and Liabilities.
3. CHARGES
For warranty repairs that are 100% covered by the manufacturer’s warranty, there will
be no charge for any repair or replacement or return freight to the purchaser. Any
repairs or replacements that are found to be outside the scope of this manufacturer’s
warranty are chargeable, and the return freight will be charged at the Agent’s
discretion. Associated charges must be paid in full before the returned item(s) will
be dispatched to the Purchaser.
4. WARRANTIES AND LIABILITIES
a. Subject to the provisions below the supplier warrants that the product will
perform in a manner t for purpose.
b. The Agent shall be under no liability in respect of any defect in the product
arising from any action whatsoever by the Purchaser except such action as is
described and recommended in the handbook supplied.
c. The Agent shall accept no liability for any defect arising from excessive wear and
tear, willful or accidental damage, abuse, negligence, abnormal operating or
storage conditions or failure to follow the operating
d. Unauthorised modication or repair by unauthorised person(s) voids this
warranty immediately.
e. The Agent shall be under no liability under this warranty if the total agreed price
for the product has not been paid in full.
f. The liability of the Agent shall not exceed the price paid for the product and the
Agent shall not be liable for any loss of prot or consequential damage or any
other claim for compensation.
g. This warranty does not aect any statutory consumer rights that may exist
where the Product was purchased.
5. FORCE MAJEURE
The Agent shall have no liability for delay or failure to perform if such failure is due
directly or indirectly to any cause beyond the Agent’s reasonable control including
but without limitation to acts of God, explosion, re, terrorism, accident, war or

16
threats of war, prohibitions of any kind, embargoes, strikes or lockouts.
GENERAL
The Agent may assign or subcontract responsibilities and rights under this warranty.
In all warranty cases, please refer to the support pages of www.orbitsound.com rst.
Contact Information
ORBITSOUND LTD.
Tel UK oce: [phone]
Web www.orbitsound.com
Email [e-mail]
For email support: suppor[email protected]
All trademarks, marks and registrations are the property of their respective owners.

17
Specifications
Frequency range +/- 3 dB [Hz] 40 – 16KHz
Control; response (remote control) +,-6dB at 60Hz and 8KHz
Maximum SPL [dB] 95dBA
Amp. power 80 + 35 + 25 (140W total)
Crossover frequencies [Hz] 160/5,000
Tweeter drivers 1 x 1” m/c
Front main drivers 2 x 2.5 “
Spatial drivers 2 x 2” full-range
Enclosure type Sealed/orbitsound spatial
Sub-Bass driver 1 x 6.5”
Sub-Bass Enclosure type Low prole tuned reex
Connection input(s) Stereo Line level -10dBu
3.5mm jack and RCA.
TOSLINK optical digital input
iPod (input and charging)
Connection output(s) RCA composite video x2
Recommended placement Main, in front of television
Sub, oor
Dimensions (H x W x D) [mm] 95 x 300 x 100mm (soundbar)
140 x 230 x 345mm (sub)
Cabinet nish Soundbar: High gloss
Subwoofer: High density PVC
Weight (in packaging) 9.4Kg
Power consumption Standby / Idle 3.17W / 5.63W
Power charging iPod/iPhone 7.7W / 12W
Voltage / Power 22V DC
Remote Control IR lead code 6122/01FE
