ORION Images CHDC-22SDC User manual

Installation and User’s Guide
http://www.orionimages.com
All contents of this document may change without prior notice, and actual product appearance may differ
from that depicted herein
Installation and User’s Guide
CHDC-22SDC / CHDC-22SDHSC
HD CCTV CAMERA
1/2.5” PRIMARY COLOR CMOS HIGH SENSITIVE DAY/NIGHT HD CCTV

2
Installation and User’s Guide
htt
p
://www.orionima
g
es.com
7300 Bolsa Avenue, Westminster CA92683 / Tel: [phone] / Fax: [phone] pg2
THANK YOU FOR CHOOSING ORION
CONTENTS OF CHDC-22SDC MANUAL
Thank you for choosing ORION Images high quality HD CCTV Camera.
Please read this instruction manual carefully to keep your ORION Images product at peak performance
for longer service duration. All ORION Images products are designed and manufactured with utmost
care and craftsmanship to provide long life and high quality performance, if it is properly used and
maintained as outlined in this manual. This high performance HD CCTV camera is equipped with a
1/2.5” 2.2M CMOS sensor, which has an extremely wide range of uses in many different applications
and conditions.
1. Handling precautions………………………………………………………………......
2. General…………………………………………………………………………………..
3. Package of Content…………………………………………………………………….
4. Features………………………………………………………………………………….
5. Name of parts and functions…………………………………………………………...
6. Operation…………………………………………………………………………………
6.1. User setup…………………………………………………………………………..
6.2. SETUP switches and function…………………………………………………….
6.3. Entering the setup mode and its basics………………………………………….
7. Application of Output…………………………………………………………………….
8. Specifications…………………………………………………………………………….
9. Outline Dimension……………………………………………………………………….
10. Warranty and after-sale service………………………………………………………..
Pg4
Pg4
Pg4
Pg5
Pg6-7
Pg8
Pg8
Pg8
Pg9-13
Pg14
Pg15
Pg16
Pg17

3
Installation and User’s Guide
htt
p
://www.orionima
g
es.com
7300 Bolsa Avenue, Westminster CA92683 / Tel: [phone] / Fax: [phone] pg3
CAUTION
Instructions for Disposal of Electrical and Electronic Equipment in Private Households
The exclamation point within an equilateral triangle is intended to alert the user to
the presence of important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
NOTE:
This equipment has been tested and found to comply with the limits for a Class A digital device.
Pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communication. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to correct the interference by one or more of the following measures.
CAUTION:
ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PART
RESPONSIBLE FOR COMPLIANCE COULD VOID THE USERS AUTHORITY TO OPERATE THE
EQUIPMENT.
Disposal of used Electric and Electronic Equipment (Applicable in the European
Union and other European countries with waste recycling, disposal and
collection regulations)
This symbol on the product, or in the related documents in the package, indicates that
this product shall not be treated as normal household waste. Instead, it should be
taken to a proper applicable collection point or depot for the recycling of electrical and
electronic e
q
ui
p
ment.
By ensuring this product is disposed of correctly, you will help prevent possible negative consequences
for the environment and human health which could otherwise caused by inappropriate handling of this
product. The correct recycling of materials will help to conserve natural resources.
For more detailed information about recycling of this product, please contact your local city authority, your
household waste disposal service or the place where you purchased the product.

4
Installation and User’s Guide
htt
p
://www.orionima
g
es.com
7300 Bolsa Avenue, Westminster CA92683 / Tel: [phone] / Fax: [phone] pg4
1. HANDLING PRECAUTIONS
2. GENERAL
3. PACKAGE OF CONTENT
zDo not install the camera in a water-splashed or highly humid environment.
zDo not use the camera where the ambient temperature drops below 0° C or rises above +50° C. The
images and component parts may be adversely affected or the camera may not function correctly.
zNever open the camera case because there are precision electrical and electronic components inside
and an accident may results.
zDo not put anything metallic or any other foreign substances through the vent, as a fire or electric
shock may result.
zBe sure to turn off the power before installing or making connections.
zDo not install the camera in places exposed to heat, vibrations and shock.
zBe careful not to drop or give a strong shock to the camera while transporting it.
zDo not touch the image sensor.
zDo not orientate the camera directly towards the sun.
zSome types of lenses may hunt in adverse light conditions. In such cases please re-adjust the lens in
line with the instructions in the manual.
zBecause of the characteristics of the digital image device, images may look unnatural at high
temperatures, this does not mean the camera is faulty.
This HD CCTV Camera is provided with a High performance 1/2.5 inch 2.2M CMOS sensor. The
camera features a built-in optical 10x zoom lens (1/3.6” f=4.5~45.0mm, f1.8~2.2) high resolution, and
is equipped with digital DAY/NIGHT function, intelligent back-light compensation by which you can
achieve proper Back Light Compensation, Crystal controlled internal sync lock system, Various
modes of convenient Automatic while balancing, mirror image, camera setup and control is also
possible locally using a remote controller, or remote via RS-232C and this setup data is stored in the
built-in non-volatile memory. The camera is best suited for HD CCTV surveillance purposes, from
single camera operation to large scale integrated systems for visual information management.
2.2M Camera
Camera Mount M2.5 Screw
Manual Remote Control Multi Port
Cable

5
Installation and User’s Guide
htt
p
://www.orionima
g
es.com
7300 Bolsa Avenue, Westminster CA92683 / Tel: [phone] / Fax: [phone] pg5
4. FEATURES
1 HD-SDI OUTPUT
This camera outputs and HD-SDI signal featuring resolutions of 1080/25p, 30p, 50i, 60i or
720/30p, 50p, 60p SMPTE 292M standard.
2 MULTI OUTPUT MODEL (CHDC-22SDHSC)
It has outputs of HD-SDI, Composite, S-Video, HDMI, and YPbPr Component.
3 NTSC / PAL OUTPUT
This out
p
ut can be used for a test or an ad
j
ustment.
4 DAY / NIGHT FUNCTION
This camera delivers high quality color images during the day. As light diminishes below a
certain level, the camera can automatically switch to night mode to make use of near-infrared
(IR) light to deliver high-quality, black and white images.
5 BACK LIGHT COMPENSATION
Well-designed BLC, back light compensation, facility is provided which can assign a
compensation area for back light compensation to have an optimum balanced clear picture
reproduction.
6 DIGITAL EFFECT FUNCTION
This output video can be selected in either normal, negative, solarization, pasteurization, or
sephia, monochrome.
7 AUTOMATIC OR MANUAL WHITE BALANCE
In addition to the Auto white balance, this camera provide manually adjustment of x-value / y-
value.
8 AUTO SLOW SHUTTER
ON / OFF is provided
9 MIRROR IMAGE
This flips the image horizontally or vertically.

6
Installation and User’s Guide
htt
p
://www.orionima
g
es.com
7300 Bolsa Avenue, Westminster CA92683 / Tel: [phone] / Fax: [phone] pg6

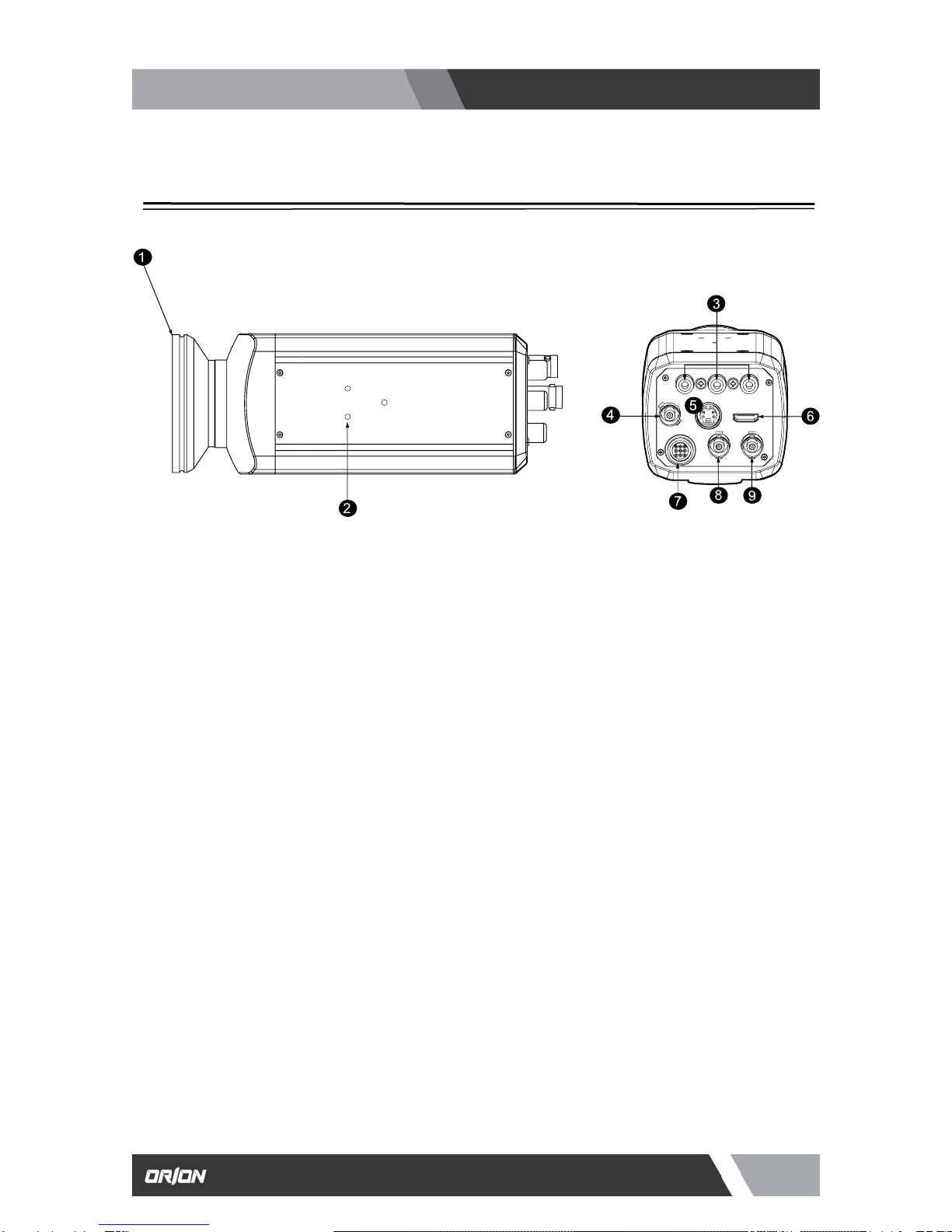

5. NAMES OF PARTS AND FUNCTIONS
①
BUILT-IN ZOOM LENS
This is optical 10X zoom lens built in. 1/3.6” F=4.5~45mm, F1.8 ~ 2.2
② CAMERA MOUNT
These holes are for camera mount plate enclosed and provided in both top and bottom of
the camera body.
③ COMPONENT VIDEO (CHDC-22SDHSC ONLY)
These three RCA connectors are for analog Y, Pb, Pr component.
④ NO CONNECTION
This is S-Video output.
⑤ S-
V
IDEO OUT
(
CHDC-22SDHSC ONLY
)
Top View Rear View
⑥ HDMI OUT (CHDC-22SDHSC ONLY)
This is HDMI output.

7
Installation and User’s Guide
htt
p
://www.orionima
g
es.com
7300 Bolsa Avenue, Westminster CA92683 / Tel: [phone] / Fax: [phone] pg7
⑦ MULTI IN / OUT
This is 9-pin multi-connect to use with a multi-port cable used for DC12V power and a serial control
⑧ CVBS OUT (CHDC-22SDHSC ONLY)
This is NTSC / PAL output (BNC)
⑨ VIDEO OUTPUT CONNECTOR (VIDEO OUT)
For HD-SDI output from camera. Connect this output to HDTV monitor or HDTV switcher, etc. This
to be terminated with 75 ohms impedance at the last equipment in a loop when cascade / bridge
loop connection is made.

8
Installation and User’s Guide
htt
p
://www.orionima
g
es.com
7300 Bolsa Avenue, Westminster CA92683 / Tel: [phone] / Fax: [phone] pg8
6. OPERATION









6
-
1. USER SETUP
The camera has a remote controller as standard to set up and various picture quality setups, back light
compensation, Day/Night for optimum reproduction.
The SETUP can be easily executed using the On-Screen-Menu system. Alteration of these function may
be needed for some installations and we recommend that you should spend some time to become
acquainted with these functions so that the best results can be obtained from this high performance HD
CCTV camera.
6-2. SETUP SWITCHES AND FUNCTIONS
Operation distance: 10M
When RC is on: Flickering on LED
Remote Controlle
r
Cancel setup value and
Exit setu
p
mode Enter & function
ke
y
Move to Up, Down, Left, Right
Brightness Zoom In/Out
Resolution

9
Installation and User’s Guide
htt
p
://www.orionima
g
es.com
7300 Bolsa Avenue, Westminster CA92683 / Tel: [phone] / Fax: [phone] pg9
































6-3. ENTERING THE SETUP MODE AND ITS BASICS
6-3-1. VIDEO FORMAT
Press ENT button one time to move a cursor to TV type. Press ENT button one more time to move a
cursor to NTSC. Press button or button to select the format.
T
V
-T
yp
e: This NTSC
(
default
)
or PAL to select

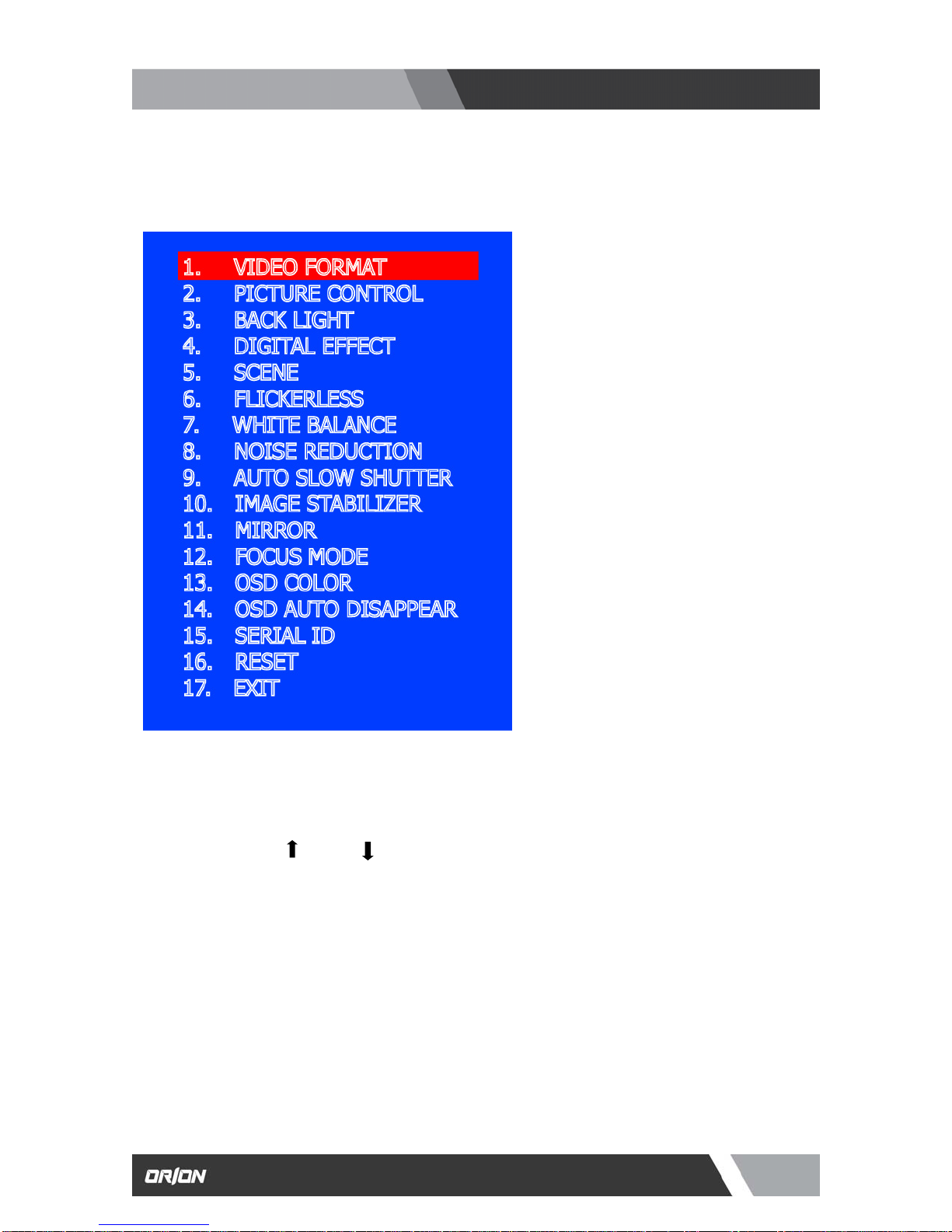

Press ENT button on a remote controller to display the following OSD menu on the screen.
Composite : SQUEEZE
(
16:9
)
default or cro
p
(
4:3
)
SYNC TRIG : This is for sync trigger. This model does not support a trigger. Please
sta
y
at “OFF”
First Field : Lower (default) or Upper

10
Installation and User’s Guide
htt
p
://www.orionima
g
es.com
7300 Bolsa Avenue, Westminster CA92683 / Tel: [phone] / Fax: [phone] pg10





Resolution : Select HD Output format
(In 1920 x 1080 / 30p) out 1920 x 1080 / 30p
(In 1920 x 1080 / 30p) out 1920 x 1080 / 30p
(In 1280 x 720 / 60p) out 1280 x 720 / 60p
(In 1280 x 720 / 30p) out 1280 x 720 / 30p
(In 1920 x 1080 / 25p) out 1920 x 1080 / 25p
(In 1920 x 1080 / 25p) out 1920 x 1080 / 50i
(In 1280 x 720 / 50p) out 1280 x 720 / 50p
6-3-2. PICTURE CONTROL
Press
ENT
button to adjust picture.
Brightness : 0 ~ 100
(
default is 66
)
hi
g
her number increase bri
g
htness.
Sharpness : Low
,
Middle
(
default
)
or Hi
g
h.
Hue : Cr -> -2 ~ +2 (default is +1)
Cb -> -2 ~ +2 (default is +1)
Chroma : Low, Middle or High (default is Low)
Cb -> Low, Middle or High (default is Low)
6-3-3. BACK LIGHT
This ON / OFF of Back Light Compensation. This should be ON when the object becomes dark due to
highlight background.
6-3-4. DIGITAL EFFECT
You can select the image at Normal, Negative, Solarization, Pasteurization, Monochrome, or sepia color.
6-3-5. SCENE
Due to your environmental scene, you may need to set up this function like MODE ODD, High colo
r
Temperature, WDR (Wide Dynamic Range), AUTO, Night (without Auto change) or Night (with Auto
change – Day / Night)

11
Installation and User’s Guide
htt
p
://www.orionima
g
es.com
7300 Bolsa Avenue, Westminster CA92683 / Tel: [phone] / Fax: [phone] pg11
6-3-6. FLICKERNESS
If you see a flicker on the screen, please use this function and select ON, ON (50Hz fixed) or ON (60Hz
fixed).
6-3-7. WHITE BALANCE
You may select Manual, Auto, (Tungsten, Fluorescent D, Fluorescent N, Fluorescent W, Shade or Cloudy)
When selected “MANUAL”, you may need to select X/Y values.
6-3-8. NOISE REDUCTION
You may select Low, Middle (default) or High.
6-3-9. AUTO SLOW SHUTTER
It can be selected ON or OFF (default).
6-3-10. IMAGE STABILIZER
It can be selected ON (default) or OFF.
6-3-11. MIRROR
This function is to reverse top and bottom or left and right.
6-3-12. FOCUS MODE
A
uto or Manual can be selected.

12
Installation and User’s Guide
htt
p
://www.orionima
g
es.com
7300 Bolsa Avenue, Westminster CA92683 / Tel: [phone] / Fax: [phone] pg12
6-3-13. OSD COLOR
Color of OSD menu (Title, Menu, Sub menu or select) can be changed to WHITE, CYAN, MAZEN
(Magenta), BLUE, YELLOW, GREEN RED, DGRAY (Dark Gray), GRAY, DCYAN, (Dark Cyan), DMAZE
(Dark Magenta), DBLUE (Dark Blue), DYELL (Dark Yellow), DGREEN (Dark Green), BLACK, TRANS
(Transparency).
6-3-14. OSD AUTO DISAPPEAR
You can select Disable or Enable for OSD auto disappear function
6-3-15. SERIAL ID
You can set your ID (number 1 ~ 7) and Baud rate (default is 19200). Please visit
http://www.orionimages.com/product/CHDC-22SDC.asp to download a remote application software.
(see figure 1.1 for application menu)
Fi
g
ure 1.1
(
A
pp
lication Menu
)

13
Installation and User’s Guide
htt
p
://www.orionima
g
es.com
7300 Bolsa Avenue, Westminster CA92683 / Tel: [phone] / Fax: [phone] pg13
6-3-16. RESET
Select “YES” to go back all settings to factory default.
6-3-17. EXIT
Select either “SAVE & EXIT” or “EXIT WITHOUT SAVING” your camera set up.

14
Installation and User’s Guide
htt
p
://www.orionima
g
es.com
7300 Bolsa Avenue, Westminster CA92683 / Tel: [phone] / Fax: [phone] pg14

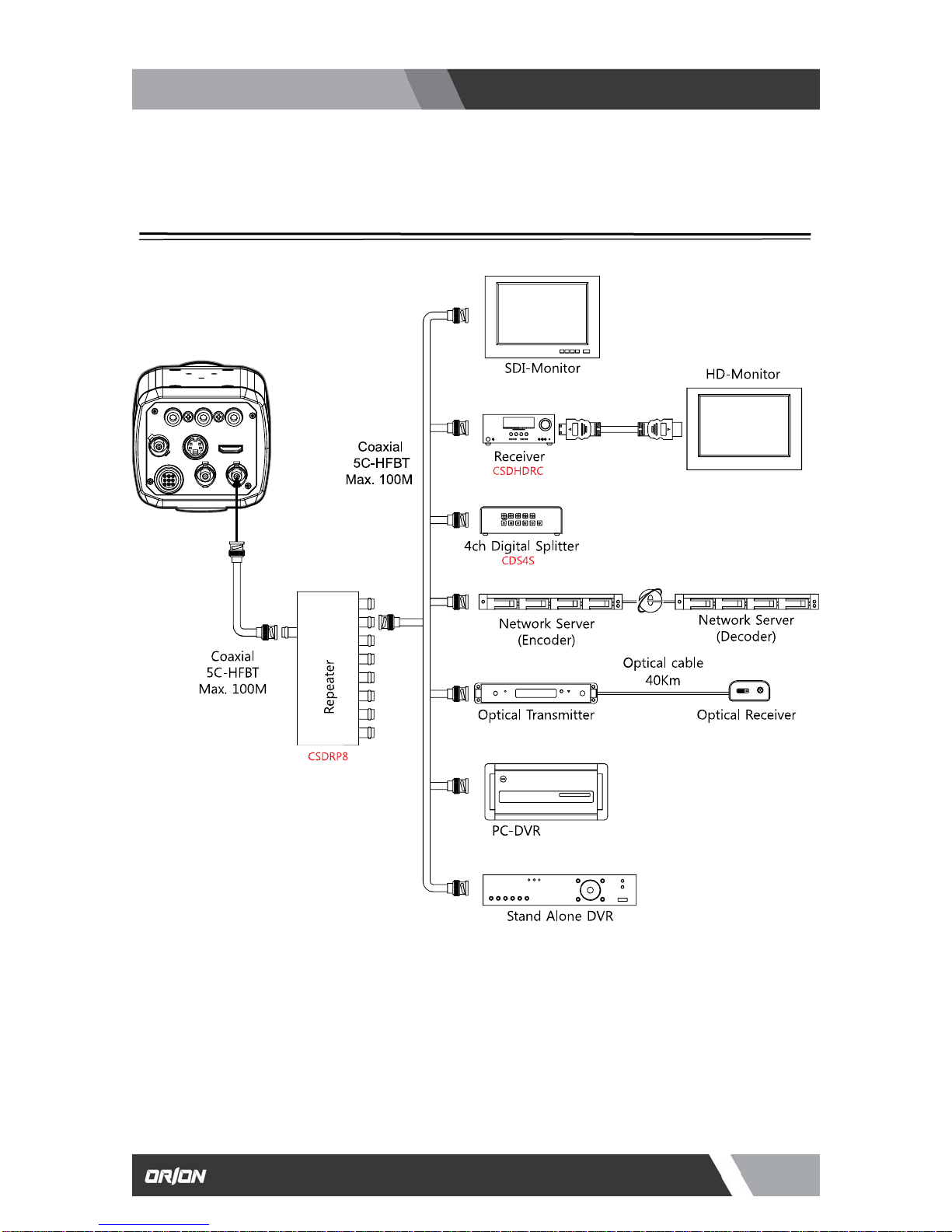

7. APPLICATION OF OUTPUT

15
Installation and User’s Guide
htt
p
://www.orionima
g
es.com
7300 Bolsa Avenue, Westminster CA92683 / Tel: [phone] / Fax: [phone] pg15
8. SPECIFICATIONS
CHDC-22SDC & CHDC-22SDHSC
Image Sensor 1/2.5” CMOS
Effective Pixel 2.2 M Pixel
Sync System Internal
HD-SDI (SMPTE 294M) / 75 ohm BNC x 1
1920 x 1080 30p / 25p / 60i, 1280 x 720 60p / 50p
NTSC / PAL 1Vp-p / 75 ohm (CHDC-22SDHSC ONLY)
S-Video (CHDC-22SDHSC ONLY)
Y, Pb, Pr Component (CHDC-22SDHSC ONLY)
Video Output
HDMI 1.3 (CHDC-22SDHSC ONLY)
Lens 1/3.6”, F=4.5 ~ 45mm, F1.8 ~ 2.2
Minimum Illumination 6 Lux (50 IRE)
Auto White Balance Auto / Manual
Backlight Compensation Built-In
Noise Reduction Built-In
Auto Slow Shutter Built-in / ON: 0.35 Lux
Image Stabilization Built-In
Day & Night Built-In
Mirror Image Horizontal and Vertical
Power Requirement DC 12V (Voltage Tolerance: 8V ~ 15V)
Power Consumption Max 720mA
Operating Temperature 32°~ 113°F (0°~ 45°C)
Operating Humidity 20 ~ 80%
Camera Mount 1/4” ~ 20UNC x 1 (Top or Bottom)
Dimensions (W x H x D) 2.65” x 2.36” x 6.57”
Weight 1.06 lbs
* Design and specifications are subject to change without notice

16
Installation and User’s Guide
htt
p
://www.orionima
g
es.com
7300 Bolsa Avenue, Westminster CA92683 / Tel: [phone] / Fax: [phone] pg16
9. OUTLINE DIMENSION
Side View Front View
Unit: mm

17
Installation and User’s Guide
htt
p
://www.orionima
g
es.com
7300 Bolsa Avenue, Westminster CA92683 / Tel: [phone] / Fax: [phone] pg17
10. WARRANTY & AFTER-SALE SERVICE
Warranty accompanies this product. Read and fill out the warranty card that you have
received at your dealer. Keep this card in a safe place.
zPlease consult ORION Images Corporation or your dealer for full warranty information. Your dealer
will repair or replace free of charge within the warranty period according to the warranty coverage.
zFor repairs after the expiration of the warranty period, consult your dealer or sales representative. It
will first be judged whether the fault is repairable or not. Charged servicing will then be made upon
request of the user.
zBefore you ask for servicing, please ensure you read the instruction Manual. If the unit still fails,
take note of the model number, date of purchase, problem, etc. In detail, and inform your dealer or
sales representative.
zIf you have questions about the after-sale service, contact your dealer or sales representative.
* We suggest you ask for preventive inspection as soon as possible.
Contact ORION Images :
In the event of missing and/or damage equipment, or technical questions, the following
information can help in the completion of the installation.
Address: 7300 Bolsa Avenue, Westminster, CA 92683
Tel: [phone] / Fax: [phone]
Email: [email protected]
Website: http://www.orionimages.com

18
Installation and User’s Guide
htt
p
://www.orionima
g
es.com
7300 Bolsa Avenue, Westminster CA92683 / Tel: [phone] / Fax: [phone] pg18
