ColorBeam 480


ENGLISH
COLORBEAM 480 - USER INSTRUCTION Page
1. In the box 4
2. Instructions 4
3. Overview 5
4. Operation guide 6
5. Technical data 15
6. Dimensions 15
7. Accessoires 16
FRANÇAIS
COLORBEAM 480 - MODE D’EMPLOI Page
1. Dans la boîte 18
2. Instructions 18
3. Vue d’ensemble 19
4. Utilisation 20
5. Données techniques 29
6. Dimensions 29
7. Accessoires 30

User Manual - COLORBEAM 480 V1.3 09/2019 4/32
1. In the box
• 1 ColorBeam 480
• 1 POWERCON TRUE ONE cable
• 1 Infra Red Remote
• 1 Omega
• 1 Instruction Manual
2. Instructions
WARNING
• Read the instruction in this manual carefully and thoroughly, as they give important
information regarding safety during use and maintenance. Keep this manual with the unit,
in order to consult it in the future. If the unit is sold or given to another operator, make
certain that it always has its manual, to enable the new owner to read about its operation
and relative instructions.
• To prevent fire or shock hazard, do not expose this product under a high temperature This
product must be earthed.
• Take care not to damage the power cord.
• After having removed the packaging check that the unit is NOT damaged in any way.
• If in doubt, DON’T use it and contact an authorized dealer.
• NEVER use the unit under the following conditions:
- In places subject to vibrations or bumps.
- In places with a temperature of over 40 °C or less than 0 °C.
• DO NOT open the unit-there are no user serviceable parts inside.
• NEVER try to repair the unit yourself. Repairs by unqualified people could cause damage
or faulty operation. Contact your nearest dealer.
• Wait for at least one second to turn on the power after turning off this unit.
• Packaging material (plastic bags, polystyrene foam, nails, etc.) MUST NOT be left within
children’s reach, as it can be dangerous.
• STOP using the unit immediately In the event of serious operation problems and either
contact your local dealer for a check or contact us directly.
• DO NOT dismantle or modify the unit.
• If in doubt, DON’T use it and contact an authorized dealer.
• This unit must only be operated by adults. DO NOT allow children to tamper or play with it.
3. Overview

User Manual - COLORBEAM 480 V1.3 09/2019 5/32

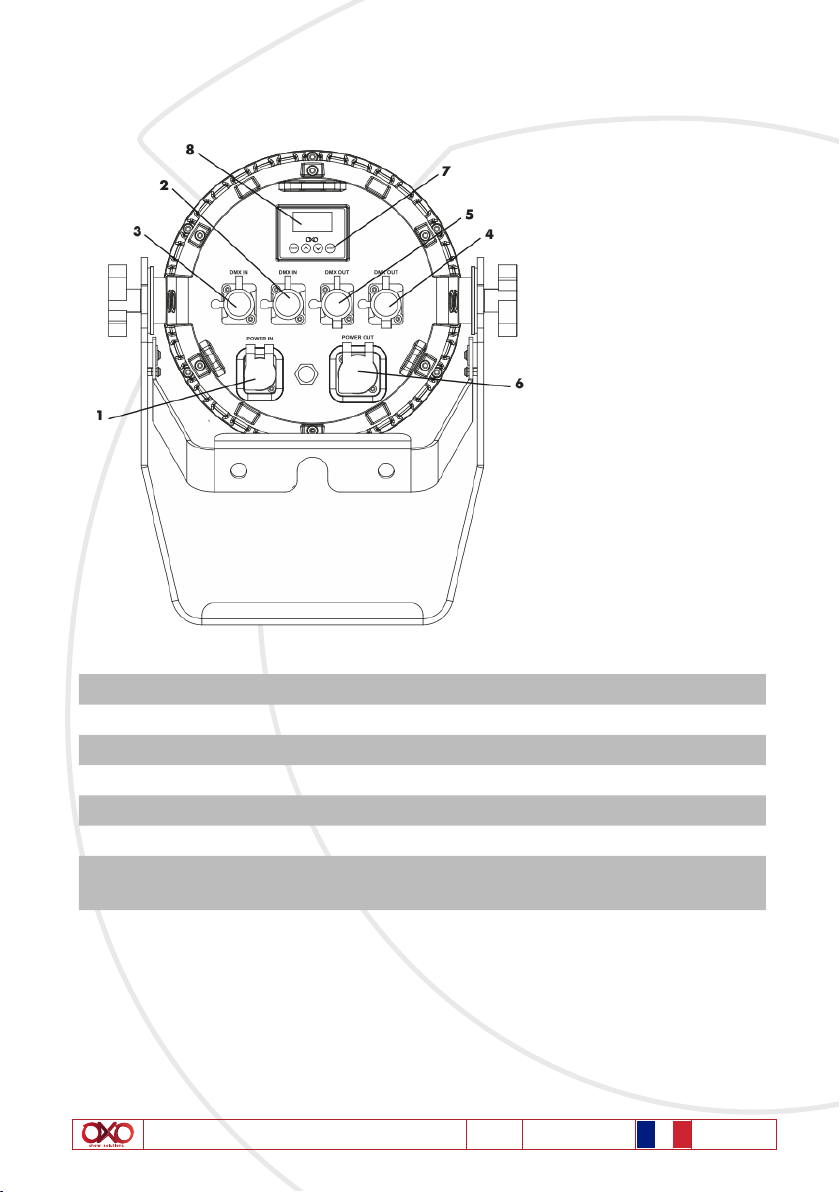

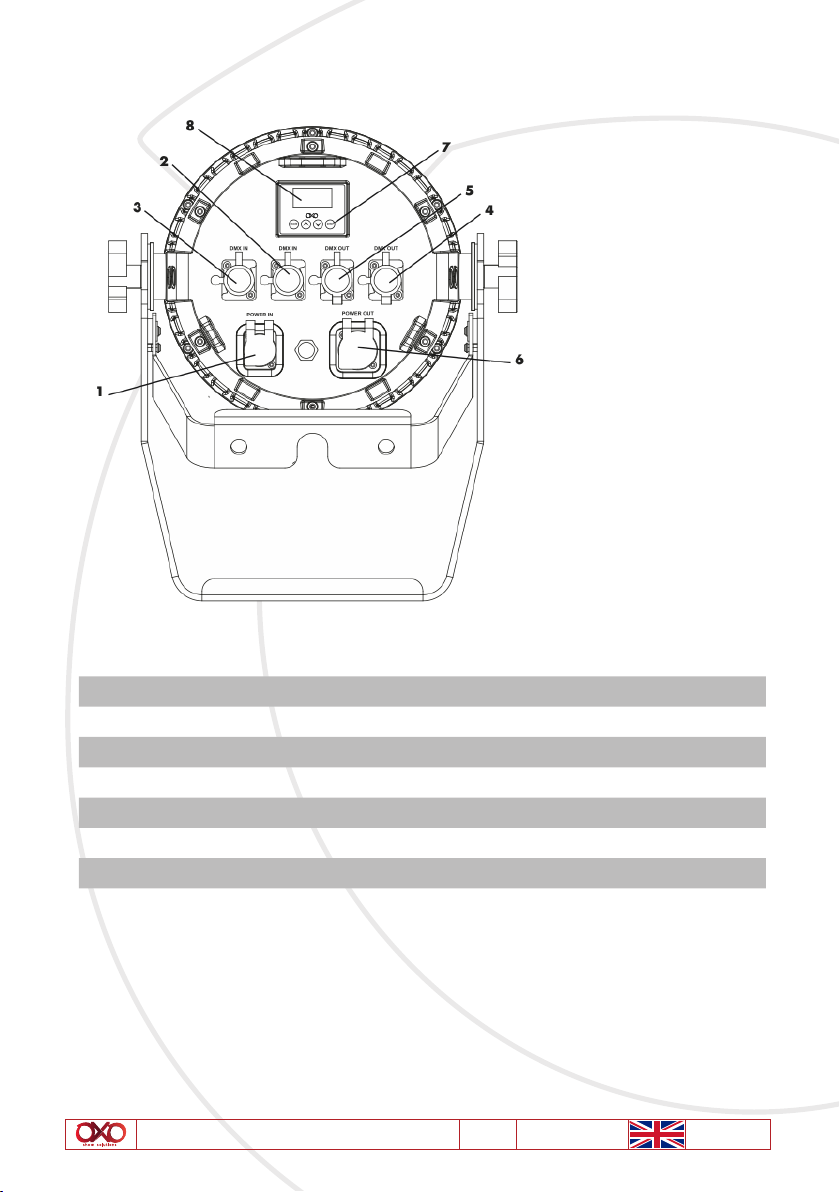

1. Power supply IN (POWERCON TRUE ONE)
2. DMX IN (XLR 5)
3. DMX IN (XLR 3)
4. DMX OUT (XLR 5)
5. DMX OUT (XLR 3)
6. Power supply OUT (POWERCON TRUE ONE)
7. Touch button "Mode / Up / Down / Enter" to navigate and change value in Menu
8. Display

User Manual - COLORBEAM 480 V1.3 09/2019 6/32
4. Operation guide
A- Default display after start
This part define all the display you could have by default, those display let you see directly
the state of the product.
ADDR 001
6 CH If DMX MODE display DMX Address and DMX Mode
RUN MODE
MANUAL Display if in MANUAL MODE
RUN MODE
MACRO Display if in MACRO MODE
RUN MODE
IR Display if IR is ON
B- Menu
To navigate thru menu use «up» and «down» button.
To validate and enter menu use «enter».
To get out menu use «menu».
1-DMX
ADDR DMX ADDRESS
DMX
001 Change DMX Address value from 001 to 512

User Manual - COLORBEAM 480 V1.3 09/2019 7/32
2-DMX
MODE To choose DMX MODE
MODE
06 CH
Change DMX Mode
3 Mode available 05 CH, 08 CH, 13 CH
3-MANUAL
MODE To choose values of MANUAL MODE
DIMMER Change Dimmer value from 000 to 255
RED
001 Change Red value from 000 to 255
GREEN
001 Change Green value from 000 to 255
BLUE
001 Change Blue value from 000 to 255
WHITE
001 Change White value from 000 to 255
SHUTTER
001 Change Shutter value from 000 to 255
MACRO
001
Choose Macro from 01 to 54
Check macros list after DMX Charts
MC SPEED
01
Change Speed of Macros from 01 to 99
Only available for dynamic macros (48 to 54)

User Manual - COLORBEAM 480 V1.3 09/2019 8/32
4- SLAVE
MODE To choose SLAVE MODE
SLAVE MODE
ON
if ON, product act as a Slave
See «Master/Slave Mode» topic here after
5-SETUP To set up product feature
FAN MODE
AUTO
If STUDIO then Fan is OFF and Power is -30%
if AUTO then Fan is regulated by temperature and power
is at max
DIM CURVE
000
To change dimmer curve adding a time on fade out
of 0s / 1,5s / 3s / 4s / 5s
NO DMX
HOLD
Define product behaviour after a DMX break
HOLD : keep the last DMX value
BLACKOUT : Go to dark
MACRO : Go to the last Macro used.
IR SWITCH
ON To activate or not the use of IR remote
DISPLAY To set up Display option
DP BACKLIGHT OFF
05 MIN
Define the time before Display goes Dark
10s / 30s / 1min / 5 min / NEVER
DP KEY LOCK
ON
To enable unlock code :
if OFF : After a delay (define by display DP BACKLIGHT
OFF), display goes OFF and autolock, to unlock push
MODE during 3s. To lock manually push MODE during
3s.
if ON : After a delay (define by display DP BACKLIGHT
OFF), system autolock, to unlock push MODE and in
séquence «Menu / up / down / enter». To lock manually
push MODE during 3s

User Manual - COLORBEAM 480 V1.3 09/2019 9/32
NO DMX DP FLASH
ON if ON, display flash if no DMX
RESET
DEFAULT If ON reset values to factory
TEMP UNIT To choose temperature unit : FAHRENHEIT / CELSIUS
6-INFO Display product info
TIME
INFO Display time info
TI CURRENT
0001 H
Display current time of use from last current time reset
max value is 9999 H
TI CUR CLEAR
OFF if ON reset current time value (password 050)
TI TOTAL
00001 H
Display total time of use from first use max value is
9999 H
TEMP
INFO Display temperature info
TEMP INFO
000°C Display current temperature
TEMP MAX
000°C Display max temperature reached by product
MODEL Display model of product
SOFTWARE Display software version of product

User Manual - COLORBEAM 480 V1.3 09/2019 10/32
C- MASTER / SLAVE MODE
To use master slave mode, link product as a daisy chain with Master in first position.
Then choose a mode for Master (DMX/MANUAL) and put every slave in SLAVE MODE/ON then
slave product will act as the master.
D-DMX CHART
MODE 5 CHANNELS
CHANNEL VALUES FEATURES
1Dimmer
000 - 255 Intensity 0 to 100%
2Red
000 - 255 Intensity 0 to 100%
3Green
000 - 255 Intensity 0 to 100%
4Blue
000 - 255 Intensity 0 to 100%
5White
000 - 255 Intensity 0 to 100%

User Manual - COLORBEAM 480 V1.3 09/2019 11/32
MODE 8 CHANNELS
CHANNELS VALUES FEATURES
1Dimmer
000 - 255 Intensity 0 to 100%
2Red
000 - 255 Intensity 0 to 100%
3Green
000 - 255 Intensity 0 to 100%
4Blue
000 - 255 Intensity 0 to 100%
5White
000 - 255 Intensity 0 to 100%
6
Shutter
000 - 010 LED off
011 - 020 LED on
021 - 080 Strobe effect slow to fast
081 - 090 LED on
091 -150 Pulse-effect in sequences
151 - 160 LED on
161 - 220 Random strobe effect slow to fast
221-230 Reset Zoom after 5s
231 - 255 LED on
7Color and Macro
See Macros after DMX Charts
8
Speed
000 - 255 slow to fast
(Only can be use in CH7 macros from 48 to 54)

User Manual - COLORBEAM 480 V1.3 09/2019 12/32
MODE 13 CHANNELS
CHANNELS VALUES FEATURES
1Dimmer
000 - 255 Intensity 0 to 100%
2Dimmer fine
000 - 255 Intensity 0 to 100%
3Red
000 - 255 Intensity 0 to 100%
4Red fine
000 - 255 Intensity 0 to 100%
5Green
000 - 255 Intensity 0 to 100%
6Green fine
000 - 255 Intensity 0 to 100%
7Blue
000 - 255 Intensity 0 to 100%
8Blue fine
000 - 255 Intensity 0 to 100%
9White
000 - 255 Intensity 0 to 100%
10 White fine
000 - 255 Intensity 0 to 100%
11
Shutter
000 - 010 LED off
011 - 020 LED on
021 - 080 Strobe effect slow to fast
081 - 090 LED on
091 -150 Pulse-effect in sequences
151 - 160 LED on
161 - 220 Random strobe effect slow to fast
221-230 Reset Zoom after 5s
231 - 255 LED on

User Manual - COLORBEAM 480 V1.3 09/2019 13/32
CHANNELS VALUES FEATURES
12 Color and Macro
See Macros after DMX Charts
13
Speed
000 - 255 slow to fast
(Only can be use in CH12 macros from 48 to 54)
F- Macros function
Macros include calibrated white and calibrated LEE colors (based on halogen 3200 K source).
Number DMX Value Name
0000-004 No Function
1005-008 White 2700K
2009-012 White 3200K
3013-016 White 3500K
4017-020 White 4000K
5021-024 White 4500K
6025-028 White 5000K
7029-032 White 5600K
8033-036 White 6000K
9037-040 White 6500K
10 041-044 White 7000K
11 045-048 White 7500K
12 049-052 White 8000K
13 053-056 Mauve 126
14 057-060 Ultimate Violet 707
15 061-064 Dark Lavender 180
16 065-068 Cold Lavender 703
17 069-072 Light Lavender 052
18 073-076 Midnight Maya 508
19 077-080 Tokyo Blue 71
20 081-084 Zenith Blue 195
21 085-088 Elysian Blue 714
22 089-092 Just Blue 079

User Manual - COLORBEAM 480 V1.3 09/2019 14/32
Number DMX Value Name
23 093-096 Sky Blue 68
24 097-100 Medium Blue 132
25 101-104 Glacier Blue 352
26 105-108 Steel Blue 117
27 109-112 Lagon Blue 172
28 113-116 Peacock Blue 115
29 117-120 Jade 323
30 121-124 Dark Yellow Green 090
31 125-128 Lee Green 121
32 129-132 Fern Green 122
33 133-136 Moss Green 089
34 137-140 Sally Green 505
35 141-144 Ice and a Slice 513
36 145-148 Light Amber 102
37 149-152 Surprise Peach 017
38 153-156 Dark Salmon 008
39 157-160 Madge 507
40 161-164 Light Red 182
41 165-168 Scarlet 024
42 169-172 Pink 157
43 173-176 Rose Pink 002
44 177-180 Magical Magenta 795
45 181-184 Bright Pink 128
46 185-188 Magenta 113
47 189-192 Lavander Tint 003
48 193-200 Fade macro 1 to 12
49 201-209 Fade macro 13 to 47
50 210-218 Fade macro 13 to 18
51 219-227 Fade macro 19 to 29
52 228-236 Fade macro 30 to 34
53 237-245 Fade macro 35 to 41
54 246-255 Fade macro 42 to 47

User Manual - COLORBEAM 480 V1.3 09/2019 15/32
5. Technical data
Voltage AC100-240V, 50/60Hz (Auto-ranging)
Source 24 x 20W RGBW 4IN1
Beam Angle 11°
Power Consumption 500 W
Control DMX
DMX Control Channels 5 / 9 / 13 CH
IP Grade IP65
Working Temperature 0-40°c
Product dimension : 325,4 x 333 x 245 mm
Product weight : 7 kg
Box Pack Size : 45,5 x 37 x 32 cm
Box weight : 10 kg
6. Dimensions

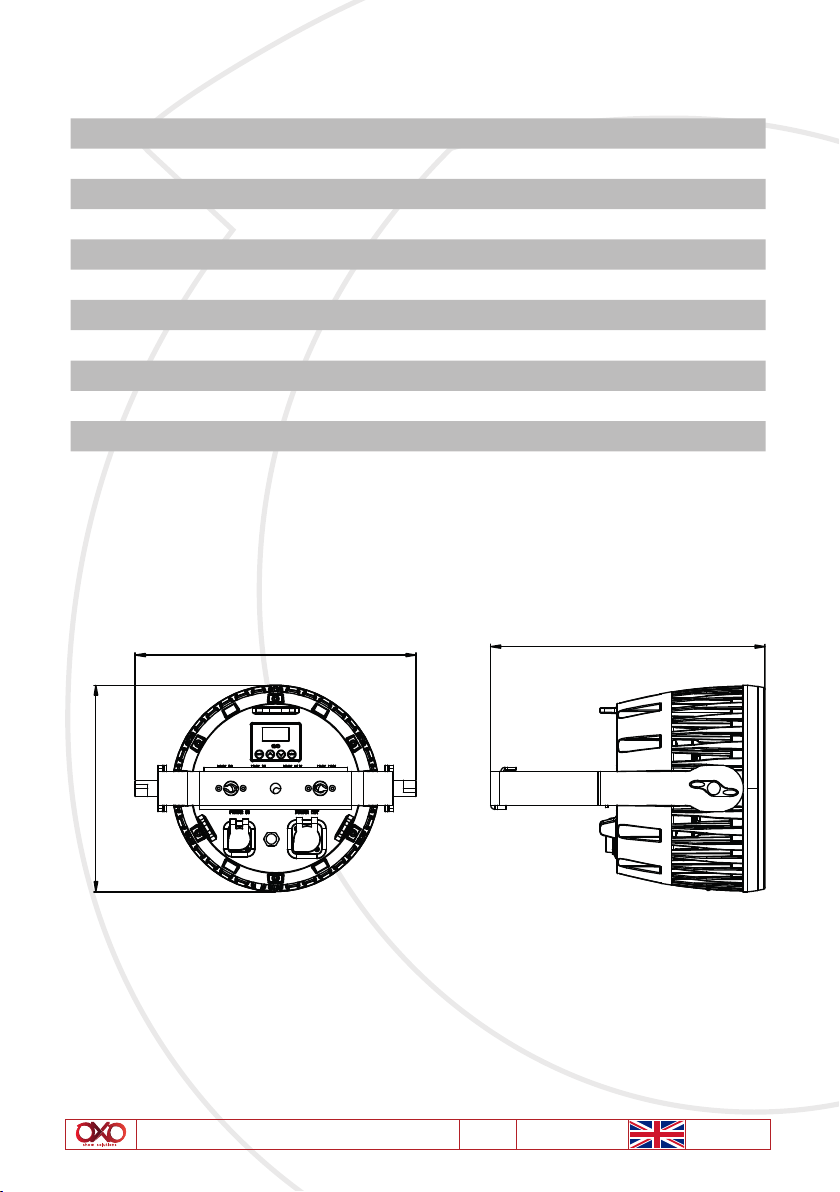

333 mm 325,4 mm
245 mm

User Manual - COLORBEAM 480 V1.3 09/2019 16/32
7. Accessoires
Accessory holder Barn Door Gel frame
Mobile snoot Fixed snoot Filter

User Manual - COLORBEAM 480 V1.3 09/2019 17/32

Mode d’emploi - COLORBEAM 480 V1.3 09/2019 18/32
1. Dans la boîte
• 1 ColorBeam 480
• 1 câble d’alimentation POWERCON TRUE ONE
• 1 Télécommande Infra Rouge
• 1 Omega
• 1 Mode d’emploi
2. Instructions
ATTENTION
Avant utilisation, merci de lire attentivement ces précautions d’emplois.
Ces informations sont indispensables pour votre sécurité, une meilleure utilisation et
entretien de votre appareil :
• Cet appareil doit être relié à la terre.
• Prendre soin de ne pas endommager le câble d’alimentation.
• Si votre câble d’alimentation est endommagé n’utilisez pas votre appareil et faites le
réparer par un technicien qualifié.
• Dans l’éventualité d’un dysfonctionnement (odeur de chauffe), éteindre immédiatement
l’appareil, déconnecter le câble d’alimentation et consulter un personnel qualifié.
• Placer l’appareil hors de portée de champs magnétiques pendant son utilisation.
• Ne pas mettre sous tension si la température ambiante excède 40°C.
• Manipuler avec précaution, car de grands chocs ou vibrations pourraient altérer son
fonctionnement.
• Utilisation par un adulte uniquement. Ne jamais laisser à la portée d’enfant.
• Ne pas remplacer de pièces de l’appareil sans consulter un personnel qualifié.
• Ne jamais modifier sans autorisation.
• Pendant le déballage, assurez-vous que votre produit n’a pas été endommagé pendant
le transport.
• Si vous constatez des dommages, ne pas l’utiliser et contacter immédiatement votre
installateur.
• Nous ne pouvons pas être tenu pour responsable en cas de mauvaise utilisation de
l’appareil.
• Ne jamais laisser une personne non-qualifiée modifier ou utiliser l’appareil
• Les matériaux d’emballage (sacs en plastique, mousse de polystyrène, etc.) NE DOIVENT
PAS être laissés à la portée des enfants, car cela peut être dangereux.
• ARRÊTER d’utiliser l’appareil immédiatement en cas de problèmes de fonctionnement
sérieux et contacter votre revendeur local.
• NE PAS démonter ou modifier l’appareil.

Mode d’emploi - COLORBEAM 480 V1.3 09/2019 19/32
3. Vue d’ensemble
1. Entrée alimentation (POWERCON TRUE ONE)
2. DMX IN (XLR 5)
3. DMX IN (XLR 3)
4. DMX OUT (XLR 5)
5. DMX OUT (XLR 3)
6. Sortie alimentation (POWERCON TRUE ONE)
7. Bouton tactile "Mode / Up / Down / Enter" pour naviguer et changer les valeurs du
menu
8. Afficheur

Mode d’emploi - COLORBEAM 480 V1.3 09/2019 20/32
4. Utilisation
A- Affichage par défaut
Cette partie décrit les affichages par défaut que vous pourrez voir. Ces affichages par défaut
vous donne un accès direct à l’état de la machine.
ADDR 001
6 CH Affiche l’adresse DMX et le MODE DMX si en MODE DMX
RUN MODE
MANUAL Affichage si en MODE MANUAL
RUN MODE
MACRO Affichage si en MODE MACRO
RUN MODE
IR Affichage si IR est ON
B- Menu
Pour naviguer dans le menu utiliser les boutons “up” et “down”.
Pour entrer dans le menu et valider, utiliser le bouton “enter”
Pour sortir du menu utiliser le bouton “menu”.
1-DMX
ADDR Pour choisir l’adresse DMX
DMX
001 Changer la valeur de l’adresse DMX de 001 à 512
Table of contents
Languages:
Other OXO Projector manuals
