Oypla GARDEN 4599 User manual

Page 1
Manual Version: v1.0
Model Code: 4599
Oypla.com LLP / www.oypla.com
User Manual
Model Code: 4599
Contents
1Front Cover
-
2Safety
Instructions
-
2Warning
Instructions
-
3Assembly
Instructions
-
5 Engine
Protection
-
6Cleaning and
Maintenance
-
6 Technical
Information
-
7 Troubleshooting
-
8Back Cover
End
Garden Water Butt
Pump

Page 2
Manual Version: v1.0
Model Code: 4599
Oypla.com LLP / www.oypla.com
Contents
1Front Cover
-
2Safety
Instructions
-
2Warning
Instructions
-
3Assembly
Instructions
-
5 Engine
Protection
-
6Cleaning and
Maintenance
-
6 Technical
Information
-
7 Troubleshooting
-
8Back Cover
End
Safety Instructions
Notice: Ensure you read and fully understand instructions before use
While every attempt is made to ensure the highest degree of protection in all equipment, we cannot
guarantee freedom from injury. The user assumes all risk of injury due to use. All merchandise is sold
on this condition, which no representative of the company can waive or change.
This product is not intended for use by
persons (including children) with
reduced physical, sensory and mental
capacities, or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning use
of the product by persons responsible for
their safety.
Children should be supervised to ensure
that they do not play with the product.
Always keep children and unauthorised
persons out of reach of the appliance.
To store over winter, make sure there is
no water in the appliance.
This product is intended for outdoor use
only.
Make sure all fastenings are tightly in
place and that everything is in order
before using the product. This should be
checked periodically by an adult.
Pinch points can cause personal injury.
Do not discard any of the packaging until
you have checked that you have all of
the parts and fittings required.
Not suitable for long-run operation.
Do not use the pump for drinking water.

Before use, make sure the connecting
socket is not near water.
Only use splash proof extension cables
approved for outdoor use.
Do not grab the feeder cable, plunge the
pump, lift or carry while it is connected
to the grid.
When the appliance is not in use, always
unplug from the mains socket.
Ensure the power supply to the socket
into which the appliance is plugged, is in
accordance with the rating label on the
appliance and that the socket is earthed.
Do not leave the product unattended
while in operation.
The temperature of the grained liquid
must not exceed +35°C.
Visually check the product before use, in
particular the feeder cable and plug.
To ensure long life of the pump seal,
rinse the pump with clean water
regularly.
Unpacking, installing and fixing the parts
are to be completed by an adult.
If the product is damaged or has any
defects, please contact
[email protected].

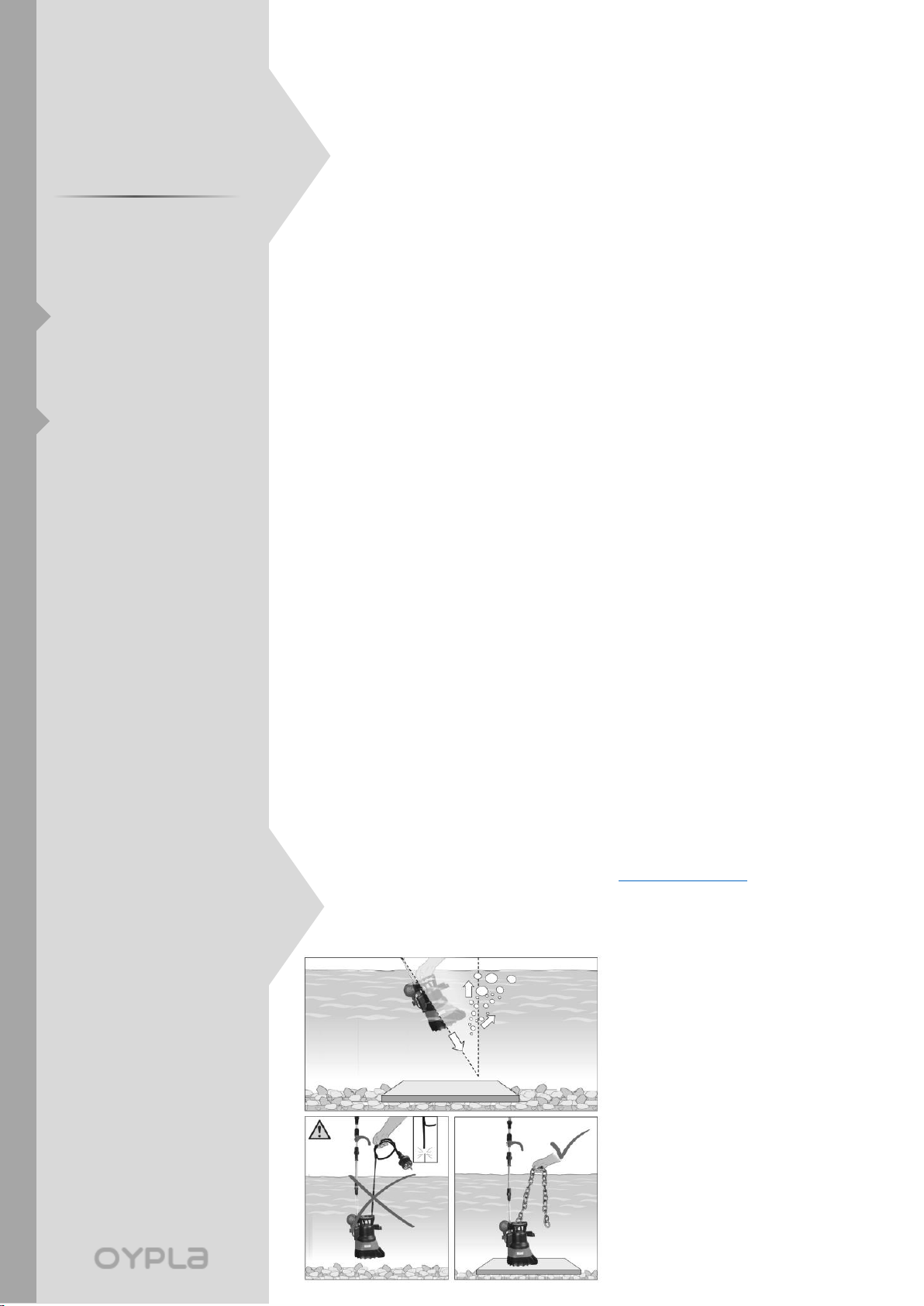

⚠DO NOT SUBMERGE THE PUMP INTO
WATER USING THE CABLE. THIS MAY LEAD
TO RPRODUCT FAILURE AND/OR PSERONAL
INJURY.
Warnings

Page 3
Manual Version: v1.0
Model Code: 4599
Oypla.com LLP / www.oypla.com
Parts List:
-If you are missing any of the below parts, please contact [email protected]
-Please be aware that you will be referring to this parts list throughout the assembly
process.
Contents
1Front Cover
-
2Safety
Instructions
-
2 Warning
Instructions
-
3Assembly
Instructions
-
5 Engine
Protection
-
6Cleaning and
Maintenance
-
6 Technical
Information
-
7 Troubleshooting
-
8Back Cover
End
Assembly Instructions
1
To assemble, simply twist on the on the 3
poles as seen in the images above. Ensure
securely fastened. Once securely in place move
on to connecting the supply connection.

Page 4
Manual Version: v1.0
Model Code: 4599
Oypla.com LLP / www.oypla.com
Contents
1Front Cover
-
2Safety
Instructions
-
2Warning
Instructions
-
3Assembly
Instructions
-
5 Engine
Protection
-
6Cleaning and
Maintenance
-
6 Technical
Information
-
7 Troubleshooting
-
8Back Cover
End
2

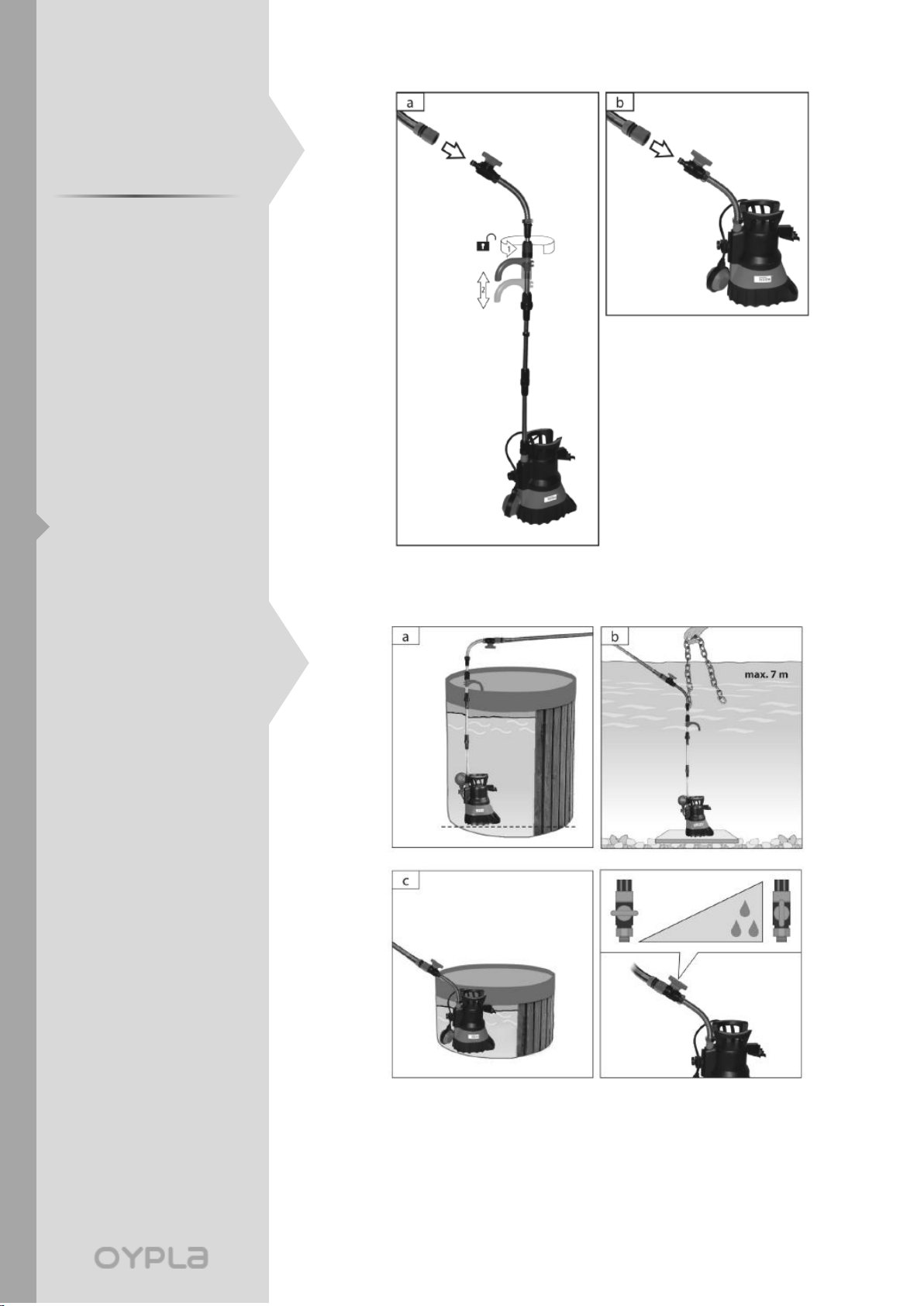

Now, attach your own hose
onto the top end of the pump.
Once securely connected, the
product is ready for use.
3
When submerged, turn the valve to begin
allowing water to pass through. Please see
images the above for guidance.

Page 5
Manual Version: v1.0
Model Code: 4599
Oypla.com LLP / www.oypla.com
Contents
1Front Cover
-
2Safety
Instructions
-
2 Warning
Instructions
-
3Assembly
Instructions
-
5 Engine
Protection
-
6Cleaning and
Maintenance
-
6 Technical
Information
-
7 Troubleshooting
-
8Back Cover
End
Engine Protection

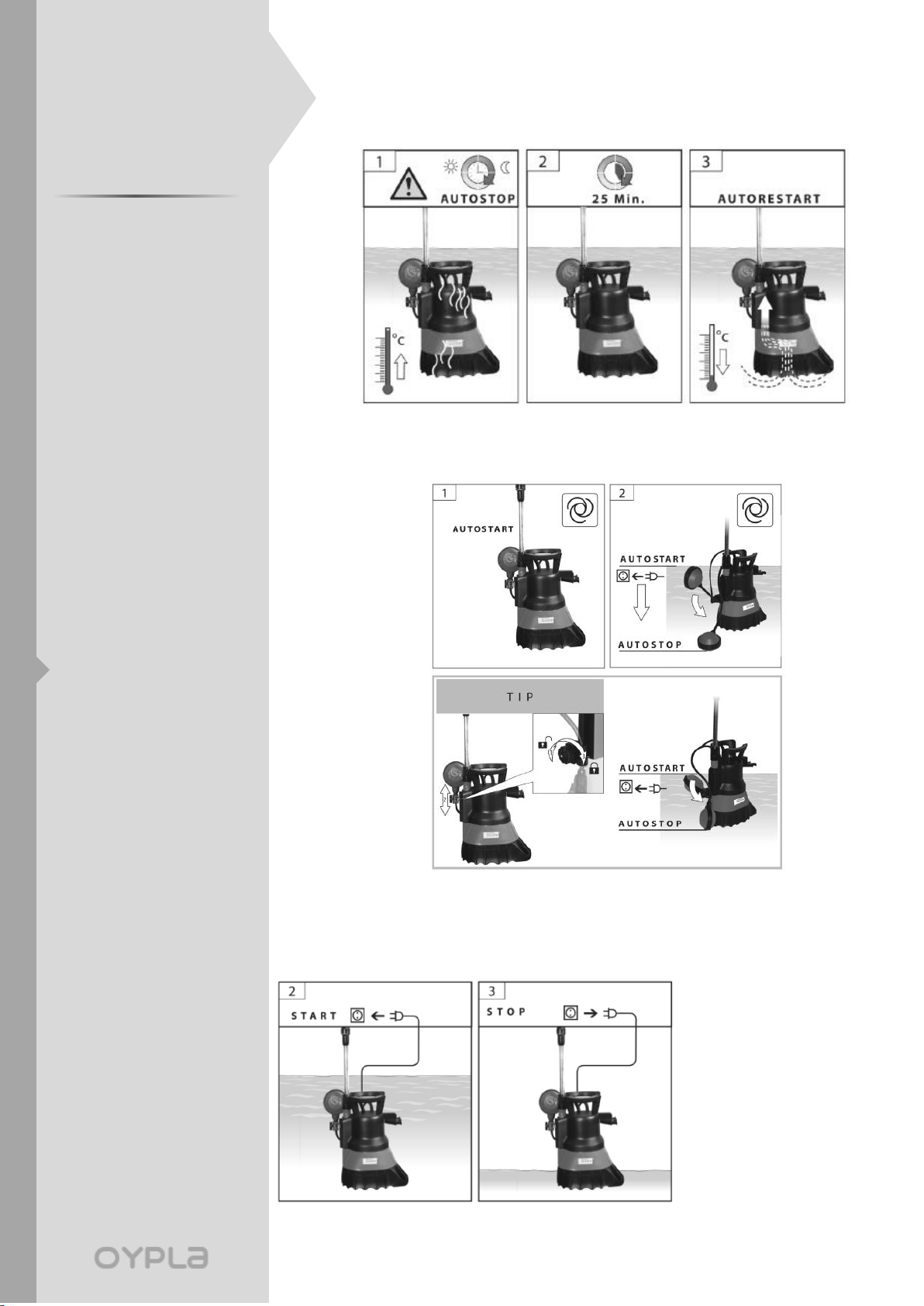

The pump operates with an auto stop/restart mechanism,
meaning the pump restarts every 25 minutes.
If the float is below the unit, the engine will automatically
cease. To prevent this, you can lock float into place on the
side of the unit.
Plugging the unit into
the mains will
automatically start the
engine. Unplugging the
unit from the mains will
automatically cease the
engine.

Page 6
Manual Version: v1.0
Model Code: 4599
Oypla.com LLP / www.oypla.com
Rain Water Tank Pump
GFP5201
Art Number
94649
Service Connection
230V~50Hz
Rated Input
350W
Max Immersion
7m
Max Delivered Quantity
5200 I/h
Max Head of Delivery
11m
Max Suction
3mm
Max Water Temperature
35 degrees
Celsius
Rain Water Tank Pump Service Connection
3/4’AG
Degree of Protection
IPX8
Weight
4.1kg
Contents
1Front Cover
-
2Safety
Instructions
-
2 Warning
Instructions
-
3Assembly
Instructions
-
5 Engine
Protection
-
6Cleaning and
Maintenance
-
6 Technical
Information
-
7 Troubleshooting
-
8Back Cover
End
Cleaning & Maintenance
Please refer to the instructions below in regards to cleaning and maintaining your product.
Technical Information

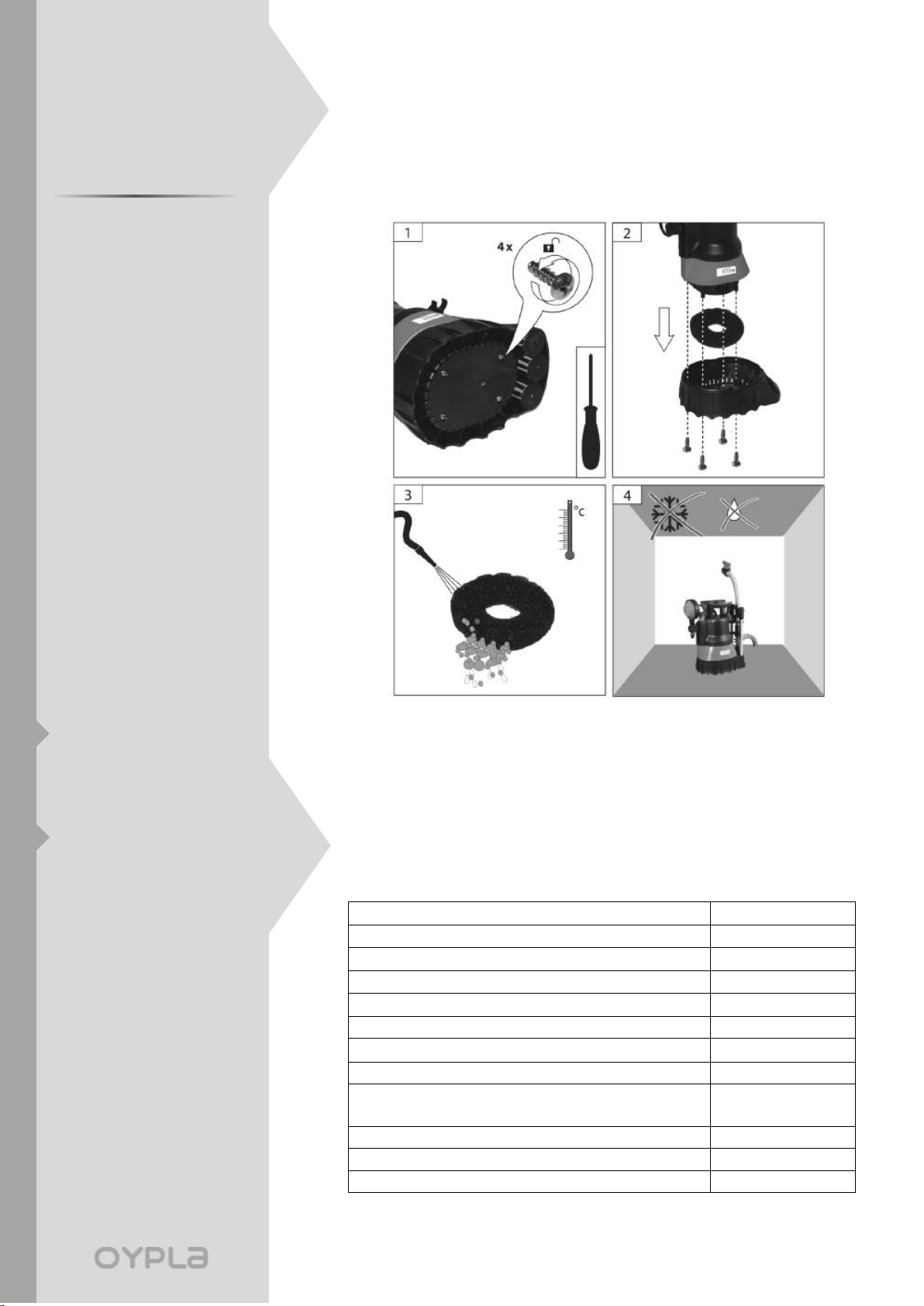

Unscrew the shown screws to expose the filter. Wash the filter
using clean water to ensure it can function as it should.

Page 7
Manual Version: v1.0
Model Code: 4599
Oypla.com LLP / www.oypla.com
Failures
Causes
Removal
Engine does not start
No system voltage
Blocked pump wheel
Floating switch in shutdown
position
Check the voltage
Visually inspect the pump wheel
for foreign objects
Check the water level
Pump does not suck
Pump without water
Water level too low
Blocked pump wheel
Let the air bubbles release
Switch the pump off, water level
must go up
Remove the obstruction
Thermal detector
switching the pump off
Dirty tube filter
Water temperature too high
Pump running continuously at
maximum pressure
Clean the tube filter and let the
pump cool down
Reduce the water temperature
Make more breaks
Insufficient amount of
water pumped
Dirty tube filter
Water level quickly going down
Maximum head of delivery
exceeded
Transport guide broken
Clean the tube filter
Ensure sufficient inflow
Check the transport path length
Check the transport guide
Contents
1Front Cover
-
2Safety
Instructions
-
2Warning
Instructions
-
3Assembly
Instructions
-
5 Engine
Protection
-
6Cleaning and
Maintenance
-
6 Technical
Information
-
7 Troubleshooting
-
8Back Cover
End
Troubleshooting

Page 8
Manual Version: v1.0
Model Code: 4599
Oypla.com LLP / www.oypla.com
Contents
1Front Cover
-
2Safety
Instructions
-
2Warning
Instructions
-
3Assembly
Instructions
-
5 Engine
Protection
-
6Cleaning and
Maintenance
-
6 Technical
Information
-
7 Troubleshooting
-
8Back Cover
End
