Ozito RHD-1550 User manual

1500W
ROTARY
HAMMER
3
1500W ROTARY HAMMER
1500W ROTARY HAMMER
1500W ROTARY HAMMER
1500W
ROTARY
HAMMER
3
ROTARY
HAMMER
DRILL KIT
1500W
INSTRUCTION MANUAL
SPECIFICATIONS
Input: 230–240V ~ 50/60Hz
Power: 1500W
Impact Rate: 4,100bpm
Impact Energy: 5J
No Load Speed: 0-850/min
Accessory Fitment: SDS+
Drilling Capacity: Ø40mm (Timber)
Ø32mm (Masonry)
Ø13mm (Steel)
Weight: 4.4kg
RHD-1550
STANDARD EQUIPMENT
3 YEAR REPLACEMENT WARRANTY*
Your product is guaranteed for a period of 36 months from the original date of purchase. If
a product is defective it will be replaced in accordance with the terms of this warranty. Warranty
excludes consumable parts, for example: valve adapters and accessories.
*This product is intended for DIY use only and replacement warranty covers domestic use.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other than that specified on the tool.
• If the tool shows signs of damage or defects caused by or resulting from abuse, accidents
or alterations.
• Failure to perform maintenance as set out within the instruction manual.
• If the tool is disassembled or tampered with in any way.
• Professional, industrial or high frequency use.
WARRANTY
Ozito Industries Pty. Ltd. 25 Fox Drive, Dandenong South, Victoria, Australia 3175.
ozito.com.au
Rotary Hammer Drill & Side Handle
3 x Drill Bits, Depth Rod, Flat Chisel
& Pointed Chisel
Grease Tub, Dust Cover & Pin
Wrench
Kitbox
1221
IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY
YOU MUST RETURN THE PRODUCT TO YOUR NEAREST
BUNNINGS WAREHOUSE WITH YOUR BUNNINGS
REGISTER RECEIPT. PRIOR TO RETURNING YOUR
PRODUCT FOR WARRANTY PLEASE TELEPHONE OUR
CUSTOMER SERVICE HELPLINE:
Australia: 1800 069 486
New Zealand: 0508 069 486
The benefits provided under this warranty are in addition to other rights and remedies which
are available to you at law.
Our goods come with guarantees that cannot be excluded at law. You are entitled to a
replacement or refund for a major failure and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the
goods fail to be of acceptable quality and the failure does not amount to a major failure.
Generally you will be responsible for all costs associated with a claim under this warranty,
however, where you have suffered any additional direct loss as a result of a defective product
you may be able to claim such expenses by contacting our customer service helpline above.
TO ENSURE A SPEEDY RESPONSE PLEASE HAVE
THE MODEL NUMBER AND DATE OF PURCHASE
AVAILABLE. A CUSTOMER SERVICE REPRESENTATIVE
WILL TAKE YOUR CALL AND ANSWER ANY QUESTIONS
YOU MAY HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.

1500W
ROTARY
HAMMER
3
1. Depth Rod
2. Accessory Locking Sleeve
3. Depth Rod Locking Screw
4. Side Mode Locking Button
5. Side Mode Dial
6. Grease Cap
7. Vibration Control Handle
8. On/Off Trigger
9. Speed Dial
10. Indicator LED
11. Rear Mode Selector
12. Side Handle
13. SDS+ Accessory Holder
ROTARY HAMMER DRILL
KNOW YOUR PRODUCT
1. ACCESSORIES
SETUP & PREPARATION
Attaching The Side Handle
1. Loosen the side handle by
rotating the lower section
anti clockwise and then slide
over the chuck and onto the
neck of the drill.
2. Rotate into the desired
handle position and then
push backwards so that
the notch below the chuck
inserts into one of the
grooves in the upper handle.
Note: Ensure the handle is
pushed all the way back to
avoid interference with the chuck.
3. Secure in position by rotating the lower
section of the handle clockwise.
Attaching The Depth Rod
The depth rod allows you to drill to a pre-determined depth.
1. Loosen the depth rod
securing nut then insert the
depth rod.
2. Adjust the depth rod so that
the drill bit extends beyond
the end of the depth rod to
the required drilling depth.
3. Tighten the depth rod
securing nut to lock the
depth rod into place.
1500W
ROTARY
HAMMER
3
1500W
ROTARY
HAMMER
3
1500W
ROTARY
HAMMER
Required
Drilling Depth
1500W
ROTARY
HAMMER
3
1500W
ROTARY
HAMMER
3
1500W
ROTARY
HAMMER
3
1 2 3 6 7 8 94 5
1012 1113
WARNING! ENSURE THE TOOL IS TURNED OFF AND
DISCONNECTED FROM THE POWER SUPPLY BEFORE
PERFORMING ANY OF THE FOLLOWING OPERATIONS.
ONLINE MANUAL
Scan this QR Code with your mobile
device to take you to the online manual.

Using The Dust Cover
The cover catches dust and debris whilst using the drill upright or
overhead.
1. Slide the cover over the end
of the accessory.
2. Add lubrication grease.
3. Insert the drill bit into the
chuck as per usual.
4. Press the dust cover to the
end of the locking sleeve.
1500W
ROTARY
HAMMER
1500W
ROTARY
HAMMER
Installing SDS+ Accessories
1. Before using a drill bit in the hammer
drill, ensure that the SDS+ accessory is
clean of dust and debris.
2. Dip the SDS+ end of the accessory into
the supplied tub of grease.
WARNING! WEAR GLOVES WHEN HANDLING GREASE.
3. Insert the SDS+ accessory
into the chuck.
Note: The locking sleeve
should not be pulled back
when inserting the accessory.
4. Rotate the accessory until it
is inserted as far as possible
into the locking sleeve.
Note: You should hear a click
when it is correctly inserted.
5. Pull on the SDS+ accessory
to check it is locked in.
Note: It should leave
approximately 10-20mm of
movement. This is normal.
6. To remove the SDS+
accessory, pull back the
locking sleeve and pull the
accessory out.
1500W
ROTARY
HAMMER
1500W
ROTARY
HAMMER
1500W
ROTARY
HAMMER
1500W
ROTARY
HAMMER

Changing Modes
The operating modes are
controlled by changing the
positions of the side and rear
mode dials.
Note: To adjust the side mode
dial, press the locking button
while rotating the mode dial to
the desired setting.
Drilling
Use this setting when you
want the accessory to rotate
without hammer action. Ideal
for drilling into timber or
steel when correct accessories
for such materials are used.
Rotate the side mode selector
to the hammer/drill icon and
the rear mode lever to the drill icon.
Hammer Drilling
Use this setting when drilling
holes in concrete and other
masonry products. The
hammer action will be in
operation while the drill bit
rotates.
Rotate the side mode selector
to the hammer/drill icon and
the rear mode lever to the hammer drill icon.
Chiselling
Use this when you want the
hammer action without the
drill action which is ideal for
“chiselling or chipping” away
at masonry products. Pick or
chisel accessory bits should
be used.
Rotate the mode selector to the
chisel icon and the rear mode lever to the hammer drill icon.
On/Off Trigger
1 To start the tool, squeeze the on/off
trigger.
Note: The further you press the on/off
trigger, the fast the tool will operate.
2 To stop the tool, release the on/off trigger.
Adjusting The Speed
1 Rotate the speed setting dial
to the desired speed.
Using The Hammer Drill
Before starting to drill or chisel, perform a few simple checks.
1 Depress and release the trigger to ensure it is not locked on.
2 Ensure the workpiece is clamped and
secured where possible.
3 Hold the drill firmly in the position you want to drill
4 Start the tool and move the
tool into the workpiece.
Note: Do not force the drill or
apply side pressure. Let the
tool do all the work.
5. To drill to a pre-determined
depth, adjust the depth rod
so that the drill bit protrudes
past by the depth of the hole
required.
Then drill as normal until
the depth rod touches the
surface of the workpiece.
2. OPERATING MODES 3. USING THE HAMMER DRILL
OPERATION
1500W
ROTARY
HAMMER
3
b.
a.
1500W
ROTARY
HAMMER
3
1500W
ROTARY
HAMMER
3
1500W
ROTARY
HAMMER
3
Required
Drilling
Depth
SIDE MODE DIAL
REAR MODE LEVER
TOP VIEW
REAR HANDLE
MOTOR
HOUSING
SIDE MODE DIAL
REAR MODE LEVER
TOP VIEW
REAR HANDLE
MOTOR
HOUSING
SIDE MODE DIAL
REAR MODE LEVER
TOP VIEW
REAR HANDLE
MOTOR
HOUSING
WARNING! ENSURE THE DRILL IS NO LONGER
ROTATING AND HAS COME TO A COMPLETE STOP
BEFORE ATTEMPTING TO CHANGE MODES.
RHD-1550

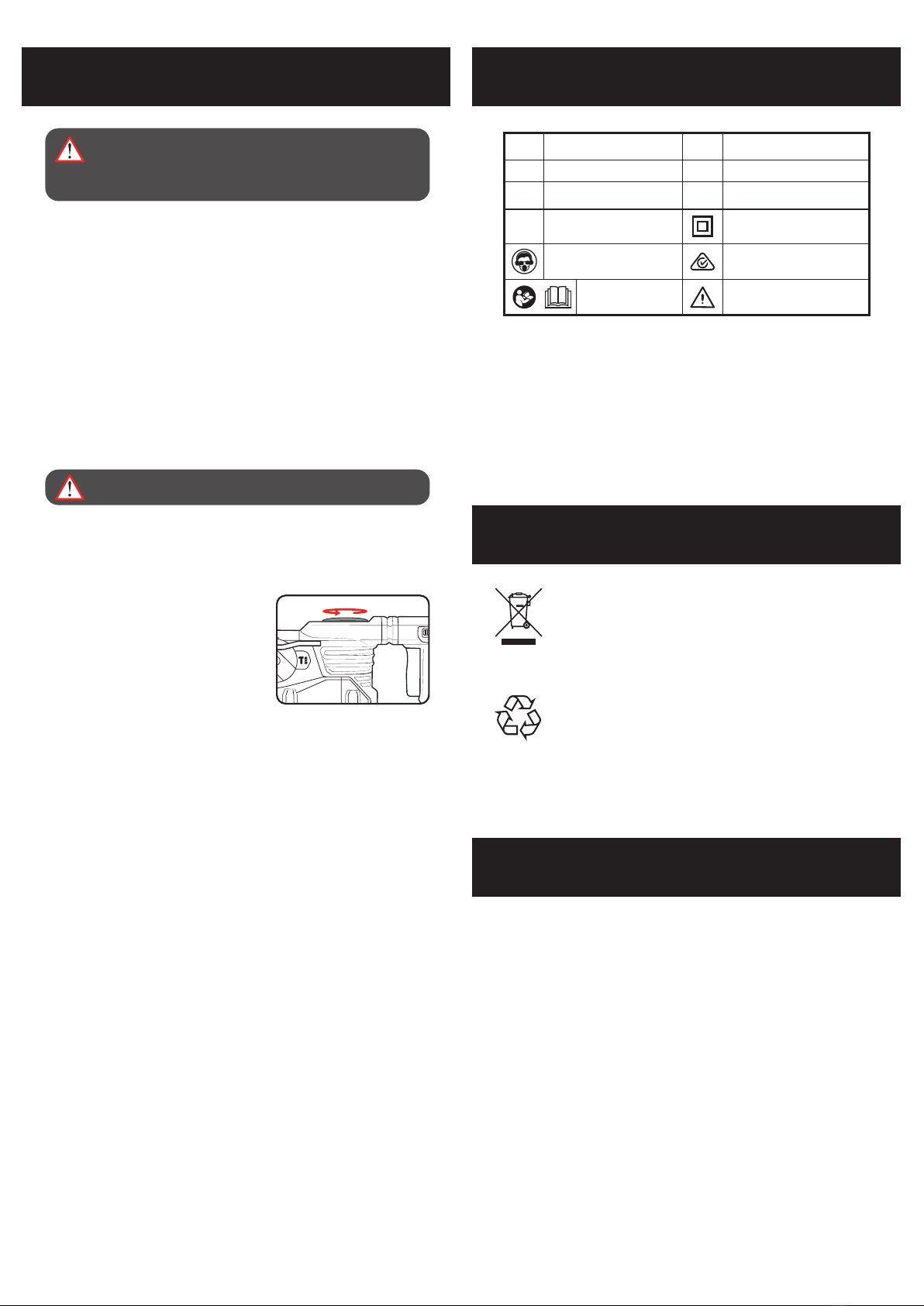

MAINTENANCE DESCRIPTION OF SYMBOLS
Cleaning
1. We recommend that you clean the appliance immediately after
you use it.
2. Keep the safety devices free of dirt and dust as much as
possible. Wipe the equipment with a clean cloth.
3. Clean the appliance regularly with a damp cloth and some soft
soap. Do not use cleaning agents or solvents; these may be
aggressive to the plastic parts in the appliance. Ensure that no
water can get into the interior of the appliance.
Gear Box Grease Replenishment
WARNING! WEAR GLOVES WHEN HANDLING GREASE.
The grease in the gearbox will require replenishment after
approximately 50 hours accumulative use. After this time, add
approximately 50 grams (approximately 2 – 3 teaspoons) of the
grease (supplied), into the gearbox.
First remove the grease cap from the
drill by using the pin spanner. Once
removed, add the grease through this
hole. Ensure the grease cap is secured
back into position prior to operation. If
additional grease is required, please
contact Ozito Customer Service.
Storage
Pull the mains plug out of the socket, switch off the tool and make
sure that it is secured in such a way that it cannot be started up
again by any unauthorised person. Store the tool in a dry location
which is not accessible to unauthorised persons.
Supply Cords
If replacement of the supply cord is necessary, this has to be done
by a certified electrician in order to avoid a safety hazard.
Note: Ozito Industries will not be responsible for any damage or
injuries caused by the repair of the tool by an unauthorised person
or by mishandling of the tool.
WARNING! BEFORE CLEANING THE APPLIANCE OR
CARRYING OUT ANY MAINTENANCE PROCEDURE,
MAKE SURE THAT IT IS DISCONNECTED FROM THE
POWER SUPPLY TO PREVENT ACCIDENTAL STARTING.
Millimetre
Warning
Regulatory Compliance Mark
(RCM)
Double insulated
Wear eye, ear & breathing
protection
VVolts Hz
W
Hertz
~
bpm
J
mm
Alternating Current Watts
beats per minute
Joules
Read Instruction Manual
Power tools that are no longer usable should not
be disposed of with household waste but in an
environmentally friendly way. Please recycle where
facilities exist. Check with your local council authority for
recycling advice.
Recycling packaging reduces the need for landfill and raw
materials. Reuse of recycled material decreases pollution
in the environment. Please recycle packaging where
facilities exist. Check with your local council authority for
recycling advice.
CARING FOR THE ENVIRONMENT
SPARE PARTS
Spare parts can be ordered from the Special Orders Desk at your
local Bunnings Warehouse.
For further information, or any parts not listed here, visit
www.ozito.com.au or contact Ozito Customer Service:
Australia 1800 069 486
New Zealand 0508 069 486
E-mail: [email protected]
1500W
ROTARY
HAMMER
3

WARNING! When using mains-powered tools, basic safety precautions, including the following, should
always be followed to reduce risk of fire, electric shock, personal injury and material damage.
Read the whole manual carefully and make sure you know how to switch the tool off in an emergency,
before operating the tool.
Save these instructions and other documents supplied with this tool for future reference.
This tool has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage
on the rating plate.
Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand.
This tool is double insulated; therefore no earth wire is required.
Note: Double insulation does not take the place of normal safety precautions when operating this tool.
The insulation system is for added protection against injury resulting from a possible electrical insulation
failure within the tool.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool. Before use, inspect the extension
lead for signs of damage, wear and ageing. Replace the extension lead if damaged or defective.
When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead not suitable for
the power input of the tool or which is damaged or defective may result in a risk of fire and electric shock.
The power supply for this product should be protected by a residual current device (rated at 30mA or less). A residual
current device reduces the risk of electric shock.
The appliance is not to be used by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction.
Young children should be supervised to ensure that they do not play with the appliance.
WARNING! Before connecting a tool to a power source (mains switch power point receptacle, outlet, etc.) be sure
that the voltage supply is the same as that specified on the nameplate of the tool. A power source with a voltage
greater than that specified for the tool can result in serious injury to the user, as well as damage to the tool. If in
doubt, do not plug in the tool. Using a power source with a voltage less than the nameplate rating is harmful to the
motor.
• Wear ear protectors when impact drilling Exposure to noise can cause hearing loss.
• Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.
• Brace the tool properly before use. This tool produces a high output torque and without properly bracing the tool
during operation, loss of control may occur resulting in personal injury.
• Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may
contact hidden wiring or its own cord. Cutting accessory contacting a “live” wire may make exposed metal parts
of the power tool “live” and could give the operator an electric shock.
• Before drilling into walls, ceilings etc, ensure that there are no concealed power cables or pipes in the cavity.
• Keep the cord clear of the drill accessory, do not wrap the cord around your arm or wrist.
• Prolonged use of a tool can cause injuries. Ensure you take regular breaks when using any tool for prolonged
periods.
• Use thick cushioned gloves and limit the exposure time by taking frequent breaks.
• Vibration caused by the hammer action may be harmful to your hands and arms.
• Do not use the tool while on an unstable surface.
• Handling grease
- Avoid contact with eyes. When exposure is likely wear suitable eye protection.
- Wear gloves of impervious material if handling material for prolonged periods.
-Avoid breathing vapors or mists and use in well ventilated area.
Contact a doctor or Poisons Information Centre. Phone 131126 from anywhere in Australia or 0800 764 766 in
New Zealand.
Safety instructions when using long drill bits
• Never operate at higher speed than the maximum speed rating of the drill bit. At higher speeds the bit is likely to
bend if allowed to rotate freely without contacting the workpiece, resulting in personal injury.
• Always start drilling at low speed and with the bit tip in contact with the workpiece. At higher speeds the bit is
likely to bend if allowed to rotate freely without contacting the workpiece, resulting in personal injury.
• Apply pressure only in direct line with the bit and do not apply excessive pressure. Bits can bend causing
breakage or loss of control, resulting in personal injury.
WARNING! Some dust created by power sanding, sawing, grinding, drilling and other construction activities contain
chemicals known to cause cancer, birth defects or other reproductive harm.
Some examples of these chemicals are:
- Lead from lead-based paints,
- Crystalline silica from bricks and cement and other masonry products,
- Arsenic and chromium from chemically treated timber.
- Asbestos-containing materials (Asbestos cement sheeting, fences, walls etc.
Your risk from exposure to these chemicals varies, depending on how often you do this type of work. To reduce your
exposure to these chemicals: work in a well ventilated area and work with approved safety equipment, such as dust
masks that are specially designed to filter out microscopic particles.
ROTARY HAMMER DRILL SAFETY WARNINGS
GENERAL POWER TOOL SAFETY WARNINGS
ELECTRICAL SAFETY
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions
may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to
your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases
or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs
with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of
electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord
away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric
shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected
supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use
a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of
inattention while operating power tools may result in serious personal injury.
b.Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask,
non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source
and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or
energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a
rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool
in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from
moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection can reduce dust-related hazards.
h. Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool
safety principles. A careless action can cause severe injury within a fraction of a second.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do
the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool before making
any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the
risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool
or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other
condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many
accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to
bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into
account the working conditions and the work to be performed. Use of the power tool for operations different
from those intended could result in a hazardous situation.
h. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping
surfaces do not allow for safe handling and control of the tool in unexpected situations.
5. Service
a. Have your power tool serviced by a qualified repair person using only identical replacement parts. This will
ensure that the safety of the power tool is maintained.
