Ozito PXNGS-018 User manual

STANDARD EQUIPMENT
PXNGS-018
INSTRUCTION MANUAL
SPECIFICATIONS
Input: 18V
Firing Rate: 20/min
Max. Capacity: 90 x Narrow Crown Staples
90 x C1 Brad Nails
Staple Size: 18gauge 16-22mm
Nail Size: 18gauge 15-32mm
Weight: 2.0kg
ozito.com.au
0819
Cordless Staple/Nail Gun
250 x 18 Gauge 32mm C1
Series Brad Nails, 300 x 18
Gauge 16mm Narrow Crown
Staples & Hex Key
CORDLESS
2-IN-1 NAIL
& STAPLE GUN
IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU
MUST RETURN THE PRODUCT TO YOUR NEAREST BUNNINGS
WAREHOUSE WITH YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY PLEASE TELEPHONE
OUR CUSTOMER SERVICE HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
WARRANTY
TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL
NUMBER AND DATE OF PURCHASE AVAILABLE. A CUSTOMER
SERVICE REPRESENTATIVE WILL TAKE YOUR CALL AND
ANSWER ANY QUESTIONS YOU MAY HAVE RELATING TO THE
WARRANTY POLICY OR PROCEDURE.
OZITO Australia/New Zealand (Head Ofce) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
The benets provided under this warranty are in addition to other rights and
remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded at law. You are entitled to
a replacement or refund for a major failure and for compensation for any other
reasonably foreseeable loss or damage. You are also entitled to have the goods
repaired or replaced if the goods fail to be of acceptable quality and the failure
does not amount to a major failure.
Generally you will be responsible for all costs associated with a claim under this
warranty, however, where you have suffered any additional direct loss as a result of
a defective product you may be able to claim such expenses by contacting our
customer service helpline above.
WARNING
The following actions will result in the warranty being
void.
• If the tool has been operated on a supply voltage other than that specied
on the tool.
• If the tool shows signs of damage or defects caused by or resulting from
abuse, accidents or alterations.
• Failure to perform maintenance as set out within the instruction manual.
• If the tool is disassembled or tampered with in any way.
5 YEAR REPLACEMENT WARRANTY
Your Product is guaranteed for a period of 60 months from the original date of
purchase and is intended for DIY (Do It Yourself) use only. If a product is defective it
will be replaced in accordance with the terms of this warranty. Lithium Ion
batteries and chargers are covered by a 36 month
warranty and are excluded from the warranty extension. Warranty excludes
consumable parts.

ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.
Installing The Battery Pack
1. Slide the battery into the tool
base until it clicks into place.
Removing The Battery Pack
1. Hold down the battery release
button and then slide the battery
out.
1. Force Adjustment Dial
2. On/Off Trigger
3. Sure Grip Handle
4. Battery Seating
5. Belt Clip
6. Cartridge Latch
7. Cartridge
8. Safety Striker Guard
9. Nose Piece
10. Status Indicator Light
11. Hex Key Storage
This tool is compatible with all batteries & chargers from the Ozito Power X Change
range.
CORDLESS 2-IN-1 NAIL & STAPLE GUN
BATTERY & CHARGER
KNOW YOUR PRODUCT
1. FITTING THE BATTERY
SETUP & PREPARATION
2
5
11
1
34
6
10
7
9
8

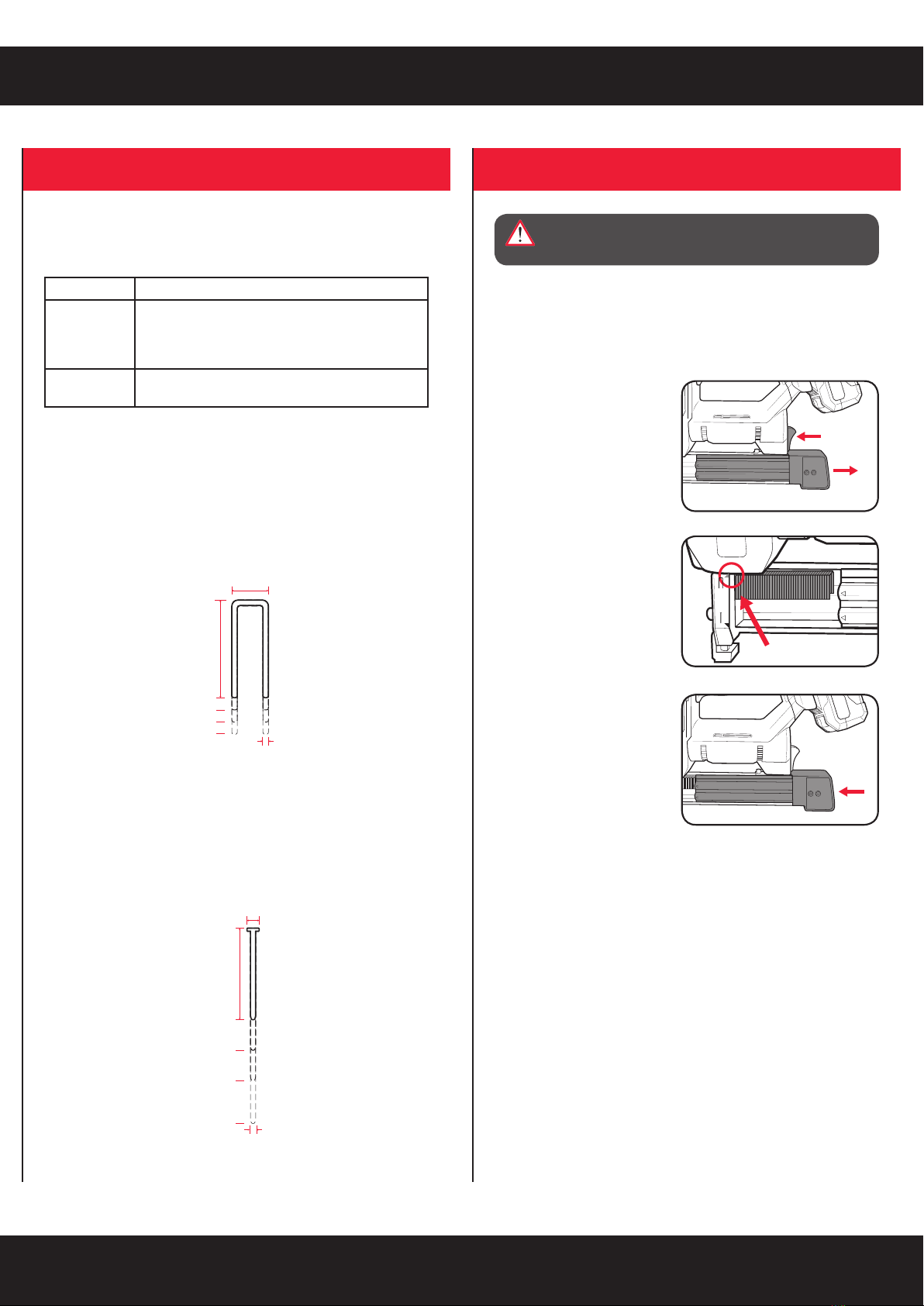

Fastener Selection
Accessories to suit this Staple Nail Gun can be purchased from Bunnings
Warehouse.
Staple Measurements
This tool accepts staples with the measurements below:
Nail Measurements
This tool accepts nails with the measurements below:
Loading Staples
This staple nailer only accepts Narrow Crown 18 gauge 16-22mm staples.
Other types of staples, including paper staples, will jam the unit. For best
results, load a full row of staples before use.
1. Press the cartridge latch down
and pull the magazine slider out
of the tool.
3. Insert a row of staples into the
opening behind the nose piece.
Be sure to align them to
the upper left corner of
the cartridge.
Note: Rows of more than 90
staples do not t in the
staple nail gun.
4. Push the magazine slider back
into the unit until it clips into
place.
2. NAIL/STAPLE SELECTION 3. LOADING THE CARTRIDGE
(1)
(2)
WARNING! ENSURE THE BATTERY IS REMOVED
BEFORE PERFORMING ANY OF THE FOLLOWING
TASKS.
Fastener Common Applications
Staples
Insulation, Upholstery, Weather Stripping, Wall
Decorations, Crafts, Covering Cornices, Webbing,
Light Fabrics, Carpeting, Wire Mesh, Plastic or Canvas
Coverings, Roong Paper, Felt.
Nails Trim Moulding, Panelling, Picture Frames, Model Work,
Any Finish Nailing Application.
15-32MM 18 GAUGE
C1 BRAD NAILS
2mm
1mm
32mm
15mm
25mm
20mm
16-22MM 18 GAUGE
NARROW CROWN
STAPLES
16mm
22mm
20mm
18mm
5.7mm
1mm
15-32MM 18 GAUGE
C1 BRAD NAILS
2mm
1mm
32mm
15mm
25mm
20mm
16-22MM 18 GAUGE
NARROW CROWN
STAPLES
16mm
22mm
20mm
18mm
5.7mm
1mm

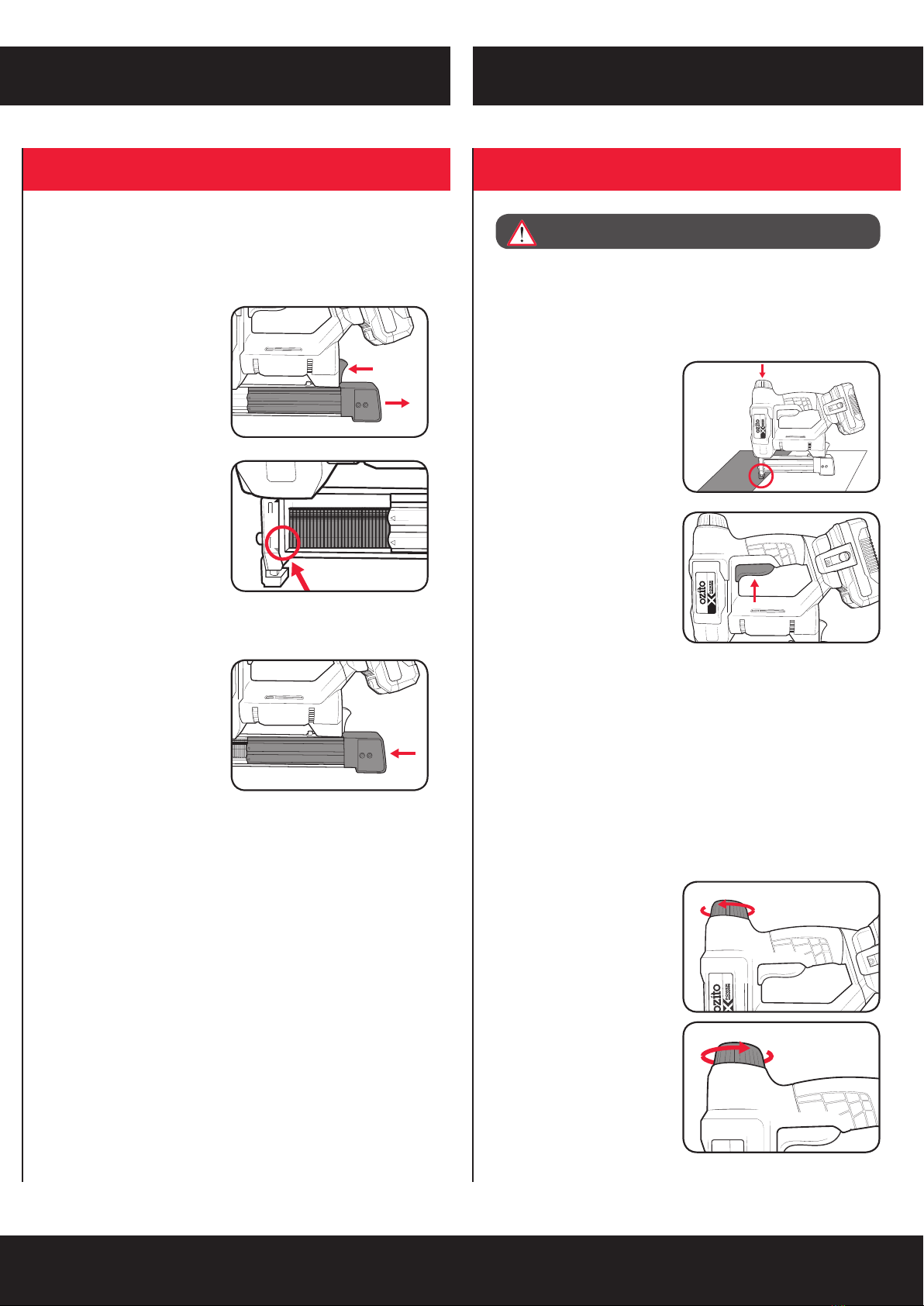

Loading Nails
This staple nailer only accepts 15-32mm 18 gauge C1 Brad nails. Other
types of nails will jam the unit. For best results, load a full row of nails
before use.
1. Press the cartridge latch down
and pull the magazine slider out
of the tool.
2. Insert a row of nails into the
opening behind the nose piece.
Be sure to align them to
the lower left corner of
the cartridge.
Note: Rows of more than 90 nails
do not t in the staple nail gun.
Note: Ensue nails are positioned correctly in the cartridge and not crooked
or upside down.
3. Push the loaded magazine back
into the unit until it clips into
place.
Firing A Staple or Nail
The Safety Striker System is a two step process where a staple or nail will
only re when the safety striker guard is pushed against the material to be
fastened.
1. With one hand, push down on
the back of the tool to press the
safety striker guard and nose
piece down onto the worksurface
to be fastened.
2. To re the staple nail gun,
squeeze the on/off trigger with
your other hand.
Note: Nails will be discharged
off centre, to the right side of the
nail gun. Test re on scrap piece of
wood to get the exact placement of
the nail relative to the gun before
use.
Staple/Nail Firing Force Adjustment
Some jobs require a lighter touch than others; reducing the force that
staples or nails are red at reduces the chance of damaging thinner more
delicate surfaces.
Note: Always test the setting on a piece of scrap material after making
any adjustments.
1. To adjust the force of the staple
nail gun, turn the dial clockwise
to increase the strength.
2. Turn the dial anti-clockwise to
decrease the strength.
Note: If the nail/staple is not fully
penetrating into the workpiece,
rmly hold down the nail gun with
two hands while ring.
PXNGS-018
4. CONTROLS
OPERATION
(1)
(2)
WARNING! ALWAYS USE BOTH HANDS WHEN
USING THE TOOL..

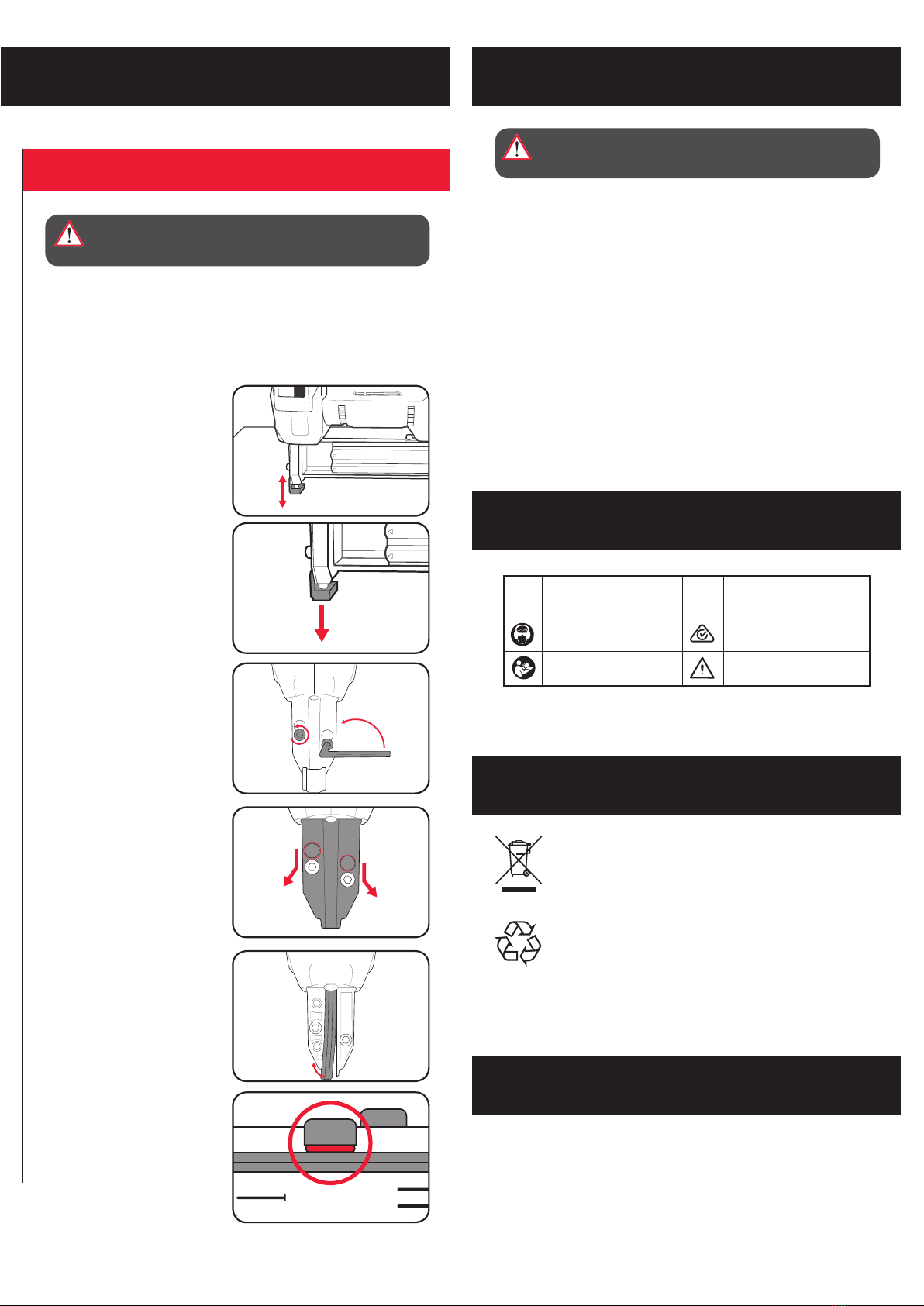

Jammed Staple or Nail
1. Press the cartridge latch down and pull the magazine slider out of the
tool.
2. Using a pair of pliers, remove any jammed staples or nails.
3. With the magazine still open, tap
the safety striker guard against
a surface to dislodge any loose
staples.
4. If the tool is still jammed, remove
the rubber safety striker guard by
pulling downward while wiggling
side to side.
5. Use the hex key to loosen the
bolts on the top of the tool.
Note: The bolts do not need to be
completely unfastened to remove
the nose plates.
6. Slide the two nose plates down
to algin the holes with the bolts,
then pull off, over the bolts.
7. Gently lift up the tongue and
dislodge any jammed fasteners
with tweezers or needle nosed
pliers.
8. To reassemble, t in the reverse
order ensuring the nose plates
are ush with the mounting
plate and the safety pin is placed
correctly between the two nose
plates. Tighten the bolts and
reattach the rubber guard.
Note: Ensure that the spring washers are positioned between the bolt
head and nose plate.
When not in use, the staple nail gun should be stored in a dry, frost free
location, keep out of children’s reach.
If the housing of the staple nail gun requires cleaning, do not use solvents.
Use of a cloth only is recommended. Never immerse any part of the staple
nail gun into liquid.
Note: Ozito Industries will not be responsible for any damage or injuries
caused by repair of the staple nail gun by an unauthorised person or by
mishandling.
WARNING! BEFORE CLEANING OR CARRYING OUT
ANY MAINTENANCE PROCEDURE, ENSURE THAT
THE BATTERIES HAVE BEEN REMOVED.
MAINTENANCE
DESCRIPTION OF SYMBOLS
VVolts mm Millimeters
AAmperes /min Per minute
Warning
Read instruction manual
Wear ear & eye protection Regulatory Compliance Mark (RCM)
Power tools that are no longer usable should not be disposed
of with household waste but in an environmentally friendly
way. Please recycle where facilities exist. Check with your local
council authority for recycling advice.
Recycling packaging reduces the need for landll and raw
materials. Reuse of recycled material decreases pollution in the
environment. Please recycle packaging where facilities exist.
Check with your local council authority for recycling advice.
CARING FOR THE ENVIRONMENT
SPARE PARTS
Spare parts can be ordered from the Special Orders Desk
at your local Bunnings Warehouse.
For further information, or any parts not listed here, visit
www.ozito.com.au or contact Ozito Customer Service:
Australia 1800 069 486
New Zealand 0508 069 486
E-mail: enquir[email protected]
SPRING WASHER
NOSE PLATE
BOLT
NOSE PLATE
5. TROUBLESHOOTING
WARNING! ENSURE THE TOOL IS SWITCHED
OFF AND THE BATTERY IS REMOVED BEFORE
PERFORMING ANY OF THE FOLLOWING TASKS.
Short Battery Runtime
Ensure the battery is properly charged. It will take 4-5 charging cycles
before the battery reaches optimum charge and run time.

ELECTRICAL SAFETY
WARNING! When using mains-powered tools, basic safety precautions, including the
following, should always be followed to reduce risk of fire, electric shock, personal injury
and material damage.
Read the whole manual carefully and make sure you know how to switch the tool off in an
emergency, before operating the tool.
Save these instructions and other documents supplied with this tool for future reference.
The charger has been designed for 230V and 240V only. Always check that the power supply
corresponds to the voltage on the rating plate.
Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New
Zealand.
This tools charger is double insulated; therefore no earth wire is required.
Note: Double insulation does not take the place of normal safety precautions when
operating this tool. The insulation system is for added protection against injury resulting
from a possible electrical insulation failure within the tool.
If the supply cord is damaged, it must be replaced by an electrician or a power tool repairer in
order to avoid a hazard.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool. Before use, inspect
the extension lead for signs of damage, wear and ageing. Replace the extension lead if damaged
or defective.
When using an extension lead on a reel, always unwind the lead completely. Use of an extension
lead not suitable for the power input of the tool or which is damaged or defective may result in a
risk of fire and electric shock.
The power supply for this products charger should be protected by a residual current device (rated
at 30mA or less). A residual current device reduces the risk of electric shock.
GENERAL POWER TOOL SAFETY WARNINGS
WARNING! Read all safety warnings and all instructions. Failure to follow the
warnings and instructions may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference.The term “power tool” in the
warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power
tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of
ammable liquids, gases or dust. Power tools create sparks which may ignite the dust or
fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can
cause you to lose control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use
any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching
outlets will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges
and refrigerators. There is an increased risk of electric shock if your body is earthed or
grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will
increase the risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the
power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or
entangled cords increase the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power
tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol
or medication. A moment of inattention while operating power tools may result in
serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment
such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for
appropriate conditions will reduce personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting
to power source and/or battery pack, picking up or carrying the tool. Carrying power
tools with your finger on the switch or energising power tools that have the switch on
invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a
key left attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better
control of the power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and
gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in
moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities,
ensure these are connected and properly used. Use of dust collection can reduce dust-
related hazards.
h. Do not let familiarity gained from frequent use of tools allow you to become complacent
and ignore tool safety principles. A careless action can cause severe injury within a
fraction of a second.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct
power tool will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that
cannot be controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power
tool before making any adjustments, changing accessories, or storing power tools. Such
preventive safety measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar
with the power tool or these instructions to operate the power tool. Power tools are
dangerous in the hands of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of
parts and any other condition that may affect the power tool’s operation. If damaged,
have the power tool repaired before use. Many accidents are caused by poorly
maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting
edges are less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions,
taking into account the working conditions and the work to be performed. Use of the
power tool for operations different from those intended could result in a hazardous
situation.
h. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery
handles and grasping surfaces do not allow for safe handling and control of the tool in
unexpected situations.
5. Service
a. Have your power tool serviced by a qualied repair person using only identical
replacement parts. This will ensure that the safety of the power tool is maintained.
STAPLE NAIL GUN SAFETY WARNINGS
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety.
• Always assume that the tool contains fasteners. Careless handling of the nailer or stapler
can result in unexpected firing of fasteners and personal injury.
• Do not point the tool towards yourself or anyone nearby. Unexpected triggering will
discharge the fastener causing an injury.
• Do not actuate the tool unless the tool is placed rmly against the workpiece. If the tool is
not in contact with the workpiece, the fastener may be deflected away from your target.
• Disconnect the tool from the power source when the fastener jams in the tool. While
removing a jammed fastener, the tacker may be accidentally activated if it is plugged in.
• Do not use this nailer or stapler for fastening electrical cables. It is not designed for electric
cable installation and may damage the insulation of electric cables thereby causing electric
shock or fire hazards.
• Always use both hands to operate the tool. Your secondary hand should be used to press
the back of the tool firmly down onto the surface to be fastened.
