Extreme Fridge Slide
MODEL NO: 10000569
OWNERS MANUAL
IMPORTANT
Do not use the slide until all installation instructions have
been completed and full operation is understood.
Not recommended for use by minors.

INSTALLATION INSTRUCTIONS
The slide can be secured using self-tapping
screws or nuts and bolts through the
predrilled holes located along the base frame
depending on the surface that the slide is
being attached to. Use suitably weight rated
mounting hardware only.
It is recommended that the slide is secured
at a minimum of six (6) equally spaced points
across the base frame.
DO NOT attempt to install with the fridge
mounted to the slide, only install fridge once
the slide is secured in position.
1. Place slide in position where it is to be
installed with the release handle facing in
the direction that the slide is to pull out
from.
2. Extend slide slightly by rotating the
release handle in an anti-clockwise
direction until fridge tray is released.
3. Commence installing the fasteners
starting from the rear and moving forward
using the pre drilled holes
4. If the slide is not moving smoothly,
loosen the fasteners slightly. This may
be caused because the screws/bolts/
fasteners will pull the base frame down to
the mounting surface unevenly and cause
the slide runners to angle inwards. This
is particularly the case if the mounting
surface is covered in a carpet material.
5. When all fasteners are in place, slide
installation is complete.
112.5
260260
260
118
180
180
119
358
112.5260
258.4260
536
886
560
300
4-R30
640
427
956
63
190
190
10
35
112.5
260260
260
118
180
180
119
358
112.5260
258.4260
536
886
560
300
4-R30
640
427
956
63
190
190
10
35

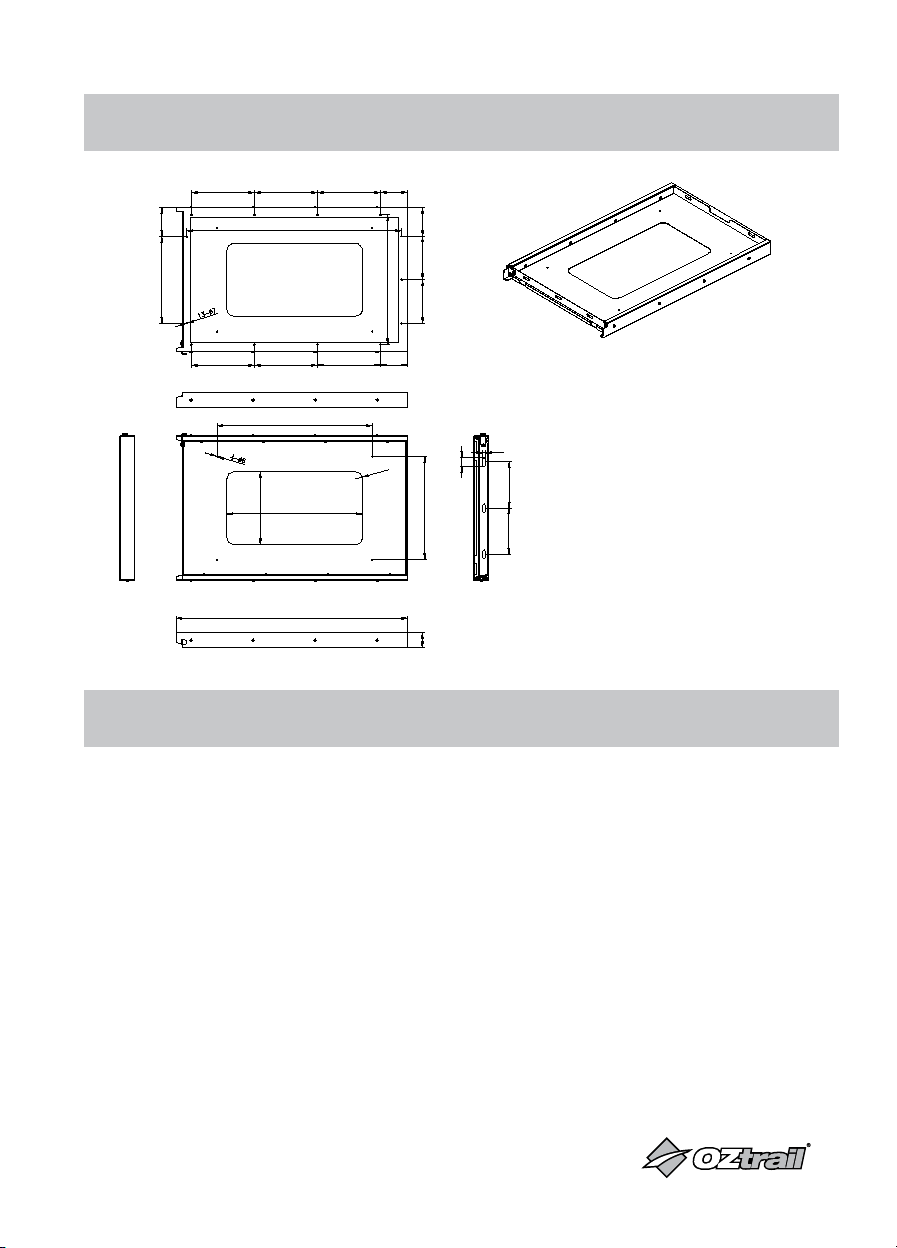

DIMENSIONS AND MOUNTING POINTS

INSTALLATION INSTRUCTIONS OPERATION
MOUNTING FRIDGE
1. Grip the handle of the fridge and rotate the
release handle in an anti-clockwise direction
2. Pull forward until fridge starts to move.
3. The release handle can be allowed to return
to its standard position as the fridge is being
pulled forward.
Note: The design of the slide allows the fridge to
be locked half way along the length of the slide.
Repeat the same steps to extend the slide to its
full length and to return to its closed position.
* 200kg max load capacity
* 2 Year warranty
1. Locate the fridge in the fridge tray 2. Secure fridge by using the four (4)
tie down straps provided through
the handles of the fridge and slots
located in the fridge tray
NOTE - The fridge slide can be used
with any brand of fridge that ts inside
the slide tray
