P1PE - PETROL LAWN MOWER
Models P4100P, P4600SP, P5100SPE
Owners Manual
P1PE - Position One Power Equipment
Issac Way, Pembroke Dock, Pembrokeshire, SA72 4RW
www.p1pe.co.uk

Page | 2
IMPORTANT: PLEASE READ THE ENGINE MANUAL
BEFORE FIRST USE OF YOUR LAWN MOWER
CONTENTS:
INTRODUCTION: 3
SAFETY INFORMATION: 4
KNOW YOUR LAWNMOWER: 9
GRASS CATCHER/DEFLECTOR ASSEMBLY: 10
HANDLE ASSEMBLY: 10
ADJUSTMENT OF CUTTING HEIGHT: 11
PRECAUTIONS: 12
OPERATION: 12
4 IN 1 FEATURE: 15
GEAR BOX MAINTENANCE: 17
STORAGE 19
MAINTENANCE: 20
TROUBLESHOOTING: 22
DECLARATIONS OF CONFORMITY: 24
PRODUCT RECYCLING: 25
WARRANTY: 26
SPECIFICATIONS: 27

Page | 3
INTRODUCTION:
Thank you for purchasing a P1PE Lawnmower. This Lawnmower will give you many years of safe and
reliable service if operated in accordance with these instructions. Please read and understand this
owner’s manual before using your lawnmower, failure to do so could result in personal injury or
damage to the lawnmower.

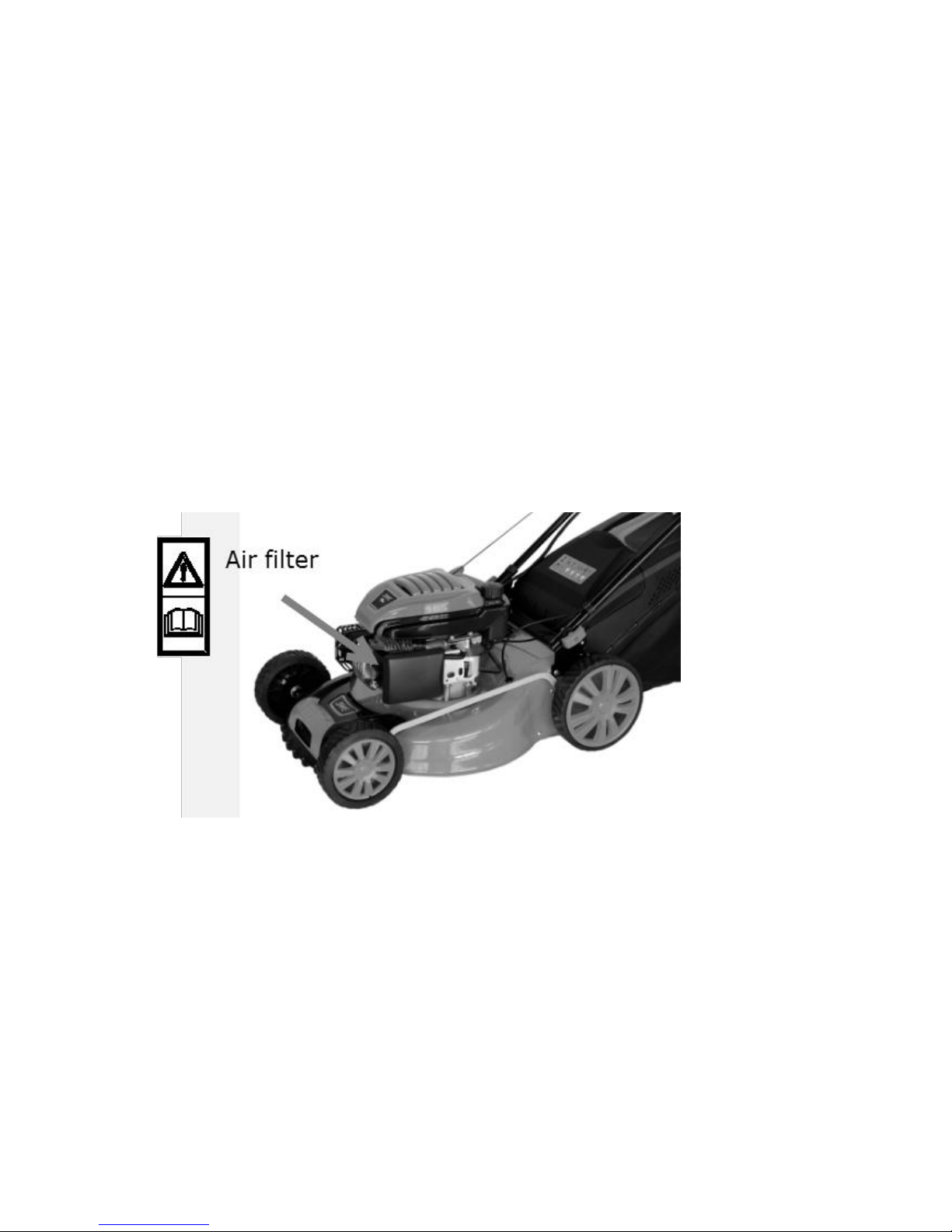

NEVER TIP THE LAWNMOWER FORWARDS OR ON TO ITS SIDE, THIS WILL FLOOD THE CYLINDER
AND AIR FILTER WITH OIL. To access the underside, lift the front wheels by lowering the handle
until it rests on the ground. Only do this when the engine is stopped.
www.p1pe.co.uk

Page | 4
SAFETY INFORMATION:
The operator of the machine is responsible for, and has a duty of care in making sure that the
machine is operated safely and in accordance with the instructions in this user manual.
Keep the manual safe and pass it on if the machine is loaned or sold to another user.
Please note the following safety points.
A) The machine should never be left it in a condition which would allow an untrained or
unauthorised person/s to operate this machine.
B) All due care and diligence should be taken by the operator for the safety of, and with regard
to, those around whilst using the machine.
C) Some or all of the following - warning signs, symbols and/or PPE pictograms may appear
throughout this manual. You MUST adhere to their warning/s. Failure to do so may result in
personal injury to yourself or those around you.
Indicates a hazard, which, if not avoided, could result in serious injury or death.
Indicates a hazard, which, if not avoided, could result in serious injury.
Indicates a hazard which, if not avoided, might result in minor or moderate injury.
Indicates a situation that could easily result in equipment damage.
READ and keep the manual safe and pass it on if the machine is loaned or sold to another user. You
MUST fully read instructions to make sure you use and operate machine safely.
Appropriate Personal Protective Equipment (PPE), MUST be worn at all times when machine is in use
or being repaired.

Page | 5
Carbon Monoxide
Carbon monoxide is a colourless and odourless gas.
Inhaling this gas can cause death as well as serious
long term health problems such as brain damage.
The symptoms of carbon monoxide poisoning can
include but are not limited to the following;
Headaches, dizziness, nausea, breathlessness,
collapsing or loss of consciousness.
Carbon monoxide poisoning symptoms are similar to
flu, food poisoning, viral infections and simply
tiredness. It is quite common for people to mistake this very dangerous poisoning for something else.
To avoid carbon monoxide poisoning DO NOT use Petrol/Diesel- powered equipment inside any of the
following; Home, garage, tent, camper van, mobile home, caravan or boat.
This list is not exhaustive and if you are in any doubt contact your dealer.
If you think you have or someone around you has been affected by carbon monoxide poisoning;
Get them fresh air immediately, by leaving the affected area or by opening doors and windows. If safe
and practical to do so make sure that the machine is turned off. DO NOT enter a room you suspect of
having carbon monoxide present –instead call the emergency services.
Contact a doctor immediately or go to hospital - let them know that you suspect carbon monoxide
poisoning.
DO NOT use in an enclosed area or a moving vehicle.
General fuel safety (where applicable).
ALL FUELS ARE FLAMMABLE
Fire hazard - keep fuel away from all sources of ignition for example heaters, lamps, sparks from
grinding or welding.

Page | 6
DO NOT carry out hot work on tanks that have contained fuel it is extremely dangerous.
ALWAYS keep work area clean and tidy.
ALWAYS clean up all spills promptly using correct methods i.e. absorbent granules and a lidded bin.
ALWAYS dispose of waste fuels correctly.
Fuelling/De-fuelling (where applicable).
ALL FUELS ARE FLAMMABLE
ALWAYS fuel and defuel in a well-ventilated area outside of buildings.
ALWAYS wear correct, suitable and fit for purpose Personal Protective Equipment (PPE), suggested
items are but not limited to safety gloves and overalls.
When fuelling/de-fuelling ALWAYS avoid inhaling fumes
When de-fuelling ALWAYS use a propriety fuel retriever.
ALWAYS carry fuel in the correct and clearly marked container.
Electrical safety (where applicable).
Electricity can kill - NEVER work on LIVE/ENERGISED equipment.
Prior to carrying out any maintenance work you MUST Identify electrical isolation methods and isolate
all electrical supplies,
Prior to use and with all electrical supplies isolated You MUST check all electrical cables, plugs and
connections for the following;
Are intact and have no signs of damage, to include but not limited to bare wires, chaffing, cuts and
loose wiring.

Page | 7
If there are any signs of damage, the damaged item MUST be taken out of service until the damage
has been repaired by an electrically competent person.
All trailing cables should be routed so as not to cause any kind of trip hazard.
NEVER work on or near electricity with wet hands, wet clothing, and wet gloves.
Batteries (where present).
Batteries present a risk if they become damaged by the possible leaking of electrolyte. This electrolyte
is an acid and can cause serious burn injuries. Care should be taken when working on or near them.
NOTE the electrolyte may be in liquid or gel form.
Should you come into contact with electrolyte you should;
Remove all clothing contaminated with electrolyte. If you cannot remove then saturate in water.
Get medical assistance as soon as possible. You must advise the medical staff of the type acid.
Lead/acid battery = dilute sulphuric acid
Nickel/cadmium = potassium hydroxide alkali electrolyte.
Use fresh running water to wash off excess electrolyte, continue this until medical assistance arrives.
Make sure that you do not wash the electrolyte to another part of the face or body.
If electrolyte comes into contact with Eyes the electrolyte needs to be immediately washed away with
large amounts of water. Make sure that you do not wash the electrolyte to another part of the face or
body.
Gasses from charging batteries are highly flammable and great care should be taken to charge in well
ventilated areas.
There is an explosion risk if the battery terminals are short circuited, when connecting/dis-connecting
ALWAYS exercise great care so that the terminals or battery leads are NOT allowed to touch and cause
a spark. ALWAYS use suitable insulated tools.

Page | 8
Vibrations (where applicable).
Prolonged use of hand held (operated) machines will cause the user to feel the effects of/from
vibrations. These vibrations can lead to white finger (Raynaud's phenomenon) or carpal tunnel
syndrome. This condition reduces the ability of the hand to feel and regulate temperature, causing
numbness and heat sensations and may cause nerve damage and circulatory tissue death.
Not all factors that lead to white finger disease are known, but cold weather, smoking and other
diseases that affect blood vessels and blood circulation as well as large and long-lasting impact of
shocks are considered factors in the formation of white finger. Note the following to reduce the risk
the white finger and carpal tunnel syndrome:
Wear gloves and keep your hands warm
Take regular breaks
All of the above precautions may help reduce the risk of white finger disease but not rule out carpal
tunnel syndrome. Long-term and regular users are therefore recommended to observe the condition
of your hands and fingers. Seek medical attention immediately if any of the above symptoms should
occur.
Noise (where applicable).
The operating noise of the machine can damage your hearing. Wear hearing protection such as
earplugs or ear defenders to protect your hearing. Long- term and regular users are advised to have
hearing checked regularly. Be especially vigilant and cautious when wearing hearing protection
because your ability to hear alarm warnings will be reduced.
Noise emissions for this equipment is unavoidable. Carry out noisy work at approved times and for
certain periods. Limit the working time to a minimum. For your personal protection and protection of
people working nearby it is also advisable for them to wear hearing protection.
See CERTIFICATE of CONFORMITY section for outdoor noise declaration of conformity.

Page | 9

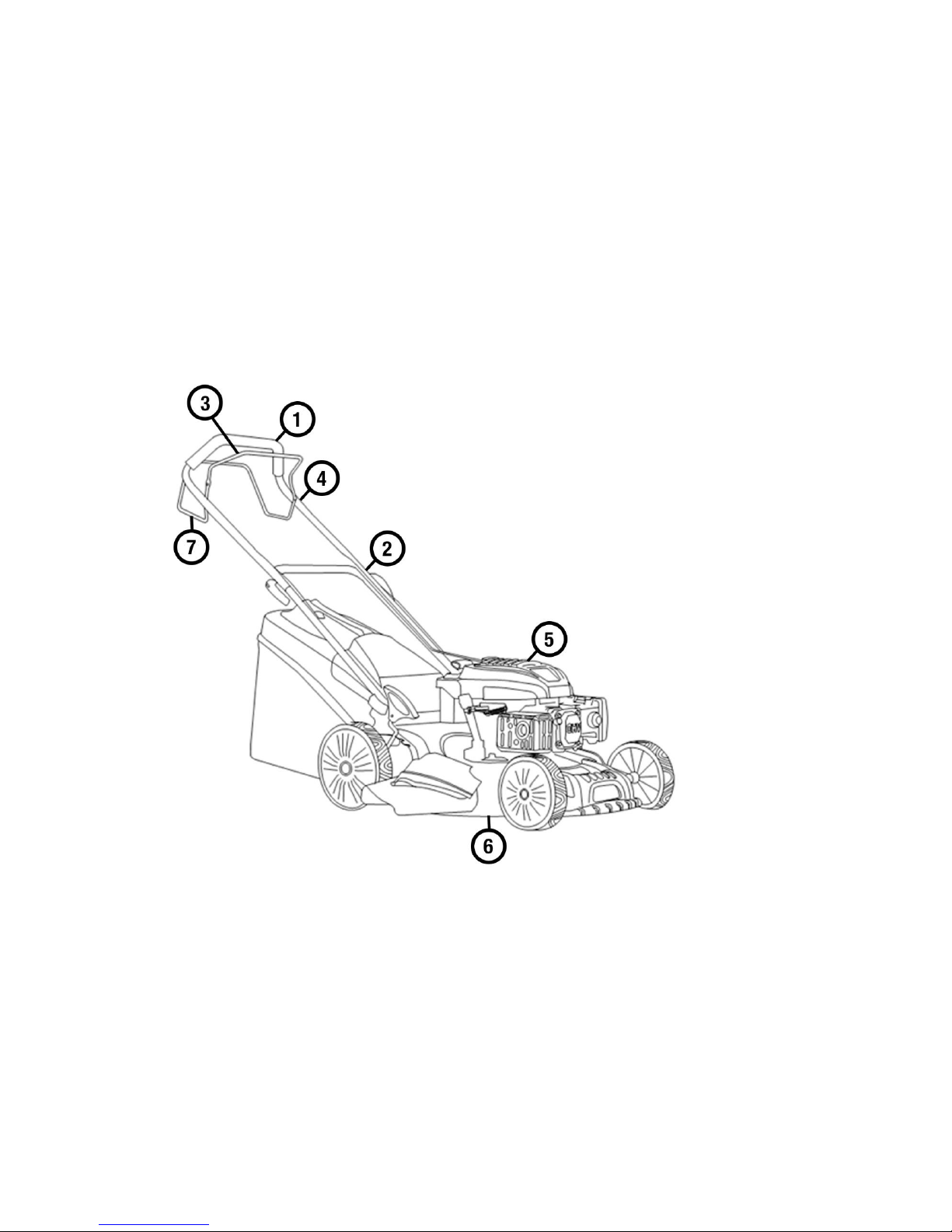

KNOW YOUR LAWN MOWER:
1) Upper Handle
2) Lower Handle
3) Engine Control Bar
4) Throttle Control
5) Engine
6) Deck
7) Self-propelled Drive Control Bar (Only Available On P4600SP & P5100SPE)

Page | 10

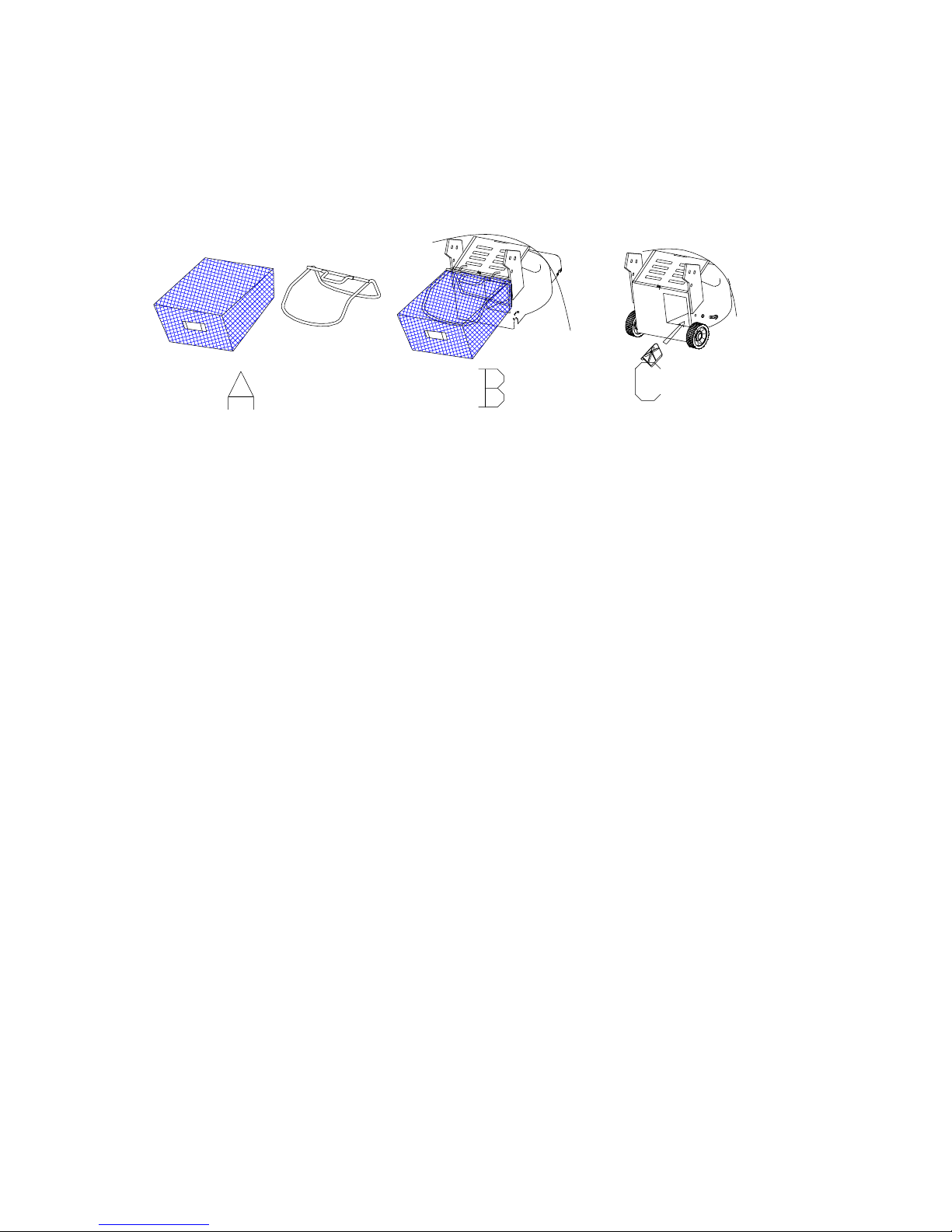

ASSEMBLY OF GRASS CATCHER:
A) Insert the grass catcher frame inside the grass catcher bag.
B) Hitch the grass catcher bag onto the rear of the lawnmower.
C) Pull up the deflector and place the grass catcher bag into place.

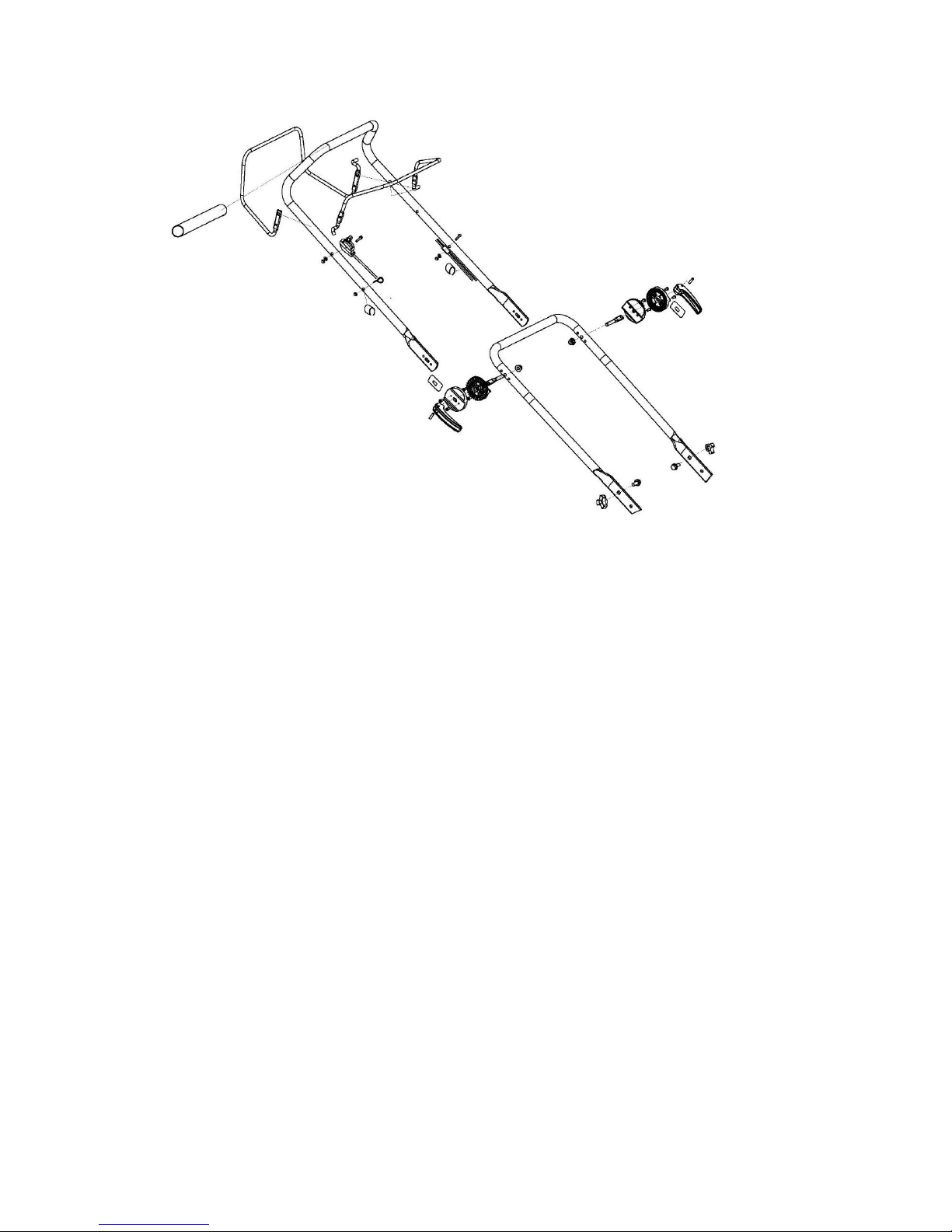

ASSEMBLY OF THE HANDLE:
A) Attach the lower handle to the handle brackets and the upper handle to the lower handle,
making sure that all cables run smoothly and do not snag when the handles are folded.
B) Attach the recoil start cord bracket onto the right hand side of the upper handle.
C) Secure the cables with the plastic collars.
D) Slip the recoil cord through the recoil cord bracket on upper right handle.

Page | 11
CUTTING HEIGHT ADJUSTMENT:
A) The cutting height adjuster is located above the rear right wheel.
Apply outward pressure to disengage the lever from the rack. Move lever forward or back to
adjust the height.
HANDLE HEIGHT ADJUSTMENT:
A) Pull the locking levers open on both sides of the handle.
B) Adjust the angle of the handle by raising or lowering as required. The angle can be adjusted
in 20º increments.
C) Push the locking lever closed to securely connect the lower handle to the upper handle.
STARTER HANDLE:
A) Move the starter handle from the engine to the rope guide.

Page | 12
PRECAUTIONS:

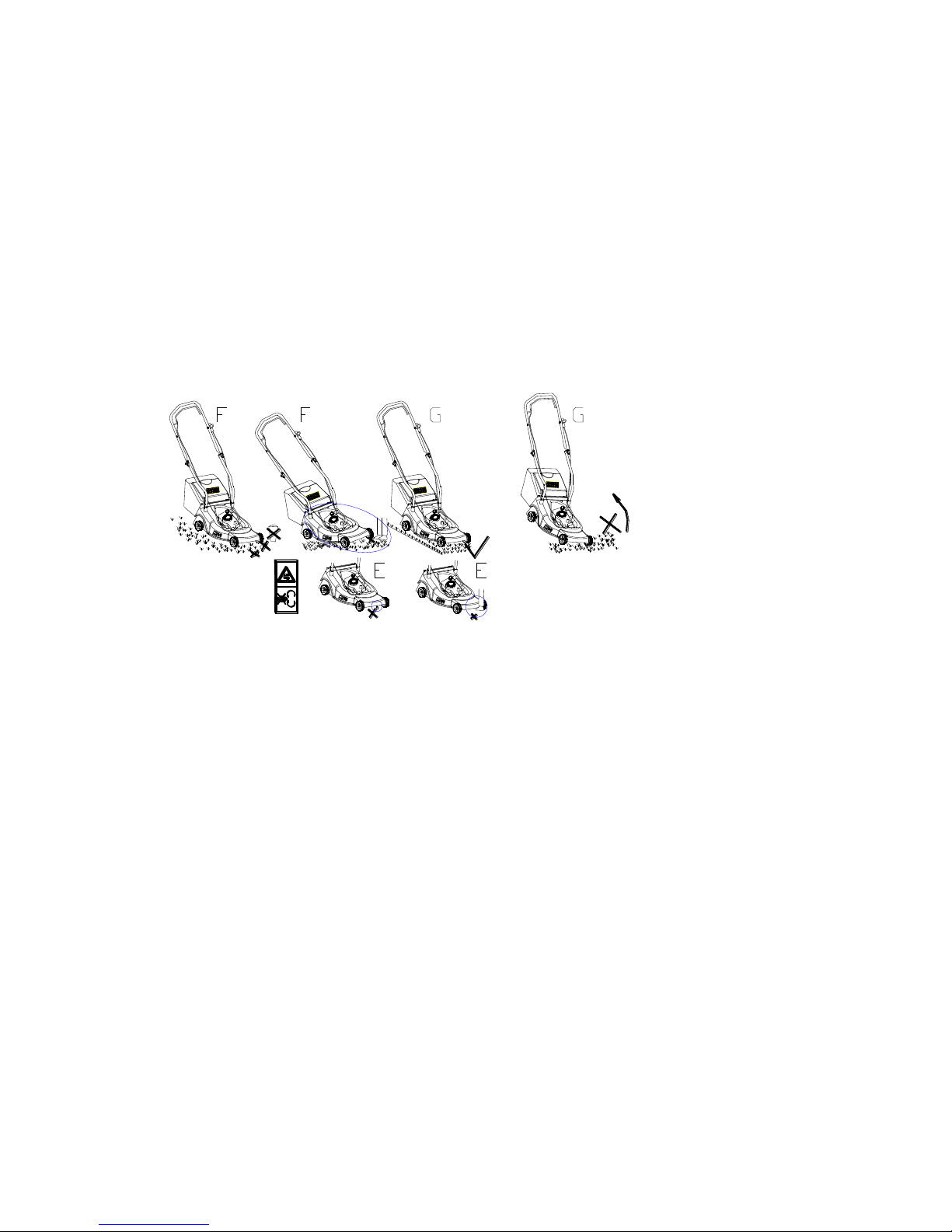

A) Always use the lawnmower with the grass catcher and/or deflector in position.
B) Always stop the engine before emptying the grass catcher or changing the cutting height.
C) Never place your hands or feet under the lawnmower or grass ejection area whilst the
engine is running.
D) Remove all hazardous objects from the lawn which could be thrown up by the lawnmower
before mowing.
E) Keep children, animals and bystanders away when the lawnmower is in operation.
F) Never lift or tilt the lawn mower while starting the engine.
OPERATION: OUTDOOR USE ONLY
A) Before using the lawnmower for the first time read the engine manual supplied with your
lawnmower (NOTE: Lawnmower is delivered without oil, add 0.4 litres (99cc engine) or 0.6
litres (139 & 173cc engines) of SAE10w30 or 15w40 engine oil before starting the
lawnmower –DO NOT OVERFILL).
STARTING PROCEDURE:
Once the lawnmower has been assembled start the engine as follows:
Fill engine with SAE10w30 or 15w40 engine oil, do not overfill.
Fill the fuel tank with straight, fresh UNLEADED petrol, only use clean, fresh petrol –stale petrol
may have a lower combustible value and contain deposits that will clog the carburettor, causing
the engine not to start. The petrol level should be below the bottom of the fuel tank neck.
Ensure that the spark plug lead is securely connected to the spark plug.

Page | 13
A) Push the throttle lever all the way forward to the start position or choke position.
B) Pull and hold the operators presence control (OPC) lever against the handle to disengage the
engine brake. THE ENGINE WILL NOT START, OR CONTINUE TO RUN, UNLESS THE OPC
LEVER IS HELD AGAINST THE HANDLE.
C) Pump the primer bulb 5 times when cold and 1-2 times when hot.
D) Pull the starter cord with a strong smooth pull, do not remove the pull cord from the guide.
E) As soon as the engine starts, move the throttle lever to RUN position symbol from the
choke/start position .
NOTE: Using the choke is usually unnecessary when starting a warm engine. However in cool
weather it may still be necessary to use the choke to start the engine. If the engine is fitted with a
primer bulb, pump it 5 times when cold and 1-2 times when hot.
WARNING: The blade will rotate as soon as the engine is started, hold the OPC handle into the
working position. The engine will stop as soon as you release the engine OPC lever. If starting the
lawnmower in long grass, lift the cutting height to the highest position to avoid drag from the long
grass and the rotating blade during start up.
NOTE: Before first use, check and if necessary adjust the OPC (Operator Presence Control or
engine cut out lever) control cable, if it is too loose the lawnmower will not start. To locate the
adjuster follow the cable from the OPC handle to the engine body where you will see the OPC
adjuster. If the OPC cable is too loose you will need to tighten it, when the OPC lever is pulled
towards the main handle, the OPC engine control lever (see diagram below) should start to
move. If the engine control lever does not move until the OPC lever is halfway towards the main
handle it will need to be adjusted.

Page | 14
SELF PROPELLED FUNCTION: (Models May Vary)
A) To engage the self-propelled function push the rear lever forward towards the main upper
handle. (NOTE: self-propelled function is featured on P4600SP & P5100SPE Models).

Page | 15
4 IN 1: OVERVIEW - MULCHING, SIDE-DISCHARGE & REAR DISCHARGE:
MULCHING:
Mulching lawn mowers recycle grass clippings by finely cutting and re-cutting the grass concealing
cuttings within the standing grass to wilt and decompose thereby feeding the soil.
TIPS FOR MULCH MOWING
A) Cut your lawn regularly. Ideally, for example, where the grass height is 6cm only cut 2cm off.
B) Ensure the lawnmower blade is sharp.
C) Do not mulch wet grass.
D) Set engine speed to MAX.
E) Only push lawnmower at walking pace.
F) Regularly clean mulching wedge, inner side housing and lawnmower blade.
FITTING THE MULCHING PLUG:
NOTE: ONLY FIT WHEN ENGINE IS SWITCH OFF.
WARNING: ONLY FIT WHEN THE ENGINE & BLADE ARE STATIONARY.
A) Lift the rear discharge flap and remove the grass catcher.
B) Push the mulching wedge into the discharge channel.
C) Lock the mulching wedge with the housing nose to the bottom side of the mulching wedge
grip, the mulching wedge grip must snap into the opening of the housing (see pictures 1 & 2)
D) Lower the discharge flap.

Page | 16
SIDE-DISCHARGE:
NOTE: ONLY RESET WITH A TURNED OFF AND STATIONARY LAWNMOWER & ENGINE
A) Lift the rear discharge flap and remove the grass catcher box.
B) Mount the mulching wedge (see mulching).
C) Lift side flap for side discharge (see pictures 3 & 4).
D) Mount the discharge channel for side discharge on the support pin of the rear flap (see
picture 5).
E) Lower the rear flap, the rear flap lies on the discharge channel (see picture 6).
MOWING WITH THE GRASS CATCHER:
A) For mowing with the grass catcher box, remove the mulching plug and mount the grass
catching box under the rear discharge flap.
REMOVING THE MULCHING PLUG:
NOTE: ONLY FIT WITH THE LAWNMOWER & ENGINE TURNED OFF AND STATIONARY.

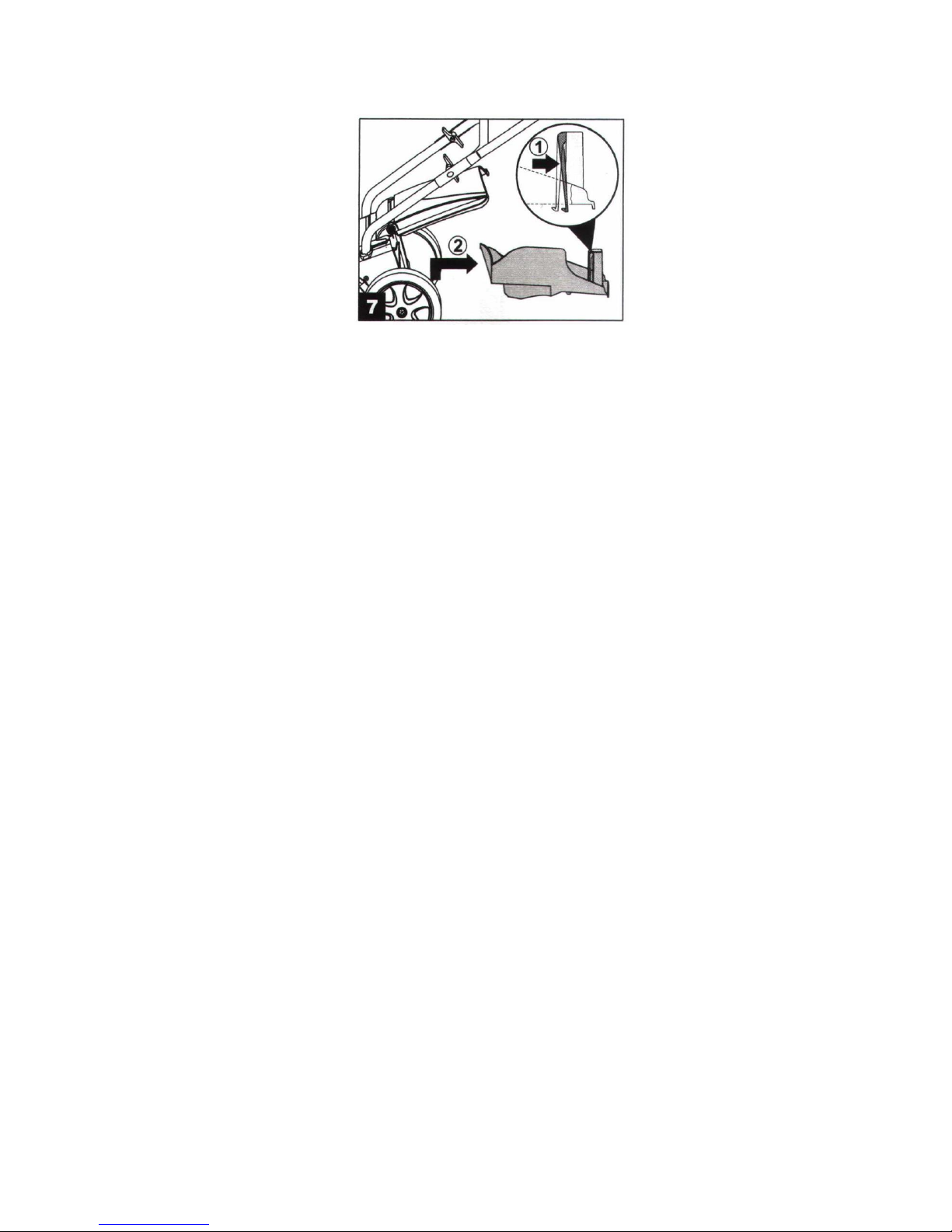

A) Lift the discharge flap and remove the mulching plug by unlocking the clip located on the
handle and remove (see picture 7)

Page | 17
FOR SIDE DISCHARGE:
NOTE: ONLY FIT WHEN LAWNMOWER & ENGINE IS TURNED OFF AND STATIONARY.
A) Lift rear discharge flap and fit mulching plug.
B) Lift side discharge cover and fit side discharge chute.
GEAR BOX MAINTENANCE:
A) Check and adjust the drive belt when required. It is important that the drive belt is tensioned
correctly. A loose drive belt will slip and cause excessive wear to the belt and lost drive to
the rear wheels.
B) Annually, grease the gears located within the wheels and ensure the wheel bearings are free
from corrosion and moisture.
GENERAL CONDITIONS OF USE:
1) This petrol lawnmower is to be used for cutting natural grass, never use the lawnmower for
any other purposes. Any other use can put your safety at risk and damage to lawnmower.
2) Persons under the age of 16 and not familiar with the user instructions must not use this
lawnmower.
3) The user is responsible for the safety of others within the working area. Keep children and
domestic animals at a safe distance (at least 15m away) while the mower is in use.
4) Before mowing, remove all objects from the lawn which may be thrown by the machine,
stay alert for any foreign objects which may have been missed. The blade rotates at
2800rpm, if a stone or any foreign object is contacted by the blade, it can be thrown out of
the cutting area at very high speed, causing injury or damage. Please ensure the lawn is
checked before mowing for any stones of foreign objects. Also wear heavy duty safety foot
wear and thick trousers to minimise injury from flying objects.
USING INSTRUCTIONS:
1) Check that all nuts, bolts and screws are tight.
2) Before mowing place the grass catcher bag in position.

Page | 18
3) Before mowing make sure that the blade and blade fixing screw are securely fastened. When
blade requires sharpening this must be done evenly on both sides of the blade to prevent
any imbalance. If the blade is damaged it must be replaced.
4) When mowing always wear long trousers and strong safety footwear.
5) Do not start the engine in an enclosed and/or poorly ventilated area, fumes from the engine
contain carbon monoxide and can kill in minutes.
6) Only operate the lawnmower when there is sufficient light.
7) Do not use the lawnmower when raining or when the grass is wet.
8) Never mow up or down slopes, always mow across the face of the slope.
9) Always turn off the engine if you leave the lawnmower unattended, displace the lawnmower
or incline it.
10) Never lift the rear of the mower while starting the engine.
11) Never place your hands and feet underneath the deck or into the rear or side discharge
chutes when the engine is running.
12) Never change the rated speed of the engine. This is set at 2800rpm by the factory.
13) Release the self-propelled lever before starting the engine (P4600SP & P5100SPE only).
14) Stop the engine and remove the spark plug cap if undertaking maintenance in the following
cases:
A) Before undertaking any operation under the deck or rear discharge chute.
B) Before any maintenance, repairing or checking operations.
C) Before carrying, lifting or removing the mower.
D) If you leave the mower unattended
F) To remove and emptying the grass catcher
G) After hitting an object, stop the engine and check the mower over for damage, bring the
mower to an approved service centre to repair if necessary.
H) If the mower vibrates in an abnormal way, find the reasons why and take to an approved
service centre
I) Check regularly that the bolts, nuts and screws are securely tightened for safe use of the
mower.
WARNING: AFTER YOU STOP THE ENGINE THE BLADE IS STILL IN MOTION FOR A SHORT PERIOD OF
TIME.
WARNING: PETROL IS HIGHLY FLAMIBLE
1) Keep petrol in a jerry can especially designed for this purpose.
2) Fill up the fuel tank with a funnel.
3) Fill up the fuel tank outside.
4) Do not smoke.
5) Do not use a mobile phone.
6) Fill up with petrol and oil before starting the engine.
7) Never open the fuel cap and /or fuel whilst the engine is running or still hot.
8) Do not start the engine if fuel has been spilt.

Page | 19
WARNING: STOP THE ENGINE & UNPLUG THE SPARK PLUG BEFORE ANY REPAIRS OR
MAINTENANCE
1) Make sure all nuts, bolts and screws are kept well tightened to keep the lawnmower in a
safe operating condition.
2) Never store the lawnmower over winter with petrol still in the tank.
3) Allow the engine to cool down before storage.
4) To reduce the risk of fire clean the lawnmower in particular the engine, muffler and fuel
tank.
5) Remove all traces of grass, leaves or excess grease.
6) Check frequently the condition of the deflector and the grass catcher, replace them if
damaged.
7) Wear protective gloves for the mounting and sharpening of the blade. Always ensure the
blade is balanced.
STORAGE:
The following steps should be taken to prepare the lawn mower for storage at the end of the
mowing season.
1) Remove the fuel from the tank and carburettor by running the engine until it stops.
a) Start the engine and let it run until it has used up all remaining petrol and stalls.
b) Remove the spark plug. Pour approx. 20 ml of SAE10w30 or 15w40 engine oil into the combustion
chamber.
2) Pull the starter cord to evenly distribute the oil in the combustion chamber. Replace the spark
plug.
3) Clean and grease the lawnmower carefully.
4) Oil the blade and under deck area with WD40 type oil to prevent corrosion.
5) Store the lawnmower in a dry, clean and frost-protected place
CAUTION: The engine must have completely cooled down before storing the lawnmower.
NOTE: When storing any type of power equipment in an unventilated or material storage shed,
Care should be taken to rust-proof the equipment. Using a light oil (WD40 type), coat the
equipment, especially cables and all moving parts.
Be careful not to bend or kink cables when folding the handles.
If the starter rope becomes disconnected from rope guide on the handle, pull the starter rope out
from the engine slowly, with the OPC lever released, to prevent the engine from accidently starting.
Slip the starter rope into the rope guide on the handle.
When transporting, engine must be off. Take care not to bend or damage the blade when pushing
the lawnmower over obstacles.

Page | 20
MAINTENANCE:
WARNING: STOP THE ENGINE & UNPLUG THE SPARK PLUG BEFORE ANY REPAIRS OR
MAINTENANCE
1) Carefully read the engine manual for four stroke lawnmowers.
2) Check the oil level regularly and add/replace oil if necessary.
3) Remove grass and dirt deposits from beneath the deck.
4) Oil the wheel bearings and grease the rear drive cogs inside rear wheels annually.
5) Check the blade before use, the blade should always be sharp and balanced.
6) Ensure all bolts and screws are tight, loose bolts and screws can damage the engine and
frame while in operation.
7) Regularly service your lawnmower for long life.
8) Only use original spark plug, for best results replace the spark plug every 100 hours of use.
9) Do not allow dirt or dust to clog the air filter foam element, the engine air cleaner element
must be cleaned after 25 hours of normal lawn mowing. The foam element must be
serviced regularly if the mower is used in dry dusty conditions.
TO CLEAN THE AIR FILTER:
1) Remove the filter cover.
2) Wash foam filter element in soap and water. DO NOT USE PETROL!
3) Air dry the filter element.
4) Place a few drops of SAE10w30 or 15w40 engine oil on the foam filter and squeeze tightly to
remove any excess oil.
5) Reinstall the filter.
NOTE: Replace the filter if frayed, torn, damaged or unable to be cleaned.
If a paper filter is fitted, blow out with an airline every 25 hours and replace every 100 hours. More
often in very dusty conditions.
