Palsonic PAL142CHF User manual

User’s Manual
PAL142CHF
PAL198CHF
142 / 198 Litre Chest Freezer
Offering Australians quality since 1958 | www.palsonic.com.au

2
TABLE OF CONTENTS
Parts & Features
3
Important Safety Instructions 4
Installation Instructions
4
Before UsingYour Freezer 4
InstallingYour Freezer 4
Electrical Connection 5
Operating Your Freezer 5
Temperature Control 5
The Fast Freeze Switch (Amber)
6
DefrostingYour Freezer 6
The FreezerCompartment
6
Care And Maintenance 7
CleaningYour Freezer 7
HolidayTime
7
MovingYour Freezer 7
Energy Saving Tips 7
Troubleshooting Guida 7-8

Proper use of freezers
The low temperature of freezer may keep food fresh for a long time and it is mainly used to store
frozen foods and making ice.
The freezer is suitable for storage of meat, fish, shrimp, dumplings, rice balls and other foods not
to be consumed in short term.
Chunks of meat are preferably to be divided into small pieces for easy access.
Please be noted food shall be consumed within the shelf time.
Door handles
Temperature control panel
Wheel
Power cord
Drainage hole

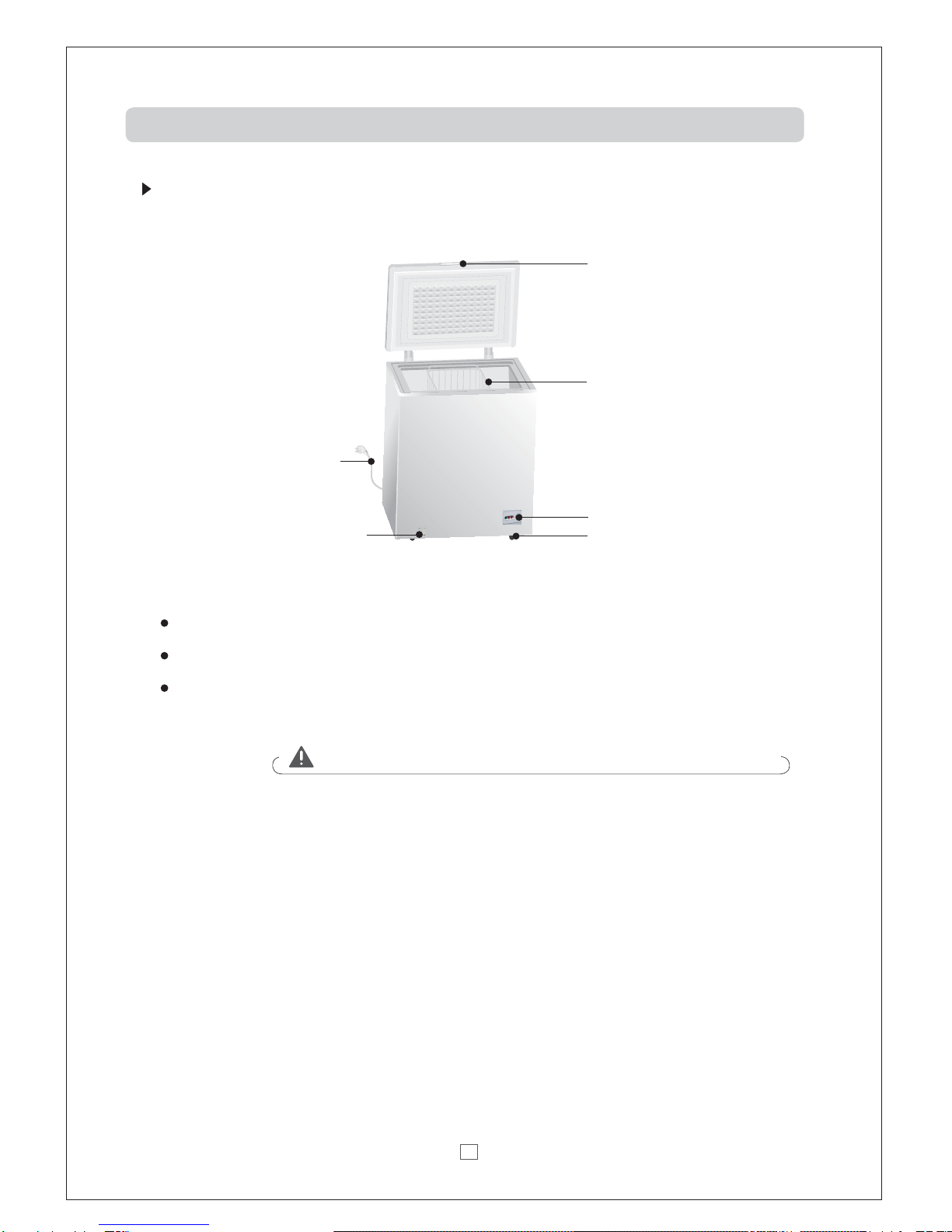

Names of components
The features and accessories of the freezer you bought may be not
entirely consistent with the legend, please refer to the packing list.
4

4
IMPORTANT SAFETY INSTRUCTIONS
,...WARNING,...
To reduce the risk of fire, electrical shock,
or injury when using your freezer, follow
these basic precautions:
•
Readallinstructionsbeforeusingthefreezer.
DANGER or WARNING: Risk of child entrapment.
Child entrapment and suffocation are not problems of the past. Junked or abandoned
freezers are still dangerous, even ifthey will "just sit inthe garage a few days."
•
Beforeyou throw away your oldfreezer: Take offthe doors. Leavethe shelves in
place sothat children may not easily climb inside.
•
Never allow children to operate, play with, or crawl inside the freezer.
•
Never clean freezer partswith flammable fluids. The fumes can create afire hazard
orexplosion.
•
Do not store or use gasoline or any other flammable vapors and liquids inthe vicinity
of this or any other freezer. The fumes can create a fire hazard or explosion.
•
The appliance is not intended for use byyoung children or infirm persons with
outsupervision. Young children should besupervised to ensure that they do
notplaywith the appliance.
-Savethese instructions-
Before Using Your Freezer
INSTALLATION INSTRUCTIONS
• Remove the exterior and interior packing.
• Before connecting the freezer to the power source, let it stand upright for approximately 2 hours.
This will reduce the possibility of a malfunction in the cooling system from handling during
transportation.
• Clean the interior surface with lukewarmwater using a soft cloth.
Installing Your Freezer
• This appliance isdesigned to befree standing only, and should not be recessed or built-in.
• Place your freezer on a floor that is strong enough to support the freezer when itisfully loaded.
• Allow 13 em of space between the back and sides of the freezer, which allows the proper air
circulation.
• Locate the freezer away from direct sunlight and sources of heat (stove, heater, radiator, etc.).
Direct sunlight may affect the acrylic coating and heat sources may increase electrical
consumption. Extreme cold ambient temperatures may also cause the freezer not to perform
properly.
• Avoid locating the freezer in moist areas.
• Plug the freezer into an exclusive, properly installed-grounded wall outlet. Do not under any
circumstances cut or remove the third (ground) prong from the power cord. Any questions
concerning power and/or grounding should be directed toward a certified electrician or an
authorized TCLservice center.
• After plugging the appliance into a wall outlet, allow the unit to cool down for 2-3 hours before
placing food inthe freezer compartment.

5
Electrical Connection
Warning
Improper use of the grounded plug can result in the risk of electrical shock. Ifthe power cord is
damaged, have itreplaced byan authorized service center or licensed electrician.
This freezer should be properly grounded for your safety. The power cord of this freezer is equipped
with a three-prong plug which mates with standard three prong wall outlets to minimize the possibility
ofelectrical shock.
Do not under any circumstances cut or remove the third ground prongfrom the power cord supplied.
This freezer requires a standard 220/240Volt-50Hz electrical outletwith three-prong ground.
The cord should be secured behind the freezer and not left exposed or dangling to prevent accidental
injury.
Never unplug the freezer by pulling the power cord. Always grip the plug firmly and pull straight out
from the receptacle.
Do not use an extension cord with this appliance. If the power cord is too short, have a licensed
electrician install an outlet nearthe appliance.
The "Green· light indicates that the freezer is properly connected to the electrical power. The light
indicates power supply, and will glow even if the temperature control dial is turned to ·oFF·, or the
compressor hasfailed to work and the compartment is not being cooled.
The "Compressor on· light indicates that the compressor is on and running. The compressor should
not, under normal conditions, be running continuously unless the unit isin "Fast Freeze" mode.
OPERATINGYOUR FREEZER
Temperature Control
• Your freezer has one control for regulating the temperature. Thetemperature control is located on
the lower right hand corner.
• The first time you turn the unit on, switch on the Fast Freeze switch (amber light) and run for at
least 2 hours before putting frozen foods inside. This will ensure the cabinet is thoroughly chilled
before food is put in.
• Tum off the Fast Freeze switch.
• The range of the temperature control isfrom position" OFF", ·1·the warmest to •5" the coldest.
Adjust the temperature control to the setting that best suits your needs. The setting of "3.should
beappropriate for home oroffice freezer use.
• To tum the freezer off, tum the power switch to "OFF•.
NOTE:
• Turning the temperature control to ·OFF " position stops the cooling cycle but does not shut off
the power tothe freezer.
• Ifthe unit is unplugged, lost power, or turned off; you must wait 3 to 5 minutes before restarting
the unit. Ifyou attempt to restart before this time delay, the freezer will not start.
• Largeamounts of food will lower the cooling efficiency of the appliance.
• If you choose to change the thermostat setting, adjust thermostat control by one numerical
increment ata time. Allow several hours for temperature to stabilize between adjustments.
The Fast Freeze Switch (Amber)
• The light glows while the Fast Freeze switch is in the 'ON' position.

6
• The switch overrides the thermostat and will make the compressor operate continuously, lowering
the cabinet temperature still further than the thermostat setting.
• This switch is used to freeze unfrozen food inappreciable quantities.
• When loading the freezer, freeze only three pounds of fresh food per cubic foot of freezer space at
onetime.
• Distribute packages to befrozen evenly throughout the freezer.
• Itis not necessary to adjust the thermostat setting when using the Fast Freeze switch.
Defrosting Your Freezer
• When? Forthe most efficient operation and minimum energy consumption, defrost the freezer
when the frost on the freezer walls is excessive or 6mm to 13mmthick.
• Choose a time when the stock of frozen food is low.
CAUTION
Do not use boiling water because it may damage the plastic parts. In addition, never use a
sharp or metallic instrument to remove frost as it may damage the cooling coils and will void
the warranty. We recommend using the plastic scraper provided with your unit.
• Remove the frozen food from the freezer and place it ina cooler to protect the food.
• Tum the thermostat knob to "OFF".
• Unplug the freezer. The Power Supply light should be off (red light out).
• Duringdefrosting, the ice melts into the cabinet.
• Remove the drain plug on the inside floor of the freezer bypulling straight out.
• Place a shallow panoutside drain outlet. The defrost water will drain out.
• Check the pan occasionally so the water does not overflow.
• Clean the interior of the freezer.
• Replace the plug on the inside floor.
• Resetthe thermostat to desired setting.
• Allow the cabinet to cool for one hour.
• Switch on the Fast Freeze for a minimum of 2 hours.
• Returnfood to the freezer.
HELPFUL HINT:
Defrosting usually takes a few hours. Leaving the door open will help speed the process.
Also, pouring warm water (not boiling) on the ice/frost will help speed melting. If you must
use a scraper- please use caution - it is very easy to damage the freezer compartment and
void your warranty.
The Freezer Compartment
• This compartment is designed for the long-term storage of frozen food. Storage time is up to
three months.
• The storage life of frozen foods varies and the recommended storage time should not be
exceeded. The instructions regarding the care of frozen foods should be followed when
defrosting the freezer.
• Pre-packed commercially frozen food should be stored in accordance with the frozen foods
manufacturer's instructions for athree starfrozen food storage compartment or homefreezer.
• Place frozen food into the freezer as quickly as possible after purchase. If there are instructions
onthe packet, carefully follow these instructions regarding storage times.
• The freezer door is susceptible to breaking due to excessive ice build up. Be sure to defrost
when the ice reaches 6mm to 13mmthick.
• A storage basket is provided for the organization of odd-shaped items. To reach other packages
inthe freezer, just slide the basket to one side, or lift it out.

7
CARE AND MAINTENANCE
Cleaning Your Freezer
• Upon installation of your new appliance, it is recommended that it becleaned thoroughly.
• Tum the temperature control to "OFFR, unplug the freezer, remove the food and storage basket.
• Wash the inside with a damp warm cloth containing a water and baking soda solution. The
solution should be about 2 tablespoons of baking soda to a litre of water.
• Wash the storage basket with a mild detergent solution.
• Be sure to keep the door gasket (seal) clean to keep the unit running efficiently.
• The outside of the freezer should becleaned with mild detergent and warm water.
• Drythe interior and exterior with a soft cloth.
• The condenser coils should bevacuumed when they are dusty or dirty.
• Itis recommended that the unit be cleaned each time it is defrosted to help keep the unit odor free
and running efficiently.
Holiday Time
• Remove all the food.
• Unplug the freezer.
• Clean the freezer.
• Leave the door open slightly to avoid possible formation of condensation, mold, or odors.
• Use extreme caution inthe case of children. The unit should not be accessible to child's play.
• Short Holidays: Leave the freezer operating during vacations of lessthan three weeks.
• Long Holidays: Ifthe appliance will not be usedfor several months, remove all food and unplug
the power cord. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave
the door open slightly: blocking itopen if necessary or have the door removed.
MovingYour Freezer
• Remove all the food.
• Securely tape down all loose items inside your freezer.
• Remove the rollers to prevent damage.
• Tape the doors shut.
• Be sure the freezer stays inthe upright position during transportation.
Energy Saving Tips
• The freezer should be located in the coolest area of the room, away from heat producing
appliances or heating ducts, and out of the direct sunlight.
• Let hot foods cool to room temperature before placing in the freezer. Overloading the freezer
forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.
• Be sure to wrap foods properly, and wipe containers dry before placing them inthe freezer. This
cuts down on frost build-up inside the freezer.
• Freezer storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners
interfere with cold air circulation, making the freezer less efficient.
• Organize and label food to reduce door openings and extended searches. Remove as many
items as needed at one time, and close the door as soon as possible.
PROBLEMS WITH YOUR FREEZER
You can solve many common freezer problems easily, saving you the cost of a possible service call.
Try the suggestions below to see ifyou can solve the problem before calling the servicer.

8
TROUBLESHOOTING GUIDE
PROBLEM
POSSIBLE CAUSE
Freezerdoes notoperate.
Not plugged in.
The circuit breaker tripped or a blown fuse.
The freezer temperature control is set at "OFF".
Compressor turns on and off
frequently.
The room temperature is hotter than normal.
A large amount of food has been added to the freezer.
The door is open too often.
The door is not closed completely.
The temperature control is not set correctly.
The door gasket does notseal properly.
The freezer does not have the correct clearances.
The freezer has recently been disconnected for a period of time.
Four hours are required for the freezer to cool down completely.
Temperature inside the freezer is
toowarm.
Temperature control is set too warm. Turn the control to a cooler
setting and allow several hours for the temperature to stabilize.
Door is kept open too long or is opened too frequently. Warm air
enters the freezer every time the door is opened. Open the door
lessoften.
The door is not closed completely.
The door gasket does notseal properly.
A large amount of warm or hot food might have been stored
recently. Wait until the freezer has had a chance to reach its
selected temperature.
The freezer has recently been disconnected for a period of time.
Four hours are required for the freezer to cool down completely.
Temperature inside the freezer is
too cold.
Temperature control is set too cold. Turn the control to a warmer
setting and allow several hours for the temperature to stabilize.
Fast Freeze switch is turned on. This causes continuous running
of the compressor and bypasses the temperature control.
Popping or cracking sound when
compressor comes on.
Metal parts undergo expansion and contraction, as in hot water
pipes. This is normal. Sound will level off or disappear as freezer
continues to run.
Bubbling or gurgling sound, like
water boiling.
Refrigerant (used to cool freezer) is circulating throughout the
system. This is normal.
Vibrations.
Check to assure that the freezer ison a level surface.
Floor is uneven or weak. Freezer rocks on the floor when it is
moved slightly. Be sure floor can adequately support freezer.
Level the freezer by putting wood or metal shims under part of the
freezer.
The freezer is touching the wall. Re-level the freezer and move it
from the wall.
See"Installation Instructions".
The door will not close properly.
The freezer is not on a level surface.
The gasket is dirty.
The storage basket is out of position.

Palsonic Customer Service
Telephone (Australia) 1300 657 888
Palsonic Corporation Pty Ltd ABN 34 000 474 108
1 Joynton Avenue, Waterloo NSW 2017 Australia
Telephone [phone] Facsimile [phone]
www.palsonic.com.au
