Panasonic DMR-BWT760 User manual

SQT1109-1
Getting started
Watching broadcasts
Recording
Playing back video
Editing video
Copying video
Photo and Music
Network
With Other Equipment
Convenient functions
Setup
Reference
Thank you for purchasing this product.
Please read these instructions carefully before using this
product, and save this manual for future use.
Operating Instructions
Blu-ray Disc™ Recorder
Model No. DMR-BWT760
Software (Firmware) Update
To support the latest features, it’s very
important you install the latest updates
to maintain proper operation of your unit.
For details, refer to “Software
(Firmware) Update” (>66) or
http://panasonic.jp/support/global/cs/
(This site is in English only.)
until
2016/04/04
GN
DMRBWT760GN_eng.book 1 ページ ２０１６年４月１１日 月曜日 午後３時３２分

SQT1109
2
Unit
• To reduce the risk of fire, electric shock or
product damage,
- Do not expose this unit to rain, moisture,
dripping or splashing.
- Do not place objects filled with liquids, such as
vases, on this unit.
- Use only the recommended accessories.
- Do not remove covers.
- Do not repair this unit by yourself. Refer
servicing to qualified service personnel.
- Do not let metal objects fall inside this unit.
- Do not place heavy items on this unit.
AC mains lead
• To reduce the risk of fire, electric shock or
product damage,
- Ensure that the power supply voltage
corresponds to the voltage printed on this unit.
- Insert the mains plug fully into the socket
outlet.
- Do not pull, bend, or place heavy items on the
lead.
- Do not handle the plug with wet hands.
- Hold onto the mains plug body when
disconnecting the plug.
- Do not use a damaged mains plug or socket
outlet.
• The mains plug is the disconnecting device.
Install this unit so that the mains plug can be
unplugged from the socket outlet immediately.
Unit
• This unit utilizes a laser. Use of controls or
adjustments or performance of procedures other
than those specified herein may result in
hazardous radiation exposure.
• Do not place sources of naked flames, such as
lighted candles, on this unit.
• This unit may receive radio interference caused
by mobile telephones during use. If such
interference occurs, please increase separation
between this unit and the mobile telephone.
• This unit is intended for use in moderate
climates.
Placement
• Place this unit on an even surface.
• To reduce the risk of fire, electric shock or
product damage,
- Do not install or place this unit in a bookcase,
built-in cabinet or in another confined space.
Ensure this unit is well ventilated.
- Do not obstruct this unit’s ventilation openings
with newspapers, tablecloths, curtains, and
similar items.
- Do not expose this unit to direct sunlight, high
temperatures, high humidity, and excessive
vibration.
Safety precautions
WARNING
Small object
• Keep the Memory Card out of reach of children
to prevent swallowing.
CAUTION
DMRBWT760GN_eng.book 2 ページ ２０１６年４月１１日 月曜日 午後３時３２分

SQT1109 3
Batteries
• Danger of explosion if battery is incorrectly
replaced. Replace only with the type
recommended by the manufacturer.
• Mishandling of batteries can cause electrolyte
leakage and may cause a fire.
- Do not mix old and new batteries or different
types at the same time.
- Do not heat or expose to flame.
- Do not leave the battery(ies) in a car exposed
to direct sunlight for a long period of time with
doors and windows closed.
- Do not take apart or short circuit.
- Do not recharge alkaline or manganese
batteries.
- Do not use batteries if the covering has been
peeled off.
- Remove batteries if you do not intend to use
the remote control for a long period of time.
Store in a cool, dark place.
• When disposing of the batteries, please contact
your local authorities or dealer and ask for the
correct method of disposal.
Please check and identify the supplied
accessories.
(Product numbers are correct as of March 2016.
These may be subject to change.)
• Do not use AC mains lead with other equipment.

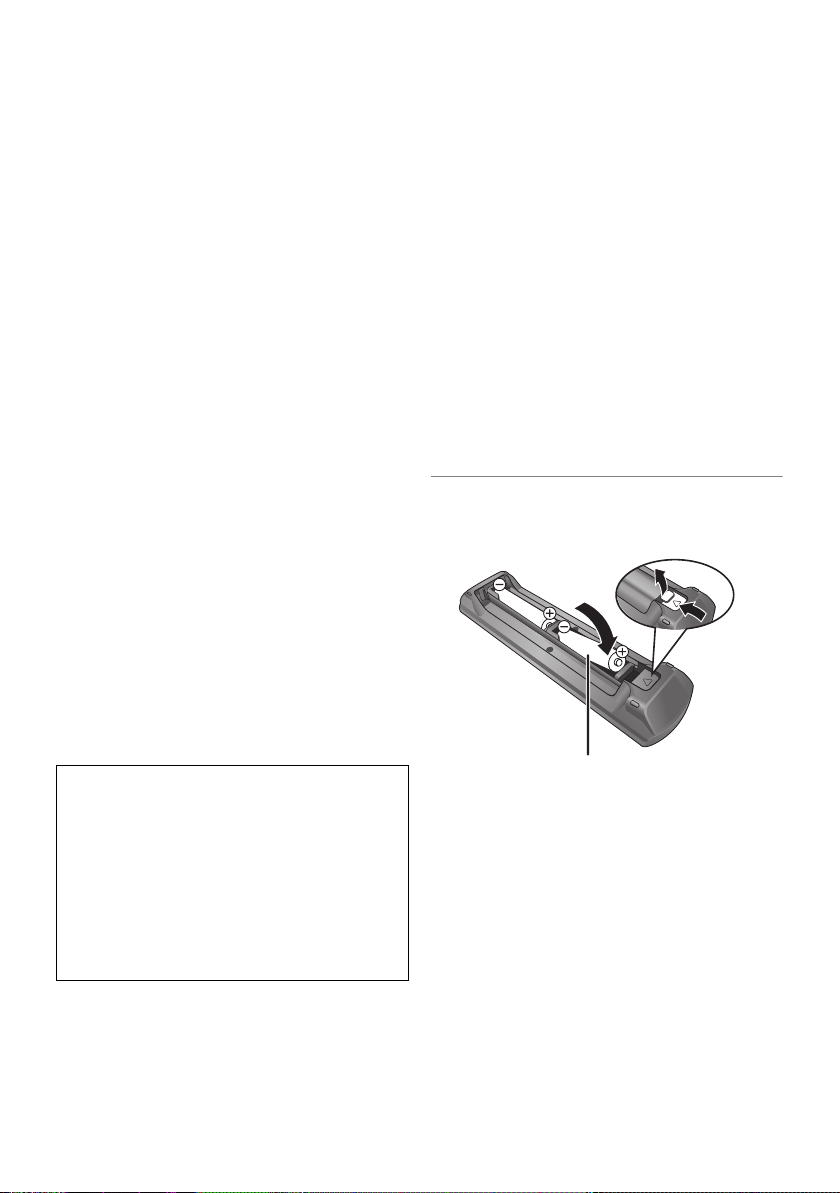

Insert batteries
Insert so the poles (i and j) match those in the
remote control.
Indemnity concerning recorded content
Panasonic does not accept any responsibility for
damages directly or indirectly due to any type of
problems that result in loss of recording or edited
content (data), and does not guarantee any
content if recording or editing does not work
properly. Likewise, the above also applies in a
case where any type of repair is made to the unit
(including any other non-HDD related
component).
Supplied accessories
Remote control (N2QAYB001076):1pc.
Batteries for remote control: 2 pcs.
AC mains lead: 1pc.
RF coaxial cable: 1pc.


R6/LR6, AA
(Alkaline or manganese batteries)
DMRBWT760GN_eng.book 3 ページ ２０１６年４月１１日 月曜日 午後３時３２分

SQT1109
4
Table of contents
Safety precautions . . . . . . . . . . . . . . . . . . . . 2
Supplied accessories . . . . . . . . . . . . . . . . . . 3
Getting started
Unit care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Main unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Remote Control. . . . . . . . . . . . . . . . . . . . . . . 8
Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
HDD and media information . . . . . . . . . . . 14
FUNCTION MENU screen . . . . . . . . . . . . 19
Watching broadcasts
Watching broadcasts . . . . . . . . . . . . . . . . . 20
Recording
Recording TV programmes. . . . . . . . . . . . 23
Timer recording. . . . . . . . . . . . . . . . . . . . . . 25
Keyword Recording . . . . . . . . . . . . . . . . . . 29
Playing back video
Playing titles on the HDD . . . . . . . . . . . . . 31
Playing titles on the media . . . . . . . . . . . . 34
Operation during play. . . . . . . . . . . . . . . . . 36
Playback menu . . . . . . . . . . . . . . . . . . . . . . 39
Editing video
Deleting/Editing titles . . . . . . . . . . . . . . . . . 41
Copying video
Copying titles. . . . . . . . . . . . . . . . . . . . . . . . 45
Photo and Music
Photo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Network
Enjoying Network Service . . . . . . . . . . . . . 57
TV Anytime . . . . . . . . . . . . . . . . . . . . . . . . . 57
Smart Home Networking (DLNA) . . . . . . 58
With Other Equipment
Recording from external equipment . . . . 62
Copying the HD Video (AVCHD) . . . . . . . 62
Registering
the external HDD (USB HDD) . . . . . . . . . 63
Convenient functions
VIERA Link functions . . . . . . . . . . . . . . . . . 65
Software (Firmware) Update . . . . . . . . . . 66
4K Networking. . . . . . . . . . . . . . . . . . . . . . . 67
Other operations. . . . . . . . . . . . . . . . . . . . . 67
Setup
Basic Settings . . . . . . . . . . . . . . . . . . . . . . . 70
Reference
Troubleshooting guide. . . . . . . . . . . . . . . . 79
Specifications . . . . . . . . . . . . . . . . . . . . . . . 84
Licenses . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Limited Warranty
(ONLY FOR AUSTRALIA) . . . . . . . . . . . . 89
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
About descriptions in these operating
instructions
• Pages to be referred to are indicated as “>±±”.
• Images are for illustration purpose, contents may change
without notice.
DMRBWT760GN_eng.book 4 ページ ２０１６年４月１１日 月曜日 午後３時３２分

Getting started
SQT1109 5
Unit care
• The HDD is a high precision recording
instrument and is easily susceptible to damage.
Therefore, be careful of the following points
while the unit is turned on, especially during
operation, otherwise the HDD and the recorded
content may be damaged:
- Do not subject the unit to any vibration and
shock.
- Do not remove the AC mains lead from the
household mains socket.
• If the HDD or USB HDD is damaged, the
recorded content cannot be recovered.
• Do not place on anything that generates heat
like a Set Top Box, etc.
• Place in an area where condensation does
not occur. Conditions where condensation
may occur
- When there is an extreme change in
temperature.
In the above situation, without turning the unit
on, let the unit adjust to the room temperature
and wait 2–3 hours until condensation is gone.
• The unit may breakdown if cigarette smoke
or bug spray/vapour, etc. gets inside the
unit.
Before moving the unit, ensure the disc tray is
empty.
1Switch the unit to standby mode. (Wait until
“BYE” disappears from the display.)
2Remove the AC mains lead from the
household mains socket.
3Move only after the unit has come to a
complete stop (approx. 3 minutes) in order to
avoid subjecting to vibration and shock. (Even
after the unit is switched to standby mode, the
HDD continues operating for a short time.)
The registration of the USB HDD may be
cancelled in the process of repairing this unit.
You can use the USB HDD again by
re-registering, but all recorded content already on
the USB HDD will be lost. In such cases, the
recorded content (data) cannot be recovered.
This unit may contain private information. Before
disposing of or transferring this unit, perform the
following to delete the data, including personal or
secret information:
- Format HDD (>72)
- Perform “Shipping Condition” (>78)
HDD/USB HDD handling care
• The HDD is a temporary storage device
- It is recommended to save the recorded
content on a disc or to keep the original data or
CDs that they were copied from.
- If you notice a problem with the HDD such as
repetitive strange sounds, immediately save
(backup) all content and request service. If you
continue using the HDD with a problem, the
unit or the recorded content will be damaged.
Setup precautions
Getting started
When moving the unit
Cleaning
• Wipe with a soft, dry cloth.
• Never use alcohol, paint thinner or benzine to
clean this unit.
• Before using chemically treated cloth, carefully
read the instructions that came with the cloth.
• Use the lens cleaner (not supplied) to clean the
unit’s lens.
When requesting this unit for repair
To dispose or transfer this unit
DMRBWT760GN_eng.book 5 ページ ２０１６年４月１１日 月曜日 午後３時３２分

Getting started
SQT1109
6

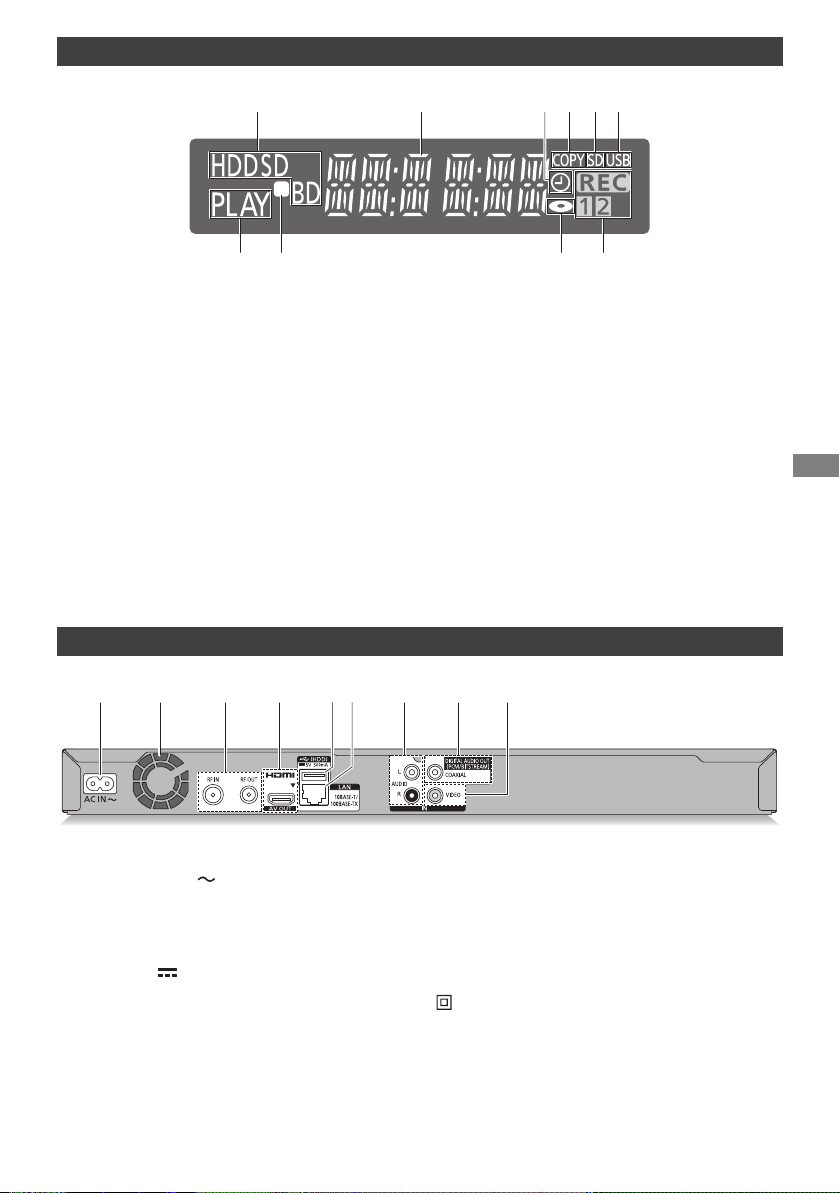

Main unit
• While writing to/reading from the media, do not switch the
unit to standby mode or remove the media. Such action
may result in loss of the media contents.
• When inserting the media, ensure that it is facing the right
way up.
• The USB port on the front side does not support
USB HDDs. Connect a USB HDD to the USB port on the
rear side. (>64, Connecting the USB HDD)
Front
     
Pull to flip down
the front panel.
1Disc tray
2Display (>7)
3Remote control signal sensor
• Angle: Approx. 20° up and down, 30° left and
right
• Distance: Within approx. 7 m in front of the
unit
4SD card slot
• When removing the SD card, press on the
centre of the card and pull it straight out.
5Open/close disc tray
6Standby/on switch (Í/I)
Press to switch the unit from on to standby
mode or vice versa. In standby mode, the unit
is still consuming a small amount of power.
7USB port ( DC 5 V 500 mA)
Inserting or removing media
∫Disc
∫SD Card/USB device
Disc
DMRBWT760GN_eng.book 6 ページ ２０１６年４月１１日 月曜日 午後３時３２分

Getting started
SQT1109 7
Class II equipment (The construction of the
product is double-insulated.)
Display

 
   
 
1Drive (HDD, BD or SD) indicator
2Main display section indicator
• Messages and other information are
displayed. (>83)
3Timer recording indicator
• This indicator lights up when the timer
recording standby or Keyword Recording
standby is activated.
4Copying indicator
5SD card slot indicator
6USB port indicator
7Playback indicator
8Remote control signal indicator
9Disc indicator
:Recording indicator
• “REC” lights up while recording is in
progress.
• “1” flashes when the first timer recording
standby is activated or recording is paused,
and lights up while recording is in progress.
(In the same way as “1”, “2” lights up or
flashes for the second recording.)
Rear
   
1AC IN terminal ( )
2Cooling fan
3RF IN/OUT terminal
4HDMI terminal
5USB port ( DC 5 V 500 mA)
• Connect a USB HDD to this USB port.
6LAN port
7AUDIO IN terminal
8COAXIAL terminal
9VIDEO IN terminal
DMRBWT760GN_eng.book 7 ページ ２０１６年４月１１日 月曜日 午後３時３２分

Getting started
SQT1109
8
Remote Control
Instructions for operations are generally described using the remote control.
G
U
I
D
E
CH
CH
PAGE
AV
INPUT
TV
OK
VOL
RETURN
OPTION
DELETE
AUDIO
REC
TEXT
STTL
-10s
+60s
INTERNET
REWIND LIVE TV
0
2
abc
5
jkl
8
tuv
1
4
ghi
7
qrs
p
3
def
6
mno
9
xyz
w
F
U
N
C
T
I
O
N
M
E
N
U
STATUS
EXIT
SLOW
DRIVE
SELECT
x1.3
INPUT SELECT
PAUSE LIVE TV
LAST VIEW


























1Transmit the remote control signal
• Point it at remote control signal sensor on
this unit. (>6)
2Switch the unit from on to standby mode or
vice versa
3Select channels and title numbers, etc./Enter
numbers or characters
4Switch to the previously watched channel
(>20)
5Manual skip (>37)
-10s: Skip approx. 10 seconds backward
+60s: Skip approx. 1 minute forward
6Basic operations for recording and play,
REWIND LIVE TV/PAUSE LIVE TV (>22)
7Show Information (>20, 32, 36)
8Selection/OK, Frame-by-frame (>36)
9Show Video Menu, Top Menu, Pop-up Menu
(>31, 37)
:Show OPTION menu (>39, 41, 54)
;Colour buttons (red, green, yellow, blue)
(Use in accordance with instruction on the
screen.)
<Select audio (>21, 37)
=To delete unwanted recorded titles, timer
programmes, video, photo or music (>41)
>TV operation buttons (>11)
?Start recording (>23, 62)
@Channel select (>20)/Change pages in the
Video Menu screen etc.
ASelect drive (HDD, Disc, SD or USB)
BInput select (>20, 62)
CShow NETFLIX screen
DShow the Network Service screen (>57)
EExit the menu screen
FShow the TV Guide screen (>21)
GShow the FUNCTION MENU screen (>19)
HReturn to previous screen
IShow subtitles (>20, 37)
JShow Teletext (>20)
DMRBWT760GN_eng.book 8 ページ ２０１６年４月１１日 月曜日 午後３時３２分

Getting started
SQT1109 9
Connection
• Keep the RF coaxial cables as far away as possible from other cables.
3D programmes or 4K images can be played back when this unit is connected to a 3D or 4K
compatible terminal of a 3D or 4K compatible TV.
• Before connection, turn off all equipment and read the appropriate operating instructions.
• Use the High Speed HDMI cables. Non-HDMI-compliant cables cannot be utilized.
It is recommended that you use Panasonic’s HDMI cable.
When outputting 1080p or 24p (4K) signal, please use HDMI cables 5.0 meters or less.
• When the unit is not to be used for a long time
To save power, unplug it from the household mains socket. This unit consumes a small amount of
power, even when the unit is in standby mode. (>84)
Basic connections
HDMI
VHF/UHF
RF IN
This unit’s rear panel
Household mains socket
(AC 220 to 240 V, 50 Hz)
AC mains lead
(supplied)
• Connect only after all other
connections are complete.
HDMI cable
To the aerial
Aerial cable
RF coaxial cable
(supplied)
DMRBWT760GN_eng.book 9 ページ ２０１６年４月１１日 月曜日 午後３時３２分

Getting started
SQT1109
10
• When using a TV or an amplifier/receiver that does not
display “ARC” on the HDMI terminal, it is necessary to
connect the TV and the amplifier/receiver with a digital
audio cable to enjoy the TV audio on the amplifier/receiver.
• When you do not want the audio to be output from the TV,
set “HDMI Audio Output” to “Off” (>75).
Connect the Set Top Box or video equipment
• Connect to terminals of the same colour.
Amplifier/receiver connections
HDMI terminal
• You will not be able to view 3D programmes or
4K images with this connection if your
amplifier/receiver is not 3D or 4K compatible.
AUDIO OUT VIDEO OUT
RL
Set Top Box or video equipment
Audio/Video
cable
HDMI cable
Amplifier/
receiver
HDMI cable
DIGITAL AUDIO OUT terminal
COAXIAL IN
Amplifier/receiver
Coaxial cable
DMRBWT760GN_eng.book 10 ページ ２０１６年４月１１日 月曜日 午後３時３２分

Getting started
SQT1109 11

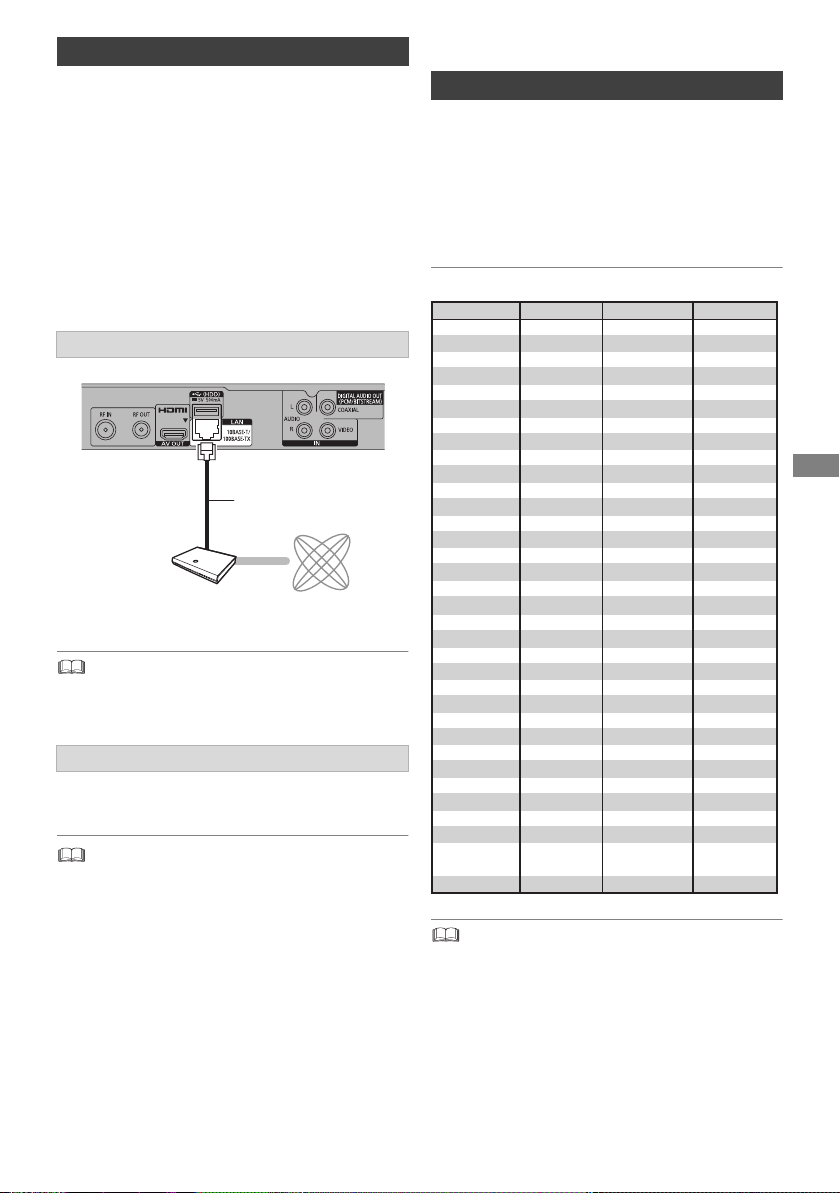

When this unit is connected to the network, you
can enjoy network functions (DLNA function,
Network Service, TV Anytime, etc.).
For details about connection method, refer to the
instructions supplied with the connected
equipment.
• Use category 5 or above straight LAN cables (STP) when
connecting to peripheral devices.
About wireless LAN connection (>12, Easy
Network Setting)
• For up-to-date compatibility information on your Wireless
router, refer to
http://panasonic.jp/support/global/cs/
(This site is in English only.)
• The unit is not compatible with public wireless LAN
services.
Settings
The TV can be operated from the TV operation
buttons of the remote control.
• Perform the setting if you cannot operate the TV
with the TV operation buttons.
While pressing [TV Í], enter the code with
the number buttons.
Manufacturer and Code No.
• If your TV brand has more than one code listed, select the
one that allows correct operation.
• If the brand of your TV is not listed or the code number is
invalid for your TV, this remote control is not compatible
with your TV.
Network connection
After you make the LAN cable/Wireless LAN
connection, the network setting is needed.
(>12, Easy Network Setting)
LAN cable connection
Wireless LAN connection
Broadband
router, etc.
Internet
LAN (ethernet)
cable
TV operation buttons
Manufacturer Code Manufacturer Code
AIWA 35
BENQ 58/59
BRANDT 10/15
CENTREX 66
CURTIS 05
DESMET 05
ELEMIS 05
FINLUX 61
Panasonic 01/02/03/04
AKAI 27/30
BEKO 05/71/72/73/74
BUSH 05
DAEWOO 64/65
DUAL 05
FERGUSON 10/34
FISHER 21
MITSUBISHI 05/19/20/47
METZ 05/28/79
MIVAR 24
NEC 36
NOKIA 25/26/27/60/61
OLEVIA 45
ORION 05
PHILCO 41/48/64
PHONOLA 05
PROVIEW 52
RADIOLA 05
NOBLEX 33
NORDMENDE 10
ONWA 30/39/70
PEONY 49/69
PHILIPS 05/06/46
PIONEER 37/38
PYE 05
SABA 10
FUJITSU 53
ITT
LG
GOLDSTAR 05/50/51
GRADIENTE 36
25
JVC 17/30/39/70
KOLIN 45
05/50/51
MAG 52
FUNAI 63/67
GOODMANS 05
GRUNDIG 09
IRRADIO 30
KDS 52
KONKA 62
HITACHI 05/22/23/40/41
SALORA 26
SANSUI 05
32/42/43/65/68SAMSUNG
SCHNEIDER 05/29/30
SELECO 05/25
SIEMENS 09
SONY 08
TELEFUNKEN 10/11/12/13/14
TOSHIBA 16/57
YAMAHA 18/41
05
WHITE
WESTINGHOUSE
SANYO 21/54/55/56
05/69/75/76/77/78 SEG
SINUDYNE 05
31/33/66/67/69TCL
TEVION 52
THOMSON 10/15/44
SHARP 18
DMRBWT760GN_eng.book 11 ページ ２０１６年４月１１日 月曜日 午後３時３２分

Getting started
SQT1109
12
1Turn on the TV, then select the appropriate
AV input to suit the connections to this unit.
2Press [Í] on the remote control or [Í/I] on
this unit.
• The Easy Setting will start at the initial power on.
3Select the country you live in, and press
[OK].
•[For_Australia]
If you select “Australia”, the “Region Selection” will
appear. Select the region you live in, and press [OK].
•[For_New_Zealand]
If you select “New Zealand”, a screen asking you to
restart this unit will appear. Press [OK] to restart it.
Wait until a screen appears again. After the screen
appears, Easy Setting resumes.
4Follow the on-screen instructions and
perform the settings.
Auto Setup starts.
(This operation may take some time.)
e.g., [For_Australia]
5Clock is set automatically.
If the clock setting screen appears, set the
time manually. (>78, Clock)
6Set “Quick Start” to “On”, “Off” or “Timer
Setting for Quick Start”, then press [OK].
For details, refer to “Quick Start”. (>77)
7Select the aspect ratio that matches the
connected TV.
For details, refer to “TV Aspect”. (>74)
When “Easy Setting has been completed.”
appears, Easy Setting is completed.
• Select “Yes” to set network settings.
• Select “No” to finish the Easy Setting.
To stop partway
Press [RETURN ].
To restart setup (>70, Auto Setup)
• If tuning is cancelled partway through, it may not be
possible to receive the channels. Restart setup again.
Easy Network Setting
After completing “Easy Setting”, you can continue
with “Easy Network Setting”.
Select “Wired” or “Wireless”, then press [OK].
LAN cable connection (“Wired”)
Follow the on-screen instructions to apply your
connection settings.
Wireless LAN connection (“Wireless”)
Before beginning wireless connection setup
• Obtain your network name (SSID§1).
• If your wireless connection is encrypted, please
be sure that you know your encryption key.
• The default SSID,
Password (Key) etc., may
be printed on the router.
Select “Search for wireless network” or “WPS
(PUSH button)” and press [OK], then follow the
on-screen instructions and apply the settings.
Easy Setting
Progress
Digital TV Auto Tuning
CH 6 69
RF Ch
Digital TV: 2
Searching
Quality
Type
Channel Name
This will take about 3 minutes.
35 10
10
35
Digital TV
Digital TV
Easy Network Setting
Easy Network Setting
Settings and tests for connection required
for home network and the Internet will be
conducted.
First, please select a connection mode.
LAN cable connection:
Connect a LAN cable to the unit and select “Wired”.
Wireless LAN connection:
Select “Wireless”.
Current setting : Wired
Wired
Wireless
SSID XXXXXXXXXXXX
KEY XXXXXXXXXXXX
PIN XXXXXXXXX
e.g.,
DMRBWT760GN_eng.book 12 ページ ２０１６年４月１１日 月曜日 午後３時３２分

Getting started
SQT1109 13
Search for wireless network:
The available wireless networks will be displayed.
Select your network name and press [OK].
- If your Network name is not displayed, search
again by pressing the red button on the remote
control.
- Stealth SSID§2 will not be displayed. Enter
manually by using “Wireless Settings”. (>75)
• If your wireless network is encrypted, Encryption
Key Input Screen will be displayed.
Input the encryption key of your network.

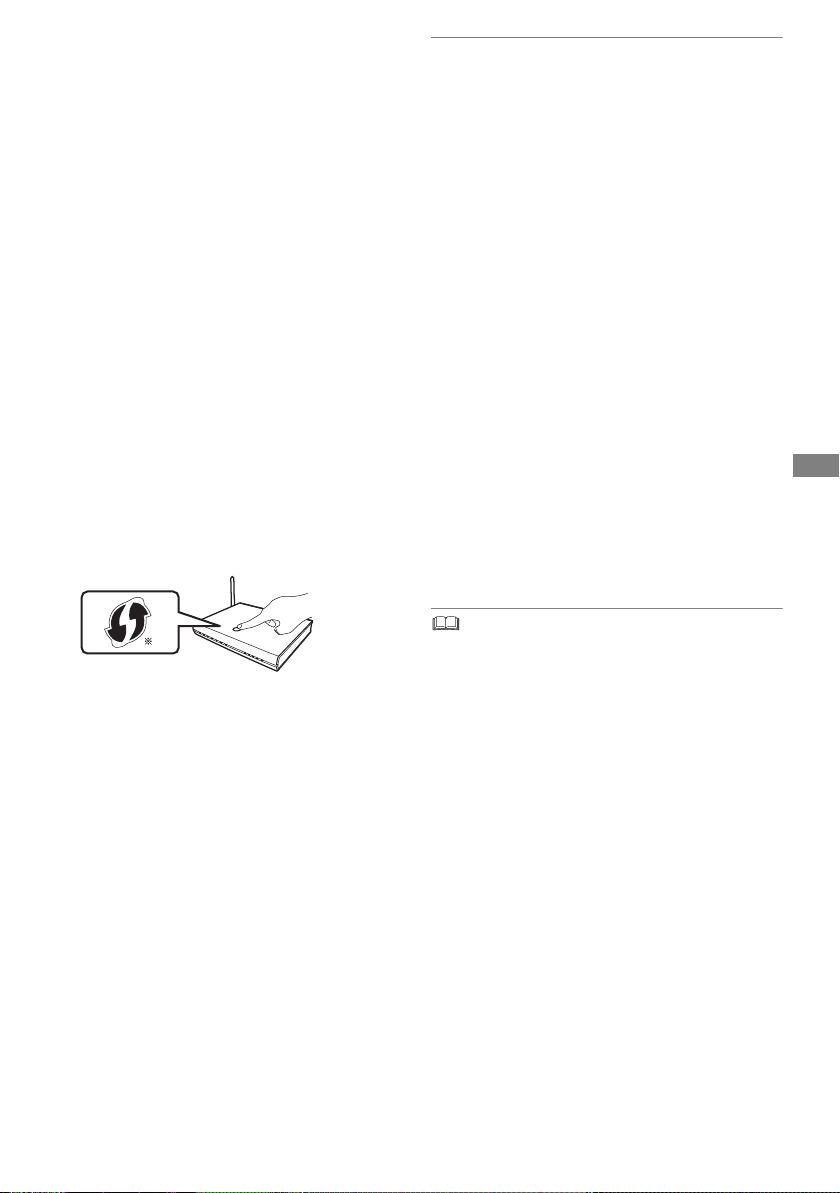

WPS (PUSH button):
If your Wireless router supports WPS (PUSH
button), you can easily perform the settings by
pressing WPS button on it.
WPS (Wi-Fi Protected Setup™) is a standard that
facilitates settings relating to the connection and
security of wireless LAN devices.
1Press WPS button or corresponding button of
Wireless router until the lamp starts flashing.
• For details, refer to the operating instructions
of Wireless router.
2Press [OK].
§1SSID:
An SSID (Service Set IDentification) is a name used by
wireless LAN to identify a particular network.
Transmission is possible if the SSID matches for both
devices.
§2Depending on the settings of the wireless router, its SSID
may not be found. For details, refer to the operating
instructions for the wireless router.
§3The wireless router compatible with Wi-Fi Protected
SetupTM may have the mark.
To restart Easy Network Setting
1 Press [FUNCTION MENU]. (>19)
2 Select “Basic Settings” in “Setup”, then press
[OK].
3 Select “Easy Network Setting” in “Network”,
then press [OK].
To redo settings individually
If “Easy Network Setting” did not work properly or
when you change the settings individually,
perform the following steps:
1 Press [FUNCTION MENU]. (>19)
2 Select “Basic Settings” in “Setup”, then press
[OK].
3 Select “Network Settings” in “Network”, then
press [OK].
4 Refer to “Network Settings”. (>75)
Check security before using Home Network
function
If you set “Home Network function” to “On”, all
connected devices on the same network can
access this unit. Ensure that the router for your
home network has adequate security system to
prevent unauthorised access.
• Refer to the operating instructions of the hub or router.
• If you set “Home Network function” or “TV Anytime” to “On”,
the setting for “Quick Start” is fixed to “On”.
• Do not use this unit to connect to any wireless network for
which you do not have usage rights.
During automatic searches in a wireless network
environment, wireless networks (SSID) for which you do
not have usage rights may be displayed; however, using
these networks may be regarded as illegal access.
• After performing network settings on this unit, the settings
(encryption level, etc.) of the Wireless router might change.
When you have trouble getting online on your PC, perform
the network settings on your PC in accordance with the
settings of Wireless router.
• Please be aware that connecting to a network without
encryption may result in the content of the communication
being illegitimately viewed by a third party, or the leaking of
data such as personal or secret information.
3
e.g.,
Wireless
router
DMRBWT760GN_eng.book 13 ページ ２０１６年４月１１日 月曜日 午後３時３２分

Getting started
SQT1109
14
HDD and media information
For more details, refer also to the specifications. (>84)
(–: Impossible)

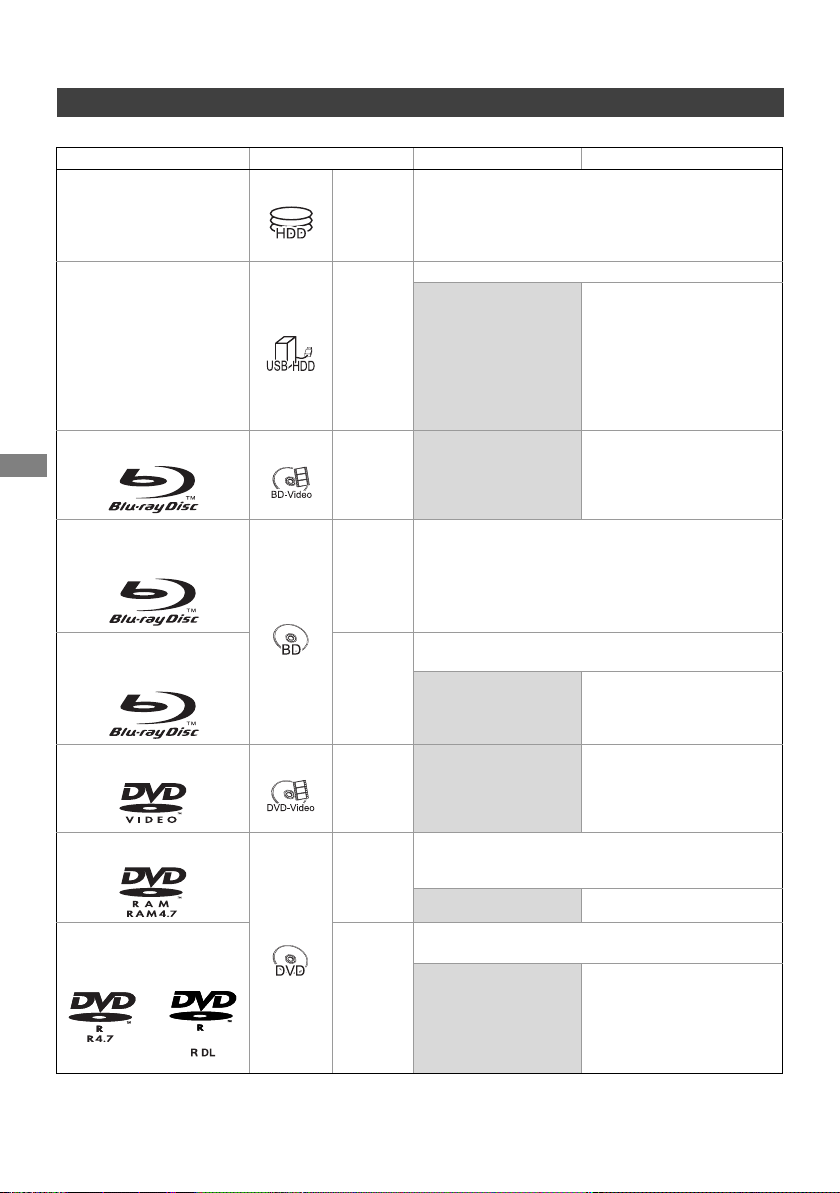

Recordable/playable contents
Media type Standard symbol Recordable contents Playable contents
Built-in hard disk drive
(HDD) [HDD]
•Video
• AVCHD/AVCHD 3D
•MKV
•MP4
• MPEG2
•JPEG
•MPO
(3D photo)
• AAC
•ALAC
•DSD
•FLAC
•MP3
•WAV
•WMA
External hard disk drive
(USB HDD)
(>17)
[USB_HDD]
•Video
§1
–
• AVCHD/AVCHD 3D§2, 3
•MKV
•MP4
• MPEG2
•JPEG
•MPO
(3D photo)
• AAC
•ALAC
•DSD
•FLAC
•MP3
•WAV
•WMA
BD-Video
[BD-V] –
•Video
BD-RE
BD-RE DL
[BD-RE]
•Video
• AVCHD/AVCHD 3D
•JPEG
• MPO (3D photo)
BD-R
BD-R DL
[BD-R]
•Video
• AVCHD/AVCHD 3D§2
–
•MKV
DVD-Video§4
[DVD-V] –
•Video
DVD-RAM
[RAM]
•Video
•JPEG
• MPO (3D photo)
–• AVCHD§2
DVD-R
DVD-R DL
[DVD-R]
•Video
• AVCHD§2
–
•MKV
•JPEG
•MPO
(3D photo)
• AAC
•ALAC
•DSD
•FLAC
•MP3
•WAV
•WMA
DMRBWT760GN_eng.book 14 ページ ２０１６年４月１１日 月曜日 午後３時３２分

Getting started
SQT1109 15
(–: Impossible)
•[+RW] This unit cannot record to 8X Speed +RW disc.
• With certain recording states and folder structures, the play order may differ or playback may not be possible.
• It may not be possible to play the above media in some cases due to the type of media, the condition of the recording, the
recording method, and how the files were created.
Media type Standard symbol Recordable contents Playable contents
DVD-RW
[DVD-RW]
•Video
–
• AVCHD§2
+R/+R DL [+R]
•Video
–
• AVCHD§2
•MKV
• JPEG
•MPO
(3D photo)
•AAC
•ALAC
•DSD
•FLAC
•MP3
•WAV
•WMA
+RW [+RW] •Video
–• AVCHD§2
Audio CD (CD-DA)
[CD]
–
•Music
CD
(including CD-R/RW) –
•MKV
• JPEG
•MPO
(3D photo)
•AAC
•ALAC
•FLAC
•MP3
•WAV
•WMA
SD Cards
[SD]
•MP4
•MPEG2
• JPEG
• MPO (3D photo)
–• AVCHD/AVCHD 3D§2
USB memory [USB] –
• AVCHD/AVCHD 3D§2, 3
•MKV
•MP4
• MPEG2
• JPEG
•MPO
(3D photo)
•AAC
•ALAC
•DSD
•FLAC
•MP3
•WAV
•WMA
§1It cannot be recorded directly. (Only compatible with copying from the built-in HDD)
§2Recorded with AVCHD format compatible devices (Panasonic video camera, etc.). It may not be
able to play back, add, or edit depending on the device.
§3It cannot be played back directly from the USB HDD or USB memory. Playback is possible by
copying to the built-in HDD. (>62)
§4Includes finalised DVD-R, DVD-R DL, DVD-RW, +R and +R DL.
DMRBWT760GN_eng.book 15 ページ ２０１６年４月１１日 月曜日 午後３時３２分

Getting started
SQT1109
16
∫Broadcast Recordings
Numbers of titles that can be recorded:
• Maximum numbers of titles are including recordings of
HD CAMCORDER.
∫HD CAMCORDER Recordings
MPEG-4 AVC/H.264 (based on AVCHD)
Numbers of titles that can be recorded:
• Maximum numbers of titles are including recordings of
Broadcast.
∫Photo files
Compatible pixels:
Between 34k34 and 8192k8192 pixels
Sub sampling: 4:2:2, 4:2:0
(Motion JPEG is not supported.)
Maximum numbers of contents:
∫Video files/Audio files
Numbers of contents that can be copied to
internal HDD:
USB device:
• Each folder can store up to 1000 files.
• We recommend that you limit the depth of
folder trees to about five levels.
• Bit rate up to 100 Mbps/resolution up to
3840k2160 25p/30p, 4096k2160 24p. (MP4
only)
• The video file and subtitle text files are inside the same
folder, and the file names are the same except for the file
extensions.
• Some files may not be played back even if they have these
extensions.
Information about contents
Media Maximum
titles
HDD 3000
BD-RE, BD-R 200
DVD-RAM, DVD-R, DVD-RW 99
+R, +RW 49
Media Maximum
titles
HDD 3000
BD-RE, BD-R 200
Media Folders Files
HDD – 20000
BD-RE, DVD-RAM,
DVD-R, +R,
CD-R, CD-RW,
USB device, SD
500 10000
Contents Maximum numbers of
folders and files
Video 20000
Audio 20000
About extension of files
Contents Example of file
extension
MKV “.mkv”
MKV
(Subtitle text files)
“.srt”
“.sub”
“.txt”
MP4 “.mp4”
“.mov”
MPEG2
“.mpg”
“.mpeg”
“.m2ts”
“.mts”
“.ts”
JPEG “.jpg”
MPO “.mpo”
AAC “.m4a”
ALAC “.m4a”
DSD “.dsf”
“.dff”
FLAC “.flac”
MP3 “.mp3”
WAV “.wav”
WMA “.wma”
DMRBWT760GN_eng.book 16 ページ ２０１６年４月１１日 月曜日 午後３時３２分

Getting started
SQT1109 17
§1FR (Flexible Recording Mode):
The unit automatically selects the best possible recording rate between XP mode and EP mode.
§2The SD quality programme cannot be converted to HD quality.
§3[For_New_Zealand]
§4You cannot select during play whether it activates or deactivates.
§5You cannot select during play whether it appears or disappears.
Approximate recording times
Refer to “Recording modes and approximate recording times”. (>84)
You can use an external HDD (USB HDD) in the
following two ways (A single HDD cannot handle
those two ways simultaneously.), and a USB
memory for data files.
• For recorded titles
Moving titles in the built-in HDD to a USB HDD
to save the capacity of the built-in HDD.
• The USB HDD must first be registered on this
unit. (>63)
• The USB HDD over 3 TB is not usable.
• For data files
Playing back MP4, JPEG, MP3, etc. in a USB
device with this unit.
• The USB device must be formatted in FAT12,
FAT16, FAT32 or NTFS file system.
• The USB device over 2 TB is not usable.
• This unit supports USB 2.0 High Speed.
• This unit can use USB 3.0 devices as USB 2.0 devices.
• This unit does not recognize USB HDDs other than those in
which the size of one sector is 512-bytes or 4096-bytes.
(For details, consult the dealer of your USB HDD.)
• This unit supports USB mass storage device class.
• This unit does not guarantee connection with all USB
devices.
Recording mode (Conversion)
Recording Mode DR HG/HX/HE/HL/HM XP/SP/LP/EP/FR§1
Feature Programmes can be
recorded in a nearly
perfect broadcasted state.
Recording can be done
with reduced recording
volume in High definition
(HD) quality§2.
Recording can be done
with reduced recording
volume in Standard
definition (SD) quality.
Recordable
media
Multiple audio,
Audio
Description§3
Record all multiple audio Record only one audio§4
Subtitles Can be recorded Can be recorded (only one subtitle)§5
Surround audio Surround audio as the
broadcast
Surround audio produced
by conversion of
broadcast audio format
Stereo audio
Notes
Notes for the USB device
DMRBWT760GN_eng.book 17 ページ ２０１６年４月１１日 月曜日 午後３時３２分

Getting started
SQT1109
18

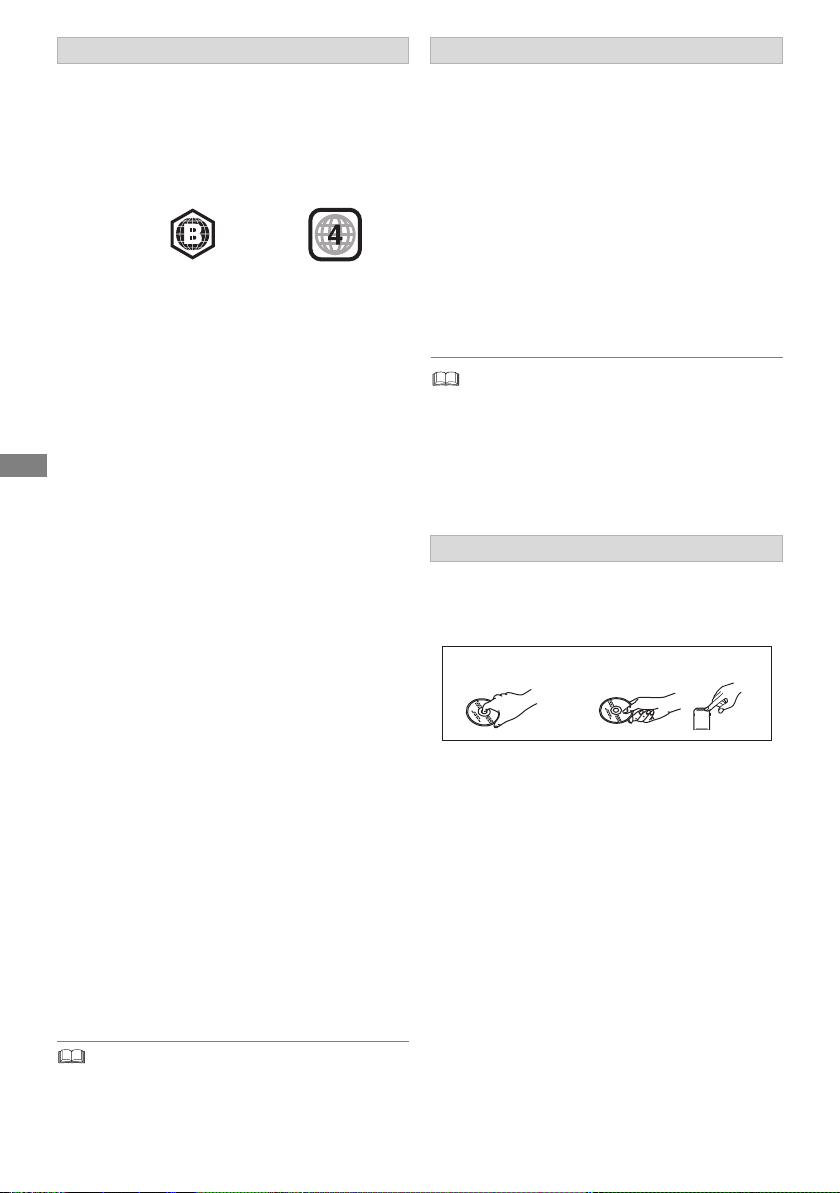

Notes for the disc
• Region management information
The unit can play back BD-Video/DVD-Video
discs of the following regions codes, including
“ALL”:
e.g., BD-Video DVD-Video
• Disc recorded on another device
• It may be necessary to finalise the disc, create
Top Menu or close the session on the equipment
used for recording to play on this unit.
•[DVD-RW] Recorded in DVD Video Recording
(DVD-VR) format
- This unit can play back and copy to HDD.
- This unit does not support editing or recording.
- It is possible to record and edit with
DVD-Video (DVD-V) format by formatting
discs with this unit.
• Recording may not be possible to discs which
were used for recording on other equipment.
• Play on other players
•[BD-RE] [BD-R] When these discs cannot be
played back on other Blu-ray Disc players, etc.
(e.g., title recorded with HE-AAC audio
format), convert the recording mode to play
them back. (>42, File Conversion)
•[DVD-R] [DVD-RW] [+R] Finalisation is needed.
(>68)
•[+RW] If the disc failed to play on other
equipment, we recommend you create a Top
Menu. (>69)
•[DVD-R] The disc created in AVCHD format can
only be played back on AVCHD compatible
equipment.
• Regarding 8 cm Disc
This unit cannot record or edit the 8 cm disc.
Only playback or copy to the HDD is possible.
• Discs that cannot be played
- DVD-RAM in a cartridge
- 2.6 and 5.2 GB DVD-RAM, 12 cm
- DVD-Audio
- Super Video CD, Super Audio CD, Video CD
• Operation and sound quality of CDs that do not conform to
CD-DA specifications (copy control CDs, etc.) cannot be
guaranteed.
Notes for the SD cards
• Compatible SD card
- SD Memory Card
(from 8 MB to 2 GB, FAT12 and FAT16
formats)
- SDHC Memory Card
(from 4 GB to 32 GB, FAT32 format)
- SDXC Memory Card
(48 GB, 64 GB, exFAT format)
• Using miniSD card or microSD card
Mini-type and micro-type cards can also be
used, but must be used with adaptor cards
(optional).
• If the SD card is formatted on other equipment, the time
necessary for recording may be longer or the card may not
be able to be used on this unit. In these cases, format the
card on this unit.
• For playback of 4K videos stored on an SD card, use an SD
card conforming to Class 10 of the SD Speed Class Rating.
Media handling
• Do not touch the recorded surface of the discs
or the terminal surface of the SD cards.
• Wipe with a damp cloth and then wipe dry.
• Do not attach labels or stickers to discs.
• Do not use disc cleaning sprays, benzine,
thinner, static electricity prevention liquids or
any other solvent.
• Do not use the following discs:
- Discs with exposed adhesive from removed
stickers or labels (rental discs, etc.).
- Discs that are badly warped or cracked.
- Irregularly shaped discs, such as heart
shapes.
• Do not expose the terminals of the SD card to
water, garbage or other strange things.
DO
DO NOT
DMRBWT760GN_eng.book 18 ページ ２０１６年４月１１日 月曜日 午後３時３２分

Getting started
SQT1109 19

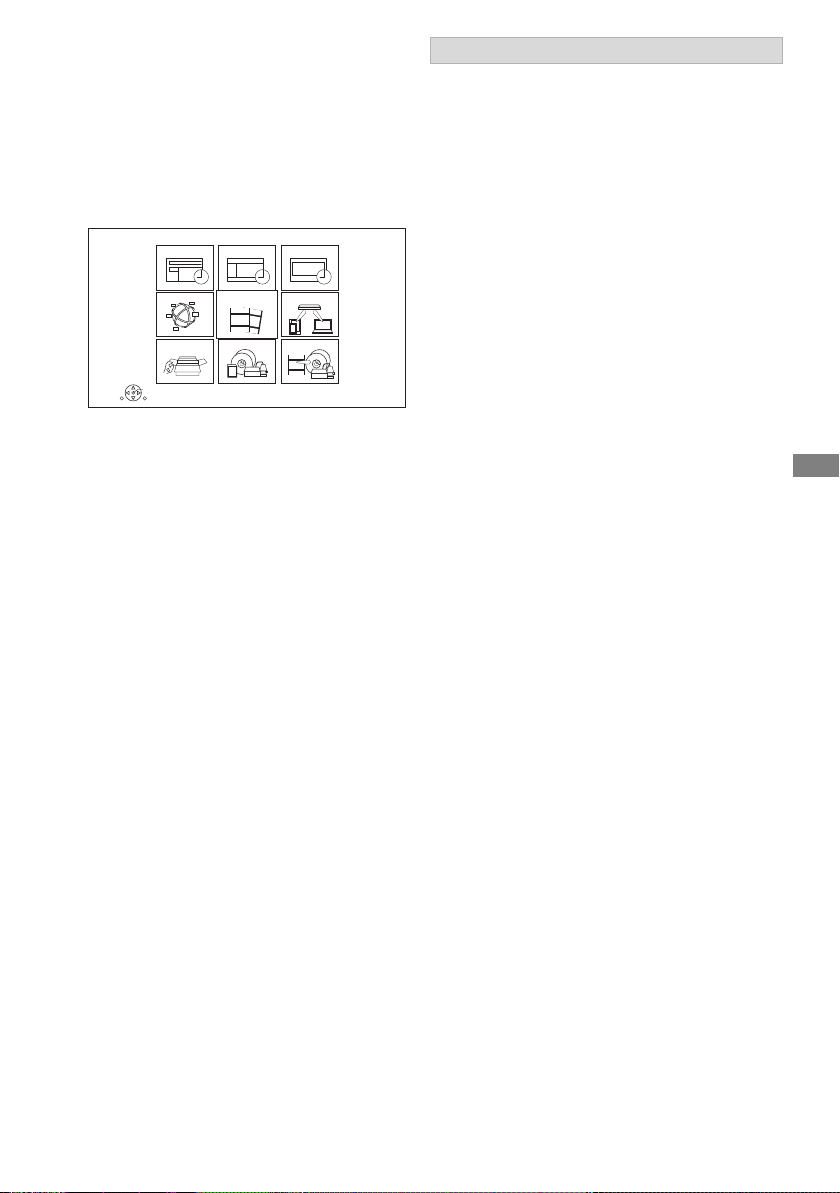

FUNCTION MENU
screen
You can easily access the desired functions, such
as playback, timer recording, the unit’s settings
etc. via the FUNCTION MENU.
1Press [FUNCTION MENU].
2Select the item, then press [OK].
RETURN
FUNCTION MENU
OK
Media
TV GuideKeyword Recording
Home Network
Copy VideoSetup
Timer Recording
Contents on HDDNetwork Service
FUNCTION MENU list
• Keyword Recording (>29)
•TV Guide (>21)
• Timer Recording (>26)
• Network Service (>57)
• Contents on HDD
- Recorded Programmes (>31)
- Video ( AVCHD ) (>31)
- Video ( MP4 / MKV ) (>34)
-Photo (>52)
-Music (>56)
• Home Network
- Miracast (>61)
- DLNA Client (>59)
- Media Renderer (>60)
- Wi-Fi Direct (>60)
•Setup
- Basic Settings (>70)
• You can change the unit’s settings of Digital
TV Tuning, Sound, Display, Connection,
Network etc.
- TV Anytime (>57)
- Wallpaper
Personalise a background of the FUNCTION
MENU.
• To select from among “Photo”, register photo
in advance. (>52)
- BD-Video Data Management (>35)
•Media
-Disc
- SD Card
- USB device
- USB HDD
• Copy Video
- Copy Menu (>47)
- Copy Video (AVCHD) to DVD-R (>51)
DMRBWT760GN_eng.book 19 ページ ２０１６年４月１１日 月曜日 午後３時３２分

Watching broadcasts
SQT1109
20
Watching broadcasts
To switch to the channel you have previously
watched
Press [LAST VIEW ].
• This function will work only for the channels you
have watched for more than 10 seconds.
If you have set a ratings level (>71, Child Lock
( Parental Rating )), you may be asked to enter
the PIN. In that case, enter the 4-digit PIN with the
number buttons by following the on-screen
instructions.
• Make a note of the PIN you have decided on
in case you forget it.
• PIN can be changed via “PIN Entry”. (>78)
While watching a programme
Press [STATUS ].
Channel Information appears.
Current Category
[For_New_Zealand] Audio Description
3Set timer (>27)
4Subtitle
5Te l et ex t
6Multiple audio
7Data service (>21)
To show detailed information
Press [STATUS ] again.
To hide the information screen
Press [EXIT ].
To change Category
Press the blue button.
• To register your favourite channels (>70)
To switch between the current programme
and the next programme
Press [2,1].
To switch to another channel
Press [3,4], then press [OK].
When “ ” appears in Channel Information
Press [STTL ].
• Press again to hide subtitle.
When “ ” appears in Channel Information
1Press [TEXT ].
2Use [3,4,2,1], number buttons or colour
buttons, etc. according to on-screen
instructions.
• You can change the display mode. (>74, Teletext)
1Press [INPUT SELECT] and select “TV”,
then press [OK].
2Press [CH WX] to select the channel.
• You can also select the channel by the
following operations
- Using number buttons.
- Using Channel Information (>below)
- Using TV Guide system (>21)
- Using Channel List (>22)
If this unit requests a PIN
Using Channel Information
Wat ching
broadcasts
XXXX
1
Now
HE-AAC ADRating: G
Change category
All Digital Channels
XXXX - XXXX
Set timer


 
e.g.,
To show subtitle
To show Teletext
DMRBWT760GN_eng.book 20 ページ ２０１６年４月１１日 月曜日 午後３時３２分
