•Single-shot recording
One frame each from
cameras A and B is
recorded in pairs in
response to the sensor
signal input.
•Time-lapse recording
One frame each from cameras A and B is recorded in pairs at preset
intervals. Sound is also
recorded simultaneously,
giving a clear recorded
overview of a given
situation.
Search by displaying 16 pictures at a time Speedy checking
Thumbnail searches are possible with 8 or 16 pictures displayed at a
time. Select the desired pictures using the cursor to display the full-
screen image.
Two video input
The WJ-DR200 includes two video input jacks A and B, allowing two
security cameras to be connected. Still images from A and B are
recorded continuously in pairs, giving a recorded overview of a given
situation.
The WJ-DR200 is a disc based digital recorder capable of
large-capacityrecordingusing DVD RAM disc for video
surveillance applications. Still images are recorded instantly
on receiving a signal from a sensor. Digital technology
yields high image quality, and also makes possible a
recording system with outstanding search functions.
Closed Circuit Video Equipment
Key Features
High-quality and large-capacity recording with DVD
More than 43,000 high-quality still images can be recorded on a single
DVD RAM disc.In addition,image quality always remains sharp no matter
many times they are played back. Blur-free recording has also been
made possible using a newly developed 3D scan conversion system.
Three recording methods chosen to suit usage
•Multi-shot recording
When the sensor activates, the images from security cameras A and B
are recorded continuously and in pairs. The internal video buffer
allows the images
immediately before and
after the instant of sensor
activation to be recorded
without omissions.
NEWLY DEVELOPED AV DISC RECORDER
OFFERING LARGE-CAPACITY RECORDING AND SPEEDY SEARCHES
Audio input Pixels Fine Normal Rough
Audio : On 720 x 576 15,000-picture 20,000-picture 24,000-picture
720 x 288 22,000-picture 26,000-picture 29,000-picture
Audio : Off 720 x 576 23,000-picture 36,000-picture 53,000-picture
720 x 288 43,000-picture 67,000-picture 91,000-picture
Recording capacity (approx.)
Security camera
A image
Sensor signal Sensor signal
Recording Recording
Time
Security camera
B image
Recording Recording Recording Recording
Sensor signal Sensor signal Sensor signal Sensor signal Time
Recording Recording Recording Recording Recording
Time
00015
96/06/04
11:10:07
00016
96/06/04
12:22:25
00017
96/06/04
15:33:52
00018
96/06/04
15:40:42
00019
96/06/04
16:10:11
00020
96/06/04
17:01:44
00021
96/06/04
17:20:20
00022
96/06/04
17:30:55
00009 00010
00008
00012
00016
00007
00011
00013 00015
00006
000040000300002
00014
00001
00005
8 pictures Select by setting
* In a thumbnail search, only A input images are displayed.
16 pictures
WJ-DR
AV Disc Recorder
The maximum recording rate is 25 fields per second*, and a maximum
of 150 pictures can be recorded. The numbers of frames recorded
before and after the signal input can be preset. *for field images
Searching is also possible
directly by displaying
pictures for a specified
time, or by selecting from
a list of recording times.

Video Input A 1.0 V[p-p]/75ΩPAL Composite Video Signal with
75ΩAutomatic Termination/Looping through (x1)
Y Signal; 0.7 V[p-p], C Signal; 0.3 V[p-p]/75ΩS-video signal (x1)
Video Input B 1.0 V[p-p]/75ΩPAL Composite Video Signal with
75ΩAutomatic Termination/Looping through (x1)
Video Output 1.0 V[p-p]/75ΩPAL Composite Video Signal (x1)
Y Signal; 0.7 V[p-p], C Signal; 0.3 V[p-p]/75ΩS-video signal (x1)
Sampling Pixel Size (H) x (V) 720 x 576, or 720 x 288
H. Resolution 480 lines (at fine mode)
S/N Ratio 52 dB (at digital / non-compression)
Audio Input 47kΩunbalanced, RCA standard jack
Audio Output 600Ωunbalanced, RCA standard jack
Camera Switching Output Pulse 50 ms, RCA standard jack
Terminal Board Sensor Input: Pulse more than 100 ms
Alarm Input: Pulse more than 100 ms
Alarm Reset Input: Pulse more than 100 ms
Series Record Input: 1 circuit
Time Adjustment Input: Pulse more than 100 ms
Alarm Output: Selectable Hi / Low active
Alarm Recover Output: Pulse 100 ms
Buzzer Output: 1 circuit
Thermal Error Output: 1 circuit
Time Adjustment Output: Pulse 1 s
Series Record Output: 1 circuit
Serial Control Port Baud Rate; 2,400 - 115,200 bps, Data Bit; 8, Parity Check;
None, Start Bit; 1, Stop Bit; 1, (25-pin D-sub Connector)
Parallel Control (25-pin D-sub Connector) Play, Rec, Find, Alarm Reset, etc
Power Source 220 V - 240 V, 50 Hz
Power Consumption 42 W
Ambient Operating Temperature +5˚C - +40˚C
Ambient Operating Humidity Less than 90% (non-condensing)
Dimensions (approx.)
420 (W) x 88 (H) x 350 (D) mm
Weight (approx.) 7kg
SPECIFICATIONS
• Weights and dimensions are approximate. • Specifications are subject to change without notice. • These products may be subject to export control regulations.
PAL
DISTRIBUTED BY:
Panasonic is the brandname of Matsushita Electric.
Printed in Japan
[N-627]

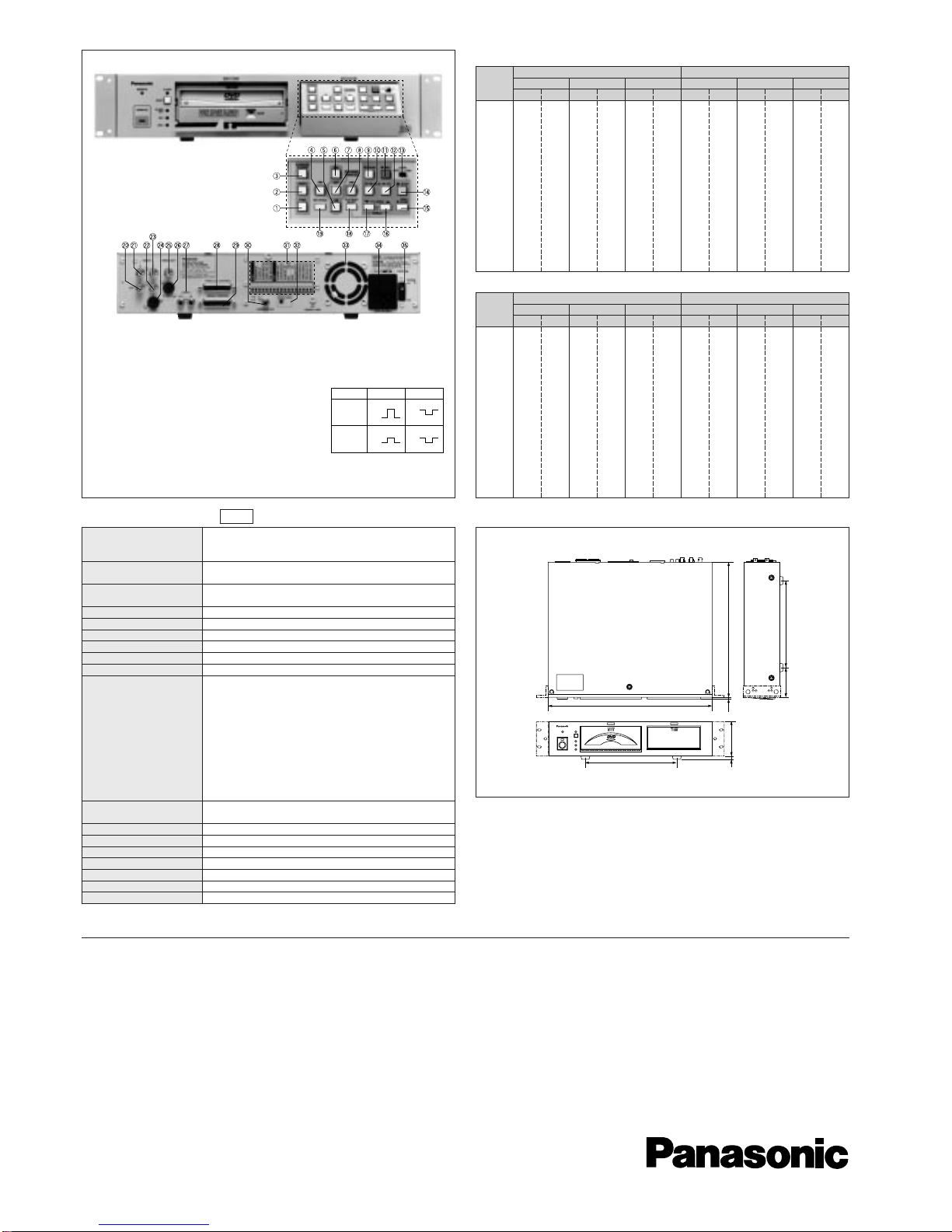

Front View
Rear View
MAJOR OPERATING CONTROLS TIME-LAPSE MODE RECORDING TIME
16. Increment button
17. Decrement button
18. Play Back Select button
19. Set Up/Escape button
20. Looped Through Output
B connector
21. Looped Through Output
B connector
22. Video Input A connector
23. Video Input A connector
24. S-Video Input connector
25. Video Output connector
26.
S-Video Output connector
27. Audio Output/Input connector
28. Parallel Control port
29. RS232C port
30. Camera Switching Output
connector
31. Terminal Board
32.
Alarm Output Level Selector
33. Cooling Fan
34. AC socket
35. Power switch
1. Find button
2. Index button
3. Alarm Record button
4.
Reverse Step button Left button
5. Reverse Frame button Down button
6. Forward Frame button Up button
7. Set button
8.
Forward Step button Right button
9. Pause button
10. Reverse Play button
11. Record button
12. Play button
13. Lock switch
14. Stop button
15. Open/Close button
Alarm
Output
H
12V
0V
L
Alarm
Recover
Output
5V
0V 5V
0V
5V
0V
Video Pixel 720 x 576 Video Pixel 720 x 288
Fine Normal Rough Fine Normal Rough
hour min. hour min. hour min. hour min. hour min. hour min.
0.04 – – – – – – 0 31 0 51 1 14
0.08 0 32 0 51 1 18 1 03 1 43 2 28
0.12 0 49 1 17 1 58 1 35 2 34 3 42
0.20 1 21 2 09 3 17 2 39 4 17 6 11
0.24 1 38 2 34 3 56 3 11 5 09 7 25
0.32 2 10 3 26 5 15 4 15 6 52 9 54
0.52 3 32 5 35 8 32 6 55 11 09 16 06
1.00 6 49 10 45 16 25 13 18 21 28 30 58
2.00 13 38 21 30 32 51 26 36 42 56 61 56
3.00 20 27 32 15 49 17 39 55 64 24 92 54
4.00 27 17 43 00 65 42 53 13 85 52 123 52
5.00 34 06 53 45 82 08 66 31 107 20 154 50
10.00 68 12 107 30 164 17 133 03 214 41 309 41
15.00 102 19 161 15 246 26 199 35 322 01 464 31
20.00 136 25 215 00 328 34 266 06 429 22 619 22
25.00 170 31 268 46 410 43 332 38 536 43 774 13
30.00 204 38 322 31 492 52 399 10 644 03 929 03
Audio Recording : On
Capture
Rate
Video Pixel 720 x 576 Video Pixel 720 x 288
Fine Normal Rough Fine Normal Rough
hour min. hour min. hour min. hour min. hour min. hour min.
0.04 – – – – – – 0 30 0 47 1 06
0.08 0 31 0 49 1 14 1 00 1 35 2 13
0.12 0 47 1 14 1 51 1 31 2 23 3 20
0.20 1 19 2 04 3 06 2 32 3 59 5 34
0.24 1 33 2 23 3 31 2 54 4 28 6 05
0.32 2 04 3 11 4 42 3 53 5 57 8 06
0.52 3 18 5 00 7 15 6 03 9 04 12 05
1.00 5 57 8 44 12 09 10 21 14 42 18 36
2.00 10 45 15 06 19 58 17 28 23 17 27 56
3.00 14 43 19 58 25 25 22 04 27 57 32 15
4.00 17 45 23 18 28 40 26 01 31 57 36 04
5.00 20 34 26 23 31 46 29 08 34 57 38 50
10.00 29 27 34 58 39 24 37 18 41 45 44 24
15.00 34 24 39 13 42 49 41 09 44 39 46 38
20.00 37 33 41 46 44 46 43 23 46 15 47 50
25.00 39 45 43 27 46 01 44 51 47 16 48 35
30.00 41 21 44 39 46 54 45 52 47 58 49 06
Audio Recording : Off
Capture
Rate
Unit: mm
APPEARANCE
420
236
88
8
58 245
350
3
