Panasonic CT-32D12D User manual

®
®
Color Television
Operating Instructions
CT-27D12D
CT-27D12SD
CT-32D12D CT-36D12D
TQB2AA0384-2 22603
PRINTED IN USA
Télé-couleur
Manuel d’utilisation
TQB2AA0384-2 22603
IMPRIMÉ AUX ÉTATS-UNIS
For assistance, please call: 1-800-211-PANA (7262) or
send e-mail to: [e-mail] (USA only)
CT-27D12D
CT-27D12SD
CT-32D12D CT-36D12D

WARNING: To reduce the risk of electric shock do not remove cover or back.
No user-serviceable parts inside. Refer servicing to qualified service personnel.
The exclamation point within a
triangle is intended to tell the
user that important operating
and servicing instructions are
in the papers with the
appliance.
The lightning flash with arrow
head within a triangle is
intended to tell the user that
parts inside the product are a
risk of electric shock to
persons.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING
WARNING:TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO
NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.
ANY CHANGES OR MODIFICATIONS TO THIS TV
RECEIVER NOT EXPRESSLY APPROVED BY
MATSUSHITA ELECTRIC CORPORATION OF AMERICA
COULD CAUSE HARMFUL INTERFERENCE, WHICH
WOULD VOID THE USER’S AUTHORITY TO OPERATE
THIS EQUIPMENT.
FCC CAUTION:
THIS PRODUCT UTILIZES BOTH A CATHODE RAY TUBE (CRT) AND
OTHER COMPONENTS THAT CONTAIN LEAD. DISPOSAL OF THESE
MATERIALS MAY BE REGULATED IN YOUR COMMUNITY DUE TO
ENVIRONMENTAL CONSIDERATIONS. FOR DISPOSAL OR RECYCLING
INFORMATION PLEASE CONTACT YOUR LOCAL AUTHORITIES, OR THE
ELECTRONICS INDUSTRIES ALLIANCE: <HTTP://WWW.EIAE.ORG.>
ENVIRONMENTAL NOTICE:

T ABLE OF C ONTENTS
1l
Table of Contents
Congratulations.........................................................2
Customer Record ......................................................................2
Care and Cleaning.....................................................................2
Specifications ............................................................................2
Installation..................................................................3
Television Location....................................................................3
Optional Cable Connections......................................................3
AC Power Supply Cord..............................................................3
Cable / Antenna Connection......................................................3
Feature Chart .............................................................4
Auto Set Up Menu......................................................5
Optional Equipment Connections ...........................6
VCR Connection........................................................................6
Front Control Panel...................................................6
Digital TV - Set-Top Box or DVD Player Connection.................7
Amplifier Connection (TO AUDIO AMP)....................................7
Remote Control Operation .......................................8
Mode Operational Key Chart ....................................................9
Programming the Remote .......................................................11
Programming With a Code......................................................11
Programming Without a Code.................................................11
Component Codes...................................................................12
Icon Menu Navigation .............................................14
Main Menu Icons......................................................15
Icon Menus..............................................................................15
Icon Menu Operation...............................................16
Set Up......................................................................................16
Picture .....................................................................................18
Timer .......................................................................................19
Audio .......................................................................................20
Channels .................................................................................21
Lock.........................................................................................22
V-Chip Menu Operation...........................................23
U.S. TV Programs ...................................................................23
U.S. Movies.............................................................................24
Rating Systems for Canada.....................................................26
Troubleshooting Chart............................................28
Limited Warranty .....................................................29
Customer Services Directory .................................31
Limited Warranty (models sold in Canada only) ..32
Index .........................................................................33
Read these instructions completely before operating television.
Contents are subject to change without notice or obligation.
Copyright 2002 by Matsushita Electric Corporation of America. All rights reserved.
Unauthorized copying and distribution is a violation of law.

2l
C ONGRATULATIONS
Congratulations
Your new TV Monitor/Receiver features a solid state chassis that is designed to give you many years of enjoyment. It was
thoroughly tested and tuned at the factory for best performance.
Customer Record
The model and serial number of this product are located on the back of the television. You should note the model and serial
number in the space provided and retain as a permanent record of your purchase. This will aid in identification in the event
of theft or loss. Product registration for U.S. customers is available at www.prodreg.com/panasonic.
Model
Number
Serial
Number
Care and Cleaning
Screen (Turn TV Off)
• Use a mild soap solution or window cleaner with a soft clean cloth. DO NOT USE ABRASIVE CLEANERS.
• Avoid excessive moisture and wipe dry.
Note: Do not spray any type of cleaning fluid directly on the screen.
Cabinet and Remote Control
rFor cabinets and remote control, use a soft cloth dampened with water or a mild detergent solution. Avoid excessive moisture and
wipe dry.
rDo not use benzene, thinner or other petroleum based products.
Specifications
Specifications are subject to change without notice or obligation.
Power Source
CT-27D12D (2.0A)
CT-27D12DU (2.0A)
CT-27D12SD (2.0A)
CT-32D12D (2.2A)
CT-32D12DU (2.2A)
CT-36D12D (2.4A)
CT-36D12DU (2.4A)
120V AC, 60Hz
Channel Capability - 181 VHF-12; UHF-56; Cable-113
Video Input Jacks 1Vp-p, 75 Ohm, Phono Jack Type
Audio Input Jacks 500mV RMS 47K Ohm
Audio Output Jacks 0-2.0V RMS 4.7K Ohm
Component input (Y / PB/ PR)75 Ohms, Phono Jack Type
S-Video Input Jacks S-Video (Y-C) Connector

I NSTALLATION
3l
Installation
Television Location
Follow these recommendations before deciding the location of your television.
rAvoid excessive sunlight or bright lights, including reflections.
rKeep away from excessive heat or moisture. Inadequate ventilation may cause internal component failure.
rFluorescent lighting may reduce remote control transmitting range.
rKeep away from magnetic equipment, including motors, fans and external speakers.
CAUTION: Use this television receiver only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or
sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from
tip-over. In order to avoid injury to children, never place your television receiver on a piece of furniture that is capable of
being tilted by a child leaning on it, pulling on it, standing on it, or climbing on it.
CT-27D12D, CT-27D12SD, CT-27D12DU:
CAUTION: These television receivers for use only with PANASONIC TY-27G22M (TY-27G22M-PC for Canada) stand. Use with
other carts (or stands) is capable of resulting in instability causing possible injury.
CT-32D12D, CT-32D12DU:
CAUTION: These television receivers for use only with PANASONIC TY-32G22M (TY-32G22M-PC for Canada) stand. Use with
other carts (or stands) is capable of resulting in instability causing possible injury.
CT-36D12D, CT-36D12DU:
CAUTION: These television receivers for use only with PANASONIC TY-36G22M (TY-36G22M-PC for Canada) stand. Use with
other carts (or stands) is capable of resulting in instability causing possible injury.
Optional Cable Connections
Shielded audio and video cables should be used between components. For best results:
rUse 75-ohm coaxial shielded cables.
rUse appropriate input and output connectors that match your component connectors.
rAvoid long cables to minimize interference.

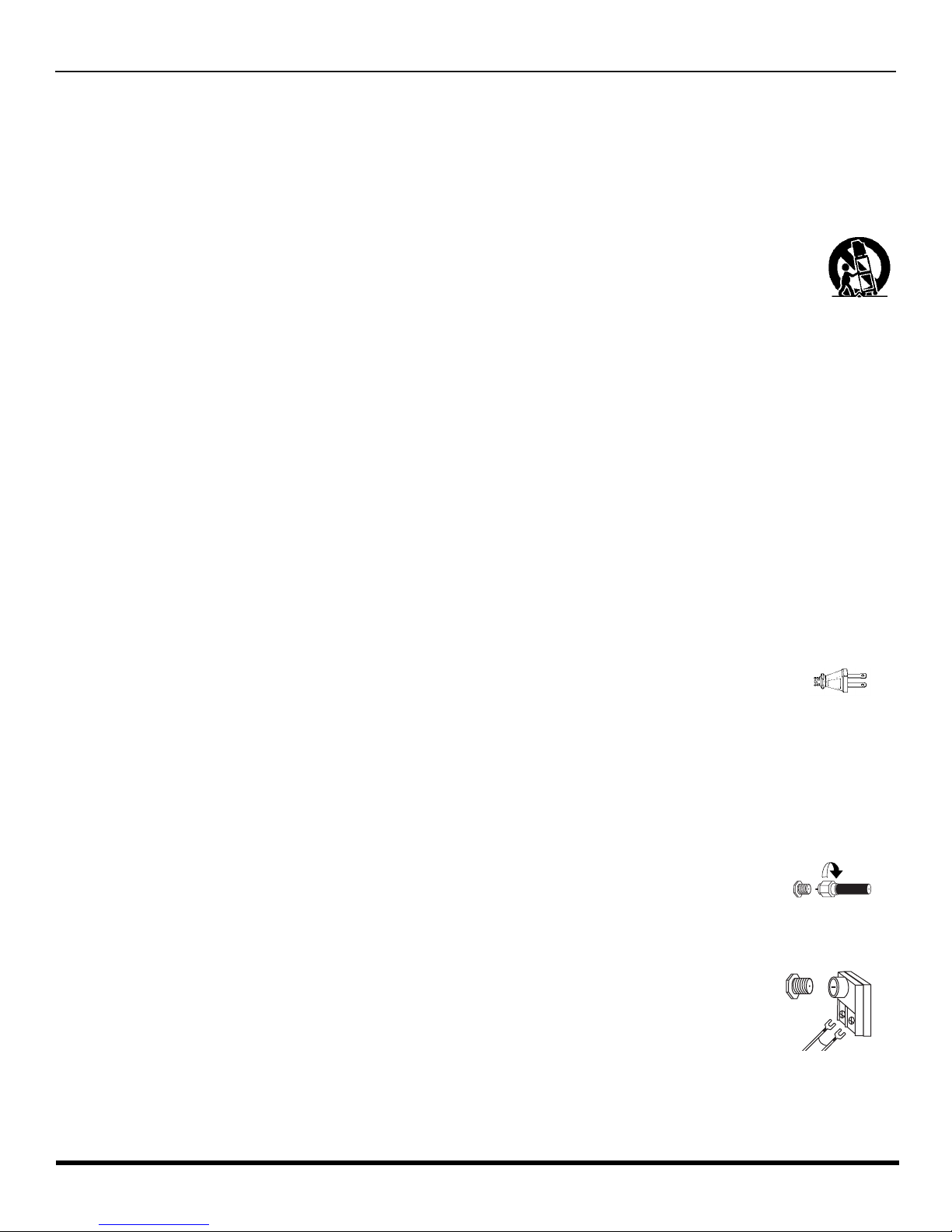

AC Power Supply Cord
CAUTION: TO PREVENT ELECTRIC SHOCK MATCH WIDE BLADE OF PLUG TO WIDE SLOT OF AC OUTLET
AND FULLY INSERT. DO NOT USE A PLUG WITH A RECEPTACLE OR OTHER OUTLET UNLESS THE BLADE
CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.
PROTECT POWER CORDS FROM BEING WALKED ON, ROLLED OVER, CRIMPED, BENT OR PINCHED,
PARTICULARLY AT PLUGS, CONVENIENCE RECEPTACLES, AND THE POINT WHERE THEY EXIT FROM THE APPARATUS.
Cable / Antenna Connection
For proper reception, either a cable or antenna connection is required.
Cable Connection
Connect the cable supplied by your local cable company.
Note: A cable converter box may be required for proper reception. Check with your local cable company for
compatibility requirements.
Antenna Connection
• For proper reception of VHF/UHF channels, an external antenna is required. For best reception, an
outdoor antenna is recommended.
Note: Cable Mode is preset at the factory. Antenna users must change to TV mode in the Set Up Menu under
Prog Chan.
Polarized plug
75 Ohm VHF/UHF
on back of TV
Incoming Cable from
Cable Company
I
ncom
i
ng
C
a
bl
e
f
rom
Home Antenna

4l
F EATURE C HART
Feature Chart
MODELS
CT-27D12D
CT-27D12SD
CT-32D12D
CT-36D12D
Features
MENU LANGUAGE (ENG/SPAN/FR)
rrrr
VIDEO INPUT MEMORY rrrr
CHANNEL INFO BANNER rrrr
VIDEO INPUT SKIP rrrr
75 OHM INPUT rrrr
V-CHIP CAPABILITY rrrr
CLOSED CAPTIONING rrrr
VIDEO NORM rrrr
AUDIO NORM rrrr
STEREO rrrr
BASS/TREBLE/BALANCE rrrr
SURROUND rrrr
AI SOUND rrrr
NUMBER OF SPEAKERS 2 2 2 2
A/V IN (REAR/FRONT) 3
(2/1) 3 (2/1) 3 (2/1) 3 (2/1)
AUDIO OUT rrrr
S-VIDEO INPUT (REAR/FRONT) 1
(1/0) 1 (1/0) 1 (1/0) 1 (1/0)
COMPONENT VIDEO INPUT
(REAR/FRONT) 1
(1/0) 1 (1/0) 1 (1/0) 1 (1/0)
HEADPHONE JACK
rrrr
IMPORTANT INFORMATION REGARDING THE USE OF VIDEO GAMES, COMPUTERS, OR
OTHER FIXED IMAGE DISPLAYS.
WARNING: The marking or retained image on the picture tube resulting from viewing fixed
image is not an operating defect and as such is not covered by Warranty.
This television is designed to display constantly moving images on the screen. Continuous viewing
of stationary images such as letterbox pictures on standard screen TVs (with top/bottom bars), non-
expanded standard (4:3) pictures on wide screen TVs (with side bars shown on each side of an
image), stock market report bars (ticker running at the bottom of the screen), video game patterns,
fixed scoreboards, bright station logos, on-line (Internet) or repetitive computer style patterns should
be limited.
The extended use of fixed image program material can cause a permanent picture tube damage,
shown as a “shadow image” viewable on normal programs. This type of irreversible picture tube
deterioration can be limited by performing the following steps:
• Do not display the fixed image for extended periods of time.
• Turn the power off when not in use.
A/V JACKS AUDIO SPECIAL
FEATURES

A UTO S ET U P M ENU
5l

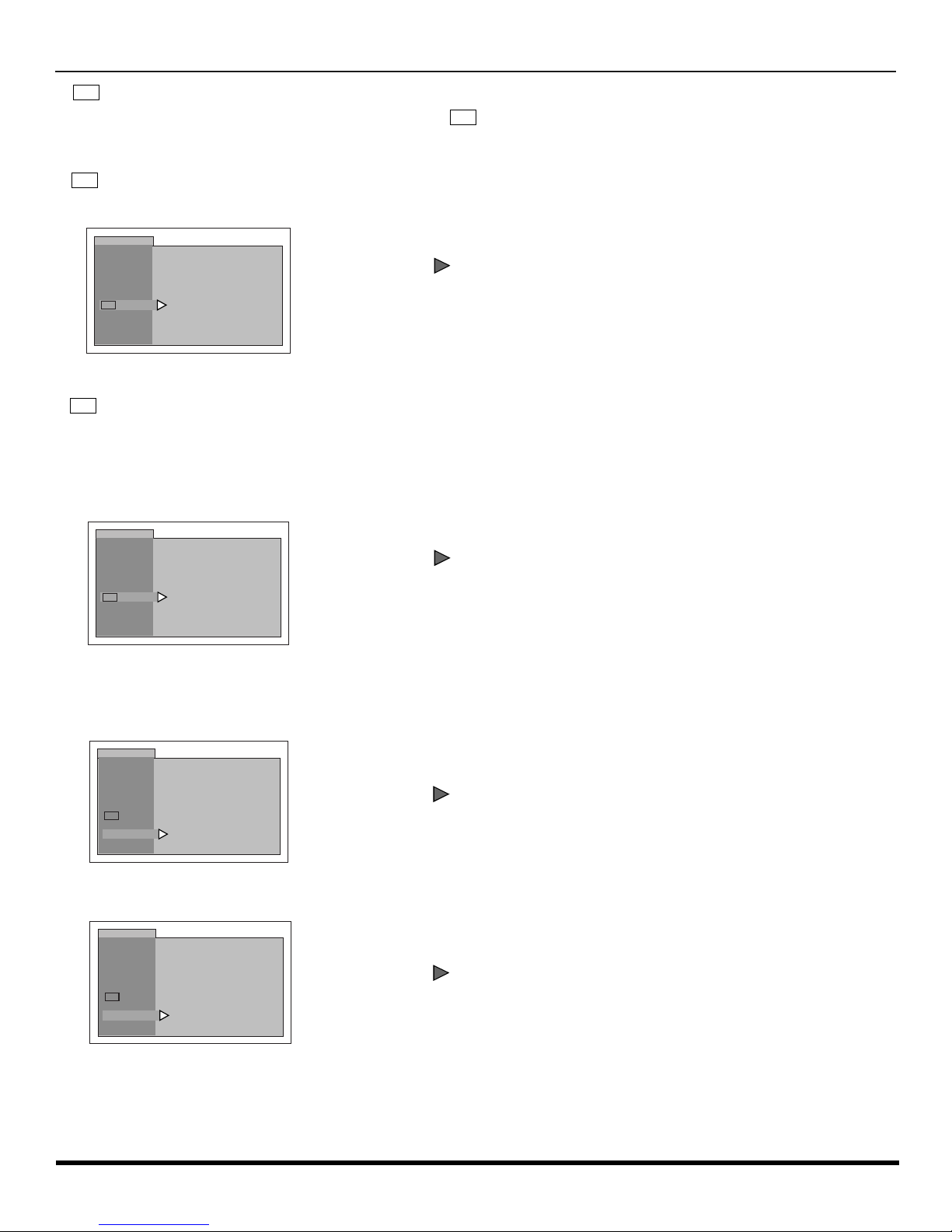

Auto Set Up Menu
For your convenience, Auto Set up menu will be displayed on screen when the set is turned on for the first time. If needed,
follow the menus and procedures for setting up the features.
rIDIOMA/LANGUE - To change menu language to ENGLISH, SPANISH or FRENCH.
rMODE - To select TV (antenna) or CABLE mode depending on the signal source.
rAUTO PROGRAM - To automatically program all channels with a signal.
rPress to select English, Spanish or French.
VOL
IDIOMA/LANGUE ENGLISH
CABLEMODE
AUTO PROGRAM
PRESS ACTIONTO EXIT
u
u
u
AUTO SET UP
FIRST PLEASE
CONNECT THE ANTENNA
rPress to select TV or CABLE.
VOL
IDIOMA/LANGUE ENGLISH
CABLEMODE
AUTO PROGRAM
PRESS ACTIONTO EXIT
u
u
u
AUTO SET UP
FIRST PLEASE
CONNECT THE ANTENNA
rPress to start Auto Programming.
VOL
IDIOMA/LANGUE ENGLISH
CABLEMODE
AUTO PROGRAM
PRESS ACTIONTO EXIT
u
u
u
AUTO SET UP
FIRST PLEASE
CONNECT THE ANTENNA

6l
O PTIONAL E QUIPMENT C ONNECTIONS
Optional Equipment Connections
VCR Connection
VCRs, video disc players, video game equipment, and DSS equipment can also be connected to the video inputs. See the
optional equipment manual for more information.
Note: VIDEO 1 input is a dual-purpose input. It is primarily intended for connection with 480i devices such as a DVD player
using the Y P
B
P
R
component video jacks and Audio L & R jacks. However, it can also be connected to conventional
composite video sources such as a VCR, using only the Y/Video jack and Audio L & R jacks. The on-screen label will
display Component or Video 1 depending on which source is connected.
Procedure
1. Connect equipment as shown to front or rear Audio/Video input jacks.
2. Select the Video mode by pressing TV/VIDEO button.
3. Operate optional equipment as instructed in equipment manual.
Front Control Panel
Use the front panel of the television to use the TV without remote or to use the Audio/Video input jacks for optional
equipment.
Press to select VIDEO input mode.
Note: The front control panel can be used to access menus and switch video mode when the remote control is not available.
COMPONENT
VIDEO INPUT
INPUT 1
R AUDIO L
PB PRY/VIDEO
TO AUDIO
AMP
L
R
R AUDIO LINPUT 2 VIDEO
S-VIDEO
L
R
ANT IN
VIDEO OUT
AUDIO OUT
ANT OUT
Jack used for 1/8"
headpone plug
HPJ VIDEO 3 L AUDIO IN R
CABLES NOT SUPPLIED
VCR
CONNECTION ON BACK OF TV
FRONT OF TV
TV/VIDEO

F RONT C ONTROL P ANEL
7l
Digital TV - Set-Top Box (DTV-STB) or DVD Player Connection
Use this diagram to connect the Panasonic DTV-STB (Digital TV-Set-Top Box) to the back of your TV.
Notes:
rThere are three video inputs, Y, PB, and PR. Separate component color inputs provide luminance and color separation. Use the L
(left) and R (right) audio inputs.
rSelect DTV-STB to 480i output mode. TV set can receive 480i signal only.
Amplifier Connection (To Audio Amp)
Connect to an external audio amplifier input for listening to a stereo system.
Note: TO AUDIO AMP terminals cannot be connected directly to external speakers.
Audio Adjustments
1. Select TV SPEAKERS ON from AUDIO menu.
2. Set amplifier volume to minimum.
3. Adjust TV volume to desired level.
4. Adjust amplifier volume to match the TV.
5. Select TV SPEAKERS OFF&VAO from AUDIO menu.
6. Volume, mute, bass, treble and balance are now controlled from the TV.
Note: In OFF&FAO the volume is controlled by the external amplifier.
COMPONENT
VIDEO INPUT
INPUT1
R AUDIO L
P
B
P
R
Y/VIDEO
TOAUDIO
AMP
L
R
R AUDIO LINPUT2 VIDEO
S-VIDEO
NTSC OUTPUT
R-AUDIO-L VIDEO
P
B
P
R
R-AUDIO-L
S-VIDEO
Y
DIGITAL OUTPUT
TERMINALS ON BACK OF DTV-STB OR DVD PLAYER
COMPONENT VIDEO INPUT TERMINALS ON BACK OF TV
CABLES NOT SUPPLIED
CONNECTIONS ON BACK OF TV
CABLES NOT SUPPLIED
COMPONENT
VIDEO INPUT
INPUT 1
R AUDIO L
P
B
P
R
Y/VIDEO
TO AUDIO
AMP
L
R
R AUDIO LINPUT 2 VIDEO
S-VIDEO
External Amplifier

8l
R EMOTE C ONTROL O PERATION
Remote Control Operation
POWER
Press to turn ON and OFF.
POWER
MUTE
Press to mute sound. Press to display and
cancel CC (Closed Caption).
SAP
Press to access second audio program.
TV/VIDEO
Press to select TV or Video mode.
Press to select remote operation.
TV
VCR
DBS/CBL
DVD
ACTION
Press to access menus.
Press to select next or previous channel and
navigate in menus.
CH
CH
Press to adjust TV sound and navigate in
menus.
VOLVOL
EXIT
DBS functions button.
GUIDE
DBS functions button.
REW PLAY FF
PAUSE STOP REC
TV/VCR VCR /DBS CH
Component function buttons
u
Press numeric keypad to select any channel.
7
4
1 2
5
8
0
9
6
3
R-TUNE
Press to switch to previously viewed
channel or video mode.
EUR511502
EUR7613Z10
Battery Installation
Use two AA batteries:
Remove battery cover by pushing in and up near arrow.
Install batteries matching (+) and (-) polarity signs.
Replace the battery cover.
Note: Incorrect installation can cause battery leakage and
corrosion that will damage the Remote Control.
Precautions
• Replace batteries in pairs.
• Do not mix battery types (zinc carbon
with alkaline).
• Do not recharge, heat, short-circuit,
disassemble, or burn batteries.
PROG
Press to enter the minor number in a
compound channel number (DBS mode only).
RECALL
Press to display time, channel, sleep timer,
and other options.
MENU
Press to access DBS or DVD menus.

R EMOTE C ONTROL O PERATION
9l
Mode Operational Key Chart
This chart defines the keys that are operational in the selected component modes (TV, VCR, DBS, CABLE or DVD) after
programming (if needed).
KEY NAME TV MODE CABLE MODE DBS MODE
POWER POWER POWER POWER
MUTE MUTE TV MUTE TV MUTE
MENU - - -
TV/VIDEO INPUT SWITCH TV INPUT SWITCH TV INPUT SWITCH
CHAN p
CHANNEL UP CABLE CHANNEL UP DBS NAVIGATION UP
CHAN q
CHANNEL DOWN CABLE CHANNEL DOWN DBS NAVIGATION DOWN
VOL u
VOL + TV VOL + DBS NAVIGATION RIGHT
t VOL VOL - TV VOL - DBS NAVIGATION LEFT
ACTION TV MENU / ENTER -DBS MENU
RECALL DISPLAY TV DISPLAY DBS PROG. INFO
SAP SAP ON/OFF -STB AUDIO TRACK
EXIT - - DBS EXIT
GUIDE - - DBS GUIDE
PROG - - DBS PROG
1DIGIT 1 DIGIT 1 DIGIT 1
2DIGIT 2 DIGIT 2 DIGIT 2
3DIGIT 3 DIGIT 3 DIGIT 3
4DIGIT 4 DIGIT 4 DIGIT 4
5DIGIT 5 DIGIT 5 DIGIT 5
6DIGIT 6 DIGIT 6 DIGIT 6
7DIGIT 7 DIGIT 7 DIGIT 7
8DIGIT 8 DIGIT 8 DIGIT 8
9DIGIT 9 DIGIT 9 DIGIT 9
0DIGIT 0 DIGIT 0 DIGIT 0
R-TUNE PREVIOUS CHAN
OR VIDEO MODE CABLE PREVIOUS CHANNEL PREVIOUS DBS CHANNEL
<<REW VCR REWIND - -
PLAY VCR PLAY - -
>>FF VCR FAST FORWARD - -
PAUSE VCR PAUSE - -
STOP VCR STOP - -
RECORD VCR RECORD -
TV/VCR TV/VCR SWITCH - -
VCR/DBSCHAN
VCR CHANNEL DOWN -DBS CHANNEL DOWN
VCR/DBS CHAN
VCR CHANNEL UP -DBS CHANNEL UP

10 l
R EMOTE C ONTROL O PERATION
Mode Operational Key Chart (contd.)
KEY NAME VCR MODE
DVD MODE
POWER POWER POWER
MUTE TV MUTE TV MUTE
MENU - -
TV/VIDEO TV INPUT SWITCH TV INPUT SWITCH
ACTION - -
CHAN p
-NEXT CHAPTER
CHAN q
- PREVIOUS CHAPTER
VOL u
TV VOLUME + NAVIGATION RIGHT
t VOL TV VOLUME - NAVIGATION LEFT
RECALL ONSCREEN VCR
DISPLAY DVD DISPLAY
SAP - -
EXIT - -
GUIDE - -
PROG - -
1- -
2- -
3- -
4- -
5- -
6- -
7- -
8- -
9- -
0- -
R-TUNE - -
<<REW VCR REWIND SKIP SEARCH REW <<
PLAY VCR PLAY DVD PLAY
>>FF VCR FF SKIP SEARCH
FF>>
PAUSE VCR PAUSE DVD STILL
STOP VCR STOP DVD STOP
RECORD VCR RECORD -
TV/VCR TV/VCR SWITCH OPEN/CLOSE
VCR/DBS
CHAN VCR CHANNEL
DOWN SLOW -
VCR/DBS
CHAN VCR CHANNEL UP SLOW +
E

R EMOTE C ONTROL O PERATION
11 l
Programming The Remote
The Universal Remote Control can be programmed to operate many manufacturers’ components, using the component
function buttons for VCR, DVD, CABLE or DBS. Follow the procedures for programming your Remote Control with or
without a code for the component.
Determine the manufacturer of the component and look in the table for the code.
Programming With a Code
Procedure
• Confirm that the external component is plugged in and operating.
• Turn the component off.
• Press and together, for at least 5 seconds.
• Press appropriate component button on the Remote Control VCR, DVD, CABLE or DBS.
• Enter the 3-digit component code using the Remote Control numeric keypad (0 ~ 9 buttons).
• Press the Remote Control to test the component. If the procedure was successful, the component will turn on.
Programming Without a Code
This procedure searches all codes and is called the “sequence method.”
• Confirm that the external component is plugged in and on.
• Turn the component off.
• Press and together, for at least 5 seconds.
• Press appropriate component button on the Remote Control.
• Press to move forward to the next code. Press to move backward.
• Press the Remote Control to test the component. If the procedure was successful, the component will turn on.
Note: Repeat the above steps until the component code is found. It may take many attempts before the correct code
is found.
• After the code is found, press to store the code.
Default Modes For Remote Control
Device Operates Default
TV TV (Panasonic Only) Panasonic TV Codes
VCR VCR (Preset) Panasonic VCR Codes
DBS DBS (Preset) Panasonic DBS Codes
CABLE CABLE (Preset) Panasonic DBS Codes
DVD DVD, CD (Preset) Panasonic DVD Codes
Helpful Hints: Unsuccessful Code
If the component does not operate with the Remote Control, repeat
the procedure using another code. (Some brands have multiple
codes).
If an incorrect code is entered, or if the procedure takes longer than
30 seconds, the programming will fail.
ACTION
POWER
POWER
ACTION POWER
VOL VOL
POWER
ACTION

12 l
R EMOTE C ONTROL O PERATION
Component Codes
The Universal Remote Control is capable of operating many component brands after entering a code. Some components
may not operate because the codes are not available due to limited memory. The Universal Remote Control does not
control all features found in each model.
Write the code numbers from tables in this space. This will serve as a reference if you need
to program your Remote Control.
VCR
DVD DBS CABLE
Brand Code
Admiral 335
Aiwa 332
Akai 314, 315, 316, 329
Audio Dynamic 311, 339
Bell & Howell 305, 313
Broksonic 320, 326
Canon 323, 325
CCE 343
Citizen 306
Craig 305, 306, 329
Curtis Mathes 324, 345
Daewoo 301, 324, 343
DBX 310, 311, 339
Dimensia 345
Emerson 303, 319, 320, 325, 326, 343
Fisher 305, 307, 308, 309, 313
Funai 320, 326, 334
GE 324, 333, 345
Goldstar 306
Gradiente 334
Hitachi 300, 323, 345
Instant Replay 323, 324
Jensen 339
JVC 310, 311, 334,339
Kenwood 306, 310, 311, 339
LXI 300, 305, 306,307, 308, 309
Magnavox 323, 324, 331
Marantz 310, 311, 339
Marta 306
Memorex 309, 324
MGA 338, 340, 341, 347,348
Minolta 300, 345
Mitsubishi 338, 340, 341, 347, 348
Multitech 304, 347
NEC 310,311, 334, 339
Olympic 323, 324
Optimus 306, 321, 328, 335
Brand Code
Orion 320, 326
Panasonic 321,322, 323, 324
J.C. Penney 300,305, 310, 311, 324, 339, 345
Pentax 300,311, 345
Philco 320, 323, 324, 326, 331, 343
Philips 323, 324, 331
Pioneer 323
Proscan 300, 301, 302, 323, 324, 331, 333,
345, 346
Quasar 321, 322, 323, 324
Radio Shack 305, 309, 324, 333, 336, 340
RCA 300, 301,302, 323, 324, 331, 333,
345, 346
Realistic 305, 309, 324, 336, 340
Samsung 302, 304, 333
Sansui 320, 326, 339, 352
Sanyo 305, 309, 313
Scott 301, 302, 304, 309, 320, 326, 338,
340, 347, 348
Sears 300, 305, 306, 307, 308
Sharp 335, 336
Shintom 317
Signature 2000 335
Singer 337
Sony 328, 329, 330
Sylvania 331, 324, 331
Tashiro 306
Tatung 310, 311, 339
Teac 310, 311, 339
Technics 321, 322, 323, 324
Teknika 324
Toshiba 301, 346
Vector Research 311
Wards 306, 309, 335, 336, 344
Yamaha 305, 310, 311, 339
Zenith 306,344
Codes For VCR

R EMOTE C ONTROL O PERATION
13 l
Component Codes (contd.)
Brand Code
ABC 224
Archer 225, 232
Cableview 205, 232
Citizen 205, 222
Curtis 212, 213
Diamond 224, 225, 232
Eagle 229
Eastern 234
GC Brand 205,232
Gemini 222
General
Instrument/
Jerrold 211, 219, 220, 221, 222, 223, 224,
225, 226, 227
Hamlin 212, 218, 240, 241, 242, 245
Hitachi 203, 224
Macom 203, 204, 205
Magnavox 233
Memorex 230
Movietime 205, 232
Oak 202, 237,239
Panasonic 209, 210, 214
Philips 206, 207, 228, 229, 230
Pioneer 201, 216
Pulsar 205, 232
Brand Code
Denon 100
Ferguson 101
JVC 109
Mitsubishi 105
Nordmende 101
Panasonic 100
Philips 103
Pioneer 102
RCA 101
Brand Code
Puser 232
RCA 215
Realistic 232
Regal 212, 218, 240, 241, 242, 245
Regency 234
Rembrandt 205, 232, 237
Samsung 205
Scientific Atlanta 211, 212, 213
Slmark 201, 205
Sprucer 205, 210
Stargate 205, 232
Teleview 201, 205
Texscan 244
Tocom 235
Toshiba 204
Unika 225, 232
Universal 222, 232
Videoway 206
Viewstar 229, 230
Zenith 200, 217
Zenith / Drake
Satellite 200
Brand Code
Saba 101
Samsung 110
Sharp 108
Sony 104
Technics 100
Thomson 101
Toshiba 103
Yamaha 100
Zenith 107
Codes for Cable Box
Codes for DVD
Codes for DBS
Brand Code
Panasonic 104
Philips 101, 102
Primestar 108
Proscan 106, 109, 110, 113
RCA 106, 109, 110, 113
Sony 107
Star Choice 103, 108
Toshiba 100
Uniden 101, 102
Brand Code
Dish Network
(Echostar) 105, 115, 116
Echo Star 105
Express VU 105, 115
G.E. 106
G.I. (General
Instrument) 108
Gradiente 114
Hitachi 103, 111, 112
HNS (Hughes) 103
Magnavox 101, 102

14 l
I CON M ENU N AVIGATION

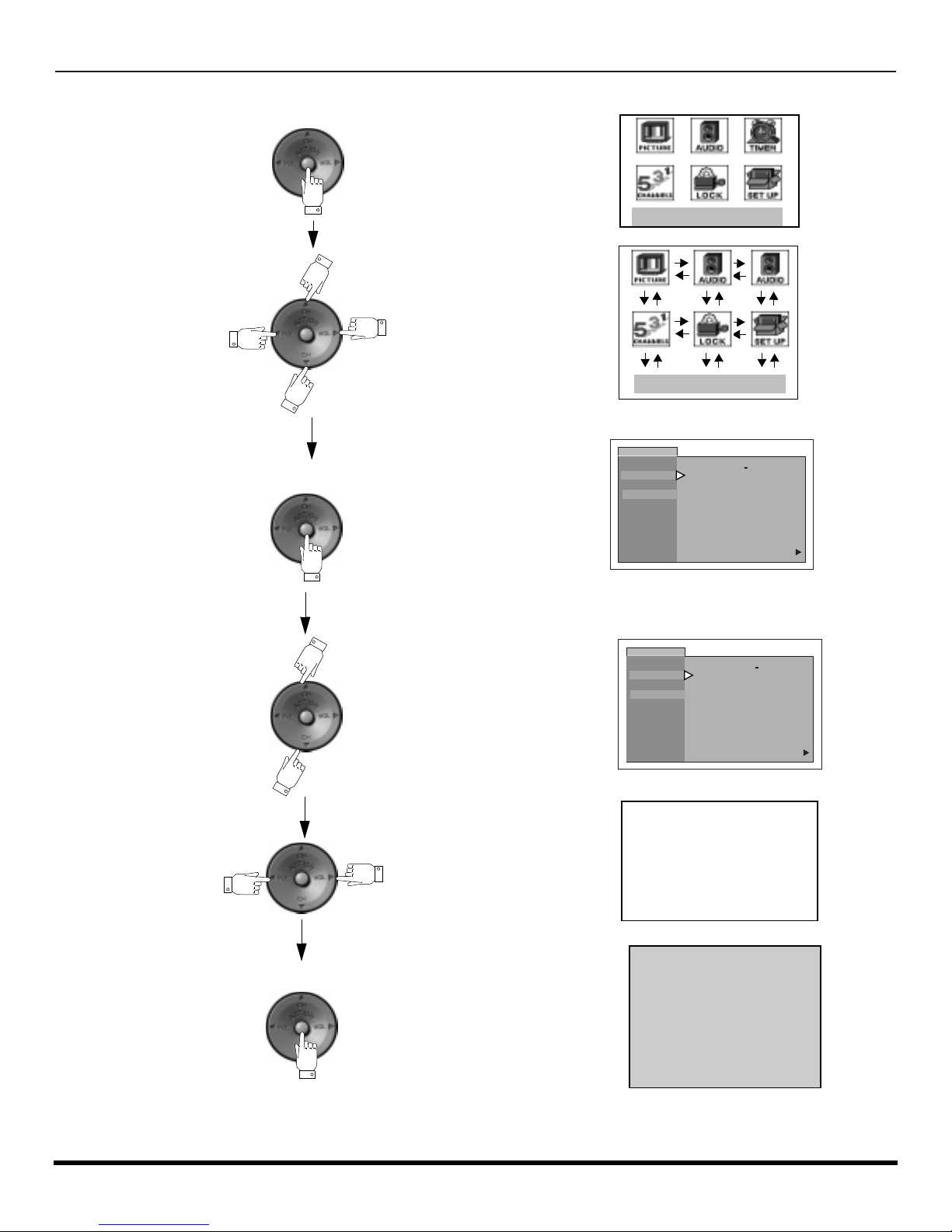

Icon Menu Navigation
Press to display the Icons.
Press to select desired icon.
Press to display selected
Icon features.
Press to select feature.
Press
VIDEO ADJ.
COLOR
TINT
BRIGHTNESS
SHARPNESS
NORMAL NO
u
-- -- -- I -- -- --
-- -- -- -- ---- -- -- -- -- -- I
-- --
-- I -- -- --
-- -- -- I -- -- --
-- -- -- I -- -- --
OTHER ADJ.
VIDEO ADJ.
COLOR
TINT
BRIGHTNESS
SHARPNESS
NORMAL NO
u
-- -- -- I -- -- --
-- -- -- -- ---- -- -- -- -- -- I
-- --
-- I -- -- --
-- -- -- I -- -- --
-- -- -- I -- -- --
OTHER ADJ.
to adjust or activate feature.
BRIGHTNESS 32 -- -- -- I -- -- --
Press repeatedly to exit menus.
NORMAL PICTURE
EXIT
EXIT

M AIN M ENU I CONS
15 l
Icon Menus
These charts list all menus under each Icon and which pages to refer to for menus description.
REFER
TO
PAGE
IDIOMA/LANGUE
r MODE - (ENGLISH, FRANÇAIS, ESPAÑOL) 16
PROG CHAN
r MODE - (TV or CABLE)
r AUTO PROGRAM
r MANUAL PROGRAM
16
CC (CLOSED CAPTIONED)
r CC ON MUTE
r CC MODE 17
OTHER ADJ.
r AUTO POWER ON
r CHANNEL BANNER 17
REFER
TO
PAGE
CLOCK SET
r TIME
r DAY 19
SLEEP
r HOW LONG? 19
TIMER 1 and TIMER 2
r DAY
r ON TIME
r OFF TIME
r ENTER CHANNEL
r SET
19
REFER
TO
PAGE
FAVORITES
r CHANNEL SCAN
r ENTER CHAN 21
CAPTION
r MANUAL CAPTION
r INPUT LABEL 21
REFER
TO
PAGE
AUDIO ADJ.
r MODE (STEREO, SAP or MONO)
r BASS, TREBLE, BALANCE OR NORMAL 20
OTHER ADJ.
r AI SOUND 20
SURROUND
r MODE 20
SPEAKERS
r ON
r OFF & VARIABLE AUDIO OUT
r OFF & FIXED AUDIO OUT
20
REFER
TO
PAGE
VIDEO ADJ
r COLOR, TINT, BRIGHTNESS, PICTURE,
SHARPNESS OR NORMAL 18
OTHER ADJ.
r COLOR TEMP 18
REFER
TO
PAGE
MODE
r LOCK SET - (OFF or GAME)
r BLOCK PROGRAM
r HOW LONG?
22
V-CHIP OPERATION 23
Main Menu Icons
EXIT

16 l
I CON M ENU O PERATION
Icon Menu Operation
SET UP
Note: Refer to page 14 for Icon Menu Navigation procedures.
IDIOMA/LANGUE (Menu Languages)
In SET UP Menu, select IDIOMA/LANGUE to change menu language to ENGLISH, ESPAÑOL (Spanish) or FRANÇAIS
(French).
Prog Chan (Program Channels)
In SET UP menu under PROG CHAN select:
rMODE - To select TV (antenna) or CABLE mode depending on the signal source.
rAUTO PROGRAM - To automatically program all channels with a signal.
rMANUAL PROGRAM - To manually add or delete channels.
rPress to select English, Spanish or French.
VOL
SETUP
CC
IDIOMA/
LANGUE
PROG CHAN
OTHER ADJ.
MODE ENGLISH u
rPress to select TV or CABLE.
VOL
SETUP
CC
IDIOMA/
LANGUE
PROG CHAN
OTHER ADJ.
MODE
AUTO PROGRAM
MANUAL PROGRAM
u
u
u
CABLE
rPress to start AUTO PROGRAM.
VOL
SETUP
CC
IDIOMA/
LANGUE
PROG CHAN
OTHER ADJ.
MODE
AUTO PROGRAM
MANUAL PROGRAM
u
u
u
CABLE
rPress to display next menu.
VOL
Note: Use Remote numeric keypad to enter channel
numbers.
SETUP
CC
IDIOMA/
LANGUE
PROG CHAN
OTHER ADJ.
MODE
AUTO PROGRAM
MANUAL PROGRAM
u
u
u
CABLE
SET UP
MANUAL PROGRAM
t TO DELETE
u TO ADD
ENTER CHANNEL 3

I CON M ENU O PERATION
17 l
(Closed Captioning)
This television contains a built-in decoder that displays (Closed Captioned) text across the screen (white or colored
letters on black background). It allows the viewer to read the dialogue of a television program or other information. The
program viewed must include Closed Captioning for the feature to work.
On Mute
Activates the Closed Caption feature when the MUTE button on the remote control is pressed
Mode
Activates the onscreen Closed Caption feature by selecting one of the following modes:
rOFF - When Closed Caption is not desired.
rC1 - For video related information to be displayed, up to 4 lines onscreen at a time. (It does not block relevant parts of the picture).
Text may be in any language.
rC2 - For other mode of video related information.
Other Adjustments
In SETUP Menu under OTHER ADJ. select:
rAUTO POWER ON - Select SET to power up the TV at the same time as the Cable box or other components or select OFF.
rCHANNEL BANNER - Select ON to display onscreen banner when changing channels.
CC
CC
CC
rPress to select C1, C2, or NO.
Note: This feature only functions when the Closed Caption Mode is OFF. The recommended
set up for Closed Caption on Mute is:
• CC ON MUTE: C1
• CC MODE: OFF
VOL
SETUP
IDIOMA/
LANGUE
PROG CHAN
OTHER ADJ.
CC CC MODE OFF
CC ON MUTE NO
CC
rPress to select C1, C2, or NO.
Note: C1 mode is recommended for viewing Closed Caption.
VOL
SETUP
IDIOMA/
LANGUE
PROG CHAN
OTHER ADJ.
CC CC MODE OFF
CC ON MUTE NO
rPress to select OFF or SET.
VOL
SETUP
IDIOMA/
LANGUE
PROG CHAN
OTHER ADJ.
CC AUTO POWER ON OFF
CHAN BANNER OFF
rPress to select OFF or ON.
Note: Press RECALL to display onscreen Channel Banner at any time.
VOL
SETUP
IDIOMA/
LANGUE
PROG CHAN
OTHER ADJ.
CC
AUTO POWER ON OFF
CHAN BANNER OFF

18 l
I CON M ENU O PERATION
Note: Refer to page 14 for Icon Menu Navigation procedures.
Video Adj.
In Picture menu under VIDEO ADJ. select:
rCOLOR - Adjusts desired color intensity.
rTINT - Adjusts natural flesh tones.
rBRIGHTNESS - Adjusts dark areas of picture.
rPICTURE - Adjusts white areas of picture.
rSHARPNESS - Adjusts clarity of outline detail.
rNORMAL - Reset all picture adjustments to factory default settings.
Other Adj.
In Picture menu under OTHER ADJ. select:
rCOLOR TEMP - To increase and decrease WARM (red) and COOL (blue) colors to suit personal preferences..
rPress to select desired picture adjustment.
rPress or to adjust.
Video Input Memory
rVideo adjustments can be individually set for each video input mode.
CH
VOL VOL
VIDEO ADJ.
COLOR
TINT
BRIGHTNESS
SHARPNESS
NORMAL NO
u
-- -- -- I -- -- --
-- -- -- -- ---- -- -- -- -- -- I
-- -- -- I -- -- --
-- -- -- I -- -- --
-- -- -- I -- -- --
OTHER ADJ.
rPress to select WARM, COOL or NORMAL.
VOL
VIDEO ADJ.
COLOR TEMP NORMAL
u
OTHER ADJ.
