Panasonic CT-36HX42 User manual

®
®
Color Television
Operating Instructions
CT-32HL42
CT-32HX42
CT-36HL42
CT-36HX42
TQB2AA0422 20513
PRINTED IN USA
Televisor a color
Instrucciones de Operación
TQB2AA0422 20513
IMPRESO EN EE.UU.
For assistance, please call: 1-800-211-PANA (7262) or
send e-mail to: [e-mail] (USA only)
Para asistencia llame al teléfono: 1-800-211-PANA (7262)
o envíe un correo electrónico a la dirección:
[e-mail] (Solo en Estados Unidos)
CT-32HL42
CT-32HX42
CT-36HL42
CT-36HX42

WARNING: To reduce the risk of electric shock do not remove cover or back.
No user-serviceable parts inside. Refer servicing to qualified service personnel.
The exclamation point within a
triangle is intended to tell the
user that important operating
and servicing instructions are
in the papers with the
appliance.
The lightning flash with arrow
head within a triangle is
intended to tell the user that
parts inside the product are a
risk of electric shock to
persons.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING
WARNING:TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO
NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.
ANY CHANGES OR MODIFICATIONS TO THIS TV
RECEIVER NOT EXPRESSLY APPROVED BY
MATSUSHITA ELECTRIC CORPORATION OF AMERICA
COULD CAUSE HARMFUL INTERFERENCE, WHICH
WOULD VOID THE USER’S AUTHORITY TO OPERATE
THIS EQUIPMENT.
FCC CAUTION:
THIS PRODUCT UTILIZES CATHODE RAY TUBES (CRT) AND OTHER
COMPONENTS THAT CONTAIN LEAD. DISPOSAL OF THESE MATERIALS
MAY BE REGULATED IN YOUR COMMUNITY DUE TO ENVIRONMENTAL
CONSIDERATIONS. FOR DISPOSAL OR RECYCLING INFORMATION
PLEASE CONTACT YOUR LOCAL AUTHORITIES, OR THE ELECTRONICS
INDUSTRIES ALLIANCE: <HTTP://WWW.EIAE.ORG.>
ENVIRONMENTAL NOTICE:
This product incorporates U.S. Patent 6,266,098 B1; Issue date: July 24, 2001; assigned
to Matsushita Electric Corporation of America; other U.S. and foreign patents pending.
Read these instructions completely before operating television.
Contents are subject to change without notice or obligation.
Copyright 2002 by Matsushita Electric Corporation of America. All rights reserved.
Unauthorized copying and distribution is a violation of law.
Manufactured under license from BBE Sound, Inc.
Licensed by BBE Sound, Inc. under USP4638258 and 4482866.
BBE and BBE symbol are registered trademarks of BBE Sound, Inc.
High Definition Sound
The double insulation symbol (a square within asquare) is
intended to alert qualified service personnel to use only
identical replacement parts in this apparatus.

T ABLE OF C ONTENTS
1l
Table of Contents
Congratulations.........................................................2
Customer Record ......................................................................2
Care and Cleaning.....................................................................2
Specifications ............................................................................2
Installation..................................................................3
Television Location....................................................................3
Optional Cable Connections......................................................3
AC Power Supply Cord..............................................................3
Cable / Antenna Connection......................................................3
Feature Chart .............................................................4
Auto Set Up Menu......................................................5
Optional Equipment Connections............................6
VCR...........................................................................................6
Cable Box..................................................................................7
VCR and Cable Box ..................................................................7
Amplifier (TO AUDIO AMP).......................................................8
Front Control Panel ...................................................................9
Program Out (PROG OUT) .....................................................10
Digital TV - Set-Top Box (DTV-STB) or DVD Players.............10
PIP and Split Operation ..........................................11
Special Remote Buttons..........................................................13
Remote Control Operation
(models CT-32HL42 and CT-32HL42..................14
Mode Operational Key Chart...................................................15
Programming the Remote .......................................................17
Programming Without a Code.................................................17
Component Codes...................................................................18
Remote Control Operation
(models CT-32HX42 and CT-32HX42 .................22
Mode Operational Key Chart...................................................23
Programming the Remote .......................................................25
Programming Without a Code.................................................25
Component Codes...................................................................26
Roller Guide Menu™ Navigation............................28
Roller Guide Icons...................................................30
Roller Guide Icon Menus.........................................................30
Rollerguide Icon Menu Operation..........................31
Set Up......................................................................................31
Timer .......................................................................................34
Picture .....................................................................................35
Channel...................................................................................37
Audio .......................................................................................39
Lock.........................................................................................40
V-Chip Menu Operation...........................................41
Troubleshooting Chart............................................47
Limited Warranty .....................................................48
Customer Services Directory .................................50
Index .........................................................................51

2l
C ONGRATULATIONS
Congratulations
Your new television features state-of-the-art technology for high quality picture and sound with complete audio/video
connections for your home theater system. Your TV is designed to give you many years of enjoyment. It was thoroughly
tested and tuned at the factory for best performance.
Customer Record
The model and serial number of this product are located on the back of the TV. You should note the model and serial number in
the space provided and retain as a permanent record of your purchase. This will aid in identification in the event of theft or loss.
Product registration for U.S. customers is available at: www.prodreg.com/panasonic.
Model
Number
Serial
Number
Care and Cleaning
Screen (Turn TV Off)
• Use a mild soap solution or window cleaner with a soft clean cloth. DO NOT USE ABRASIVE CLEANERS.
• Avoid excessive moisture and wipe dry.
Note: Do not spray any type of cleaning fluid directly on the screen.
Cabinet and Remote Control
rFor cabinets and remote control, use a soft cloth dampened with water or a mild detergent solution. Avoid excessive moisture and
wipe dry.
rDo not use benzene, thinner or other petroleum based products.
Specifications
Specifications are subject to change without notice or obligation
Power Source CT-32HL42 (3.6A)
CT-32HL42U (3.6A)
CT-32HX42 (3.6A)
CT-32HX42U (3.6A)
CT-36HL42 (3.6A)
CT-36HL42U (3.6A)
CT-36HX42 (3.6A)
CT-36HX42U (3.6A)
120V AC, 60Hz
Channel Capability - 181 VHF-12; UHF-56; Cable-113
Video Input Jacks 1Vp-p, 75 Ohm, Phono Jack Type
Audio Input Jacks 500mV RMS 47K Ohm
Video Output Jack 1Vp-p, 75 Ohm, Phono Jack Type
Audio Output Jacks 0-2.0V RMS 4.7K Ohm
Component Input (Y / PB / PR)75 Ohm, Phono Jack Type
S-Video Input Jacks S-Video (Y-C) Connector

I NSTALLATION
3l
Installation

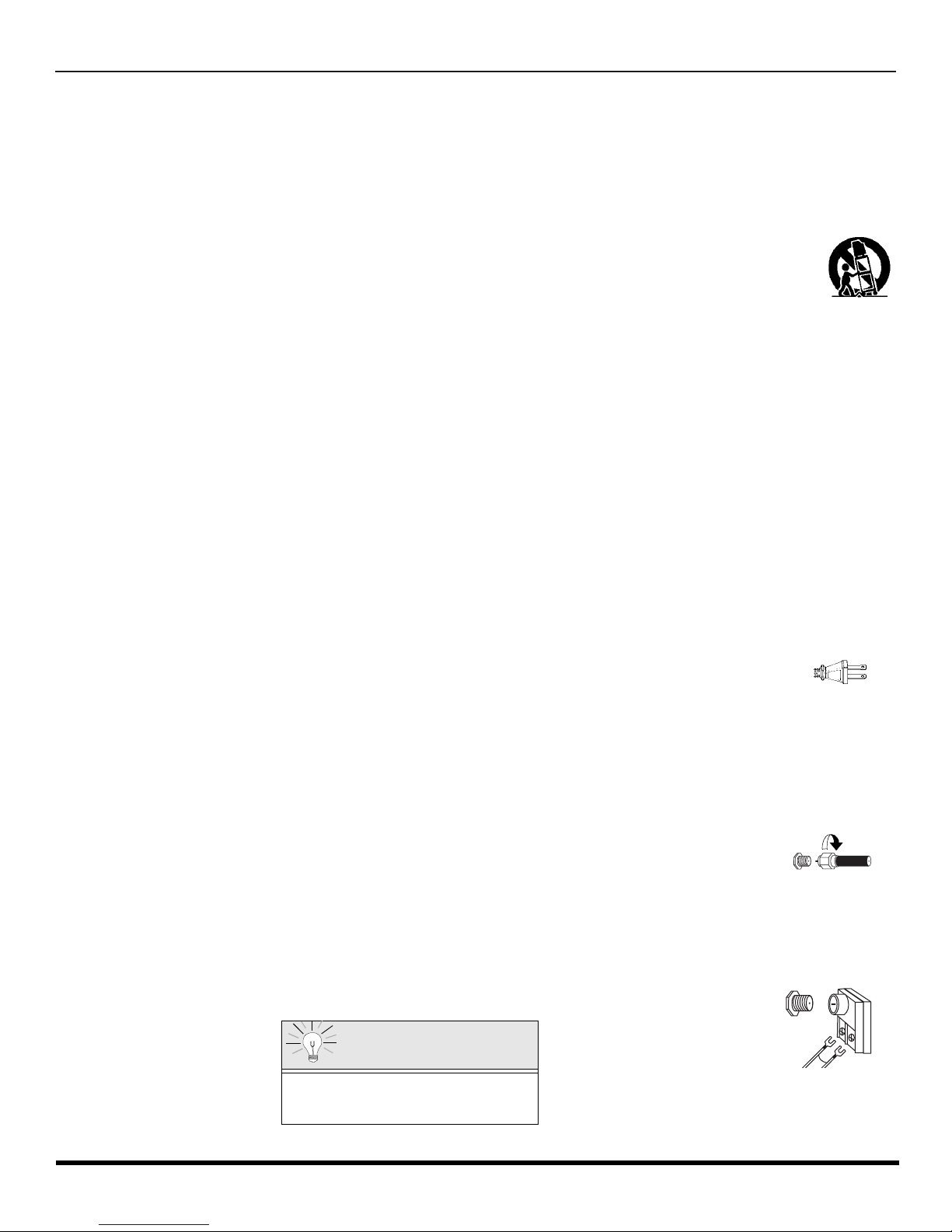

Television Location
This unit is intended to be used with an optional stand or entertainment center. Consult your dealer for available options.
rAvoid excessive sunlight or bright lights, including reflections.
rKeep away from excessive heat or moisture. Inadequate ventilation may cause internal component failure.
rFluorescent lighting may reduce remote control transmitting range.
rKeep away from magnetic equipment, including motors, fans and external speakers.
CAUTION: Use this television receiver only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or
sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from
tip-over. In order to avoid injury to children, never place your television receiver on a piece of furniture that is capable of
being tilted by a child leaning on it, pulling on it, standing on it, or climbing on it.
CT-32HL42, CT-32HL42U :
CAUTION: These television receivers for use only with PANASONIC TY-32HL42P stand. Use with other carts (or stands) is capa-
ble of resulting in instability causing possible injury.
CT-32HX42, CT-32HX42U:
CAUTION: These television receivers for use only with PANASONIC TY-32HX40P stand. Use with other carts (or stands) is capa-
ble of resulting in instability causing possible injury.
CT-36HL42, CT-36HL42U :
CAUTION: These television receivers for use only with PANASONIC TY-36HL42P stand. Use with other carts (or stands) is capa-
ble of resulting in instability causing possible injury.
CT-36HX42, CT-36HX42U:
CAUTION: These television receivers for use only with PANASONIC TY-36HX40P stand. Use with other carts (or stands) is capa-
ble of resulting in instability causing possible injury.
Optional Cable Connections
Shielded audio and video cables should be used between components. For best results:
rUse 75-ohm coaxial shielded cables.
rUse appropriate input and output connectors, that match your component connectors.
rAvoid long cables to minimize interference.
AC Power Supply Cord
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT OF AC OUTLET AND FULLY
INSERT. DO NOT USE A PLUG WITH A RECEPTACLE OR OTHER OUTLET UNLESS THE BLADE CAN BE FULLY INSERTED
TO PREVENT BLADE EXPOSURE.
PROTECT POWER CORDS FROM BEING WALKED ON, ROLLED OVER, CRIMPED, BENT, OR PINCHED, PARTICULARLY AT
PLUGS, CONVENIENCE RECEPTACLES, AND THE POINT WHERE THEY EXIT FROM THE APPARATUS.
Cable / Antenna Connection
For proper reception, either a cable or antenna connection is required.
Cable Connection
Connect the cable supplied by your local cable company to ANT1 connection on back of television. Select cable
mode and ANT1 in SET UP menu under Prog Chan (Program Channels).
Note: A cable converter box may be required for proper reception. Check with your local cable company for
compatibility requirements.
Antenna Connections
• For proper reception of VHF/UHF channels, an external antenna is required. For best reception an outdoor antenna is
recommended.
•Connect home antenna to ANT1 connection on back of television. Select TV mode and ANT1 in the
SET UP menu under Prog Chan.
Polarized plug
75 Ohm VHF/UHF
on back of TV
Incoming Cable from
Cable Company
Incoming
C
able from
Home Antenna
Cable Preset
Cable Mode is preset at the factory.
Antenna users must change to TV Mode and
ANT 1 in the Set Up menu.

4l
F EATURE C HART
Feature Chart
MODELS
CT-32HL42
CT-32HX42
CT-36HL42
CT-36HX42
FEATURES
MENU LANGUAGE ENG/SPAN/FR r r r r
2 TUNER SPLIT rrr r
2 TUNER PIP rrr r
VIDEO PICTURE MEMORY r r r r
VIDEO INPUT SKIP r r r r
CLOSED CAPTIONING r r r r
V-CHIP CAPABILITY r r r r
DIGITAL SCAN RATE
1080i,
480p 1080i, 480p 1080i, 480p 1080i, 480p
NTSC LINE - DOUBLER
480p 480p 480p 480p
VIDEO NORM r r r r
AUDIO NORM r r r r
STEREO rrr r
AI SOUND r r r r
BASS/BALANCE/TREBLE rrr r
SURROUND r r r r
BBE r r r r
A/V PROGRAM OUT r r r r
A/V IN (REAR/FRONT) 4 (3/1) 4 (3/1) 4 (3/1) 4 (3/1)
AUDIO OUT r r r r
S-VHS INPUT (REAR/FRONT)
2/1 2/1 2/1 2/1
COMPONENT INPUT
2 2 2 2
IMPORTANT INFORMATION REGARDING THE USE OF VIDEO GAMES, COMPUTERS, OR
OTHER FIXED IMAGE DISPLAYS.
WARNING: The marking or retained image on the picture tube resulting from viewing fixed
image is not an operating defect and as such is not covered by Warranty.
This television is designed to display constantly moving images on the screen. Continuous viewing
of stationary images such as letterbox pictures on standard screen TVs (with top/bottom bars), non-
expanded standard (4:3) pictures on wide screen TVs (with side bars shown on each side of an
image), stock market report bars (ticker running at the bottom of the screen), video game patterns,
fixed scoreboards, bright station logos, on-line (internet) or repetitive computer style patterns should
be limited.
The extended use of fixed image program material can cause a permanent picture tube damage,
shown as a “shadow image” viewable on normal programs. This type of irreversible picture tube
deterioration can be limited by performing the following steps:
• Do not display the fixed image for extended periods of time.
• Turn the power off when not in use.
A/V
JACKS AUDIO SPECIAL
FEATURES

A UTO S ET U P M ENU
5l
Auto Set Up Menu
For your convenience, Auto Set up menu will be displayed on screen when the set is turned on for the first time. If needed,
follow the menus and procedures for setting up the features.
rIDIOMA/LANGUE - To change menu language to ENGLISH, SPANISH or FRENCH.
rMODE - To select TV (antenna) or CABLE mode depending on the signal source.
rAUTO PROGRAM - To automatically program all channels with a signal.
rGEOMAGNETIC CORRECTION - This feature is used to adjust discoloration of the picture due to earth’s magnetic
field in the area.
rTILT CORRECTION - This feature is used to adjust the tilt of the picture due to earth’s magnetic field in the area.
rPress VOL uto select English, Spanish or French.
IDIOMA/LANGUE
GEOMAGNETIC CORRECTION
ENGLISH
CABLEMODE
AUTO PROGRAM
PRESS ACTIONTO EXIT
u
u
u
u
AUTO SET UP
TILT CORRECTION
u
rPress VOL uto select TV or CABLE.
IDIOMA/LANGUE
GEOMAGNETIC CORRECTION
ENGLISH
CABLEMODE
AUTO PROGRAM
PRESS ACTIONTO EXIT
u
u
u
u
AUTO SET UP
TILT CORRECTION
u
rPress VOL uto start Auto Programming.
IDIOMA/LANGUE
GEOMAGNETIC CORRECTION
ENGLISH
CABLEMODE
AUTO PROGRAM
PRESS ACTIONTO EXIT
u
u
u
u
AUTO SET UP
TILT CORRECTION
u
IDIOMA/LANGUE
GEOMAGNETIC CORRECTION
ENGLISH
CABLEMODE
AUTO PROGRAM
PRESS ACTIONTO EXIT
u
u
u
u
AUTO SET UP
TILT CORRECTION
u
rPress VOL uto display adjustment menu.
rPress tVOL or VOL uto adjust discoloration
in picture.
GEOMAGNETIC CORRECTION
- - - - - - - - - - - - - - - - - -
0
t TO ADJUST u
PRESS ACTION TO EXIT
l
IDIOMA/LANGUE
GEOMAGNETIC CORRECTION
ENGLISH
CABLEMODE
AUTO PROGRAM
PRESS ACTIONTO EXIT
u
u
u
u
AUTO SET UP
TILT CORRECTION
u
rPress VOL uto display adjustment menu.
rPress tVOL or VOL uto adjust picture tilt.
TILT CORRECTION
0
t TO ADJUST u
PRESS ACTION
TO EXIT

6l
O PTIONAL E QUIPMENT C ONNECTIONS
Optional Equipment Connections

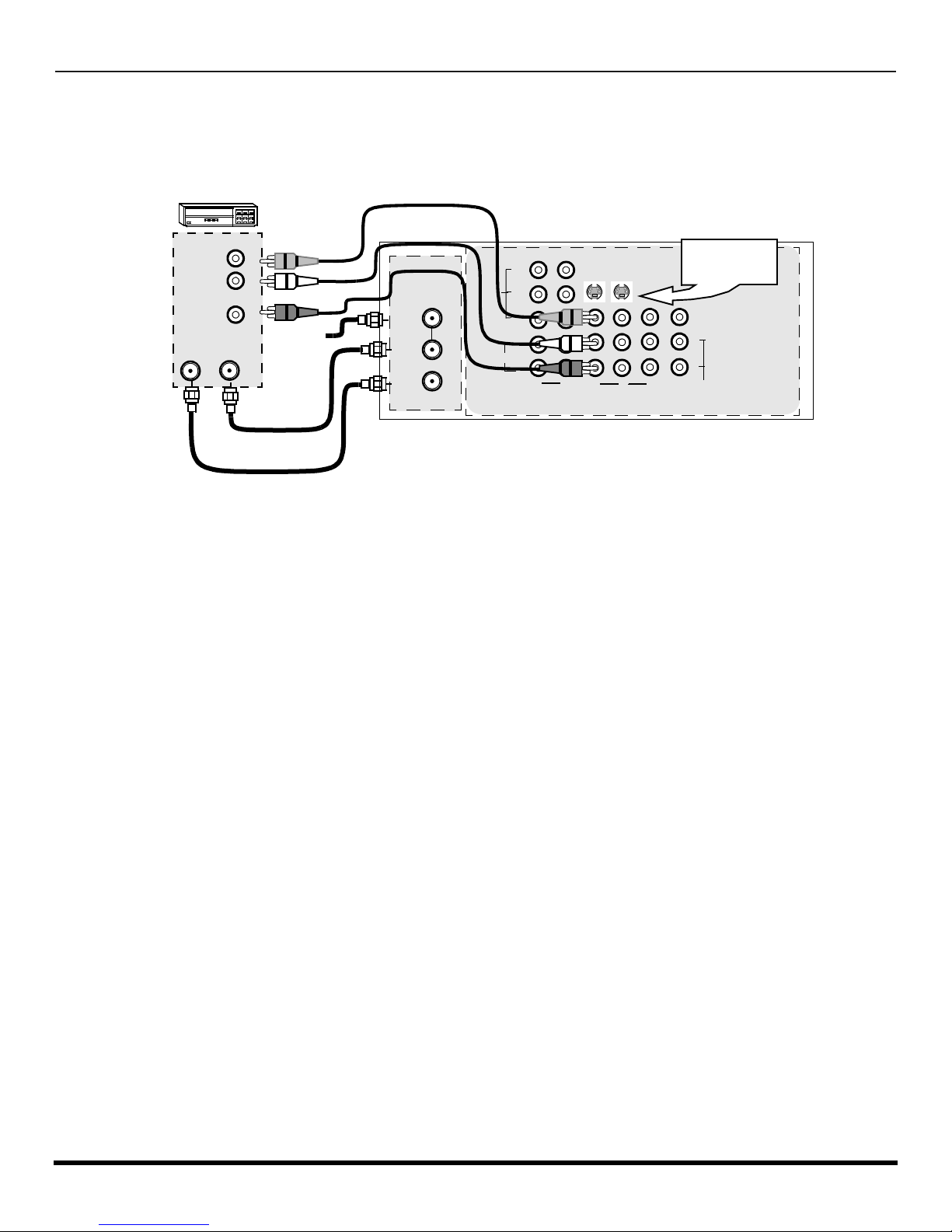

VCR Connection
Follow this diagram when connecting your television to a VCR only.
.
Note: The remote control must be programmed with supplied codes to operate the VCR.
Viewing a television program
Procedure
1. Select ANT1 in the SET UP menu under Prog Chan (Program Channels).
2. Tune the television to the television program you want to view.
Viewing a video
Procedure
rOption A
1. Select ANT1 in the SET UP menu under Prog Chan.
2. Press the TV/VIDEO button on the remote control to select the video input (VIDEO 1, VIDEO 2 & COMP1, COMP2, etc.)
connected to your VCR.
3. Begin the video.
rOption B
1. Select ANT2 in the SET UP menu under Prog Chan.
2. Tune the television to Channel 3 or 4, depending on your VCR.
3. Begin the video.
Recording a television program
Procedure
rOption A (Recording and viewing the same program)
1. Select ANT2 in the SET UP menu under Prog Chan.
2. Tune the television to Channel 3 or 4, depending on your VCR.
3. Using the VCR, tune to the television program you want to record.
4. Begin recording.
rOption B (Recording one program while viewing another program)
1. Select ANT1 in the SET UP menu under Prog Chan.
2. Press the TV/VIDEO button on the remote control to select the video input (VIDEO 1, VIDEO 2, etc.) connected to your VCR.
3. Using the VCR, tune to the television program you want to record.
4. Begin recording.
5. Press the TV/VIDEO button on the remote control to switch back to TV mode.
6. Tune the television to the television program you want to view.
VCR
CABLES NOT SUPPLIED
CONNECTIONS ON BACK OF THE TV
S-VIDEO
VIDEO
AUDIO
L
R
VIDEO
Y
PB
PR
PROG
OUT
TO
AMP
L
R
123
COMPONENT
ANT 1
ANT 2
SPLIT
12 AUDIO
VIDEO INPUTS
L
R
AUDIO OUT
VIDEO OUT
ANT INANT OUT
Incoming
Cable
Use either the
S-Video or Video
connection.
OUT
INPUT

O PTIONAL E QUIPMENT C ONNECTIONS
7l

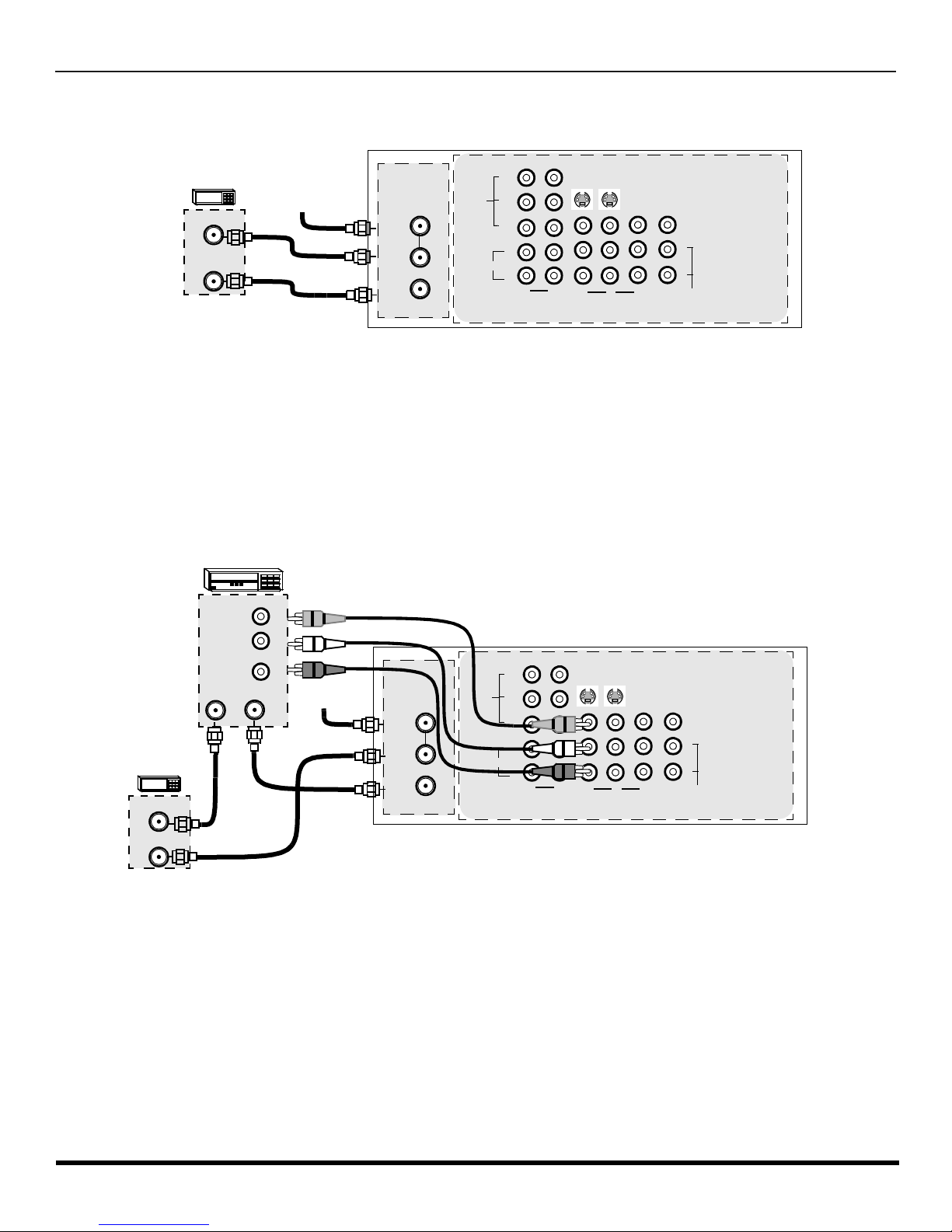

Cable Box Connection
Follow this diagram when connecting your television to a cable box only.
Note: The remote control must be programmed with supplied codes to operate the cable box.
Viewing a premium (scrambled) cable channel
Procedure
1. Select ANT2 in the SET UP menu under Prog Chan (Program Channels).
2. Tune the television to Channel 3.
3. Using the cable box, tune to the premium cable channel you want to view.
Note: To use special features such as Favorite Channels and Channel Captions ANT1 must be selected in the SET UP
menu under Prog Chan.
VCR and Cable Box Connection
Follow this diagram when connecting your television to both a VCR and a cable box.
Note: The remote control must be programmed with supplied codes to operate the VCR and cable box.
Viewing a premium (scrambled) cable channel
Procedure
1. Select ANT2 in the SET UP menu under Prog Chan (Program Channels).
2. Tune the television to Channel 3.
3. Using the cable box, tune to the premium cable channel you want to view.
Note: To use special features such as Favorite Channels and Channel Captions ANT1 must be selected in the SET UP
menu under Prog Chan.
CONNECTIONS ON BACK OF THE TV
CABLE BOX INCOMING
CABLE
CABLES NOT SUPPLIED
ANT OUT
ANT IN
S-VIDEO
VIDEO
AUDIO
L
R
VIDEO
Y
PB
PR
PROG
OUT
TO
AMP
L
R
123
COMPONENT
ANT 1
ANT 2
SPLIT
12 AUDIO
VIDEO INPUTS
OUT
INPUT
S-VIDEO
VIDEO
AUDIO
L
R
VIDEO
Y
PB
PR
PROG
OUT
TO
AMP
L
R
123
COMPONENT
ANT 1
ANT 2
SPLIT
12 AUDIO
VIDEO INPUTS
OUT
INPUT
CONNECTIONS ON BACK OF THE TV
CABLES NOT SUPPLIED
Incoming
Cable
CABLE BOX
ANT IN
ANT OUT
VCR
L
R
AUDIO OUT
VIDEO OUT
ANT OUTANT IN

8l
O PTIONAL E QUIPMENT C ONNECTIONS
VCR and Cable Box Connection (Contd.)
Recording a premium (scrambled) cable channel
Procedure
1. Select ANT2 in the SET UP menu under Prog Chan.
2. Press the TV/VIDEO button on the remote control to select the video input (VIDEO 1, VIDEO 2, etc.) connected to your VCR.
3. Turn the VCR ON.
4. Tune the VCR to Channel 3 or 4, depending on the switch setting on the back of VCR.
5. Using your cable box, tune to the premium cable channel you want to record.
6. Begin recording.
Note: To view a different channel while recording:
• Select ANT1 in the SET UP menu under Prog Chan.
• Press the TV/VIDEO button on the remote control to TV mode.
• Tune the television to a television program (except another premium cable channel).

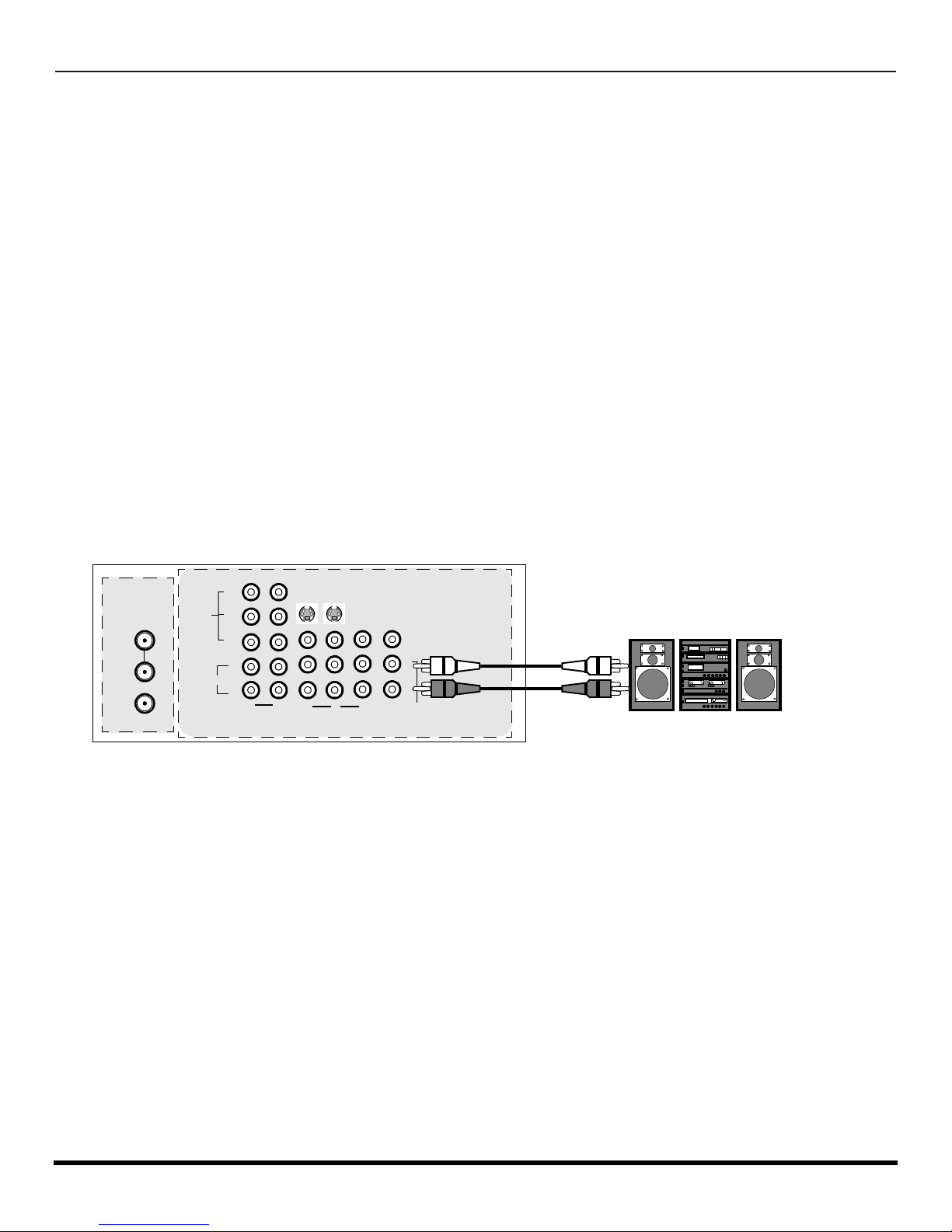

Amplifier Connection (TO AUDIO AMP)
To listen through a separate stereo system, connect an external audio amplifier TO AUDIO AMP outputs on back of television.
Note: TO AUDIO AMP terminals can not be connected directly to external speakers.
Audio Adjustments
1. Select SPEAKERS ON located in the onscreen AUDIO menu.
2. Set amplifier volume to minimum.
3. Adjust television volume to desired level.
4. Adjust amplifier volume to match the television.
5. Select SPEAKERS OFF & VARIABLE AUDIO OUT from AUDIO menu.
6. Volume, mute, bass, treble and balance are now controlled through the television.
Note: Select SPEAKERS OFF & FIXED AUDIO OUT to control audio functions through the external amplifier.
S-VIDEO
VIDEO
AUDIO
L
R
VIDEO
Y
PB
PR
PROG
OUT
TO
AMP
L
R
123
COMPONENT
ANT 1
ANT 2
SPLIT
12 AUDIO
VIDEO INPUTS
OUT
INPUT
CABLES NOT SUPPLIED
CONNECTIONS ON BACK OF TV
External Amplifier

O PTIONAL E QUIPMENT C ONNECTIONS
9l
Front Control Panel (models CT-32HX42 and CT-36HX42)
The front control panel can be used to access menus and switch video mode when the remote control is not available.
Open the door on the TV front panel to use the connections for your optional equipments (Camcorder, VCR or other video
components). Select INPUT 4 mode by pressing TV/VIDEO button.
Procedure
1. Connect equipment to front Audio/Video input jacks.
2. Press TV/VIDEO button to select VIDEO 4 input mode.
3. Operate optional equipment as instructed in equipment manual.
Front control Panel (models CT-32HL42 and CT-36HL42)
Follow the procedure above to connect the optional equipment to front Audio/Video input jacks.
ACTION TV/VIDEO q CHANNEL p
S-VIDEO VIDEO L-AUDIO-R
t VOLUME u
HPJ
INPUT 4
ON/OFF INDICATOR
POWER ON/OFF
CAMCORDER
Note: The ON/OFF indicator LED (red) will be lit when set is on.
Note: The S-VIDEO connection provides higher quality picture. It overrides VIDEO 4 connections. Use INPUT 4, AUDIO L and R
with S-VIDEO connection.
INFRARED SENSOR
Note: The ON/OFF indicator LED (red) will be lit when set is on.
INPUT 4
p
CH
S-VIDEO VIDEO L-AUDIO-R HPJ
ACTION TV/VIDEOPOWER VOL
ut
VOL
q
CH
CAMCORDER
POWER ON/OFF
ON/OFF INDICATOR
INFRARED SENSOR
Note: The S-VIDEO connection provides higher quality picture. It overrides VIDEO 4 connections. Use INPUT 4, AUDIO L and R
with S-VIDEO connection.

10 l
O PTIONAL E QUIPMENT C ONNECTIONS

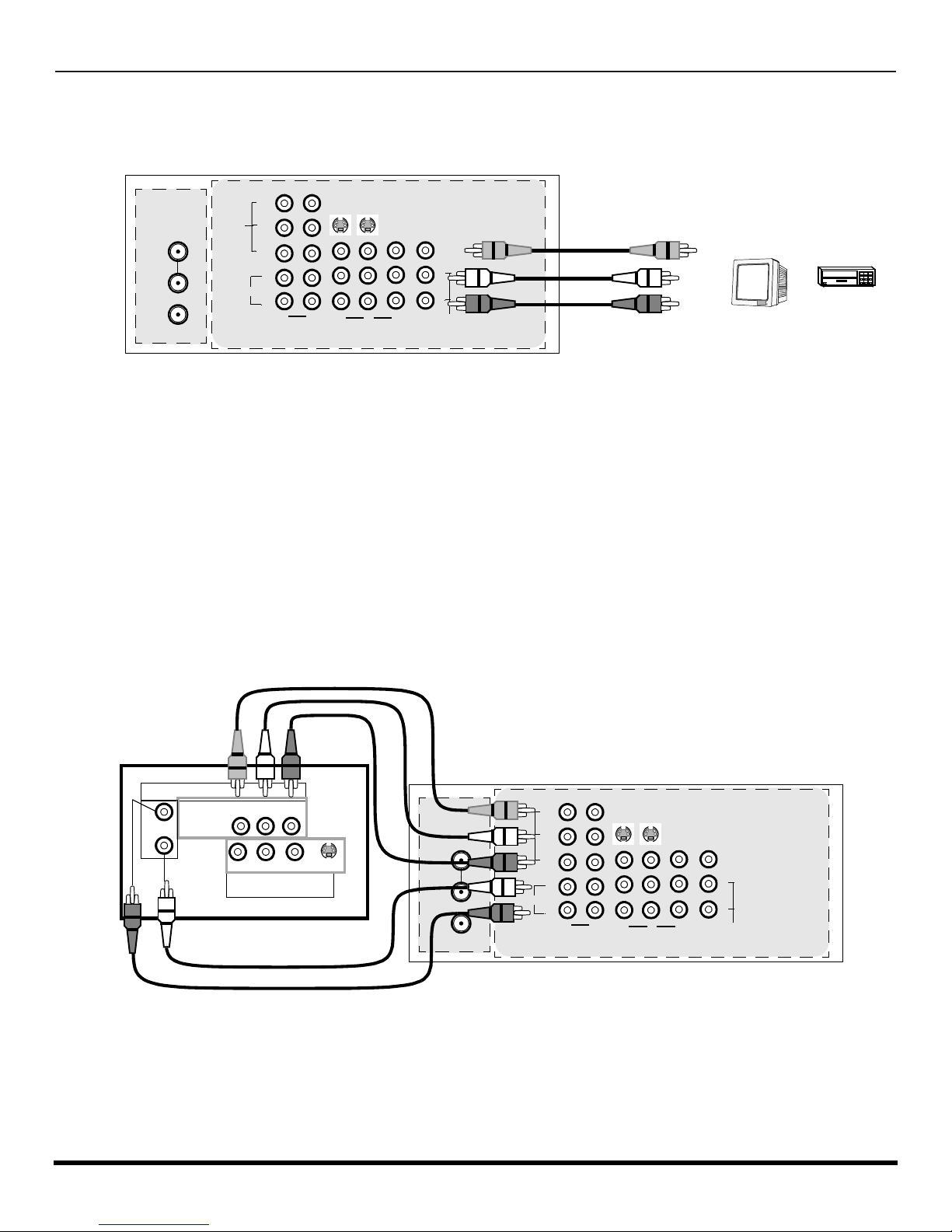

Program Out Connection (PROG OUT)
To use the television audio and video with optional equipment, connect the PROG OUT and TO AUDIO AMP connections on the back of
the television.
Procedure
1. Connect optional equipment to PROG OUT and TO AUDIO AMP terminals.
2. PROG OUT terminal display is the same as onscreen display.
3. See optional equipment manual for further instructions for recording and monitoring.
Digital TV - Set-Top Box (DTV-STB) or DVD Connection
This television is capable of displaying 1080i and 480p DTV signals when connected to a DTV Tuner set-top-box (STB). In
order to view DTV programming, the STB must be connected to the component video inputs (Y, PB, PR) of the television. A
DTV signal must be available in your area. Select the output of the STB to either 1080i or 480p.
This television also utilizes a progressive scan doubler, which de-interlaces the NTSC signal and progressively scans the
image. This allows you to sit close to the TV and not see the thin black horizontal lines (venetian blind effect) associated
with interlaced TV pictures.
Use this diagram to connect the Panasonic DTV-STB (Digital TV-Set-Top Box) or DVD Player to the back of your TV.
Note: There are 2 sets of three video inputs, Y, P
B
, and P
R
. Separate component color inputs provide luminance and color
separation. Use the L (left) and R (right) audio inputs.
S-VIDEO
VIDEO
AUDIO
L
R
VIDEO
Y
PB
PR
PROG
OUT
TO
AMP
L
R
123
COMPONENT
ANT 1
ANT 2
SPLIT
12 AUDIO
VIDEO INPUTS
OUT
INPUT
CABLES NOT SUPPLIED
CONNECTIONS ON BACK OF TV
VCR
OR
MONITOR
S-VIDEO
VIDEO
AUDIO
L
R
VIDEO
Y
PB
PR
PROG
OUT
TO
AMP
L
R
123
COMPONENT
ANT 1
ANT 2
SPLIT
12 AUDIO
VIDEO INPUTS
OUT
INPUT
TERMINALS ON BACK OF DTV-STB OR DVD PLAYER
DIGITAL TV OUTPUT
PR PB Y
MAIN
VIDEO
NTSC OUTPUT
R-AUDIO-L S-VIDEO
L-AUDIO-R
-VIDEO
COMPONENT INPUT TERMINALS ON BACK OF TV
CABLES NOT SUPPLIED

PIP AND S PLIT O PERATION
11 l

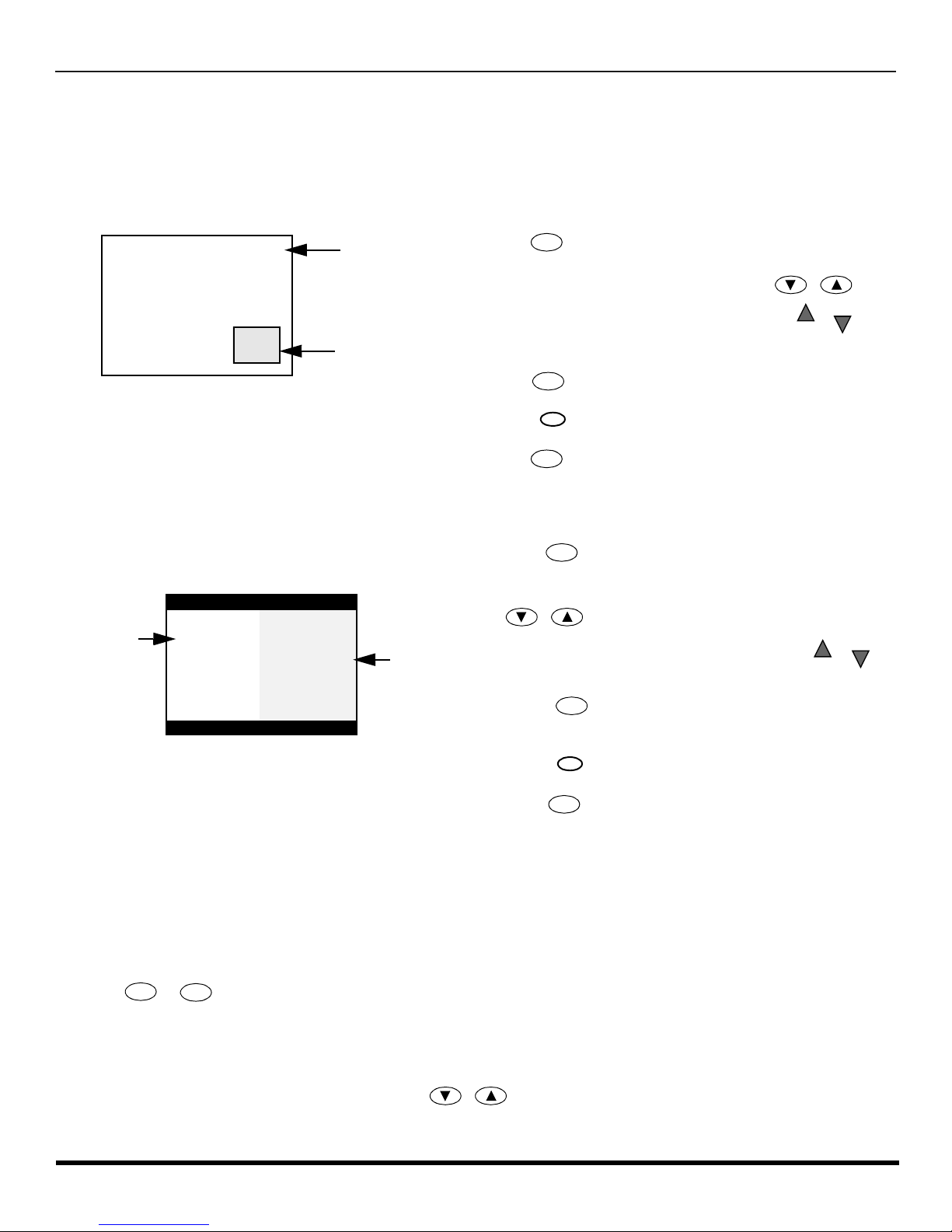

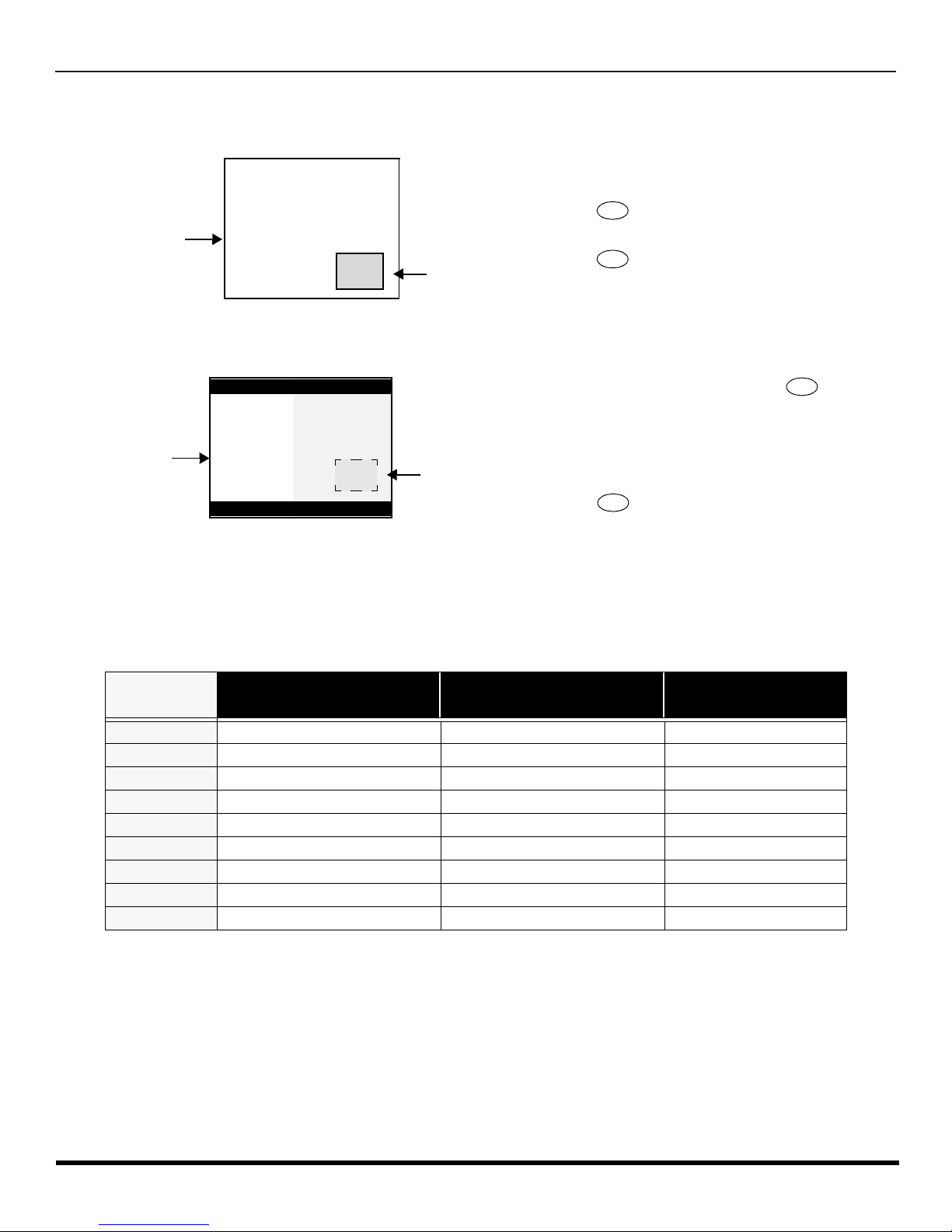

PIP and Split Operation
Note: PIP or Split frame can’t display the same channel or video source as Main Picture.
PIP Operation
This television includes a two-tuner Picture In Picture (PIP) feature. This allows you to watch two (2) live broadcasts at the
same time with or without an external video source such as a VCR, cable box, etc.
Split Operation
This feature lets you watch two different channels side by side with or without an external video source.
PIP and Split Operation With a Cable Box
To view premium (scrambled) cable channels through your cable box in the Main Picture:
Note: Use this procedure if you want to watch premium cable channels in the Main Picture while viewing a television program or video
in the PIP or Split frame.
Procedure
rSelect ANT 2 in the SET UP menu under Prog Chan (Program Channels).
rTune TV to Channel 3.
rPress or on the remote control to display the PIP or Split frame.
Note: Audio is from the Main Picture only.
rVerify the Cable box is ON.
rChoose channels for the Main Picture by tuning the cable box.
rChoose channels for the PIP or Split frame by pressing .
Note: Swap is not available when using the cable box to tune channels. If your cable box has video output, it can be
connected to the TV to allow you to use all PIP or Split functions. See the equipment manual for more information.
Main Picture
PIP Frame
rConnect incoming cable to ANT 1 input on back of TV.
rPress to display PIP frame.
rSelect channels for the PIP frame by pressing .
rSelect channels for the Main picture by pressing
or use the remote control numeric keypad.
rPress to switch the PIP and MAIN PICTURE source.
rPress to view picture source status.
rPress to cancel PIP frame.
PIP
PIP CH
or
CH
CH
SWAP
RECAL
L
PIP
Note: Audio is from Main Picture only.
Split Picture
no Audio
rPress to display Split screen.
rSelect channels for the Split screen by pressing
.
rSelect channels for the Main picture by pressing
or use the remote control numeric keypad.
rPress to switch the SPLIT SCREEN and MAIN
PICTURE source.
rPress to view picture source status.
rPress to cancel Split screen.
SPLIT
PIP CH
or
CH
CH
SWAP
RECALL
SPLIT
Main Picture
with Audio
Note: Audio is from Main Picture only.
PIP SPLIT
PIP CH

12 l
PIP AND S PLIT O PERATION
PIP and Split Operation (contd.)
TV/VIDEO Button (PIP and Split)
Press when PIP or Split frame is displayed to select desired input mode.
Search Button (PIP and Split)
This feature lets you scan through all available channels.
Move Button (PIP only)
This feature is used to move PIP frame to one of four corners.
PIP MIN and PIP MAX Buttons
While PIP frame is displayed, press PIP MIN or PIP MAX button to vary the size of PIP frame.
PIP Frame
Main Picture
CH # COMPONENT 1 COMPONENT 2 VIDEO 1
VIDEO 2VIDEO 3VIDEO 4
Main Picture
COMPONENT 2 VIDEO 1
VIDEO 2VIDEO 3
Split Frame
CH # COMPONENT 1
VIDEO 4
Search Frames
rPress or to display PIP or Split frame.
rPress to display search frames.
rPress again to stop search feature.
PIP or Split frame channel will be the last active
search frame.
rPress or to cancel PIP or Split frame.
PIP SPLIT
SEARCH
OPEN/CLOSE
p
SEARCH
OPEN/CLOSE
p
PIP SPLIT
Main Picture
2
3
4
PIP Frame
rPress to display PIP frame.
rPress to position PIP frame to desired corner.
rPress to cancel PIP frame.
PIP
MOVE
PIP
Main Picture
MIN
rPress to display PIP frame.
rPress or to size PIP frame.
rPress to cancel PIP frame.
PIP
PIP MIN PIP MAX
PIP
Main Picture
MAX

PIP AND S PLIT O PERATION
13 l
PIP and Split Operation (contd.)
Freeze Button (PIP and Split)
This feature is used to stop action in PIP or Split frame.
Main Picture Freeze Feature
This feature is used to stop action of the Main Picture in display it on a Split or PIP freeze frame.
PIP, Split and Freeze Mode Buttons Operational Chart
This chart indicates the buttons that are operational with PIP, Split or Main Picture Freeze mode.
Special Remote Buttons
ASPECT Button
The ASPECT button on the remote control lets you select the picture size ratio to match programming format when using
DTV STB or DBS.
BBE Button
Press this button to turn the BBE®sound feature On or Off. BBE®Sound technology enhances speech intelligibility and
restores the dynamic range of musical passages to provide outstanding natural sound.
SAP Button
Press this button to let you cycle through different audio modes. If you are receiving a stereo program and you press the
SAP button, you can cycle between STEREO and MONO.
REMOTE
BUTTONS PIP MODE SPLIT MODE MAIN PICTURE FREEZE MODE
PIP MIN Size Smaller No Effect No Effect
PIP MAX Size Larger No Effect No Effect
FREEZE Freeze PIP Frame Freeze Split Frame Display or Delete
PIP CH Change Channel Change Channel No Effect
SEARCH Displays Search Frames Displays Search Frames No Effect
PIP Displays PIP Frame Displays PIP Frame No Effect
SPLIT Displays Split Frame Displays Split Frame No Effect
MOVE Move PIP Frame No Effect Move PIP Frame
SWAP Swap With Main Picture Swap With Main Picture No Effect
rPress PIP or SPLIT to display PIP or Split frame.
rPress to stop PIP or Split frame action.
rPress again to continue action.
rPress PIP or SPLIT to cancel PIP frame.
FREEZE
TV/VCR
FREEZE
TV/VCR
Main Picture
Freeze frame
rTo stop action for Main picture, press while
PIP or Split frame is not displayed.
rMain Picture freeze will be displayed in a PIP or Split
frame, depending on the selection in the Freeze menu
located inPicture Other ADJ2 section (refer to page 36).
rPress again to cancel Main Picture freeze
frame.
Note: While Main Picture freeze frame is displayed, only
move button is active for PIP, all other PIP and Split
buttons have no effect (see chart below).
FREEZE
TV/VCR
FREEZE
TV/VCR
Main Picture Main Picture
Freeze frame
PIP or Split.

14 l
R EMOTE C ONTROL O PERATION ( MODELS CT-32HL42 AND CT-36HL42)

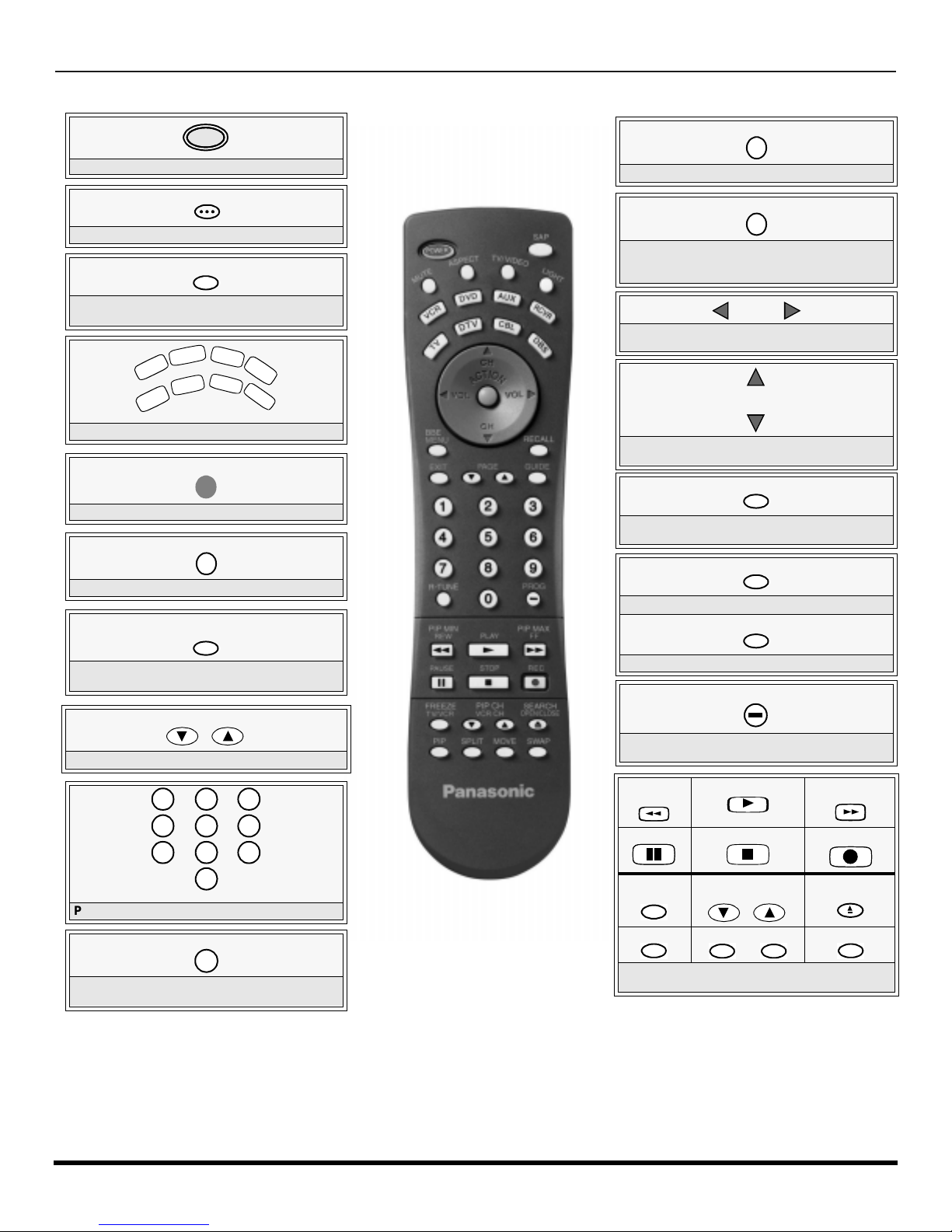

Remote Control Operation (models CT-32HL42 and CT-36HL42)
Press to turn ON and OFF.
POWER
MUTE
Press to mute sound. Press to display and
cancel CC (Closed Caption).
SAP
Press to access second audio program.
TV/VIDEO
Press to select TV or input modes.
Press to select remote operation.
VCR
DVD
TV
CBL
DBS
AUX
RCVR
DTV
ACTION
Press to access menus.
Press to select next or previous channel and
navigate in menus.
CH
CH
Press to adjust TV sound and navigate in
menus.
VOLVOL
EXIT
DBS functions button.
GUIDE
DBS functions button.
*PIP MIN
REW PLAY *PIP MAX
FF
PAUSE STOP REC
*FREEZE
TV/VCR *PIP CH
VCR CH *SEARCH
OPEN/CLOSE
*PIP *SPLIT *MOVE
*SWAP
*Split or PIP function buttons
Component function buttons
u
Press numeric keypad to select any channel.
7
4
1 2
5
8
0
9
6
3
R-TUNE
Press to switch to previously viewed
channel or input modes.
Battery Installation
Use two AA batteries:
Remove battery cover by pushing in and up near arrow.
Install batteries matching (+) and (-) polarity signs.
Replace the battery cover.
Note: Incorrect installation can cause battery leakage and
corrosion that will damage the Remote Control
Precautions
• Replace batteries in pairs.
• Do not mix battery types (zinc carbon
with alkaline).
• Do not recharge, heat, short-circuit,
disassemble, or burn batteries.
PROG
Press to enter minor number in a compound
number.
RECALL
Press to display time, channel, sleep timer,
and other options.
BBE
MENU
BBE - Press to turn on or off.
MENU - Press to access DBS or DVD menus.
PAGE
DBS page up/down and DVD skip -/+ buttons.
LIGHT
Press to illuminate remote buttons.
ASPECT
Select picture size (ratio) to match
programming format (DTV-STB and DBS
only).
EUR7603Z30

R EMOTE C ONTROL O PERATION ( MODELS CT-32HL42 AND CT-36HL42)
15 l
Mode Operational Key Chart
This chart defines which keys that are operational after programming (if needed), while in the selected remote control mode
TV, DTV, CABLE, DBS, VCR, DVD ...etc.
KEY NAME TV MODE DTV MODE CABLE MODE DBS MODE
POWER POWER POWER POWER POWER
SAP SAP ON/OFF - - -
MUTE MUTE TV MUTE CBL MUTE TV MUTE
ASPECT -DTV ASPECT -DBS ASPECT
TV/VIDEO INPUT SWITCH TV INPUT SWITCH TV INPUT SWITCH TV INPUT SWITCH
CHAN UP CHANNEL UP - CABLE CHANNEL UP DBS NAVIGATION UP
CHAN DOWN CHANNEL DOWN - CABLE CHANNEL DOWN DBS NAVIGATION DOWN
VOL RIGHT VOL + NAVIGATION RIGHT CABLE VOL + DBS NAVIGATION RIGHT
VOL LEFT VOL - NAVIGATION LEFT CABLE VOL - DBS NAVIGATION LEFT
ACTION ACTION ACTION ENTER DBS ACTION
BBE/MENU BBE On or off STB MENU -STB MENU
RECALL DISPLAY STB PROGRAM INFO. TV DISPLAY STB PROG. INFO
EXIT -DTV EXIT -STB EXIT
PAGE DOWN -STB PAGE DOWN -STB PAGE DOWN
PAGE UP -STB PAGE UP -STB PAGE UP
GUIDE -STB PRODGRAM GUIDE -DBS PRODGRAM GUIDE
1DIGIT 1 STB DIGIT 1 DIGIT 1 DIGIT 1
2DIGIT 2 STB DIGIT 2 DIGIT 2 DIGIT 2
3DIGIT 3 STB DIGIT 3 DIGIT 3 DIGIT 3
4DIGIT 4 STB DIGIT 4 DIGIT 4 DIGIT 4
5DIGIT 5 STB DIGIT 5 DIGIT 5 DIGIT 5
6DIGIT 6 STB DIGIT 6 DIGIT 6 DIGIT 6
7DIGIT 7 STB DIGIT 7 DIGIT 7 DIGIT 7
8DIGIT 8 STB DIGIT 8 DIGIT 8 DIGIT 8
9DIGIT 9 STB DIGIT 9 DIGIT 9 DIGIT 9
0DIGIT 0 STB DIGIT 0 DIGIT 0 DIGIT 0
R-TUNE PREVIOUS CHAN
OR VIDEO MODE PREVIOUS DTV CHAN CABLE PREVIOUS STB PREVIOUS
PROG -DTV PROGRAM/DASH -STB PROGRAM/DASH
PIP MIN
<<REW TV PIP MIN - - -
PLAY - - - -
PIP MAX
>>FF - - - -
PAUSE - - - -
STOP - - - -
RECORD - - VCR RECORD STB RECORD
FREEZE/TV/VCR TV PIP OR SPLIT FREEZE - - STB/DTV/SAT SW
PIP CH
VCR CH
PIP OR SPLIT
CHAN -CABLE CHANNEL DOWN STB CHANNEL DOWN
PIP CH
VCR CH
PIP OR SPLIT
CHAN -CABLE CHANNEL UP STB CHANNEL UP
SEARCH
OPEN/CLOSE SPLIT OR PIP SEARCH - - -
PIP PIP ON/OFF - - -
SPLIT SPLIT ON/OFF - - -
MOVE MOVE PIP - - -
SWAP SWAP PIP OR SPLIT WITH
MAIN PICTURE - - -
LIGHT REMOTE BUTTONS

16 l
R EMOTE C ONTROL O PERATION ( MODELS CT-32HL42 AND CT-36HL42)
Mode Operational Key Chart (contd.)
KEY NAME VCR MODE DVD MODE
(DVD) (CD)
AUX MODE
(VCR2) (TAPE) (PVR)
RCVR
MODE
POWER POWER POWER POWER POWER POWER POWER POWER
SAP - - - - - - -
MUTE TV MUTE TV MUTE RCVR MUTE TV MUTE RCVR MUTE TV MUTE RCVR MUTE
ASPECT - - - - - - -
TV/VIDEO TV INPUT SWITCH TV INPUT SWITCH TV INPUT SWITCH TV INPUT SWITCH TV INPUT SW TV INPUT SW RCVR INPUT
SW
CHAN UP VCR CHANNEL UP NAVIGATION UP NEXT TRACK VCR CHANNEL UP -PVR UP TUNER +
CHAN
DOWN VCR CHAN DOWN NAVIGATION
DOWN PREVIOUS TRACK VCR CHANNEL DOWN -PVR DOWN TUNER -
VOL RIGHT TV VOLUME + NAVIGATION
RIGHT TV/RCVR VOLUME UP TV VOLUME + RCVR VOLUME + PVR RIGHT RCVR VOLUME +
VOL LEFT TV VOLUME - NAVIGATION LEFT TV/RCVR VOLUME
DOWN TV VOLUME - RCVR VOLUME - PVR LEFT RCVR VOLUME -
ACTION TV ACTION SELECT -TV ACTION -SELECT -
BBE/MENU -DVD MENU - - - - -
RECALL ONSCREEN VCR
DISPLAY DVD DISPLAY TIME FORMAT ONSCREEN VCR DISPLAY -PVR ENTER -
EXIT - - - - - PVR Exit -
PAGE
DOWN -SKIP - SKIP - - - - -
PAGE UP -SKIP+ SKIP+ - - - -
GUIDE -TITLE NEXT TRACK - - PVR GUIDE -
1DIGIT 1 1 CHAPT. TRACK 1 DIGIT 1 -DIGIT 1 AV 1
2DIGIT 2 2 CHAPT. TRACK 2 DIGIT 2 -DIGIT 2 AV 2
3DIGIT 3 3 CHAPT. TRACK 3 DIGIT 3 -DIGIT 3 AV 3
4DIGIT 4 4 CHAPT. TRACK 4 DIGIT 4 -DIGIT 4 AV 4
5DIGIT 5 5 CHAPT. TRACK 5 DIGIT 5 -DIGIT 5 CD
6DIGIT 6 6 CHAPT. TRACK 6 DIGIT 6 -DIGIT 6 TUNER
7DIGIT 7 7 CHAPT. TRACK 7 DIGIT 7 -DIGIT 7 PHONO
8DIGIT 8 8 CHAPT. TRACK 8 DIGIT 8 -DIGIT 8 TAPE
9DIGIT 9 9 CHAPT. TRACK 9 DIGIT 9 -DIGIT 9 AUX
0DIGIT 0 0 CHAPT. TRACK 0 DIGIT 0 -DIGIT 0 -
R-TUNE - - - - DECK A/B REPLAY
ZONES -
PROG - - - - - RETURN TO
LIVE -
PIP MIN
<<REW VCR REWIND SKIP RESEARCH
<< RESEARCH REWIND VCR REWIND TAPE REWIND PVR REWIND SURROUND -
PLAY VCR PLAY DVD PLAY CD PLAY VCR PLAY TAPE PLAY PVR PLAY -
PIP MAX
>>FF VCR FF SKIP RESEARCH
FF>> SEARCH FF VCR FF TAPE FF PVR FF SURROUND +
PAUSE VCR PAUSE DVD PAUSE CD STILL/PAUSE VCR PAUSE TAPE PAUSE PVR PAUSE -
STOP VCR STOP DVD STOP CD STOP VCR STOP TAPE STOP PVR STOP -
RECORD VCR RECORD - - VCR RECORD TAPE RECORD PVR RECORD -
FREEZE/TV/
VCR TV/VCR SWITCH - - TV/VCR SWITCH -INSTAND
REPLAY -
VCR/DBS
CHAN VCR CHANNEL
DOWN SLOW - RANDOM VCR CHANNEL DOWN - - CENTER -
VCR/DBS
CHAN VCR CHANNEL UP SLOW + REPLAY VCR CHANNEL UP - - CENTER +
SEARCH
OPEN/
CLOSE -OPEN/CLOSE OPEN/CLOSE -OPEN/CLOSE QUICK SKIP -
PIP - - - - - - -
SPLIT - - - - - - -
MOVE - - - - - - -
SWAP - - - - - - -
LIGHT REMOTE BUTTONS

R EMOTE C ONTROL O PERATION ( MODELS CT-32HL42 AND CT-36HL42)
17 l
Programming The Remote
The Universal Remote Control can be programmed to operate many manufacturers’ components, using the component
function buttons for VCR, DVD, AUX, RCVR, TV, DTV CABLE or DBS. Follow the procedures for programming your
Remote Control with or without a code for the component.
Determine the manufacturer of the component and look in the table for the code.
Programming With A Code
Procedure
• Confirm that the external component is plugged and operating.
• Turn the component off.
• Press and together, for at least 5 seconds.
• Press appropriate component button on the Remote Control VCR, DVD (CD), AUX (VCR2 or TAPE), RCVR, DTV,
CABLE or DBS.
• Enter the 3-digit component code using the Remote Control numeric keypad (0 ~ 9 buttons).
•Press the Remote Control to test the component. If the procedure was successful, the component will
turn on.
Programming Without A Code
This procedure searches all codes and is called the “sequence method.”
• Confirm that the external component is plugged in and on.
• Turn the component off.
• Press and together, for at least 5 seconds.
• Press appropriate component button on the Remote Control.
• Press VOL uto move forward to the next code. Press tVOL to move backward.
• Press the Remote Control to test the component. If the procedure was successful, the component will turn
on.
Note: Repeat the above steps until the component code is found. It may take many attempts before the correct code
is found.
• After the code is found, press to store the code.
Default Modes For Remote Control
Device Operates Default
TV TV (Panasonic Only) Panasonic TV Codes
DTV DTV (Panasonic Only) Panasonic DTV Codes
CABLE CABLE (Preset) Panasonic CABLE Codes
DBS DBS (Preset) Panasonic DBS Codes
VCR VCR (Preset) Panasonic VCR Codes
DVD/CD DVD and CD (Preset) Panasonic DVD Codes
AUX Personal Video Recorders,
Tape and VCR2 PanasonicPersonalVideo Recorders Code
RCVR Audio Receiver (Preset) Panasonic RCVR Code
Helpful Hints: Unsuccessful Code
If the component does not operate with the Remote Control, repeat
the procedure using another code. (Some brands have multiple
codes).
If an incorrect code is entered, or if the procedure takes longer than
30 seconds, the programming will fail.
ACTION POWER
POWER
ACTION POWER
POWER
ACTION

18 l
R EMOTE C ONTROL O PERATION ( MODELS CT-32HL42 AND CT-36HL42)
Component Codes
The Universal Remote Control is capable of operating many component brands after entering a code. Some components
may not operate because the codes are not available due to limited memory. The Universal Remote Control does not
control all features found in each model.
Write the code numbers from tables in this space. This will serve as a reference if you need
to program your Remote Control.
VCR
DVD DVD (CD) AUX (VCR 2) AUX ( TAPE)
RECEIVER DTV CABLE DBS
Brand Code
Admiral 335
Aiwa 332
Akai 314, 315, 316, 329
Audio Dynamic 311, 339
Bell & Howell 305, 313
Broksonic 320, 326
Canon 323, 325
Citizen 306
Craig 305, 306, 329
Curtis Mathes 324, 345
Daewoo 301, 324, 343
DBX 310, 311, 339
Dimensia 345
Emerson 303, 319, 320, 325, 326, 343
Fisher 305, 307, 308, 309, 313
Funai 320, 326, 334
GE 324, 333, 345
Goldstar 306
Gradiente 334
Hitachi 300, 323, 345
Instant Replay 323, 324
Jensen 339
JVC 310, 311, 334, 339
Kenwood 306, 310, 311, 339
LXI 300, 305, 306, 307, 308, 309
Magnavox 323, 324, 331
Marantz 310, 311, 339
Marta 306
Memorex 309, 324
MGA 338, 340, 341, 347, 348
Minolta 300, 345
Mitsubishi 338, 340, 341, 347, 348
Multitech 304, 347
NEC 310,311, 334, 339
Olympic 323, 324
Optimus 306, 321, 328, 335
Brand Code
Orion 320, 326
Panasonic 321, 322, 323, 324
J.C. Penney 300, 305, 310, 311, 324, 339, 345
Pentax 300, 311, 345
Philco 320, 323, 324, 326, 331, 343
Philips 323, 324, 331
Pioneer 323
Proscan 300, 301, 302, 323, 324, 331, 333,
345, 346
Quasar 321, 322, 323, 324
Radio Shack 305, 309, 324, 333, 336, 340
RCA 300, 301, 302, 323, 324, 331, 333,
345, 346
Realistic 305, 309, 324, 336, 340
Samsung 302, 304, 333
Sansui 320, 326, 339, 352
Sanyo 305, 309, 313
Scott 301, 302, 304, 309, 320, 326, 338,
340, 347, 348
Sears 300, 305, 306, 307, 308
Sharp 335, 336
Shintom 317
Signature 2000 335
Singer 317
Sony 328, 329, 330
Sylvania 323, 324, 331
Tashiro 306
Tatung 310, 311, 339
Teac 310, 311, 339
Technics 321, 322, 323, 324
Teknika 324
Toshiba 301, 346
Vector Research 311
Wards 306, 309, 335, 336, 344
Yamaha 305, 310, 311, 339
Zenith 306, 344
Codes For VCR
