Panasonic KX-TCD210G User manual

–1 –
Please read the operating instructions for further details.

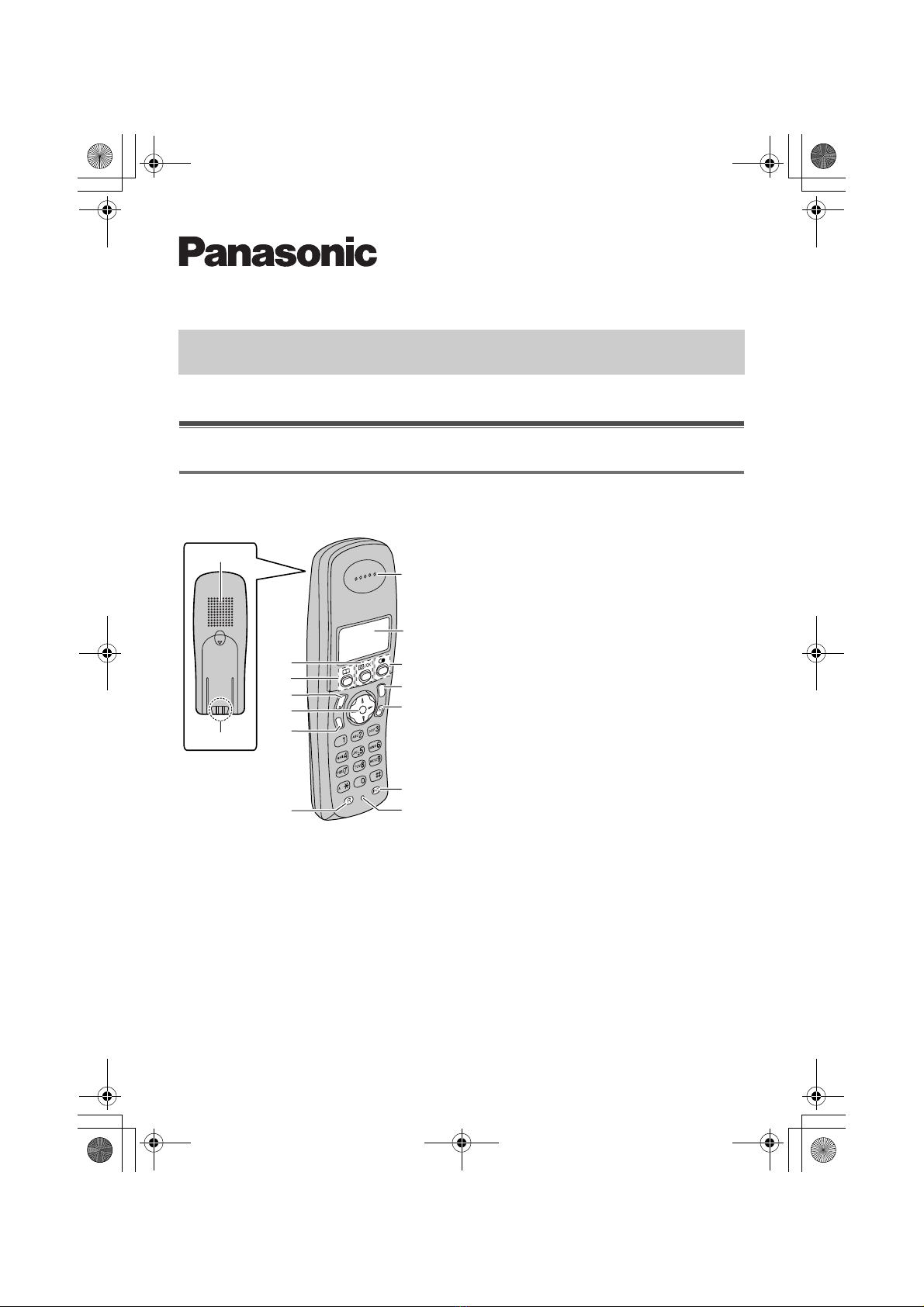

Controls
Handset
ASpeaker
BCharge contact
C{j/OK}(Menu/OK)
D{k} (Phonebook)
E{C} (Talk)
FNavigator key
L {e}{v}: To search for the desired item in
menus.
L{>}: To select the desired item or move
the cursor to the right.
L{<}: To return to the previous screen or
move the cursor to the left.
G{s} (Speakerphone)
H{R}(Recall)
IReceiver
JDisplay
K{R} (Redial/Pause)
L{ih} (Off/Power)
M{C/T}(Clear/Mute)
N{INT}(Intercom)
OMicrophone
C
s
h
T
i
N
a
N
O
C
E
F
G
H
DL
I
M
B
A
J
K
Digital Cordless Phone
Model No. KX-TCD210G
Quick Guide
TCD210G_QG(e-g).fm Page 1 Thursday, December 16, 2004 11:01 AM

–2 –
Base unit
Displays
Display icons
Various icons appear on the handset display to indicate the current status of the unit.
A{x} (Page)
BCharge contact
bA
B
wWithin range of a base unit
LWhen flashing: Handset is
searching for base unit. (out
of range of base unit, handset
is not registered to base unit,
no power on base unit)
LHandset is accessing base unit.
(intercom, paging, changing
base unit settings, etc.)
kHandset is on an outside call.
oCall bar is on.
5Battery strength
[VE] Voice enhancer is set to high or
low tone.
[N] Night mode is on.
[X] Key lock is on.
[2] Handset number: The left icon
shows handset 2 example.
-2- Base unit number: The left icon
shows base unit 2 example.
FNew SMS message received
(SMS users only)
[Besetzt] Line is being used by another
handset.
TCD210G_QG(e-g).fm Page 2 Thursday, December 16, 2004 11:01 AM

–3 –
Connections
When the AC adaptor is connected, a short beep will be heard. If it is not heard, check the
connections.
Battery installation
Insert the batteries negative (T) terminal first. Close the handset cover. Place the handset
on the base unit for about 7 hours before initial use.
Note:
LUse only rechargeable batteries.
Important:
LUse only the AC adaptor and telephone
line cord supplied with this unit.
Note:
LNever install telephone wiring during a
lightning storm.
LThe AC adaptor must remain connected
at all times. (It is normal for the adaptor to
feel warm during use.)
(220–240 V, 50 Hz)
To telephone
network
Hooks
TCD210G_QG(e-g).fm Page 3 Thursday, December 16, 2004 11:01 AM

–4 –
Turning the power on
Press {ih} for about 1 second.
Setting the date and time
1Press {j/OK}.
2Select “Mobilteileinst.”, then press {>}.
3Select “Zeiteinstell.”, then press {>}.
4Select “Datum/Uhr eing.”, then press {>}.
5Enter the current day, month and year by selecting 2 digits for each.
6Enter the current hour and minute by selecting 2 digits for each.
LYou can select “AM”, “PM”or 24-hour time entry by pressing {*} repeatedly.
7Press {j/OK}.
8Press {ih}.
Basic operations
Feature Operation
To turn the power off Press {ih} for about 2 seconds.
To make a call Dial the phone number, then press {C}.
To turn on the speakerphone Press {s}.
To hang up Press {ih}.
To adjust the receiver or speaker
volume
Press {e} or {v} while talking.
To redial the last number dialled Press {R}, then press {C}.
To make a call using the redial list Press {R}. Press {e} or {v} repeatedly to
select the desired number, then press {C}.
To answer a call Press {C}.
To mute your voice during a call Press {C/T}. To return to the conversation, press
{C/T}again.
To store a name and phone number
in the phonebook
Press {k}, {j/OK}, select “Neuer Eintrag”,
then press {>}.
Enter the party’s name (16 characters max.), then
press {j/OK}. Enter the party’s phone number
(24 digits max.), then press {j/OK}. Select the
desired category for the entry, then press {>}.
Select “Speichern”, then press {>}. Press
{ih}.
LTo enter a name, see the character table in the
operating instructions.
TCD210G_QG(e-g).fm Page 4 Thursday, December 16, 2004 11:01 AM

–5 –
To make a call using the phonebook Press {k}. Press {e} or {v} repeatedly to
display the desired entry, then press {C}.
To adjust the handset ringer volume Press {j/OK}. Select “Mobilteileinst.”,
then press {>}. Select “Ruftoneinstell.”,
then press {>}. Select “Ruflautstärke”, then
press {>}. Press {e} or {v} repeatedly to select
the desired volume. Press {>}, then press
{ih}.
To change the ringtone used by the
handset for outside calls
Press {j/OK}. Select “Mobilteileinst.”,
then press {>}. Select “Ruftoneinstell.”,
then press {>}. Select “Rufsignal ext.”, then
press {>}. Select the desired ringtone, then press
{>}. Press {ih}.
Feature Operation
